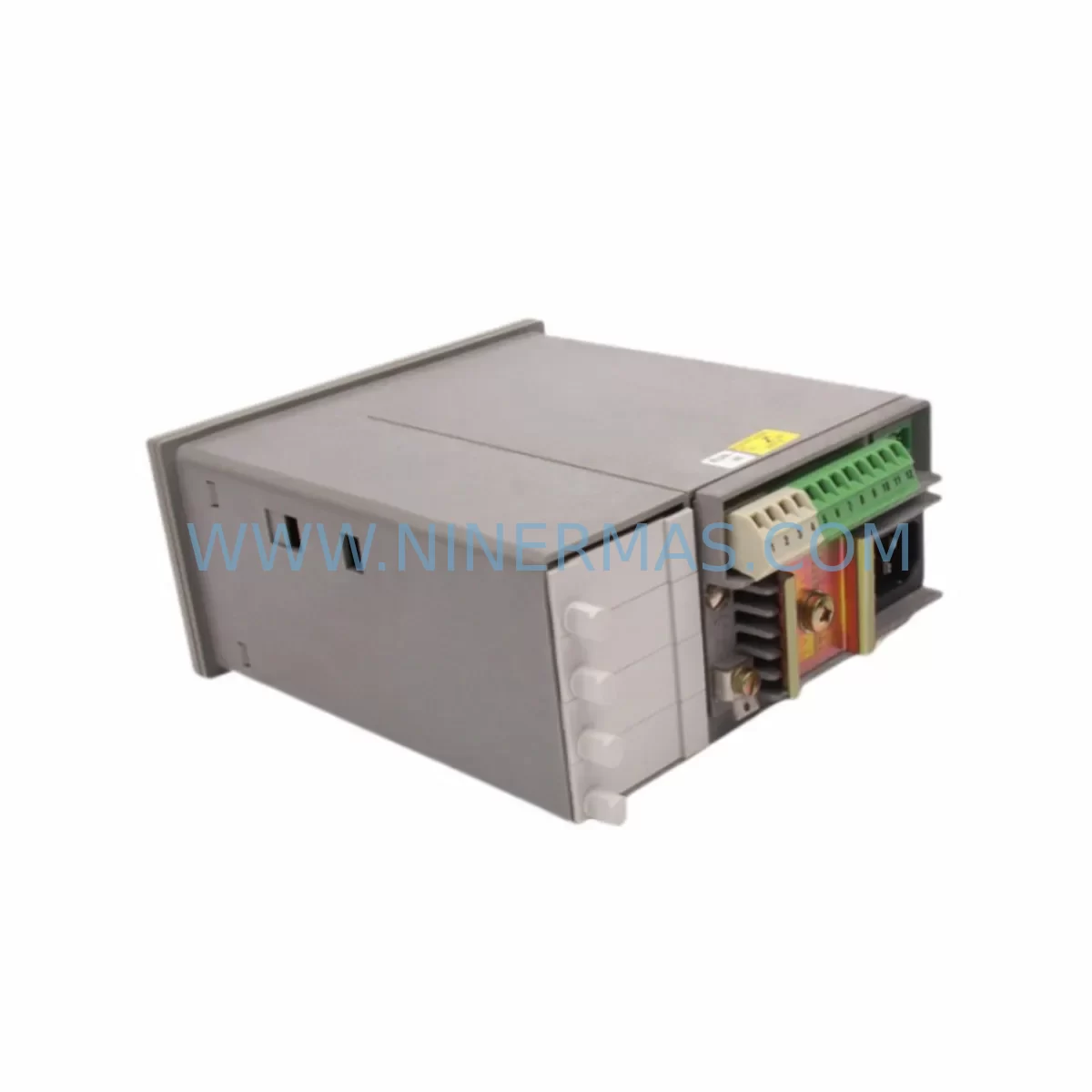

The Siemens 6DR2104-5 is a compact, high-reliability process controller from the SIPART DR21 series, widely deployed across legacy automation systems in chemical processing, power generation, water treatment, and discrete manufacturing. As original equipment manufacturers phase out support for aging control architectures, the 6DR2104-5 has become a critical retrofit and replacement component for engineers tasked with extending the operational life of existing control panels, DCS loops, and standalone PID control stations.

Whether you are replacing a failed unit on a running production line, upgrading a control cabinet from an obsolete platform, or migrating from an older SIPART DR10 or DR20 controller to a more capable generation, the 6DR2104-5 provides a proven migration path that minimizes engineering rework and reduces commissioning time. Its standardized 96 × 96 mm panel-mount form factor fits directly into existing cutouts used by earlier SIPART DR series controllers, eliminating the need for panel modification in most retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the replacement unit arrives on site. Engineers planning to swap out a failed or end-of-life controller with the Siemens 6DR2104-5 should start by auditing the existing control loop: document the current setpoint range, PV input signal type, output signal range, and any cascade or ratio control configurations active in the original unit. If the legacy controller was connected to a Siemens SIMATIC S7-300 or S7-400 PLC via analog I/O modules such as the SM 331 or SM 332, confirm that the 4–20 mA signal chain remains intact and that the PLC program does not require modification to accommodate the replacement controller’s output characteristics.

For installations where the 6DR2104-5 is mounted in a control cabinet alongside a SITOP PSU100S or similar 24 V DC power supply module, verify that the available current budget on the rail is sufficient to support the controller’s auxiliary power draw, particularly if additional I/O expansion modules or signal isolators have been added since the original cabinet design. In multi-loop panels, it is common to find a 6DR2800-8A PROFIBUS DP communication module daisy-chained across several SIPART DR21 units; confirm that the bus termination resistors are correctly positioned after any module swap to avoid communication errors on the segment.

Terminal wiring on the 6DR2104-5 follows the standard SIPART DR21 rear connector layout, which means that in most cases the existing field wiring — including thermocouple or RTD inputs routed through a signal isolator or transmitter head — can be reconnected without re-labeling or re-routing. However, if the original installation used a 6DR2800-8E setpoint potentiometer module or an external 6DR2800-8J manual station, verify that the auxiliary connector pinout matches before powering up. Where the control loop feeds a SIPART PS2 electropneumatic positioner downstream, confirm that the 4–20 mA output range and split-range configuration in the new controller match the positioner’s input calibration to avoid valve positioning errors during the first live run.

If the retrofit involves migrating from a standalone SIPART DR21 loop to a distributed control architecture — for example, integrating the loop into a SIMATIC PCS 7 or third-party DCS via PROFIBUS DP — plan for the addition of the optional communication module and update the DCS tag database to reflect the new device address and parameter mapping. HMI screens built on SIMATIC WinCC or a legacy OP7 / OP17 operator panel may require faceplate updates to correctly display the controller’s mode status, setpoint, and alarm outputs after the migration.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-system controller replacement. For the 6DR2104-5, the recommended approach is to pre-configure the replacement unit on the bench before the maintenance window opens. Using the SIPART DR21 programming cable and the parameter upload/download function, transfer the full parameter set — including PID tuning constants, setpoint limits, alarm thresholds, and output scaling — from the original controller to the replacement unit while the process is still running. This eliminates the need for manual re-entry of parameters during the outage and significantly reduces the risk of transcription errors that could cause process upsets on restart.

During the physical swap, place the control loop in manual mode at the DCS or PLC level before removing the original controller. This ensures that the final control element — whether a control valve, variable frequency drive, or motorized damper — holds its last position and does not respond to the loss of the 4–20 mA output signal during the changeover. After installing the 6DR2104-5 and reconnecting the terminal wiring, perform a cold-start check: verify that the PV input reads correctly, that the output signal tracks the manual setpoint, and that all alarm contacts are in the expected state before transferring control back to automatic mode.

For critical loops where even a brief interruption is unacceptable, consider staging a temporary bypass using a portable manual loading station connected in parallel with the controller output. This allows the field operator to maintain manual control of the final element throughout the swap without interrupting the process. Once the replacement 6DR2104-5 is confirmed stable in automatic mode, the bypass can be removed and the loop returned to normal supervisory control. Document the as-found and as-left parameter values for the maintenance record, and schedule a follow-up loop performance check within 24–48 hours to confirm that the PID response is stable under normal load conditions.

Retrofit Support FAQ

Q1: Is the 6DR2104-5 a direct drop-in replacement for other SIPART DR21 variants?
In most cases, yes. The 6DR2104-5 shares the same 96 × 96 mm panel cutout, rear terminal layout, and parameter structure as other SIPART DR21 variants. However, if the original unit carried a different suffix indicating a specific input type or output configuration (for example, a relay output variant versus a continuous analog output variant), verify that the replacement’s I/O specification matches the field wiring and downstream device requirements before installation. Our team performs a pre-shipment functional test on every unit to confirm that inputs, outputs, and display functions are operating within specification.

Q2: Can I reuse the existing field wiring and terminal connections?
Yes, in the majority of retrofit scenarios the existing field wiring can be reused without modification. The SIPART DR21 rear terminal block uses a standard screw-clamp design that accepts the wire gauges typically used in industrial control panels. If the original installation used a plug-in terminal adapter or a custom wiring harness, confirm that the connector type is compatible with the replacement unit before ordering. We recommend photographing the original wiring before disconnection to simplify reconnection and reduce the risk of wiring errors during the swap.

Q3: What is included with the unit, and what is covered under the 12-month warranty?
Each 6DR2104-5 ships with the controller unit, a rear terminal connector, and a basic parameter sheet. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including input/output circuit failures, display malfunctions, and power supply faults. Physical damage caused by incorrect wiring, overvoltage, or environmental exposure beyond the rated specification is not covered. Warranty claims are processed promptly — contact sale@ninermas.com with the order reference and a description of the fault, and our technical team will advise on the fastest resolution path.

Q4: Do you maintain stock for immediate shipment, and can you source related components?
Yes. We maintain inventory of the 6DR2104-5 and a range of related SIPART DR21 series accessories and compatible components to support urgent retrofit and breakdown replacement requirements. If your project requires additional items — such as a PROFIBUS DP communication module, a programming cable, a replacement operator panel, or compatible analog I/O modules for the associated PLC rack — contact our team with your full bill of materials and we will advise on availability and lead times. All units are tested prior to shipment and dispatched with documentation to support your incoming inspection process.
