Siemens 6FC5311-0AA00-0AA0 Retrofit-Compatible NCU for Legacy Systems

Siemens 6FC5311-0AA00-0AA0 Retrofit-Compatible NCU for Legacy CNC Systems

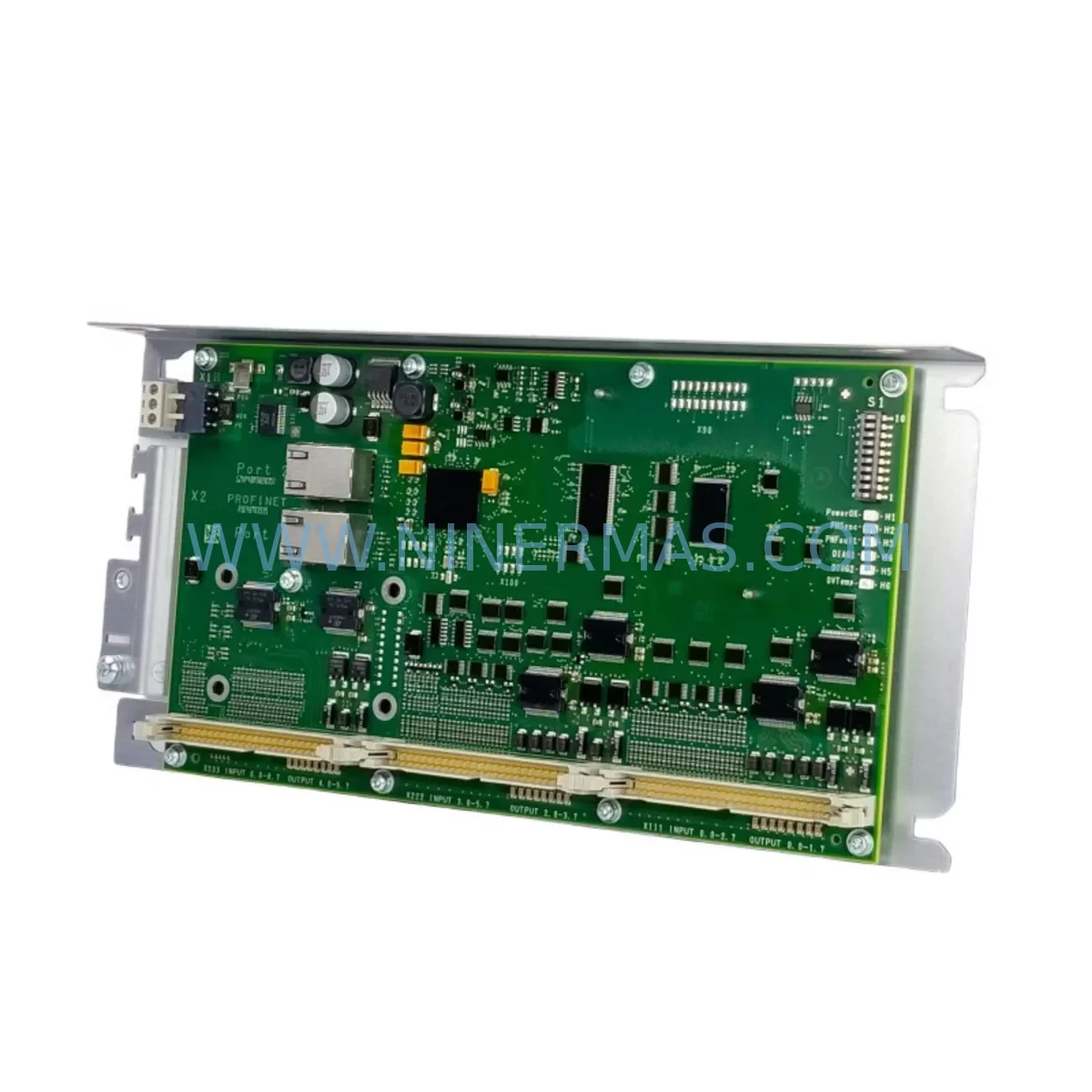

The Siemens 6FC5311-0AA00-0AA0 is a Numerical Control Unit (NCU) designed for the SINUMERIK 840D CNC platform — one of Siemens’ most widely deployed high-performance CNC control systems in precision machining, multi-axis milling, turning, and grinding applications. As production lines age and original equipment manufacturers discontinue support for legacy hardware, the 6FC5311-0AA00-0AA0 has become a critical retrofit and replacement component for facilities seeking to extend the operational life of their existing SINUMERIK 840D-based control cabinets without committing to a full system overhaul.

NINERMAS maintains verified stock of the 6FC5311-0AA00-0AA0 and provides full pre-shipment testing, compatibility documentation, and 12-month warranty coverage — making it a reliable sourcing solution for maintenance engineers, system integrators, and OEM retrofit teams worldwide.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6FC5311-0AA00-0AA0 in an active production environment requires careful pre-planning to ensure continuity of machine operation and minimal disruption to the control architecture. The NCU sits at the heart of the SINUMERIK 840D system, coordinating axis interpolation, PLC logic execution, HMI communication, and drive bus management — meaning that a poorly planned swap can cascade into issues across multiple subsystems.

Before initiating the replacement, engineers should perform a full backup of the NCK machine data, PLC program (stored on the SINUMERIK 840D MMC or CF card), and any active tool compensation tables. If the machine uses a PCU 50 or PCU 20 operator panel interface, confirm that the HMI software version is compatible with the NCU firmware on the replacement unit — mismatched versions can cause communication faults on the MPI bus or prevent the HMI from loading axis screens correctly.

On the drive side, verify that the SIMODRIVE 611D drive modules or SINAMICS S120 booksize units connected via the drive bus are addressed correctly. The 6FC5311-0AA00-0AA0 manages drive bus initialization during power-up; if module addresses have drifted or drive firmware is outdated, the NCU may fault on startup. It is advisable to document all drive axis assignments and compare against the existing machine data before the swap.

For I/O integration, check that the SINUMERIK 840D I/O module assignments (typically managed through the integrated PLC or via PROFIBUS-DP peripherals such as ET 200 distributed I/O) are correctly mapped in the PLC program. Any changes to the NCU hardware revision may require a PLC re-download if the GSD file or hardware configuration in STEP 7 references the specific NCU variant.

If the control cabinet includes a Siemens 6SN1145 series power supply module or a 6SN1146 infeed/regenerative unit, confirm that the 24 VDC logic rail is stable and within tolerance before powering the new NCU. Voltage fluctuations during startup are a common cause of NCU initialization errors in retrofit scenarios. A signal isolator or surge protection device on the 24 VDC line is recommended if the cabinet environment is electrically noisy.

For facilities migrating from older SINUMERIK 840C or 810D platforms to the 840D architecture, the 6FC5311-0AA00-0AA0 represents a viable intermediate step — retaining the familiar SINUMERIK operator environment while providing improved processing performance and expanded axis count support. In these migration paths, a programming cable (e.g., PC adapter USB or MPI/DP adapter) is essential for transferring legacy programs and verifying communication between the new NCU and existing field devices.

Backplane rack integrity should also be inspected during the retrofit. Worn or corroded backplane connectors in the SINUMERIK 840D rack can cause intermittent NCU faults even after a successful hardware replacement. If the rack shows signs of wear, sourcing a replacement rack assembly alongside the 6FC5311-0AA00-0AA0 is strongly recommended to avoid repeat downtime.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any CNC control retrofit. For the 6FC5311-0AA00-0AA0, the replacement process can typically be completed within a planned maintenance window of 4–8 hours when all preparatory steps have been completed in advance.

The most effective downtime reduction strategy is to pre-configure the replacement NCU off-machine before the scheduled swap. This involves loading the correct NCK software version onto the CF card, restoring the machine data backup, and verifying that the PLC program compiles without errors in a bench environment. When the replacement unit arrives on-site already loaded with the correct software and machine data, the physical swap and startup sequence can be reduced to 1–2 hours in most cases.

During the swap window, protect the original PLC logic by maintaining a verified backup on both the CF card and an external PC. Do not overwrite the backup until the replacement NCU has completed a full startup cycle and all axes have been referenced successfully. If the machine uses a SINUMERIK Operate or legacy MMC 103 HMI, verify that all axis screens, tool management pages, and program directories are accessible before releasing the machine to production.

For multi-machine facilities, consider staging the retrofit during a shift changeover or scheduled weekend maintenance to avoid impacting production throughput. NINERMAS can support expedited shipping for urgent replacement scenarios, with stock available for same-week dispatch to most international destinations.

Retrofit Support FAQ

Q1: Is the 6FC5311-0AA00-0AA0 a direct replacement for my existing SINUMERIK 840D NCU?
A: In most standard 840D configurations, yes. The 6FC5311-0AA00-0AA0 is designed to fit the standard NCU slot in the SINUMERIK 840D rack and retains the same connector pinouts and backplane interface. However, we recommend confirming your existing NCU part number and NCK software version before ordering to ensure full compatibility.

Q2: Does NINERMAS test the unit before shipment?
A: Yes. All units undergo pre-shipment functional testing to verify power-on behavior, communication interface integrity, and hardware condition. A test report is available upon request. Each unit ships with a 12-month warranty covering hardware defects under normal operating conditions.

Q3: What wiring changes are required during installation?
A: For standard 840D configurations, no rewiring is required. The X1, X2, and X3 connectors on the 6FC5311-0AA00-0AA0 are pin-compatible with the existing harness. If your machine has been modified from the original OEM wiring, we recommend reviewing the wiring diagram against the NCU terminal assignment before installation.

Q4: How quickly can NINERMAS ship the 6FC5311-0AA00-0AA0?
A: We maintain stock of the 6FC5311-0AA00-0AA0 and can typically dispatch within 1–3 business days. Expedited shipping options are available for urgent production recovery situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time.
