IAI PDR-I-200L-2 Retrofit-Compatible Servo Drive for Legacy Systems

IAI PDR-I-200L-2 Retrofit-Compatible Servo Drive for Legacy Systems

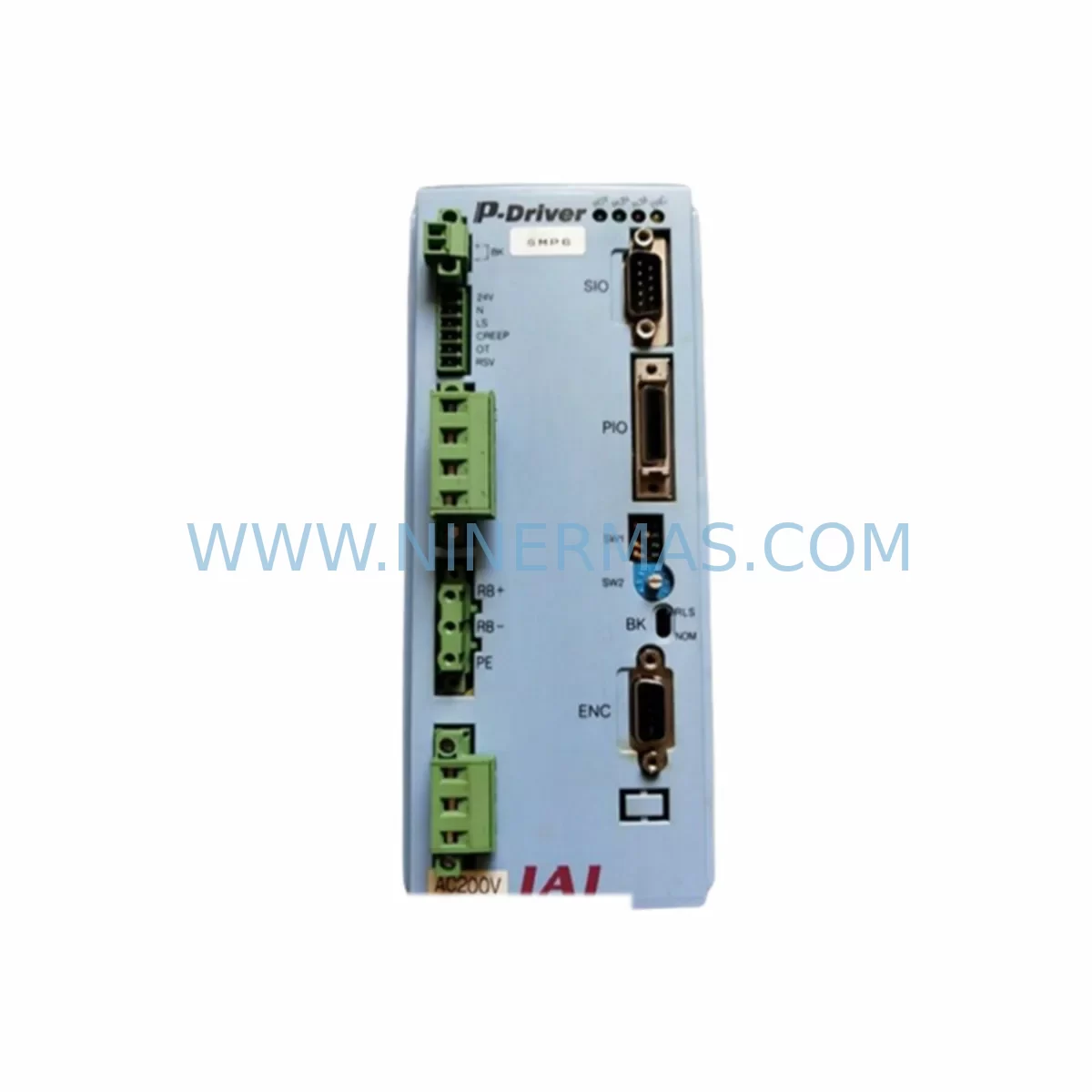

The IAI PDR-I-200L-2 is a high-performance servo drive from IAI’s PDR Series, purpose-built for precision motion control in industrial automation environments. As legacy production lines face increasing pressure to modernize without full system overhauls, the PDR-I-200L-2 has become a critical retrofit component for engineers managing aging control architectures. Whether you are replacing a failed unit on an existing servo axis, upgrading a multi-axis gantry system, or migrating from an obsolete drive platform, the PDR-I-200L-2 delivers the electrical compatibility, communication interface support, and mechanical form factor required for a smooth, low-risk transition.

NINERMAS COMPANY LIMITED maintains verified in-stock inventory of the IAI PDR-I-200L-2, supported by a 12-month warranty and pre-shipment functional testing. Each unit is inspected against IAI factory specifications before dispatch, ensuring that field engineers receive a drive that is ready for immediate installation and commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IAI PDR-I-200L-2 into an existing production line requires a structured pre-installation audit. Before the replacement drive arrives on-site, the engineering team should document the full wiring schematic of the original servo axis, including the power supply feed from the control cabinet, the encoder cable routing, and the I/O terminal assignments for servo-ready, alarm-output, and inhibit signals.

In many PDR-series installations, the servo drive operates alongside an IAI PCON controller or an IAI SCON-CA controller, which manages position data, speed profiles, and homing sequences. When replacing the PDR-I-200L-2, it is essential to verify that the controller’s axis parameter table still references the correct drive gain settings, current limits, and encoder resolution. If the original drive parameters were never backed up, the commissioning engineer will need to re-tune the axis from scratch using IAI’s PC software utility.

Power supply integrity is another critical checkpoint. Many legacy control cabinets use a 24VDC switching power supply — such as an IAI PS-241 or equivalent third-party unit — to power the drive’s logic circuit and I/O interface. Before energizing the replacement PDR-I-200L-2, confirm that the 24VDC rail is within tolerance and that the power supply has sufficient current headroom to support the drive’s inrush demand during initialization. Undersized power supplies are a common cause of nuisance faults after servo drive replacement.

For systems that include safety interlocks — such as an emergency-stop relay module, a safety door switch, or a light curtain interface — the drive’s STO (Safe Torque Off) input wiring must be verified against the original safety circuit diagram. Incorrect STO wiring can prevent the drive from enabling, or worse, can bypass the safety function entirely. Always perform a full safety function test after any servo drive replacement before returning the machine to production.

In multi-axis systems, the PDR-I-200L-2 may share a common DC bus or a synchronized communication link with adjacent servo drives. If the installation includes other IAI PDR-series drives on the same rack or backplane — for example, a PDR-I-100L-2 or a PDR-I-400L-2 on neighboring axes — confirm that the bus termination resistors and axis address settings are correctly configured after the swap. Axis address conflicts are a frequent source of communication errors in multi-drive systems.

Where the original system used an IAI RCM-101-MW teaching pendant or a dedicated programming cable for parameter entry, ensure that the same interface tool is available on-site during commissioning. Some older PDR-series drives require a specific cable adapter to connect to modern laptop USB ports, and sourcing this adapter at the last minute can add unnecessary delay to the retrofit schedule.

For installations that are migrating from a purely pulse-train servo interface to a network-based motion control architecture, the PDR-I-200L-2 can serve as a stable interim solution while the broader communication protocol migration — for example, from RS-232 to EtherCAT or MECHATROLINK-III — is planned and budgeted. During this transition period, the existing IAI XSEL controller or IAI RCP series actuator wiring can remain intact, minimizing the scope of the immediate retrofit and reducing the risk of introducing new faults into the production environment.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance engineer undertaking a servo drive replacement on a live production line. The IAI PDR-I-200L-2 is designed for like-for-like substitution, which means that a well-prepared swap can be completed within a single planned maintenance window — typically two to four hours for a single-axis replacement, assuming all pre-installation checks have been completed in advance.

The most effective downtime-reduction strategy is to complete all preparatory work before the machine is taken offline. This includes printing the original wiring diagram, photographing the terminal block connections, backing up the drive parameters via the IAI PC software, and confirming that the replacement PDR-I-200L-2 has been received, inspected, and verified against the original unit’s nameplate data. When the machine is finally stopped, the engineer should be able to proceed directly to the physical swap without any diagnostic delays.

To protect the original program logic stored in the upstream controller — whether an IAI PCON-CA, an IAI ACON-C, or a third-party PLC managing the servo axis — always confirm that the controller’s non-volatile memory has retained the position table and sequence program before disconnecting the drive. In systems where the controller and drive share a common power supply, a brief power interruption during the swap can sometimes trigger a memory initialization event in older controller firmware versions. Having a verified backup of the position table on a laptop or USB drive eliminates this risk entirely.

After the replacement PDR-I-200L-2 is installed and wired, the commissioning sequence should follow IAI’s standard axis initialization procedure: power-on self-test, encoder signal verification, servo-on command from the controller, manual jog test at low speed, and finally a full-cycle test at production speed with the load connected. Each step should be documented and signed off before the machine is returned to automatic operation. This structured approach not only confirms that the replacement drive is functioning correctly, but also provides a clear audit trail for the maintenance record.

Retrofit Support FAQ

Q1: Is the IAI PDR-I-200L-2 a direct replacement for the original PDR-I-200L-2 unit?
Yes. The PDR-I-200L-2 supplied by NINERMAS is sourced to match the original IAI factory specification. For a like-for-like replacement on the same axis, no firmware modification or parameter re-mapping is required, provided the original drive parameters are restored from a backup after installation.

Q2: What pre-shipment testing does NINERMAS perform on the PDR-I-200L-2?
Every unit undergoes a functional power-on test and visual inspection before dispatch. Units are verified against IAI PDR-series electrical specifications, and any unit that does not pass inspection is quarantined and not shipped. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the PDR-I-200L-2 be used in a system that has been partially upgraded to a newer communication protocol?
The PDR-I-200L-2 supports IAI’s native pulse-train and serial communication interfaces. If the upstream controller has been upgraded to output EtherCAT or MECHATROLINK commands, a protocol converter or a controller-side adapter module will be required. NINERMAS can advise on compatible interface solutions based on your specific controller model and communication architecture.

Q4: What is the typical lead time and stock availability for the IAI PDR-I-200L-2?
NINERMAS maintains ready stock of the PDR-I-200L-2 to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity procurement or long-term spare-parts program commitments, please contact our sales team directly to discuss stock reservation and pricing arrangements.
