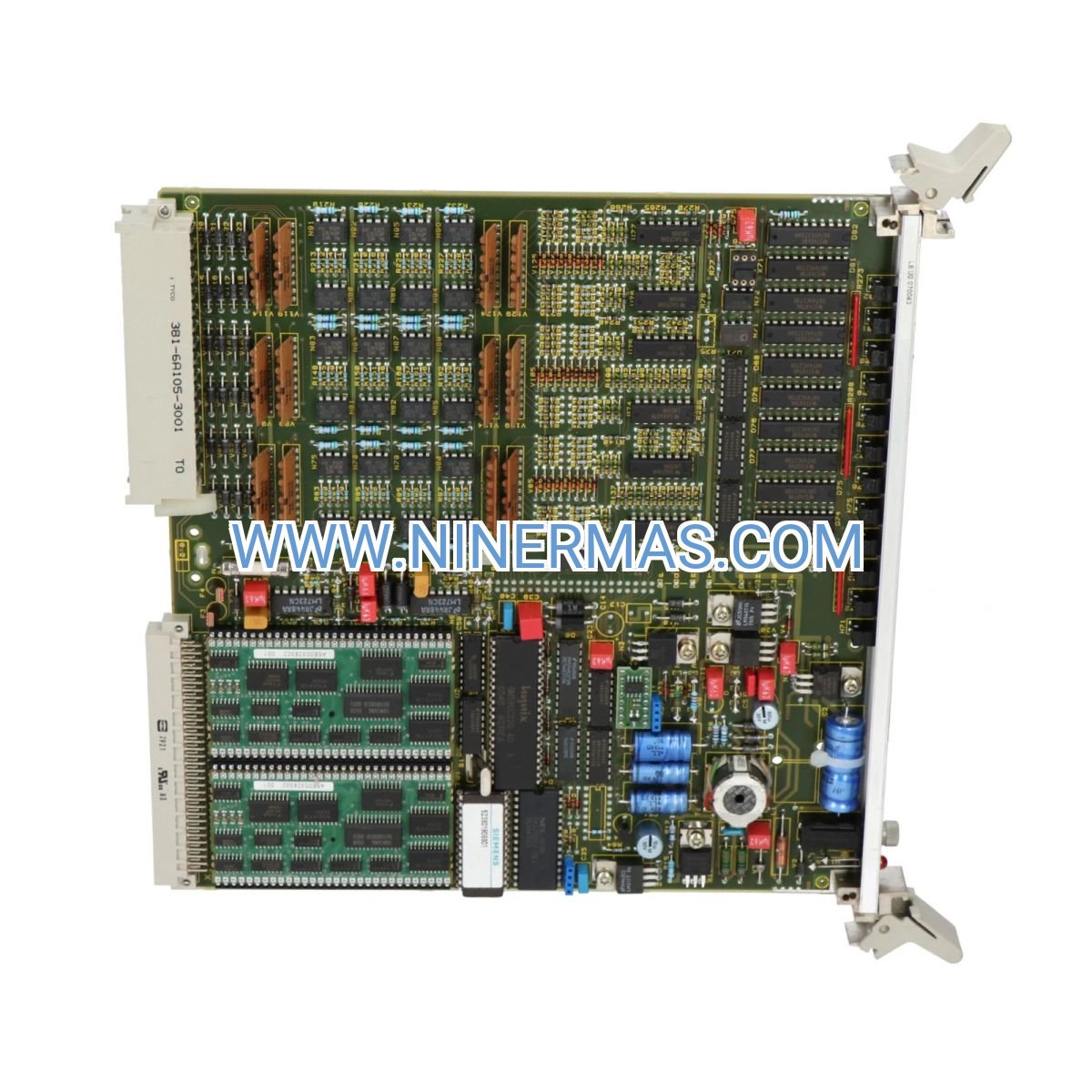

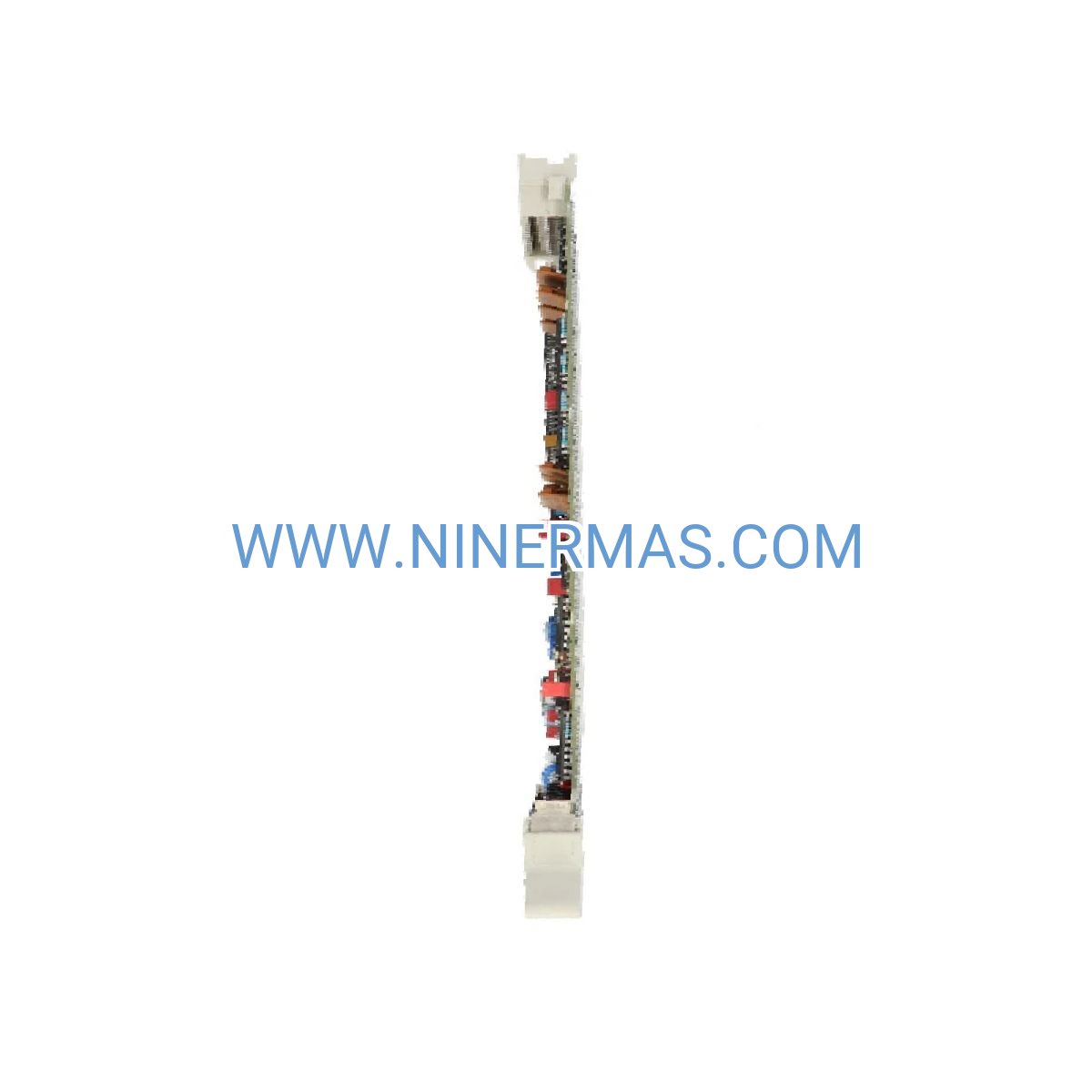

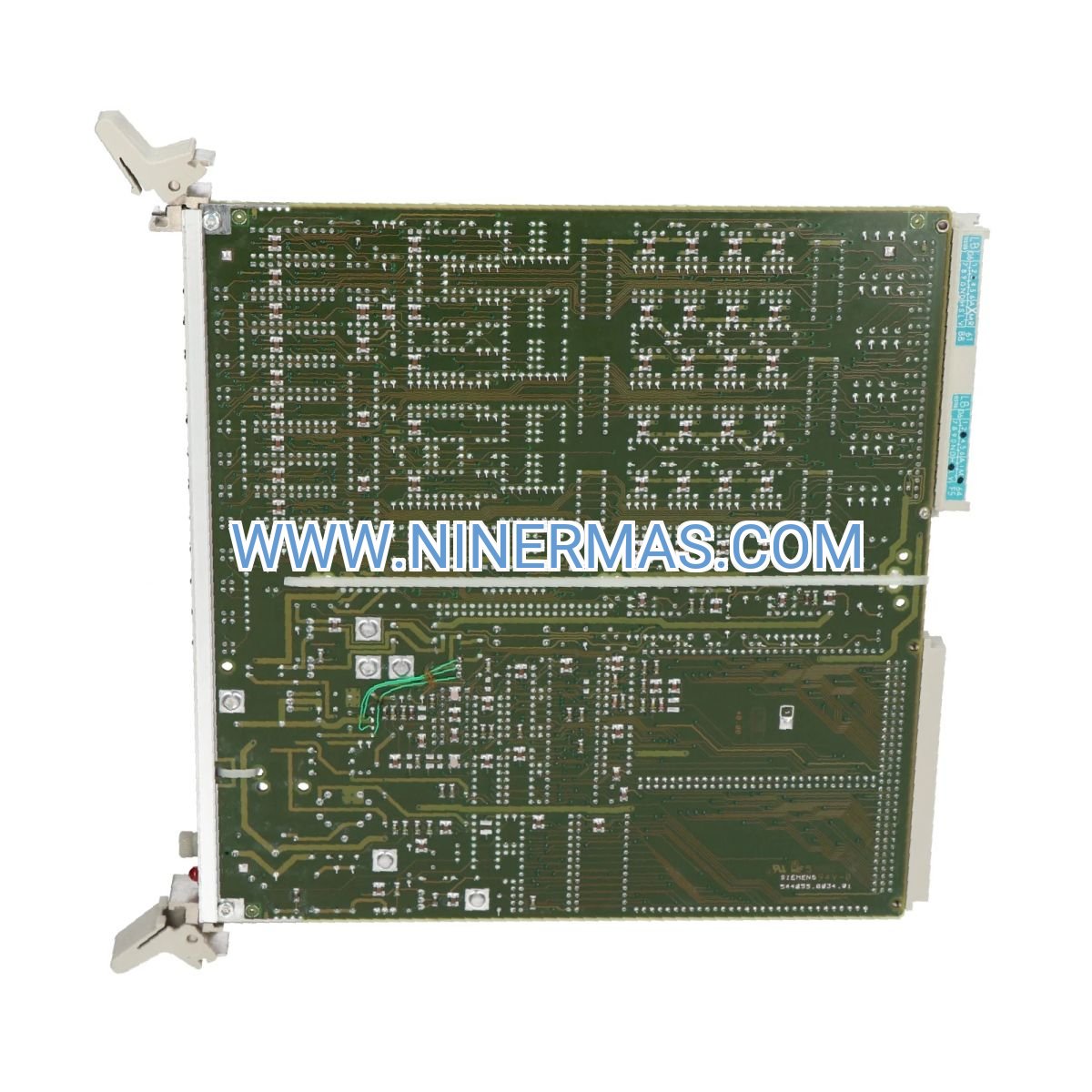

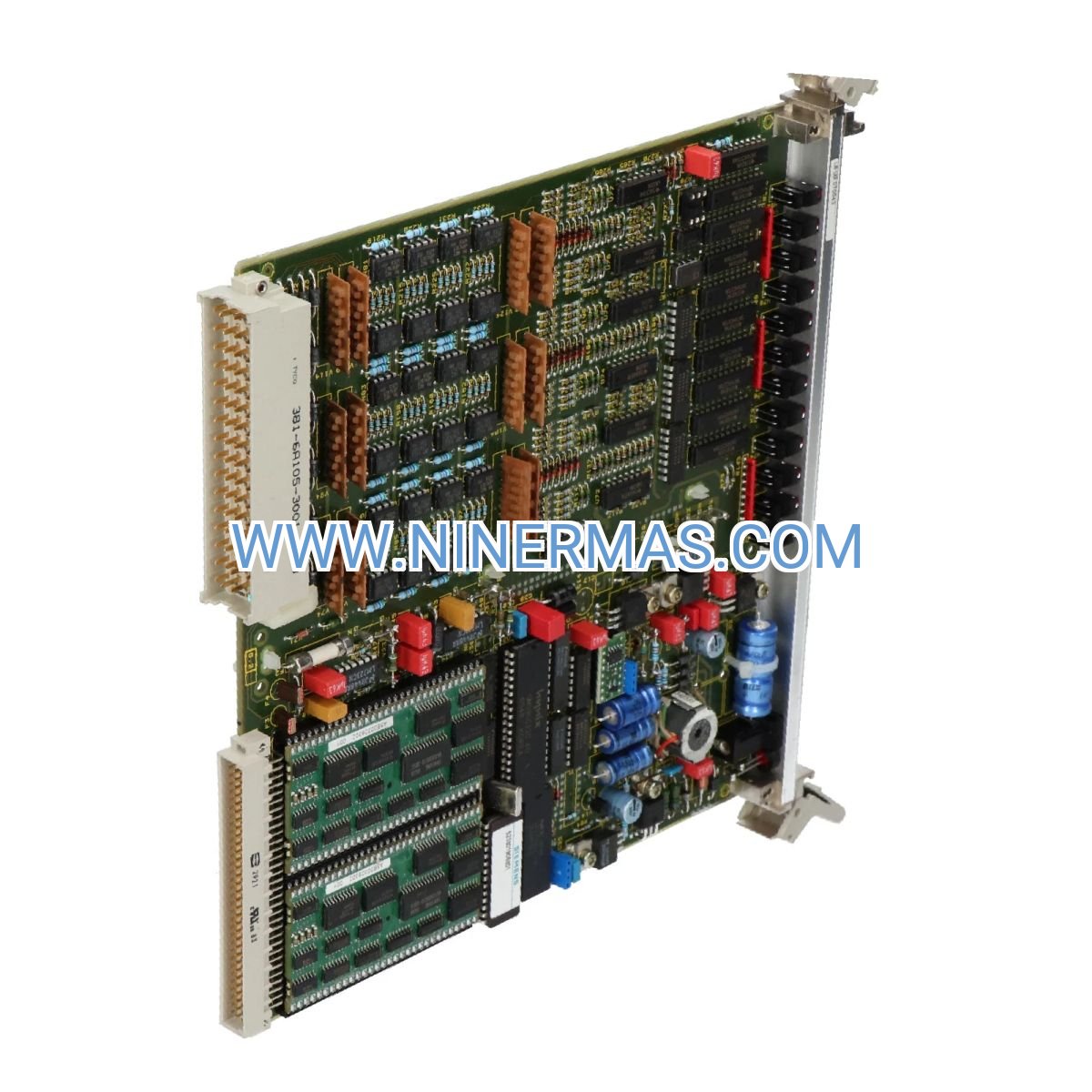

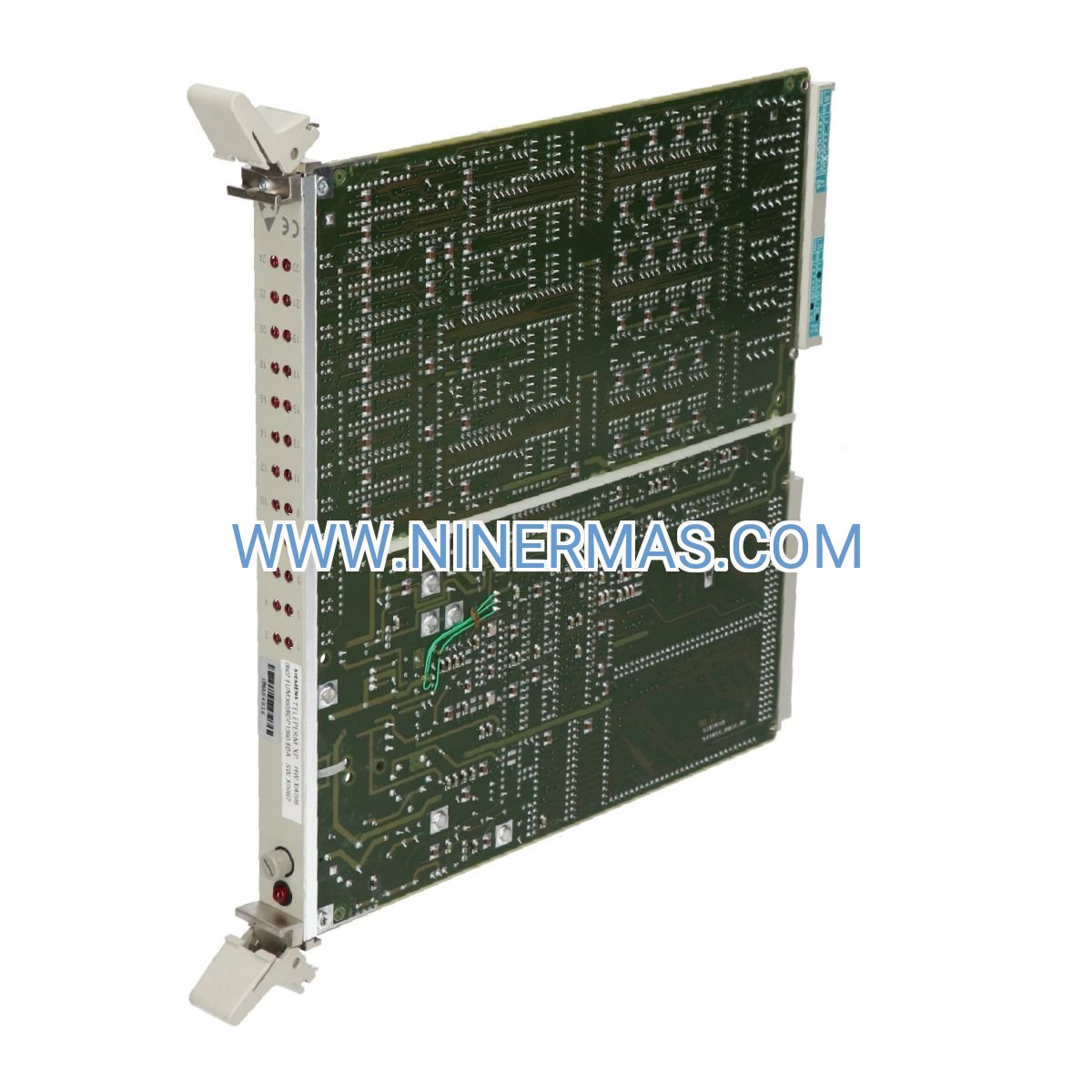

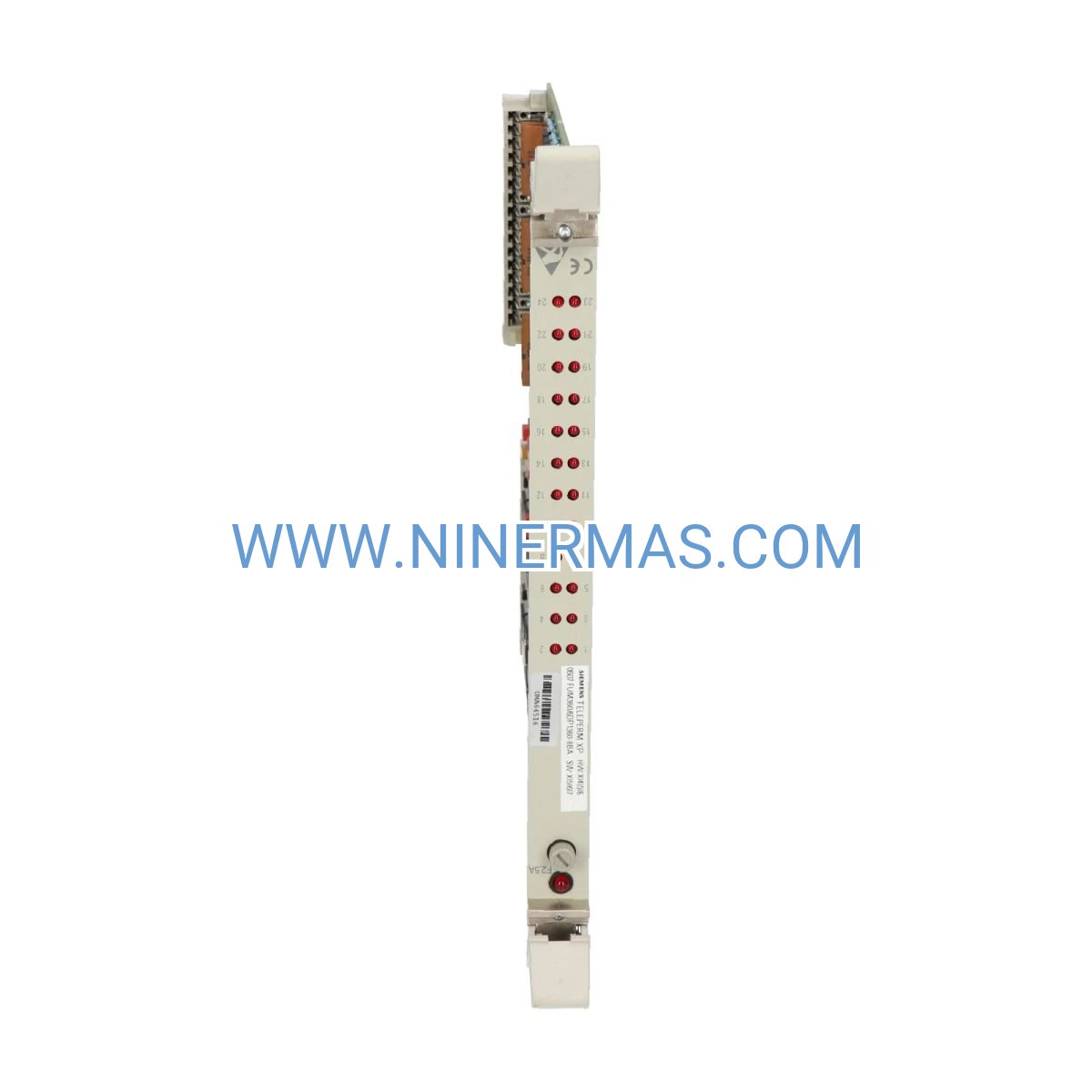

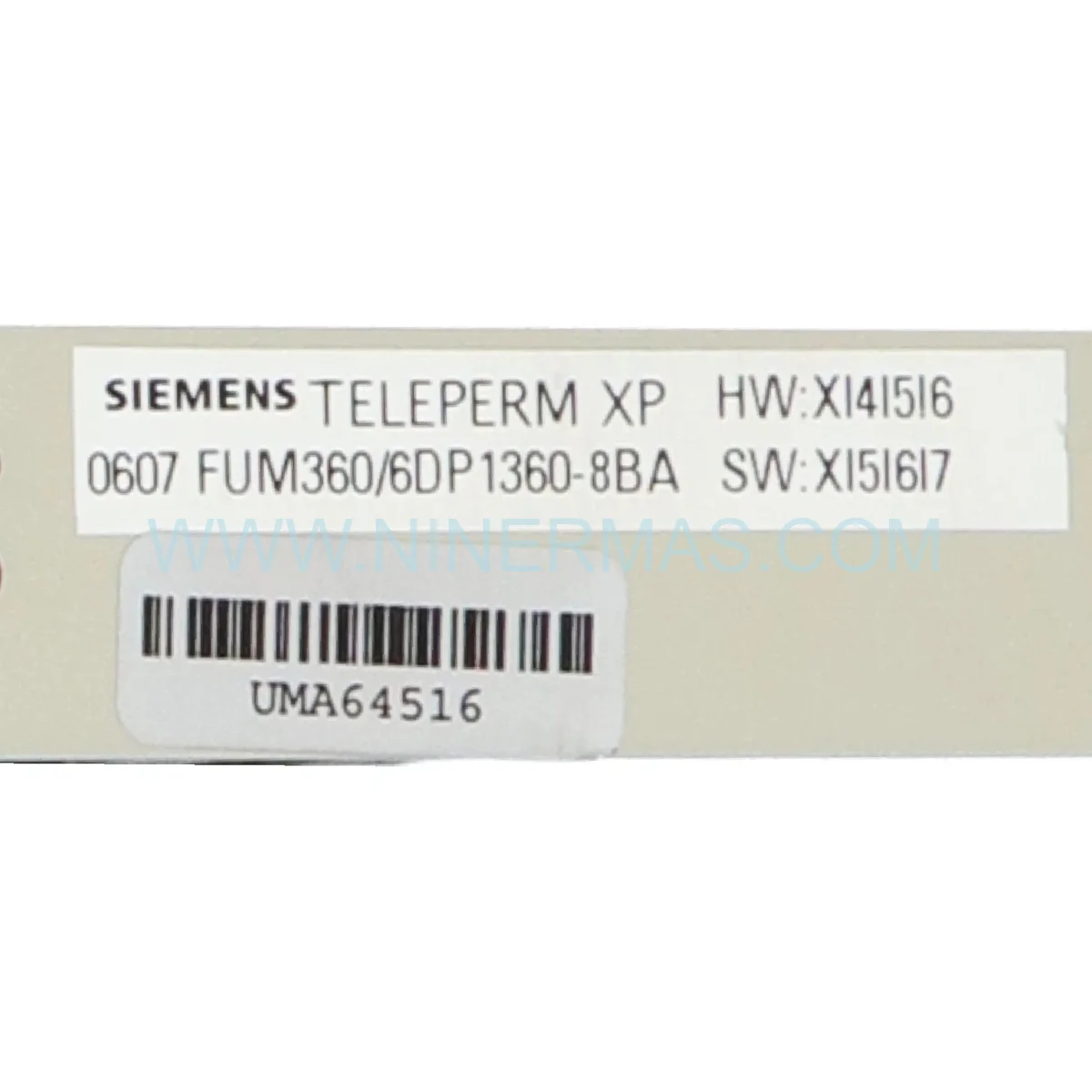

6DP1360-8BA FUM 360 Fail-Safe Counting Module (Industrial-Grade Safety Controller)

The 6DP1360-8BA FUM 360 is a safety-certified counting module engineered for critical pulse tracking, encoder monitoring, and position verification in process automation environments. Built on dual-channel fail-safe architecture, this TELEPERM XP component delivers SIL 2/3 compliance for applications where equipment failure could result in catastrophic safety incidents or production losses.

Designed for integration into distributed control systems managing turbines, conveyors, valve actuators, and rotating machinery, the FUM 360 processes high-frequency encoder signals up to 500 kHz while maintaining continuous diagnostic monitoring. Its redundant design ensures operational continuity even when individual circuit paths experience faults, making it indispensable for emergency shutdown systems, overspeed protection, and safety-critical position verification.

Whether you're retrofitting legacy TELEPERM XP installations or designing new safety instrumented systems for oil & gas, chemical processing, or power generation facilities, the 6DP1360-8BA provides the certified reliability and diagnostic transparency required by IEC 61508 and IEC 61511 standards. Request technical specifications or application guidance today.

Core Capabilities & Technical Advantages

✓ Dual-Channel Fail-Safe Design: Redundant signal processing paths with continuous cross-checking eliminate single points of failure, ensuring 99.9% uptime in safety-critical applications while meeting SIL 2/3 requirements for emergency shutdown and overspeed protection systems.

✓ High-Frequency Pulse Acquisition: Captures encoder signals up to 500 kHz with microsecond-level precision, enabling accurate speed monitoring for high-RPM turbines, real-time position tracking for multi-axis conveyors, and vibration analysis for predictive maintenance programs.

✓ Integrated Diagnostic Intelligence: Built-in self-test routines detect wiring faults, encoder failures, and signal degradation before they impact operations, reducing mean time to repair (MTTR) by 40% and minimizing unplanned downtime through proactive fault notification.

✓ Wide Environmental Tolerance: Operates reliably across -25°C to +70°C temperature ranges with IP20 protection, suitable for control room installations in harsh industrial environments including offshore platforms, desert refineries, and arctic processing facilities.

✓ Native TELEPERM XP Integration: Communicates via proprietary bus protocol with zero configuration overhead, ensuring plug-and-play compatibility with existing FUM 310, FUM 330, and IM 616 modules for rapid system expansion.

→ Certified Compliance: CE, UL, and TÜV certifications validate conformance to international safety standards, simplifying regulatory approval processes and reducing project commissioning timelines.

Industrial Application Scenarios

Power Generation - Turbine Overspeed Protection:
Steam and gas turbine installations require fail-safe speed monitoring to prevent catastrophic mechanical failures. The FUM 360 processes magnetic pickup or optical encoder signals, triggering emergency trip systems when shaft speed exceeds safe thresholds. In combined-cycle plants, it coordinates with analog modules to correlate speed data with bearing temperature and vibration signatures, enabling condition-based maintenance strategies that extend turbine service intervals by 15-20%.

Material Handling - Synchronized Conveyor Control:
Automotive assembly lines and distribution centers deploy the FUM 360 for precise belt position tracking across multi-zone conveyor networks. By monitoring incremental encoder pulses, the module ensures product spacing accuracy within ±2mm, preventing collisions and enabling high-speed sortation at 3+ meters/second. Integration with binary output modules automates diverter gate timing and accumulation zone control.

Chemical Processing - Safety Valve Position Verification:
Emergency isolation valves in hazardous material systems must provide verifiable closed/open status for regulatory compliance. The FUM 360 tracks actuator stem position via rotary encoders, confirming valve state within 500ms of command execution. This capability is critical for meeting API 6D proof-of-closure requirements and IEC 61511 safety integrity level documentation.

Oil & Gas - Compressor Surge Detection:
Centrifugal compressor anti-surge systems rely on real-time shaft speed monitoring to detect flow instabilities. The FUM 360's 500 kHz counting frequency captures rapid speed fluctuations that precede surge events, enabling predictive control algorithms to adjust recycle valve positions 200ms faster than conventional monitoring systems, protecting equipment valued at $5M+ per unit.

Water Treatment - Pump Dry-Run Prevention:
Variable-speed pump stations use the FUM 360 to monitor motor shaft rotation, detecting loss of prime conditions before cavitation damage occurs. Combined with analog flow measurement, the system automatically initiates shutdown sequences when speed-to-flow ratios indicate air entrainment, reducing pump replacement costs by 60% annually.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the FUM 360 when your application requires SIL 2/3 certification for safety instrumented functions. For standard counting tasks without safety requirements, the FUM 310 offers identical functionality at lower cost. When encoder frequencies exceed 500 kHz, consider the FUM 640 high-speed binary input module with 1 MHz capability. Always verify encoder output type (TTL/HTL) matches module input specifications to avoid signal conditioning requirements.

Advanced Integration & Customization Options

Multi-Module Architectures: The FUM 360 operates within distributed TELEPERM XP networks, supporting up to 32 modules per bus segment. For large-scale installations monitoring 50+ encoders, deploy redundant controller pairs (6DP1120-8AA) with automatic failover to achieve 99.99% system availability. Gateway modules enable integration with modern DCS platforms via PROFIBUS DP, Modbus TCP, or OPC UA protocols.

Encoder Signal Conditioning: When interfacing with legacy encoders producing non-standard signal levels, pair the FUM 360 with external signal converters or specify HTL input variants. For applications requiring galvanic isolation (e.g., high-voltage motor monitoring), install optocoupler barriers rated for 2.5 kV isolation.

Predictive Maintenance Integration: Export encoder data to SCADA historians or cloud analytics platforms for vibration analysis, bearing wear trending, and remaining useful life (RUL) calculations. Machine learning algorithms can detect subtle speed variations indicating impending failures 2-4 weeks before catastrophic events.

Cybersecurity Hardening: For critical infrastructure deployments, implement network segmentation with industrial firewalls, disable unused communication ports, and apply Siemens security patches per ICS-CERT advisories. The FUM 360 supports encrypted firmware updates when paired with compatible TELEPERM XP controllers.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders requiring custom configurations or extended temperature ratings.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended service agreements available with 24/7 technical support and advance replacement options.

Technical Support: Pre-sales application engineering assistance for system design, encoder selection, and SIL verification calculations. Post-sales commissioning support includes on-site startup services, parameter configuration, and operator training.

Documentation Package: Each module ships with installation manual, wiring diagrams, TELEPERM XP configuration files, and SIL certification documentation required for safety system validation audits.

Frequently Asked Questions

What encoder signal types are compatible with the 6DP1360-8BA counting module?
The FUM 360 accepts differential quadrature encoders (A, B, Z channels) with RS-422, TTL (5V), or HTL (24V) output levels. Single-ended encoders require external differential line drivers. Absolute encoders with SSI or PROFIBUS interfaces need separate communication modules.

Can this module replace non-safety counting modules in existing TELEPERM XP systems?
Yes, the FUM 360 is mechanically and electrically compatible with standard FUM 310 modules, allowing drop-in replacement. However, upgrading to safety-rated modules requires updating system documentation, performing SIL verification calculations, and validating diagnostic coverage per IEC 61511 requirements.

What maximum cable length is supported for encoder connections at 500 kHz operation?
Up to 100 meters using shielded twisted-pair cable (120Ω characteristic impedance) with proper termination. For frequencies below 100 kHz, cable runs up to 300 meters are feasible. Always use continuous shield grounding at the module end only to prevent ground loops.

How does the fail-safe architecture detect and respond to encoder failures?
The dual-channel design continuously compares signals from both processing paths. Discrepancies exceeding configured thresholds (typically 2% speed deviation) trigger diagnostic alarms and force outputs to safe states within 50ms. Encoder wire breaks, short circuits, and signal loss conditions are detected within one scan cycle.

Is hot-swapping supported for module replacement during operation?
No. TELEPERM XP modules require controlled shutdown procedures to prevent bus communication errors and data corruption. Plan replacements during scheduled maintenance windows with proper lockout/tagout procedures. Redundant controller configurations allow continued operation during single-module maintenance.

What integration options exist for connecting to non-Siemens DCS platforms?
TELEPERM XP systems interface with third-party DCS via gateway modules supporting PROFIBUS DP, Modbus RTU/TCP, or OPC UA protocols. For Honeywell Experion, ABB System 800xA, or Emerson DeltaV integration, specify appropriate protocol converters during system design. Direct Ethernet/IP connectivity requires additional interface hardware.

Request Technical Consultation

Selecting the optimal counting module configuration requires analysis of encoder specifications, safety integrity requirements, environmental conditions, and system architecture. Our application engineers provide complimentary design reviews, SIL verification support, and bill-of-materials optimization for TELEPERM XP projects.

Contact our team today: Share your encoder datasheets, P&ID drawings, and safety requirements specification for customized recommendations within 24 hours.
