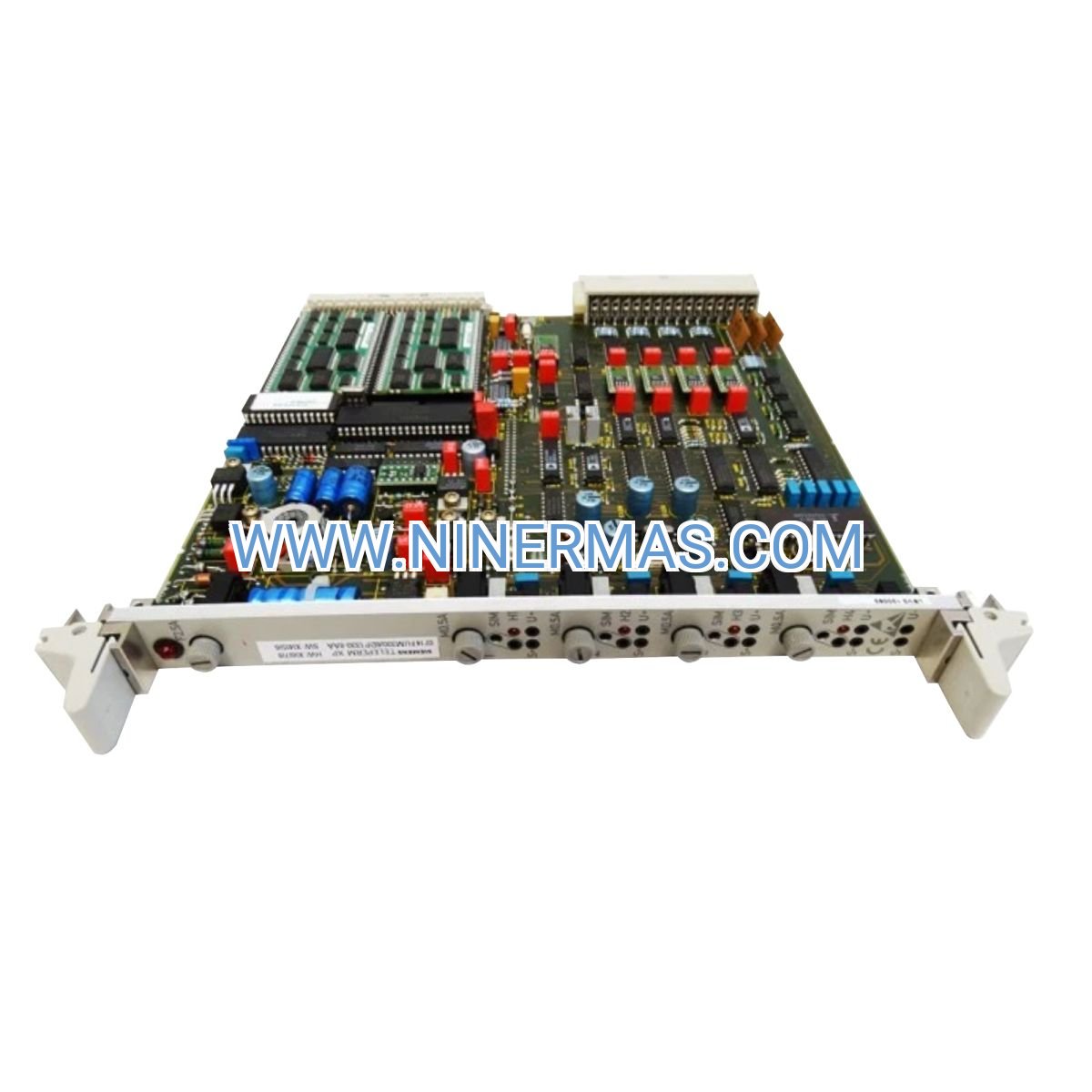

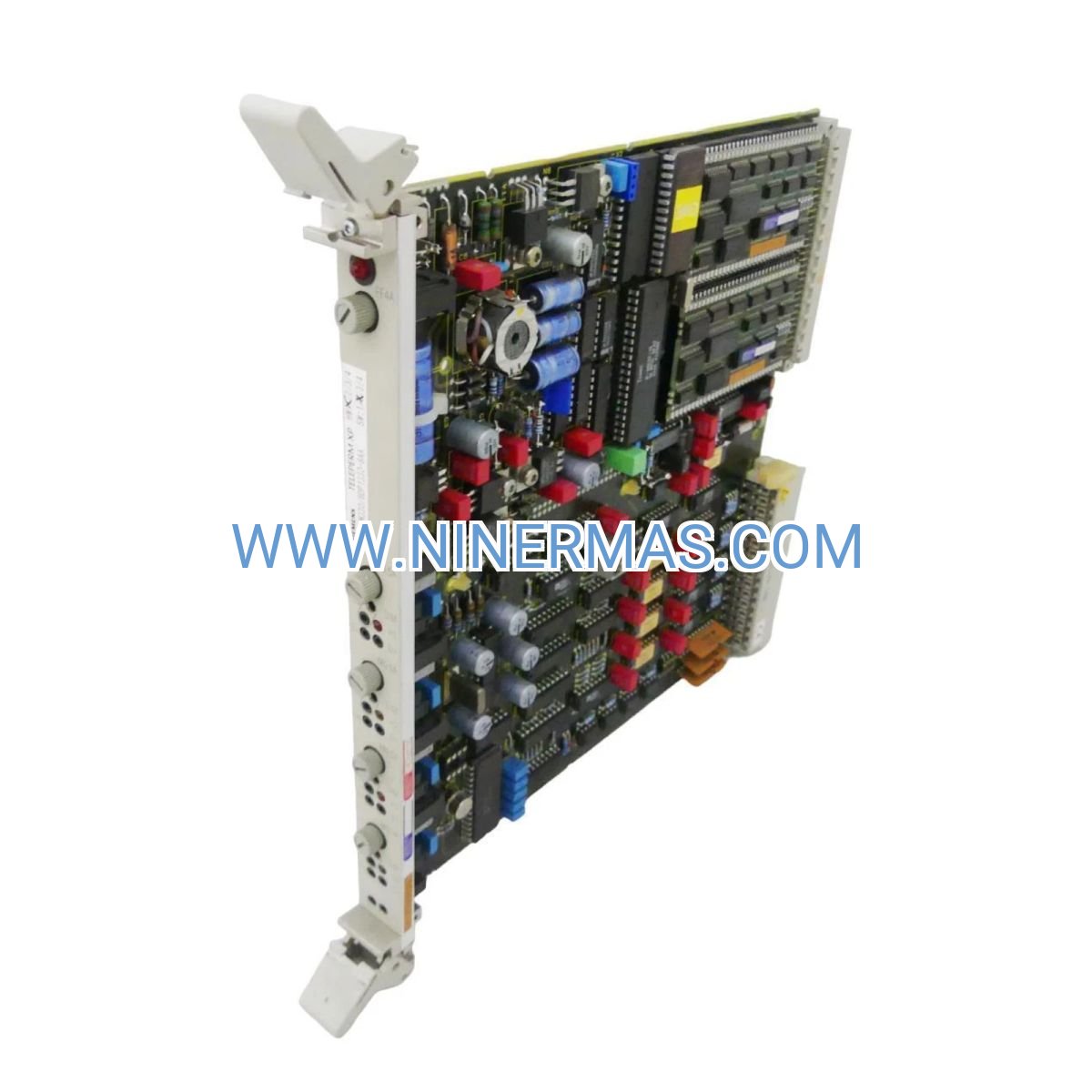

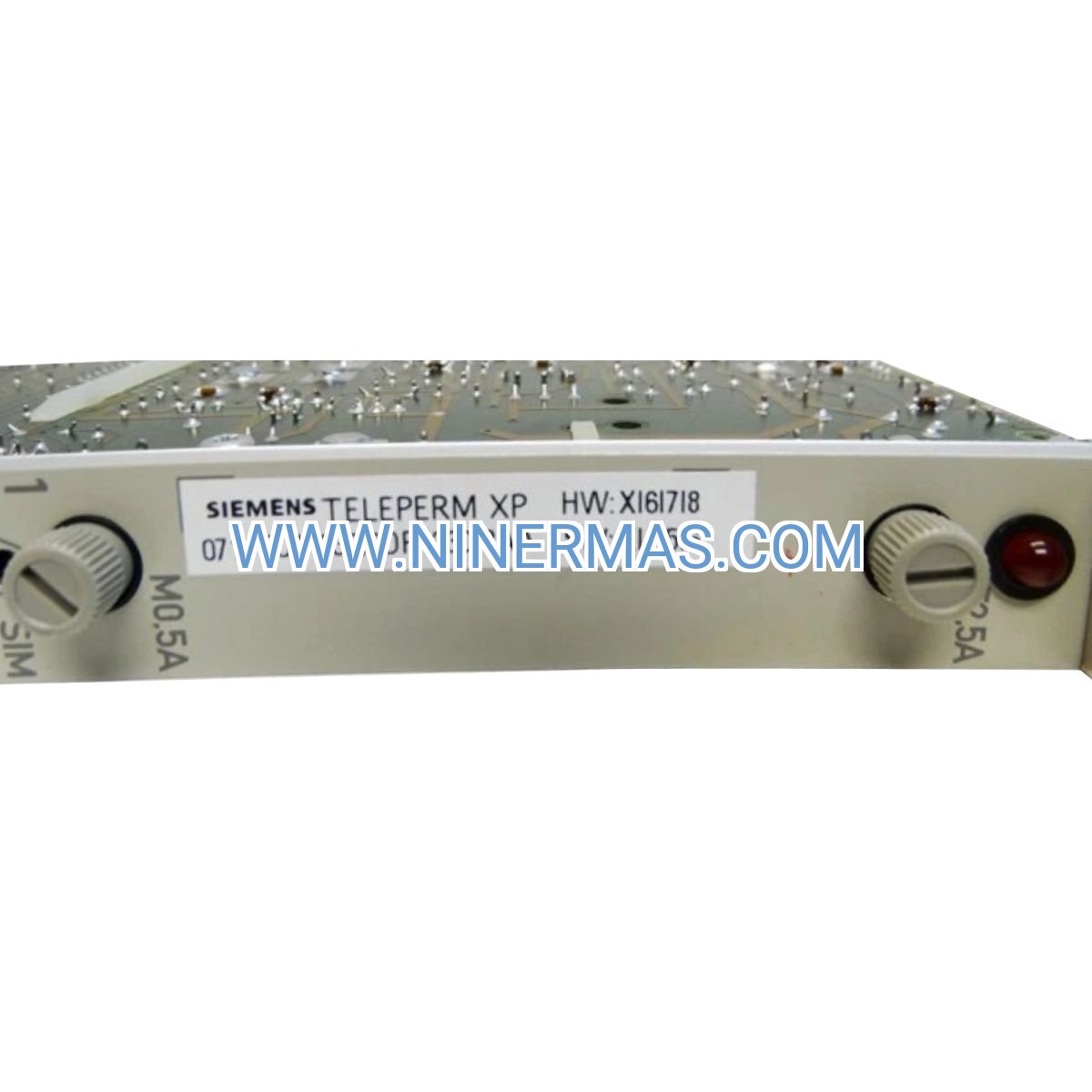

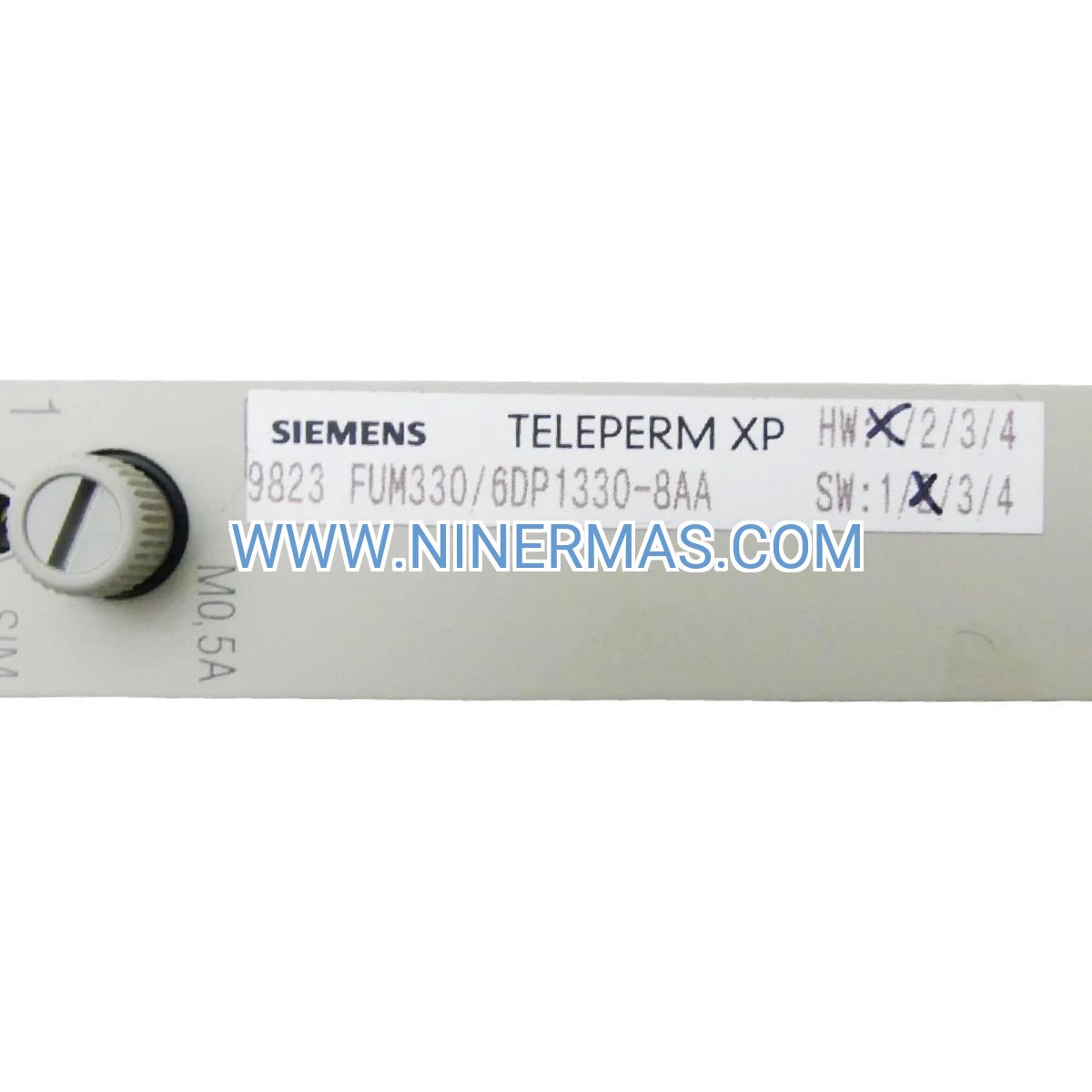

6DP1330-8AA FUM 330 Analog Input Module (Industrial-Grade Safety I/O)

The 6DP1330-8AA FUM 330 is an industrial-grade fail-safe analog input module engineered for safety-critical process automation. Certified to SIL 3 standards per IEC 61508, this TELEPERM XP component delivers redundant signal acquisition for emergency shutdown systems, turbine protection, and hazardous area monitoring where operational integrity directly impacts personnel safety and asset protection.

Designed for process industries requiring certified functional safety, the FUM 330 serves automation engineers, system integrators, and plant operators managing chemical reactors, power generation facilities, oil & gas installations, and pharmaceutical manufacturing lines. Its dual-channel architecture with cross-validation ensures that sensor signal anomalies trigger immediate safe-state transitions, preventing catastrophic equipment failures and environmental incidents.

Key differentiators include native PROFIBUS DP connectivity for seamless DCS integration, hot-swappable DIN rail mounting for minimal maintenance downtime, and comprehensive diagnostic reporting that enables condition-based maintenance strategies. The module processes both 0-20mA and 4-20mA current loop signals with 12-bit resolution, supporting diverse sensor types from pressure transmitters to temperature RTDs in a single platform.

Core Features & Benefits

→ SIL 3 Certified Safety Integrity: Meets IEC 61508/61511 requirements for the highest safety integrity level in industrial automation, enabling deployment in critical safety instrumented functions with proven failure rates below 10⁻⁸ dangerous failures per hour.

→ Redundant Signal Processing: Dual-channel input architecture with real-time cross-comparison detects sensor drift, wiring faults, and signal corruption within 100ms, automatically initiating fail-safe responses to prevent process excursions.

→ Universal Current Loop Compatibility: Configurable per-channel support for 0-20mA and 4-20mA signals accommodates mixed sensor populations without additional signal conditioning hardware, reducing BOM costs by 30-40% versus single-range modules.

→ PROFIBUS DP Integration: Native fieldbus connectivity enables direct communication with Siemens PCS 7, TELEPERM XP, and third-party DCS platforms at 12 Mbps, eliminating proprietary gateways and reducing network latency to <5ms.

→ Extended Temperature Range: -20°C to +60°C operational capability supports installations in non-climate-controlled environments including outdoor substations, desert facilities, and arctic processing plants without derating.

→ Hot-Swap Serviceability: Field-replaceable design with automatic configuration restoration allows module replacement during process operation, achieving <15-minute MTTR and eliminating costly production shutdowns for maintenance.

Application Scenarios

✓ Emergency Shutdown Systems (ESD): In offshore oil platforms and refineries, the FUM 330 monitors critical process variables—wellhead pressure, separator levels, flare header temperatures—with certified redundancy. When sensor readings exceed safety thresholds, the module triggers valve closures and pump trips within the required response time, preventing blowouts and fires. Operators achieve SIL 3 risk reduction factors of 10,000:1 for high-consequence scenarios.

✓ Steam Turbine Protection: Power generation facilities deploy the 6DP1330-8AA to acquire vibration, bearing temperature, and thrust position signals from turbine-generator sets. The fail-safe architecture ensures that sensor failures default to protective trip conditions rather than allowing continued operation with compromised monitoring, preventing multi-million-dollar rotor damage and extended outages.

✓ Chemical Reactor Control: Pharmaceutical and specialty chemical manufacturers use FUM 330 modules to monitor exothermic reaction temperatures and pressures in batch reactors. The module's ability to detect sensor validation errors prevents runaway reactions caused by failed instrumentation, protecting personnel from toxic releases and containing product losses to single batches rather than facility-wide contamination.

✓ Burner Management Systems (BMS): Industrial boilers and process heaters integrate the 6DP1330-8AA for flame scanner signal processing and fuel/air ratio monitoring. SIL 3 certification satisfies NFPA 85 and FM approval requirements for burner safety systems, while the module's diagnostic capabilities identify fouled flame detectors before they cause nuisance trips or, worse, fail to detect flame-out conditions.

✓ Pipeline Leak Detection: Long-distance hydrocarbon pipelines employ distributed FUM 330 modules to process flow meter and pressure transmitter signals for computational pipeline monitoring (CPM) systems. The fail-safe design ensures that communication losses or sensor faults trigger conservative leak alarms rather than masking actual product releases, meeting regulatory requirements for rapid leak response.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6DP1330-8AA when your application requires SIL 3 certified analog input processing with PROFIBUS connectivity. For applications needing only SIL 2 certification, consider the FUM 320 variant for cost optimization. If your system uses HART-enabled smart transmitters, the FUM 335 model adds HART pass-through capability. For installations with extreme vibration (>2g), specify the conformal-coated version with enhanced component retention.

Extended Functions

Advanced Diagnostics: The FUM 330 provides comprehensive health monitoring including wire break detection, short-circuit identification, out-of-range signal alerts, and channel deviation alarms. Diagnostic data is accessible via PROFIBUS acyclic services, enabling integration with asset management systems like Siemens PDM or PACTware-based tools for predictive maintenance workflows.

Partial Stroke Testing (PST) Support: When paired with smart valve positioners, the module supports partial stroke testing of emergency shutdown valves without process interruption. The high-resolution signal acquisition detects valve stem movement as small as 2%, enabling proof testing intervals to be extended from 12 months to 24-36 months while maintaining SIL 3 certification.

Cybersecurity Features: Firmware includes read/write access controls, configuration change logging, and support for PROFIBUS security extensions (PROFIsafe). These features align with IEC 62443 industrial cybersecurity standards, protecting safety systems from unauthorized configuration changes and malicious network traffic.

Customization Options: Factory configuration services are available for pre-programmed channel ranges, custom diagnostic thresholds, and application-specific firmware variants. OEM customers can request private-label versions with custom part numbers and documentation for proprietary system integration.

Delivery & Service

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited processing is available for emergency replacements with 24-hour shipment for critical infrastructure applications.

Warranty: All 6DP1330-8AA modules include a 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs up to 60 months are available for installed base coverage, including advance replacement and on-site failure analysis services.

Technical Support: Customers receive lifetime access to application engineering support via phone, email, and web portal. Services include configuration assistance, troubleshooting guidance, firmware update notifications, and access to the TELEPERM XP knowledge base with 500+ technical bulletins and application notes.

Documentation Package: Each module ships with installation manual, quick-start guide, PROFIBUS GSD file, AutoCAD dimensional drawings, and SIL 3 certification documents. Digital resources include 3D STEP models for cabinet layout, sample ladder logic for common DCS platforms, and loop calibration procedures.

Frequently Asked Questions

How does the 6DP1330-8AA achieve SIL 3 certification with analog signals?
The module employs 1oo2D (one-out-of-two with diagnostics) architecture where each input channel has dual independent A/D converters. The microprocessor continuously compares both readings; if they diverge beyond configured tolerances, the channel enters a safe fault state. This design achieves a safe failure fraction (SFF) >99% and hardware fault tolerance of 1, meeting SIL 3 requirements per IEC 61508 Table 2.

Can I mix 0-20mA and 4-20mA sensors on the same FUM 330 module?
Yes, each of the 8 input channels is independently configurable for either 0-20mA or 4-20mA operation via PROFIBUS parameter assignment or local configuration tools. This flexibility allows a single module to interface with legacy 0-20mA transmitters and modern 4-20mA HART devices simultaneously, simplifying retrofit projects and reducing spare parts inventory.

What PROFIBUS baud rate should I configure for optimal performance?
For safety applications, 1.5 Mbps provides the best balance of response time and network reliability. While the module supports up to 12 Mbps, higher baud rates increase susceptibility to EMI in industrial environments. Configure the watchdog timer to 3× the bus cycle time; for example, at 1.5 Mbps with 32 nodes, use a 150ms watchdog to prevent nuisance safe-state transitions during normal network traffic bursts.

Does the module require external barriers for hazardous area installations?
The 6DP1330-8AA is designed for safe area (Zone 2/Division 2) mounting and requires intrinsically safe barriers (Zener diodes or galvanic isolators) when connecting to transmitters in Zone 0/Division 1 locations. Siemens offers compatible barrier modules (6DP1910 series) that mount adjacent to the FUM 330 on the same DIN rail, maintaining the SIL 3 certification chain when properly configured per the installation manual.

How do I perform proof testing to maintain SIL 3 certification?
IEC 61511 requires periodic proof testing at intervals determined by the safety integrity level and module's proven-in-use failure rates. For the 6DP1330-8AA, typical proof test intervals are 12-24 months. The procedure involves injecting known current signals (4mA, 12mA, 20mA) into each channel, verifying correct digital values in the DCS, and forcing diagnostic faults (open circuit, short circuit) to confirm safe-state response. Detailed proof test procedures are provided in the Safety Manual (document 6DP1330-8AA-SM-001).

What is the maximum cable length for 4-20mA signals?
With standard 18 AWG shielded twisted-pair cable (50Ω/1000ft), maximum recommended distance is 1500 meters (4900 feet) for 4-20mA signals. For 0-20mA signals, reduce this to 1000 meters due to the lower current's increased susceptibility to noise. In high-EMI environments (near VFDs, welders, or RF transmitters), use 16 AWG cable and reduce distances by 30%, or employ HART-enabled transmitters with digital signal validation to detect corruption.

Ready to Enhance Your Safety System?

The 6DP1330-8AA FUM 330 delivers the certified reliability your critical processes demand. Contact our automation specialists today for application-specific configuration guidance, SIL verification calculations, and volume pricing for multi-module projects. Request a technical datasheet or schedule a consultation to discuss your safety instrumented system requirements.
