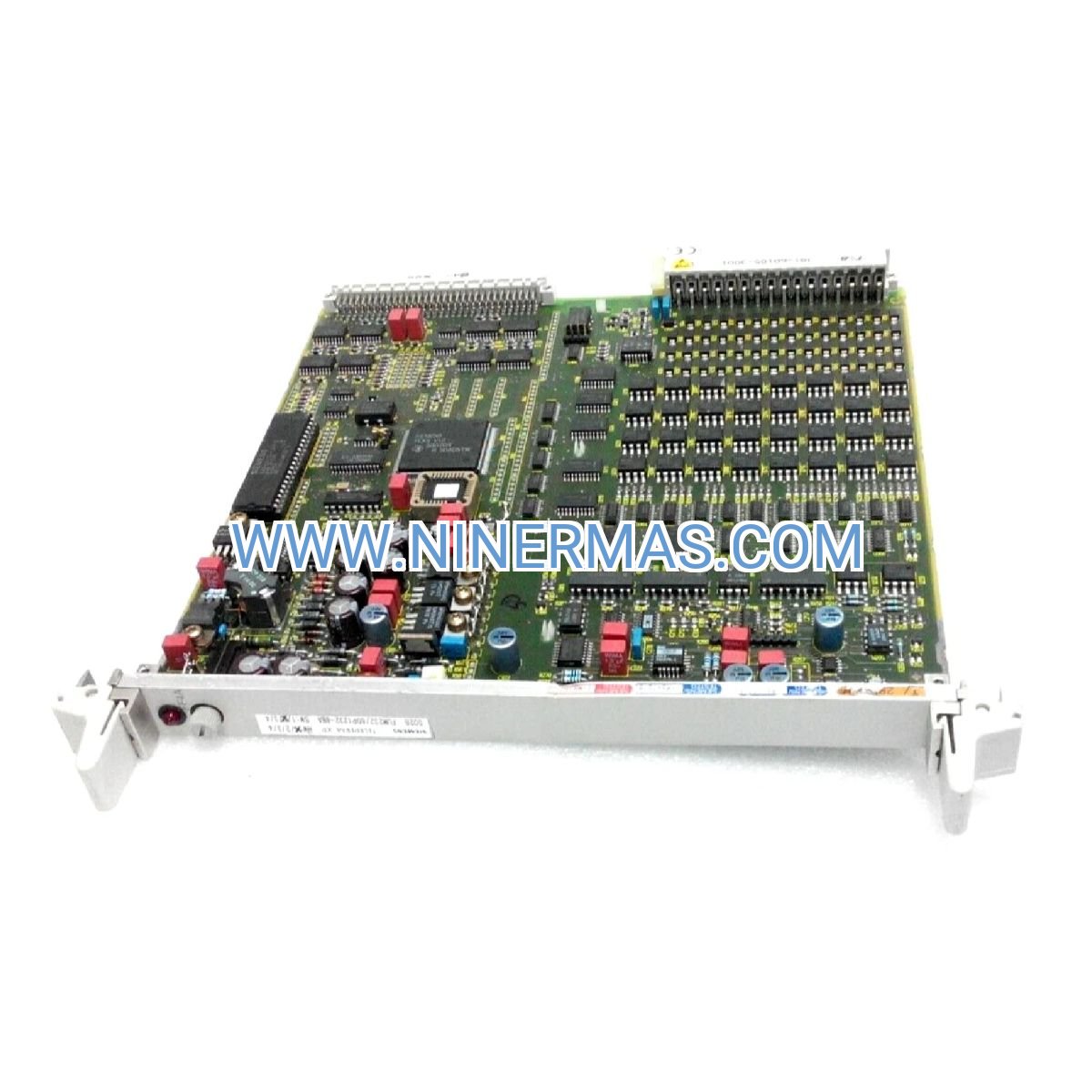

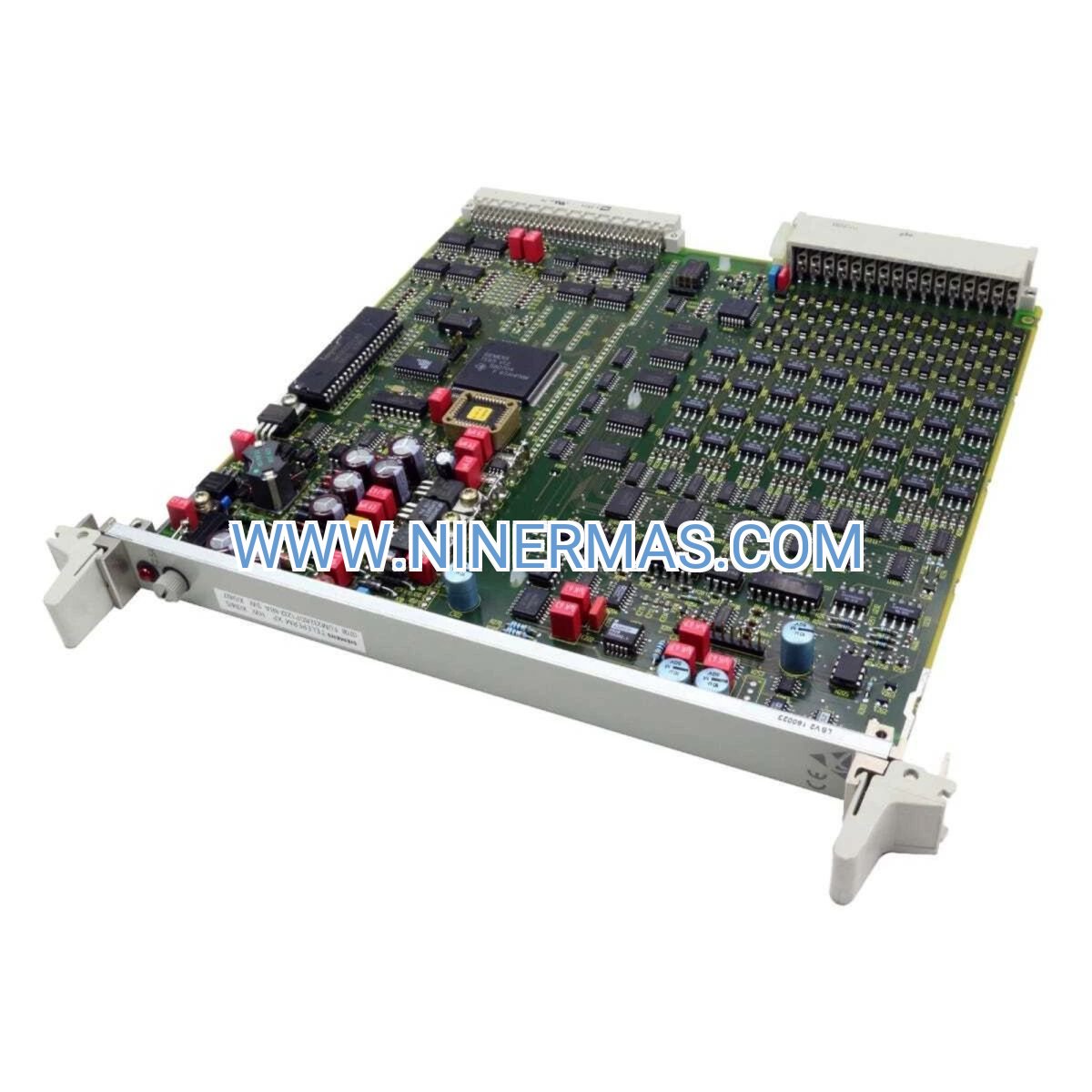

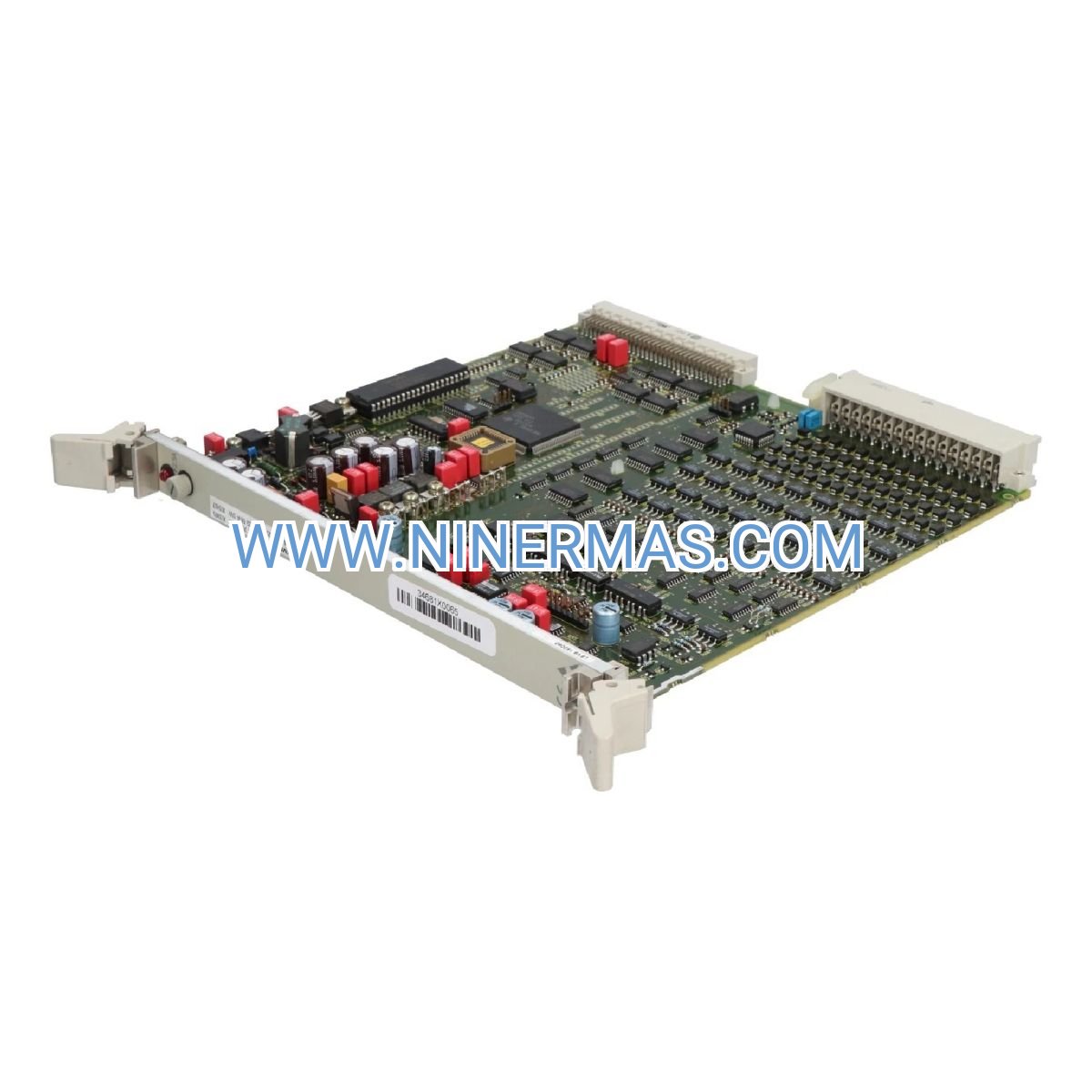

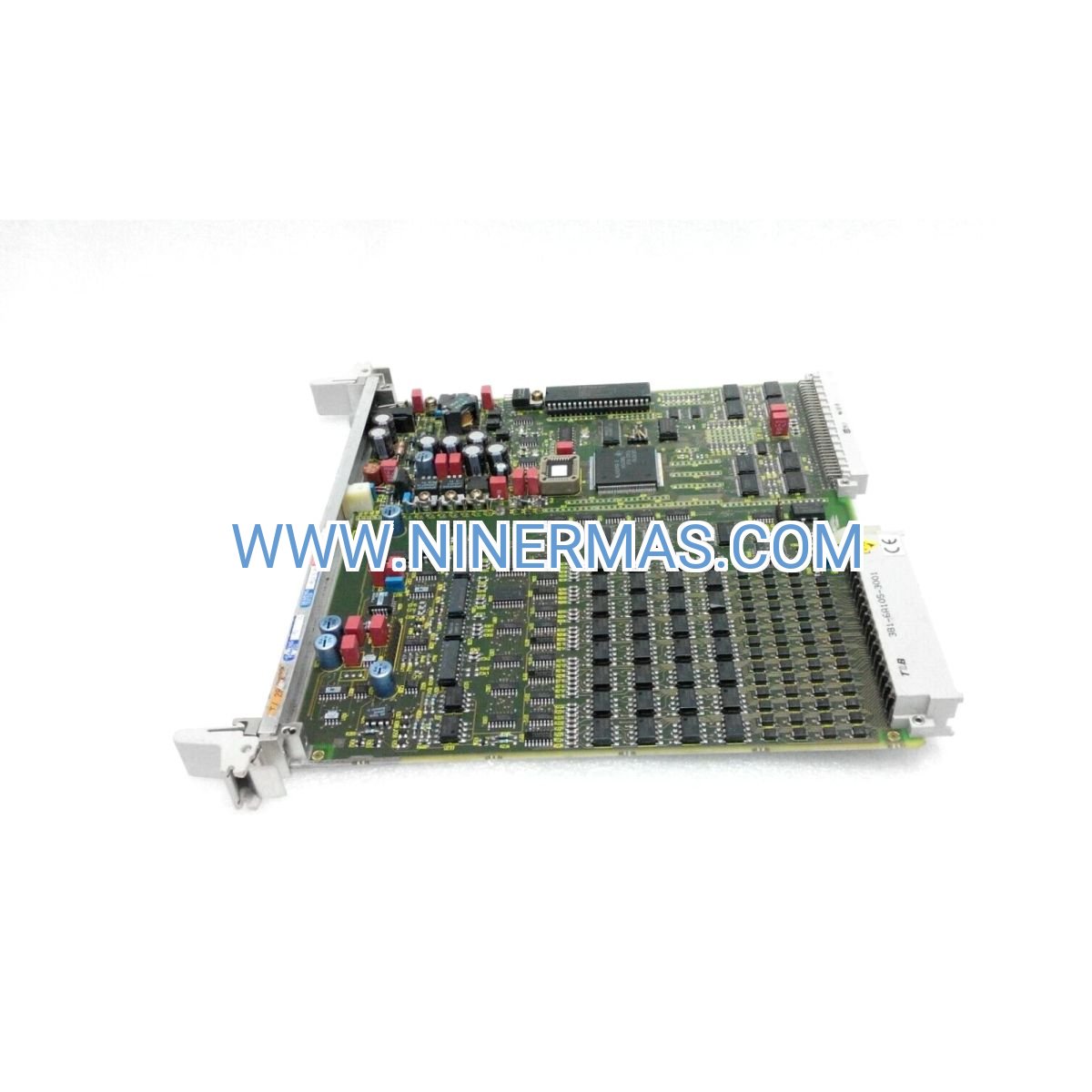

6DP1232-8BA FUM 232 Temperature Acquisition Module (Industrial-Grade RTD & Thermocouple Interface)

The 6DP1232-8BA represents Siemens' proven solution for multi-sensor temperature acquisition in distributed control environments. Designed for TELEPERM XP architectures, this FUM 232 module delivers 16-bit precision across PT100 RTD and thermocouple sensor types, enabling reliable thermal monitoring in power generation, chemical processing, and manufacturing operations. With galvanic isolation, hot-swap capability, and field-proven diagnostics, it addresses the dual challenges of measurement accuracy and system uptime in mission-critical installations.

Process engineers and automation integrators choose the FUM 232 for applications demanding multi-point temperature surveillance—from turbine bearing monitoring to reactor vessel control. Its universal input design eliminates the need for separate modules per sensor type, reducing spare parts complexity while maintaining measurement integrity across -25°C to +70°C operating ranges. Whether you're retrofitting legacy systems or designing new control loops, this module integrates seamlessly into existing TELEPERM XP racks with minimal configuration overhead.

Key differentiators include cold junction compensation for thermocouple accuracy, sensor fault detection for predictive maintenance, and redundant configuration support for high-availability deployments. The result: consistent thermal data acquisition that supports tighter process control, reduced energy consumption, and extended equipment lifespan across demanding industrial environments.

Core Features & Business Value

→ Universal Multi-Sensor Compatibility
Accepts PT100 RTD (2/3/4-wire) and six thermocouple types (J/K/T/E/R/S/B) on individually configurable channels. Business impact: Consolidate inventory, simplify procurement, and reduce training requirements for maintenance teams.

→ 16-Bit Resolution with ±0.1% Accuracy
High-precision analog-to-digital conversion ensures measurement fidelity for tight process tolerances. Business impact: Achieve tighter quality control, minimize product waste, and meet regulatory compliance in validated environments.

✓ Integrated Diagnostics & Fault Detection
Real-time sensor health monitoring identifies open circuits, short circuits, and out-of-range conditions before they impact production. Business impact: Shift from reactive to predictive maintenance, reducing unplanned downtime by up to 40%.

✓ Hot-Swappable DIN Rail Design
Replace modules without system shutdown or rack de-energization. Business impact: Maintain continuous operations during maintenance windows, protecting revenue in 24/7 facilities.

✓ Galvanic Isolation Protection
Channel-to-system isolation prevents ground loops and electrical noise interference. Business impact: Ensure data integrity in electrically noisy environments like motor control centers and high-voltage switchyards.

✓ Redundancy-Ready Architecture
Supports dual-channel configurations for critical measurement points. Business impact: Meet SIL-rated safety requirements and eliminate single points of failure in safety-instrumented systems.

Application Scenarios Across Industries

Power Generation & Utilities
Monitor turbine bearing temperatures, steam header conditions, and generator winding heat in combined-cycle plants. The FUM 232's wide thermocouple range handles both low-temperature condensate monitoring and high-temperature superheater applications. Pain point addressed: Prevents catastrophic bearing failures and optimizes thermal efficiency across load variations.

Chemical & Petrochemical Processing
Control exothermic reactor temperatures, distillation column profiles, and catalyst bed conditions in continuous processes. Multi-point RTD inputs enable precise temperature cascade control for yield optimization. Pain point addressed: Maintains reaction selectivity and prevents thermal runaway in batch and continuous operations.

Oil & Gas Upstream/Midstream
Track pipeline temperatures for viscosity management, separator vessel conditions, and compressor discharge monitoring in remote installations. Rugged design withstands vibration and temperature extremes. Pain point addressed: Ensures flow assurance and prevents wax deposition in subsea and arctic environments.

Metals & Heat Treatment
Regulate furnace zones, quench bath temperatures, and annealing cycles in steel mills and forging operations. Type K/R/S thermocouple support covers 0-1600°C measurement ranges. Pain point addressed: Achieves metallurgical specifications and reduces scrap rates through precise thermal profiling.

Pharmaceutical & Biotechnology
Validate autoclave sterilization cycles, fermentation vessel temperatures, and clean room environmental conditions. Diagnostic capabilities support 21 CFR Part 11 compliance documentation. Pain point addressed: Provides audit-trail-ready temperature records for regulatory submissions and batch release.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FUM 232 when your application requires mixed RTD and thermocouple inputs within a single rack, or when sensor types may change during commissioning. For voltage/current signal processing, consider the FUM 531 analog I/O module. For applications requiring SIL 2/3 certification, specify redundant module pairs with diagnostic voting logic. Consult factory documentation for cable length derating factors in high-EMI environments.

Extended Capabilities & Integration Options

SCADA & HMI Connectivity: Module data integrates with SIMATIC PCS 7, WinCC, and third-party OPC UA servers for centralized visualization and trending. Historical data logging supports process optimization and energy management initiatives.

Predictive Maintenance Integration: Diagnostic parameters (sensor drift, excitation current, cold junction deviation) export to condition monitoring platforms for machine learning-based failure prediction.

Cybersecurity Hardening: When deployed in TELEPERM XP systems with security modules, supports encrypted communication and role-based access control per IEC 62443 industrial cybersecurity standards.

Custom Linearization: User-definable lookup tables accommodate non-standard thermocouple types or custom RTD curves for specialized sensor applications.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders during peak demand periods.

Warranty Coverage: 12-month comprehensive warranty covering material defects and workmanship failures. Extended warranty options available for critical spares programs.

Technical Support: Pre-sales application engineering assistance, post-sales configuration support, and troubleshooting guidance via phone/email. On-site commissioning services available for multi-module deployments.

Documentation Package: Includes installation manual, wiring diagrams, configuration software, and sample ladder logic for common temperature control strategies.

Frequently Asked Questions

Can I mix 2-wire and 4-wire RTD sensors on the same module?
Yes, each channel configures independently. However, 2-wire connections sacrifice accuracy due to lead resistance—reserve them for non-critical measurements or short cable runs under 50 meters. For precision applications, specify 3-wire or 4-wire configurations.

What's the maximum sensor cable length for thermocouple inputs?
Up to 500 meters with shielded extension-grade thermocouple wire. Use twisted-pair construction and ground shields at the module end only to minimize EMI pickup. For runs exceeding 300 meters, consider in-head transmitters to convert to 4-20mA signals.

Does this module support remote I/O configurations?
No, the FUM 232 requires installation in a TELEPERM XP local rack with backplane power and communication. For distributed installations, use PROFIBUS DP or PROFINET remote I/O couplers with compatible temperature input modules.

How do I calibrate the module after installation?
Factory calibration is traceable to NIST standards and typically remains valid for 3-5 years. Field calibration requires a precision temperature source and configuration software to adjust offset/gain parameters. Most applications rely on sensor replacement rather than module recalibration.

Is the module compatible with wireless temperature transmitters?
Not directly. The FUM 232 accepts hardwired RTD and thermocouple signals only. To integrate wireless sensors, use a WirelessHART or ISA100 gateway to convert wireless data to analog outputs, then connect those outputs to a separate analog input module.

What's the difference between FUM 232 and legacy TELEPERM M temperature modules?
FUM 232 offers higher resolution (16-bit vs. 12-bit), faster scan rates, integrated diagnostics, and hot-swap capability. It's not backward-compatible with TELEPERM M racks—migration requires a full system upgrade to TELEPERM XP architecture.

Ready to Optimize Your Temperature Monitoring?

Contact our application engineers to discuss sensor selection, wiring strategies, and system integration for your specific process requirements. Request a detailed quotation including module pricing, recommended accessories, and delivery timelines tailored to your project schedule.
