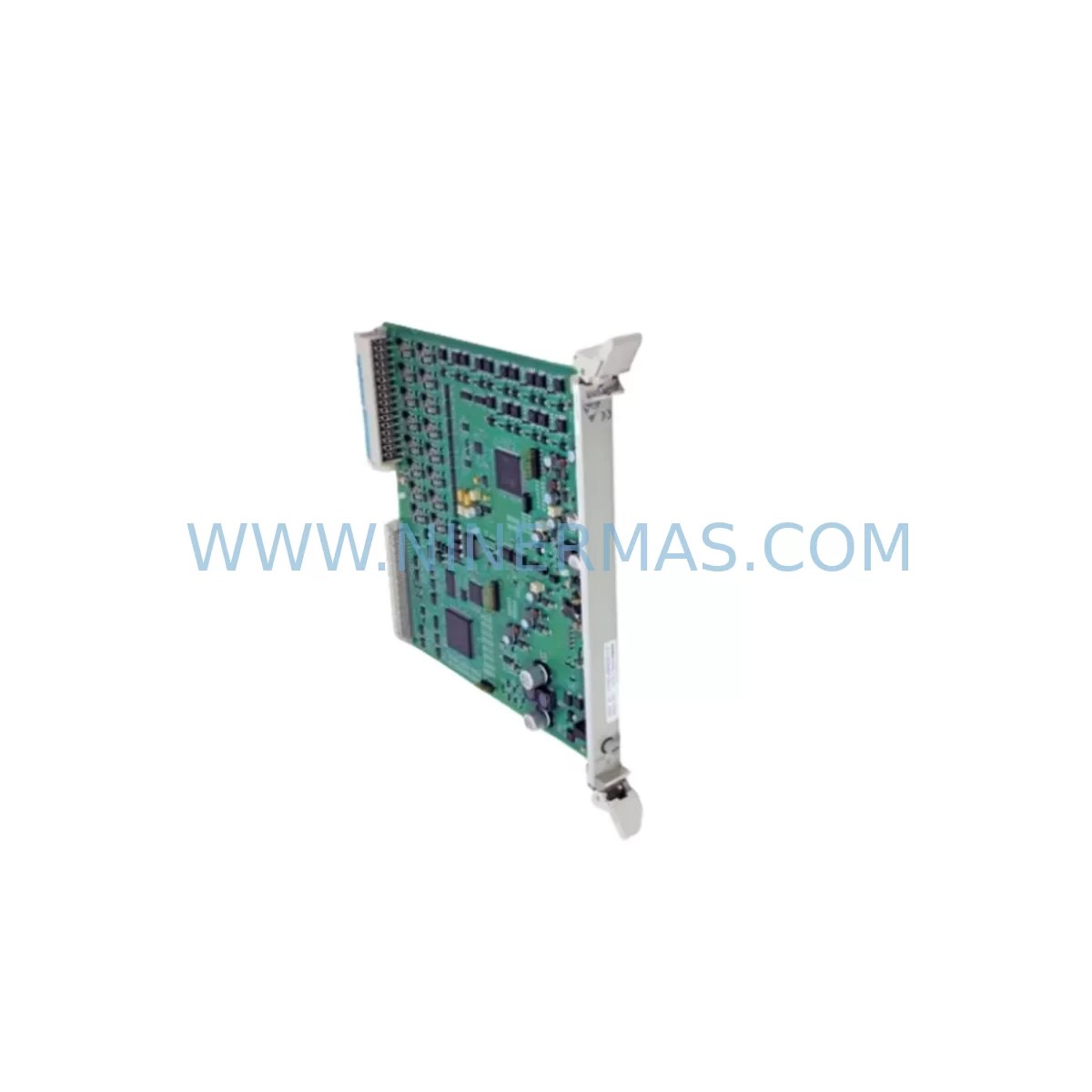

Siemens 6DP1231-7AA Retrofit-Compatible Analog Input Module

Siemens 6DP1231-7AA Retrofit-Compatible Analog Input Module: Legacy System Compatibility and Smooth Upgrade Path

The Siemens 6DP1231-7AA is a ruggedized analog input module designed for the SIMATIC TI505 programmable controller platform. Built to operate reliably in harsh industrial environments, this module delivers stable analog signal acquisition for process control applications where legacy infrastructure must remain operational during phased modernization. For facilities managing aging control cabinets, discontinued spare parts, or end-of-life PLC racks, the 6DP1231-7AA represents a proven retrofit solution that bridges the gap between legacy field wiring and modern control architectures.

Whether you are replacing a failed module in an existing TI505 rack, extending the service life of a production line, or planning a staged migration toward a newer Siemens SIMATIC S7 or S5 platform, the 6DP1231-7AA provides the signal compatibility, mechanical form factor, and backplane interface required to minimize engineering rework and reduce commissioning time on site.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 6DP1231-7AA into an existing TI505 control system requires a structured approach to avoid unplanned downtime and signal integrity issues. Before installation, engineers should audit the current rack configuration, confirming available slot positions within the TI505 I/O rack and verifying that the system power supply — typically a 6DP1600-series rack power supply unit — can support the additional module load. Overloaded power supplies are a common cause of intermittent faults during retrofit projects and must be assessed before any new module is inserted.

Field wiring connected to the existing analog input terminals should be documented and labeled prior to removal. The 6DP1231-7AA uses front-face terminal connections, and technicians should confirm terminal block pitch and wire gauge compatibility to avoid retermination errors. In systems where signal isolators or signal conditioners are installed between field instruments and the PLC rack, the isolation barrier specifications must be reviewed to ensure the analog input range presented to the 6DP1231-7AA remains within the module’s accepted input window.

For facilities running mixed analog and digital I/O in the same rack, the presence of digital output modules such as the 6DP1530-series or discrete input modules from the 6DP1220-series should be noted when calculating backplane slot assignments and module addressing. The TI505 CPU — whether a 545, 555, or 575 processor — maintains a configured I/O map that must be updated in the programming software (TISOFT or equivalent) to reflect the new module’s slot address. Failure to update the CPU configuration file before restarting the system will result in I/O faults and potential process interruption.

In systems where a SIMATIC TI505 communications module such as the 6DP1612-series is installed for peer-to-peer or host computer connectivity, the analog data from the 6DP1231-7AA will be accessible through the standard TI505 data table without additional configuration, provided the module address is correctly mapped. For sites planning a longer-term migration toward Siemens S7-300 or S7-400 platforms, the analog signal wiring infrastructure established for the 6DP1231-7AA can often be reused with appropriate marshalling panels, reducing field rewiring costs during the eventual platform transition.

HMI screens connected to the TI505 system via a SIMATIC Panel or third-party SCADA interface should be reviewed to confirm that analog tag addresses reference the correct module slot and channel. Updating HMI tag databases in parallel with the PLC configuration change prevents display errors and alarm misfires during the commissioning phase. Where a 6DP1700-series operator interface or a WinCC-based supervisory system is in use, tag address updates can typically be completed offline before the physical module swap, minimizing live system exposure time.

Downtime Control During System Migration

Minimizing production downtime during a TI505 analog input module replacement requires careful pre-staging and a disciplined changeover sequence. The recommended approach is to complete all software preparation — CPU configuration backup, I/O map update, HMI tag revision, and communications link verification — before the physical module is removed from the rack. A full backup of the existing CPU program, including data blocks and system configuration files, should be stored on a separate programming device or offline archive prior to any hardware change.

During the physical swap, the rack power should be removed in a controlled manner following the site’s lockout/tagout procedure. The 6DP1231-7AA can then be inserted into the target slot, terminal wiring reconnected, and module address jumpers verified against the updated CPU configuration. On power restoration, the CPU should be placed in STOP mode before switching to RUN, allowing the I/O scan to initialize cleanly and flagging any configuration mismatches before process control resumes.

For critical continuous processes where even brief interruptions are unacceptable, a parallel installation strategy may be appropriate: a temporary analog signal splitter or signal conditioner can feed both the existing module and the replacement module simultaneously during a validation period, allowing the new 6DP1231-7AA to be verified under live process conditions before the old module is decommissioned. This approach is particularly valuable in chemical, water treatment, or power generation environments where analog loop integrity is safety-critical.

All units supplied by NINERMAS COMPANY LIMITED undergo pre-shipment functional testing to confirm analog input channel performance prior to dispatch. This testing protocol, combined with the 12-month warranty coverage, ensures that the replacement module arrives ready for installation and reduces the risk of a second unplanned outage caused by a defective spare part.

Retrofit Support FAQ

Q1: Is the 6DP1231-7AA a direct drop-in replacement for the existing module in my TI505 rack?
Yes. The 6DP1231-7AA is designed for direct slot replacement within the SIMATIC TI505 I/O rack. No mechanical modification is required. However, you should verify the module address jumper settings match your existing CPU I/O configuration before powering the system, and confirm that the analog input range configuration (where field-selectable) matches your process signal type.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, restore power with the CPU in STOP mode. Confirm the I/O fault indicators clear on the new module. Switch the CPU to RUN and verify analog channel readings against known process values or a calibrated signal source. Update HMI tag displays and confirm alarm setpoints are functioning correctly. Document the completed commissioning steps for site maintenance records.

Q3: Can the field wiring from the old module be reused without retermination?
In most cases, yes. The 6DP1231-7AA uses the same front-face terminal block arrangement as the original module. Confirm wire labeling is intact before removal, and inspect terminal screws and wire insulation condition during the swap. If the existing wiring shows signs of heat damage or insulation degradation, retermination with new cable is recommended to avoid intermittent signal faults after commissioning.

Q4: What warranty and testing coverage is included with this module?
Every 6DP1231-7AA supplied by NINERMAS COMPANY LIMITED includes a 12-month warranty from the date of shipment. Pre-shipment functional testing is performed on each unit to verify analog input channel operation before dispatch. In-stock units are available for prompt shipment to support urgent replacement requirements and minimize production downtime.
