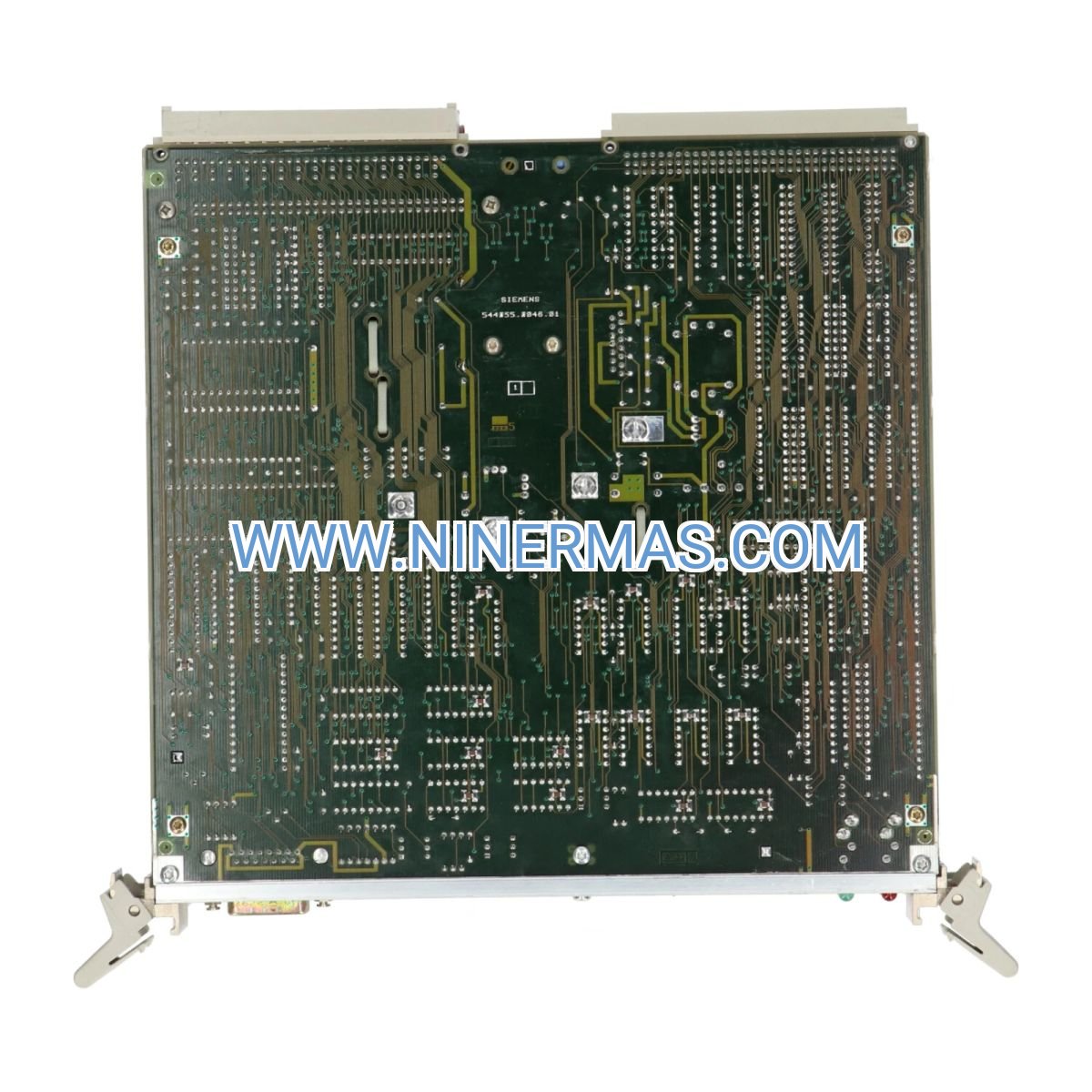

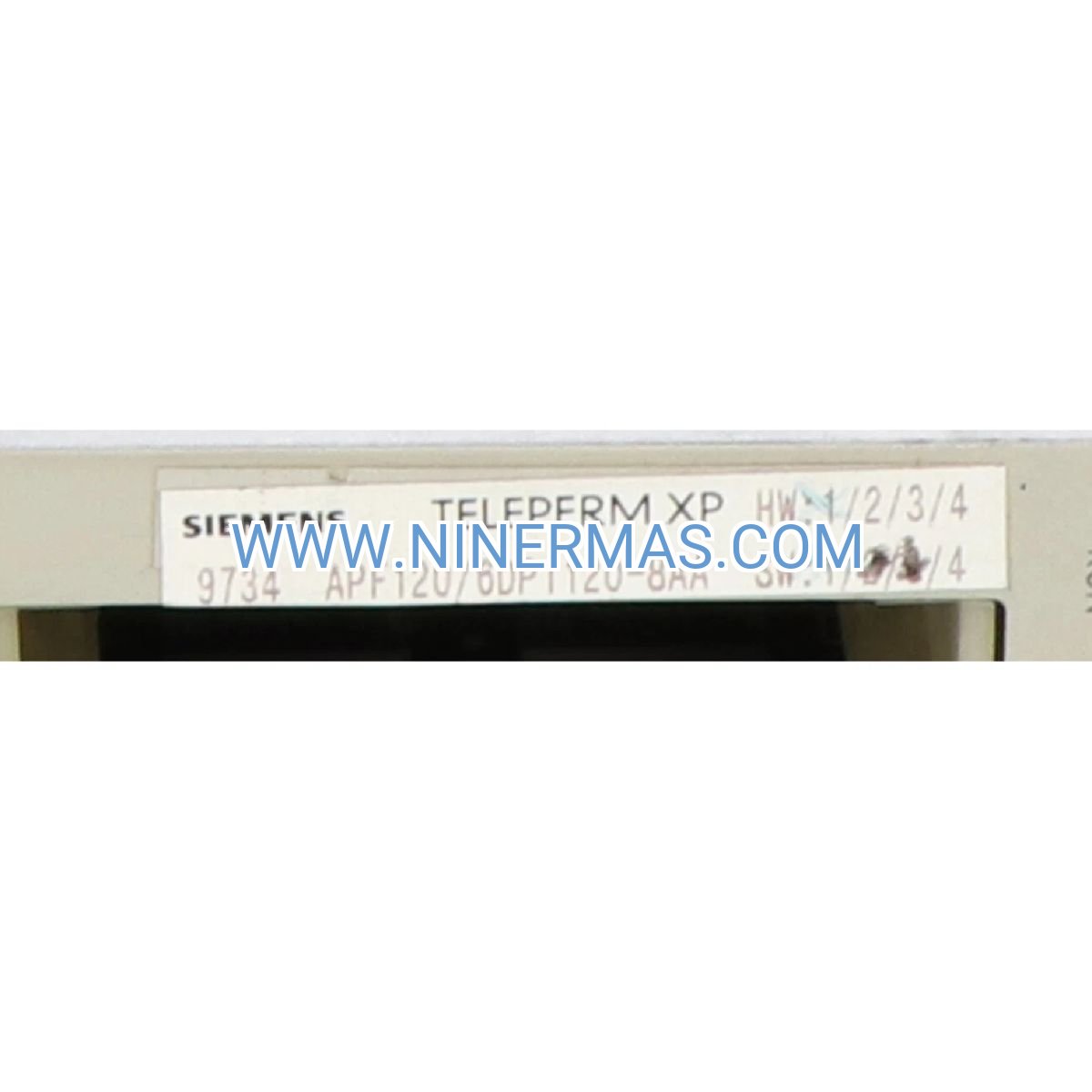

6DP1120-8AA Industrial-Grade Coupling Processor for Safety-Critical TELEPERM XP Applications

The Siemens 6DP1120-8AA coupling processor delivers mission-critical redundancy for TELEPERM XP distributed control platforms operating in power generation, chemical processing, and heavy industrial environments. Engineered with dual-channel fail-safe architecture, this module ensures continuous system availability even during component failures, meeting the most stringent safety integrity requirements for process automation.

Designed for facilities where unplanned downtime translates to significant financial loss or safety risks, the 6DP1120-8AA serves as the communication backbone between redundant processor units. Plant engineers and automation specialists rely on this coupling module to maintain operational continuity in turbine control systems, emergency shutdown networks, and safety instrumented systems requiring SIL 3 certification.

With proven reliability in 24/7 industrial operations and hot-swappable redundancy capabilities, this processor module enables predictive maintenance strategies while eliminating single points of failure. The integrated diagnostic framework provides real-time health monitoring, allowing maintenance teams to address potential issues before they impact production.

Key Technical Capabilities & Business Value

→ Dual-Channel Fail-Safe Architecture
Continuous cross-comparison of processor outputs with automatic fault isolation ensures zero-downtime operation during single-channel failures, protecting against revenue loss from unplanned shutdowns.

→ SIL 3 Safety Certification
Complies with IEC 61508 functional safety standards for safety instrumented systems, enabling deployment in emergency shutdown, fire & gas detection, and burner management applications without additional certification costs.

→ Hot-Swappable Redundancy
Replace modules during live operation without system interruption, reducing maintenance windows by up to 75% and enabling continuous production in pharmaceutical, semiconductor, and automotive facilities.

→ Integrated Diagnostic Intelligence
Real-time self-monitoring with LED status indicators and system-level fault reporting reduces troubleshooting time by 60%, enabling faster response to anomalies and supporting predictive maintenance programs.

→ TELEPERM XP Native Integration
Proprietary bus interface ensures seamless compatibility with existing TELEPERM XP infrastructure, eliminating integration complexity and reducing commissioning time for brownfield upgrades.

✓ Industrial-Grade Environmental Tolerance
Operates reliably in 0°C to +60°C temperature ranges with DIN rail mounting, suitable for harsh industrial environments including offshore platforms, refineries, and power generation facilities.

Industry-Specific Application Scenarios

Thermal Power Plant Turbine Control
In coal, gas, and combined-cycle power stations, the 6DP1120-8AA couples primary and backup turbine control processors, maintaining grid stability during controller maintenance or unexpected failures. The module's fail-safe design prevents costly emergency shutdowns that can exceed $500,000 per incident in lost generation capacity.

Petrochemical Emergency Shutdown Systems
Chemical plants processing hazardous materials deploy this coupling processor in safety instrumented systems (SIS) to bridge process control and emergency shutdown logic. SIL 3 certification ensures compliance with OSHA PSM and EPA RMP regulations while protecting personnel and assets during abnormal operating conditions.

Pharmaceutical Continuous Manufacturing
For FDA-regulated continuous production lines where batch integrity is critical, the 6DP1120-8AA provides the redundant coupling necessary to maintain process parameters within validated ranges. Hot-swappable architecture enables maintenance during production campaigns, avoiding costly batch losses.

Offshore Oil & Gas Production Platforms
Remote offshore installations leverage this module's diagnostic capabilities to minimize helicopter-based maintenance visits. The coupling processor's MTBF exceeding 150,000 hours reduces spare parts inventory requirements and extends maintenance intervals in logistically challenging environments.

District Heating & Cogeneration Systems
Municipal energy providers use the 6DP1120-8AA in combined heat and power (CHP) plants to ensure uninterrupted district heating during winter months. Redundant coupling prevents service disruptions that could affect thousands of residential and commercial customers.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 6DP1120-8AA when your application requires SIL 3 functional safety certification, operates within existing TELEPERM XP infrastructure, and demands continuous availability through redundant processor coupling. For new installations or PCS 7 migration projects, consult our engineering team for alternative coupling solutions compatible with modern SIMATIC platforms.

Advanced Integration & Customization Options

Distributed I/O Expansion: The coupling processor supports geographically dispersed control architectures, enabling remote I/O racks connected via fiber optic links for applications requiring control room separation from hazardous process areas.

SCADA System Integration: When paired with appropriate communication gateways, the 6DP1120-8AA enables real-time data exchange with supervisory control systems, supporting centralized monitoring of multi-site operations and corporate-level production analytics.

Cybersecurity Hardening: For critical infrastructure applications subject to NERC CIP or IEC 62443 requirements, our engineering team can specify complementary network security modules and configuration best practices to protect against cyber threats.

Obsolescence Management: As part of legacy TELEPERM XP systems, we offer long-term availability programs including refurbished units, repair services, and migration planning to extend asset life while preparing for eventual platform upgrades.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 3-5 business days via international courier with full tracking and insurance. Typical transit time to major industrial hubs ranges from 7-14 days depending on customs clearance and destination.

Custom Configuration: Pre-commissioned modules with customer-specific firmware or configuration files require 2-3 weeks lead time, including factory testing and documentation preparation.

Warranty Coverage: Every 6DP1120-8AA includes a comprehensive 12-month warranty covering manufacturing defects and functional failures. Extended warranty programs up to 36 months are available for critical spares inventory.

Technical Support: Our automation specialists provide configuration assistance, troubleshooting guidance, and integration support via email and phone during business hours (GMT+8). Emergency support for critical production issues is available 24/7 for customers with active support contracts.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and safety certification documents. Complete TELEPERM XP system manuals and programming guides are available upon request for registered customers.

Frequently Asked Questions

Can the 6DP1120-8AA coupling processor integrate with SIMATIC PCS 7 control systems?
This module is engineered specifically for TELEPERM XP platforms and is not directly compatible with PCS 7 architectures. For customers planning migration from TELEPERM XP to PCS 7, we recommend consulting our engineering team to develop a phased upgrade strategy that may include parallel operation during transition periods.

What is the maximum distance between redundant processors when using this coupling module?
The TELEPERM XP bus protocol typically supports coupling distances up to 10 meters using standard shielded cables. Extended distances require fiber optic converters or repeater modules—contact our technical team for specific application requirements and cable specifications.

Does the coupling processor require specialized programming software for configuration?
Configuration is performed through the TELEPERM XP engineering workstation using Siemens proprietary tools. Basic parameter settings can be adjusted via DIP switches or rotary selectors on the module itself, though comprehensive system integration requires access to the TELEPERM XP programming environment.

How does the module perform in high-vibration environments such as offshore platforms?
The 6DP1120-8AA is designed for industrial environments and includes conformal coating for moisture resistance. For extreme vibration applications, we recommend supplementary shock mounting or consulting the TELEPERM XP environmental specifications to ensure compliance with your specific installation conditions.

What spare parts inventory should we maintain for critical applications?
For SIL 3 safety systems, we typically recommend maintaining at least one spare coupling processor on-site to meet mean time to repair (MTTR) requirements. High-availability facilities may stock two units to cover simultaneous failures or extended logistics delays. Our team can assist with reliability-centered maintenance (RCM) analysis to optimize your spares strategy.

Are refurbished or surplus units available for cost-sensitive projects?
Yes, we maintain an inventory of factory-refurbished and tested surplus 6DP1120-8AA modules for customers seeking cost optimization. All refurbished units undergo comprehensive functional testing and include the same 12-month warranty as new modules. Contact our sales team for current availability and pricing.

Start Your Integration Project Today

Whether you're maintaining existing TELEPERM XP infrastructure, planning a system expansion, or developing a migration roadmap to modern platforms, our engineering team is ready to support your automation objectives. Contact us for technical specifications, application-specific configuration guidance, or volume pricing for multi-unit projects.
