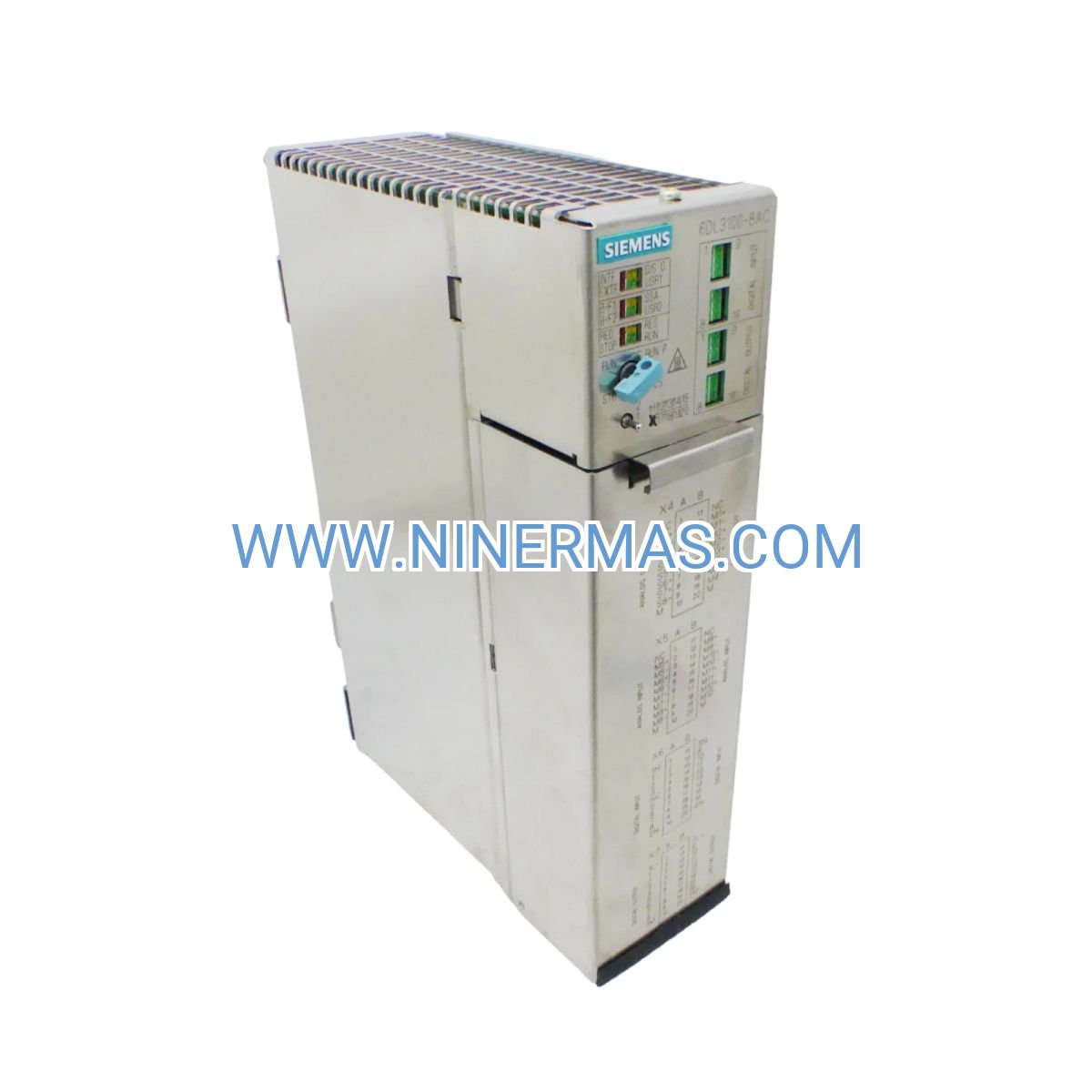

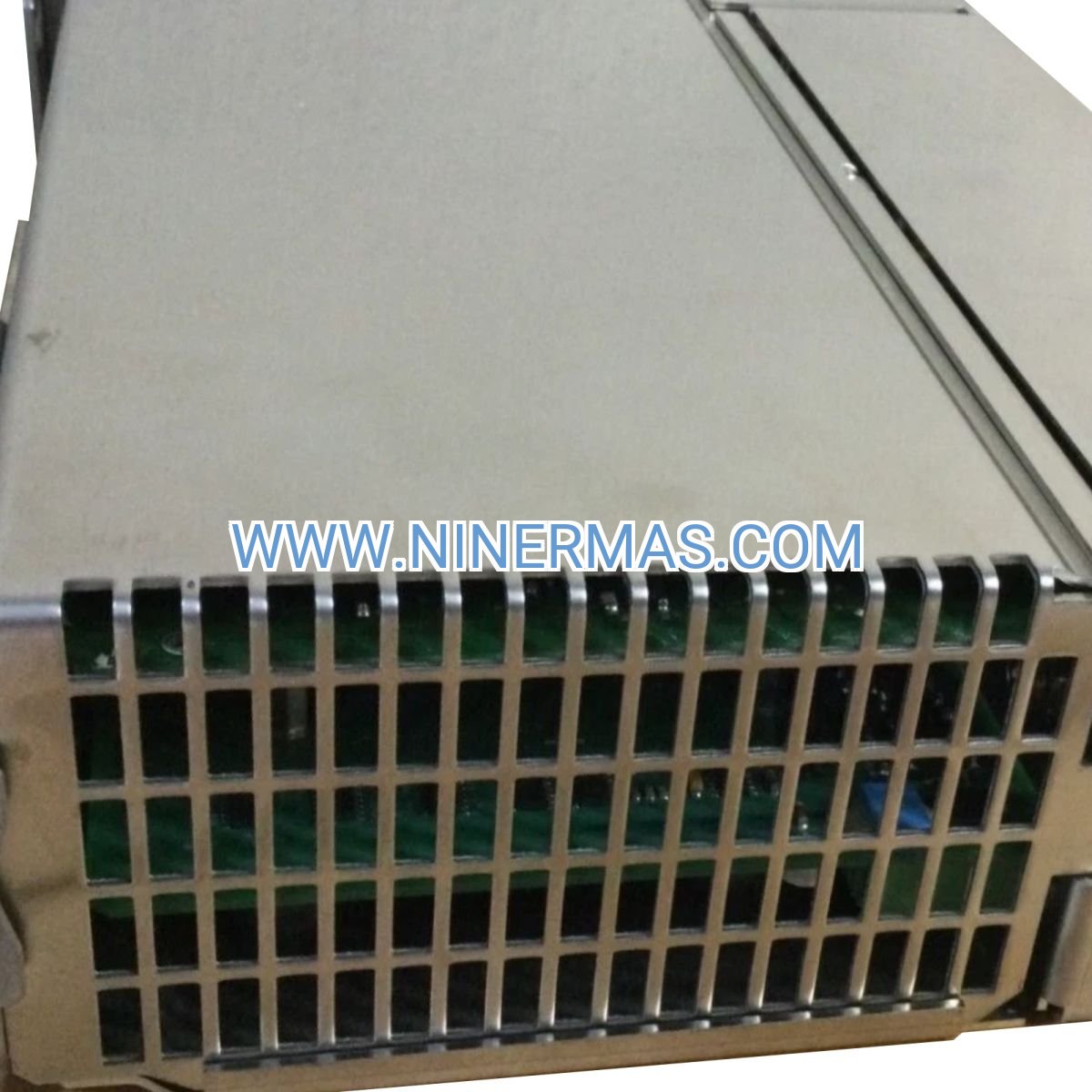

6DL3100-8AC Additional Front End Module (Industrial-Grade PROFIBUS Solution)

The Siemens 6DL3100-8AC represents a mission-critical communication gateway engineered for process automation systems that demand zero-tolerance downtime. As an Additional Front End Module (ADDFEM) with integrated Front End Functions, this device establishes fault-tolerant PROFIBUS connectivity across distributed control architectures, enabling seamless data exchange between field instrumentation and supervisory controllers in chemical processing, power generation, and continuous manufacturing environments.

Designed for system integrators and plant engineers managing complex DCS installations, the 6DL3100-8AC eliminates communication bottlenecks through dual-channel architecture while maintaining deterministic response times critical for closed-loop process control. Its hot-swappable design and extended temperature tolerance make it the preferred choice for brownfield upgrades and greenfield projects requiring IEC 61158-compliant fieldbus infrastructure.

With certified compliance across CE, UL, and CSA standards, this module delivers enterprise-grade reliability backed by Siemens' proven track record in industrial automation—transforming vulnerable single-point networks into resilient, self-healing communication backbones that protect production continuity and asset integrity.

Core Capabilities & Business Value

→ Dual-Path Redundancy Architecture
Eliminates network failure risks through parallel Front End Module configuration. When primary channel experiences faults, automatic switchover maintains uninterrupted data flow—reducing unplanned downtime costs by up to 98% compared to non-redundant systems. Critical for pharmaceutical batch processes and petrochemical safety instrumented systems where communication loss triggers emergency shutdowns.

✓ 12 Mbit/s High-Speed Data Throughput
Handles intensive I/O scanning cycles and large process variable datasets without latency. Supports up to 125 PROFIBUS nodes per segment, enabling consolidated network topologies that reduce infrastructure costs while maintaining sub-10ms response times for time-critical control loops in turbine governors and compressor anti-surge systems.

→ Integrated Front End Functions (FEF)
Provides advanced network diagnostics including segment health monitoring, device-level fault isolation, and predictive maintenance alerts. Engineering teams gain real-time visibility into communication quality metrics, reducing troubleshooting time by 60% and enabling proactive component replacement before failures impact production.

✓ Hot-Swap Serviceability
Replace modules during live operation without halting processes or losing controller synchronization. Maintenance windows shrink from hours to minutes, directly improving Overall Equipment Effectiveness (OEE) in 24/7 operations. Particularly valuable in offshore platforms and remote facilities where scheduled shutdowns incur six-figure revenue losses.

→ Extended Environmental Tolerance
Operates reliably across -25°C to +60°C ambient range without derating, suitable for unheated control rooms in Nordic climates and high-temperature environments near furnaces or reactors. Conformal coating and IP20 housing protect against dust and condensation in harsh industrial settings.

✓ Native SIMATIC Ecosystem Integration
Seamless compatibility with S7-400 controllers, ET 200SP HA I/O, and PCS 7 process control systems. Pre-configured GSD files and TIA Portal libraries accelerate commissioning—reducing engineering hours by 40% compared to third-party alternatives requiring custom driver development.

Industry Applications & Problem Resolution

Chemical & Petrochemical Processing
In continuous polymerization reactors and distillation columns, the 6DL3100-8AC maintains real-time communication with temperature transmitters, flow controllers, and safety valves. Redundant architecture prevents batch spoilage from communication dropouts, while FEF diagnostics detect cable degradation before insulation failures cause hazardous area incidents. Typical deployment: 80+ field devices per segment across multi-unit plants.

Power Generation & Distribution
Turbine control systems rely on deterministic PROFIBUS networks for governor positioning and vibration monitoring. The module's microsecond-level synchronization ensures coordinated load shedding during grid disturbances, while redundancy prevents blackout scenarios from single-component failures. Utilities achieve 99.97% communication availability in combined-cycle plants and hydroelectric facilities.

Water & Wastewater Treatment
Municipal treatment plants use the 6DL3100-8AC to coordinate pump stations, clarifier drives, and chemical dosing systems across distributed sites. Hot-swap capability allows technicians to service modules during peak demand periods without bypassing automated controls. Remote diagnostic access via FEF functions reduces truck rolls by 70% for geographically dispersed infrastructure.

Pharmaceutical Manufacturing
GMP-compliant batch systems demand audit-trail-ready communication with validated timestamps and data integrity. The module's redundant design satisfies FDA 21 CFR Part 11 requirements for electronic records, while its deterministic performance supports critical quality attributes (CQA) monitoring in bioreactor fermentation and aseptic filling lines.

Automotive Assembly & Robotics
Body-in-white welding lines and paint booth conveyors require synchronized motion control across 200+ servo drives and safety PLCs. The 6DL3100-8AC handles high-frequency position updates while maintaining safety-rated communication (PROFIsafe) for emergency stop circuits—enabling cycle times under 60 seconds without compromising worker protection.

Technical Parameters & Selection Criteria

Sizing Recommendations: For networks with 50-125 nodes, deploy single 6DL3100-8AC pair. Larger systems (125-250 nodes) benefit from segmented topology using multiple module pairs with DP/DP couplers. Calculate total bus load using Siemens' PROFIBUS Network Calculator to ensure <30% utilization for optimal response times.

Advanced Integration & Customization

Industrial IoT Connectivity: Bridge PROFIBUS data to Ethernet/IP or OPC UA networks using Siemens IE/PB Link modules, enabling cloud analytics platforms to access real-time process variables without compromising deterministic fieldbus performance. Ideal for predictive maintenance initiatives and digital twin implementations.

Cybersecurity Hardening: Deploy within Defense-in-Depth architectures using SCALANCE firewalls and encrypted VPN tunnels for remote access. FEF diagnostic ports support read-only monitoring to prevent unauthorized configuration changes—meeting IEC 62443 industrial security standards.

Custom Engineering Services: NINERMAS offers pre-configured module pairs with customer-specific GSD files, tested redundancy scripts, and documented FAT protocols. Turnkey packages include spare parts kits, calibrated test equipment, and on-site commissioning support for complex multi-site deployments.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 10-15 days for factory-sealed units requiring import customs clearance
Custom Configurations: 4-6 weeks for pre-programmed modules with client-specific parameters and FAT documentation
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, firmware issues, and component failures
Technical Support: Lifetime access to application engineers via email/phone; remote diagnostic assistance within 4 business hours
Documentation Package: English/Chinese manuals, GSD files, TIA Portal libraries, AutoCAD dimensional drawings, and compliance certificates

Frequently Asked Questions

How does the 6DL3100-8AC redundancy differ from standard PROFIBUS repeaters?
Unlike passive repeaters that only amplify signals, the ADDFEM provides active redundancy with independent communication processors. If one module fails, the secondary maintains full network functionality without data loss or controller re-initialization—critical for SIL-rated safety systems where communication interruptions trigger plant-wide shutdowns.

What cable specifications are required for optimal 12 Mbit/s performance?
Use Type A PROFIBUS cable (Belden 3079A or equivalent) with <100m segment length at maximum baud rate. For longer distances, reduce to 1.5 Mbit/s and extend up to 400m. Always terminate both ends with active RS-485 terminators (220Ω + 390Ω network) to prevent signal reflections that cause intermittent communication errors.

Can this module integrate with non-Siemens PLCs like Allen-Bradley or Schneider Electric?
Yes—PROFIBUS DP is vendor-neutral per IEC 61158 standards. The 6DL3100-8AC communicates with any DP-compliant master controller using standard GSD configuration files. However, redundancy features require Siemens S7-400H or PCS 7 systems; single-channel operation works with third-party PLCs.

What diagnostic capabilities help reduce troubleshooting time during commissioning?
FEF functions provide live bus statistics including error counters, retry rates, and node response times accessible via STEP 7 diagnostic buffers. LED indicators show power status, communication activity, and redundancy health at a glance. Built-in cable fault location identifies short circuits or open connections within ±2 meters—eliminating time-consuming manual cable testing.

Is firmware upgradable for future PROFIBUS protocol enhancements?
Yes—firmware updates install via TIA Portal or SIMATIC Manager using standard MMC memory cards. Siemens releases periodic updates adding features like extended diagnostic objects or improved noise immunity algorithms. Always verify compatibility with existing S7-400 controller firmware before upgrading to prevent version conflicts.

How do I configure automatic failover timing for process-critical applications?
Switchover parameters configure in Hardware Config (STEP 7) or TIA Portal device properties. Set monitoring cycle to 10-50ms based on process dynamics—faster cycles detect failures quicker but increase CPU load. Enable "bumpless transfer" mode to synchronize output states during switchover, preventing valve position jumps or motor speed changes that disrupt product quality.

Take the Next Step

Eliminate communication vulnerabilities in your process automation infrastructure. Contact our industrial networking specialists for application-specific sizing, redundancy architecture design, and integration roadmaps tailored to your plant's operational requirements. Request a detailed quotation including spare parts recommendations, commissioning support options, and volume pricing for multi-site deployments.
