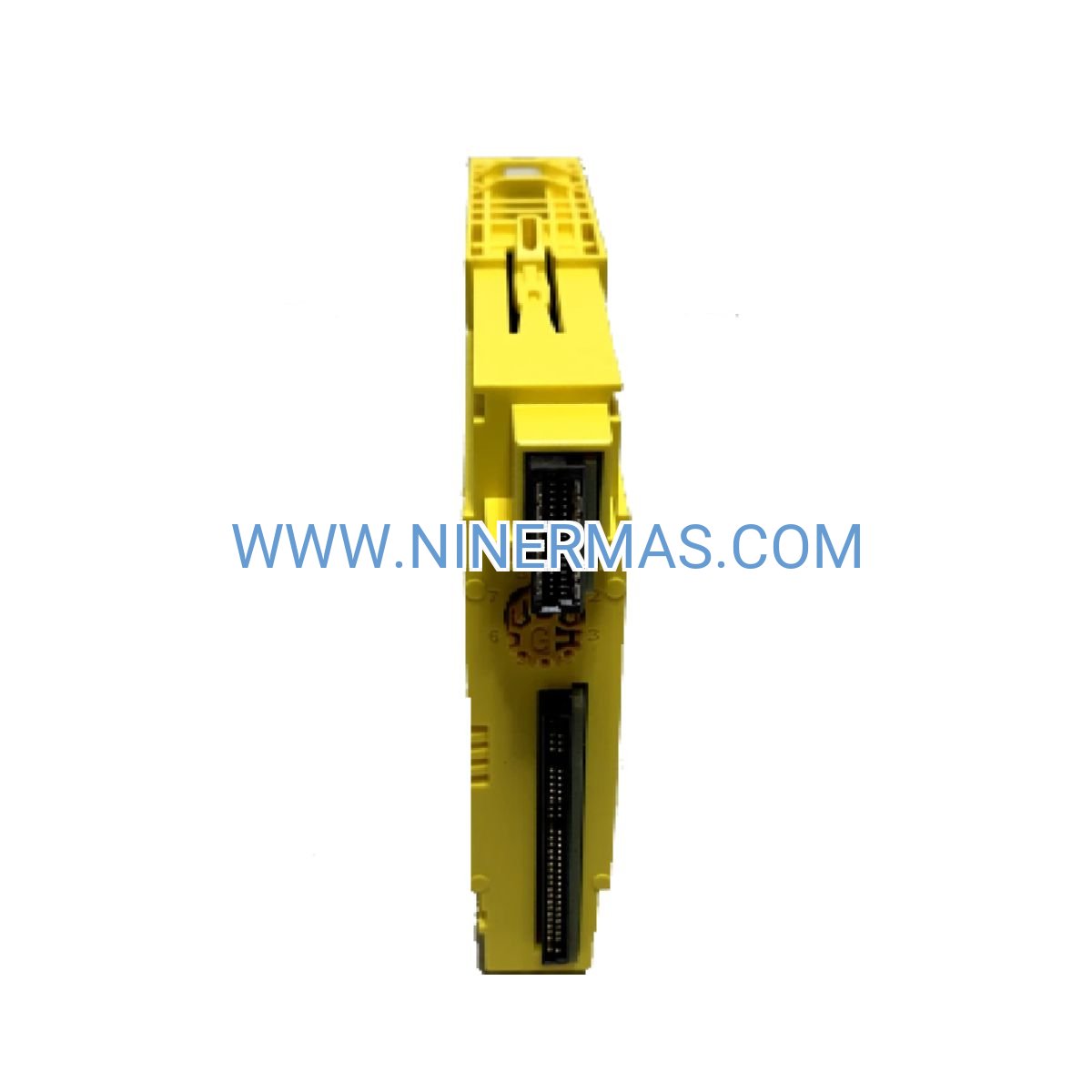

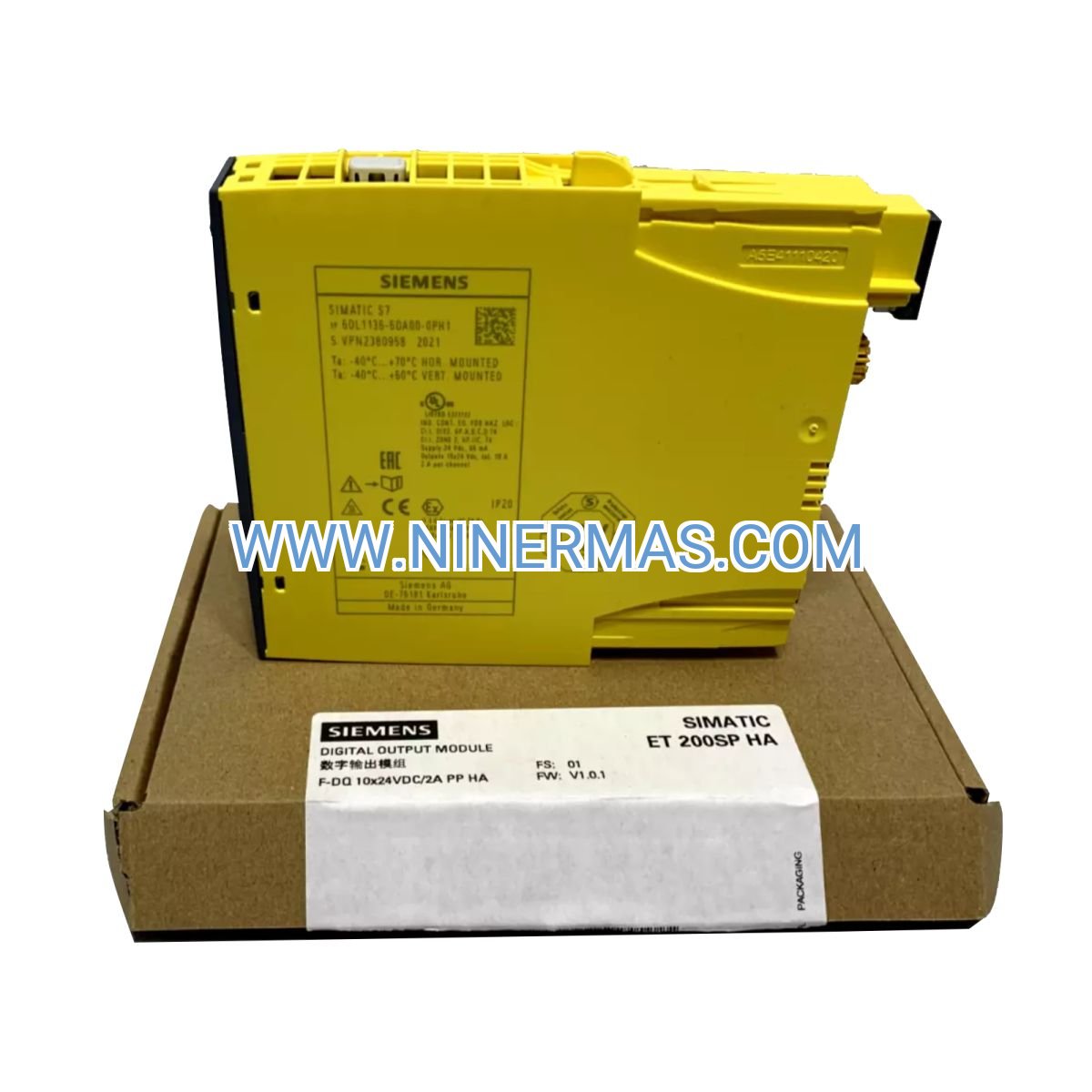

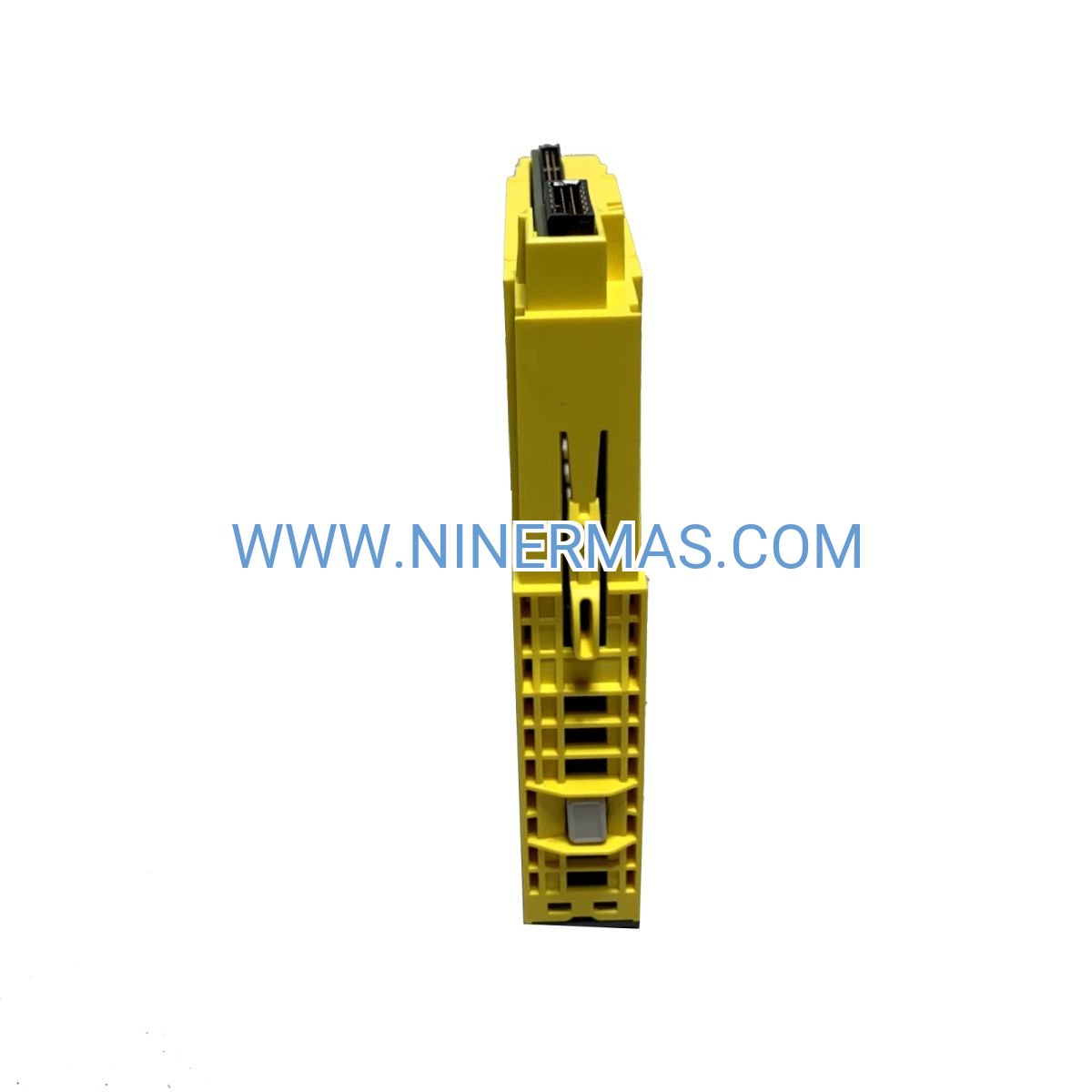

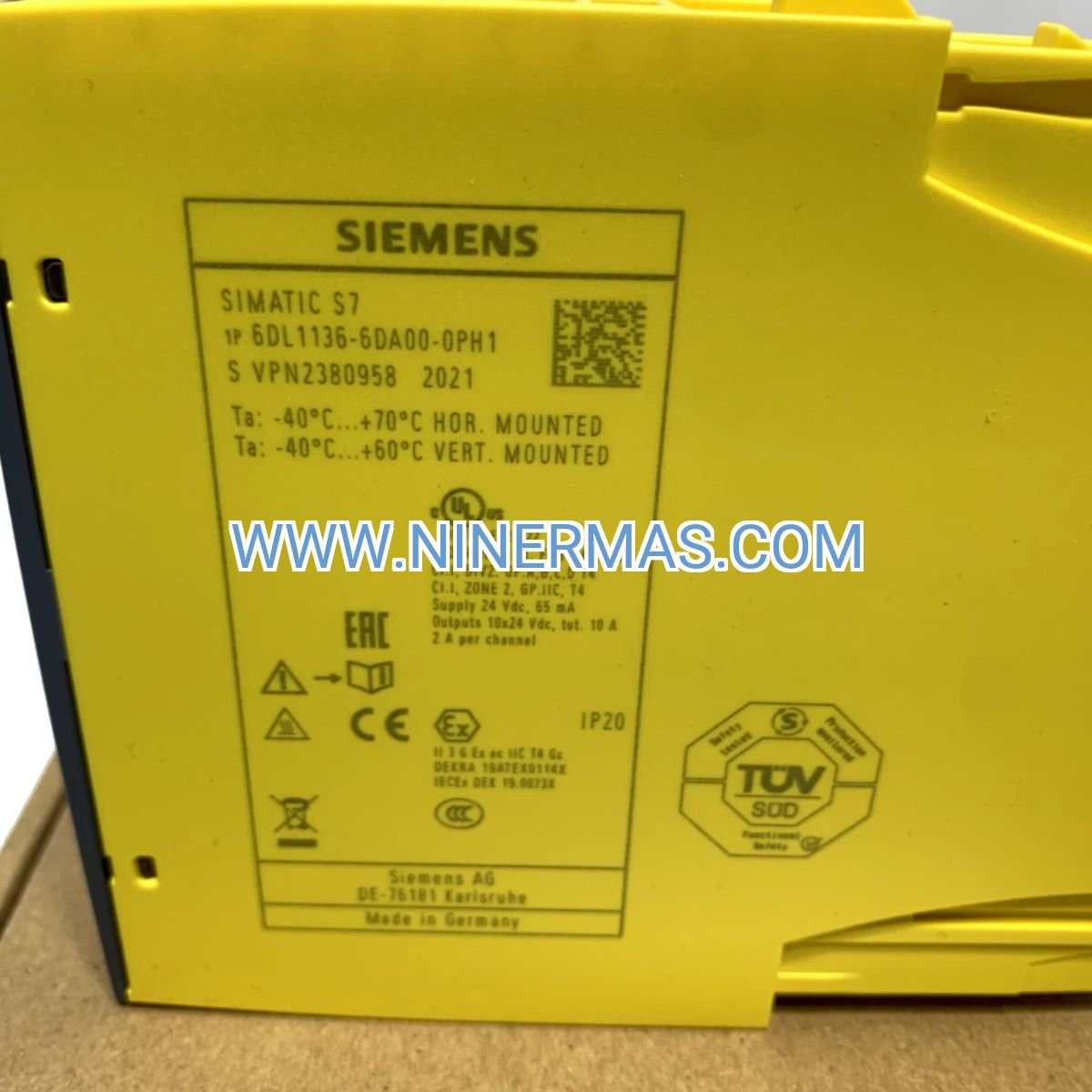

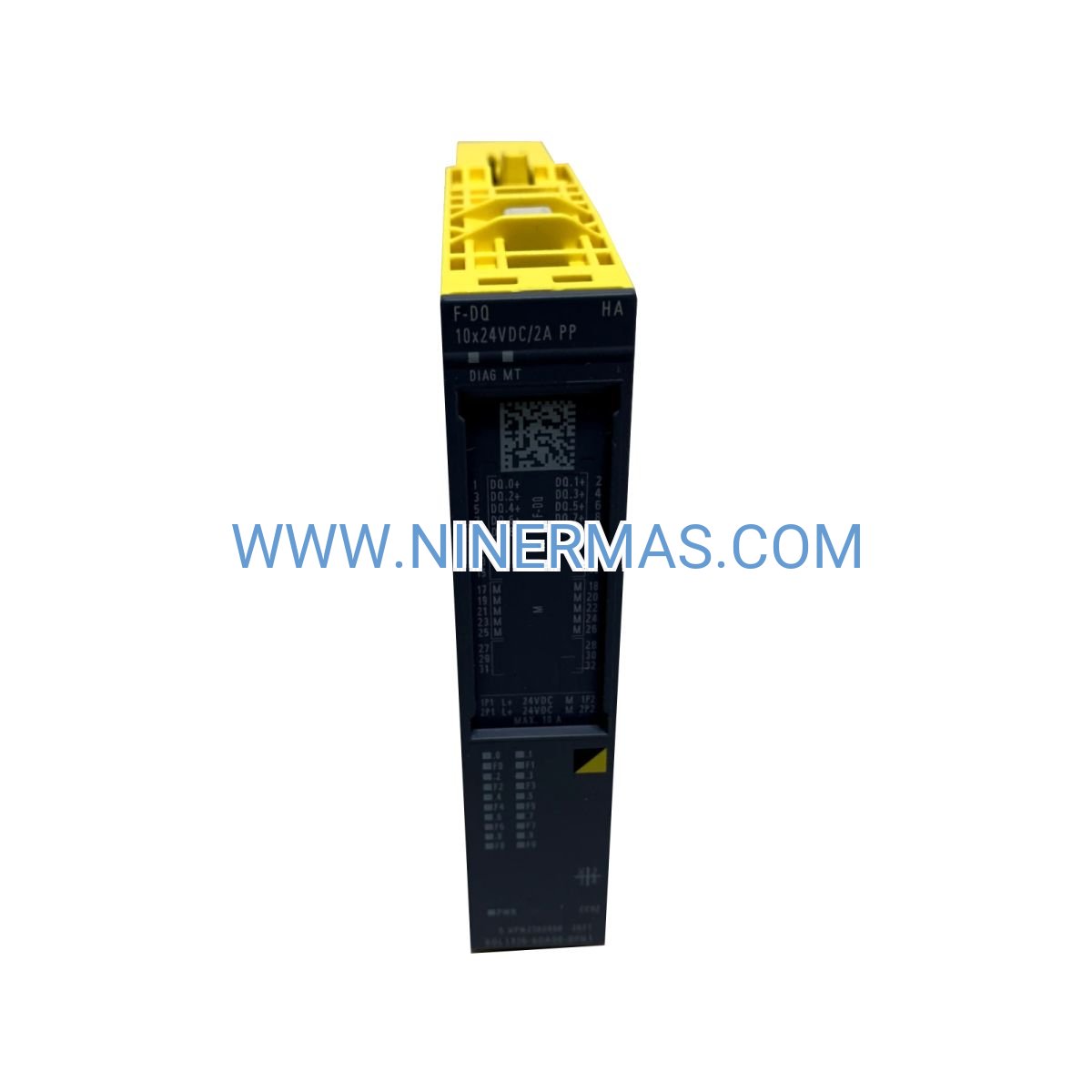

Siemens 6DL1136-6DA00-0PH1 F-DQ Safety Output Module (Industrial-Grade Fail-Safe Control)

The Siemens 6DL1136-6DA00-0PH1 represents a mission-critical component in modern safety instrumented systems, delivering certified fail-safe output control for hazardous industrial environments. Engineered within the ET 200SP HA distributed I/O platform, this F-DQ module provides 10 safety-rated digital outputs with dual-channel architecture and comprehensive diagnostic coverage exceeding 99%. Organizations operating in chemical processing, oil & gas, pharmaceutical manufacturing, and automated production facilities rely on this module to protect personnel, prevent equipment damage, and maintain regulatory compliance across SIL3 and Performance Level e applications.

Designed for system integrators and plant engineers managing safety-critical infrastructure, the 6DL1136-6DA00-0PH1 eliminates the complexity traditionally associated with safety I/O deployment. Its PROFIsafe communication protocol transmits safety data over standard PROFINET networks without dedicated wiring, reducing installation costs by up to 35% while maintaining black channel data integrity. The module's hot-swap capability in redundant configurations ensures continuous operation during maintenance activities, directly addressing uptime requirements in 24/7 production environments where unplanned shutdowns cost thousands per hour.

Key competitive advantages include extended temperature operation from -40°C to +70°C for harsh environments, push-in terminal technology that accelerates commissioning by 40%, and pre-certified compliance with global safety standards including TÜV Rheinland, UL 508, and CSA C22.2. When integrated with SIMATIC F-CPUs and TIA Portal safety programming tools, this module forms the foundation of Safety Instrumented Functions (SIF) that meet IEC 61511 process safety requirements and ISO 13849-1 machinery safety directives.

Technical Capabilities & Performance Benefits

✓ Certified Safety Integrity: Achieves SIL3 rating per IEC 61508 and Performance Level e per ISO 13849-1, enabling deployment in the most demanding safety applications including emergency shutdown systems, burner management, and toxic gas isolation. Dual-channel output architecture with cross-monitoring detects internal faults within 12ms, ensuring rapid transition to safe state.

✓ High-Availability Architecture: Seamlessly integrates into ET 200SP HA redundant configurations, supporting controller failover without interrupting safety functions. Module-level redundancy with automatic switchover maintains protection even during component failure, delivering availability exceeding 99.99% in critical process applications.

✓ Flexible Output Configuration: Ten independent safety outputs rated at 2A per channel accommodate diverse actuator types including safety contactors, solenoid valves, brake systems, and alarm indicators. Configurable output behavior (de-energize to trip or energize to trip) adapts to application-specific safety logic requirements.

✓ Advanced Diagnostics: Channel-level fault detection identifies wire breaks, short circuits, and load failures with timestamped event logging. Predictive maintenance algorithms analyze output current trends to forecast contactor wear and valve degradation before functional failure occurs.

✓ Simplified Integration: PROFIsafe protocol eliminates dedicated safety networks—standard Cat5e Ethernet cables carry both process and safety data with cryptographic protection. TIA Portal's integrated safety programming environment reduces engineering time by 50% compared to legacy safety PLC platforms.

✓ Compact Footprint: 35mm width conserves valuable control cabinet space, allowing up to 32 modules per meter of DIN rail. Color-coded status LEDs provide instant visual feedback on channel health, communication status, and safety function state.

Industry Applications & Problem-Solving Scenarios

→ Chemical Process Safety: In petrochemical facilities handling flammable liquids and toxic gases, the 6DL1136-6DA00-0PH1 controls emergency isolation valves and ventilation dampers within Safety Instrumented Functions. When hazardous conditions are detected—such as high reactor pressure or toxic gas leaks—the module executes pre-programmed shutdown sequences that isolate process sections and activate mitigation systems. The SIL3 certification ensures the probability of dangerous failure remains below 10⁻⁷ per hour, meeting stringent process safety management requirements.

→ Automated Manufacturing Safety: On high-speed packaging lines and robotic assembly cells, this F-DQ module drives safety contactors that remove power from servo drives and pneumatic systems when safety light curtains or emergency stop buttons are activated. Response times under 12ms prevent operator injury during abnormal access to hazardous zones. Integration with safety PLCs enables complex safety logic including muting sequences for material flow and zone-selective interlocking for multi-robot work cells.

→ Power Generation Protection: In combined-cycle power plants and cogeneration facilities, the module controls turbine trip systems, fuel gas isolation valves, and fire suppression actuators. Redundant output channels ensure critical shutdown functions remain operational even during single-point failures. Extended temperature rating supports installation in outdoor switchgear enclosures and turbine control buildings without environmental conditioning.

→ Material Handling Emergency Stop: Distribution centers and airport baggage systems deploy this module to manage conveyor emergency stop circuits across multiple zones. When emergency stop devices are activated, the module simultaneously de-energizes motor contactors while activating brake systems, achieving controlled deceleration that prevents product damage and personnel injury. Diagnostic feedback identifies which zone initiated the stop, accelerating troubleshooting and system restart.

→ Pharmaceutical Cleanroom Safety: In aseptic processing environments, the 6DL1136-6DA00-0PH1 controls airlock interlocks, differential pressure alarms, and emergency exhaust systems. The module's IP20 rating and conformal coating options protect against cleaning agent exposure during facility sanitization. Safety-rated outputs ensure containment integrity is maintained during abnormal conditions, protecting both personnel and product sterility.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 6DL1136-6DA00-0PH1 when your application requires SIL3-rated output control for safety actuators operating at 24V DC. Verify that your safety controller (F-CPU) supports PROFIsafe communication and that your network infrastructure meets PROFINET real-time requirements. For applications requiring more than 10 safety outputs, multiple modules can be combined on the same ET 200SP baseunit. Consider redundant configurations (HA) for applications where safety system availability must exceed 99.9%.

Advanced Integration Features

Redundancy & Hot-Swap: In ET 200SP HA configurations, dual F-DQ modules operate in parallel with automatic failover. When one module is removed for maintenance or replacement, the redundant partner continues controlling all safety outputs without interruption. This capability is essential in continuous process industries where safety system downtime is unacceptable.

Cybersecurity Protection: PROFIsafe protocol employs CRC checksums, sequence numbering, and timeout monitoring to detect data corruption, replay attacks, and communication failures. This black channel approach ensures safety data integrity even when transmitted over non-safety-rated Ethernet infrastructure, simplifying network architecture while maintaining security.

Flexible Safety Logic: TIA Portal's F-LAD and F-FBD programming languages enable implementation of complex safety functions including two-hand control, safety door monitoring with guard locking, and multi-zone emergency stop with restart interlocking. Pre-certified safety function blocks accelerate development and reduce validation effort.

Predictive Maintenance: Continuous monitoring of output current profiles enables early detection of actuator degradation. When contactor coil resistance increases or valve solenoid current deviates from baseline, maintenance alerts are generated before functional failure occurs, preventing unplanned safety system trips.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier with tracking. International shipments typically arrive within 5-7 business days depending on customs clearance.

Warranty Coverage: Each module includes a comprehensive 12-month manufacturer warranty covering material defects and workmanship. Extended warranty options available for critical applications.

Technical Support: Our certified Siemens automation specialists provide configuration assistance, safety validation support, and troubleshooting guidance throughout your project lifecycle. TIA Portal project templates and safety function examples available upon request.

Documentation Package: Complete technical documentation includes installation manual, safety manual, PROFIsafe parameter specifications, and TÜV certification documents. CAD drawings and EPLAN macros provided for panel design integration.

Frequently Asked Questions

How does this F-DQ module differ from standard digital output modules?
F-DQ modules incorporate dual-channel safety architecture with independent output drivers and cross-monitoring circuits. Each safety output consists of two physical channels that must agree within the configured discrepancy time. Standard DQ modules lack this redundancy and cannot achieve SIL ratings above SIL1, making them unsuitable for safety-critical applications.

Can I use this module to control non-safety loads in the same system?
Yes, F-DQ outputs can control standard 24V DC loads such as indicator lights or non-critical solenoids. However, mixing safety and non-safety functions on the same module may complicate safety validation. Consider using separate standard DQ modules for non-safety outputs to maintain clear functional separation.

What programming tools are required for safety output configuration?
Safety logic must be programmed using TIA Portal V15 or later with the Safety Advanced option. Standard STEP 7 programming tools cannot create or modify safety programs. The F-CPU and all F-I/O modules must be configured within the safety program editor using certified function blocks (F-FBD/F-LAD).

Does PROFIsafe communication require special network hardware?
No dedicated safety network is required. PROFIsafe operates over standard PROFINET infrastructure using managed or unmanaged switches. However, network design must ensure deterministic communication with cycle times appropriate for your safety response time requirements (typically 10-50ms).

How do I calculate the required safety response time for my application?
Safety response time depends on hazard analysis results per ISO 12100. Sum the detection time (sensor response), logic processing time (F-CPU scan), communication time (PROFIsafe cycle), output switching time (F-DQ response), and actuator response time (contactor/valve). This total must be less than the maximum allowable time derived from risk assessment.

What maintenance procedures are required for F-DQ modules?
Perform annual proof tests per IEC 61511 requirements, including verification of output switching, diagnostic coverage, and communication integrity. Document all test results for safety lifecycle records. Monitor diagnostic messages for early warning of component degradation. Replace modules showing persistent faults or exceeding manufacturer's recommended service life.

Ready to Enhance Your Safety System?

Contact our automation specialists today for application-specific guidance, safety validation support, and competitive pricing on the Siemens 6DL1136-6DA00-0PH1 F-DQ safety output module. We provide complete system integration services including safety programming, network design, and regulatory compliance documentation.
