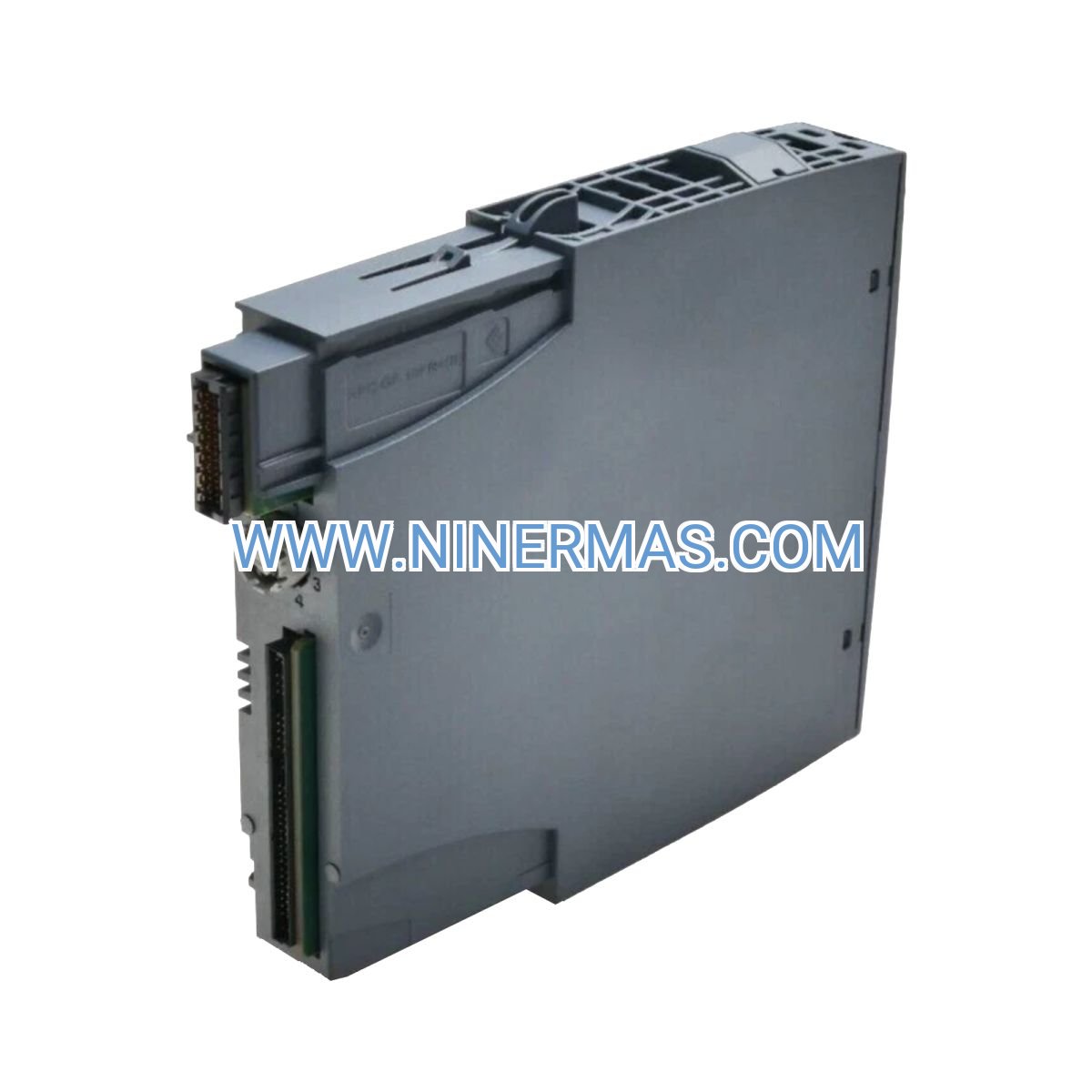

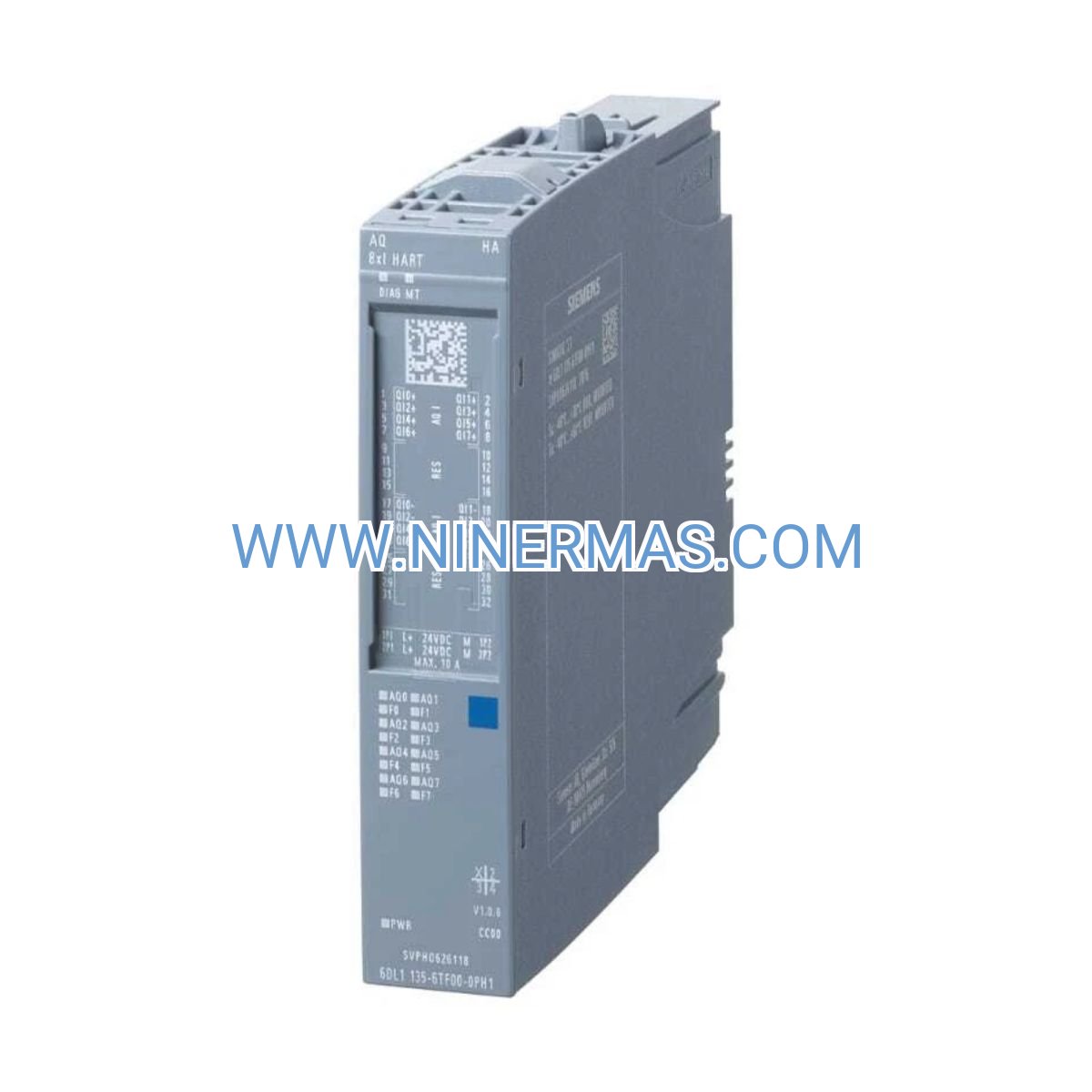

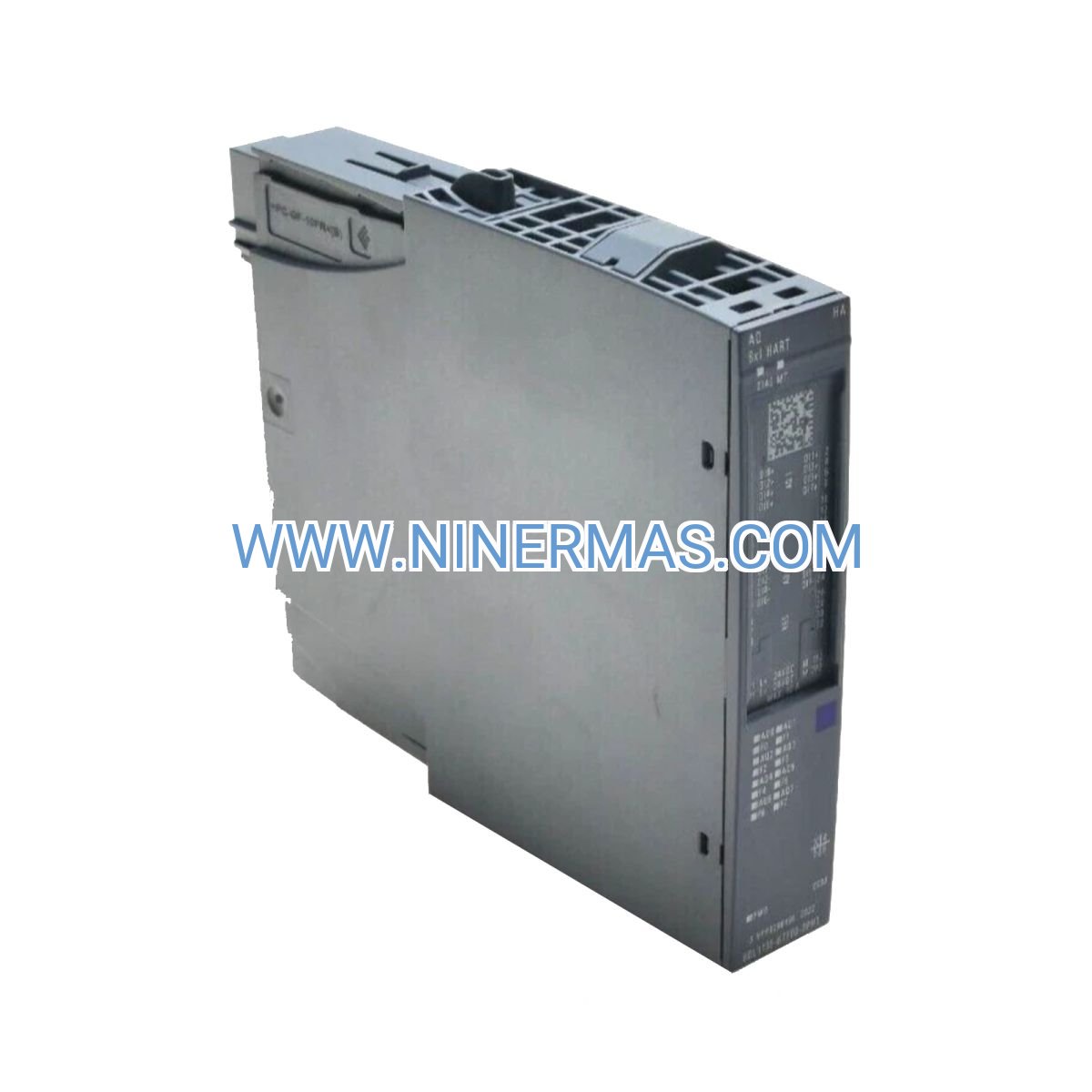

Siemens 6DL1135-6TF00-0PH1 HART Analog Output Module (Industrial-Grade 8-Channel Solution)

The Siemens 6DL1135-6TF00-0PH1 represents a professional-grade analog output solution engineered for distributed control systems requiring simultaneous analog control and digital diagnostics. This 8-channel module combines 16-bit resolution with HART protocol overlay, enabling precision signal generation while maintaining full access to device intelligence and health monitoring.

Designed for process industries where control accuracy directly impacts product quality and operational safety, this module addresses the challenge of maintaining tight process variable regulation while enabling predictive maintenance strategies. Target users include automation engineers, DCS integrators, and plant maintenance teams managing chemical processing, pharmaceutical manufacturing, oil & gas production, and water treatment facilities.

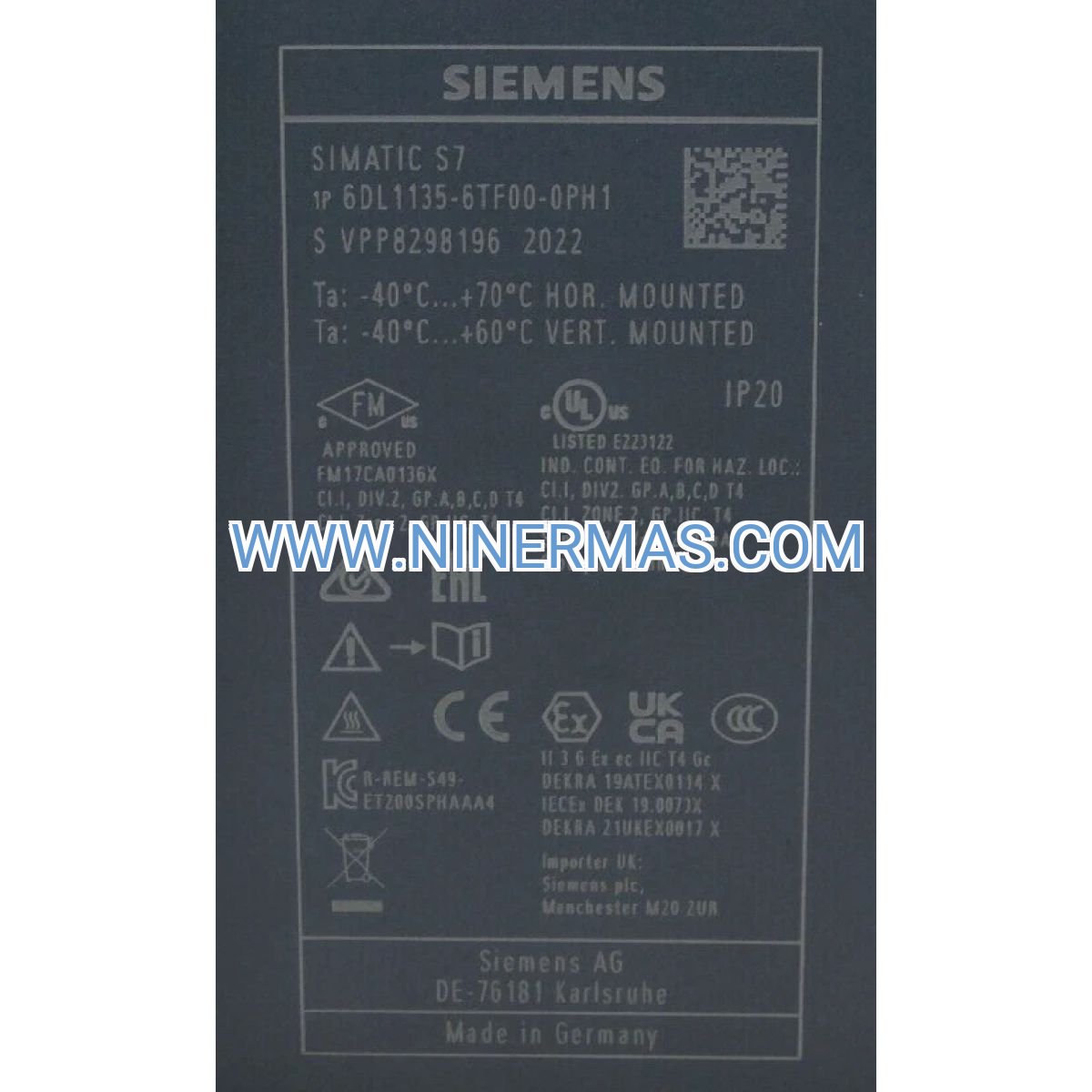

Key advantages include galvanically isolated channels preventing ground loop interference, hot-swap capability minimizing production disruptions during maintenance, and field-proven reliability in temperature extremes from -40°C to +70°C. The HART communication layer provides simultaneous 4-20mA control signals and digital parameter access without additional wiring infrastructure.

Core Features & Benefits

→ 16-Bit Resolution Precision
Achieves 0.0015% of span accuracy, translating to superior process variable control in applications demanding tight tolerance regulation such as reactor temperature management and dosing pump positioning.

→ HART Protocol Integration
Enables simultaneous analog control and digital communication, providing real-time access to calibration data, diagnostic alerts, and device parameters without interrupting the control loop or requiring multiplexer hardware.

→ Channel-to-Channel Isolation
Galvanic isolation protects against electrical noise and ground loops in harsh industrial environments, ensuring signal integrity across all eight independent output channels even in high-EMI installations.

→ Hot-Swap Modular Design
Supports online module replacement without system shutdown, reducing mean time to repair (MTTR) and enabling maintenance during production windows without process interruption.

→ Redundancy-Ready Architecture
Compatible with redundant I/O configurations in SIMATIC PCS 7 systems, providing automatic failover protection for mission-critical control loops in continuous process industries.

→ Extended Temperature Range
Operates reliably from -40°C to +70°C, suitable for outdoor installations, non-climate-controlled enclosures, and extreme industrial environments without derating or auxiliary cooling.

Application Scenarios

Chemical Processing Plants
Controls reactor temperature loops, distillation column reflux ratios, and catalyst feed rates where precise analog signals ensure product consistency and prevent runaway reactions. HART diagnostics enable early detection of valve positioner degradation before process upsets occur.

Pharmaceutical Manufacturing
Regulates batch process parameters including pH control, ingredient dosing, and fermentation temperature in GMP-compliant environments. Digital calibration records via HART support validation documentation and 21 CFR Part 11 compliance requirements.

Oil & Gas Production Facilities
Positions control valves for separator pressure regulation, pipeline flow control, and compressor anti-surge protection in hazardous area installations. Isolation specifications meet stringent safety requirements for Zone 2/Division 2 applications.

Water & Wastewater Treatment
Manages chemical dosing pumps for coagulation, pH adjustment, and disinfection processes. Remote HART configuration enables centralized calibration management across distributed lift stations and treatment plants.

Power Generation Systems
Controls boiler feedwater flow, turbine governor signals, and emissions control actuators where output accuracy directly impacts thermal efficiency and environmental compliance. Redundant configurations ensure continuous operation during maintenance cycles.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires more than four analog outputs with HART capability, when channel isolation is necessary to prevent ground loop issues, or when integration with Siemens SIMATIC PCS 7/PCS neo DCS platforms is specified. For applications requiring only standard 4-20mA outputs without HART diagnostics, consider cost-optimized alternatives. For voltage output requirements (0-10V), select the corresponding voltage output variant.

Extended Functions

IoT & Industry 4.0 Integration: The module's HART interface connects to asset management platforms via HART multiplexers or wireless HART gateways, enabling cloud-based predictive maintenance analytics and remote calibration management. Integration with Siemens MindSphere or third-party IIoT platforms provides advanced diagnostics and performance trending.

Advanced Diagnostic Capabilities: Built-in self-diagnostics monitor output current loop integrity, detect open/short circuit conditions, and track calibration drift. HART commands provide access to device-specific parameters including output trim values, temperature compensation data, and cumulative operating hours.

Customization Options: Factory configuration services available for pre-programmed output ranges, custom calibration certificates, and application-specific firmware. Consult with our engineering team for special environmental requirements, extended temperature variants, or SIL-rated safety applications.

Delivery & Service Assurance

Lead Time: Standard delivery 5-7 business days for stock items; 3-4 weeks for factory-configured units. Express shipping available for urgent requirements with 48-hour dispatch options to major industrial regions.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship issues. Extended warranty programs available for critical infrastructure applications requiring up to 36-month coverage.

Technical Support: Dedicated application engineering support for system integration questions, configuration assistance, and troubleshooting guidance. Access to Siemens technical documentation, CAD drawings, and configuration software at no additional charge.

Documentation Package: Each module ships with installation manual, quick-start guide, HART device description (DD) files, and calibration certificate. Complete technical specifications, wiring diagrams, and integration examples available via secure download portal.

Frequently Asked Questions

What are the wiring requirements for HART communication with this 8-channel module?
Standard twisted-pair shielded cable (18-22 AWG) is recommended with maximum loop resistance of 750Ω including field device and cable. HART signals overlay on the 4-20mA current without requiring separate communication wiring. For multi-drop HART configurations, consult the technical manual for addressing and load resistance calculations.

Can this module handle simultaneous output updates across all eight channels?
Yes, all eight channels update synchronously with typical cycle times of 100ms. For applications requiring faster update rates, the module supports priority channel configurations where critical loops receive preferential processing. Maximum aggregate update rate depends on backplane communication bandwidth and DCS scan cycle settings.

How does the isolation specification improve system reliability in industrial environments?
The 500V channel-to-channel and 1500V channel-to-bus isolation prevents ground potential differences from creating measurement errors or damaging sensitive electronics. This is particularly valuable in large facilities where field devices may be grounded at different points, or in applications with high electrical noise from VFDs, welding equipment, or switching power supplies.

What installation considerations apply for hazardous area deployments?
When installed in Zone 2/Division 2 classified areas, ensure the control cabinet meets appropriate ingress protection (IP) ratings and temperature classifications. The module itself is suitable for safe area mounting with field wiring entering hazardous zones through appropriate barriers or intrinsically safe interfaces. For Zone 1/Division 1 applications, consult factory for certified intrinsically safe output options.

Is remote calibration possible without physical access to the module?
Absolutely. HART communication enables full remote calibration including zero/span adjustment, output trim, and diagnostic threshold configuration via DCS engineering workstation or handheld HART communicator. Calibration changes are stored in non-volatile memory and can be documented electronically for compliance audit trails.

How does this module integrate with non-Siemens control systems?
The module uses industry-standard backplane interfaces compatible with most major DCS platforms. HART functionality is protocol-independent, allowing integration with any control system supporting analog I/O and HART multiplexer connectivity. Consult our integration team for specific compatibility verification with your existing infrastructure.
