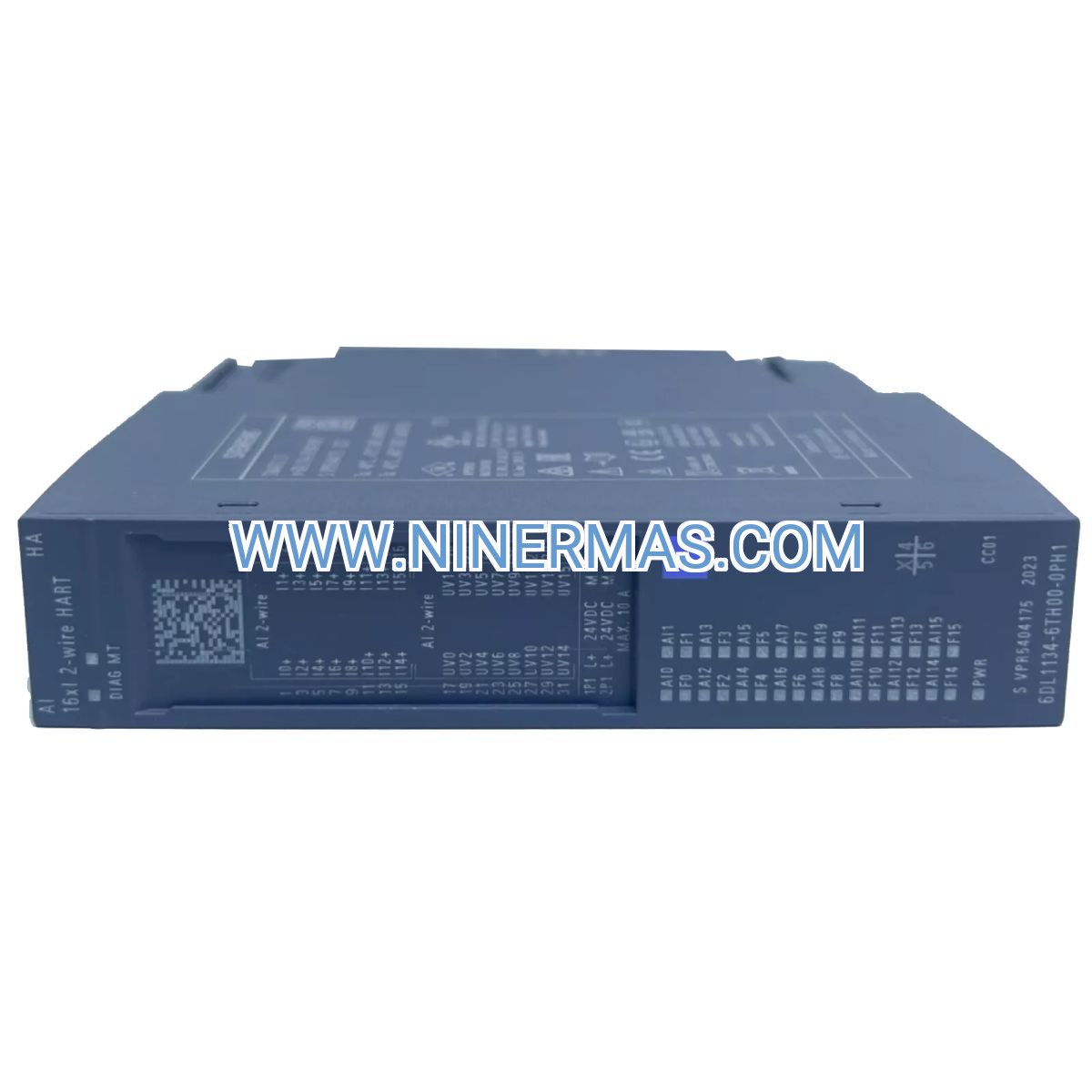

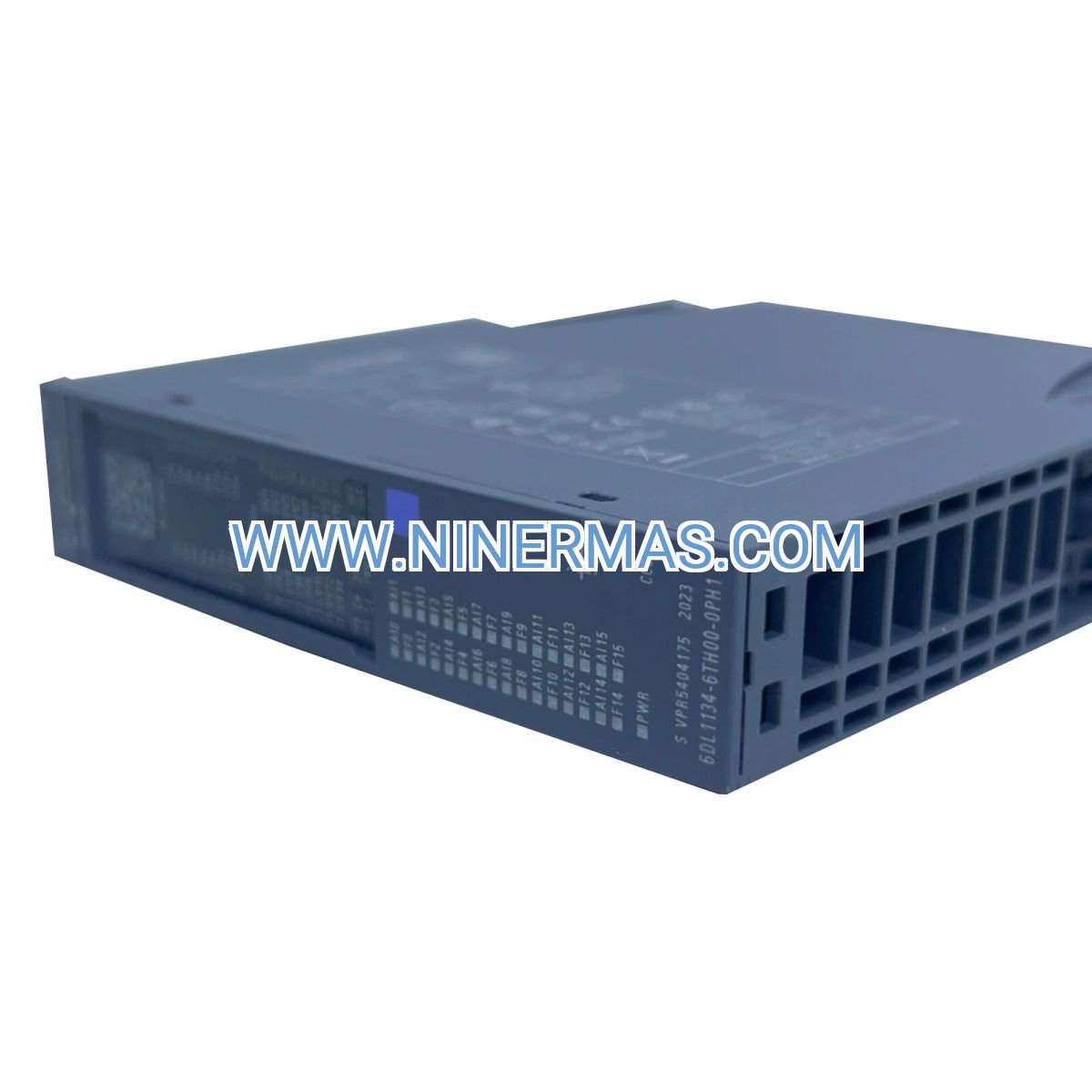

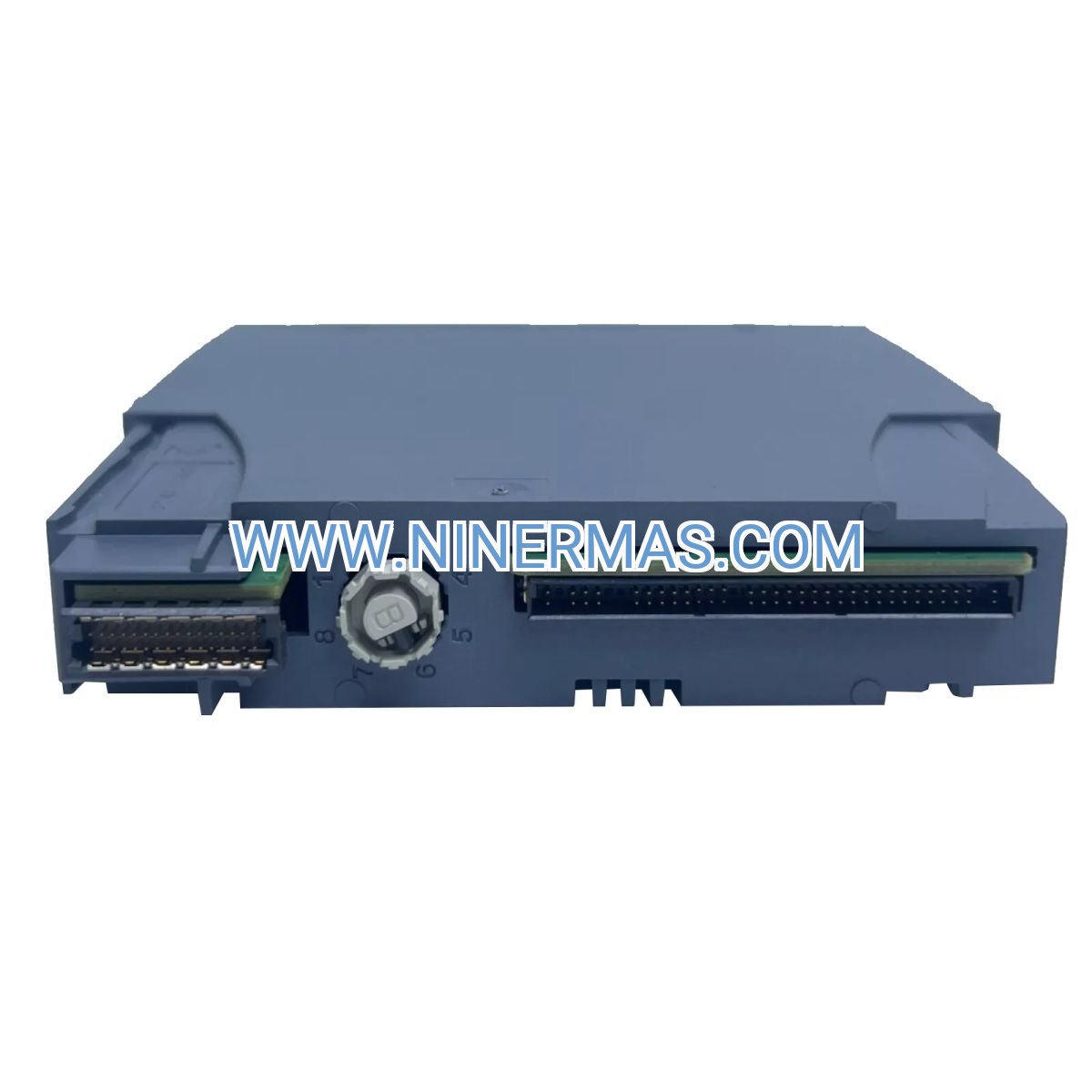

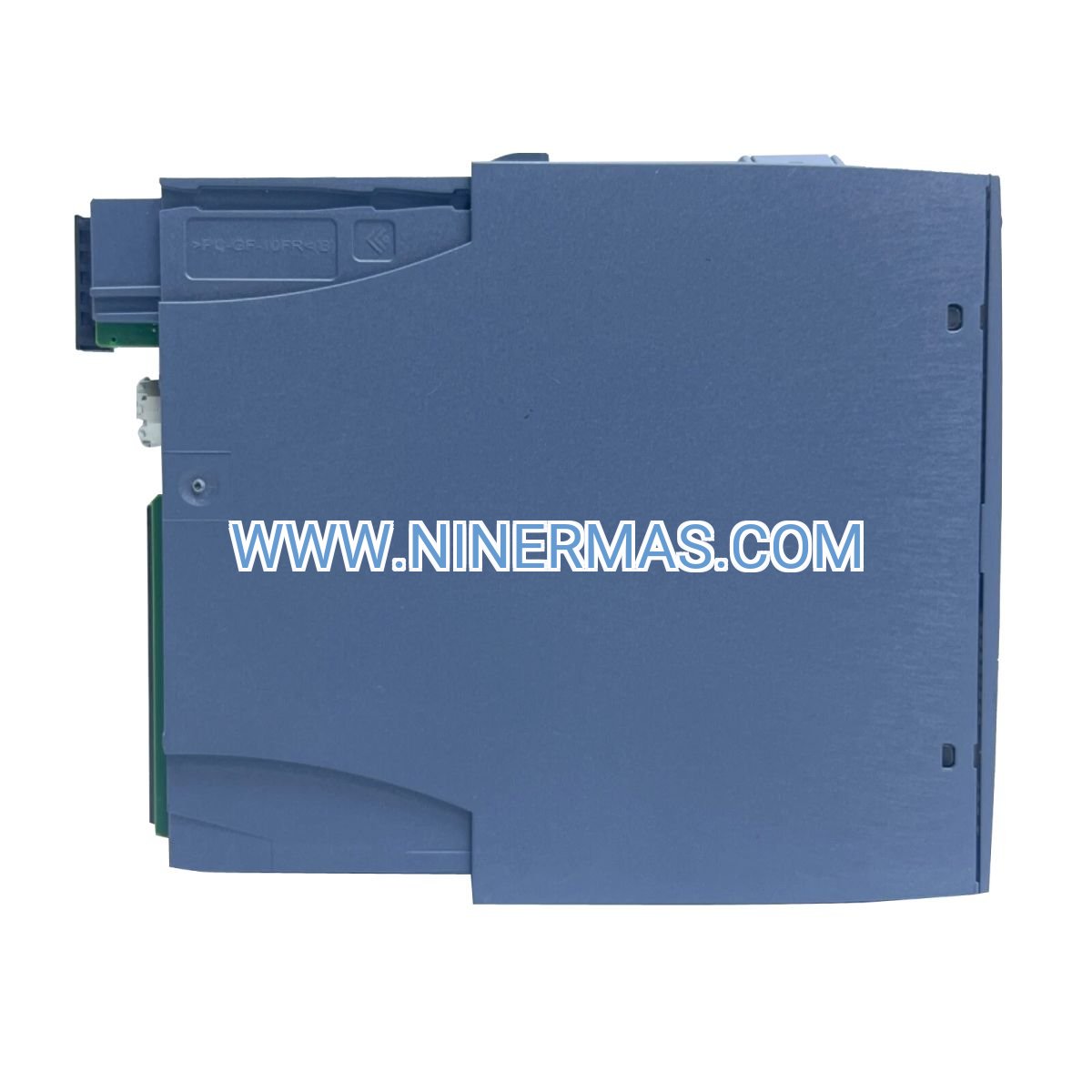

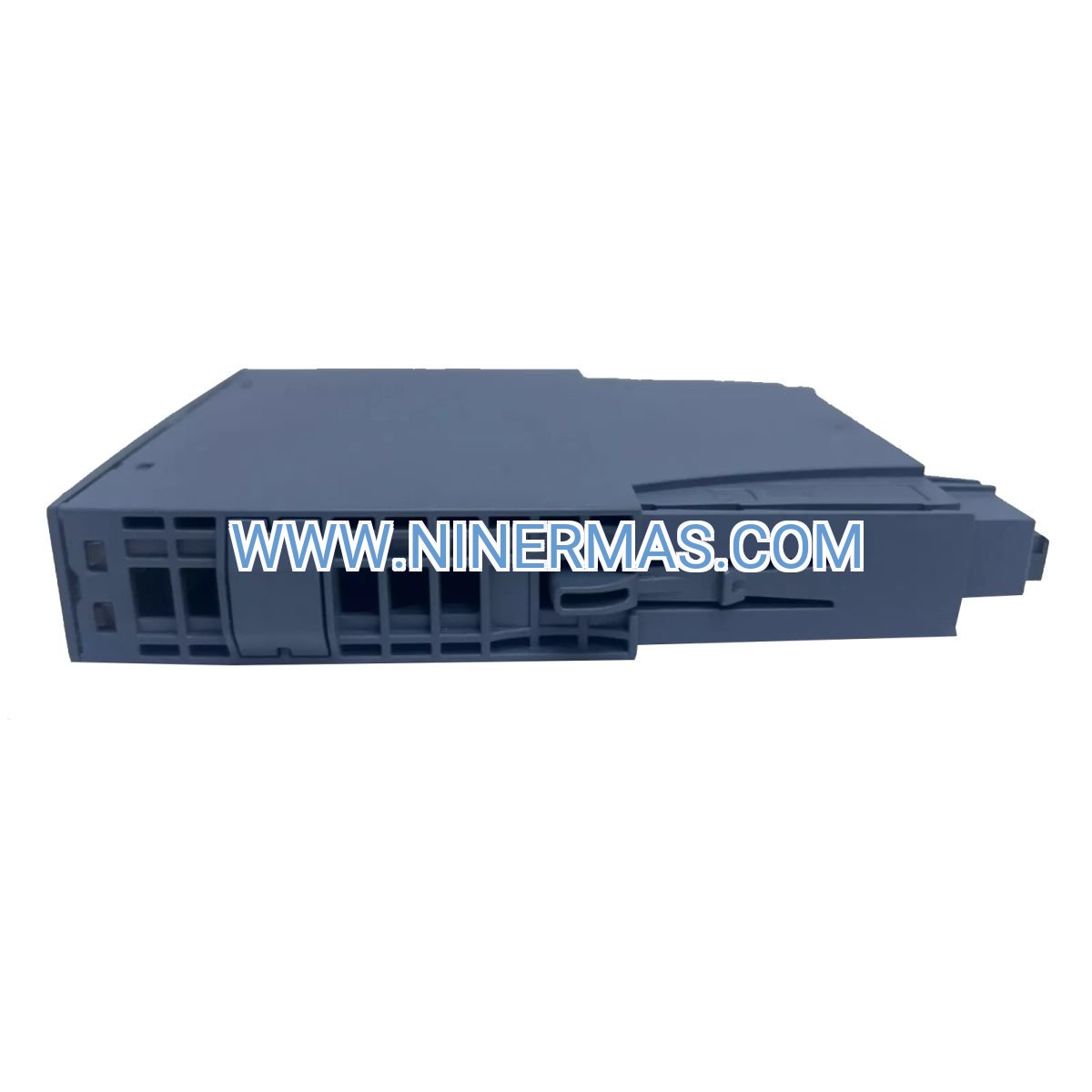

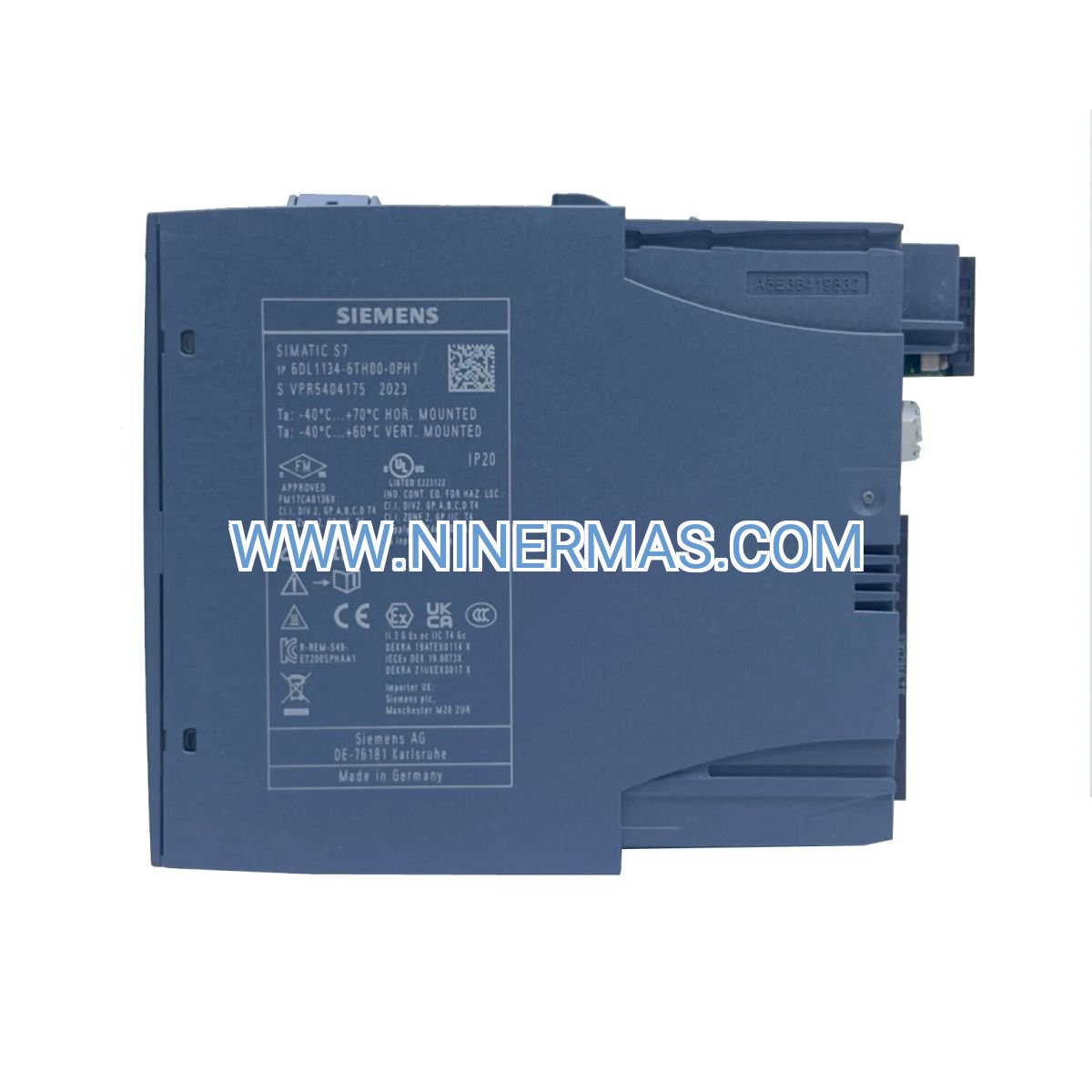

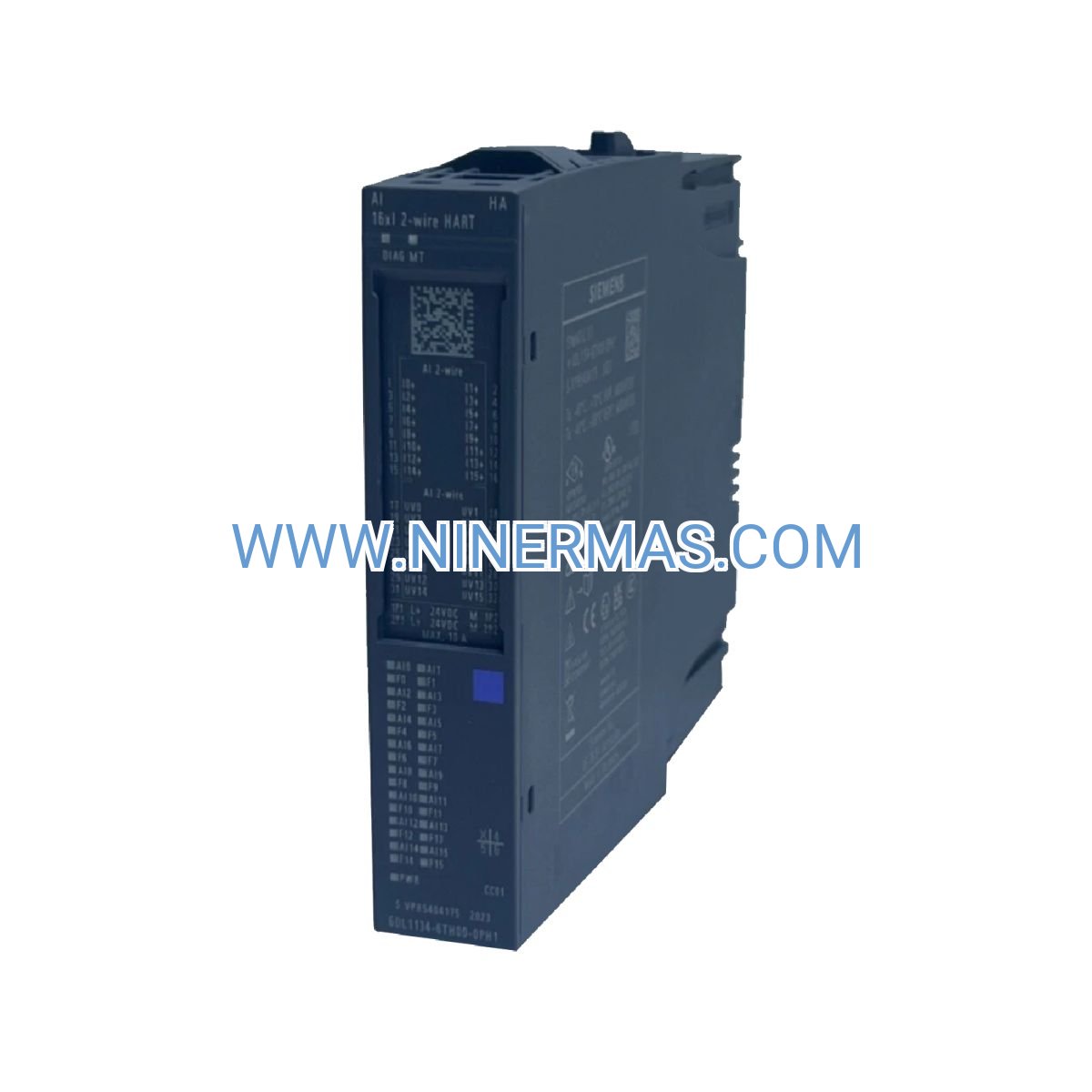

16-Channel HART Analog Input Module (Industrial-Grade Process I/O)

The Siemens 6DL1134-6TH00-0PH1 represents a professional-grade solution for high-density analog signal acquisition in process automation environments. Engineered for industries demanding both measurement precision and intelligent field device communication, this module bridges the gap between traditional 4-20 mA control loops and modern digital asset management strategies.

Designed for process engineers and automation specialists managing complex distributed control systems, this 16-channel input module eliminates the traditional trade-off between analog reliability and digital intelligence. By overlaying HART protocol onto standard current loops, it enables simultaneous process control and advanced diagnostics without additional wiring infrastructure.

Key differentiators include channel-to-channel isolation for noise immunity, 16-bit resolution for superior measurement granularity, and native compatibility with SIMATIC PCS 7 and S7 platforms. Whether retrofitting legacy systems or designing greenfield installations, this module delivers measurable ROI through reduced commissioning time and enhanced operational visibility.

Core Capabilities & Business Value

✓ Dual-Protocol Operation
Simultaneous 4-20 mA process control and HART digital communication on each channel. Access secondary variables, diagnostic data, and configuration parameters without interrupting the primary control signal—reducing troubleshooting time by up to 60%.

✓ High-Density Signal Consolidation
16 independent analog inputs in a compact DIN-rail form factor. Consolidate field signals from temperature transmitters, pressure sensors, and flow meters while minimizing panel space requirements and backplane slot consumption.

✓ Enterprise-Grade Isolation Architecture
Channel-to-channel and channel-to-bus galvanic isolation protects against ground loops and electrical noise in harsh industrial environments. Maintain measurement integrity even in facilities with variable frequency drives and high-power switching equipment.

→ Predictive Maintenance Enablement
HART diagnostics expose transmitter health indicators including sensor drift, wiring faults, and calibration status. Implement condition-based maintenance strategies that reduce unplanned downtime and extend asset service life.

→ Simplified Commissioning Workflow
Remote configuration and calibration via HART commands eliminate the need for physical access to field devices. Commission and verify loop integrity from the control room, cutting startup time by 30-40% compared to conventional analog-only systems.

→ Future-Proof Investment Protection
Backward-compatible with standard 2-wire transmitters while supporting advanced HART-enabled smart devices. Migrate to intelligent field instrumentation at your own pace without infrastructure replacement.

Industry Applications & Problem Resolution

Chemical Processing & Refining
Monitor reactor temperatures, distillation column pressures, and feed flow rates with precision measurement and real-time diagnostics. HART communication enables remote transmitter zeroing and span adjustment during process transitions, eliminating manual field calibration during turnarounds.

Oil & Gas Production Facilities

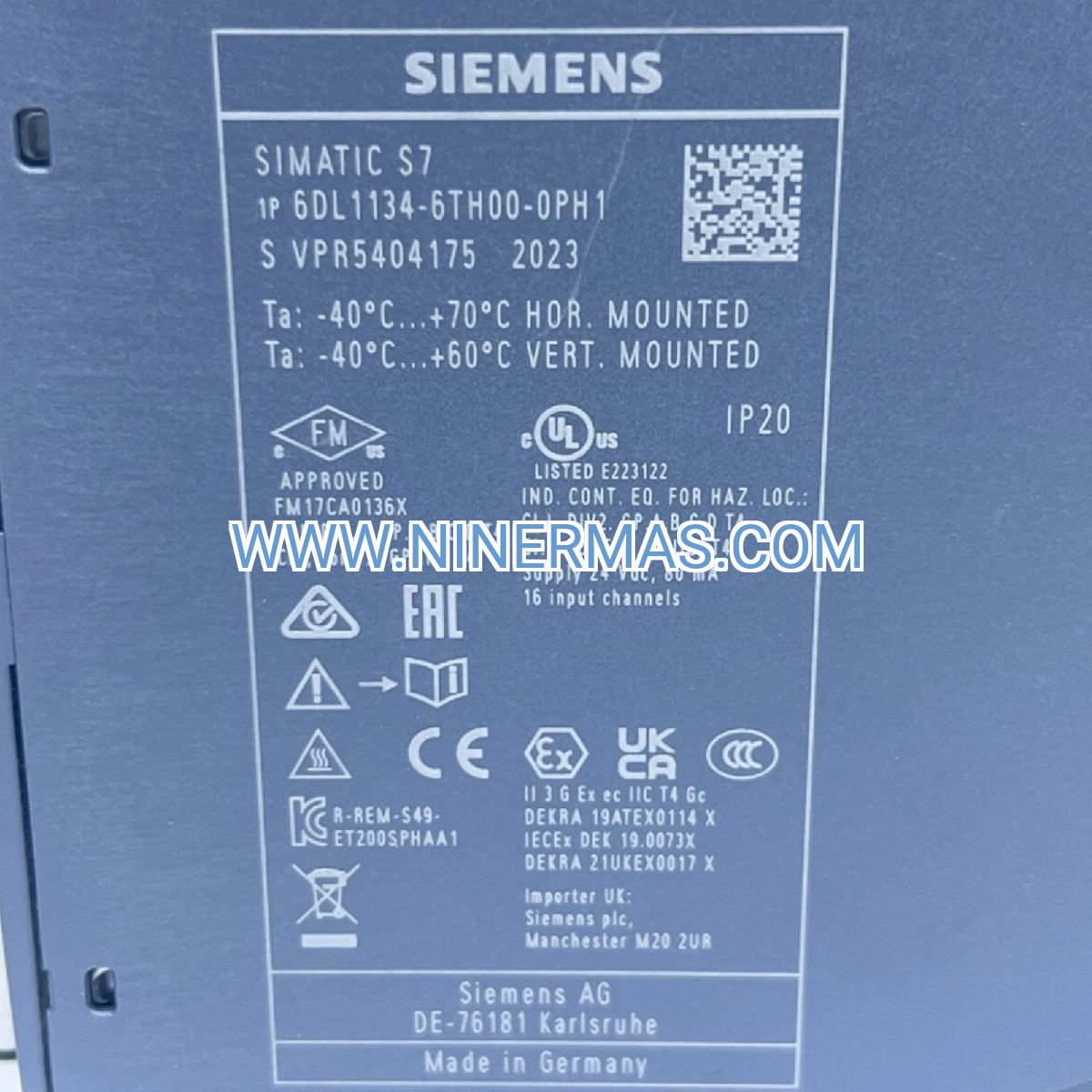

Acquire wellhead pressure, separator level, and pipeline flow data across distributed gathering systems. The module's extended temperature rating (-40°C to +70°C) and robust isolation withstand offshore platform environments and remote unmanned installations.

Water & Wastewater Treatment
Track pH, dissolved oxygen, turbidity, and flow across multiple treatment stages. Access secondary HART variables like sensor temperature compensation and electrode impedance to predict membrane fouling and optimize chemical dosing schedules.

Pharmaceutical Manufacturing
Ensure GMP compliance with validated measurement chains for critical process parameters. HART device tagging and electronic device descriptions (EDDs) streamline 21 CFR Part 11 documentation and audit trail requirements.

Food & Beverage Production
Control pasteurization temperatures, fermentation pressures, and CIP flow rates with traceable calibration records. Hot-swap capability minimizes production interruptions during module replacement or system expansion.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this module when your application requires both real-time process control and access to intelligent device data. If you need only basic analog input without HART communication, consider standard analog input modules for cost optimization. For applications requiring intrinsically safe circuits in hazardous areas, verify compatibility with appropriate barriers or isolators. Maximum loop resistance and cable capacitance must comply with HART physical layer specifications (typically 1500m with 1.5mm² cable and 250Ω load resistor).

Advanced Integration Features

SCADA & Historian Connectivity
Seamless data mapping to OPC UA servers, Wonderware, and OSIsoft PI historians. HART variables appear as standard process tags, enabling trend analysis and statistical process control without custom programming.

Asset Management Integration
Compatible with Siemens PDM (Process Device Manager) and third-party FDT/DTM frameworks. Centralize device configuration, calibration records, and maintenance schedules across your entire instrumentation fleet.

Redundancy & Fault Tolerance
Supports hot-standby controller configurations in SIMATIC PCS 7 systems. Automatic failover ensures continuous process monitoring even during controller switchover events.

Cybersecurity Compliance
Designed to IEC 62443 industrial cybersecurity standards. Firmware authentication and secure configuration protocols protect against unauthorized access and configuration tampering.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders
Warranty Coverage: 12 months from delivery date, covering material defects and workmanship
Technical Support: Application engineering assistance, system integration guidance, and troubleshooting support via email and phone
Documentation Package: Installation manual, HART device description (DD) files, GSD files for PROFIBUS integration, and sample configuration templates

Frequently Asked Questions

How does HART communication coexist with the 4-20 mA signal without interference?
HART uses frequency-shift keying (FSK) to overlay digital data at 1200 Hz on the analog current loop. The low-amplitude AC signal (±0.5 mA) averages to zero and doesn't affect the DC process variable, allowing simultaneous analog control and digital communication.

Can I connect non-HART transmitters to this module?
Yes, the module is fully backward-compatible with conventional 2-wire 4-20 mA transmitters. You'll receive accurate analog measurements but won't have access to HART diagnostic features until you upgrade to smart transmitters.

What cable specifications are required for reliable HART communication?
Use twisted-pair instrumentation cable with capacitance below 65 pF/m (typically 1.5mm² or 16 AWG). Avoid running HART cables in the same conduit as high-voltage power lines or VFD motor cables to minimize electromagnetic interference.

Does the module provide loop power for field transmitters?
Yes, each channel supplies regulated loop power (typically 24 VDC) from the backplane, eliminating the need for external power supplies. Verify that total current draw from all 16 channels remains within the backplane's power budget.

How do I access HART variables in my control system?
Configure HART pass-through in your SIMATIC engineering software (TIA Portal or PCS 7). HART data appears as additional process tags that you can map to HMI displays, alarms, or maintenance management systems.

Is hot-swapping supported during live operation?
Yes, when installed in compatible backplanes with hot-swap capability. The system detects module removal and insertion automatically, restoring operation without controller restart. Always follow proper ESD precautions during replacement.

Ready to Optimize Your Process I/O Architecture?

Contact our application engineering team to discuss your specific measurement requirements, system integration needs, and project timeline. We provide technical consultation, configuration assistance, and post-installation support to ensure successful deployment.
