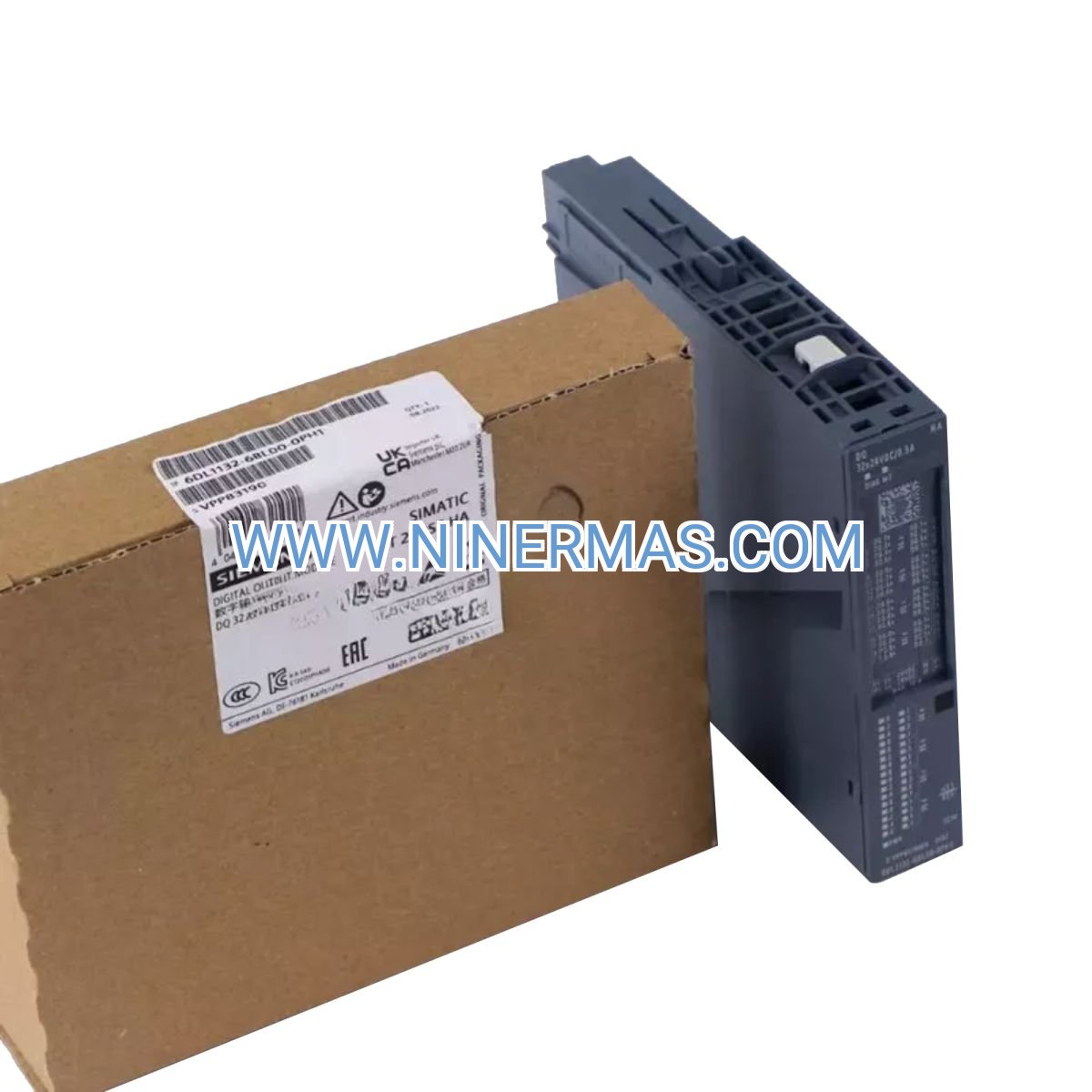

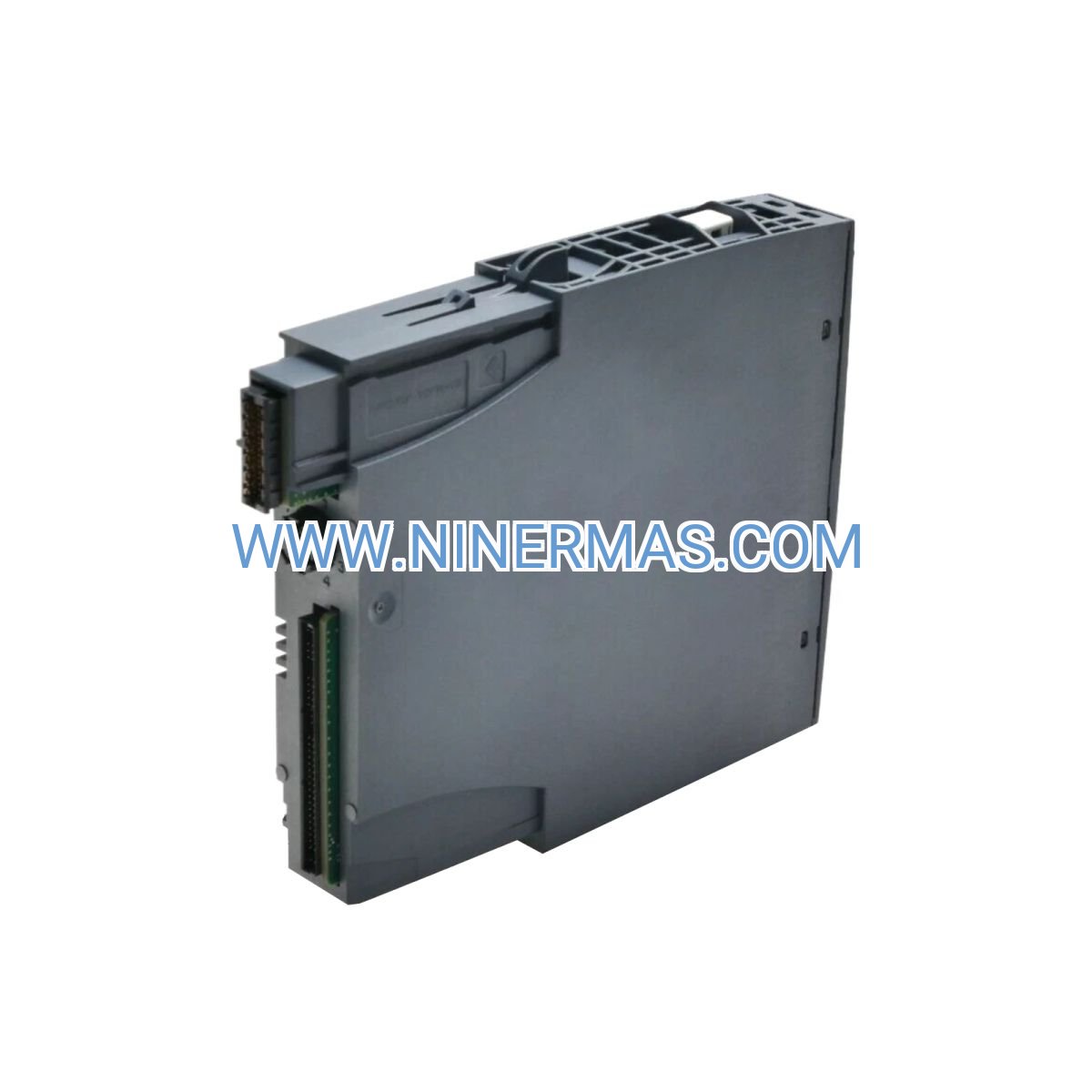

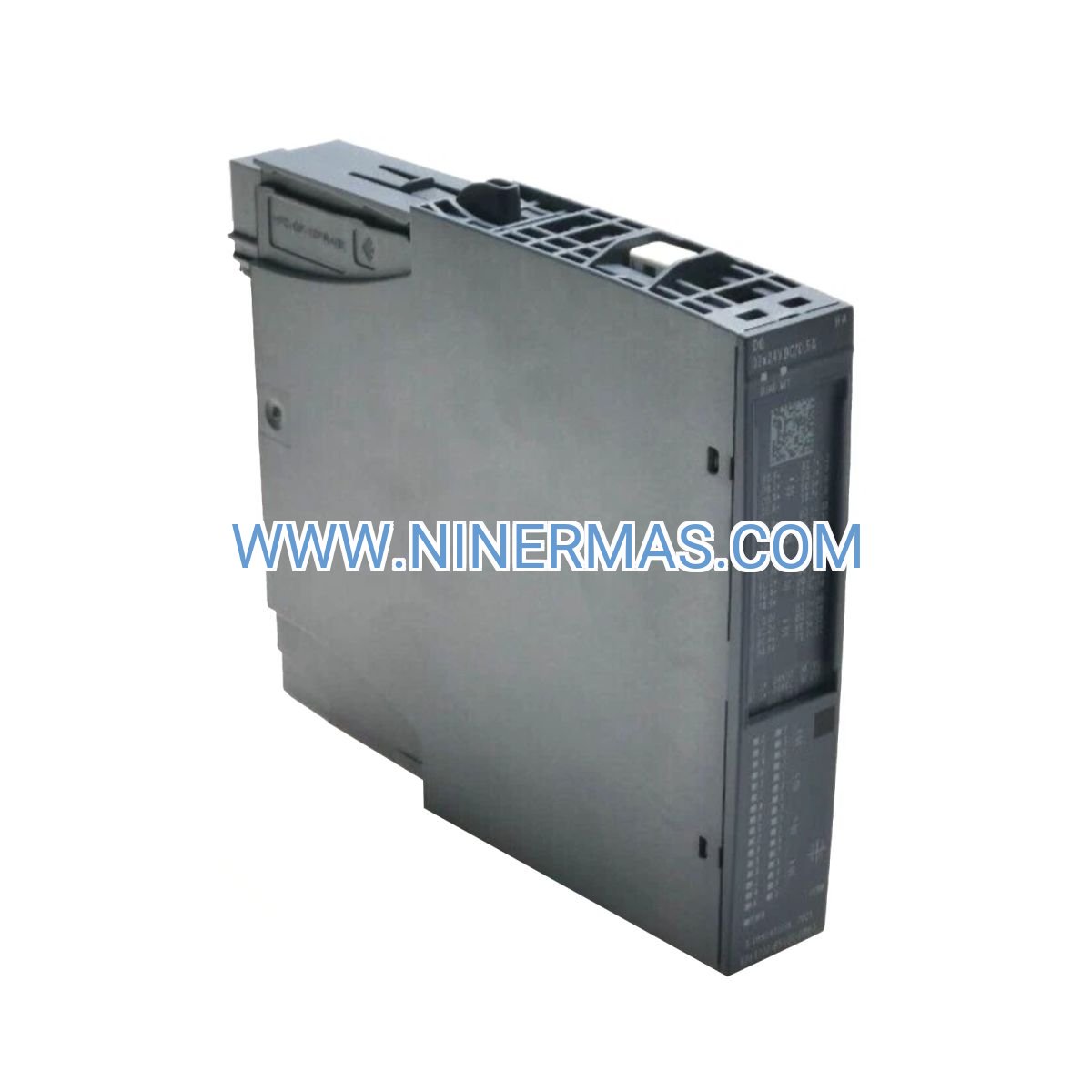

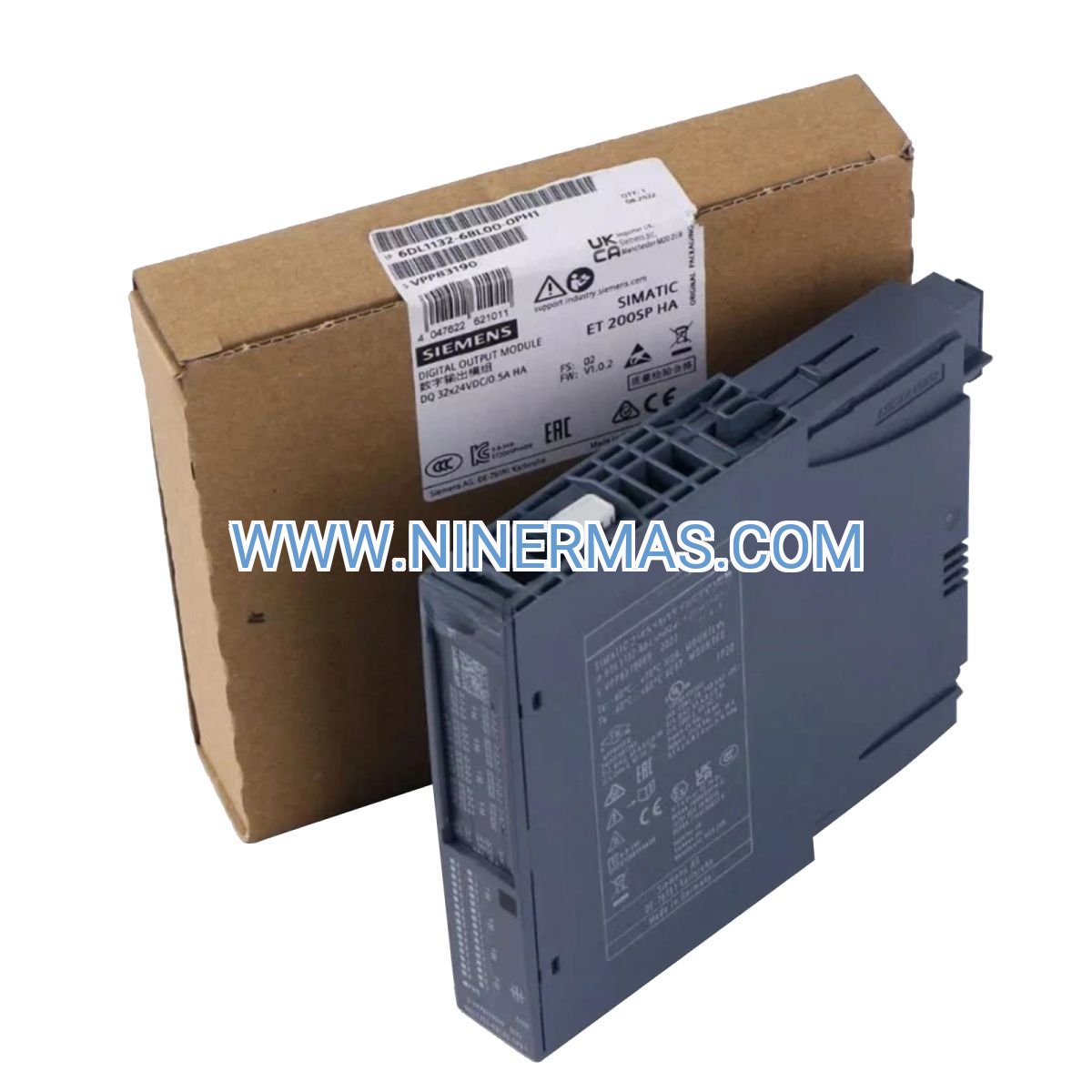

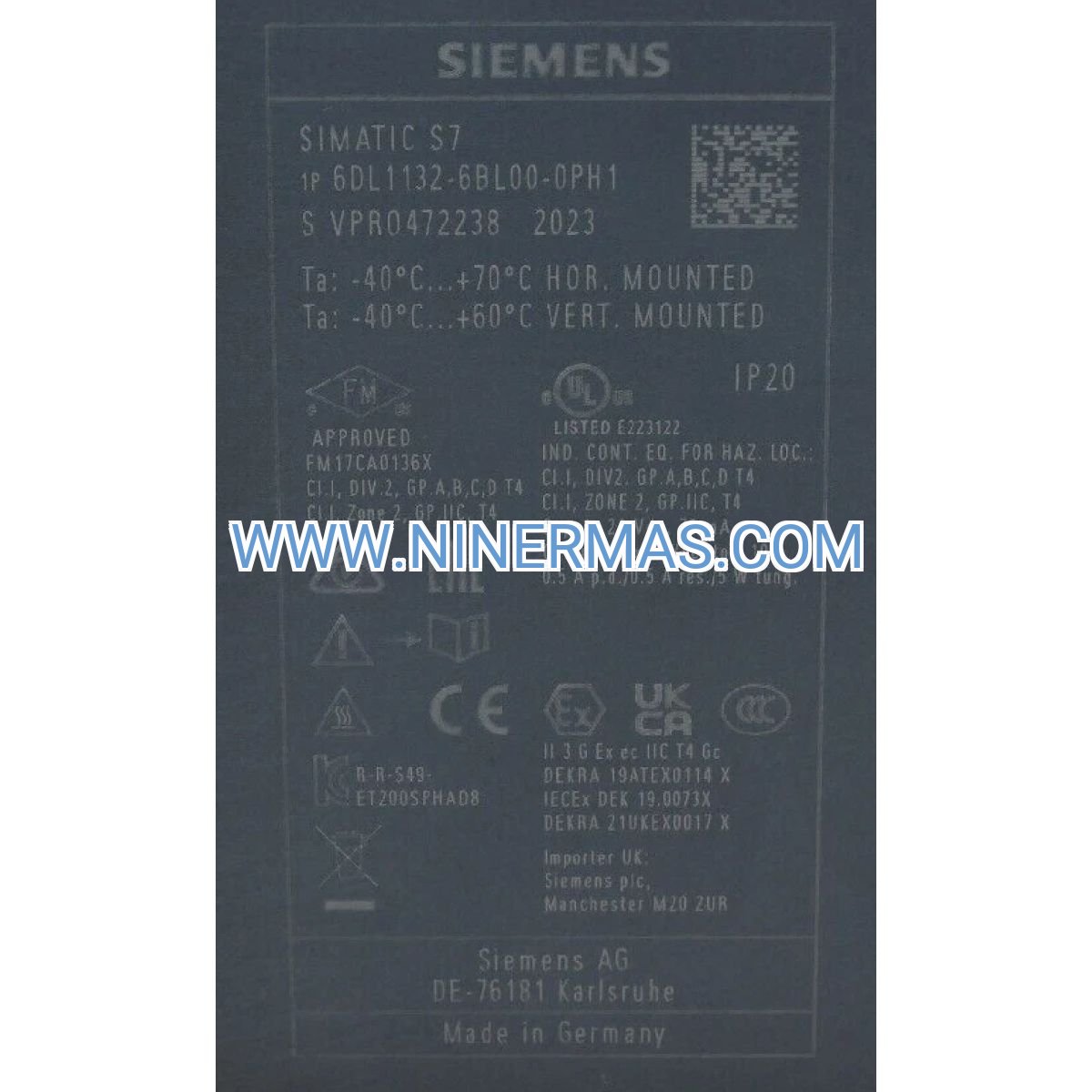

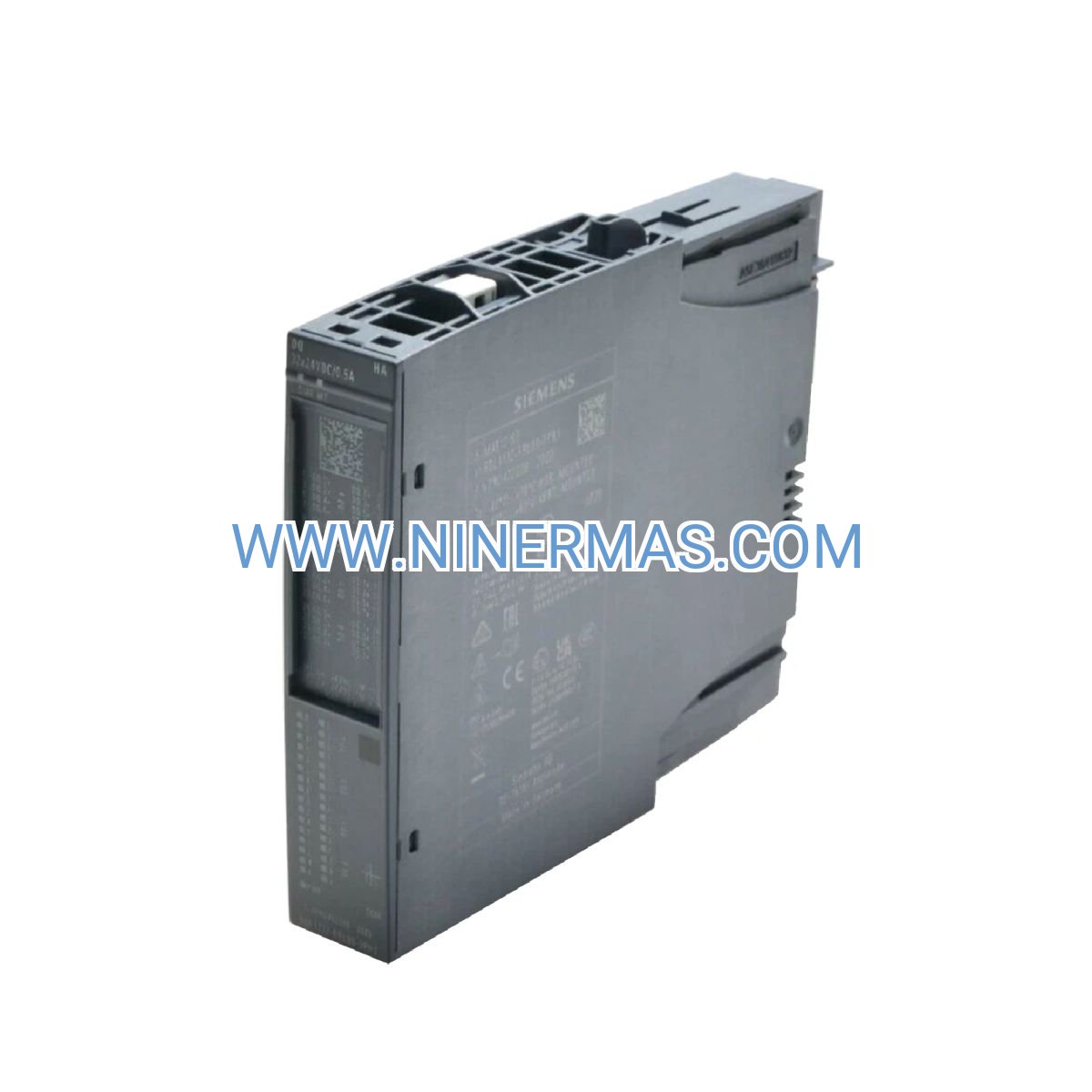

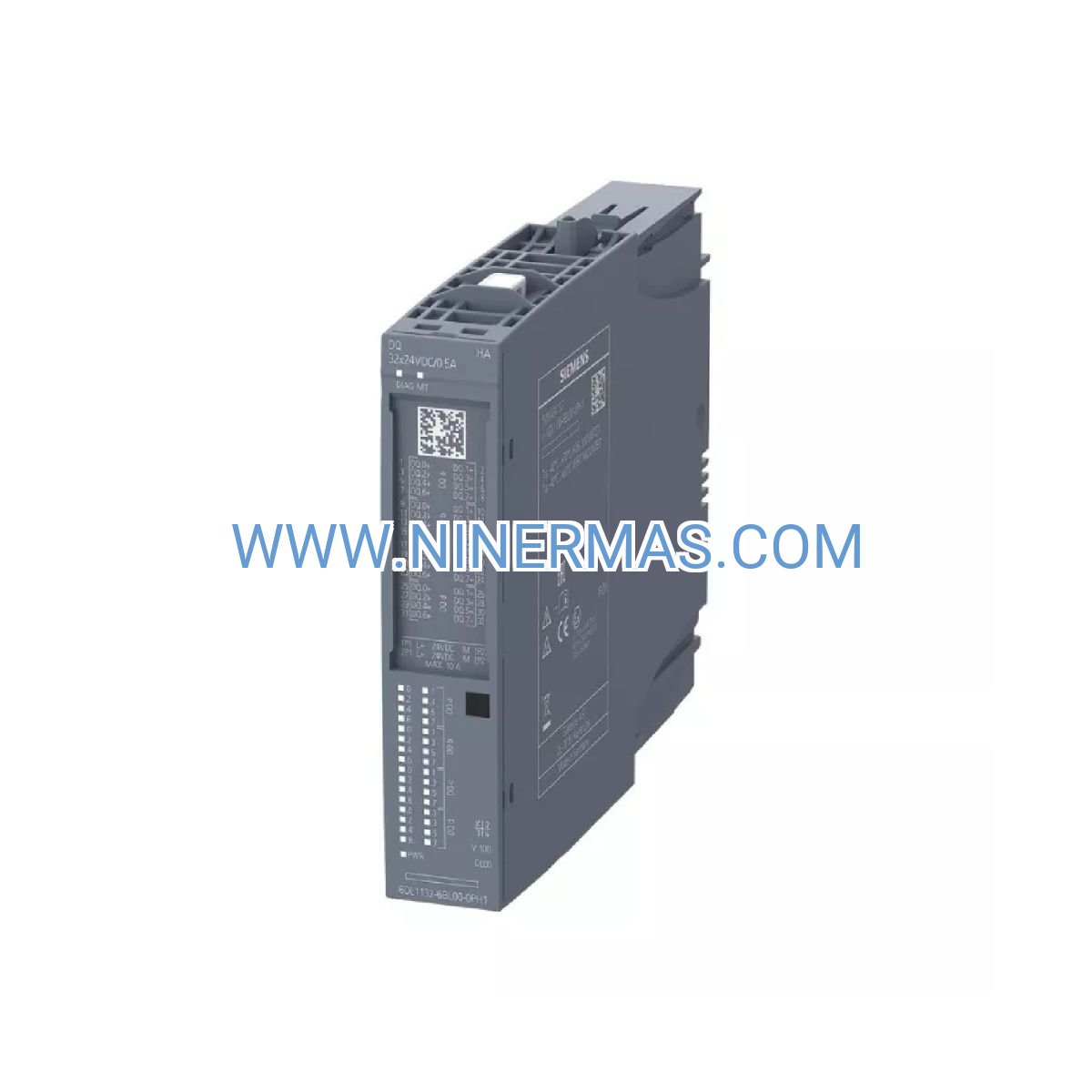

Siemens 6DL1132-6BL00-0PH1 – Industrial-Grade High Availability Digital Output Module

The Siemens 6DL1132-6BL00-0PH1 represents a mission-critical component in modern distributed control architectures. Engineered for ET 200SP HA (High Availability) platforms, this 32-channel digital output module delivers uninterrupted signal transmission in environments where downtime translates to significant operational and financial losses. With 24V DC output capability and 0.5A current rating per channel, it addresses the demanding requirements of process industries, power utilities, and advanced manufacturing facilities.

Designed for system integrators and plant engineers managing critical infrastructure, this module solves the persistent challenge of maintaining continuous control during maintenance cycles, component failures, or system upgrades. Its hot-swap architecture and redundant communication pathways ensure that production lines, safety systems, and process controls remain operational 24/7/365.

Key differentiators include channel-level diagnostics for predictive maintenance, seamless integration with SIMATIC S7-1500R/H redundant controllers, and industrial-hardened construction that withstands electromagnetic interference, temperature fluctuations, and mechanical stress. Whether you're retrofitting legacy systems or designing greenfield installations, this module provides the reliability foundation your operation demands.

Core Capabilities & Business Value

✓ Redundant Architecture for Zero-Downtime Operations
Dual communication channels and failover logic eliminate single points of failure. When one pathway experiences disruption, automatic switchover maintains signal integrity without operator intervention—protecting against costly production interruptions in pharmaceutical batching, power generation, or continuous process manufacturing.

✓ Hot-Swap Maintenance Without Process Shutdown
Replace modules during live operation without halting production. This capability reduces planned downtime windows from hours to minutes, enabling maintenance teams to service equipment during normal shifts rather than expensive weekend shutdowns—delivering measurable ROI through increased asset utilization.

✓ Intelligent Diagnostics for Proactive Asset Management
Real-time monitoring of each output channel detects short circuits, overloads, and wiring faults before they escalate into failures. Integration with TIA Portal enables condition-based maintenance strategies that extend equipment lifespan and reduce emergency repair costs by up to 40%.

✓ Compact Footprint with High Channel Density
32 outputs in a space-efficient form factor reduce panel real estate requirements by 30% compared to traditional I/O solutions. Smaller cabinets mean lower material costs, simplified wiring, and faster installation—particularly valuable in retrofit projects with limited space.

✓ Industrial-Hardened for Harsh Environments
Conformal coating and robust terminal blocks withstand temperature extremes (-25°C to +60°C), vibration, humidity, and corrosive atmospheres. Proven reliability in cement plants, offshore platforms, and steel mills where standard electronics fail prematurely.

→ Scalable Integration Across Automation Ecosystems
Native compatibility with PROFINET, PROFIBUS, and HART protocols enables unified architectures spanning discrete manufacturing, process control, and hybrid applications. Single engineering environment (TIA Portal) reduces training costs and accelerates commissioning timelines.

Industry Applications & Problem-Solving Scenarios

Chemical & Pharmaceutical Processing
Control reactor valves, dosing pumps, and isolation actuators in batch production systems. The HA architecture ensures FDA-compliant process integrity during equipment servicing, while diagnostic capabilities support 21 CFR Part 11 audit trails for regulatory compliance.

Power Generation & Distribution
Manage turbine control valves, generator excitation systems, and auxiliary equipment in combined-cycle plants. Redundant outputs prevent forced outages during maintenance, protecting revenue streams and grid stability commitments.

Water & Wastewater Treatment
Operate pump stations, chemical feed systems, and aeration blowers in municipal facilities. Hot-swap capability enables repairs without bypassing treatment stages—maintaining environmental permit compliance and avoiding regulatory penalties.

Automotive & Discrete Manufacturing
Drive conveyor systems, robotic actuators, and assembly tooling in just-in-time production lines. Zero-downtime maintenance aligns with lean manufacturing principles, eliminating buffer inventory requirements and improving overall equipment effectiveness (OEE).

Oil & Gas Upstream Operations
Control wellhead valves, separator systems, and pipeline actuators in remote installations. Diagnostic alerts transmitted via SCADA reduce truck rolls for troubleshooting, cutting maintenance costs in geographically dispersed assets.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this module when your application requires continuous availability during maintenance, operates in safety-critical processes (SIL 2 capable with appropriate configuration), or demands rapid fault detection. For standard applications without redundancy requirements, consider the 6ES7132 series. Ensure your system architecture includes S7-1500R/H controllers and ET 200SP HA BaseUnits for full HA functionality.

Advanced Integration & Customization Options

PROFINET IRT Integration: Isochronous real-time communication enables deterministic control loops with jitter below 1ms—essential for motion control and synchronized multi-axis applications.

HART Multiplexing: Overlay digital control signals with HART protocol for intelligent valve positioners and smart actuators, reducing wiring complexity in process automation retrofits.

Safety Integration: Combine with ET 200SP HA F-modules to create integrated safety systems meeting SIL 3 requirements—consolidating standard and safety I/O in a single platform.

Cloud Connectivity: Leverage SIMATIC IOT2050 gateways to stream diagnostic data to MindSphere or third-party analytics platforms for AI-driven predictive maintenance and digital twin applications.

Custom Configurations: Factory pre-configuration services available for large-scale deployments—modules arrive with project-specific parameters loaded, reducing commissioning time by up to 60%.

Delivery, Warranty & Technical Support

Lead Times: Stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks. Expedited processing available for emergency replacements and critical project deadlines.

Warranty Coverage: 18-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for installed base support contracts.

Technical Assistance: Factory-trained engineers provide pre-sales application consulting, system design review, and post-installation troubleshooting. Remote diagnostic support via secure VPN connections minimizes on-site service calls.

Documentation Package: Each module includes installation manual, wiring diagrams, TIA Portal hardware catalog integration files, and sample ladder logic for common applications. CAD drawings and 3D STEP models available for panel design.

Frequently Asked Questions

What distinguishes ET 200SP HA modules from standard ET 200SP I/O?
HA modules feature dual communication interfaces, redundant internal power paths, and enhanced diagnostics. They require S7-1500R/H redundant controllers and HA-specific BaseUnits. Standard modules operate with single controllers and cannot provide failover capabilities.

Can I retrofit existing ET 200SP systems to high availability architecture?
Partial upgrades are not supported—HA systems require complete redundant infrastructure including controllers, communication networks, and I/O modules. However, standard and HA systems can coexist on separate PROFINET segments within the same plant network.

What is the maximum distance between the controller and this I/O module?
PROFINET supports up to 100 meters per segment with standard copper cabling. Fiber optic media converters extend distances to 15 kilometers for remote installations, common in pipeline monitoring and distributed utility applications.

How does hot-swap functionality work during module replacement?
The redundant controller maintains output states via the backup communication path while you physically remove and replace the module. Upon insertion, the new module synchronizes automatically—typically within 2-3 seconds—without requiring manual intervention or program downloads.

Are there energy efficiency benefits compared to relay-based output systems?
Solid-state outputs consume 85% less power than equivalent electromagnetic relays, generate minimal heat, and eliminate mechanical wear. In large installations (500+ I/O points), energy savings can exceed $2,000 annually while reducing cooling requirements.

What programming expertise is required for system configuration?
Basic proficiency with TIA Portal and ladder logic is sufficient for standard applications. Complex redundancy configurations benefit from Siemens certified training (TIA-SYSUP or TIA-REDUN courses). Our engineering team offers configuration services for turnkey project delivery.

Ready to Enhance Your Control System Reliability?

Contact our automation specialists to discuss your high-availability requirements. We provide application-specific recommendations, system architecture reviews, and competitive quotations for single modules or complete ET 200SP HA solutions. Request technical documentation, pricing, or schedule a consultation using the contact information below.
