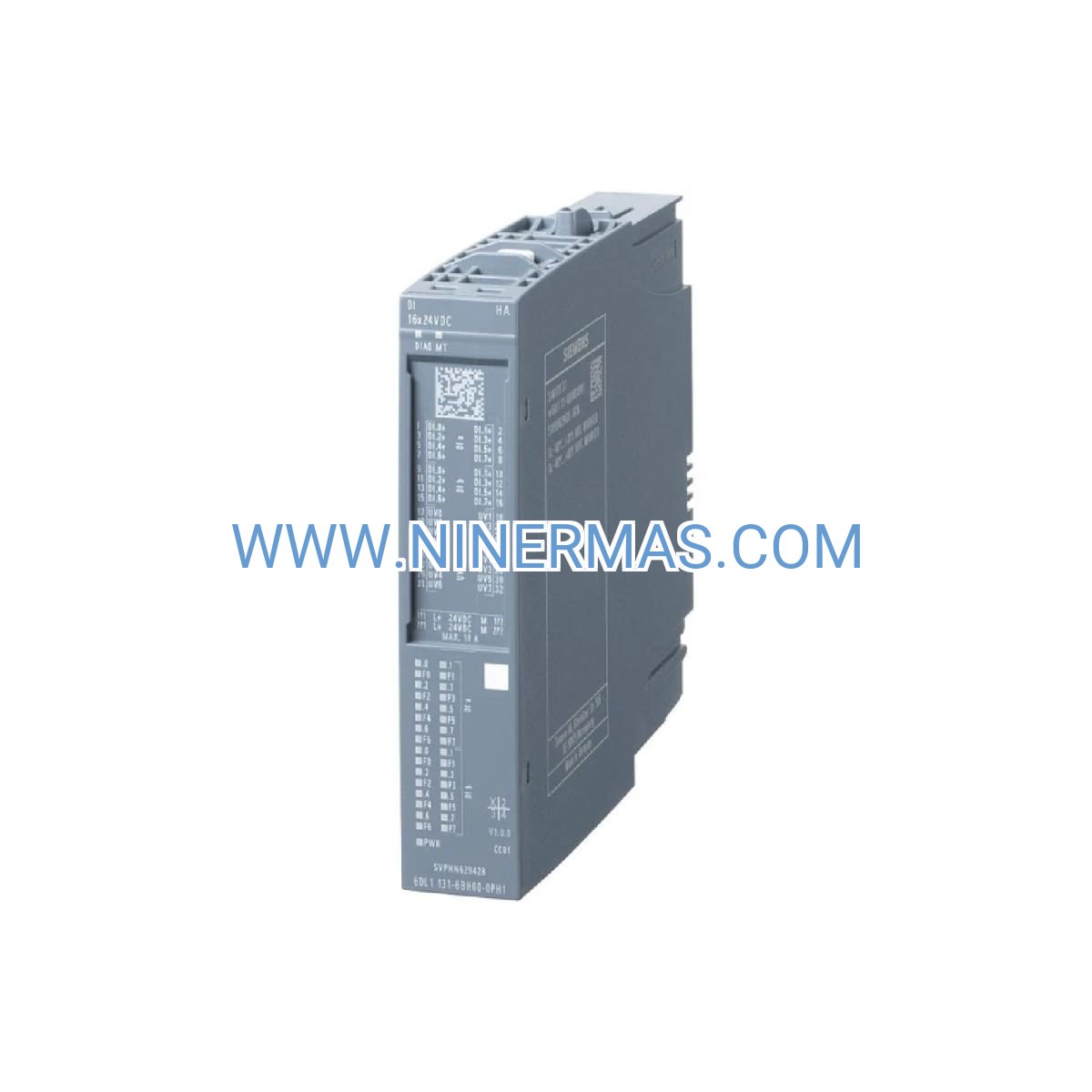

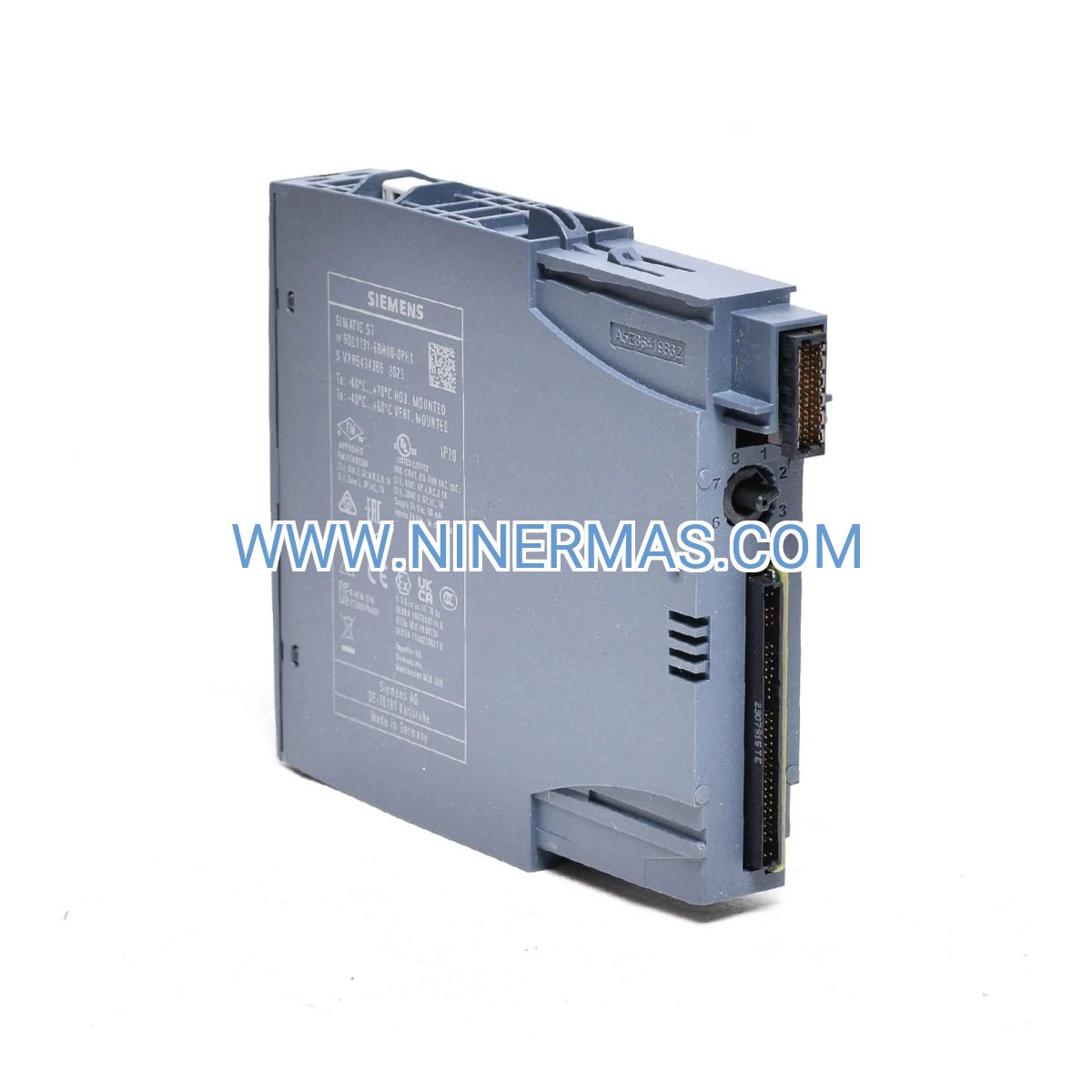

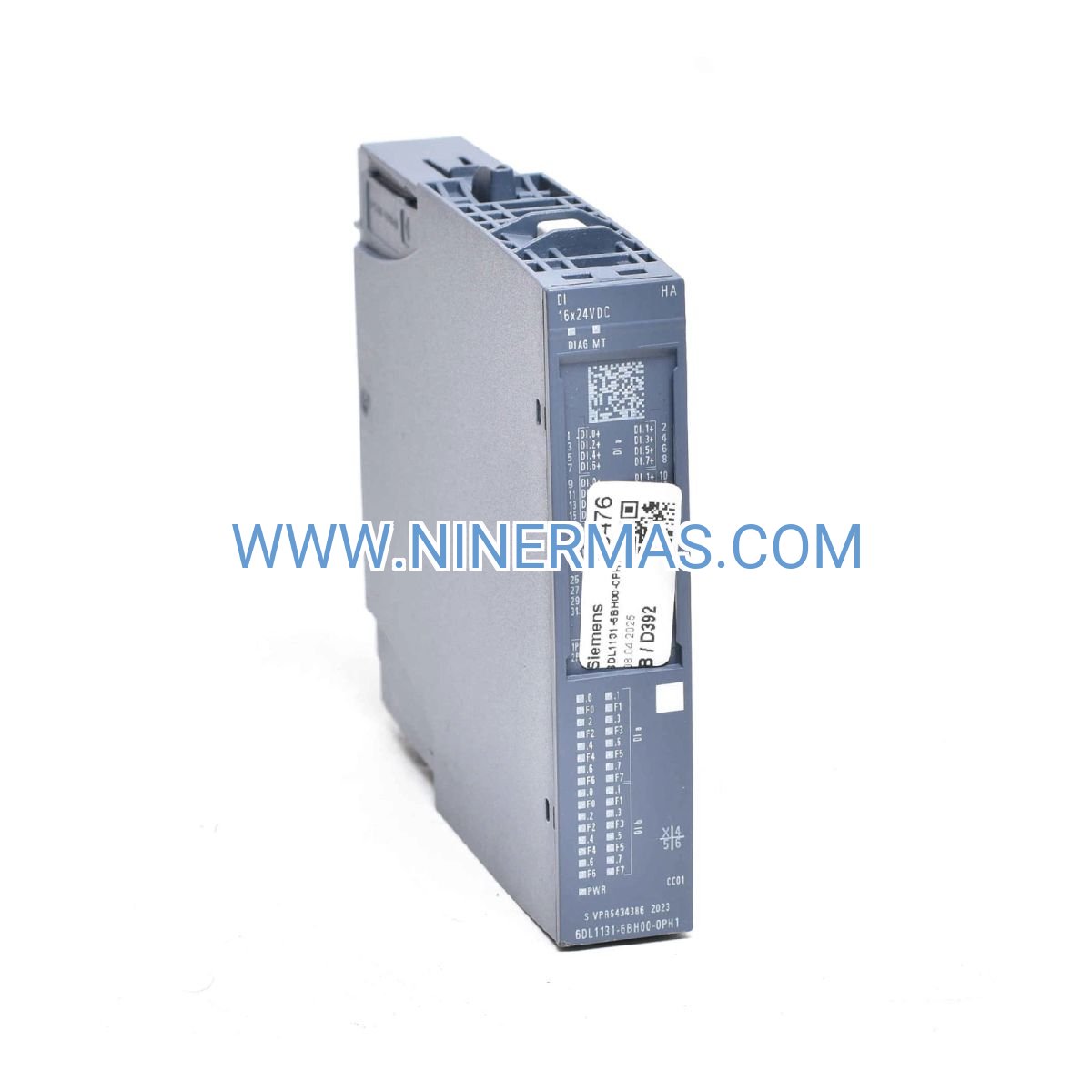

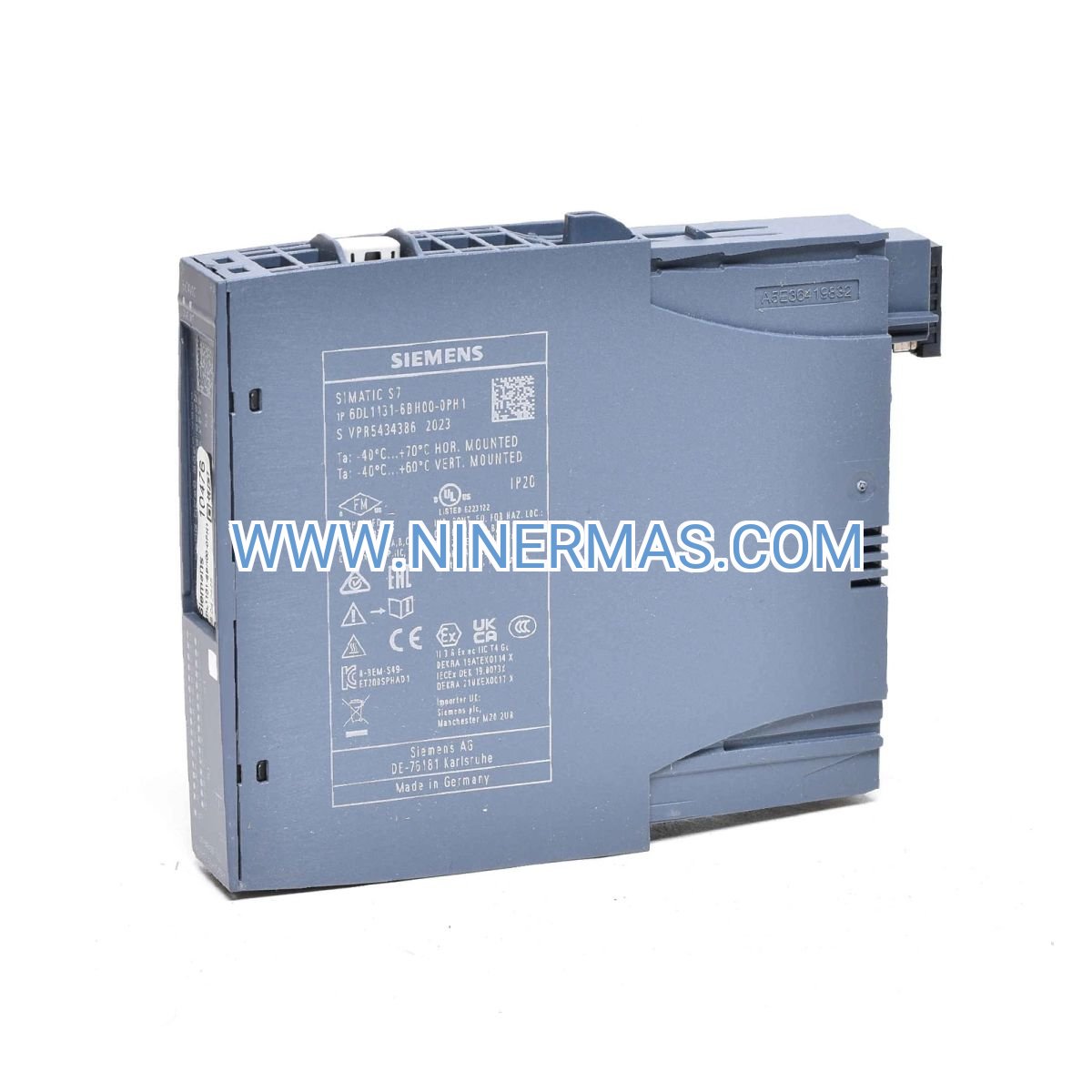

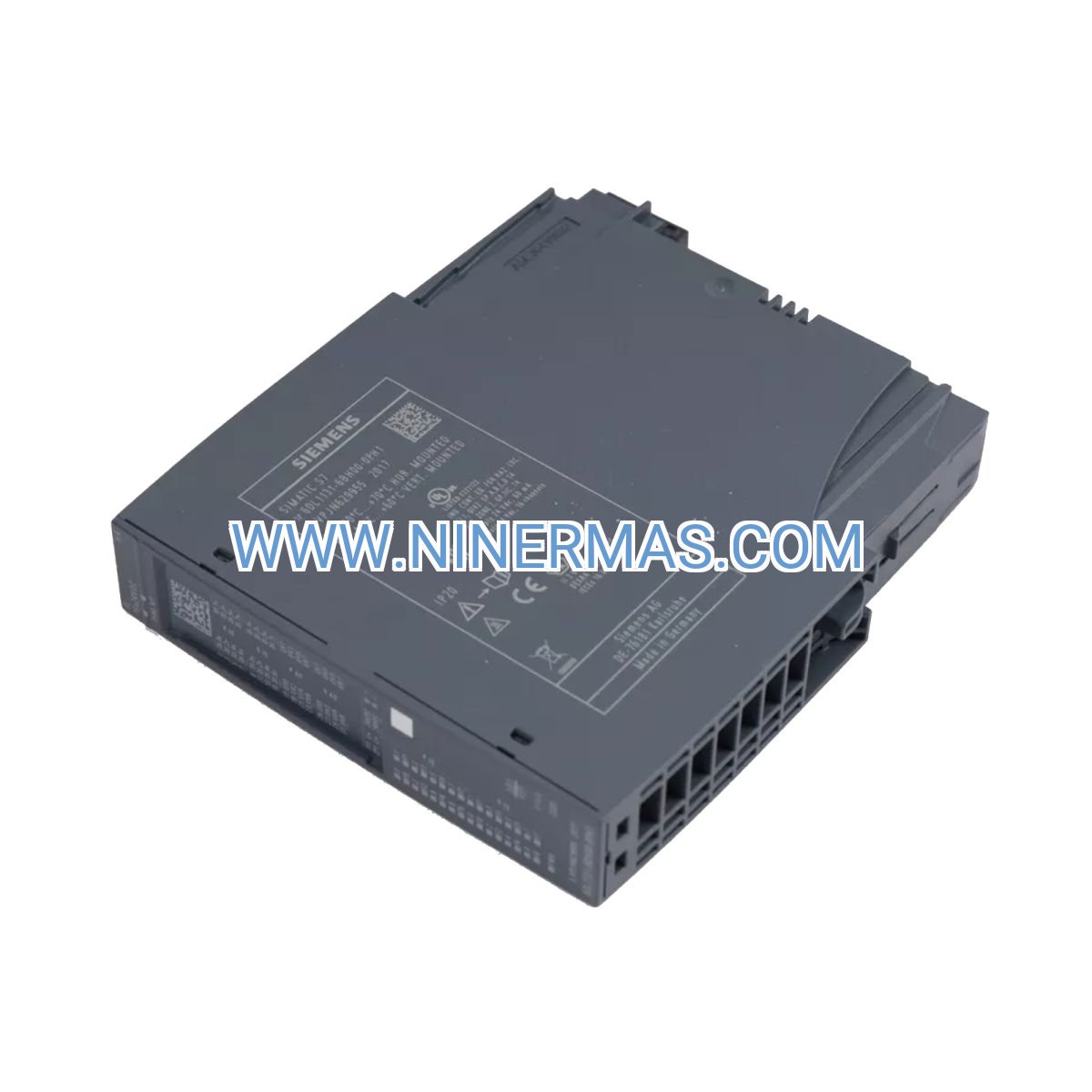

6DL1131-6BH00-0PH1 Digital Input Module (Industrial-Grade Redundant I/O)

The Siemens 6DL1131-6BH00-0PH1 represents a breakthrough in fault-tolerant signal acquisition technology, purpose-built for ET 200SP HA distributed control architectures. This 16-channel digital input module delivers uninterrupted sensor monitoring through dual-path redundancy, eliminating single points of failure in critical process control environments. Designed for industries where downtime translates to significant financial loss—chemical processing, power generation, water treatment, and pharmaceutical manufacturing—this module ensures continuous operation even during component maintenance or unexpected hardware failures.

Industrial facilities face mounting pressure to maximize uptime while maintaining safety compliance. Traditional I/O systems create vulnerability through single-channel architectures that halt production during routine maintenance or component degradation. The 6DL1131-6BH00-0PH1 addresses this challenge head-on with hot-swappable design and automatic failover capabilities, allowing technicians to service hardware without process interruption. Integration with SIMATIC S7-1500R/H controllers provides seamless redundancy across the entire control chain.

Key differentiators include channel-level diagnostics that predict failures before they occur, IP20-rated housing suitable for control cabinet installation, and -40°C to +70°C operating range for harsh industrial environments. Whether you're upgrading legacy systems or designing greenfield installations, this module delivers the reliability modern automation demands with the flexibility to scale as your operation grows.

Core Features & Benefits

✓ Dual-Path Redundancy Architecture
Simultaneous connection to two independent ET 200SP HA interface modules ensures signal continuity if one communication path fails. Automatic switchover occurs within milliseconds, maintaining process integrity without operator intervention—critical for continuous batch processes and safety instrumented systems.

✓ 16 Isolated 24VDC Input Channels
Each channel features galvanic isolation to prevent ground loop interference and cross-channel noise. Accepts standard industrial sensors including proximity switches, photoelectric sensors, and dry contact devices. Configurable input filtering eliminates false triggers from electrical noise in motor control environments.

✓ Hot-Swap Capability Without System Shutdown
Replace modules during live operation through tool-free connector design and automatic address recognition. Reduces planned maintenance windows by 60-80% compared to traditional I/O systems, directly improving overall equipment effectiveness (OEE) metrics.

✓ Predictive Diagnostics & Health Monitoring
Real-time reporting of wire breaks, short circuits, supply voltage deviations, and module temperature through PROFINET communication. TIA Portal integration displays channel-specific status, enabling condition-based maintenance strategies that prevent unplanned downtime.

✓ Extended Temperature & Vibration Resistance
Operates reliably from -40°C to +70°C with conformal coating protection against humidity and chemical exposure. Meets IEC 61131-2 vibration standards for installation near rotating equipment and high-traffic industrial zones.

→ Seamless TIA Portal Configuration
Drag-and-drop hardware catalog integration simplifies engineering workflows. Pre-configured function blocks accelerate commissioning, while built-in simulation tools validate logic before deployment—reducing project timelines by 30-40% versus legacy programming methods.

Application Scenarios & Industry Solutions

Chemical & Petrochemical Processing
Monitor valve limit switches, emergency shutdown sensors, and reactor level indicators in hazardous area applications. The redundant architecture meets SIL 2/3 requirements for safety instrumented functions, while diagnostic capabilities satisfy IEC 61511 proof-test documentation needs. Typical installations include distillation column control, batch reactor sequencing, and pipeline leak detection systems.

Power Generation & Utilities
Track turbine vibration sensors, generator protection relays, and switchgear status contacts in combined-cycle plants and renewable energy facilities. High-availability design ensures continuous monitoring during grid synchronization events and load transitions. Supports both fossil fuel and wind/solar hybrid installations requiring 99.99%+ uptime.

Pharmaceutical & Biotech Manufacturing
Acquire signals from cleanroom environmental sensors, autoclave door interlocks, and fermentation vessel instrumentation under FDA 21 CFR Part 11 compliance requirements. Audit trail functionality through TIA Portal tracks all configuration changes, while redundant operation maintains batch integrity during validation protocols.

Water & Wastewater Treatment
Interface with flow meters, pump status indicators, and chemical dosing system sensors across distributed lift stations and treatment plants. SCADA integration via PROFINET enables centralized monitoring of remote sites, while local redundancy prevents overflow events during communication outages.

Automotive & Discrete Manufacturing
Connect to conveyor position sensors, robot safety gates, and quality inspection stations in high-speed assembly lines. Microsecond-level input response times support motion control applications, while hot-swap capability allows maintenance during shift changes without halting production.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6DL1131-6BH00-0PH1 when your application requires guaranteed signal availability during maintenance activities or component failures. This module is mandatory for ET 200SP HA systems and cannot be substituted with standard ET 200SP components. For non-redundant applications, consider the 6ES7131-6BH01-0BA0 standard digital input module. Verify that your controller supports HA operation (S7-1500R/H series) and that dual interface modules are specified in your system design.

Extended Functions & Integration

PROFINET IRT Communication: Supports isochronous real-time (IRT) communication with update cycles down to 250 microseconds, enabling synchronization with high-speed motion control axes and coordinated drive systems.

TIA Portal V17+ Compatibility: Full integration with latest engineering software versions provides access to energy monitoring dashboards, predictive maintenance analytics, and cloud connectivity through SIMATIC Edge devices.

Customization Options: Factory configuration services available for pre-programmed input filtering, custom labeling, and project-specific documentation packages. Consult with our application engineers for volume orders requiring specialized testing or certification.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier. Custom-configured modules require 4-6 weeks for factory programming and testing. Expedited processing available for emergency replacement scenarios.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Lifetime access to our automation specialists for configuration assistance, troubleshooting guidance, and application optimization. Remote diagnostic services available via secure VPN connection to minimize on-site visits.

Documentation Package: Each module includes installation manual, wiring diagrams, TIA Portal GSD file, and sample ladder logic programs. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

How does redundant operation improve system reliability compared to standard I/O?
Redundant architecture eliminates single points of failure by maintaining dual communication paths to the controller. If one interface module fails or requires maintenance, the second path automatically assumes full operation without signal loss. This design achieves mean time between failures (MTBF) exceeding 500,000 hours versus 100,000 hours for non-redundant systems.

What wiring configuration is required to achieve full high-availability functionality?
Each input channel connects to field sensors using standard 24VDC wiring. The module itself requires connection to two separate ET 200SP HA interface modules via the backplane bus. Both interface modules must connect to redundant S7-1500R/H controllers through independent PROFINET networks to complete the fault-tolerant architecture.

Can I replace this module during operation without affecting running processes?
Yes, hot-swap capability allows module replacement while the system remains energized. The redundant interface module maintains signal acquisition during the swap procedure. After inserting the replacement module, automatic address recognition and configuration download occur within 2-3 seconds without requiring controller restart.

What diagnostic capabilities help predict failures before they cause downtime?
The module continuously monitors supply voltage levels, internal temperature, backplane communication quality, and individual channel status. TIA Portal displays real-time health metrics including wire resistance measurements that detect degrading connections before complete failure. Configurable alarm thresholds trigger maintenance notifications when parameters drift outside normal ranges.

Is special training required for installation and commissioning?
Basic familiarity with SIMATIC systems and TIA Portal software is recommended. Installation follows standard DIN rail mounting procedures identical to other ET 200SP modules. Siemens offers online training courses and certification programs for engineers new to high-availability systems. Our technical support team provides remote commissioning assistance for first-time HA implementations.

How does this module integrate with existing SCADA and MES systems?
PROFINET communication enables seamless integration with WinCC SCADA, Wonderware, Ignition, and other OPC UA-compatible platforms. The S7-1500R/H controller handles protocol conversion and data aggregation, presenting input states as standard process tags. Historical trending and alarm management occur at the SCADA level without requiring module-specific drivers.

Ready to Eliminate Downtime Risk?

Transform your critical control systems with proven high-availability technology trusted by Fortune 500 manufacturers worldwide. Our automation specialists are standing by to discuss your specific application requirements, provide detailed technical specifications, and develop customized solutions that maximize uptime and operational efficiency.

Contact our team today: Request a formal quotation, schedule a technical consultation, or arrange for sample evaluation units. Volume pricing and project-based discounts available for multi-module installations.
