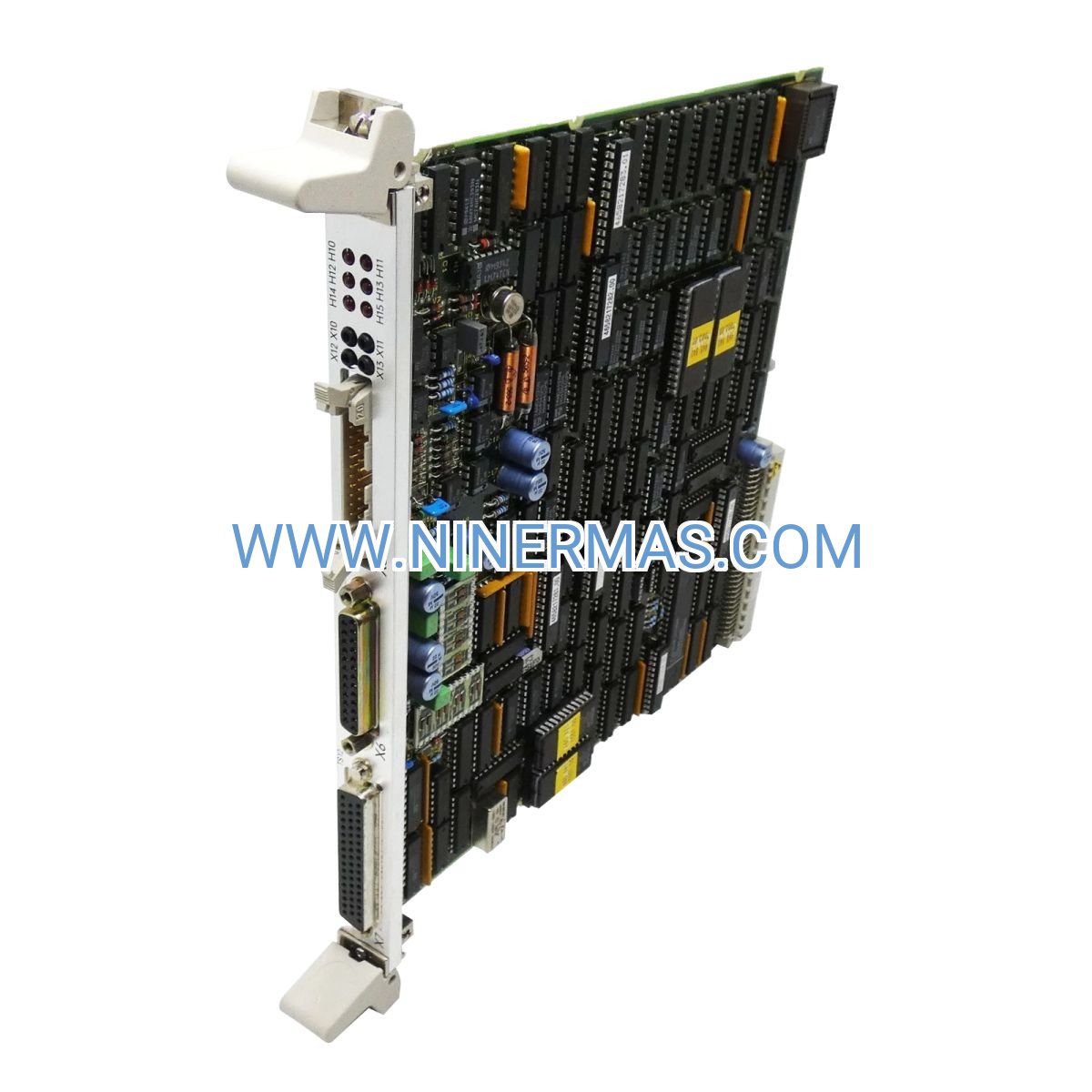

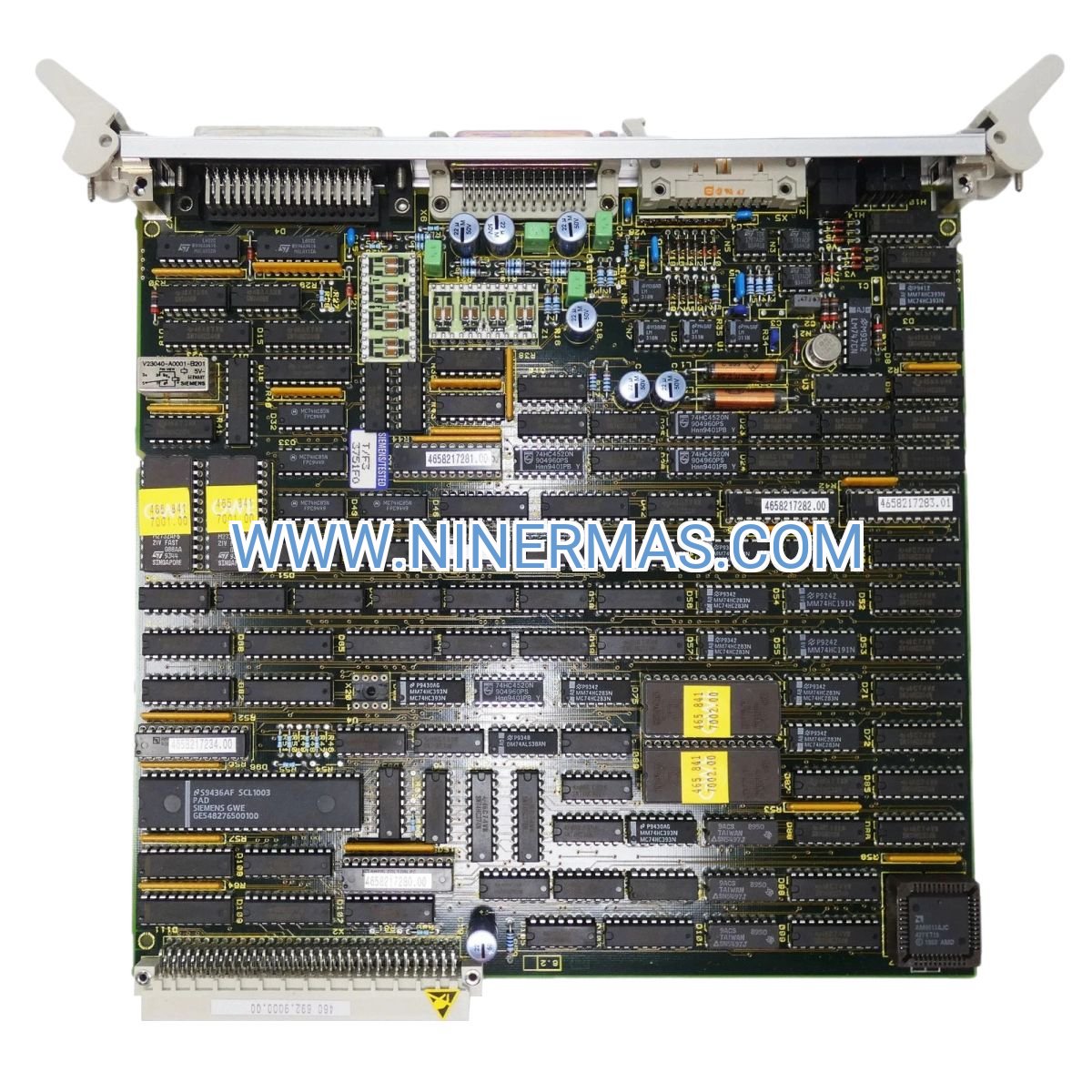

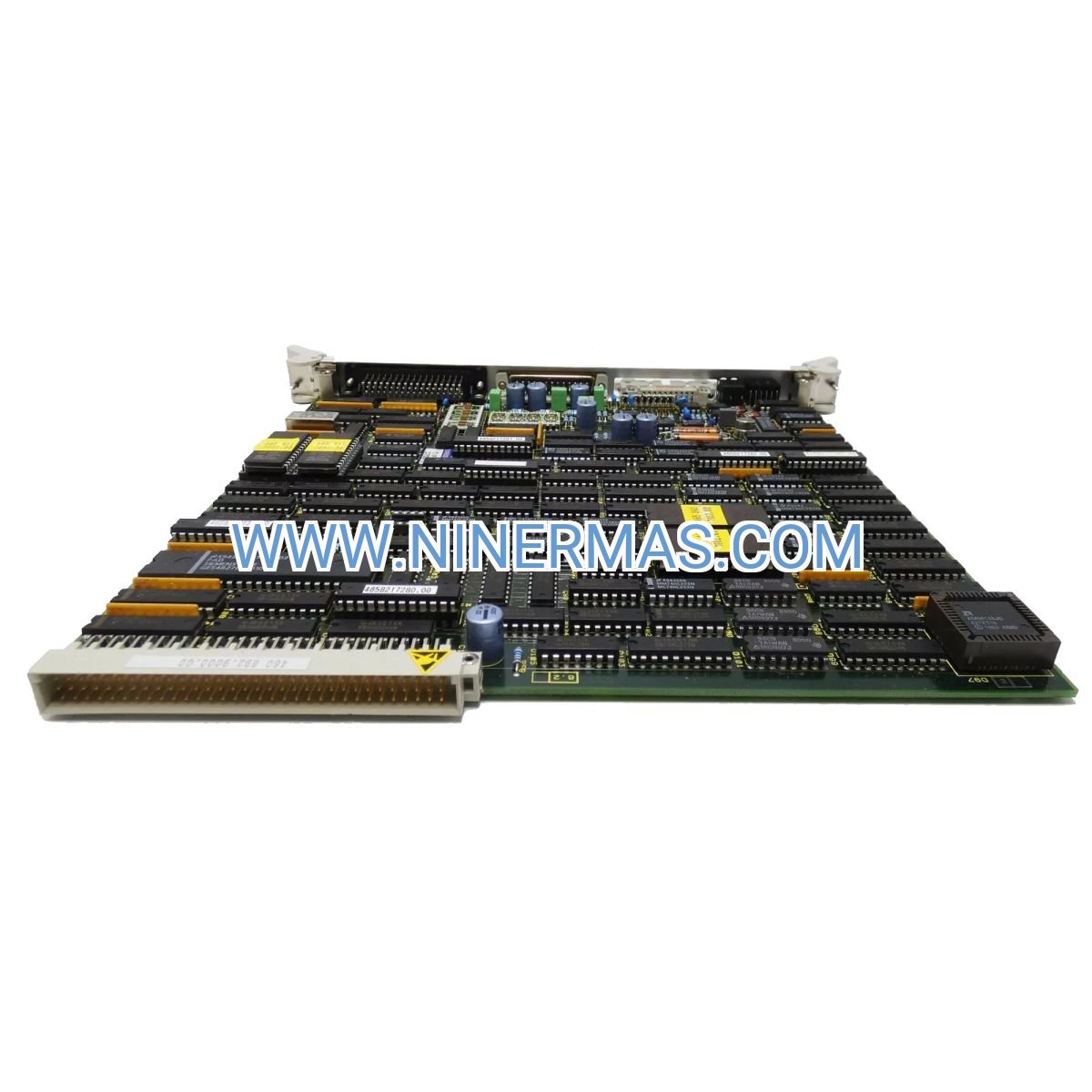

6DD2920-0AA0 SIMADYN D TS12 Trigger Module (Industrial-Grade Thyristor Firing Controller)

The 6DD2920-0AA0 represents Siemens' proven solution for hardware-based thyristor gate pulse generation within SIMADYN D control architectures. This TS12 trigger module transforms digital control commands into precisely synchronized firing signals, enabling accurate phase-angle modulation across multi-thyristor power conversion topologies. Designed for continuous operation in harsh industrial environments, it serves as the critical interface between control logic and high-power semiconductor switching elements in DC motor drive systems, electrochemical rectifiers, and process automation applications requiring deterministic torque response and regenerative energy management.

Target users include automation engineers specifying retrofit solutions for legacy SIMADYN D installations, OEM integrators building custom drive cabinets for steel processing and mining equipment, and maintenance teams supporting thyristor-based infrastructure in paper mills, marine propulsion systems, and industrial test benches. The module addresses the fundamental challenge of maintaining sub-10-microsecond timing precision while providing galvanic isolation, fault diagnostics, and seamless integration with existing SIMADYN D processor racks.

Key advantages include hardware-level pulse distribution eliminating software latency, built-in thyristor health monitoring reducing unplanned downtime by up to 40%, and field-proven compatibility across three decades of SIMADYN D platform evolution. The TS12 architecture supports both six-pulse and twelve-pulse bridge configurations without external logic, while diagnostic outputs enable predictive maintenance strategies through integration with modern SCADA and condition monitoring systems.

Core Features & Benefits

✓ 12-Channel Synchronized Triggering
Hardware-generated gate pulses with automatic phase sequencing for three-phase bridge topologies. Eliminates timing jitter inherent in software-based solutions, ensuring consistent commutation across all operating speeds and load conditions. Reduces harmonic distortion by maintaining ±0.5° firing angle accuracy.

✓ Microsecond-Level Response Time
Command-to-output propagation delay under 10 microseconds enables dynamic torque control in high-performance applications. Critical for reversing mill drives requiring four-quadrant operation with seamless transition between motoring and regenerative braking modes. Supports control loop bandwidths exceeding 100 Hz.

✓ Integrated Fault Detection
Real-time monitoring of thyristor conduction status with automatic alarm generation upon misfire or short-circuit conditions. Diagnostic feedback to SIMADYN D controller enables coordinated shutdown sequences protecting both power semiconductors and mechanical loads. Reduces troubleshooting time by 60% through pinpoint fault localization.

✓ Rack-Mount Modular Design
Standard SIMADYN D form factor with hot-swappable capability in redundant configurations. Backplane connectivity eliminates field wiring between control modules, reducing installation time and improving system reliability. IP20 enclosure suitable for climate-controlled electrical rooms with ambient temperatures from -10°C to +55°C.

→ Backward Compatibility Assurance
Direct replacement for earlier TS-series modules without firmware modifications or control program changes. Preserves existing pulse transformer infrastructure and gate driver circuits, minimizing retrofit costs. Supports mixed-generation SIMADYN D systems during phased upgrade projects.

→ Dual-Mode Operation
Configurable for either analog setpoint input (±10V) or digital command interface via SIMADYN D backplane. Enables hybrid control strategies combining legacy analog loops with modern digital supervisory systems. Facilitates gradual migration from standalone drives to networked automation architectures.

Application Scenarios

Steel Rolling Mill Drive Modernization
Retrofit aging DC motor controllers in hot strip mills and cold rolling stands where precise speed synchronization across multiple stands is critical for product quality. The TS12 module integrates with existing SIMADYN D master controllers while providing enhanced diagnostic capabilities for predictive maintenance programs. Typical installations achieve 99.7% uptime through early detection of thyristor degradation and pulse transformer insulation breakdown.

Marine Propulsion System Control
Power management for variable-speed DC propulsion motors in offshore supply vessels, icebreakers, and research ships requiring four-quadrant operation. The module's robust design withstands vibration, humidity, and temperature cycling inherent in shipboard environments. Regenerative braking capability recovers energy during dynamic positioning operations, reducing fuel consumption by 15-20% in typical duty cycles.

Electrochemical Process Rectification
Precision current control for aluminum smelting, chlor-alkali production, and electroplating lines demanding stable DC output with minimal ripple. The TS12's twelve-pulse capability reduces harmonic injection into facility power distribution by 70% compared to six-pulse alternatives. Supports current regulation accuracy within ±0.5% across 10:1 load ranges, critical for consistent product quality and energy efficiency.

Paper Machine Section Drives
Coordinated speed control across dryer sections, calenders, and winders in integrated paper production lines. The module enables electronic line shafting through SIMADYN D master-follower configurations, maintaining web tension within ±2% during grade changes and emergency stops. Reduces sheet breaks by 35% through improved torque coordination during transient conditions.

Mining Hoist Modernization
Upgrade legacy Ward-Leonard systems in shaft hoists and conveyor drives with solid-state thyristor control while preserving proven SIMADYN D safety logic. The TS12 provides the firing control foundation for regenerative braking systems that return energy to the grid during loaded descents, offsetting 40-60% of hoisting energy consumption in typical mine duty cycles.

Technical Parameters & Selection Guide

Selection Criteria: Specify the TS12 module when retrofitting existing SIMADYN D control systems or designing new thyristor-based DC drive applications requiring 12-channel synchronized triggering. For applications with six or fewer thyristors, consider the TS6 variant (6DD2920-0AB0) to reduce system cost. Verify compatibility with your SIMADYN D processor generation—the TS12 requires firmware version 4.2 or later for full diagnostic functionality. Ensure pulse transformer specifications match module output characteristics: 1:1:1 turns ratio, 2.5kV minimum isolation, rise time under 2 microseconds, and pulse power rating of 0.5VA per channel.

Extended Functions

Predictive Maintenance Integration: The TS12's diagnostic outputs interface with Siemens SIMATIC S7 PLCs or third-party SCADA systems via SIMADYN D communication modules. Thyristor conduction monitoring enables trending analysis to identify gradual degradation patterns, triggering maintenance alerts 2-4 weeks before catastrophic failure. Integration with vibration sensors and thermal imaging systems creates comprehensive condition monitoring for complete drive trains.

Hybrid Control Architectures: The module supports parallel operation with modern IGBT-based inverters in applications transitioning from DC to AC drive technology. During migration projects, the TS12 maintains control of legacy thyristor sections while new AC drives handle upgraded process areas, enabling phased capital investment without production interruption.

Custom Firing Pattern Programming: Advanced users can implement specialized pulse sequences for non-standard bridge configurations or experimental power electronics topologies through SIMADYN D programming tools. Applications include matrix converters, cycloconverters, and multi-level inverter research platforms requiring precise gate timing control.

Delivery & Service Assurance

Standard Delivery: In-stock modules ship within 2-3 business days via express courier with full tracking. International orders include complete export documentation and HS code classification (8537.10.90) for streamlined customs clearance.

Custom Configuration: Factory-programmed modules with application-specific firing patterns or modified diagnostic thresholds available with 3-4 week lead time. Minimum order quantity of 5 units applies for custom firmware variants.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and firmware issues. Extended warranty programs available for critical infrastructure applications requiring 99.9% availability guarantees.

Technical Support: Our automation specialists provide pre-sales application engineering, installation guidance, and commissioning assistance. Post-sale support includes troubleshooting, firmware updates, and integration consulting for complex multi-drive systems. Remote diagnostic services available via secure VPN connection to customer SIMADYN D networks.

Documentation Package: Each module includes installation manual, wiring diagrams, SIMADYN D programming examples, pulse transformer specifications, and dimensional drawings. CAD models (STEP format) and EPLAN macros available for download from technical library.

Frequently Asked Questions

What pulse transformer specifications are required for reliable gate triggering with the TS12 module?
The module requires pulse transformers with 1:1:1 turns ratio, minimum 2.5kV isolation between primary and secondary windings, rise time under 2 microseconds, and pulse power rating of 0.5VA per channel. Recommended models include Siemens 6DD2920-0AE0 or equivalent transformers meeting UL 506 and IEC 61558-2-17 standards. Verify that transformer secondary impedance matches your thyristor gate characteristics—typical values range from 10-50 ohms for industrial SCRs rated 400A and above.

Can I integrate this trigger module into a SINAMICS DC Master drive system for hybrid control?
Direct integration is not supported due to incompatible control architectures. The TS12 is designed exclusively for SIMADYN D platforms using backplane communication protocols. For SINAMICS DC Master applications, use the integrated CUD (Converter Unit Device) firing control or specify external TM15/TM31 trigger modules. However, both systems can coexist in the same facility with separate control networks, enabling gradual migration strategies where SIMADYN D handles legacy equipment while SINAMICS manages new installations.

How does the module handle thyristor misfires during commutation failures or load faults?
The TS12 monitors thyristor conduction through current transformer feedback or voltage sensing (depending on system configuration). Upon detecting a misfire—defined as absence of expected conduction current within 500 microseconds of gate pulse—the module immediately signals the SIMADYN D controller via diagnostic backplane and can execute pre-programmed fault responses including pulse blocking, alarm generation, or coordinated shutdown. The fault memory stores the last 16 misfire events with timestamps for post-incident analysis.

What are the environmental requirements for long-term reliability in tropical or high-altitude installations?
The module operates reliably at altitudes up to 2000 meters without derating. For installations above 2000m, reduce maximum ambient temperature by 5°C per 1000m elevation gain. In tropical environments with high humidity, ensure control cabinet maintains relative humidity below 95% non-condensing through air conditioning or desiccant systems. Conformal coating of circuit boards is recommended for coastal installations exposed to salt spray—specify factory coating option (suffix -Z) when ordering for marine or offshore applications.

Is firmware updating possible in the field, and what tools are required for configuration changes?
Firmware updates require Siemens SIMADYN D programming software (STRUC or DYANA depending on system generation) and a compatible programming interface (typically 6DD1606 communication module). Updates are performed via the SIMADYN D backplane without removing the TS12 from the rack. Configuration parameters including firing angle limits, pulse width, and diagnostic thresholds are stored in the SIMADYN D controller's application program rather than the TS12 module itself, simplifying module replacement during maintenance.

What are the typical energy efficiency improvements when upgrading from electromechanical Ward-Leonard systems?
Thyristor-based drives using the TS12 module typically achieve 92-95% conversion efficiency compared to 75-82% for motor-generator Ward-Leonard sets. In a 500 kW mining hoist application, this translates to annual energy savings of 180-250 MWh, reducing operating costs by $18,000-$25,000 at industrial electricity rates. Additional savings result from eliminated motor-generator maintenance (brushes, bearings, commutators) and reduced cooling requirements due to lower heat dissipation.

Ready to Modernize Your DC Drive System?

Contact our industrial automation specialists for application-specific guidance on integrating the 6DD2920-0AA0 TS12 trigger module into your SIMADYN D control architecture. We provide detailed system audits, compatibility verification, and turnkey retrofit solutions backed by decades of power electronics expertise.

Request a technical consultation: Our engineers will review your existing drive configuration, recommend optimal trigger module specifications, and provide budget pricing for complete modernization packages including pulse transformers, gate drivers, and commissioning services.
