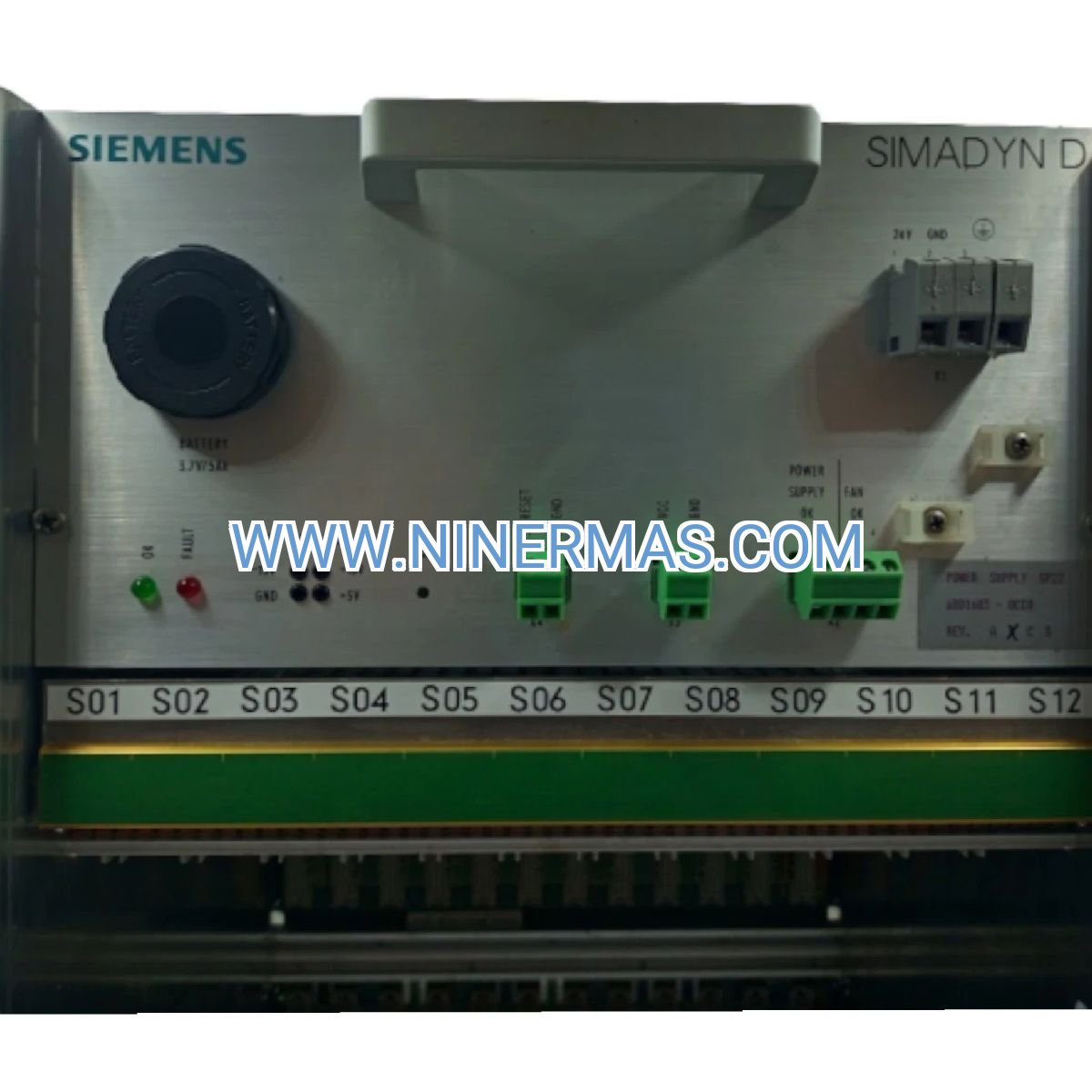

Industrial-Grade SIMADYN D Subrack SR12.1 (6DD1682-0CC0)

The Siemens 6DD1682-0CC0 represents a field-proven mounting platform engineered for mission-critical SIMADYN D control architectures. This 12-slot chassis combines 24V DC power distribution, active thermal regulation, and dual-bus communication infrastructure to support complex drive systems, turbine governors, and process automation networks across manufacturing, energy generation, and heavy industry sectors.

Designed for system integrators and maintenance teams managing legacy SIMADYN D installations, the SR12.1 subrack addresses three fundamental challenges: modular scalability for evolving control requirements, reliable power delivery to high-performance analog and digital modules, and thermal stability under continuous-duty operation in industrial cabinet environments.

With factory-validated compatibility across the SIMADYN D ecosystem—including PM process modules, CS communication interfaces, EA/ED analog I/O, and redundant power supplies—this subrack delivers the mechanical robustness and electrical integrity required for 24/7 uptime in paper mills, steel production, chemical processing, and power generation facilities.

Core Capabilities & Technical Advantages

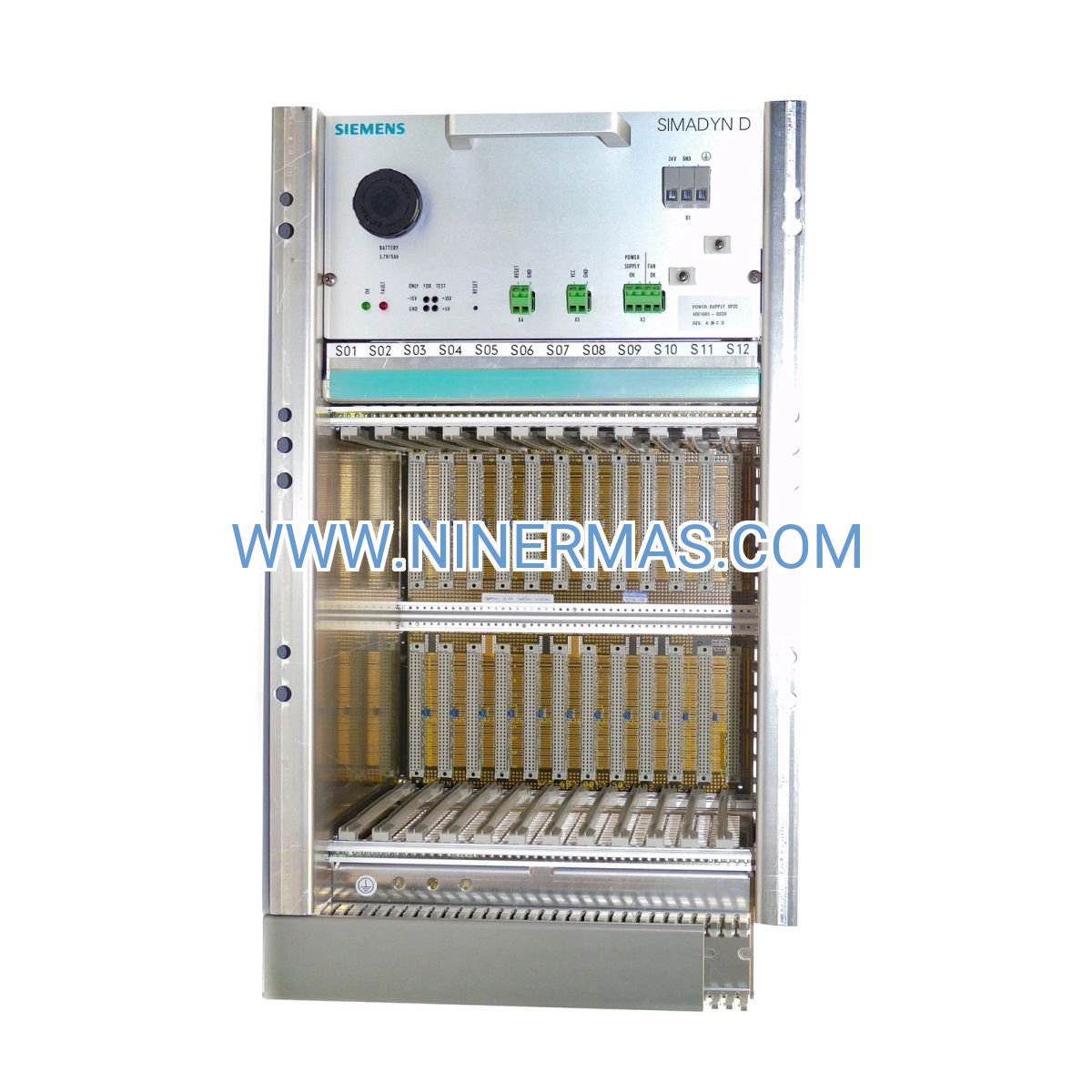

→ 12-Position Modular Architecture
Accommodates any combination of SIMADYN D modules (process controllers, I/O cards, communication gateways, power units) with hot-swappable design considerations for planned maintenance windows. Flexible slot allocation supports system expansion from basic 4-module configurations to fully populated 12-module control networks.

✓ Integrated 24V DC Power Bus
Centralized voltage distribution eliminates individual module wiring, reducing installation time by 40% compared to discrete power connections. Built-in overcurrent protection and voltage regulation ensure stable operation even during supply fluctuations common in industrial environments.

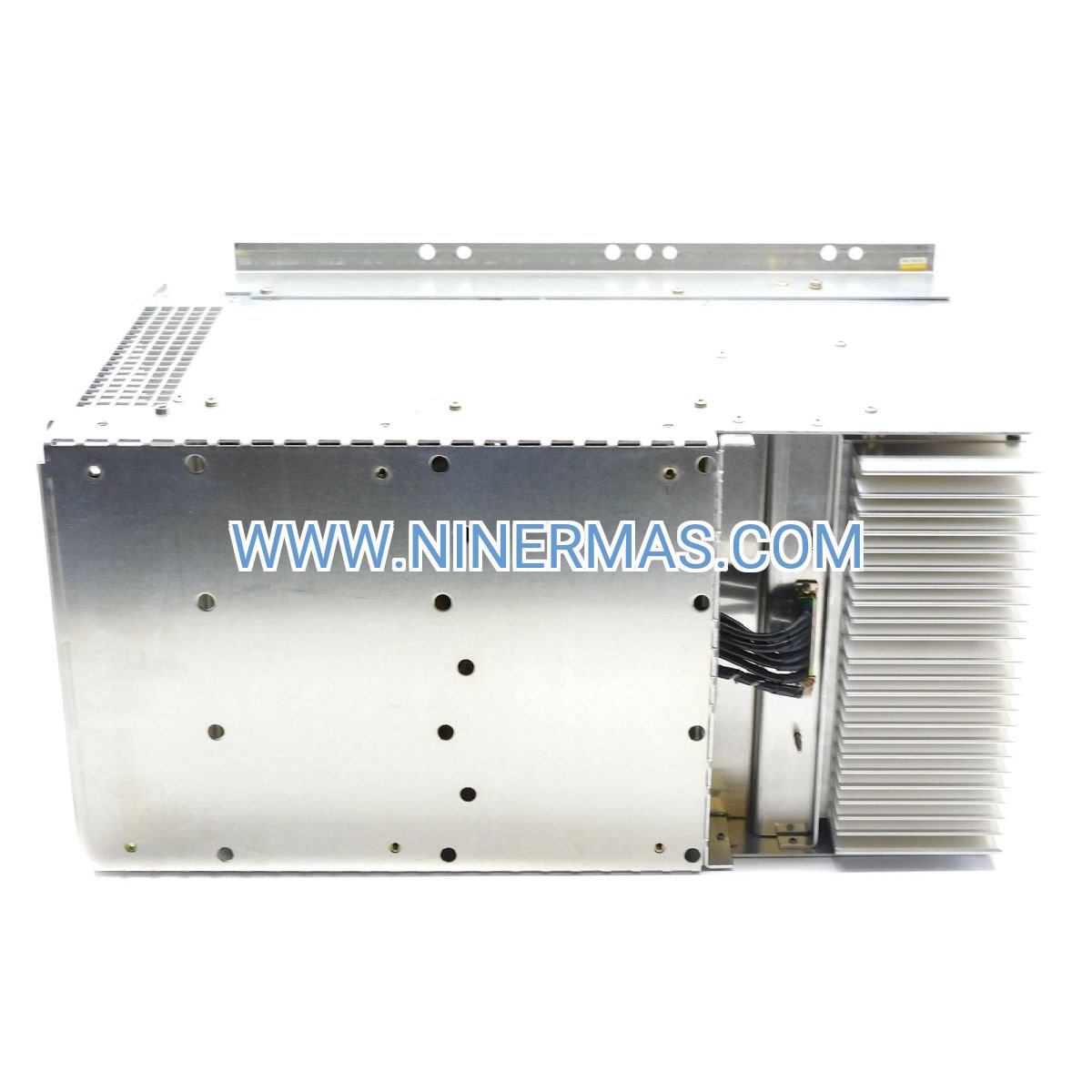

✓ Active Cooling System
Factory-installed fan maintains optimal airflow across all module positions, preventing thermal throttling in high-density configurations. Temperature-regulated operation extends MTBF (Mean Time Between Failures) for analog signal conditioning modules and microprocessor-based controllers operating at maximum computational loads.

✓ L-Bus & C-Bus Backplane Communication
Dual-bus architecture supports deterministic data exchange between modules at speeds up to 12 Mbps, enabling synchronized multi-axis motion control, real-time PID loop coordination, and low-latency alarm propagation across distributed control nodes.

✓ 19-Inch Rack Compatibility
Standard mounting dimensions integrate seamlessly with existing control cabinet infrastructure, allowing side-by-side installation with PLCs, HMIs, network switches, and power distribution units. Reduces cabinet redesign costs during retrofit projects.

✓ IP20 Protection Rating
Suitable for enclosed control room and cabinet installations where dust and moisture ingress are controlled. Meets industrial automation standards for electrical safety and EMC compliance in CE-marked machinery.

Industry-Specific Deployment Scenarios

Variable Speed Drive Control Panels
In paper machine sections, rolling mill stands, and plastic extrusion lines, the SR12.1 houses SIMADYN D modules that manage DC/AC motor speed regulation, torque control, and dancer roll tension feedback. The subrack's power bus stability prevents voltage sag during regenerative braking events, while the cooling system handles heat dissipation from high-current analog output modules driving thyristor firing circuits.

Turbine Governor & Excitation Systems
Power generation facilities deploy the 6DD1682-0CC0 in steam turbine control cabinets where SIMADYN D modules execute speed droop control, load sharing algorithms, and protective trip logic. The chassis's vibration-resistant construction withstands mechanical stress in generator hall environments, and the dual-bus architecture ensures redundant communication paths for critical safety functions.

Process Control & Batch Automation
Chemical plants and water treatment facilities utilize the subrack to centralize analog signal conditioning for flow transmitters, pressure sensors, and temperature RTDs. The modular design allows phased system expansion—starting with basic PID control loops and adding advanced modules for cascade control, ratio control, or PROFIBUS connectivity as process complexity grows.

Legacy System Modernization
Maintenance teams replacing failed SIMADYN D subracks in 1990s-era installations benefit from the 6DD1682-0CC0's backward compatibility with older module generations. This enables hardware refresh without reengineering control logic, preserving decades of tuning data and operational knowledge while improving reliability through modern manufacturing quality.

Technical Parameters & Selection Criteria

Selection Guidelines: Calculate total module power consumption (sum of all installed modules' current draw at 24V DC) and ensure your power supply provides 20% overhead. For applications requiring redundant power, pair with dual 6DD1683-series power modules. In high-vibration environments (>2g acceleration), verify cabinet shock mounting meets Siemens installation guidelines.

Advanced Integration & Customization Options

Redundant Power Architectures: Install dual 24V DC power supplies with diode-OR configuration to eliminate single points of failure in critical control loops. The subrack's power bus design supports seamless failover without module reset.

Remote Monitoring Integration: Combine with SIMADYN D communication modules (CS12/CS14 series) to enable PROFIBUS DP, PROFINET, or serial connectivity to SCADA systems. Monitor fan status, module health, and bus diagnostics via OPC UA or Modbus TCP gateways.

Custom Module Configurations: Work with certified system integrators to develop application-specific module layouts—for example, grouping high-speed analog I/O near process modules to minimize signal propagation delays in fast control loops (sub-10ms cycle times).

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 3-5 business days for in-stock units. Custom-configured subracks with pre-installed modules require 2-3 weeks for factory assembly and testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Covers chassis structure, power distribution circuitry, and cooling fan. Does not cover damage from improper installation, overvoltage, or environmental contamination.

Technical Support: Access to Siemens-certified application engineers for system design consultation, module compatibility verification, and troubleshooting assistance. Email and phone support available during business hours (CET timezone).

Documentation Package: Includes installation manual, dimensional drawings (DXF/PDF), electrical schematics, and module slot assignment guidelines. Firmware update procedures and bus configuration tools available via Siemens Industry Online Support portal.

Frequently Asked Questions

What is the maximum power consumption supported by the 24V DC bus?
The subrack's internal power distribution supports up to 15A continuous load across all 12 slots. Individual module current draw varies (typically 0.5-2A per module). Always verify total system load against your external 24V DC power supply capacity, allowing 20% margin for inrush current during startup.

Can I retrofit this subrack into cabinets originally designed for older SIMADYN D chassis?
Yes, the 6DD1682-0CC0 maintains mechanical compatibility with legacy SR12 subracks. Verify mounting hole patterns and depth clearance. Electrical compatibility depends on module firmware versions—consult Siemens migration guides for specific module combinations.

How do I determine if the integrated cooling fan requires replacement?
Monitor fan noise levels and airflow at module exhaust vents during routine maintenance. Increased noise or reduced airflow indicates bearing wear. Replacement fans (Siemens part number available in service documentation) should be installed before complete failure to prevent thermal shutdown of high-power modules.

Is the subrack suitable for outdoor or harsh industrial environments?
The IP20 rating requires installation in enclosed, climate-controlled cabinets. For outdoor applications, use NEMA 4/4X or IP54-rated enclosures with temperature regulation. In corrosive atmospheres (chemical plants, marine environments), ensure cabinet sealing and positive pressurization to prevent contamination.

What communication protocols are supported for remote diagnostics?
The subrack itself does not include network interfaces. Install SIMADYN D communication modules (CS12 for serial, CS14 for PROFIBUS) in available slots to enable remote access. These modules support standard industrial protocols including Modbus RTU, PROFIBUS DP, and proprietary Siemens protocols for integration with SIMATIC systems.

Can I mix different generations of SIMADYN D modules in the same chassis?
Mixing is generally supported, but verify firmware compatibility matrices in Siemens documentation. Older modules may lack features available in newer revisions (e.g., extended diagnostics, faster bus speeds). For optimal performance, group modules by generation and update firmware to latest compatible versions.

Ready to Modernize Your SIMADYN D Control System?

Contact our industrial automation specialists for application-specific configuration guidance, volume pricing for multi-unit projects, or technical compatibility verification for your existing SIMADYN D installation. We provide pre-sales engineering support, custom module integration, and expedited shipping for critical replacement scenarios.

Request a Quote: Email your system requirements, module list, and delivery timeline to our sales team.
Technical Consultation: Schedule a call with our SIMADYN D experts to discuss retrofit strategies, spare parts planning, or system expansion roadmaps.
