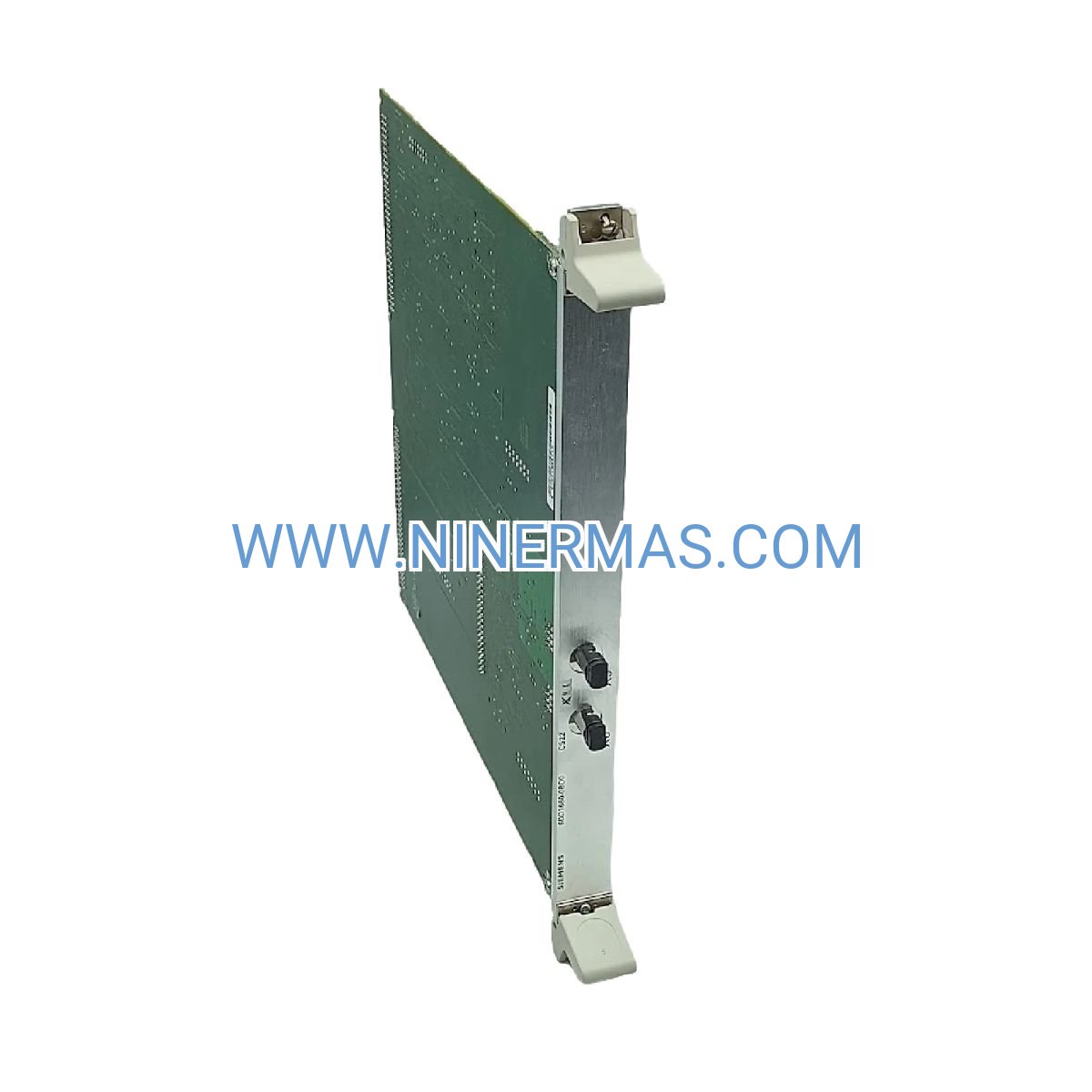

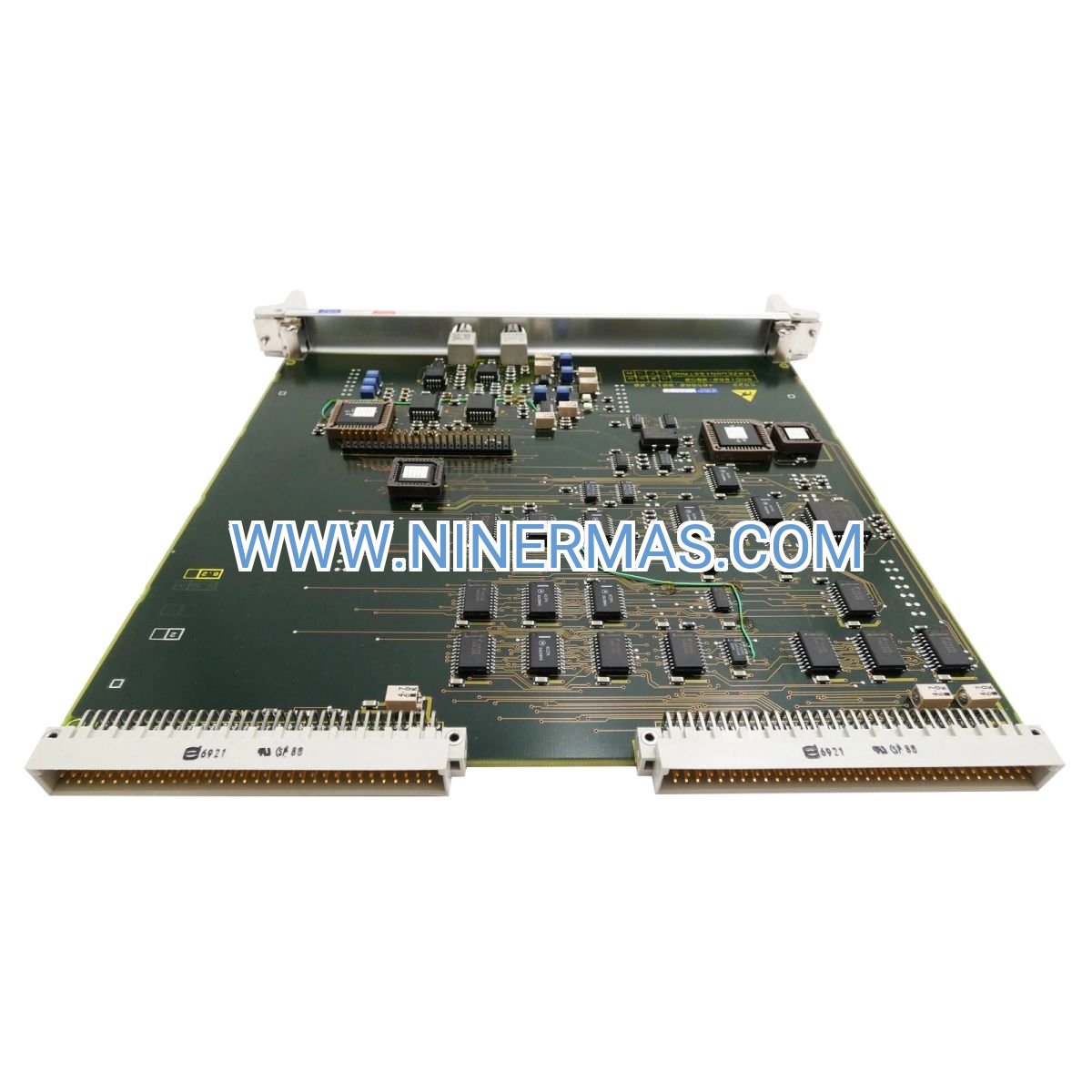

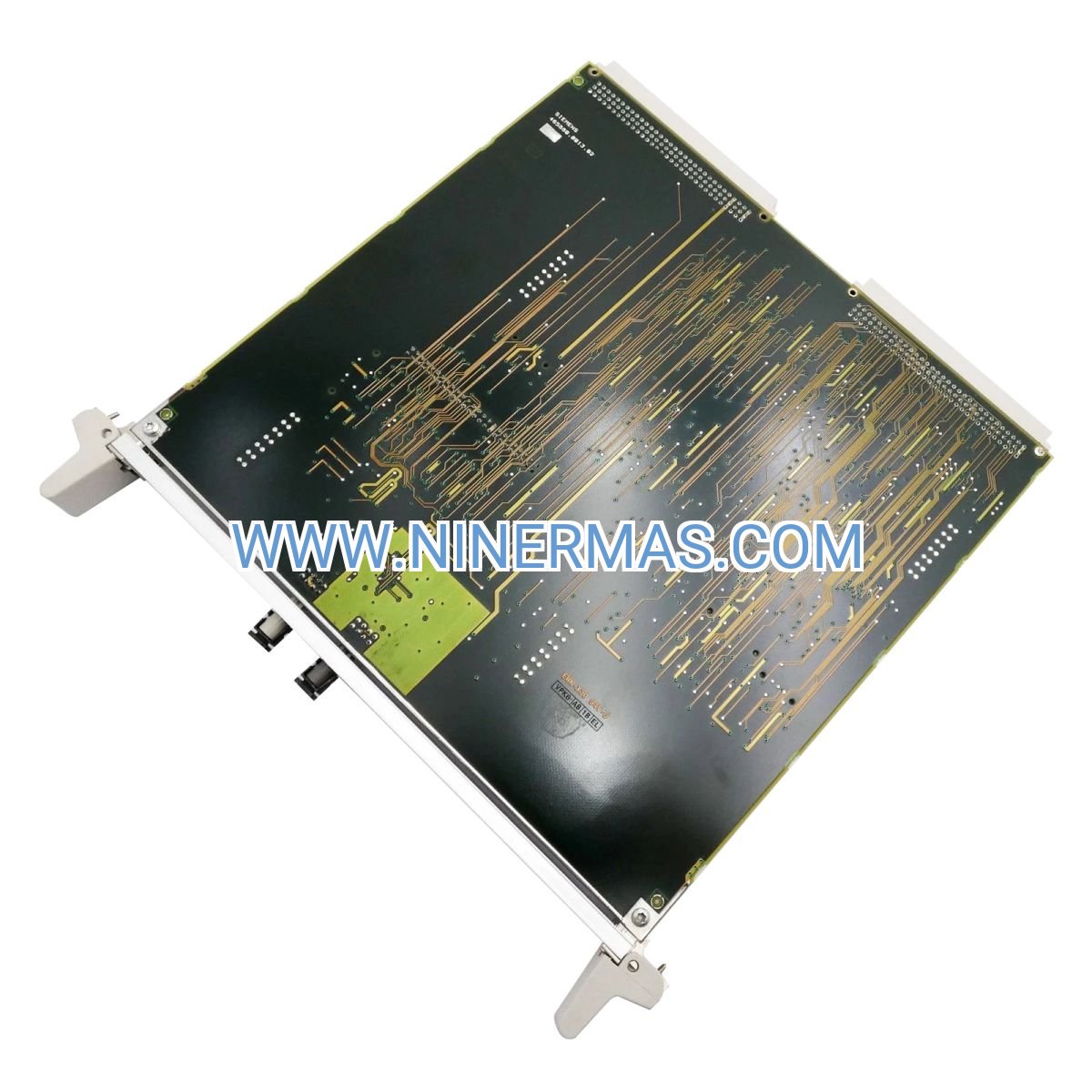

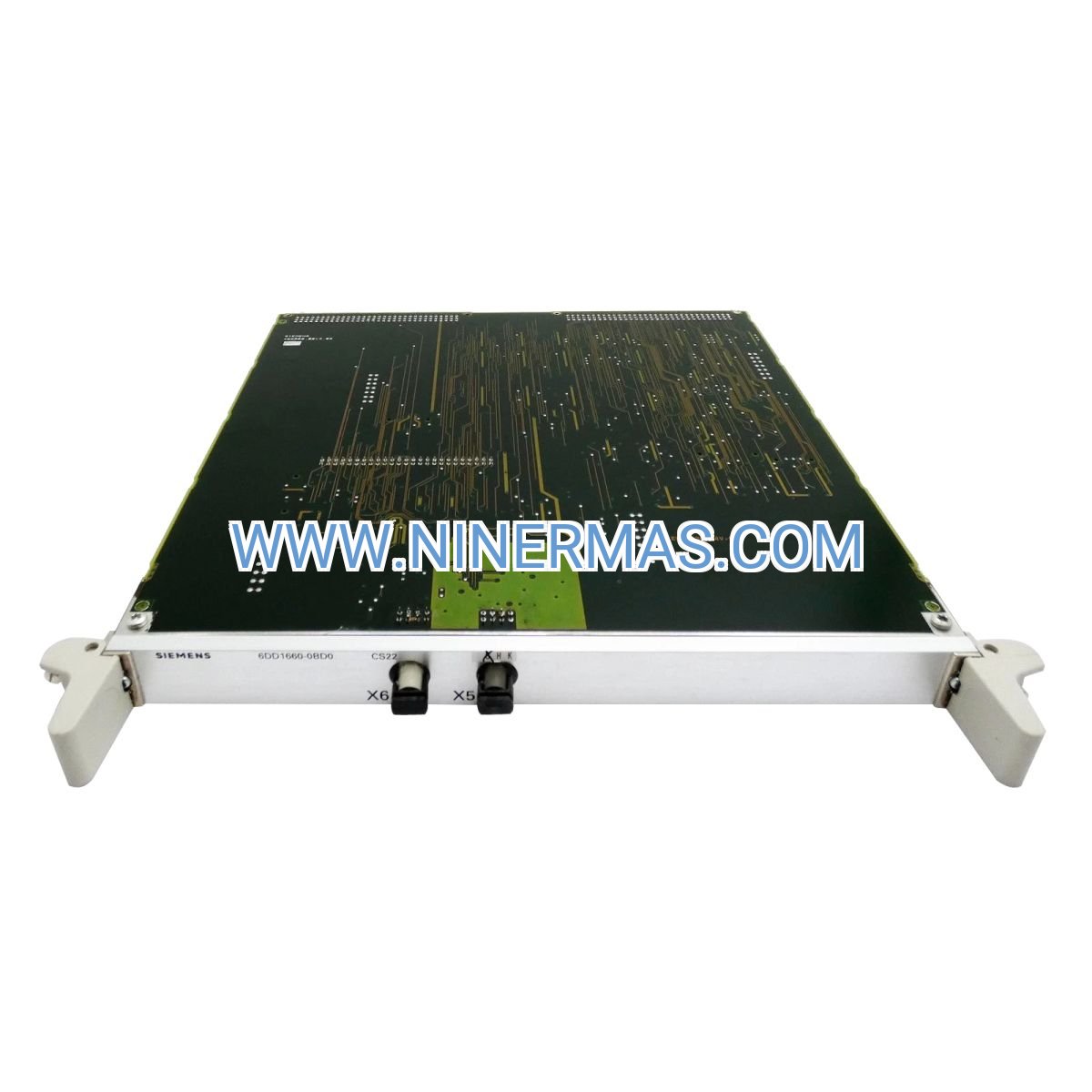

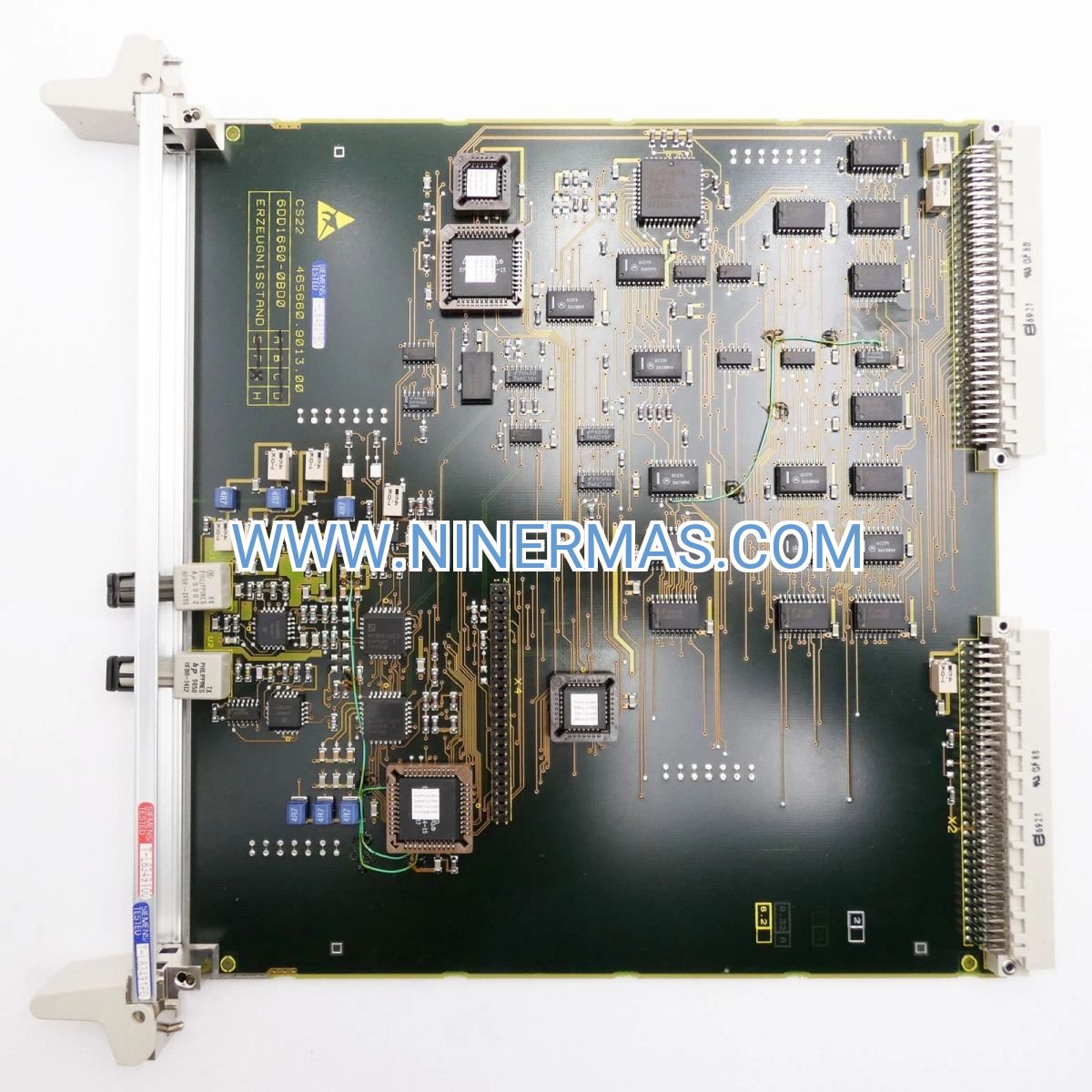

6DD1660-0BD0 CS22 Fiber Optic Frame Coupler (Industrial-Grade SIMADYN D Integration)

The Siemens 6DD1660-0BD0 CS22 module delivers deterministic, noise-immune inter-frame communication for distributed SIMADYN D control architectures. Engineered for environments where electromagnetic interference, ground potential differences, or extended cabinet spacing demand superior signal integrity beyond copper-based solutions.

Designed for process automation engineers and system integrators managing multi-cabinet control installations, this fiber optic coupler eliminates EMI vulnerabilities while extending communication reach up to several kilometers. Whether you're retrofitting legacy systems or designing greenfield plants, the CS22 ensures reliable synchronization across distributed control frames in power generation, heavy manufacturing, and process industries.

Key advantages include complete galvanic isolation preventing ground loops, immunity to electrical noise from VFDs and welding equipment, and flexible topology supporting complex plant-wide architectures with minimal latency.

Core Features & Benefits

→ EMI-Immune Transmission: Fiber optic technology eliminates susceptibility to electromagnetic interference from motors, drives, and high-voltage equipment—ensuring data integrity in electrically harsh industrial environments.

→ Galvanic Isolation: Complete electrical separation between control frames prevents ground loop currents and voltage differentials, enhancing safety and system reliability in distributed installations.

→ Extended Communication Range: Supports multi-kilometer distances with single-mode fiber (2+ km with multi-mode), enabling flexible cabinet placement and plant-wide control topologies impossible with copper alternatives.

→ Deterministic CS22 Protocol: High-speed synchronous communication protocol delivers real-time performance with predictable latency, critical for coordinated motion control and process synchronization applications.

→ Seamless SIMADYN D Integration: Direct subrack mounting with automatic frame recognition—no external converters or adapters required. Configured via standard SIMADYN D engineering tools.

✓ German Engineering Quality: Manufactured in Germany to Siemens industrial standards, rated for 0°C to +60°C operation with IP20 protection when properly installed.

Application Scenarios

Power Generation & Turbine Control: Multi-frame turbine governor systems require synchronized control across distributed cabinets. The CS22 module provides EMI-immune communication between excitation control, speed regulation, and protection frames—critical where generator fields and switchgear create severe electrical noise. Eliminates ground loop issues between isolated control zones.

Process Industries with Hazardous Areas: Chemical plants and refineries often require control cabinets separated by explosion-proof barriers or significant distances. Fiber optic coupling maintains real-time communication while providing inherent galvanic isolation, simplifying compliance with area classification requirements and eliminating spark risks.

Heavy Manufacturing with High EMI: Steel mills, automotive welding lines, and metal fabrication facilities generate extreme electromagnetic interference. The 6DD1660-0BD0 ensures reliable frame-to-frame communication despite proximity to arc welders, induction heaters, and large motor drives that would corrupt copper-based links.

Distributed Control Architectures: Large-scale automation systems spanning multiple buildings or process areas benefit from fiber's distance capability. Connect control rooms to remote equipment shelters, coordinate packaging lines across production floors, or integrate satellite control panels—all with deterministic, noise-free communication.

Redundant Safety Systems: Critical infrastructure applications requiring fault-tolerant control leverage CS22 modules in redundant configurations. Fiber optic links between primary and backup frames ensure reliable failover communication immune to electrical faults that might compromise both systems simultaneously.

Technical Parameters & Selection Guide

Selection Criteria: Choose multi-mode fiber for distances under 2 km and cost-sensitive applications. Specify single-mode fiber for extended reach beyond 2 km or future-proofing installations. Verify compatibility with existing SIMADYN D subrack models (SR12.1/SR12.2) and ensure adequate backplane power budget. For redundant systems, plan paired CS22 modules with appropriate fiber routing to avoid single points of failure.

Extended Functions

Diagnostic Capabilities: Onboard LED indicators provide real-time status for power, communication activity, and fault conditions. Advanced diagnostics accessible through SIMADYN D engineering software enable proactive monitoring of link quality, error rates, and synchronization status.

System Scalability: The CS22 architecture supports complex topologies including star, ring, and linear configurations. Multiple CS22 modules can be deployed within a single system to create multi-frame networks spanning entire facilities.

Integration with Modern Platforms: While optimized for SIMADYN D legacy systems, the CS22 module can interface with newer Siemens control platforms through appropriate gateway solutions, protecting existing infrastructure investments during phased modernization projects.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-7 business days for in-stock units. Custom configurations or bulk orders may require 2-4 weeks—contact our team for expedited options.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects and functional failures. Warranty includes replacement parts and technical support for troubleshooting.

Technical Support: Our automation specialists provide pre-sales application consulting, configuration assistance, and post-installation troubleshooting. Access to Siemens technical documentation, wiring diagrams, and configuration examples included with purchase.

Documentation Package: Each module ships with installation guide, technical datasheet, and safety instructions. Complete SIMADYN D system manuals and engineering software available through Siemens Industry Online Support portal.

Frequently Asked Questions

What fiber optic cable specifications are required for the CS22 module?
The 6DD1660-0BD0 accepts standard 62.5/125 µm or 50/125 µm multi-mode fiber for distances up to 2 km, and 9/125 µm single-mode fiber for extended reach applications beyond 2 km. Connector type and pinout details are specified in the technical manual—consult documentation for your specific system configuration to ensure proper cable selection and termination.

Can I integrate CS22 modules into existing SIMADYN D systems without extensive reconfiguration?
Yes, the CS22 module is designed for seamless integration into established SIMADYN D architectures. It mounts directly into SR12.1 or SR12.2 subracks and is recognized automatically by the system upon power-up. Configuration is performed through standard SIMADYN D engineering tools with minimal parameter adjustments—typically requiring only frame address assignment and communication path definition.

How does fiber optic communication improve system reliability compared to copper alternatives?
Fiber optic transmission eliminates three major failure modes common in copper-based systems: electromagnetic interference from nearby equipment, ground loop currents caused by potential differences between cabinets, and signal degradation over distance. In high-EMI environments like welding facilities or near large motors, fiber maintains error-free communication where copper links would experience frequent data corruption requiring retransmission and causing control delays.

What diagnostic tools are available for troubleshooting CS22 communication issues?
The module provides front-panel LED indicators for quick visual status checks (power, transmit/receive activity, fault conditions). Detailed diagnostics are accessible via SIMADYN D engineering software, displaying real-time metrics including link status, error counters, signal strength, and synchronization quality. These tools enable rapid identification of fiber breaks, connector issues, or configuration errors.

Is the CS22 module compatible with redundant control system architectures?
Absolutely. The CS22 supports redundant configurations commonly deployed in critical infrastructure applications. Paired modules can establish dual communication paths between redundant control frames, with automatic failover in case of fiber break or module failure. Proper system design requires careful fiber routing to avoid common-mode failures and appropriate configuration of redundancy parameters in the SIMADYN D engineering environment.

What are the power consumption requirements and heat dissipation considerations?
The 6DD1660-0BD0 draws power from the SIMADYN D subrack backplane (24V DC supply), with typical consumption around 5-8W depending on communication activity. Heat dissipation is managed through the module's metal housing and subrack ventilation—ensure adequate cabinet airflow and observe temperature derating curves if operating near the upper limit of the 0-60°C range. Consult the technical datasheet for precise power budget calculations when planning system capacity.

Ready to Enhance Your SIMADYN D System?

Upgrade your distributed control architecture with proven fiber optic technology. Contact our automation specialists at sale@ninermas.com or call +0086 187 5021 5667 for application consulting, technical specifications, or volume pricing. Fast global shipping available—most orders ship within 3-7 business days.
