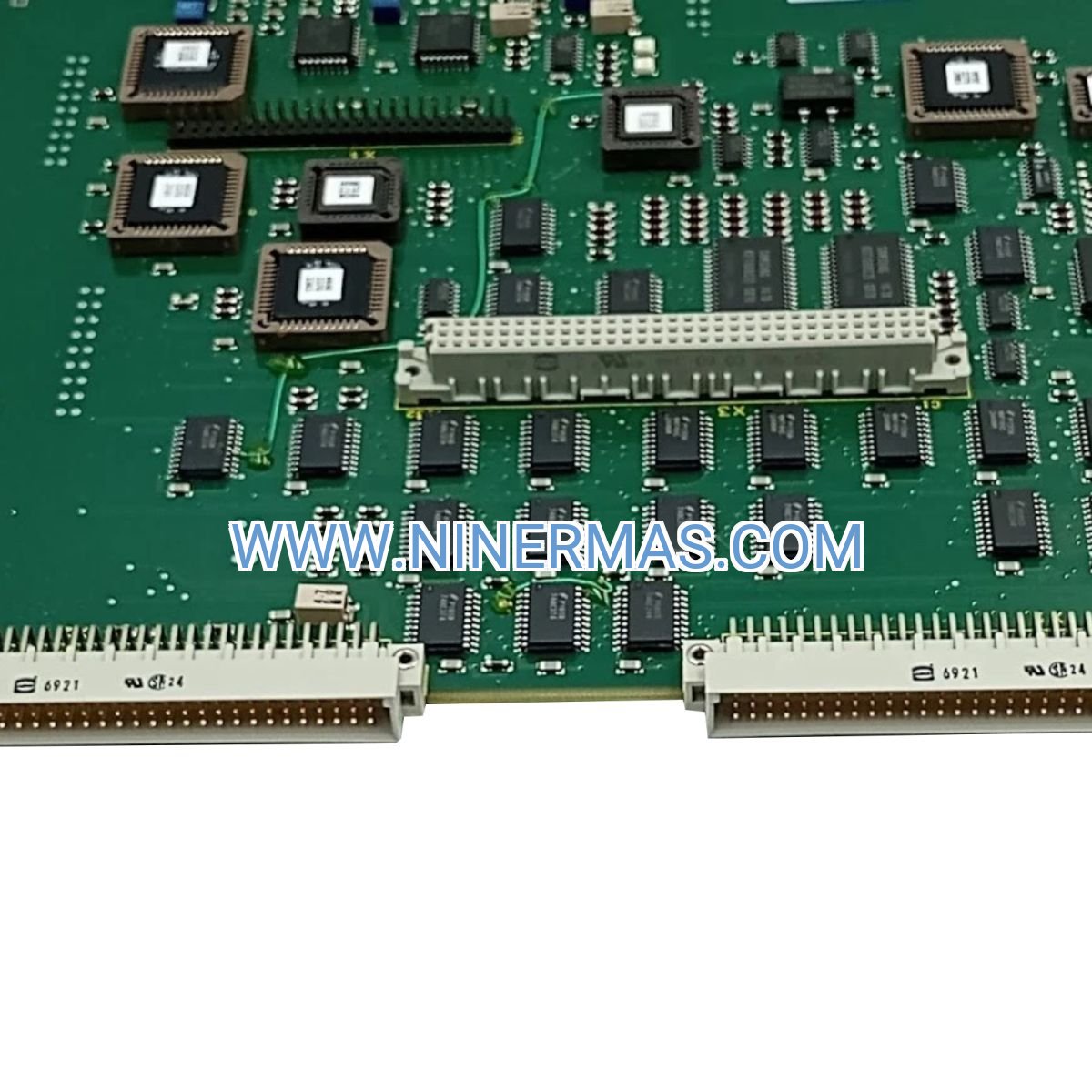

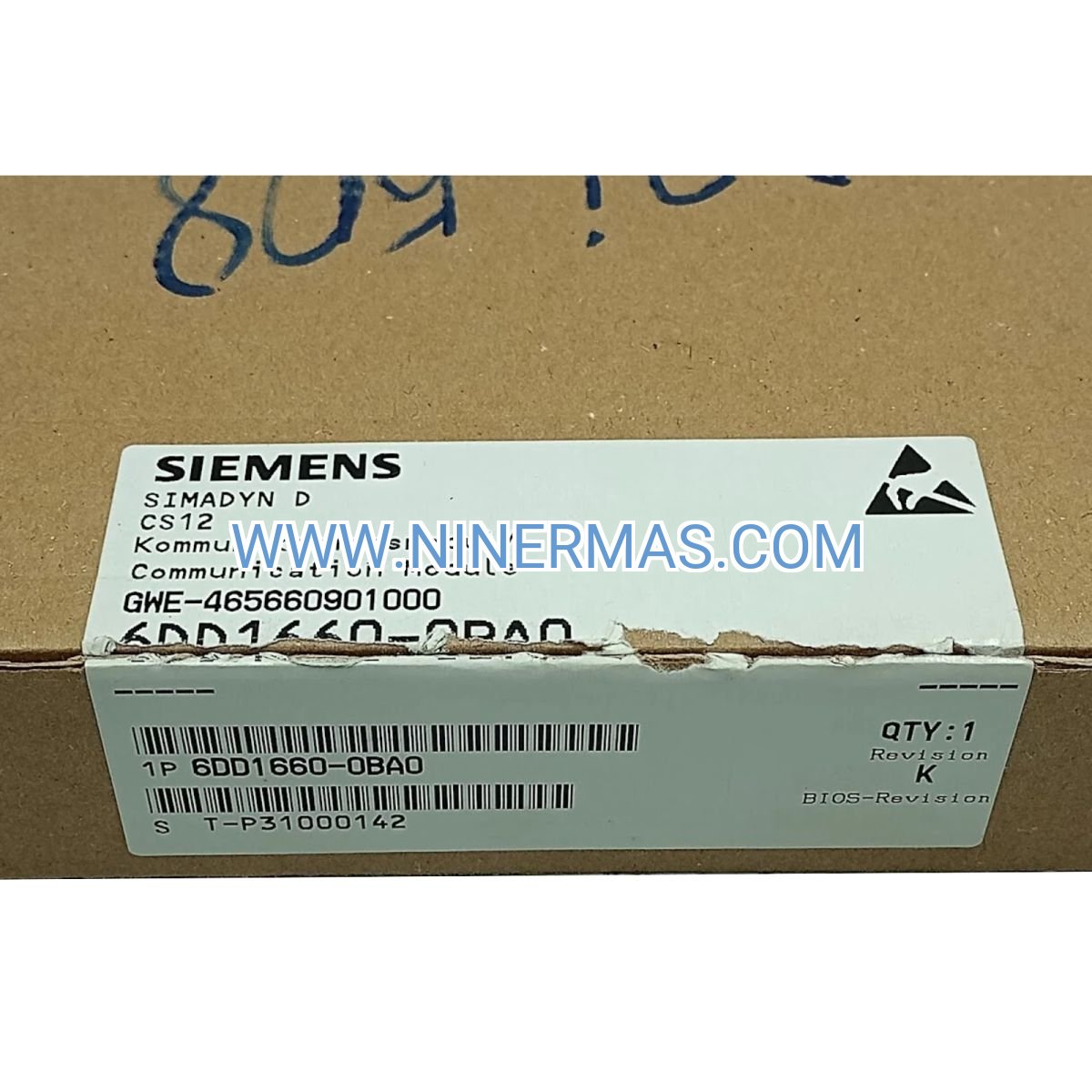

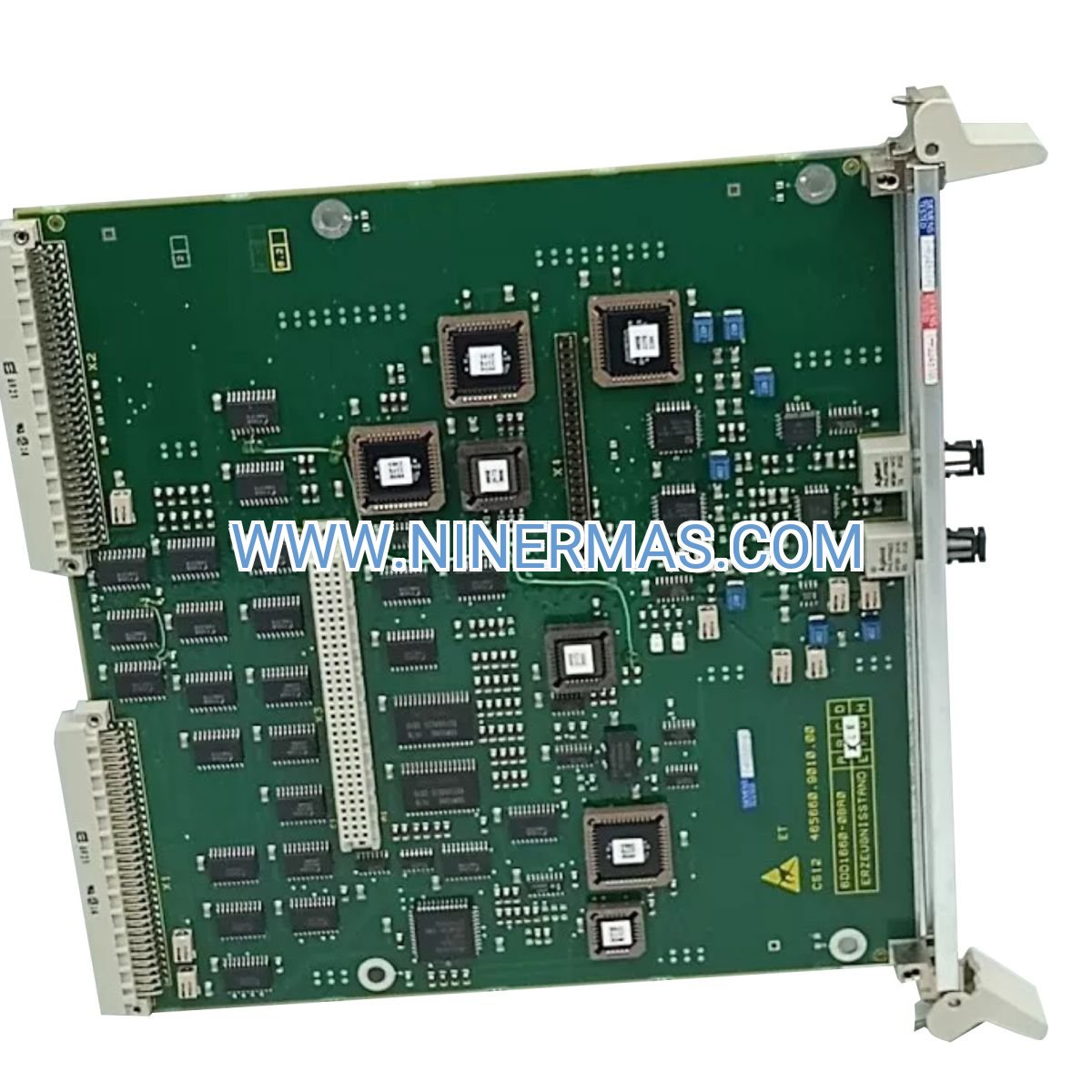

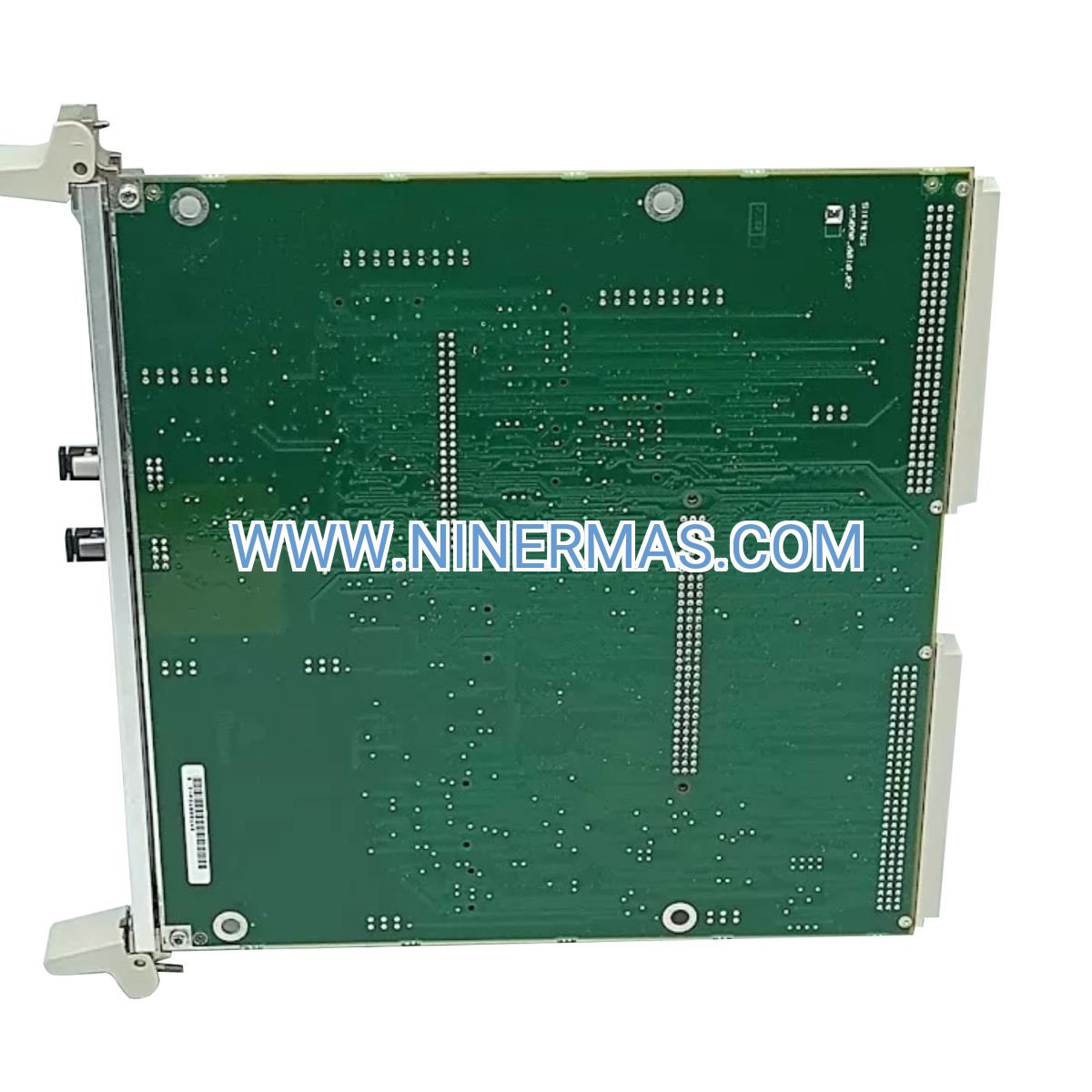

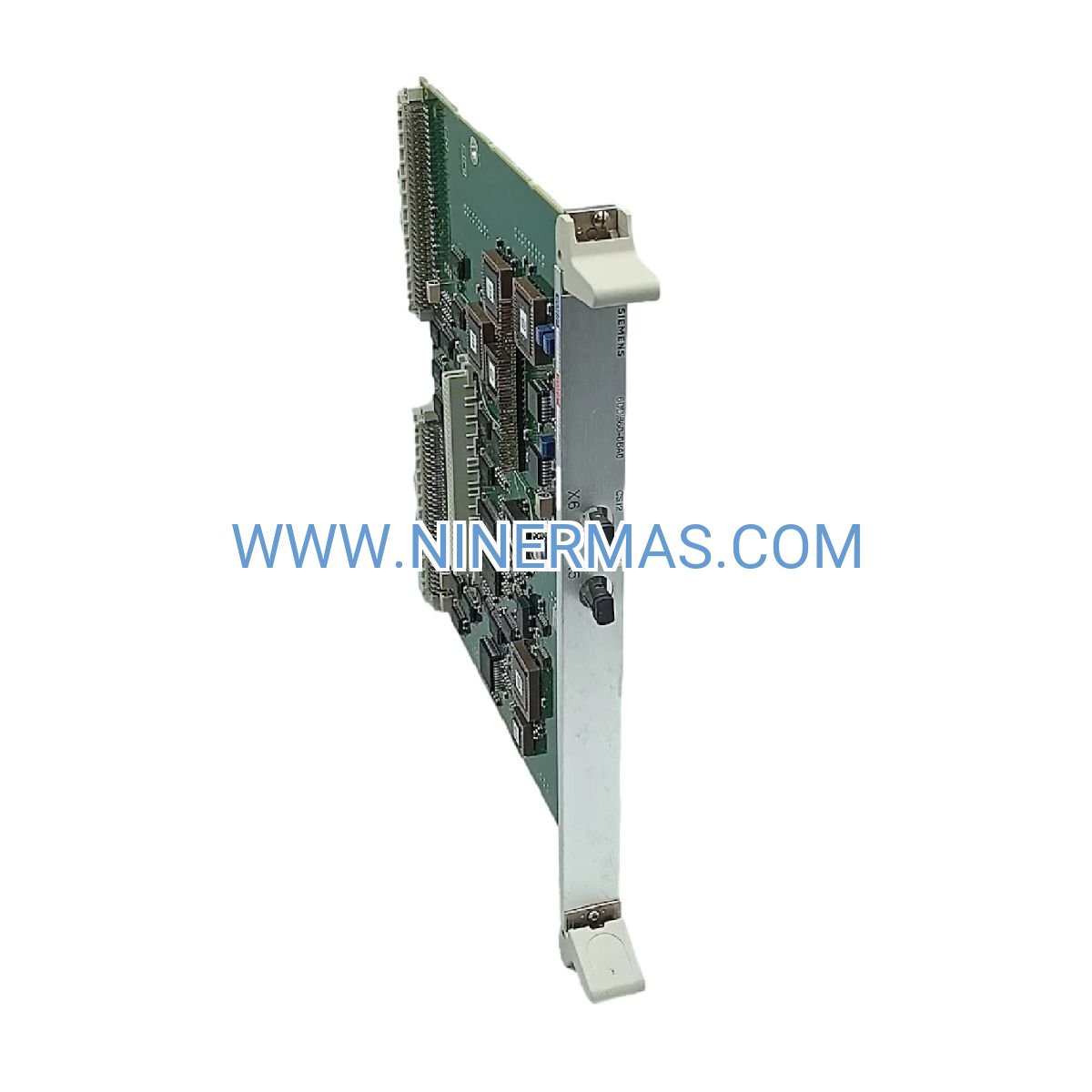

6DD1660-0BA0 SIMADYN D CS12 Communication Module (Industrial-Grade Fiber Optic Frame Coupling)

The Siemens 6DD1660-0BA0 CS12 module delivers deterministic fiber optic communication for SIMADYN D distributed control architectures. Engineered for environments where electromagnetic interference, extended distances, and galvanic isolation define system reliability, this interface enables microsecond-precision data exchange between control frames across industrial facilities spanning up to 15 kilometers.

Designed for power generation, steel processing, and chemical plants where copper-based networks fail under EMI stress, the CS12 module maintains fixed-cycle synchronization essential for coordinated motion control and safety-critical applications. Its fiber optic technology eliminates ground loop issues while preserving the deterministic timing characteristics that distinguish SIMADYN D from variable-latency Ethernet solutions.

Whether retrofitting legacy installations or designing new multi-cabinet control systems, the 6DD1660-0BA0 provides a proven upgrade path that protects existing engineering investments while extending operational reach and environmental resilience.

Core Features & Benefits

✓ Deterministic Fiber Optic Communication
Maintains fixed-cycle data exchange aligned with SIMADYN D scan architecture, ensuring predictable response times for safety-critical control loops—unlike Ethernet protocols that introduce variable latency affecting motion synchronization.

✓ Extended Transmission Range
Supports multi-mode fiber up to 2 km and single-mode fiber up to 15 km, enabling control cabinet separation across large industrial sites while preserving microsecond-level timing accuracy required for coordinated drive systems.

✓ Complete Galvanic Isolation
Eliminates ground loop currents and voltage potential differences between distant control frames, protecting sensitive electronics in multi-building installations and hazardous area applications where electrical isolation is mandatory.

✓ EMI Immunity for Harsh Environments
Fiber optic transmission remains unaffected by arc furnaces, VFD switching noise, or RF interference that degrades copper-based networks—critical for steel mills, power plants, and heavy industrial facilities.

✓ Seamless SIMADYN D Integration
Appears as standard communication function block in CFC/SFC programming environment, requiring no specialized configuration tools or application code changes when upgrading from copper-based CS11 modules.

✓ Diagnostic Transparency
Provides LED status indicators and software-accessible metrics including fiber link quality, frame error counters, and timeout detection integrated into SIMADYN D system diagnostics for proactive maintenance.

Application Scenarios

→ Power Generation Turbine Control
Synchronizes governor, excitation, and protection systems across generator halls separated by hundreds of meters, where high-voltage switchgear generates EMI levels that corrupt copper-based communication. The CS12 module's fiber optic link maintains control integrity during fault conditions when reliability matters most.

→ Steel Mill Rolling Coordination
Enables real-time speed and tension control between roughing, intermediate, and finishing stands in hot strip mills spanning 500+ meters. Deterministic communication ensures material tracking accuracy and prevents cobbles caused by drive synchronization errors.

→ Chemical Process Distributed Control
Links control cabinets in hazardous classified areas to operator stations in safe zones, meeting intrinsic safety requirements while maintaining the fast scan rates necessary for reactor temperature and pressure control loops.

→ Marine Propulsion Systems
Connects engine room automation to bridge control consoles in vessels where saltwater corrosion, vibration, and electrical noise compromise traditional wiring—fiber optic immunity ensures navigation and safety system reliability.

→ Paper Machine Section Coordination
Synchronizes forming, pressing, and drying section drives in machines exceeding 200 meters length, where moisture and electrical interference degrade copper networks. Fiber optic communication maintains the speed matching precision required for sheet quality.

Technical Parameters & Selection Guide

Selection Criteria: Choose multi-mode fiber for distances under 2 km and cost-sensitive applications. Select single-mode fiber for maximum range (up to 15 km) or future-proofing installations where cabinet relocation may extend distances. Verify fiber type compatibility with existing plant infrastructure before ordering.

Extended Functions

Heterogeneous Network Topology
The CS12 module integrates seamlessly with copper-based CS11 modules within the same SIMADYN D system, allowing optimized communication design—fiber optic for long-distance or noise-prone segments, copper for local cabinet-to-cabinet connections in controlled environments.

Redundant Architecture Support
When paired with CS22 dual-channel communication modules, the 6DD1660-0BA0 enables fault-tolerant control system designs where fiber link failure automatically switches to backup communication paths without process interruption.

Legacy System Modernization
Provides direct upgrade path from aging copper-based frame coupling without controller replacement or application reprogramming, protecting decades of control logic investment while improving reliability and extending system lifespan.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-3 business days via DHL/FedEx with tracking. Custom configurations or bulk orders may require 2-4 weeks—contact our team for expedited options.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and functional failures, with advance replacement available to minimize critical system downtime.

Technical Support: Application engineering assistance for system integration, fiber optic cable specification, troubleshooting guidance, and migration planning from SIMADYN D to modern SIMATIC platforms.

Documentation Included: Installation manual, technical data sheet, fiber optic cable recommendations, and CFC/SFC programming examples for common communication scenarios.

Frequently Asked Questions

What fiber optic cable type should I use with the 6DD1660-0BA0 CS12 module?
The module supports both multi-mode (62.5/125 µm or 50/125 µm) and single-mode (9/125 µm) fiber with ST or SC connectors. For distances under 2 km, multi-mode fiber offers cost advantages. For maximum range up to 15 km or future expansion flexibility, single-mode fiber is recommended. Ensure fiber quality meets industrial specifications for vibration and temperature cycling.

Can I integrate CS12 fiber optic modules with existing copper-based SIMADYN D communication?
Yes, SIMADYN D architecture supports mixed communication topologies. You can deploy CS12 modules for long-distance or EMI-prone segments while retaining CS11 copper modules for local connections within the same control room. The system automatically handles protocol translation without additional configuration.

How does the 6DD1660-0BA0 compare to Ethernet-based industrial communication for motion control?
Unlike Ethernet protocols with variable latency due to packet switching and collision handling, the CS12 module maintains deterministic fixed-cycle communication synchronized with SIMADYN D scan timing. This predictability is essential for coordinated multi-axis motion control where microsecond jitter causes positioning errors or mechanical stress.

What diagnostic capabilities help troubleshoot fiber optic communication issues?
The module provides LED indicators for power status, transmit/receive activity, and fault conditions. Software diagnostics accessible through SIMADYN D engineering tools include fiber link quality metrics, optical power levels, frame error counters, and communication timeout detection—enabling proactive maintenance before failures occur.

Is special configuration software required for the CS12 communication module?
No specialized tools are needed. Configuration is performed through standard SIMADYN D CFC/SFC programming environment where the CS12 appears as a communication function block. Parameters include baud rate selection, frame addressing, and diagnostic monitoring—identical workflow to other SIMADYN D I/O modules.

Can the 6DD1660-0BA0 be used in hazardous area classified locations?
The fiber optic technology provides inherent advantages for hazardous area applications by eliminating electrical spark risk and enabling galvanic isolation between classified and safe zones. However, verify that the module's enclosure and installation method meet specific Division/Zone requirements for your facility—consult local electrical codes and Siemens certification documentation.
