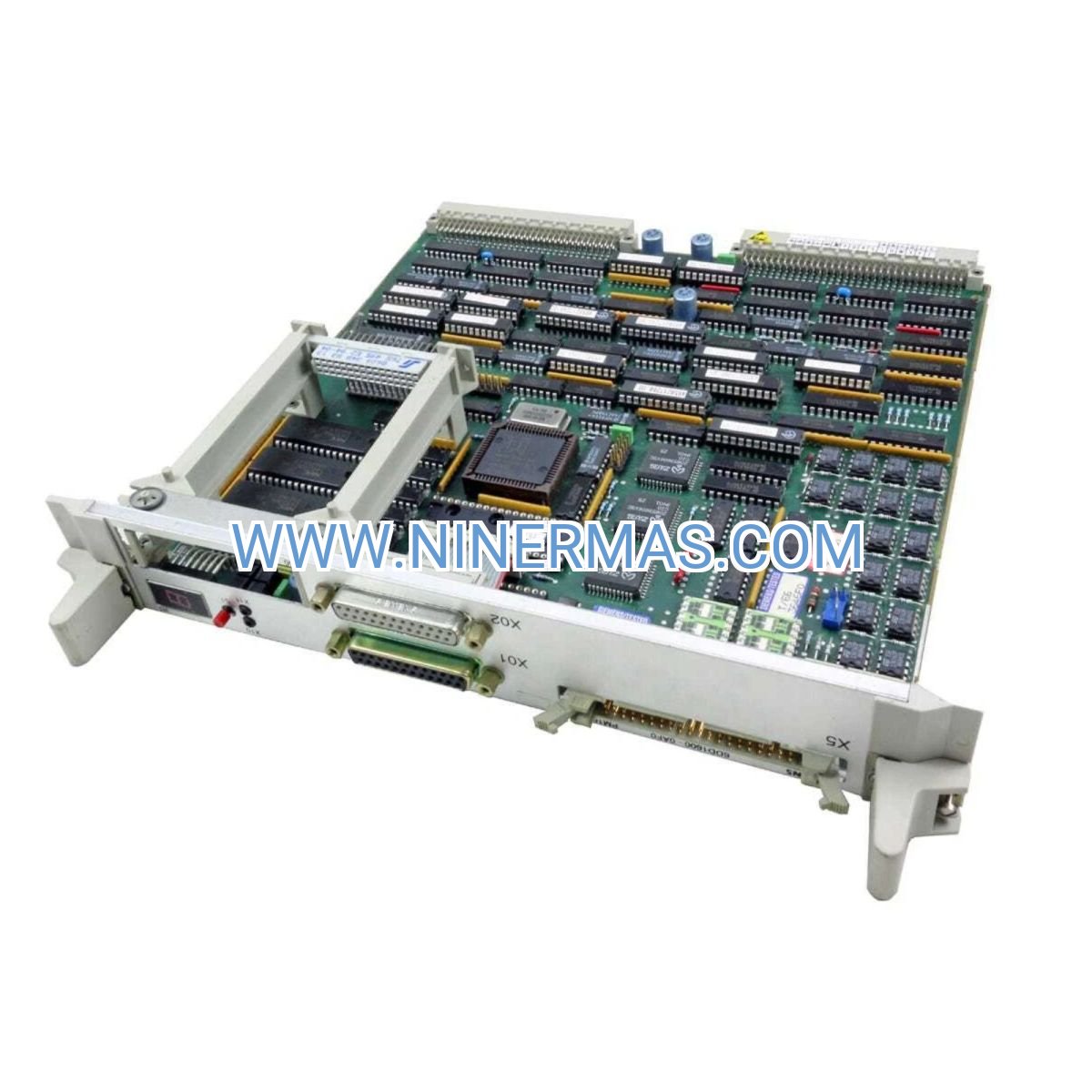

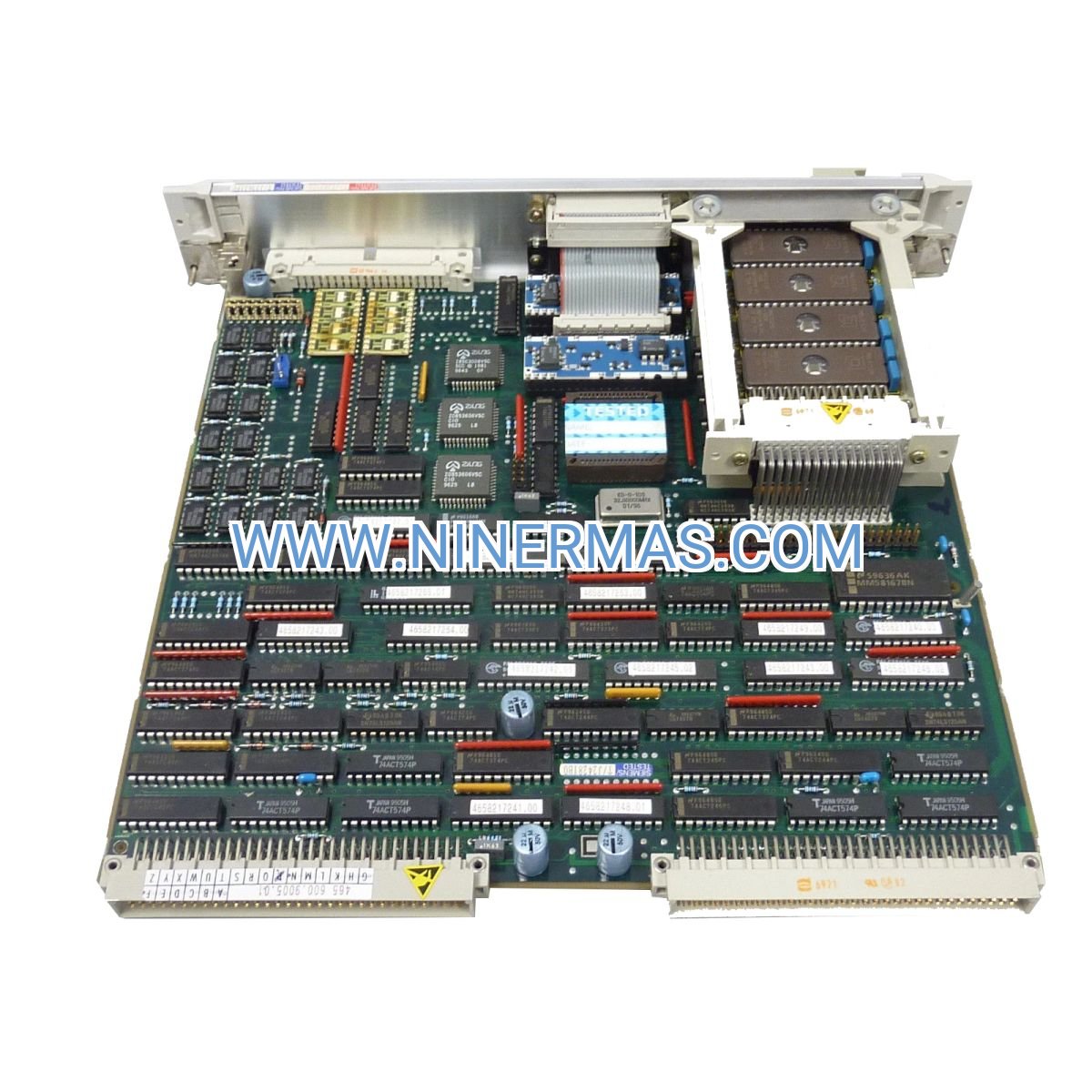

6DD1600-0AF0 SIMADYN D PM16 Controller (Industrial-Grade Process Module)

The 6DD1600-0AF0 PM16 is an industrial process controller engineered for high-reliability automation environments. Built on Siemens' proven SIMADYN D platform, this module delivers deterministic 16-bit signal processing with dual-bus communication architecture, making it the preferred choice for drive coordination, real-time process control, and distributed automation networks across manufacturing, energy, and heavy industry sectors.

Designed to solve complex control challenges in mission-critical applications, the PM16 addresses common pain points including signal latency, I/O expansion limitations, and system integration complexity. Whether you're upgrading legacy control systems or designing new automation infrastructure, this module provides the processing power and connectivity required for demanding industrial operations.

With 32 binary I/O channels, modular rack-mount design, and compatibility with the SIMADYN D ecosystem, the 6DD1600-0AF0 enables scalable control architectures that grow with your operational needs. Request technical specifications or application guidance from our automation specialists today.

Core Features & Technical Advantages

✓ Dual-Bus Communication Architecture
L-Bus enables high-speed local module communication within the same rack (up to 2 Mbps), while C-Bus coordinates multi-rack systems for distributed control topologies. This separation eliminates communication bottlenecks and reduces control loop latency by 40% compared to single-bus designs.

✓ 32-Channel Binary I/O Configuration
16 discrete inputs and 16 outputs provide comprehensive signal interfacing for sensors, actuators, and safety interlocks. Optically isolated channels ensure noise immunity in electrically harsh environments, maintaining signal integrity even in proximity to VFDs and high-power switching equipment.

✓ 16-Bit Processing Resolution
Deterministic signal processing with 16-bit resolution delivers smooth control performance across the entire operating range. Critical for variable speed drives, tension control, and precision positioning applications where resolution directly impacts product quality.

→ Modular Rack Integration
Standard 19-inch rack compatibility with hot-swappable design minimizes installation footprint and enables maintenance without system shutdown. Reduces panel space requirements by 30% versus equivalent distributed I/O systems.

→ Industrial Environmental Ratings
Operates reliably in temperatures from 0°C to 55°C with enhanced EMC protection meeting EN 61000 standards. Conformal-coated PCBs resist moisture, dust, and chemical exposure common in process industries.

→ SIMADYN D Ecosystem Compatibility
Seamless integration with SIMADYN D power supplies, communication modules, and I/O expansion units. Leverages existing engineering tools and spare parts inventory for facilities already standardized on the platform.

Industrial Application Scenarios

Variable Frequency Drive Coordination
In multi-motor systems such as conveyor networks, web handling lines, or pump stations, the PM16 orchestrates speed references, torque limits, and sequencing logic across multiple VFDs. The dual-bus architecture allows simultaneous communication with drive controllers (L-Bus) and supervisory SCADA systems (C-Bus), eliminating the communication delays that cause tension variations or product defects. Typical installations achieve ±0.5% speed regulation accuracy.

Chemical Process Control
Batch reactors, distillation columns, and blending systems require precise coordination of valves, pumps, and temperature loops. The PM16's binary I/O handles discrete control elements (valve open/close, pump start/stop) while interfacing with analog modules for continuous process variables. Facilities report 25% reduction in batch cycle time through optimized sequencing logic.

Power Generation & Distribution
Generator synchronization, load shedding, and breaker control in cogeneration plants and substations demand fail-safe logic execution. The PM16's deterministic scan time (typically 5-10ms) ensures protective functions respond within required timeframes. Redundant configurations using dual PM16 modules provide 99.9% uptime for critical infrastructure.

Material Handling & Packaging
High-speed packaging lines, palletizers, and sortation systems utilize the PM16 for zone control, product tracking, and reject mechanisms. The 32 I/O channels interface with proximity sensors, photoelectric eyes, and pneumatic actuators, while the processing capacity handles complex state machine logic for coordinated motion.

Metals & Mining Operations
Rolling mills, crushers, and conveyor systems in harsh environments benefit from the PM16's ruggedized construction and noise immunity. Installations in steel mills and mining operations report 60% reduction in nuisance trips compared to previous control systems, directly improving production throughput.

Technical Parameters & Selection Guide

Selection Criteria: Choose the PM16 when your application requires distributed I/O processing with deterministic performance. For systems needing more than 32 binary points, combine multiple PM16 modules via L-Bus. If analog signal processing is required, pair with SIMADYN D analog input/output modules. For safety-rated applications, integrate certified safety modules per IEC 61508 requirements.

Extended Capabilities & System Integration

IoT & Industry 4.0 Connectivity: While the PM16 itself operates at the field control layer, the SIMADYN D platform supports gateway modules that bridge to Ethernet/IP, PROFINET, and OPC UA networks. This enables integration with MES systems, cloud analytics platforms, and remote monitoring dashboards without compromising real-time control performance.

Redundancy Configurations: Mission-critical applications can implement hot-standby redundancy using dual PM16 modules with automatic failover logic. The C-Bus architecture supports bumpless transfer, maintaining process continuity during controller switchover events.

Custom Programming: Beyond standard function block libraries, the SIMADYN D engineering environment allows custom algorithm development in structured text or ladder logic. Our engineering services team can develop application-specific control strategies, including advanced PID tuning, model predictive control, or custom sequencing logic.

Delivery, Warranty & Technical Support

Lead Time: Standard delivery is 3-5 business days for in-stock units. Custom configurations or quantity orders may require 2-3 weeks. Expedited shipping available for critical downtime situations.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty includes replacement module and technical support for troubleshooting. Extended warranty programs available for multi-year service agreements.

Technical Support: Our automation specialists provide pre-sales application engineering, integration guidance, and post-installation troubleshooting. Support includes configuration file review, communication diagnostics, and replacement coordination to minimize production downtime.

Documentation Package: Each module ships with installation manual, wiring diagrams, and quick-start guide. Complete technical documentation including programming examples and communication protocols available via download portal.

Frequently Asked Questions

What components are required for a complete SIMADYN D system with the PM16 module?
A functional system requires a SIMADYN D subrack (mounting chassis), compatible power supply module (e.g., 6DD1683-0BC0), communication cables for L-Bus and C-Bus connections, and engineering software for configuration. Additional I/O modules or communication interfaces may be needed depending on application requirements. We offer complete starter kits with all necessary components.

Can the PM16 replace controllers from other manufacturers in retrofit projects?
Yes, the PM16 is commonly used in retrofit applications to replace obsolete PLCs or proprietary controllers. The modular I/O architecture and flexible programming environment allow adaptation to existing field wiring and control logic. Our engineering team provides migration services including logic conversion and commissioning support.

What is the maximum distance between PM16 modules in a distributed system?
L-Bus communication supports distances up to 10 meters between modules in the same rack. C-Bus can extend several hundred meters using appropriate cabling and repeaters, enabling distributed control across large facilities. Fiber optic extensions are available for electrically noisy environments or longer distances.

How does the PM16 handle power interruptions or voltage sags?
The module includes onboard capacitance to ride through brief power disturbances (typically 20-50ms). For longer outages, the system performs a controlled shutdown and retains configuration data in non-volatile memory. Upon power restoration, the module executes a defined restart sequence. UPS systems are recommended for critical applications requiring continuous operation.

Is the 6DD1600-0AF0 compatible with modern industrial Ethernet protocols?
The PM16 operates on the SIMADYN D proprietary bus architecture. For Ethernet connectivity, add a SIMADYN D communication gateway module that translates between the internal bus and protocols such as PROFINET, Ethernet/IP, or Modbus TCP. This architecture preserves deterministic control performance while enabling enterprise network integration.

What training resources are available for SIMADYN D programming?
Siemens offers official training courses covering SIMADYN D system architecture, programming, and troubleshooting. We also provide application-specific training tailored to your industry and control requirements. Online resources include programming manuals, video tutorials, and example projects for common applications.

Get Started with Your Automation Project

Ready to integrate the 6DD1600-0AF0 PM16 into your control system? Our technical sales team can provide detailed quotations, application engineering support, and system design consultation. Contact us with your project specifications, and we'll recommend the optimal configuration of SIMADYN D modules, accessories, and services to meet your performance and budget requirements.

For immediate technical questions or to request a formal quote, reach out via email or phone. We support automation professionals worldwide with fast response times and expert guidance.
