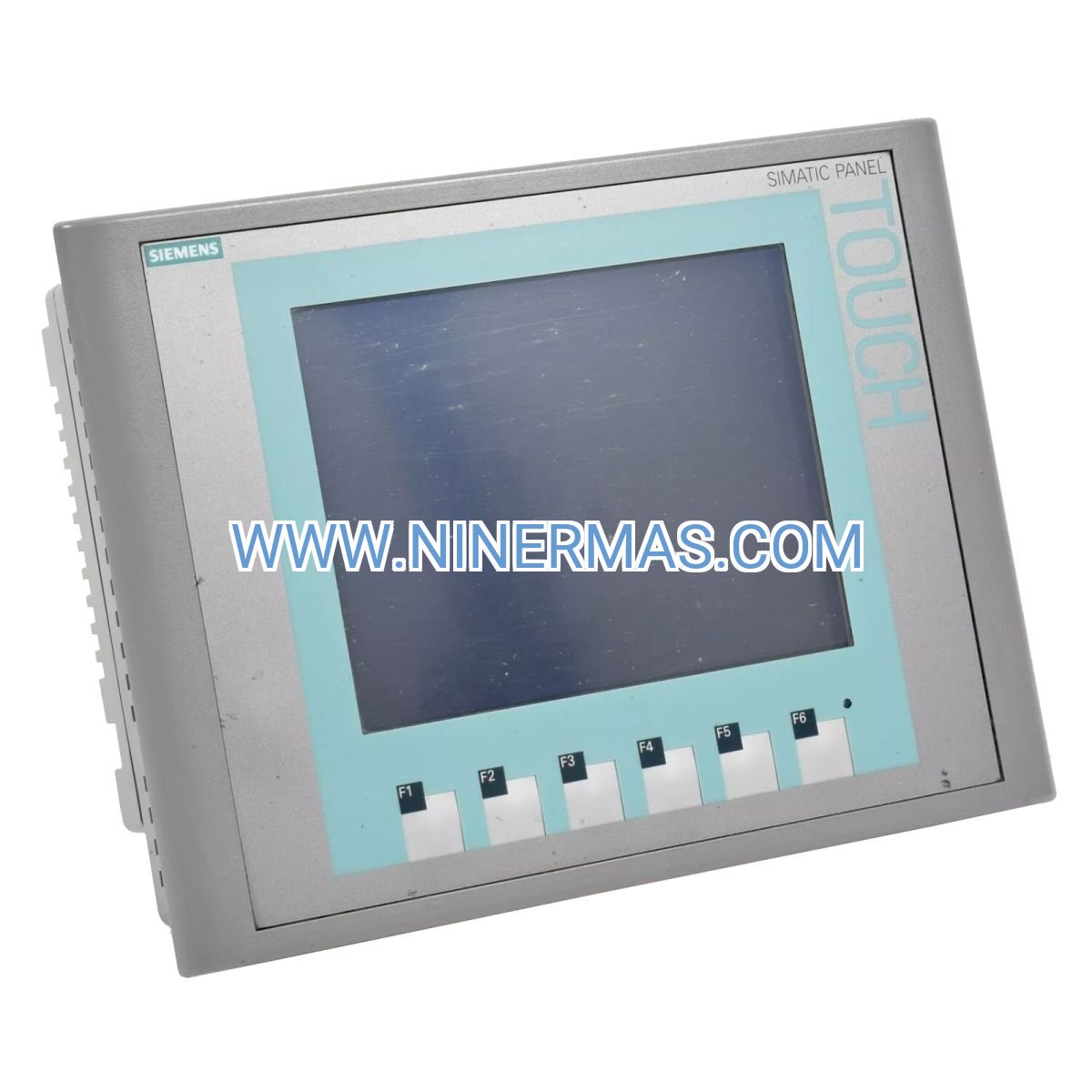

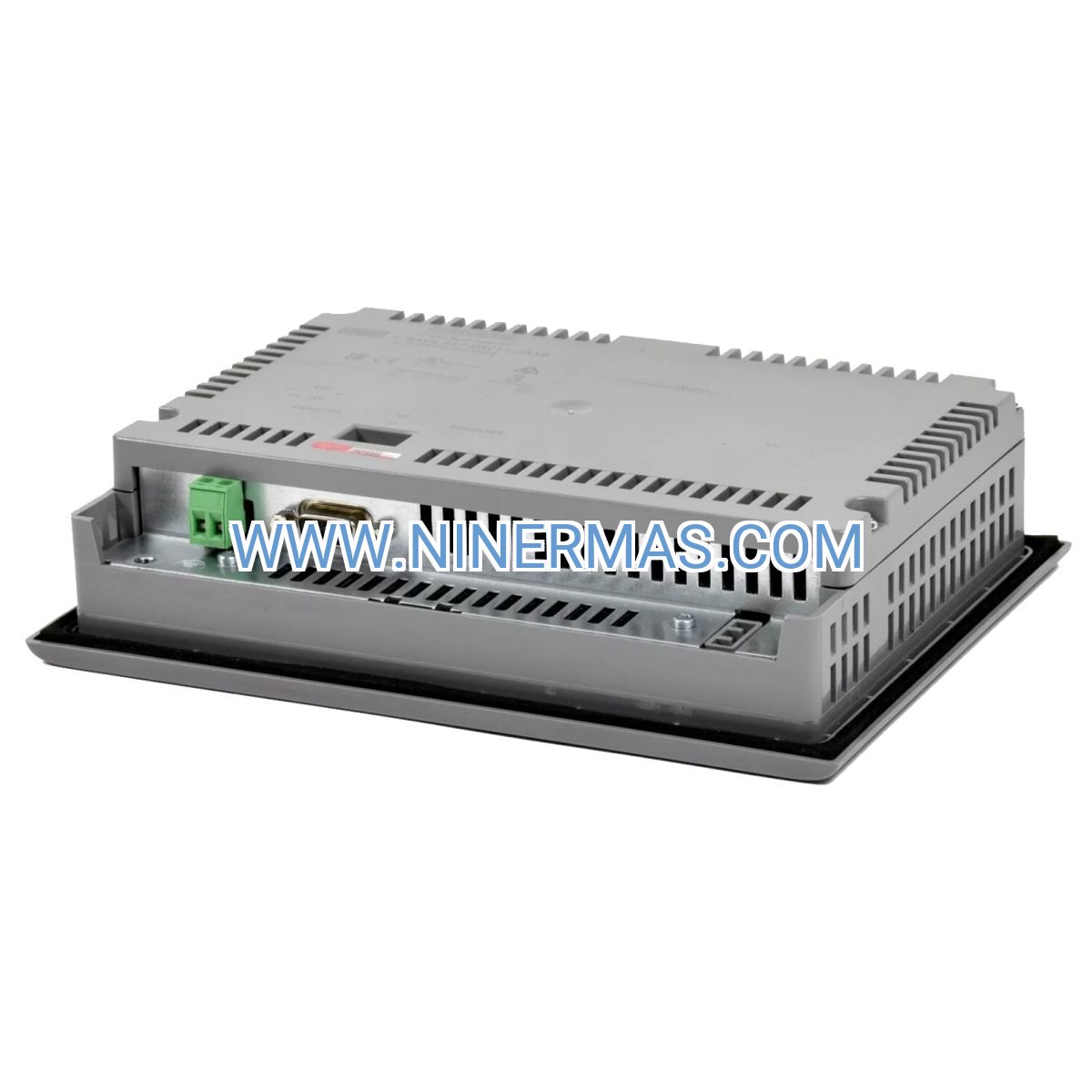

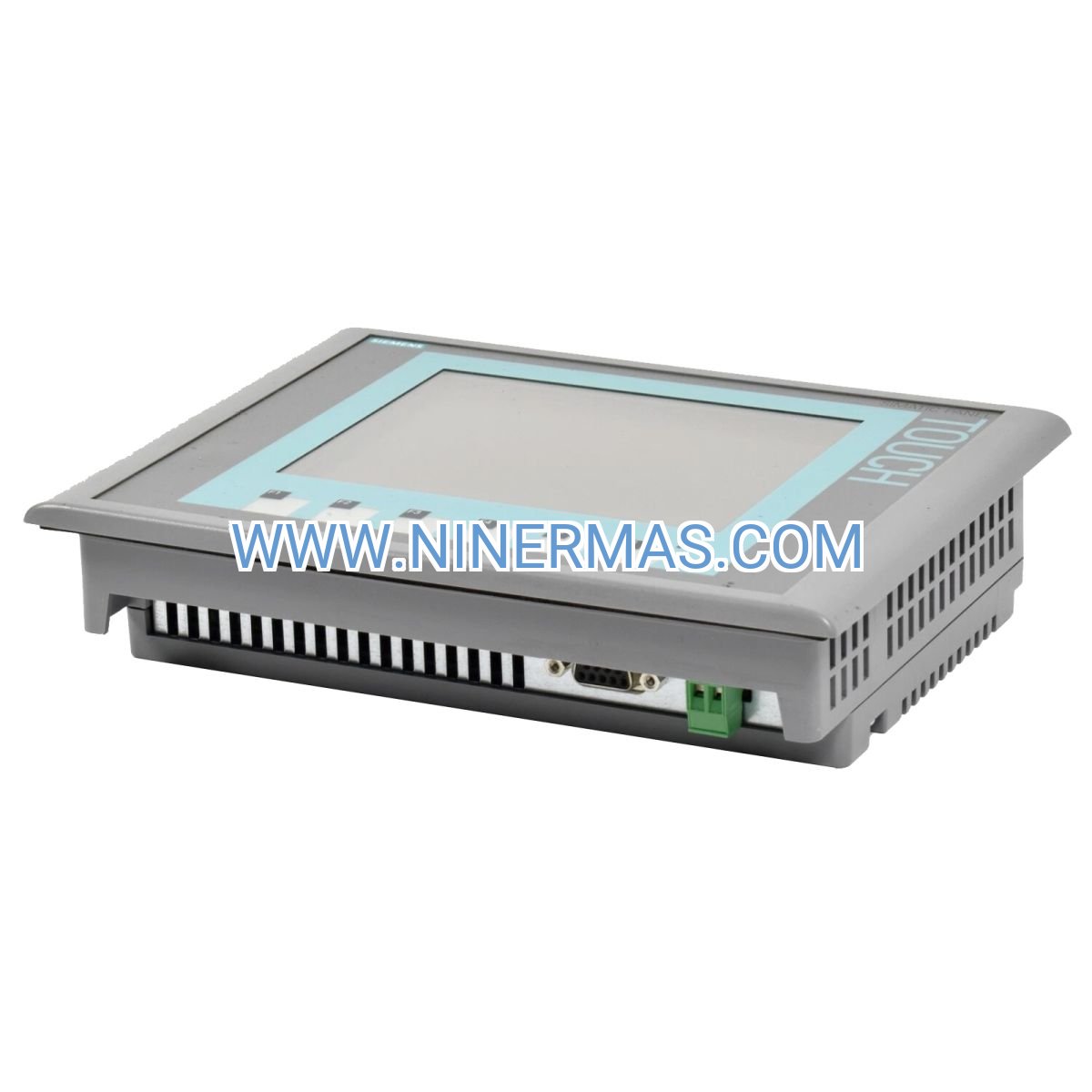

KTP600 Basic PN PROFINET Touch Panel (Industrial-Grade Visualization)

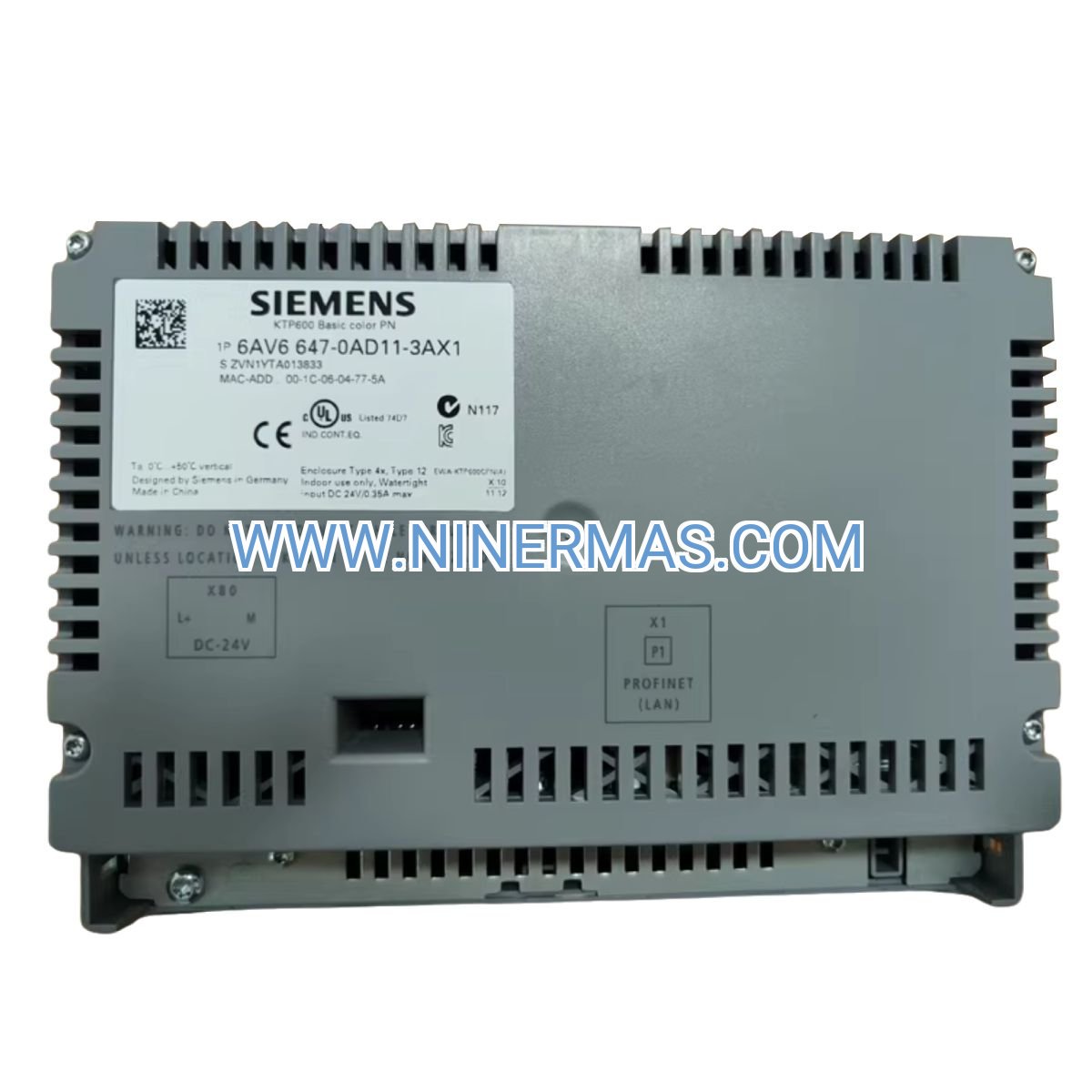

The Siemens 6AV6647-0AD11-3AX1 represents a proven solution for machine-level operator control in modern manufacturing facilities. This compact 5.7-inch HMI combines responsive touch/key input with deterministic PROFINET communication, delivering reliable process visualization where uptime and data integrity are non-negotiable. Built to withstand harsh industrial conditions, it serves as the critical human interface between operators and automated production systems.

Manufacturing engineers deploy this panel to eliminate blind spots in production workflows. Whether you're managing discrete part assembly, continuous batch processing, or hybrid manufacturing cells, the KTP600 provides real-time visibility into machine states, alarm conditions, and process variables. Its PROFINET backbone ensures microsecond-level synchronization with SIMATIC controllers, enabling predictive maintenance strategies and quality traceability that legacy HMI systems cannot match.

With 512 KB configuration capacity and 256 KB user memory, this panel handles complex visualization projects without performance degradation. The IP65-rated front bezel protects against dust ingress and water jets, making it suitable for food processing zones, chemical handling areas, and outdoor equipment enclosures. Operators appreciate the hybrid control scheme—physical function keys for emergency stops and mode changes, touch interaction for recipe selection and parameter adjustment.

Core Capabilities & Business Impact

✓ Deterministic PROFINET Communication
Achieve <10ms update cycles for time-critical process data. The integrated PN interface eliminates gateway bottlenecks, reducing commissioning time by 40% compared to serial-based HMIs while enabling IRT (Isochronous Real-Time) applications in motion control scenarios.

✓ Hybrid Operator Interface
Combine tactile function keys with resistive touch input for maximum operational flexibility. Physical keys remain responsive even when wearing gloves or in high-vibration environments, while the touch screen accelerates navigation through multi-level menus and diagnostic screens.

✓ Industrial Environmental Resilience
0°C to +50°C operating range with IP65 front protection ensures continuous operation in non-climate-controlled production areas. The fanless design eliminates maintenance-prone cooling components, contributing to MTBF figures exceeding 50,000 hours in typical industrial duty cycles.

✓ Integrated Alarm Management
Buffer up to 2,000 alarm events with timestamp precision, enabling root cause analysis during quality incidents. Configurable alarm classes with priority-based acknowledgment workflows reduce operator cognitive load during multi-fault scenarios.

✓ Recipe & Batch Control Support
Store up to 200 recipes directly in panel memory for rapid product changeovers. Operators can recall formulations via barcode scanners or manual selection, cutting changeover times from 15 minutes to under 3 minutes in packaging and food processing applications.

✓ Compact Footprint Engineering
186mm × 138mm panel cutout fits standard DIN enclosures and space-constrained machine cabinets. The shallow mounting depth (29mm behind panel) allows installation in thin-wall enclosures common in mobile equipment and retrofit projects.

Industry-Specific Deployment Scenarios

→ Automotive Component Manufacturing
Control press lines, welding cells, and assembly stations with synchronized HMI/PLC communication. The KTP600's fast screen refresh rates support high-speed part tracking, while recipe management enables quick model changeovers on mixed-production lines. Operators monitor cycle times, reject rates, and tool wear indicators from a single interface.

→ Food & Beverage Processing
Manage CIP (Clean-In-Place) sequences, pasteurization cycles, and filling operations in sanitary environments. The IP65 front panel withstands washdown procedures, and recipe functions store formulations for different product SKUs. Batch traceability features log production parameters for regulatory compliance (FDA 21 CFR Part 11 compatible with appropriate system architecture).

→ Packaging & Material Handling
Visualize conveyor systems, palletizers, and case erectors in distribution centers. Real-time throughput counters and jam detection alarms minimize downtime, while trend displays reveal performance degradation before catastrophic failures. The compact size suits integration into existing control panels without major retrofits.

→ Water & Wastewater Treatment
Monitor pump stations, filtration systems, and chemical dosing equipment in remote installations. The panel's wide temperature tolerance and sealed construction handle outdoor enclosures, while PROFINET connectivity enables centralized SCADA integration for multi-site operations.

→ Building Automation & HVAC
Control chiller plants, air handling units, and energy management systems in commercial facilities. Trend curves display temperature profiles and energy consumption patterns, supporting ISO 50001 energy audits and predictive maintenance scheduling.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the KTP600 Basic PN when your application requires PROFINET connectivity with moderate visualization complexity (up to 150 screens). For larger displays, evaluate the KTP1000 Basic (10.4"). If you need multi-protocol support (Modbus TCP, OPC UA), upgrade to the Comfort line. For PROFIBUS DP networks, specify the KTP600 Basic DP variant (6AV6647-0AC11-3AX0).

Advanced Integration Features

WinCC Basic Engineering Environment
Develop visualization projects within the TIA Portal V13 or later, leveraging shared tag databases with SIMATIC controllers. The unified engineering framework reduces programming errors and accelerates commissioning through integrated simulation modes.

Sm@rtServer Connectivity
Enable remote diagnostics and project uploads via Ethernet using Siemens Sm@rtServer technology. Maintenance teams can troubleshoot HMI issues without physical site access, reducing mean time to repair (MTTR) by up to 60% in multi-site deployments.

VB Script Extensions
Implement custom logic for complex calculations, data logging, or third-party device integration using VB scripting within WinCC Basic. This capability supports unique application requirements without custom firmware development.

ProSave Backup Utility
Automate project backups and firmware updates across multiple panels using the ProSave tool. IT departments can enforce version control and disaster recovery procedures aligned with corporate data governance policies.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe)
Custom Configuration: 10-15 business days for pre-loaded projects or special certifications
Warranty Coverage: 12 months from delivery date, covering manufacturing defects and component failures
Technical Support: Email/phone assistance for configuration questions, firmware troubleshooting, and replacement part identification

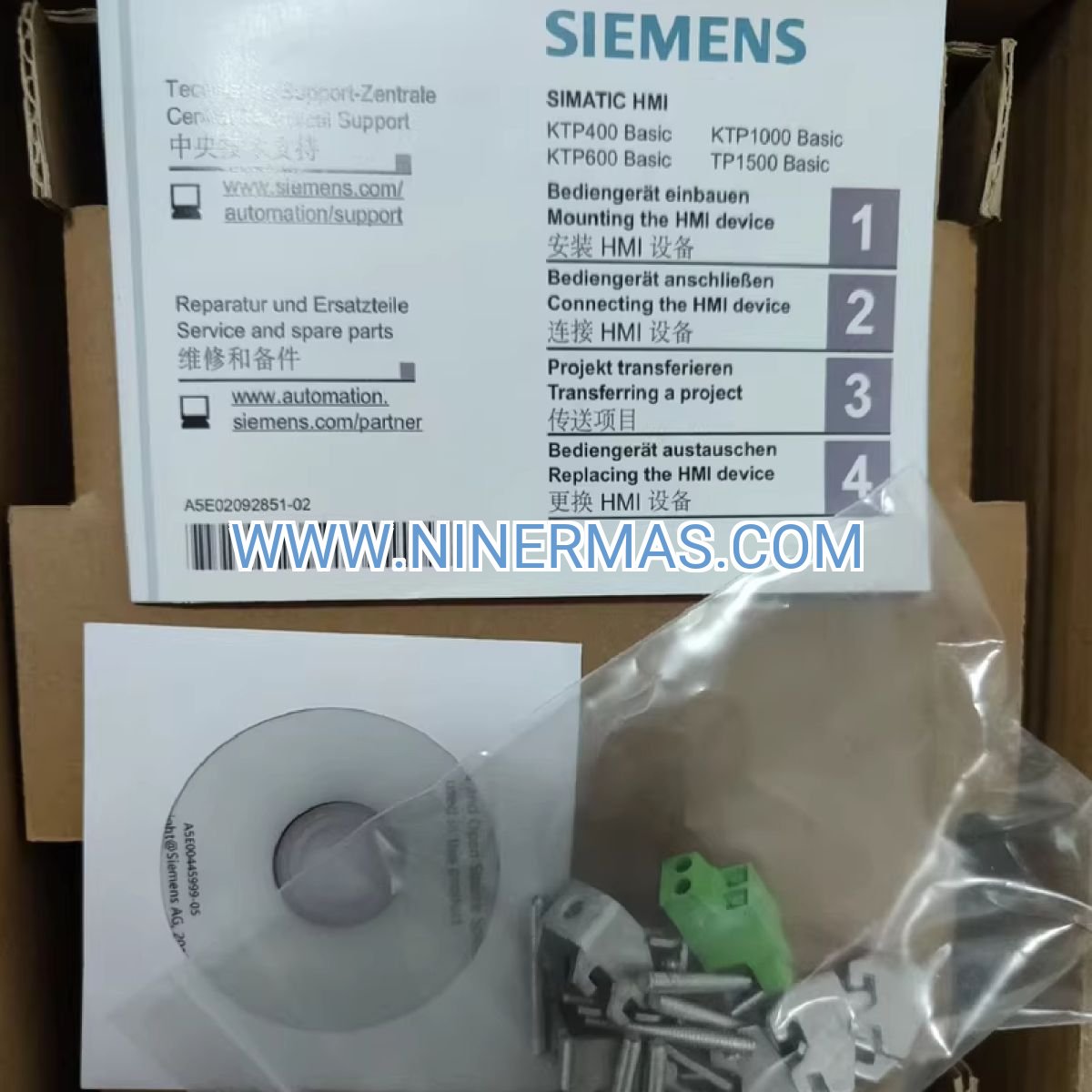

Documentation Package: Operating instructions, dimensional drawings, PROFINET GSDML file, and WinCC Basic sample projects included

Extended warranty options (24/36 months) and on-site commissioning support available upon request. Replacement units ship within 24 hours for critical downtime scenarios (subject to stock availability).

Frequently Asked Questions

Q: What PROFINET device classes does the KTP600 Basic PN support?
A: The panel functions as a PROFINET IO Device (Class B), communicating with IO Controllers like S7-1500 or ET 200SP. It supports RT (Real-Time) communication with typical cycle times of 10-100ms. IRT (Isochronous Real-Time) is not supported in the Basic line—upgrade to Comfort panels for IRT applications.

Q: Can I connect multiple KTP600 panels to a single S7-1200 controller?
A: Yes, the S7-1200 supports up to 3 HMI connections simultaneously via PROFINET. Each panel requires a unique IP address and device name. Ensure your controller firmware is V4.0 or later for optimal multi-HMI performance.

Q: How do I migrate projects from legacy OP277 or TP177 panels?
A: Use the TIA Portal Migration Tool to convert ProTool/WinCC flexible projects to WinCC Basic format. Screen layouts and tag structures transfer automatically, though you'll need to remap function key assignments and verify alarm configurations. Budget 2-4 hours per 50 screens for migration and testing.

Q: Does the panel support secure HTTPS communication for remote access?
A: The Basic line does not include integrated web server or VNC functionality. For secure remote access, deploy a separate Sm@rtServer module or upgrade to Comfort/Advanced panels with built-in web servers supporting TLS 1.2 encryption.

Q: What's the expected screen refresh rate for dynamic process values?
A: The KTP600 achieves 200-500ms screen update cycles depending on tag count and graphic complexity. For high-speed applications requiring <100ms updates (e.g., motion control dashboards), consider panels with faster processors like the KTP700 Basic or Comfort line models.

Q: Can I use this panel in hazardous area (ATEX/IECEx) installations?
A: The panel itself is not intrinsically safe but can be installed in Zone 2/Division 2 locations when mounted in appropriately certified enclosures (Type 4X/IP66). For Zone 1/Division 1 applications, use explosion-proof enclosures with purge systems or specify intrinsically safe HMI solutions.

Start Your Integration Today

Reduce machine downtime and improve operator efficiency with proven SIMATIC HMI technology. Our engineering team provides pre-sales consultation to verify compatibility with your existing automation architecture. Request a technical datasheet, discuss custom configuration options, or place your order through the channels below.

Next Steps: Contact our automation specialists for application-specific recommendations, volume pricing, or integration support. We offer proof-of-concept testing for complex projects and can provide demo units for evaluation in your facility.
