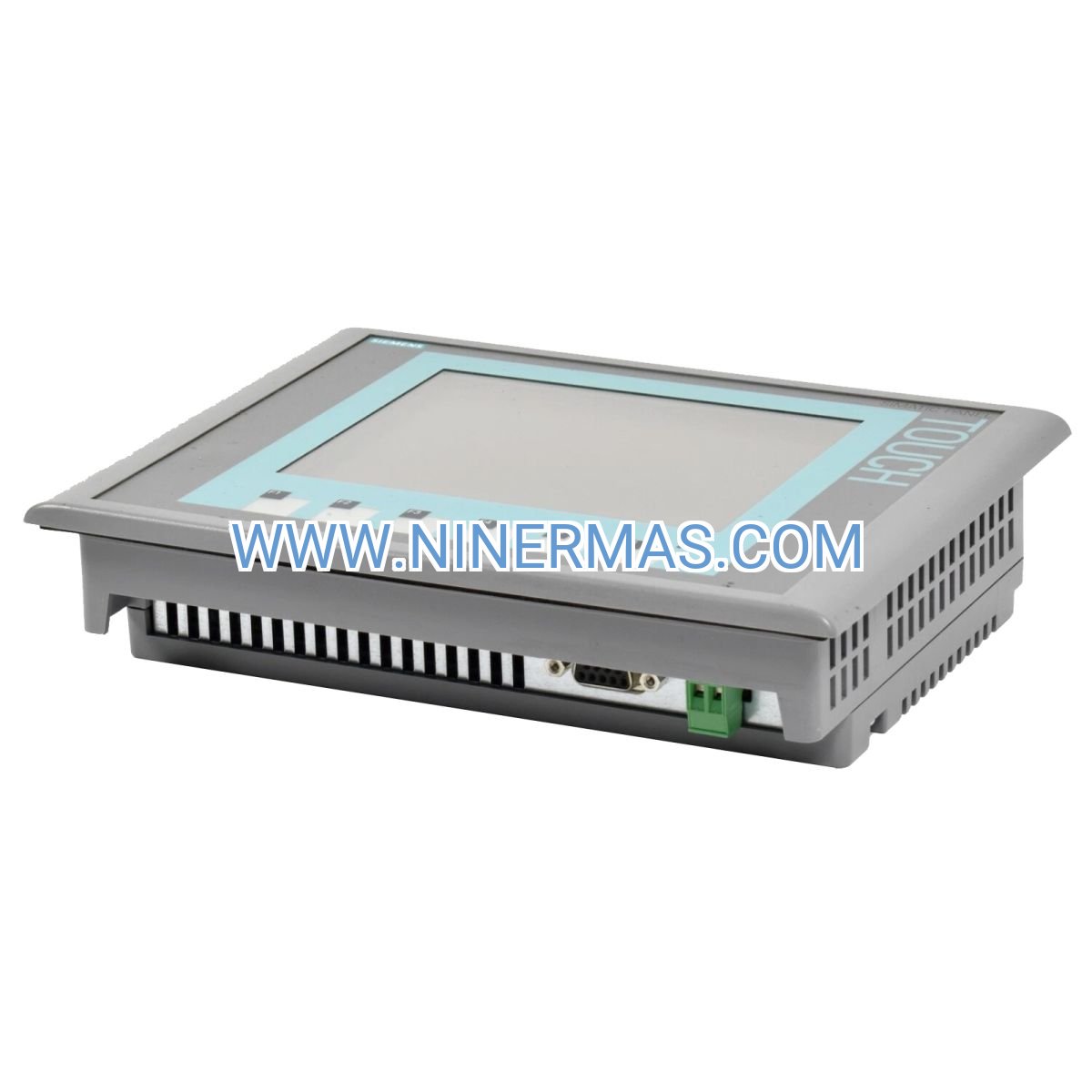

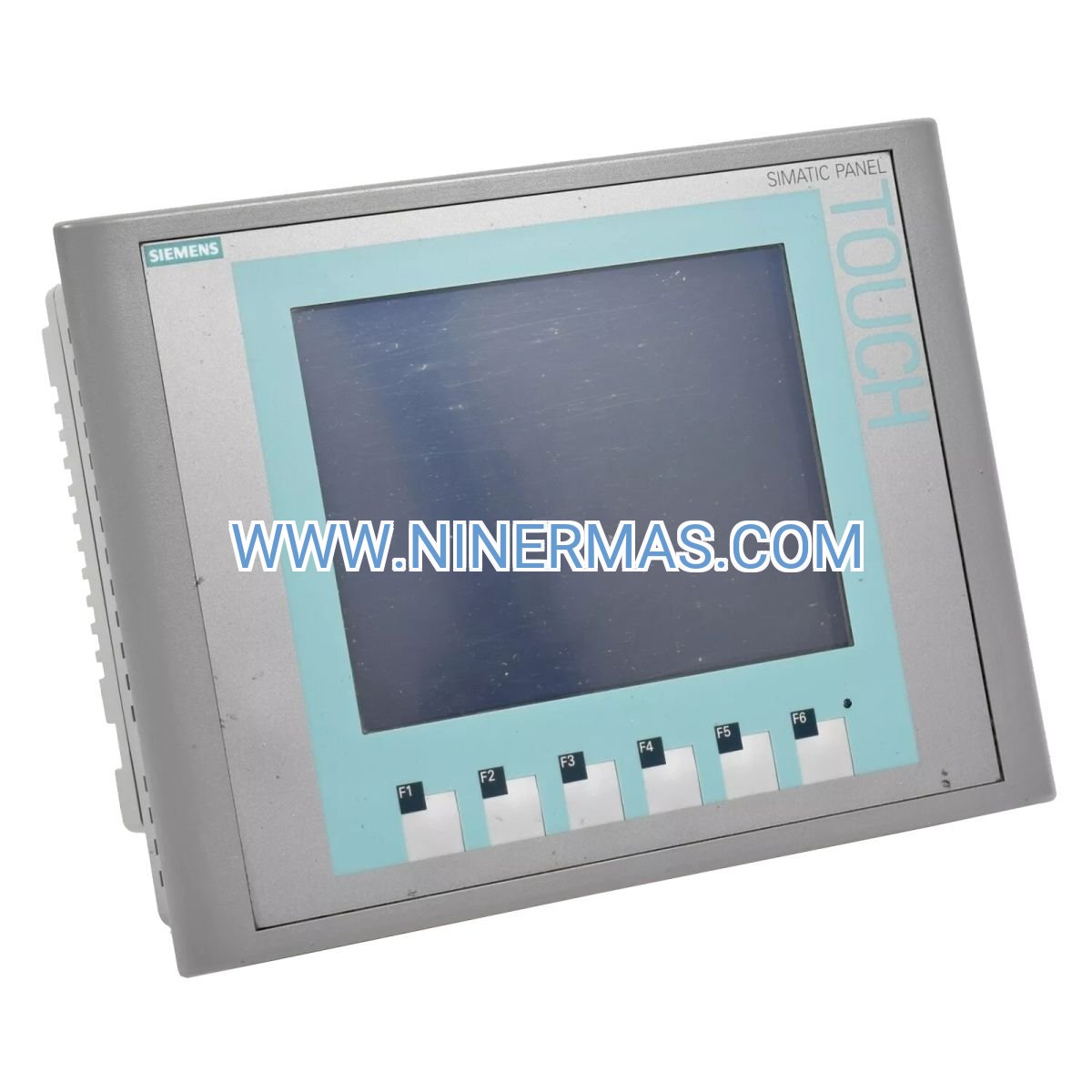

KTP600 Basic Color DP – Industrial-Grade Operator Interface

Transform your automation workflow with the Siemens 6AV6647-0AC11-3AX0, a robust 6-inch human-machine interface engineered for precision control in manufacturing environments. This compact HMI panel bridges the gap between operators and complex industrial processes through its dual-input design—combining tactile membrane keys with analog resistive touch technology for reliable interaction even in harsh conditions.

Built for system integrators and plant engineers managing PROFIBUS DP networks, this panel delivers real-time process monitoring and machine control capabilities. Whether you're retrofitting legacy equipment or designing new automation systems, the KTP600 provides the perfect balance of functionality, durability, and cost-effectiveness for mid-scale industrial applications.

With IP65 front-panel protection and proven Siemens engineering, this HMI solution ensures consistent performance in demanding production environments where downtime is not an option. The 65,536-color TFT display presents critical data with clarity, while the expandable MMC memory accommodates growing visualization requirements.

Core Features & Business Value

✓ Dual-Input Flexibility
Combines 6-function membrane keypad with analog resistive touchscreen, enabling operation with industrial gloves or in contaminated environments where touch-only interfaces fail. Reduces operator errors and maintains productivity across shift changes.

✓ PROFIBUS DP Connectivity
Native support for up to 16 network nodes at 12 Mbit/s ensures deterministic communication with S7-300/400 PLCs and distributed I/O. Eliminates communication bottlenecks in time-critical control loops, reducing cycle times by up to 40% compared to slower protocols.

✓ Expandable Configuration Memory
2 MB base memory with MMC card expansion capability allows complex visualization projects without hardware replacement. Protects your initial investment as application requirements evolve, supporting up to 500 process tags and 200 alarm messages.

→ IP65 Front-Panel Sealing
When properly mounted, the front bezel achieves IP65 ingress protection against dust and water jets. Extends service life in food processing, chemical plants, and outdoor installations where environmental exposure accelerates equipment degradation.

→ WinCC Basic Integration
Seamless configuration through Siemens' proven engineering software enables rapid screen development, alarm management, and recipe handling. Reduces commissioning time by 30-50% compared to generic HMI platforms requiring custom scripting.

→ Wide Operating Temperature Range
0°C to +50°C operational capability without forced cooling accommodates unheated warehouses, outdoor enclosures, and high-ambient production areas. Eliminates costly HVAC requirements in non-climate-controlled facilities.

Application Scenarios

Packaging Machinery Control
Deploy on form-fill-seal equipment, labeling systems, and cartoning machines where operators need instant access to speed adjustments, product changeovers, and fault diagnostics. The recipe management function stores up to 100 product configurations, reducing changeover time from 15 minutes to under 3 minutes.

Water & Wastewater Treatment
Monitor pump stations, filtration systems, and chemical dosing processes with real-time trend displays and alarm notification. The panel's resistance to humidity and temperature fluctuations makes it ideal for outdoor lift stations and treatment plant control rooms where conventional displays fail prematurely.

Material Handling Systems
Visualize conveyor networks, sortation systems, and automated storage/retrieval operations. The 320x240 pixel resolution provides clear visibility of multi-zone layouts, while the PROFIBUS DP interface handles high-speed I/O updates from photo-eyes, encoders, and motor drives without lag.

Automotive Assembly Lines
Control welding cells, paint booths, and final assembly stations with operator-friendly interfaces that reduce training requirements. Password-protected user levels prevent unauthorized parameter changes, maintaining quality standards across multiple production shifts.

Food & Beverage Processing
Manage mixing, cooking, and filling operations in sanitary environments. The sealed front panel withstands washdown procedures, while the stainless steel mounting clips resist corrosion from cleaning chemicals and high-humidity conditions.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the KTP600 Basic Color DP when your application requires PROFIBUS DP connectivity with moderate visualization complexity (up to 500 tags). For PROFINET-based systems, consider the 6AV6647-0AD11-3AX1 PN variant. If your project demands higher resolution or larger screen real estate, evaluate the KTP700 (7-inch) or KTP1200 (12-inch) models. Applications requiring advanced features like VNC remote access, web server functionality, or Sm@rtServer integration should specify KTP Comfort panels instead of Basic series.

Extended Capabilities

Recipe Management System
Store and recall up to 100 product recipes directly on the panel, enabling rapid changeovers without PLC reprogramming. Operators can select pre-configured parameter sets via dropdown menus, reducing setup errors and improving first-pass quality rates.

Trend & Alarm Visualization
Display real-time and historical trends for up to 8 process variables simultaneously. The integrated alarm buffer logs 2,000 events with timestamps, operator acknowledgments, and custom messages—critical for troubleshooting intermittent faults and regulatory compliance documentation.

Multi-Language Support
Configure up to 5 languages within a single project, allowing operators to switch interface languages on-the-fly. Ideal for multinational facilities or equipment exported to diverse markets, eliminating the need for region-specific HMI variants.

User Access Control
Implement 4-level password protection to restrict parameter modifications, recipe editing, and diagnostic functions. Audit trail functionality tracks user logins and configuration changes, supporting ISO 9001 and FDA 21 CFR Part 11 compliance requirements.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom-configured panels with pre-loaded applications require 7-10 business days for programming and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty options available for critical applications requiring 24/7 uptime.

Technical Support: Direct access to certified Siemens automation specialists for configuration assistance, network troubleshooting, and application optimization. Remote diagnostic support available via TeamViewer or AnyDesk for rapid issue resolution.

Documentation Package: Each unit includes installation manual, WinCC Basic quick-start guide, PROFIBUS DP wiring diagrams, and dimensional drawings in PDF format. Sample projects and function block libraries available for download from our technical resource portal.

Frequently Asked Questions

What PLC brands are compatible with the PROFIBUS DP interface on this HMI panel?
The KTP600 Basic Color DP communicates with any PROFIBUS DP-compliant controller, including Siemens S7-300/400/1200/1500 (via DP gateway), ABB AC500, Phoenix Contact ILC, and Wago 750 series. Third-party devices must support DP-V0 or DP-V1 protocol standards.

Can I upgrade the internal memory capacity beyond 2 MB for larger visualization projects?
Yes, the panel accepts standard MMC (MultiMediaCard) modules up to 512 MB capacity. Insert the card into the rear-accessible slot without disassembly. WinCC Basic automatically detects expanded memory during project download.

How much energy does this operator panel consume during continuous operation?
Typical power consumption ranges from 6-8 watts at full brightness, translating to approximately 0.25-0.33 amps at 24V DC. Dimming the backlight to 50% reduces consumption by 30-40%, extending service life in battery-backed UPS systems.

What installation clearances are required behind the panel for proper ventilation?
Maintain minimum 25mm clearance behind the rear housing for convection cooling. Avoid mounting directly above heat-generating components like motor starters or power supplies. Ambient temperatures exceeding 50°C require forced-air cooling or heat sinks.

Does the touchscreen function reliably when operators wear nitrile or leather work gloves?
The analog resistive touchscreen responds to pressure rather than capacitance, making it compatible with most industrial gloves up to 2mm thickness. For maximum reliability in gloved environments, configure critical functions to the dedicated membrane keys.

Is remote monitoring possible through Ethernet or cellular connectivity?
The Basic Color DP model lacks native Ethernet capability. For remote access, upgrade to the KTP600 Comfort PN variant with integrated web server and VNC support, or implement a PROFIBUS-to-Ethernet gateway for indirect connectivity.
