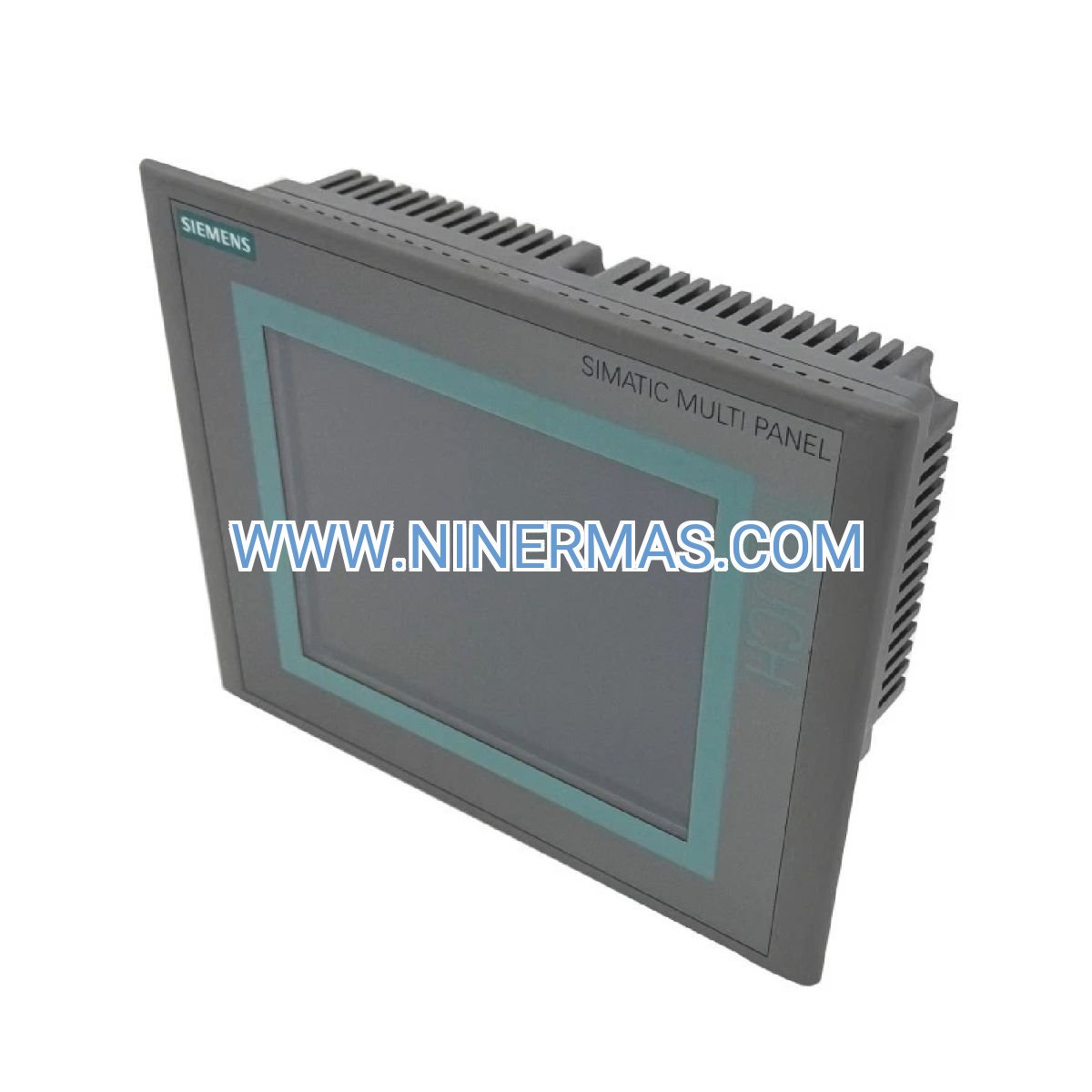

Siemens MP 277 8-Inch Touch Panel (Industrial-Grade Operator Interface)

The Siemens 6AV6643-0CB01-1AX1 delivers enterprise-level process visualization through an 8-inch multi-touch platform engineered for continuous industrial operation. Designed for integration with SIMATIC S7 ecosystems, this operator panel combines analog resistive touch technology with PROFIBUS connectivity to provide reliable human-machine interaction in manufacturing, process control, and automation environments.

Production engineers and system integrators rely on this HMI solution to bridge the gap between complex control logic and operator decision-making. Whether managing batch recipes in pharmaceutical production or monitoring real-time KPIs on assembly lines, the MP 277 transforms raw process data into actionable visual intelligence.

With IP65-rated front protection and a temperature range spanning 0°C to +50°C, this panel withstands the harsh realities of factory floors while maintaining consistent performance. The 6MB application memory supports sophisticated visualization projects, multi-language interfaces, and alarm management systems that keep operations running smoothly around the clock.

Core Capabilities & Business Value

→ PROFIBUS DP/MPI Connectivity
Direct integration with S7-300/400 controllers eliminates protocol conversion overhead, reducing commissioning time by up to 40% compared to third-party HMI solutions.

✓ Analog Resistive Touchscreen
Operates reliably with gloved hands or in wet conditions where capacitive screens fail, minimizing operator errors and unplanned downtime in food processing and chemical plants.

→ VGA Color Display (256 Colors)
Clear differentiation of process states, alarm priorities, and trend data enables faster troubleshooting and reduces mean time to resolution by 25-35%.

✓ WinCC Flexible Programming
Leverages Siemens' proven engineering environment with reusable faceplates and object libraries, cutting visualization development cycles from weeks to days.

→ IP65 Front Panel Protection
Sealed against dust and water jets when properly mounted, extending service life in washdown environments and reducing maintenance costs.

✓ 6MB Application Memory
Supports complex projects with 500+ screens, recipe databases, and historical trend buffers without performance degradation.

Industry Applications & Problem Solving

Pharmaceutical Batch Processing
Manage multi-step recipes with parameter validation and electronic batch records. The panel's audit trail capabilities support 21 CFR Part 11 compliance while operators adjust setpoints and monitor critical quality attributes in real time.

Automotive Assembly Lines
Visualize station status, cycle times, and defect tracking across 20+ workstations. Operators acknowledge alarms, initiate manual overrides, and access work instructions without leaving the production floor, reducing line stops by 18-22%.

Water Treatment Facilities
Monitor flow rates, chemical dosing, and filtration performance across distributed SCADA networks. The PROFIBUS interface enables seamless data exchange with remote I/O and variable frequency drives for pump control optimization.

Packaging Machinery
Switch between product formats using stored recipes, track OEE metrics, and diagnose mechanical faults through integrated diagnostics. Maintenance teams access historical trends to predict bearing failures and schedule preventive interventions.

Material Handling Systems
Control conveyor networks, sortation logic, and warehouse automation from centralized operator stations. Multi-panel architectures distribute control across zones while maintaining unified alarm management and reporting.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the MP 277 when your application requires proven PROFIBUS integration with S7 controllers, glove-operable touch input, or retrofit compatibility with existing SIMATIC installations. For applications demanding higher resolution (800×600 or greater), consider the MP 377 series. If Ethernet connectivity is preferred over PROFIBUS, evaluate the TP 277 or newer Comfort Panel alternatives.

Extended Integration Capabilities

Multi-Panel Networking: Deploy up to 32 MP 277 units on a single PROFIBUS segment for distributed operator control across large facilities. Each panel maintains independent visualization while sharing tag databases and alarm servers.

Recipe Management: Store up to 200 product recipes with parameter validation and version control. Operators select recipes from dropdown menus, and the panel automatically downloads setpoints to connected PLCs.

Trend & Logging: Archive process variables to internal memory or external USB drives for quality documentation and performance analysis. Export CSV files for integration with MES and ERP systems.

Multi-Language Support: Configure interfaces in 32 languages with runtime switching, enabling global equipment standardization while accommodating local operator preferences.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-sealed configurations requiring specific firmware versions or certification documentation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Advance replacement available for critical applications.

Technical Support: Pre-sales application engineering assistance, post-installation troubleshooting, and WinCC Flexible configuration guidance provided by certified Siemens specialists.

Documentation Package: Operating instructions, dimensional drawings, PROFIBUS GSD files, and sample WinCC Flexible projects included with every shipment.

Frequently Asked Questions

Can this panel communicate with non-Siemens PLCs via PROFIBUS?
Yes, the MP 277 supports standard PROFIBUS DP protocol and can exchange data with any DP-compliant controller. However, advanced features like integrated diagnostics and symbol-based addressing work best with SIMATIC S7 systems.

What is the maximum PROFIBUS cable distance for reliable operation?
Up to 1,200 meters at 93.75 kbps baud rate without repeaters. Higher speeds (up to 12 Mbps) reduce maximum distance to 100-200 meters. Use RS-485 repeaters to extend networks beyond these limits.

Does the resistive touchscreen require calibration after installation?
Factory calibration is typically sufficient for most applications. Field recalibration is accessible through the control panel menu if mechanical stress or temperature extremes affect touch accuracy.

How do I migrate projects from older OP 277 panels to this MP 277?
WinCC Flexible includes migration wizards that convert OP 277 ProTool projects to MP 277 format. Most screen objects and scripts transfer automatically, though manual verification of communication settings is recommended.

Is remote access supported for off-site troubleshooting and monitoring?
Direct remote access requires additional hardware (e.g., Siemens SCALANCE routers or third-party VPN gateways). The panel itself does not include built-in Ethernet for remote connectivity.

What mounting options are available for panel installation?
Standard panel cutout mounting with spring clips or threaded fasteners. The unit ships with mounting gasket and hardware for IP65-rated front installation in enclosure doors or operator consoles.

Get Started with Your Automation Upgrade

Ready to enhance operator efficiency and process visibility? Contact our automation specialists for application-specific recommendations, competitive quotations, and technical feasibility assessments. We'll help you determine whether the MP 277 aligns with your control architecture and performance requirements.
