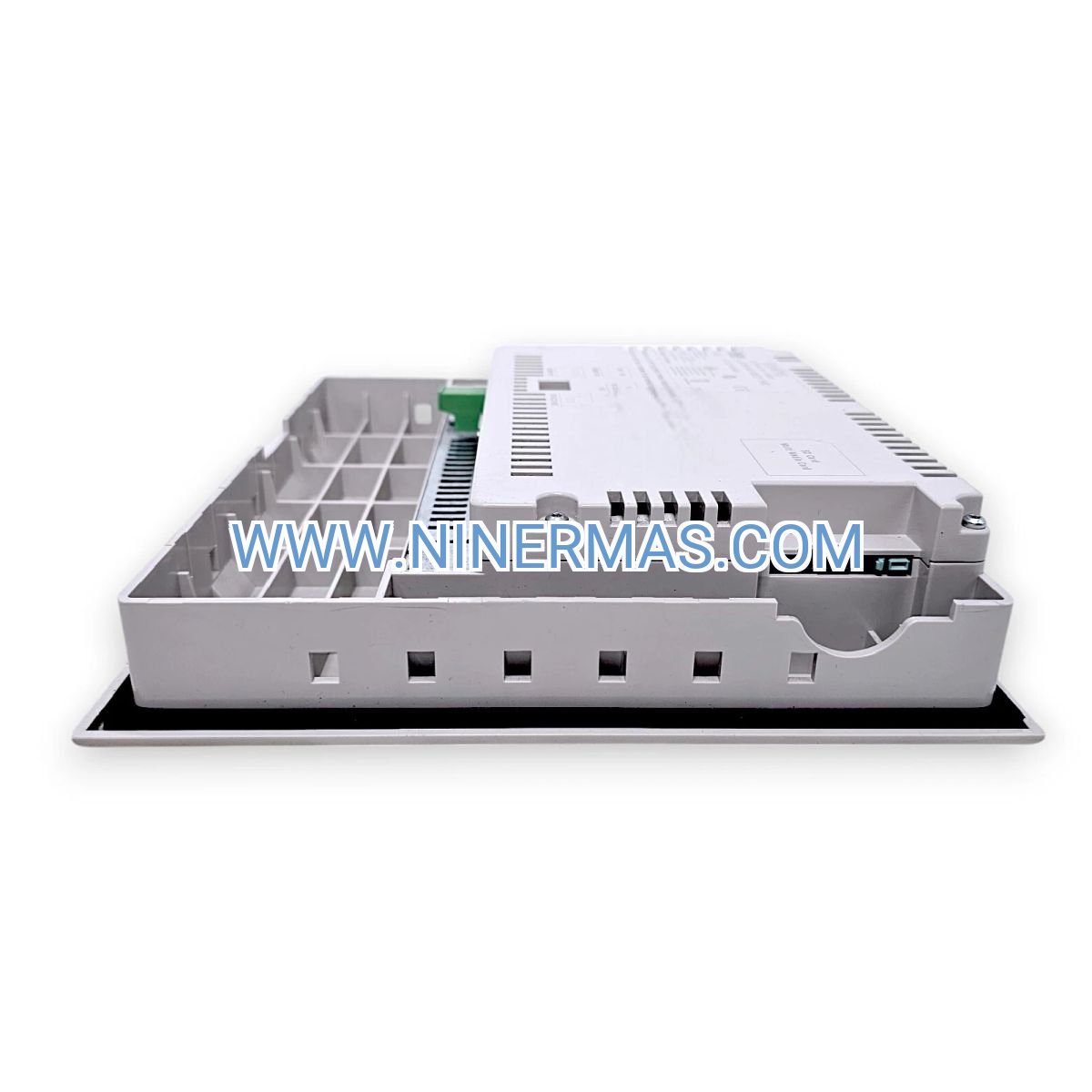

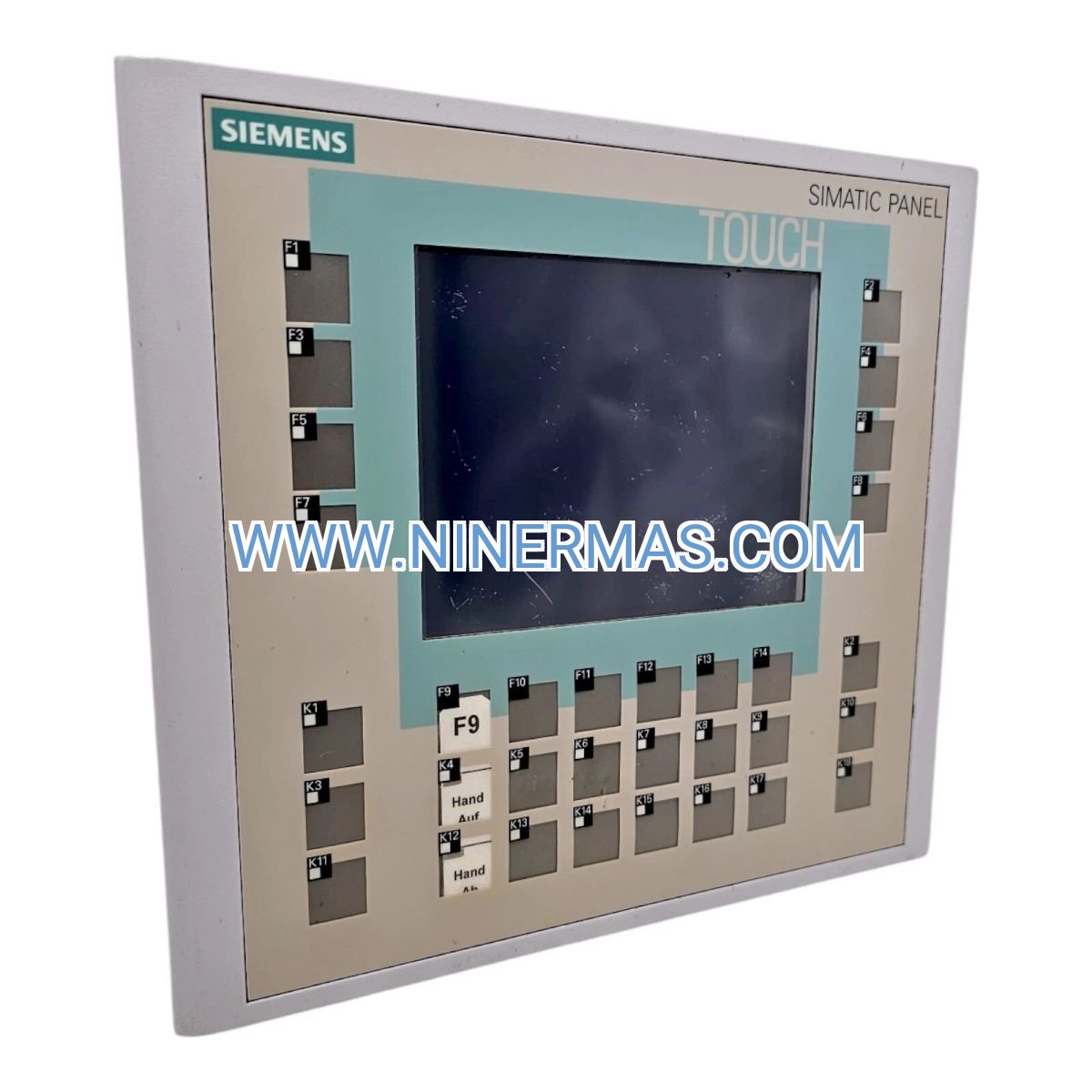

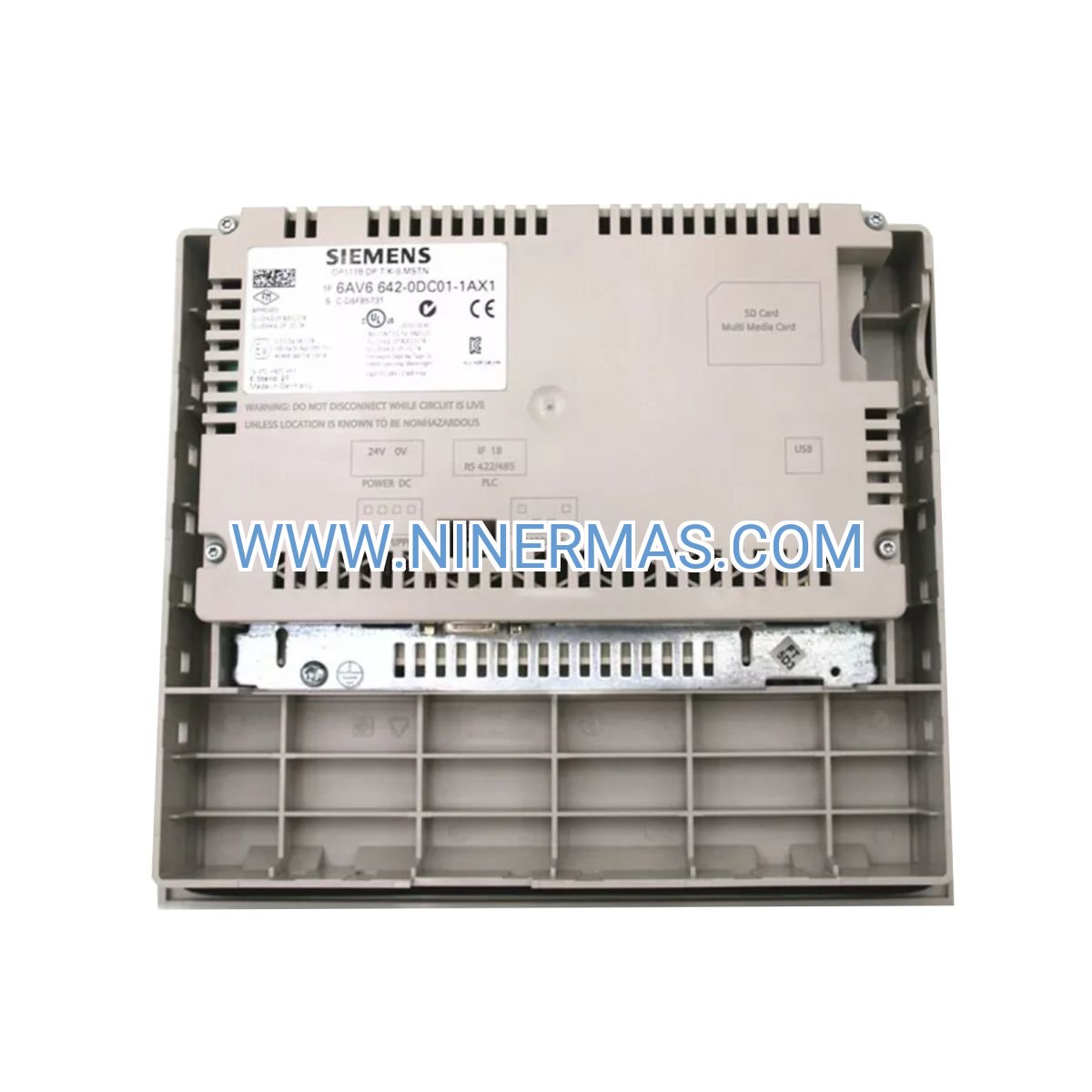

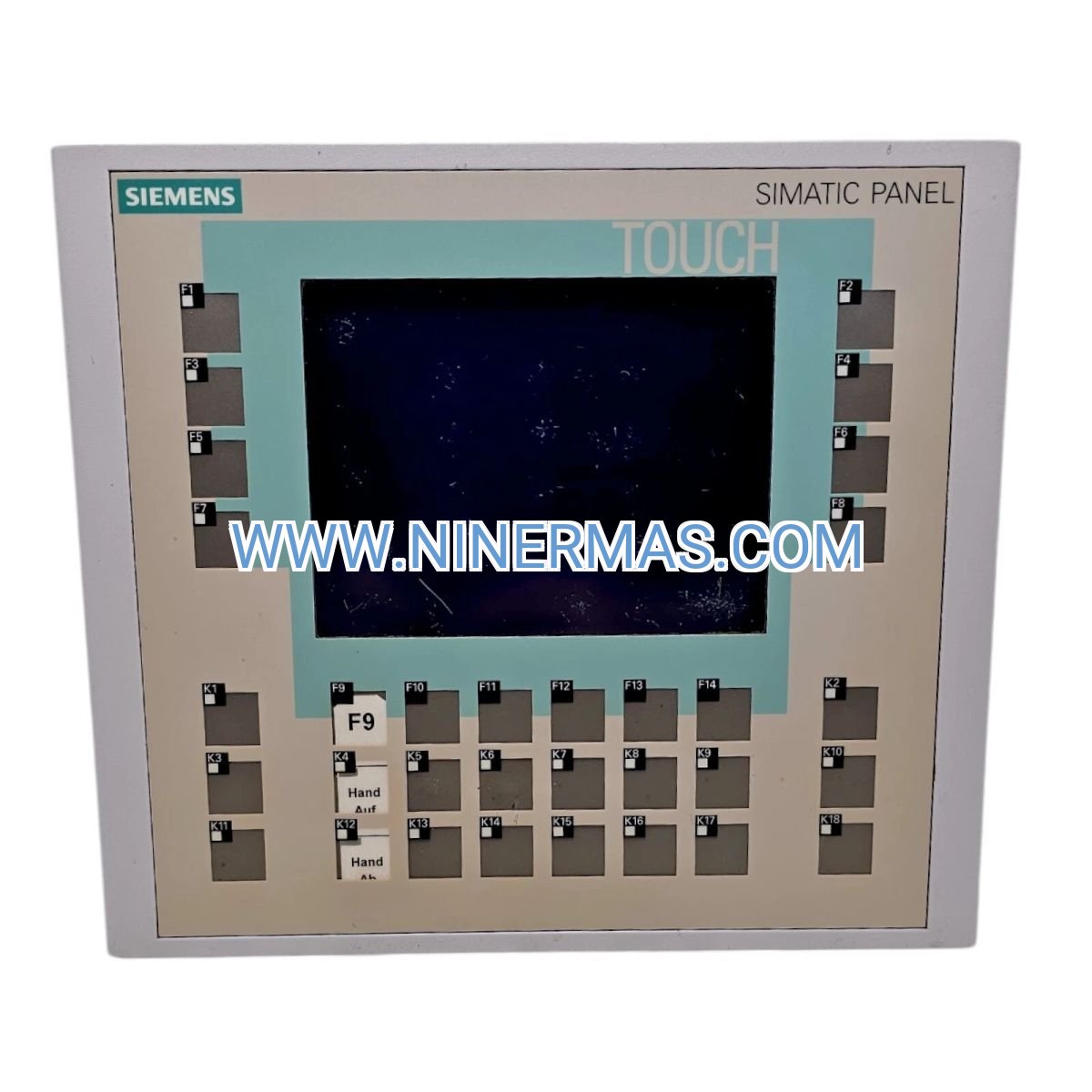

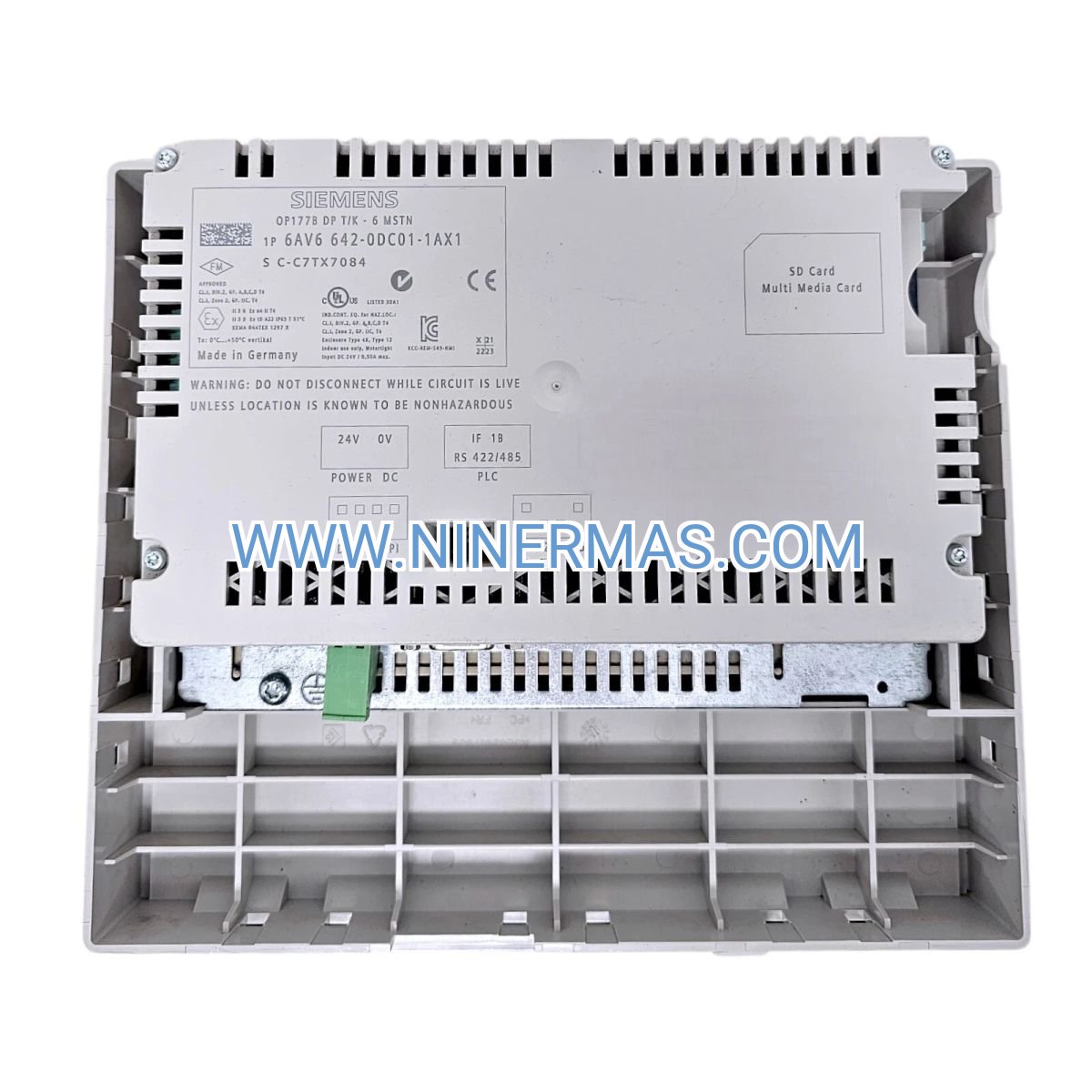

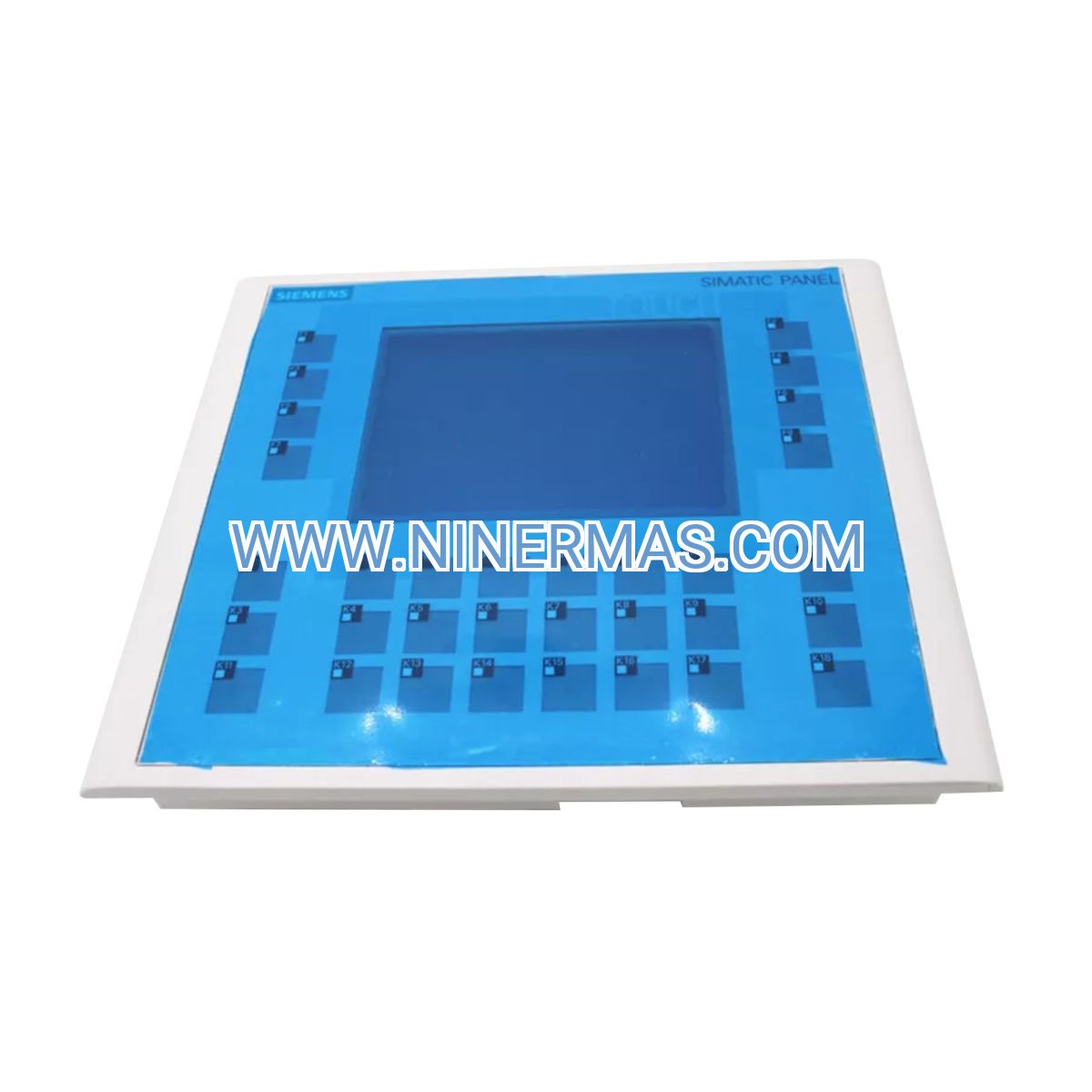

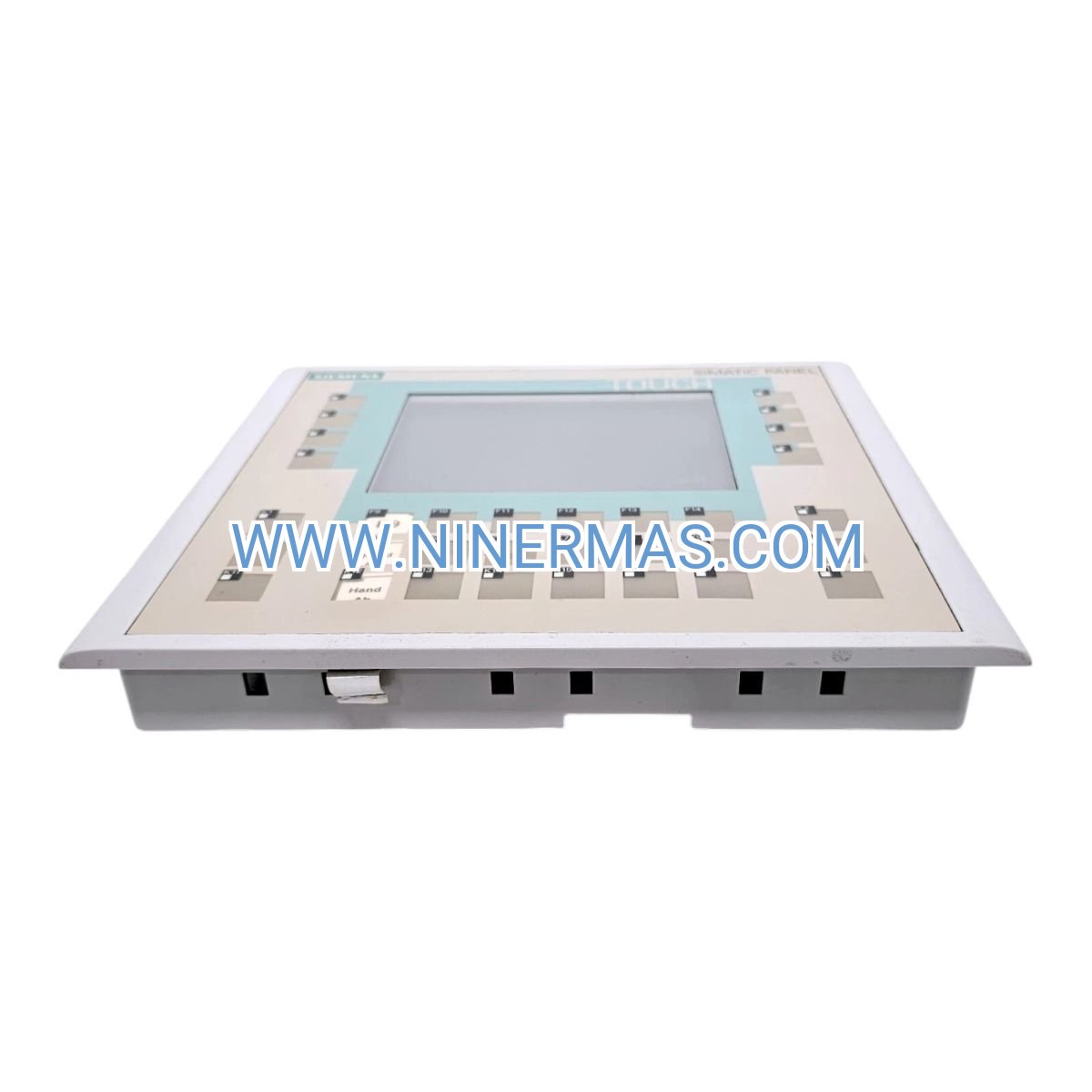

Siemens OP 177B 6-Inch HMI Panel (Industrial-Grade Process Visualization)

The Siemens 6AV6642-0DC01-1AX1 represents a proven solution for industrial process visualization and machine control. Engineered for 24/7 operation in harsh manufacturing environments, this compact 6-inch operator panel delivers dual-input flexibility through analog resistive touch technology combined with dedicated function keys. Built on the SIMATIC platform, it ensures seamless integration with Siemens automation ecosystems while maintaining the rugged reliability demanded by production-critical applications.

Manufacturing teams face constant pressure to reduce downtime, improve operator efficiency, and maintain consistent quality across shifts. The OP 177B addresses these challenges by providing intuitive real-time process monitoring, rapid alarm acknowledgment, and simplified recipe management—all within a space-efficient footprint suitable for machine-mounted installations. Whether you're upgrading legacy control panels or deploying new automation cells, this HMI delivers the performance-to-cost ratio that justifies immediate ROI.

Key differentiators include IP65-rated front panel protection against dust and water ingress, PROFIBUS DP/MPI dual-protocol support for flexible network architectures, and compatibility with the comprehensive WinCC flexible engineering suite. With 2 MB of application memory and proven thermal performance across 0-50°C ambient ranges, the OP 177B stands ready to serve as your primary operator interface for years of continuous service.

Core Capabilities & Business Value

✓ Dual-Input Operation
Analog resistive touchscreen combined with 10 programmable function keys enables both precision touch navigation and tactile button control—critical for gloved operation or high-vibration environments where touch-only interfaces fail.

✓ PROFIBUS DP/MPI Connectivity
Native support for both MPI and PROFIBUS DP protocols eliminates gateway costs and communication delays. Direct S7-200/300/400 PLC integration ensures deterministic data exchange for time-critical process control.

✓ IP65 Front Panel Sealing
When properly mounted with supplied gaskets, the front bezel achieves IP65 ingress protection—safeguarding internal electronics from coolant spray, washdown procedures, and airborne particulates common in food processing, packaging, and metalworking facilities.

✓ WinCC Flexible Development Platform
Leverage Siemens' industry-standard HMI programming environment with drag-and-drop screen design, pre-built faceplates for motors/valves/tanks, multi-language text management, and integrated alarm/trend/recipe functions that accelerate project commissioning by 40-60% versus custom coding.

→ 320×240 STN Color Display
Quarter-VGA resolution with adjustable backlight brightness ensures readability under variable ambient lighting—from dimly lit control rooms to sunlit production floors. Color-coded status indicators improve operator response time during fault conditions.

→ 2 MB Application Memory
Sufficient storage for typical HMI projects containing 50-100 process screens, 500+ alarm messages, and multiple recipe datasets. Expandable via external USB storage for data logging and backup operations.

Industry Applications & Problem-Solving

Packaging Machinery Control
Form-fill-seal machines, cartoners, and palletizers require constant operator interaction for format changeovers and jam recovery. The OP 177B's recipe management allows one-touch product transitions, while function keys provide emergency stop and manual jog controls without navigating touch menus—reducing changeover time by 15-25 minutes per shift.

Water & Wastewater Treatment
Pump stations, filtration systems, and chemical dosing skids benefit from the panel's IP65 protection and wide operating temperature range. Real-time trend displays enable operators to detect process drift before alarm thresholds trigger, preventing costly batch rejections and regulatory violations.

Material Handling & Conveyor Systems
Sorters, AS/RS interfaces, and accumulation conveyors demand reliable HMI performance in dusty, high-vibration environments. The OP 177B's resistive touch technology maintains accuracy despite glove use or surface contamination, while PROFIBUS DP connectivity supports distributed I/O architectures spanning 100+ meters without signal degradation.

Food & Beverage Processing
Mixing, cooking, and filling lines require frequent washdowns and sanitary design compliance. Panel-mount installation with proper gasket sealing protects against moisture ingress during cleaning cycles, while recipe functionality ensures consistent batch quality across multiple production runs.

Automotive Assembly Stations
Work cells for welding, fastening, and testing operations utilize the OP 177B for part tracking, quality data entry, and andon system integration. Multi-language support accommodates global manufacturing footprints, while alarm logging provides traceability for ISO/TS 16949 compliance.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the OP 177B when your application requires proven SIMATIC ecosystem integration, moderate screen real estate (6-inch class), and dual-input operation for industrial environments. For larger displays (10-12 inches), consider the OP 277 series. For pure touch operation without function keys, evaluate the KTP600 Basic panel. Ensure your PLC supports MPI or PROFIBUS DP—S7-1200/1500 controllers require Ethernet-based panels like the KTP700 Basic PN.

Advanced Integration Features

Recipe Management System
Store up to 200 recipe datasets directly on the panel, each containing 50+ parameters for product-specific settings. Operators select recipes via dropdown menus, and the HMI automatically downloads setpoints to the PLC—eliminating manual data entry errors that cause scrap and rework.

Alarm Buffering & Acknowledgment
The OP 177B queues up to 2,000 alarm events with timestamps, priority levels, and custom acknowledgment requirements. Color-coded alarm lists with filter/sort functions help operators prioritize responses during upset conditions, while alarm logs export via USB for root-cause analysis.

Trend Visualization
Real-time and historical trend curves display up to 8 process variables simultaneously. Zoom, pan, and cursor functions enable detailed analysis of temperature ramps, pressure transients, or flow rate variations—supporting continuous improvement initiatives and troubleshooting efforts.

Multi-Language Support
WinCC flexible projects support 32 languages with runtime switching via user login or function key. Unicode character sets accommodate Chinese, Cyrillic, and Arabic scripts for global OEM machine builders and multinational production facilities.

User Access Control
Define up to 50 user groups with granular permissions for screen access, setpoint modification, and recipe editing. Password-protected login prevents unauthorized parameter changes while maintaining audit trails for FDA 21 CFR Part 11 and GAMP 5 compliance.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Typical delivery to major industrial centers: 5-7 days (domestic), 10-14 days (international). Expedited same-day shipping available for critical downtime situations—contact our team for emergency support.

Warranty Coverage: 12-month manufacturer's warranty covers defects in materials and workmanship. Warranty includes free replacement of failed units, prepaid return shipping labels, and advance exchange options to minimize production interruptions. Extended 24/36-month warranty plans available at time of purchase.

Technical Support: Our application engineers provide pre-sale sizing assistance, post-sale configuration guidance, and troubleshooting support via phone/email/remote desktop. Access to WinCC flexible sample projects, communication driver setup guides, and panel mounting templates accelerates commissioning and reduces integration risk.

Documentation Package: Each unit includes operating instructions, hardware installation manual, WinCC flexible software compatibility matrix, PROFIBUS/MPI wiring diagrams, and CAD files (DXF/STEP) for panel cutout design. Downloadable firmware updates and technical bulletins available through our support portal.

Frequently Asked Questions

What PLC models are compatible with the OP 177B PROFIBUS DP interface?
The OP 177B communicates via PROFIBUS DP with S7-300 (CPU 31x-2 DP and higher), S7-400 (all DP-capable CPUs), and third-party PROFIBUS DP masters. For S7-200 PLCs, use the MPI interface. S7-1200/1500 controllers require Ethernet-based HMI panels as they lack PROFIBUS DP ports.

Can I connect multiple OP 177B panels to a single S7-300 PLC?
Yes, PROFIBUS DP supports multi-master configurations. Up to 32 OP 177B panels can share a single PROFIBUS DP segment, each assigned a unique node address (1-126). MPI networks support up to 32 nodes total including the PLC, programming devices, and HMI panels.

How do I update the OP 177B firmware for new WinCC flexible versions?
Firmware updates (OS updates) transfer via the USB interface using Siemens ProSave software or directly from WinCC flexible during project download. Always verify firmware compatibility with your WinCC flexible version—consult the compatibility matrix in the product documentation before updating.

Does the resistive touchscreen work with standard work gloves?
Yes, analog resistive technology responds to pressure rather than capacitance, making it compatible with cotton, leather, and nitrile gloves. However, thick insulated gloves or gloves with textured grips may reduce touch accuracy—function keys provide an alternative input method for such scenarios.

What is the expected backlight lifespan for continuous operation?
The CCFL backlight is rated for 50,000 hours at 25°C ambient temperature (approximately 5.7 years of 24/7 operation). Backlight brightness degrades gradually over time; reducing brightness settings extends service life. Replacement backlight modules are available as spare parts for field service.

Can I log process data to a USB flash drive for export to Excel?
Yes, WinCC flexible supports data logging to CSV files on USB storage devices. Configure cyclic or event-triggered logging of up to 500 tags, with automatic file rotation based on size or time intervals. CSV files import directly into Excel, MATLAB, or SCADA historians for analysis.

Take the Next Step

Ready to upgrade your machine interface or replace aging operator panels? Contact our automation specialists for application-specific sizing, competitive quotations, and volume pricing for OEM integrations. We provide technical pre-sales support to ensure the OP 177B meets your performance, environmental, and budget requirements before you commit.

Request a Quote: Email your project specifications, PLC model, and required delivery timeline to our sales team. Receive detailed proposals within 24 hours including panel pricing, recommended accessories (mounting brackets, communication cables, spare parts), and freight options.

Schedule a Consultation: Book a 30-minute technical call with our HMI specialists to discuss network architecture, screen layout best practices, and WinCC flexible licensing options. We'll help you avoid common integration pitfalls and accelerate your time-to-production.
