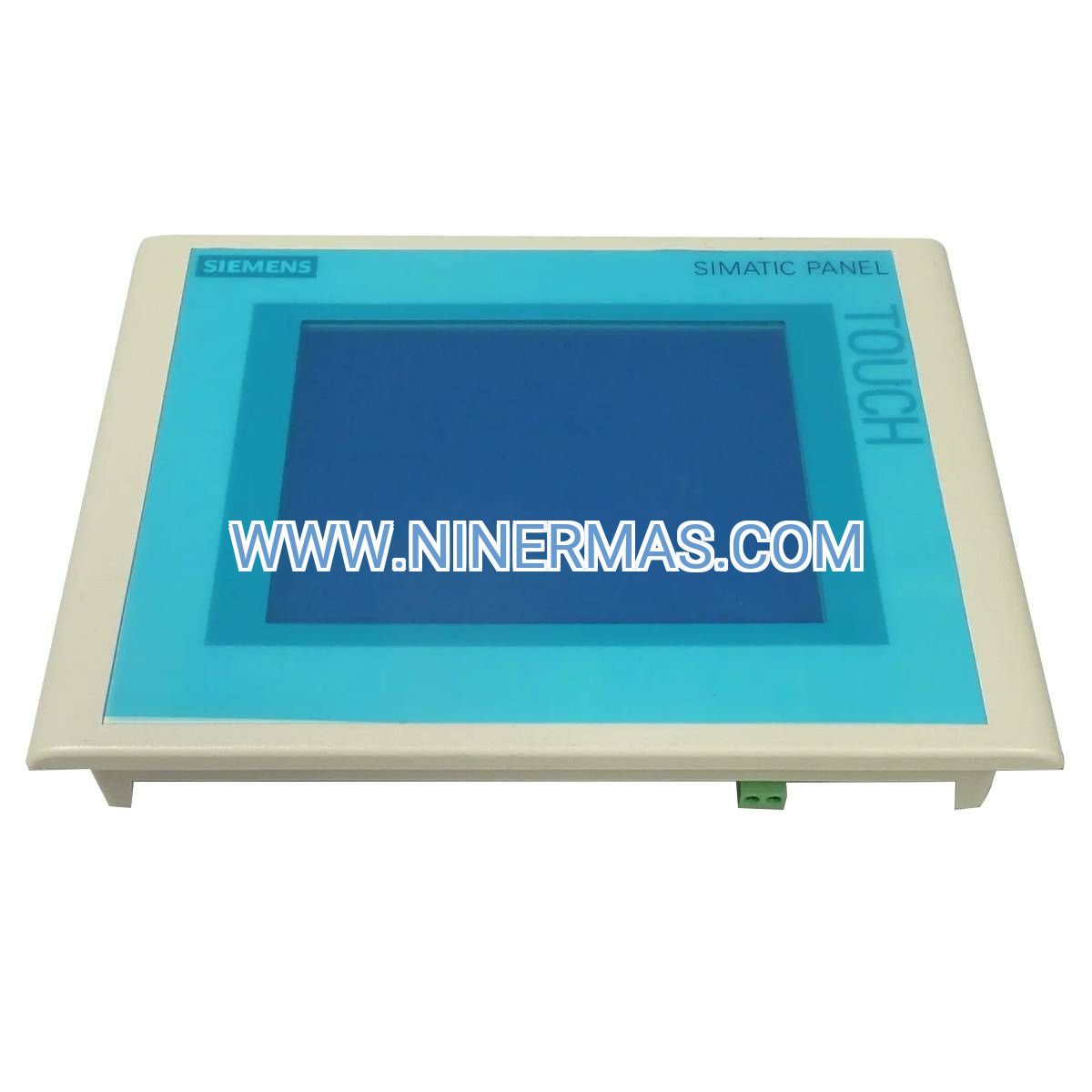

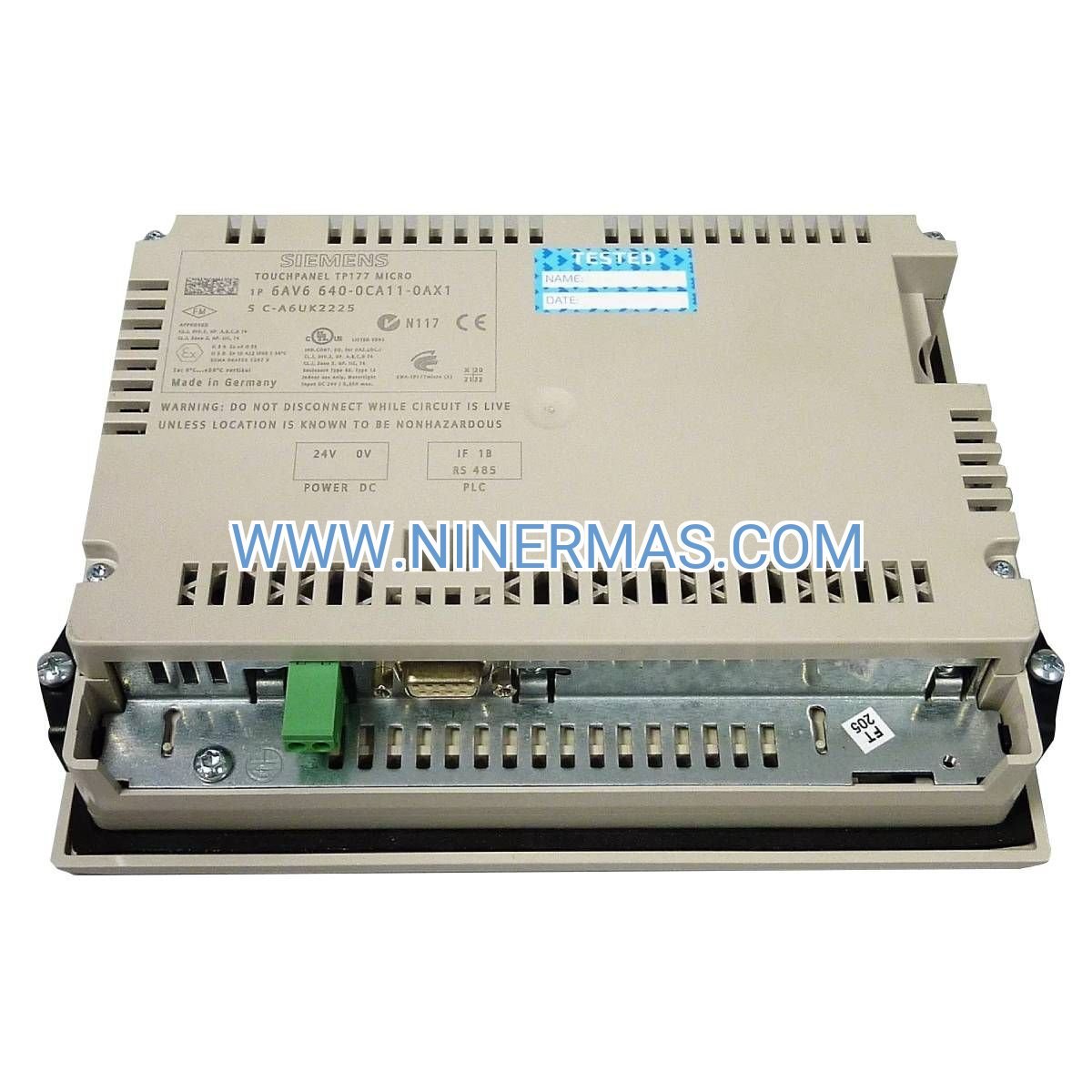

SIEMENS TP 177micro 6AV6640-0CA11-0AX1 (Industrial-Grade Operator Interface)

The TP 177micro 6AV6640-0CA11-0AX1 delivers dependable human-machine communication for production-critical environments. Engineered by SIEMENS, this compact operator panel combines a 5.7-inch monochrome STN touchscreen with robust PROFIBUS-DP connectivity, enabling seamless integration into SIMATIC automation architectures. Designed for manufacturers requiring reliable process visualization without sacrificing valuable panel real estate, this HMI solution supports machine builders, system integrators, and plant operators across manufacturing, packaging, and infrastructure sectors.

Whether you're retrofitting legacy equipment or deploying new automation cells, the TP 177micro addresses common challenges: limited cabinet space, harsh environmental conditions, and the need for deterministic PLC communication. Its analog resistive touch technology ensures consistent operator input even when users wear gloves or face contamination from oils and coolants. With IP65-rated front panel protection and extended temperature tolerance, this interface maintains operational integrity where consumer-grade displays fail.

Key differentiators include native SIMATIC S7 compatibility, expandable memory architecture via MMC cards, and proven reliability backed by decades of SIEMENS industrial heritage. The panel ships ready for WinCC flexible configuration, accelerating commissioning timelines while reducing engineering overhead through reusable graphic libraries and standardized communication protocols.

Core Capabilities & Business Value

→ Space-Optimized Footprint: 5.7-inch diagonal display fits compact control enclosures while maintaining readable 320×240 pixel resolution—ideal for machine-mounted applications where every square inch matters. Reduces panel cutout requirements by 40% compared to 10-inch alternatives.

✓ Deterministic PROFIBUS Communication: Native DP/MPI interface ensures cycle-consistent data exchange with SIMATIC controllers, eliminating polling delays and enabling real-time alarm response. Supports baud rates up to 12 Mbps for high-speed process synchronization.

✓ Industrial Environmental Resilience: IP65 front bezel sealing protects against water jets and dust ingress per IEC 60529 standards. Operates reliably in 0°C to +50°C ambient conditions, withstanding temperature fluctuations common in non-climate-controlled production areas.

→ Expandable Configuration Memory: Base 2 MB internal storage accommodates standard visualization projects; MMC card slot supports up to 8 MB for complex multi-screen applications with recipe management and historical trending.

✓ Proven Touch Technology: Analog resistive touchscreen delivers 35+ million touch lifecycle, functioning reliably with gloved hands, stylus input, or in the presence of surface moisture—critical for food processing and chemical handling environments.

→ Rapid Engineering Workflow: WinCC flexible software integration enables drag-and-drop screen design, pre-configured faceplates for motors/valves, and automatic tag generation from PLC symbol tables—cutting HMI development time by up to 60%.

Typical Application Scenarios

Packaging Line Control Stations: Operators monitor carton counters, adjust conveyor speeds, and acknowledge jam conditions on compact panels mounted directly to packaging machinery. The TP 177micro's small form factor allows installation at ergonomic operator positions without interfering with material flow paths. Reduces operator response time to line faults by providing immediate visual feedback at the point of intervention.

Water Treatment Facility Monitoring: Plant technicians visualize pump status, tank levels, and chemical dosing rates across distributed lift stations. PROFIBUS connectivity enables centralized SCADA integration while local HMI panels provide backup control during network outages. Minimizes unplanned downtime through early fault detection and local override capabilities.

HVAC Building Management: Facility managers adjust setpoints, view zone temperatures, and schedule occupancy modes for commercial building climate systems. The panel's monochrome display remains readable in varying ambient light conditions, from basement mechanical rooms to rooftop equipment installations. Lowers energy costs through optimized scheduling and rapid response to comfort complaints.

Food Processing Equipment Interfaces: Production staff control batch sequences, monitor pasteurization temperatures, and log cleaning cycles on washdown-rated control panels. IP65 protection withstands daily high-pressure cleaning protocols required by HACCP compliance. Ensures product quality through consistent process parameter enforcement and complete batch traceability.

Conveyor System Coordination: Material handling operators start/stop zones, clear fault conditions, and track throughput metrics on strategically positioned HMI terminals. Compact mounting enables installation at transfer points, merge zones, and sortation areas where space constraints prohibit larger displays. Increases system availability by empowering operators to resolve minor issues without maintenance intervention.

Technical Parameters & Selection Guide

Selection Criteria: Choose the TP 177micro when your application requires PROFIBUS connectivity, operates within 0-50°C ambient range, and needs visualization for up to 50 process tags. For color graphics, higher resolution, or Ethernet connectivity, consider upgrading to KTP600 or KTP1000 series panels. If your project exceeds 1.5 MB, budget for an MMC memory card. Verify compatibility with your SIMATIC controller series (S7-200/300/400 supported; S7-1200/1500 require protocol converters).

Extended Functions

Recipe Management: Store up to 200 parameter sets directly on the HMI, enabling operators to switch between product configurations without PLC reprogramming. Ideal for batch processes requiring frequent changeovers.

Alarm Buffering: Log up to 2,048 alarm events with timestamps, allowing maintenance teams to analyze fault patterns and identify recurring issues. Supports alarm acknowledgment workflows and priority-based filtering.

Trend Visualization: Display real-time and historical process curves for up to 8 analog values simultaneously. Helps operators identify gradual drift in temperature, pressure, or flow parameters before they trigger alarms.

User Access Control: Configure up to 50 user accounts with role-based permissions, restricting critical setpoint adjustments to authorized personnel while allowing operators view-only access to production metrics.

Multi-Language Support: Deploy projects in up to 5 languages with runtime switching, accommodating multinational production teams without duplicate HMI configurations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom configurations with pre-loaded projects require 7-10 business days for engineering and testing.

Warranty Coverage: Comprehensive 12-month manufacturer warranty protects against component defects, display failures, and communication interface malfunctions. Warranty includes advance replacement service to minimize production downtime.

Technical Support: Access to application engineers for configuration assistance, PROFIBUS troubleshooting, and WinCC flexible software guidance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each unit includes installation manual, PROFIBUS wiring diagrams, WinCC flexible quick-start guide, and dimensional drawings in PDF format. CAD files available upon request for panel cutout planning.

Frequently Asked Questions

How do I connect the TP 177micro to non-SIEMENS PLCs via PROFIBUS?
The panel supports standard PROFIBUS-DP protocol, enabling communication with third-party controllers from manufacturers like ABB, Schneider Electric, and Phoenix Contact—provided they implement PROFIBUS slave functionality. Verify GSD file compatibility and configure the panel as a DP master using WinCC flexible communication settings. Consult your PLC vendor's PROFIBUS integration documentation for device-specific addressing requirements.

What is the maximum project complexity supported by internal memory?
The 2 MB internal memory accommodates projects up to approximately 1.5 MB after accounting for runtime overhead. This typically supports 20-30 screens with moderate graphic complexity, 500 tags, and basic alarm/trend functions. Projects exceeding this threshold require an MMC memory card (4 MB or 8 MB capacity recommended). WinCC flexible displays estimated memory usage during compilation.

Can I retrofit this panel into existing control cabinets with different cutout sizes?
Yes, the TP 177micro's compact footprint often fits within larger cutouts originally designed for 10-inch panels. Use mounting adapter plates or custom bezels to fill gaps and maintain IP65 sealing integrity. Ensure adequate clearance behind the panel for cable routing and heat dissipation—minimum 50mm depth recommended.

Does the panel support remote access for troubleshooting and updates?
Direct remote access requires additional hardware. Install a SIMATIC S7 controller with Ethernet capability and use WinCC flexible's remote control function via the PLC's network connection. Alternatively, deploy a PROFIBUS-to-Ethernet gateway for direct HMI access. Remote project uploads require WinCC flexible engineering software with matching version to the panel's runtime.

How do I optimize display readability in high ambient light conditions?
The STN display's blue monochrome technology provides superior contrast in bright environments compared to color TFT panels. Adjust backlight intensity via WinCC flexible settings—maximum brightness recommended for outdoor or sunlit installations. Consider anti-glare screen protectors for applications with direct light exposure. Avoid mounting panels facing windows or overhead lighting.

What cable specifications are required for reliable PROFIBUS communication?
Use PROFIBUS-certified cable (purple jacket, twisted-pair, shielded) meeting IEC 61158-2 standards. Maximum segment length: 100m at 12 Mbps, 1200m at 93.75 kbps. Terminate both ends of the bus with 220-ohm resistors using PROFIBUS connectors (SIEMENS part 6ES7972-0BA52-0XA0 recommended). Avoid running PROFIBUS cables parallel to high-voltage power lines—maintain 200mm minimum separation.

Ready to Enhance Your Automation Interface?

The SIEMENS TP 177micro 6AV6640-0CA11-0AX1 delivers proven HMI performance for space-constrained industrial applications. Contact our automation specialists today to verify compatibility with your SIMATIC architecture, request custom configuration services, or place your order. Fast shipping available to manufacturing facilities worldwide.
