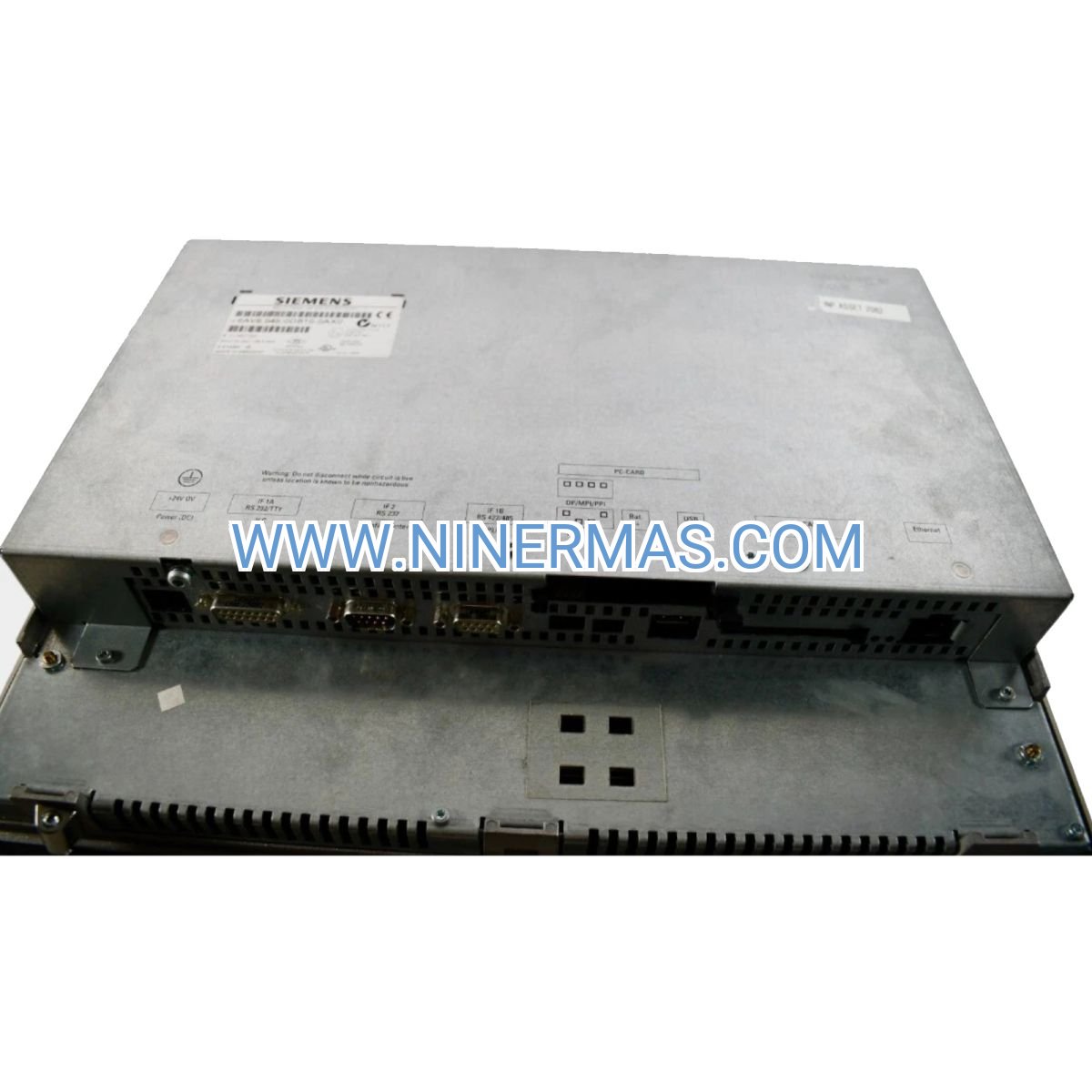

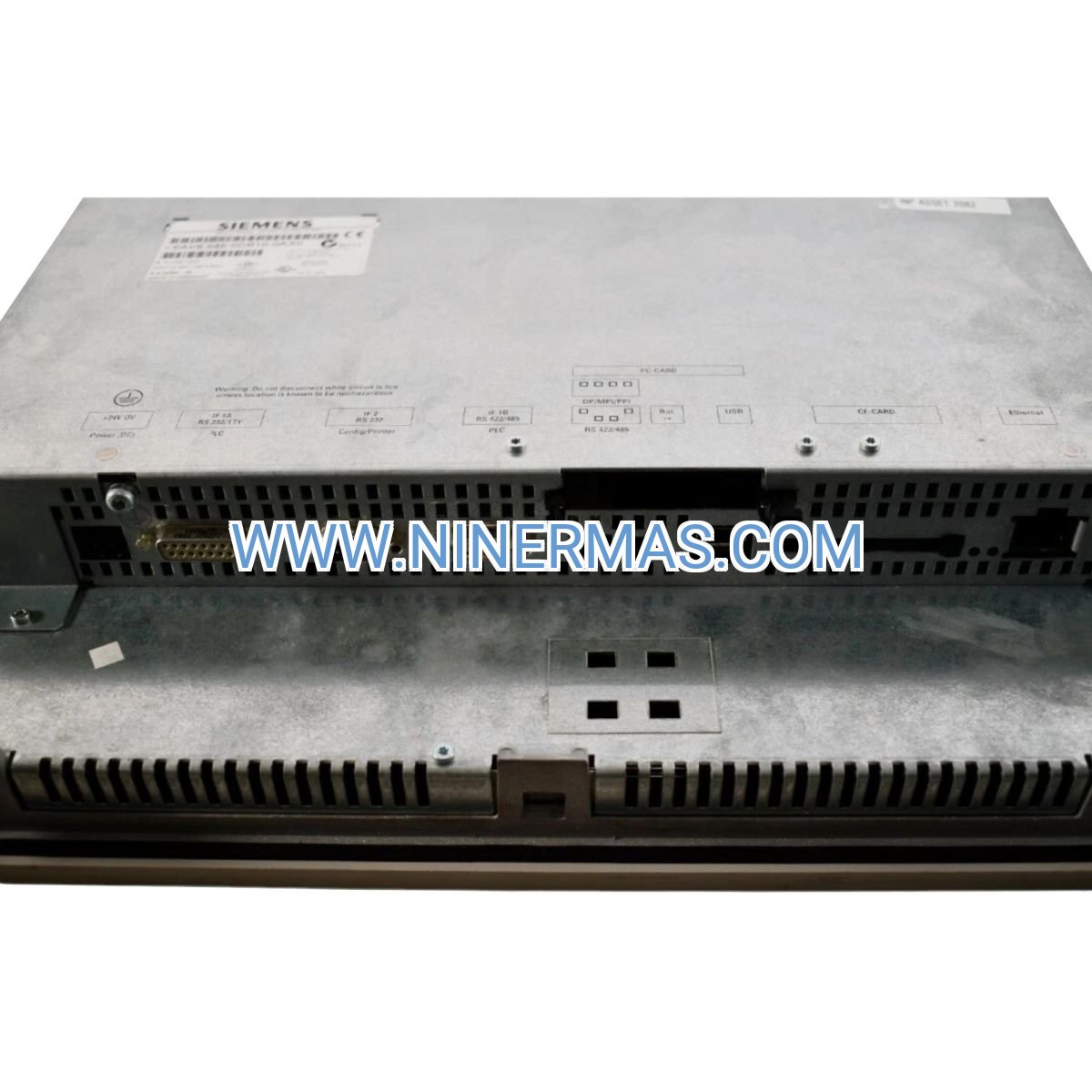

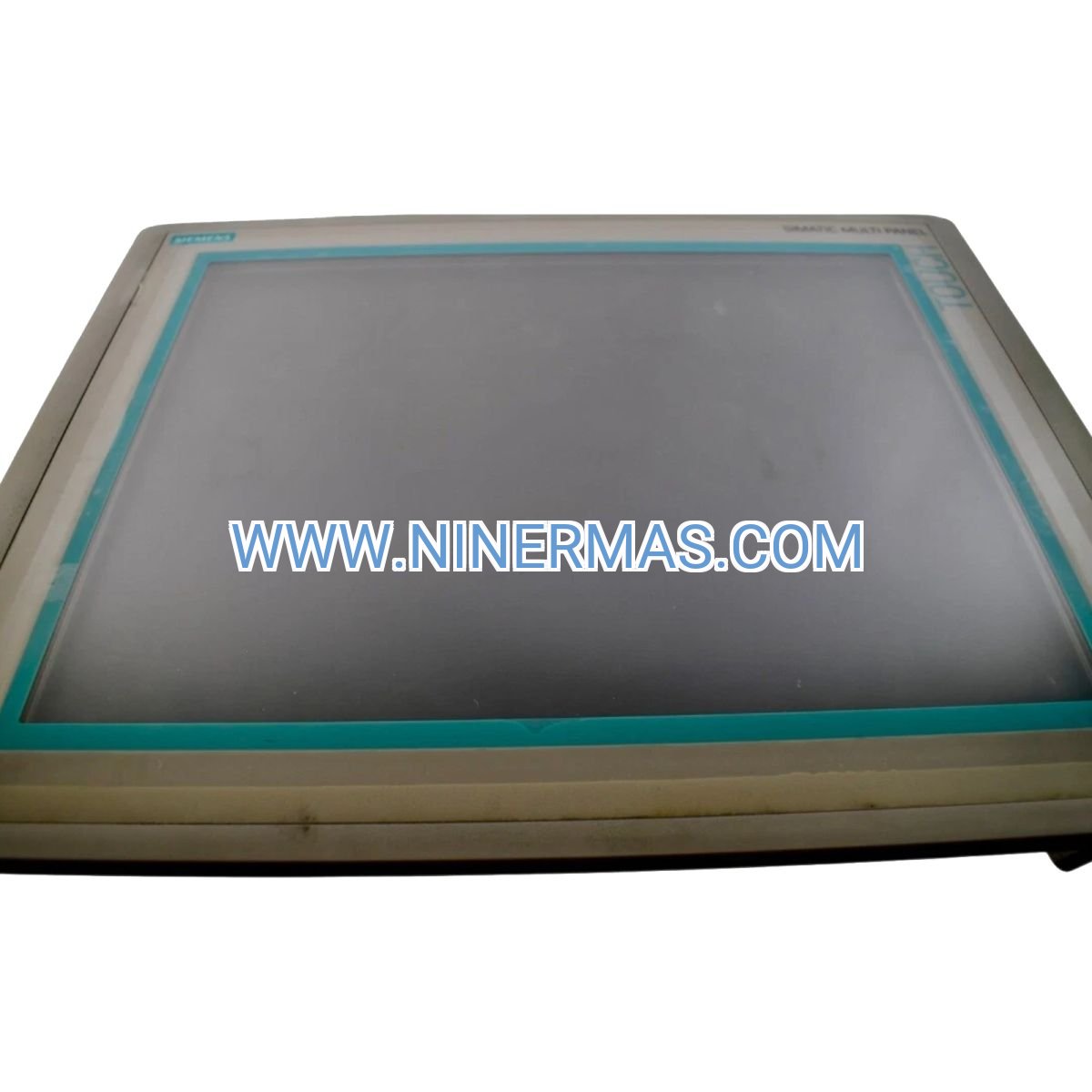

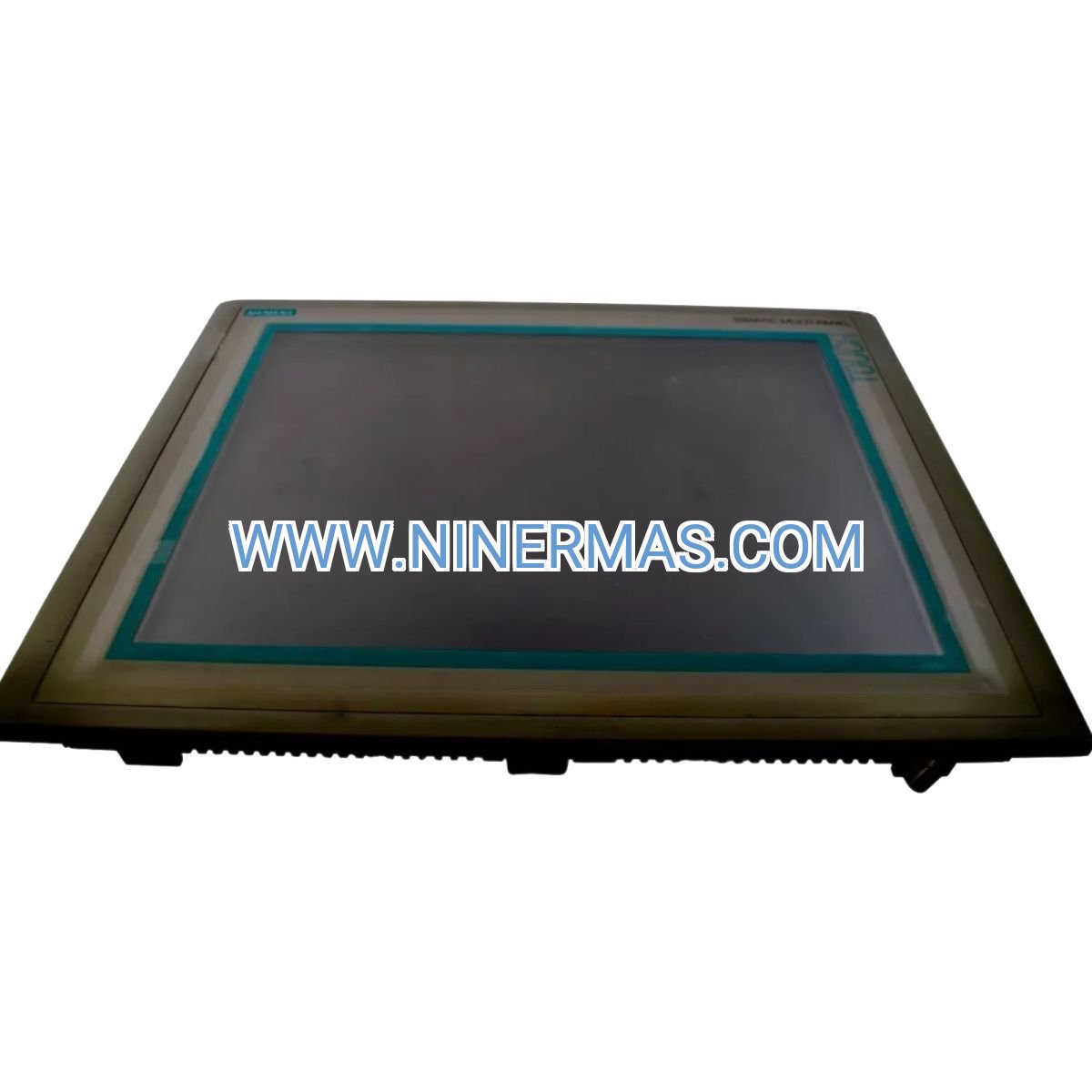

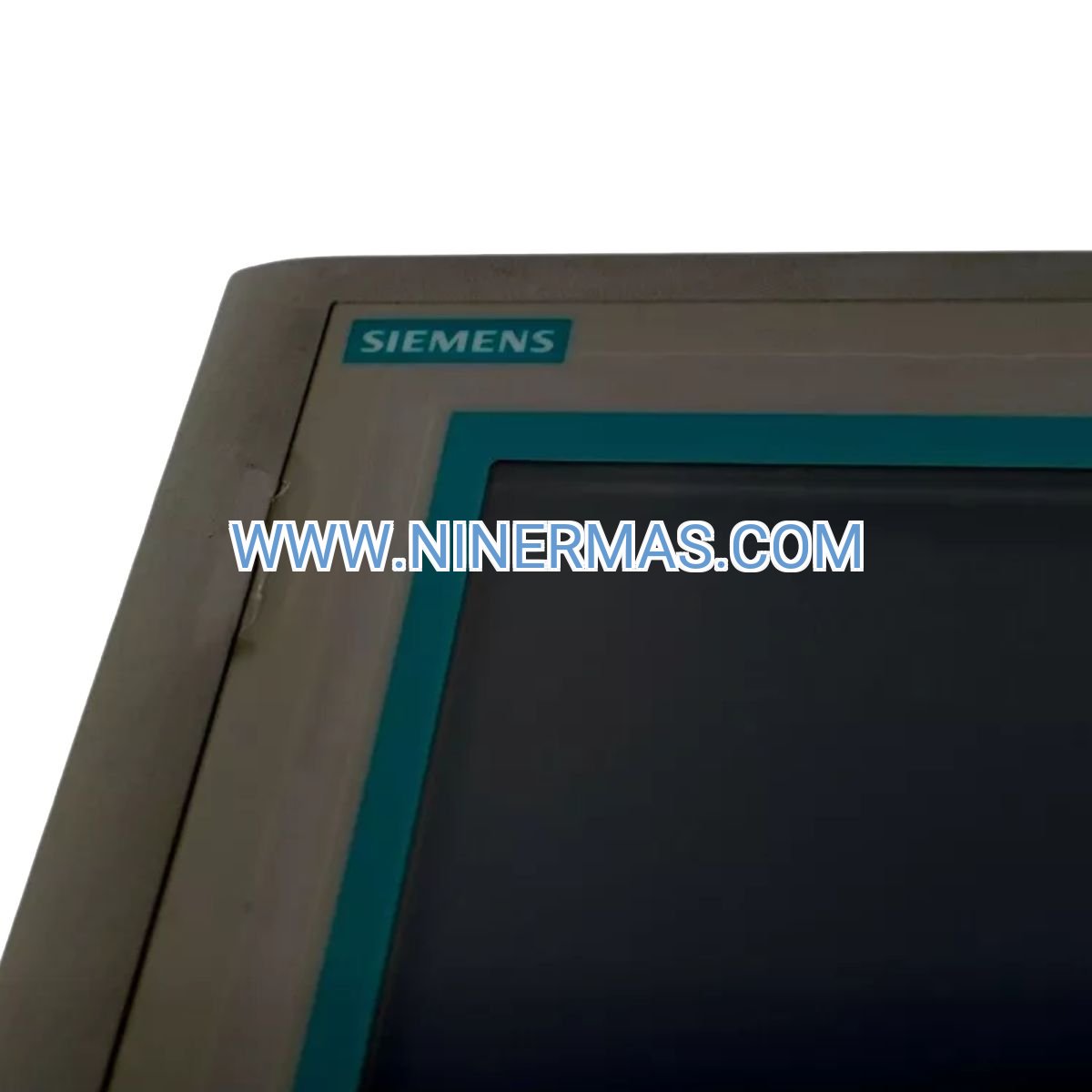

Siemens MP 370 Mobile Panel (Industrial-Grade Portable HMI)

The Siemens 6AV6545-0DB10-0AX0 SIMATIC MP 370 represents a breakthrough in mobile human-machine interface technology, combining industrial durability with operational flexibility. This portable control panel empowers operators to access critical process data and execute control commands from any location within your production facility, eliminating the constraints of fixed operator stations.

Designed for manufacturers who demand mobility without compromising reliability, the MP 370 addresses the challenge of multi-station operations where technicians must move between equipment while maintaining continuous system oversight. Whether you're managing assembly lines, coordinating material handling, or performing diagnostic procedures, this mobile panel delivers the interface exactly where you need it.

Built on Siemens' proven SIMATIC platform, the MP 370 integrates seamlessly with S7-300/400 controllers and distributed I/O networks, offering professional-grade visualization, alarm management, and recipe handling in a ruggedized mobile form factor that withstands the demands of 24/7 industrial operations.

Core Features & Benefits

✓ 10.4-Inch High-Resolution TFT Display
Crystal-clear color graphics with adjustable brightness ensure optimal visibility in varying lighting conditions, from dimly lit maintenance areas to brightly illuminated production floors. Operators can monitor trends, alarms, and process values with exceptional clarity.

✓ IP65 Front Panel Protection
Sealed against dust ingress and water jets, the MP 370 withstands harsh manufacturing environments including washdown areas, dusty assembly zones, and chemical processing facilities. This protection rating translates to reduced maintenance costs and extended service life.

✓ Dual Communication Interfaces
Integrated PROFIBUS DP and MPI connectivity enable direct communication with SIMATIC controllers and field devices. This dual-interface architecture provides flexibility in network topology and supports both process control and diagnostic functions simultaneously.

✓ Touch + Function Key Operation
Combines intuitive touchscreen navigation with dedicated function keys for critical operations. This hybrid interface allows operators to execute emergency stops or mode changes even while wearing gloves, enhancing both usability and safety.

✓ Expandable Flash Memory
Store production recipes, historical data archives, and custom visualization screens locally on the panel. This onboard storage capability supports offline operation during network maintenance and enables rapid changeover between product variants.

✓ 24V DC Industrial Power Supply
Standard industrial voltage compatibility simplifies installation and ensures reliable operation from existing control cabinet power distribution systems without requiring additional converters or transformers.

Application Scenarios

→ Automotive Assembly Lines
Technicians use the MP 370 to monitor robotic welding stations, adjust conveyor speeds, and acknowledge quality alerts while moving along the production line. The mobile interface reduces response time to process deviations by 40% compared to fixed HMI stations, minimizing scrap rates and improving first-pass yield.

→ Packaging Machinery Operations
Operators carry the panel between multiple packaging lines to perform format changeovers, adjust fill weights, and verify seal integrity parameters. This mobility eliminates the need for duplicate HMI installations at each machine, reducing capital expenditure while improving operational flexibility.

→ Material Handling & Warehousing
Warehouse supervisors utilize the MP 370 to control automated storage/retrieval systems, monitor conveyor networks, and manage sortation equipment from various locations throughout the facility. Real-time visibility into system status enables proactive intervention before minor issues escalate into costly downtime.

→ Process Equipment Commissioning
Maintenance engineers connect the mobile panel directly to machinery during installation, calibration, and troubleshooting activities. This portable diagnostic capability accelerates commissioning timelines by 30% and reduces the need for laptop-based tools in hazardous areas.

→ Food & Beverage Production
In washdown environments, operators access recipe management, CIP cycle monitoring, and batch reporting functions while moving between processing tanks and filling stations. The IP65 protection ensures reliable operation even during high-pressure cleaning procedures.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the MP 370 when your application requires operator mobility across multiple machine stations, IP65 environmental protection, or integration with existing SIMATIC S7 automation infrastructure. For stationary applications with larger display requirements, consider the MP 377 15" model. If your process demands higher resolution graphics or Ethernet connectivity, evaluate the newer Comfort Panel series while maintaining PROFIBUS compatibility through appropriate gateways.

The 10.4" screen size provides an optimal balance between display real estate and portability for most industrial applications. Facilities with cable run limitations exceeding 50 meters should implement PROFIBUS repeaters to maintain signal integrity.

Extended Functions

WinCC Flexible Runtime Integration
The MP 370 executes WinCC flexible visualization projects with support for trend curves, alarm logs, recipe management, and user administration. Configure up to 50 process screens with custom graphics, animations, and multi-language text (up to 5 languages simultaneously).

Advanced Alarm Management
Implement priority-based alarm filtering, acknowledgment tracking, and historical alarm archiving. The system supports up to 2,000 discrete alarm messages with customizable colors, sounds, and operator response requirements.

Recipe & Data Logging
Store up to 200 recipes with 500 parameters each, enabling rapid product changeovers. Automatic data logging captures process values at configurable intervals for quality documentation and trend analysis.

Remote Access Capability
When paired with SIMATIC S7 communication processors featuring Ethernet interfaces, the MP 370 enables remote monitoring and control from central SCADA systems or engineering workstations via VNC protocol.

Customization Options
OEM customers can request custom front panel labeling, specialized cable assemblies for specific mounting configurations, or pre-loaded visualization projects to accelerate machine commissioning timelines.

Delivery & Service Assurance

Standard Delivery Timeline: 3-5 business days for in-stock units via express courier with tracking. Custom-configured panels with pre-loaded projects ship within 7-10 business days after engineering approval.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering component defects, display malfunctions, and communication interface failures. Extended warranty programs available for critical production applications.

Technical Support: Access to certified Siemens automation specialists for configuration assistance, network troubleshooting, and WinCC flexible programming guidance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each unit includes installation manual, quick start guide, PROFIBUS wiring diagrams, and WinCC flexible configuration examples. Complete technical specifications and CAD drawings available for download.

Frequently Asked Questions

Q: How do I connect the MP 370 mobile panel to my existing SIMATIC S7-300 PLC?
A: The panel connects via standard PROFIBUS DP cable using the integrated 9-pin D-sub connector. Configure the panel's PROFIBUS address using the onboard DIP switches, then establish the connection in your WinCC flexible project. Maximum cable length is 100 meters at 12 Mbit/s without repeaters.

Q: What is the maximum number of process tags the MP 370 can handle simultaneously?
A: The panel supports up to 2,000 process tags (variables) with a screen update rate of 1 second for optimal performance. For applications requiring faster update cycles, limit active tags to 500-1,000 variables.

Q: Can the mobile panel operate in outdoor environments or extreme temperatures?
A: The MP 370 is designed for indoor industrial use within 0°C to +50°C. For outdoor applications or extreme temperature ranges, consider installing the panel in a climate-controlled enclosure with appropriate NEMA/IP rating.

Q: Does the MP 370 support energy monitoring or power consumption tracking features?
A: Yes, when connected to energy meters via PROFIBUS, the panel can display real-time power consumption, calculate efficiency metrics, and log energy data for sustainability reporting. Custom WinCC screens can visualize energy trends and trigger alerts for abnormal consumption patterns.

Q: What cable assembly is recommended for mobile operation?
A: Use industrial-grade PROFIBUS cable with reinforced strain relief and flexible jacket rated for continuous flexing (minimum 1 million bend cycles). Siemens recommends 6XV1830-0EH10 cable for mobile applications with appropriate cable management to prevent kinking.

Q: How do I perform firmware updates on the MP 370 panel?
A: Firmware updates are deployed through WinCC flexible using the integrated transfer function. Connect your engineering PC to the panel via MPI/PROFIBUS, select the firmware update option in the transfer dialog, and follow the on-screen prompts. Always backup your project before updating.

Take the Next Step

Ready to enhance your operational flexibility with mobile HMI technology? Contact our automation specialists to discuss your specific application requirements, receive a detailed quotation, and explore integration options with your existing control systems. We provide comprehensive pre-sales engineering support to ensure the MP 370 meets your performance expectations.
