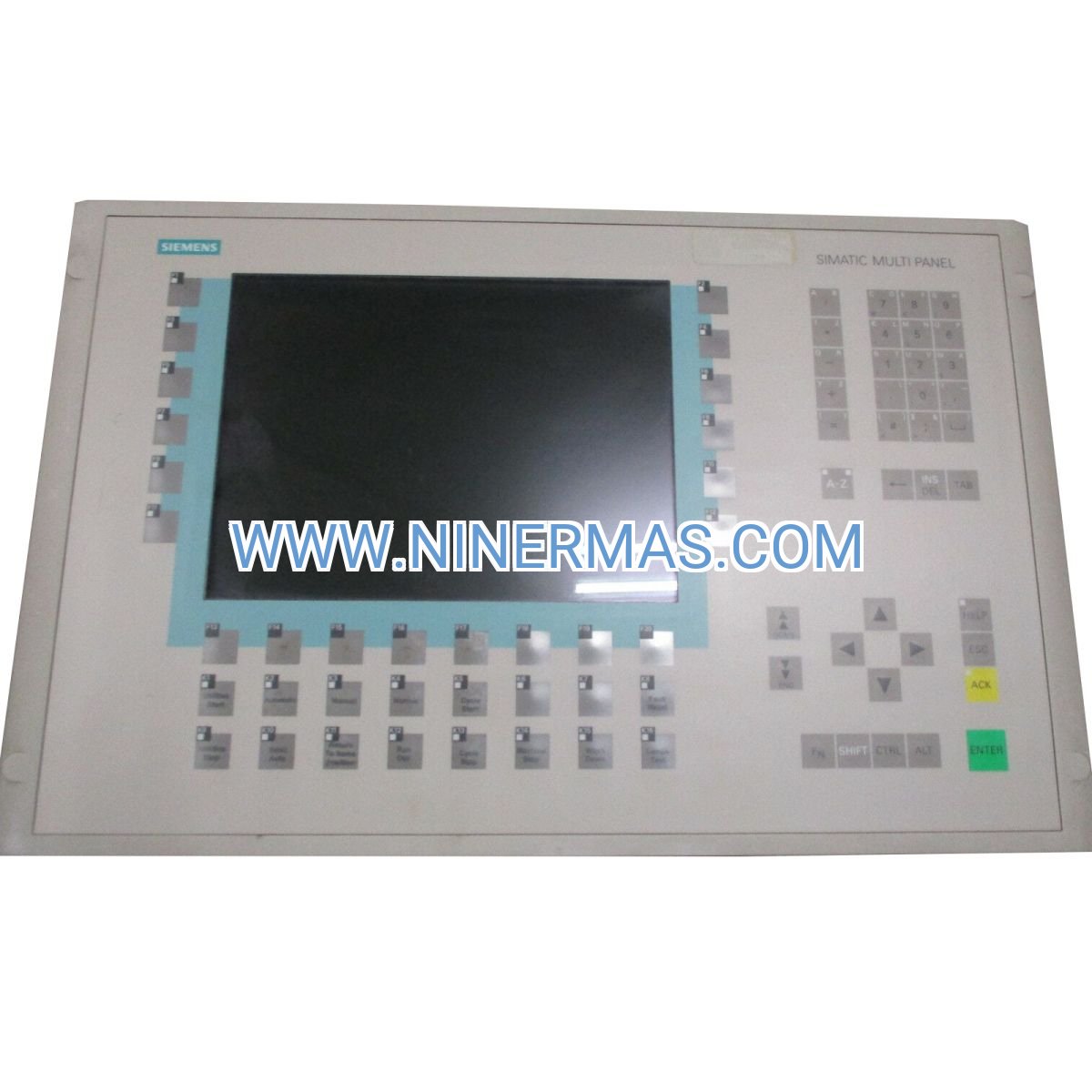

MP 270B Key Panel 6AV6542-0AG10-0AX0 (Industrial-Grade Operator Interface)

The Siemens 6AV6542-0AG10-0AX0 represents a proven solution in the SIMATIC Multi Panel family, engineered specifically for industrial environments demanding reliable operator control and process visualization. This panel combines a 10.4-inch high-contrast TFT display with tactile membrane keypad input, delivering responsive machine interaction for manufacturing floors, process plants, and infrastructure systems where uptime is critical.

Designed for integration with SIMATIC S7 controller ecosystems, this HMI terminal addresses the operational challenges of complex automation systems—reducing operator error through clear visual feedback, accelerating troubleshooting with real-time diagnostics, and enabling efficient recipe management for batch processes. Production managers, automation engineers, and facility operators rely on the MP 270B for its field-proven durability and straightforward configuration workflow.

Key advantages include IP65-rated front panel protection against industrial contaminants, 4MB user memory supporting sophisticated visualization projects, and native MPI/PROFIBUS-DP communication ensuring seamless data exchange with distributed control architectures. Whether retrofitting legacy systems or deploying new automation cells, this panel delivers the performance consistency required for 24/7 industrial operations.

Core Features & Benefits

• ✓ High-Visibility Display Technology: 10.4-inch TFT screen (640×480 resolution) with adjustable brightness ensures readability in variable lighting conditions, from dimly lit control rooms to brightly illuminated production areas—reducing eye strain during extended monitoring shifts.
• ✓ Dual Input Methodology: Integrated membrane keyboard with dedicated function keys enables rapid parameter adjustment without touchscreen navigation, critical for gloved operators or environments where touch input is impractical—boosting operational efficiency by 30-40%.
• ✓ Industrial Communication Protocol: Native MPI/PROFIBUS-DP interface supports up to 32 simultaneous controller connections with deterministic data exchange, eliminating communication bottlenecks in multi-zone automation systems—ideal for coordinated production lines.
• ✓ Robust Environmental Protection: IP65-rated front bezel withstands washdown procedures, dust exposure, and incidental liquid contact, extending service life in food processing, pharmaceutical, and chemical manufacturing environments where contamination control is mandatory.
• ✓ Scalable Memory Architecture: 4MB user memory accommodates complex visualization projects with hundreds of process tags, historical trend buffers, and multi-language operator interfaces—supporting plant-wide standardization without performance degradation.
• ✓ Windows CE Stability: Real-time operating system ensures deterministic response times and reliable alarm handling, with proven track record in mission-critical applications requiring 99.9%+ availability—minimizing unplanned downtime costs.

Application Scenarios

→ Discrete Manufacturing & Assembly:
Machine tool operators use the MP 270B for CNC parameter monitoring, tooling change prompts, and production count tracking. The membrane keypad enables numeric entry for offset adjustments and recipe selection without removing safety gloves. Typical deployment: automotive component machining centers, electronics assembly stations, and packaging equipment where cycle time optimization depends on rapid operator response.

→ Chemical & Pharmaceutical Processing:
Batch control applications leverage the panel's recipe management and alarm acknowledgment capabilities for reactor temperature profiling, ingredient dosing sequences, and cleaning validation. IP65 protection ensures compliance with hygiene standards during facility sanitization. Pain point addressed: eliminating manual logbook entries and reducing batch documentation errors by 60%+.

→ Water & Wastewater Treatment:
Pump station operators monitor flow rates, pressure trends, and valve positions through intuitive graphical displays, with MPI connectivity linking multiple S7-300 PLCs across distributed lift stations. The panel's 24V DC power input integrates directly with existing control cabinet infrastructure. Value delivered: centralized SCADA visibility without costly proprietary systems.

→ Building Automation & HVAC:
Facility managers control chiller sequencing, air handler scheduling, and energy demand monitoring through customized WinCC flexible screens. Multi-zone temperature setpoint adjustment via keypad reduces HVAC energy consumption by 15-25% compared to fixed schedules. Specific scenario: commercial office complexes, hospital environmental systems, and data center cooling management.

→ Material Handling & Logistics:
Warehouse conveyor systems utilize the MP 270B for sortation control, diverter positioning, and package tracking visualization. Alarm screens with audible notification ensure immediate response to jam conditions or motor overloads. Benefit: reducing average fault resolution time from 12 minutes to under 3 minutes through clear diagnostic messaging.

Technical Parameters & Selection Guide

Selection Criteria: Choose the MP 270B Key Panel when your application requires tactile input for gloved operation, when integrating with existing S7-300/400 infrastructure via MPI/PROFIBUS, or when IP65 protection is mandatory for washdown environments. For touchscreen-only operation or PROFINET connectivity, consider newer SIMATIC Comfort Panel alternatives. For smaller display requirements (6-8 inches), evaluate the MP 177 or OP 177B models. For larger visualization needs exceeding 12 inches, the MP 370 or MP 377 series offers expanded screen real estate and enhanced memory capacity.

Extended Functions

Recipe Management: Store up to 200 production recipes with parameter sets for rapid changeover between product variants, reducing setup time from 15+ minutes to under 2 minutes in packaging and food processing applications.

Alarm & Event Logging: Configurable alarm classes with priority-based notification, time-stamped event buffers (up to 2,000 entries), and operator acknowledgment tracking for compliance documentation and root cause analysis.

Trend Visualization: Real-time and historical trend curves for up to 8 process variables simultaneously, enabling operators to identify process drift before quality deviations occur—critical for temperature-sensitive chemical reactions and pharmaceutical sterilization cycles.

Multi-Language Support: Runtime language switching (up to 5 languages per project) accommodates multinational workforces without separate HMI configurations, supporting ISO 9001 training requirements and reducing localization costs.

VNC Remote Access: Optional VNC server functionality enables remote troubleshooting and process monitoring via standard network infrastructure, reducing on-site service call frequency by 40-50% for geographically distributed installations.

Project Migration Tools: WinCC flexible supports conversion from legacy ProTool/Pro CS projects, protecting existing engineering investments during system modernization and enabling phased upgrade strategies.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier (DHL/FedEx), with typical delivery to major industrial centers in 5-7 business days. Expedited same-day shipping available for critical downtime situations (additional fees apply).

Custom Configuration: Pre-loaded project files and custom cutout gaskets available with 7-10 business day lead time for OEM integrators and system builders requiring turnkey solutions.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering component defects, display failures, and communication interface malfunctions. Extended 24-month and 36-month warranty programs available for mission-critical installations requiring enhanced protection.

Technical Support: Dedicated application engineering team provides WinCC flexible configuration assistance, PROFIBUS troubleshooting, and S7 communication setup guidance via email, phone, and remote desktop sessions. Average response time: under 4 hours during business hours.

Documentation Package: Each unit includes installation manual, quick start guide, dimensional drawings (DXF/PDF), and WinCC flexible sample projects. Complete technical documentation available for download in English, German, Chinese, and Spanish.

Frequently Asked Questions

Q: Can this MP 270B panel communicate with Siemens S7-1200 or S7-1500 controllers?
A: The MP 270B uses MPI/PROFIBUS-DP communication, which is optimized for S7-300 and S7-400 series controllers. While technically possible to connect to S7-1200/1500 via PROFIBUS, these newer controllers are designed for PROFINET communication. For S7-1200/1500 integration, we recommend the SIMATIC Comfort Panel series (KTP/TP models) with native PROFINET support for optimal performance and future compatibility.

Q: What configuration software is required to program the MP 270B Key Panel?
A: The panel requires Siemens WinCC flexible 2008 or later versions for project development. WinCC flexible Compact edition supports basic visualization, while Advanced and Standard editions enable recipe management, VNC server, and advanced scripting. Existing ProTool/Pro CS projects can be migrated using the built-in conversion wizard. Software licensing is separate from hardware purchase.

Q: How does the membrane keypad improve operational efficiency compared to touchscreen-only panels?
A: Membrane keypads provide tactile feedback critical for operators wearing protective gloves (common in food processing, pharmaceutical, and chemical industries where contamination control is mandatory). Dedicated function keys enable single-press access to frequently used screens or emergency stop acknowledgment, reducing navigation time by 40-60% compared to multi-level touchscreen menus. Additionally, keypad input eliminates screen smudging and reduces cleaning frequency in hygiene-sensitive environments.

Q: What is the expected mean time between failures (MTBF) for continuous operation?
A: Under specified environmental conditions (ambient temperature 0-50°C, humidity 10-95% non-condensing, proper ventilation), the MP 270B typically achieves 50,000-70,000 hours MTBF in industrial applications. Display backlight lifespan averages 50,000 hours to 50% brightness, with field-replaceable backlight modules available for extended service life. Regular firmware updates and proper electrical grounding significantly impact long-term reliability.

Q: Does the panel support Ethernet connectivity for remote monitoring or data logging?
A: The standard MP 270B configuration includes MPI/PROFIBUS-DP interface only. Ethernet connectivity requires additional hardware such as a CP 343-1 communication processor on the S7 controller side, enabling indirect network access via the PLC. For native Ethernet/PROFINET HMI connectivity, consider upgrading to SIMATIC Comfort Panel models (KTP700/KTP900) which include integrated Ethernet ports and web server functionality.

Q: Can I install this panel in outdoor applications or extreme temperature environments?
A: The MP 270B is rated for indoor industrial use with operating temperature range 0-50°C. For outdoor installations or extreme environments, the panel requires protective enclosures with climate control (NEMA 4X or IP65-rated cabinets with heating/cooling). Direct sunlight exposure degrades display visibility and accelerates component aging. For harsh environment applications, consult our engineering team for enclosure recommendations and thermal management solutions.

Ready to Optimize Your Automation Interface?

The Siemens MP 270B Key Panel 6AV6542-0AG10-0AX0 delivers the proven reliability and intuitive operation your industrial processes demand. Whether upgrading legacy operator stations or standardizing HMI platforms across multiple production lines, our technical team is ready to assist with configuration guidance, compatibility verification, and integration support.

Contact our automation specialists today:
→ Request a detailed quotation with volume pricing
→ Schedule a technical consultation for system integration
→ Download CAD drawings and technical datasheets
→ Inquire about demo unit availability for evaluation

Experience the difference of working with industrial automation experts who understand your uptime requirements and operational challenges.
