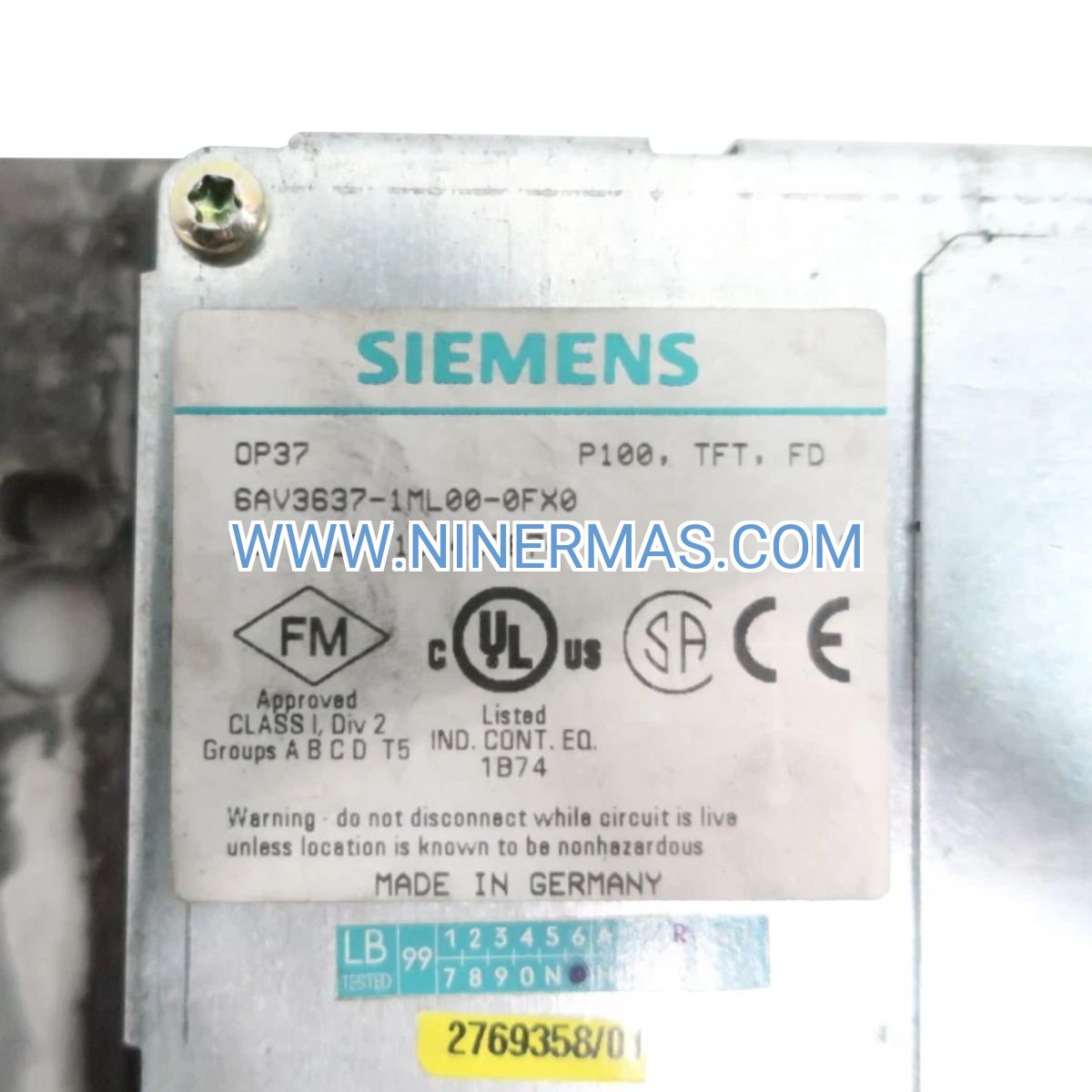

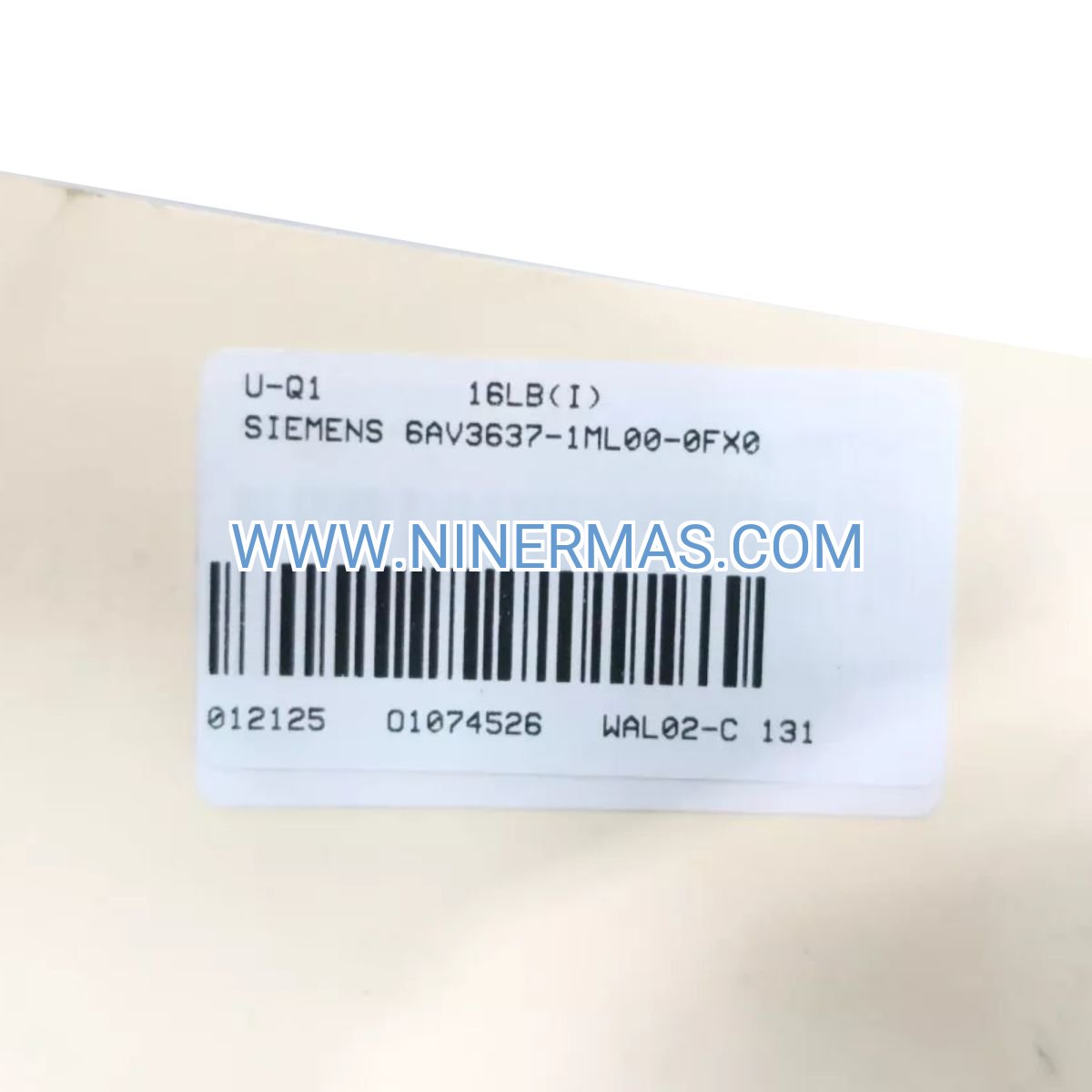

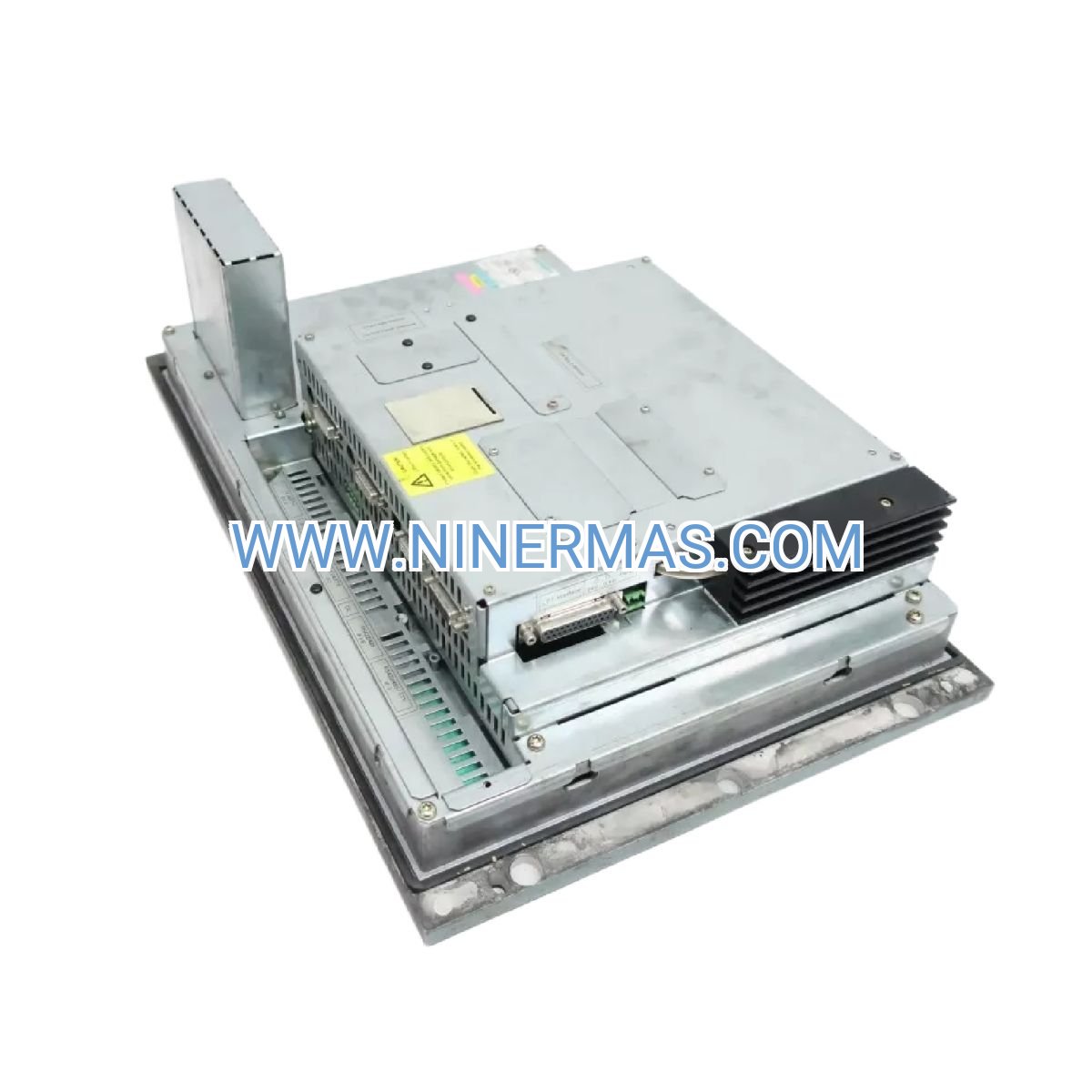

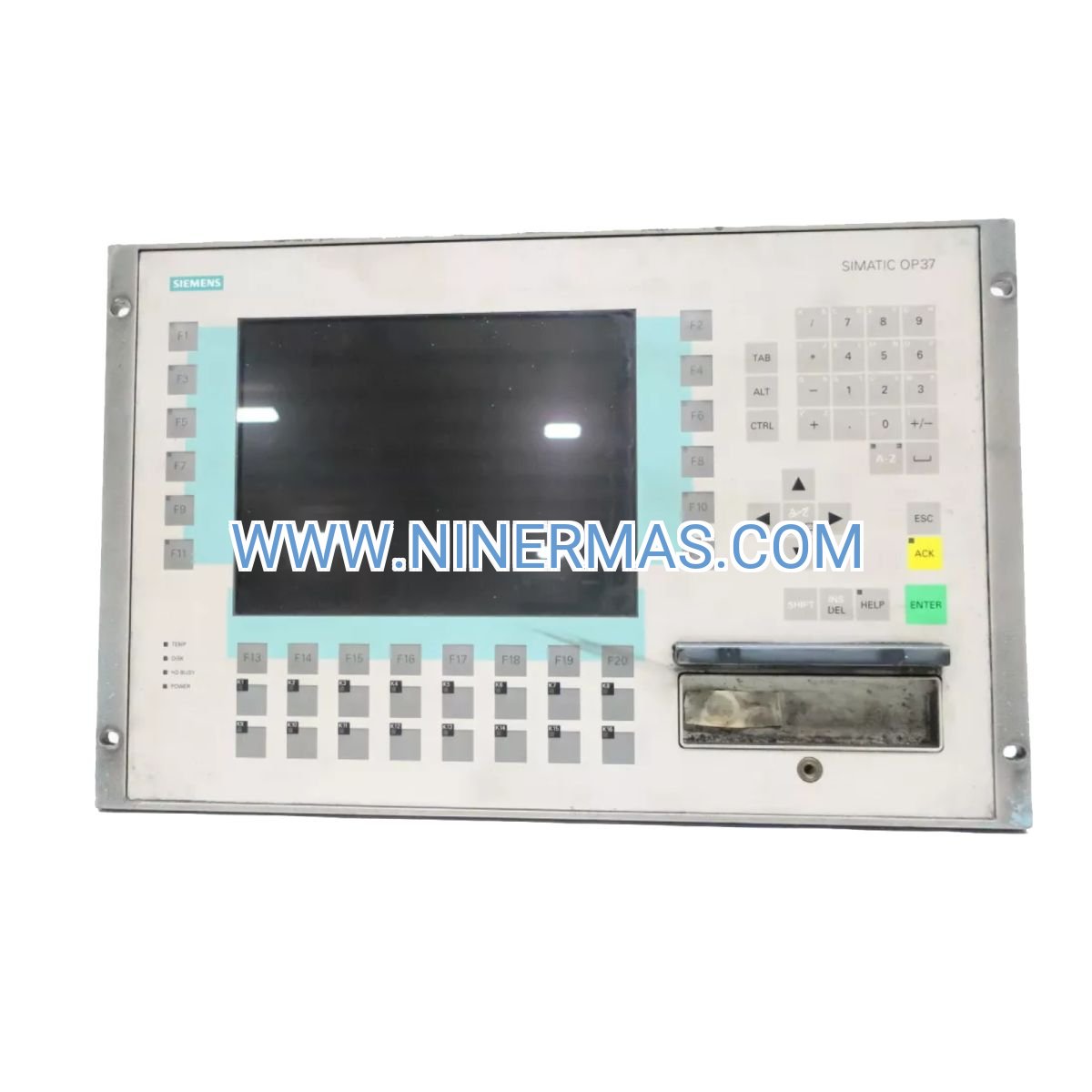

Siemens OP37 Text Operator Panel (Industrial-Grade Process Interface)

The Siemens 6AV3637-1ML00-0FX0 is a field-proven text-based operator panel engineered for mission-critical industrial automation environments. Designed for seamless PROFIBUS and MPI integration, this compact HMI terminal delivers reliable process monitoring, parameter adjustment, and alarm management in space-constrained control cabinets. Built to withstand electromagnetic interference, temperature extremes, and continuous operation, the OP37 serves as the trusted interface between operators and automated systems across manufacturing, utilities, and process industries.

Targeting maintenance engineers, system integrators, and plant operators who demand robust performance without graphical complexity, this panel excels where clear text-based communication and proven Siemens quality are paramount. Its monochrome STN LCD display provides excellent readability under varying lighting conditions, while the IP65-rated front panel ensures protection against dust and water ingress when properly installed.

Key differentiators include native compatibility with Siemens S7 PLC families, straightforward ProTool configuration workflow, and a track record of 10-15 year operational lifespans in harsh industrial settings. Whether retrofitting legacy systems or deploying new automation projects, the OP37 6AV3637-1ML00-0FX0 delivers cost-effective human-machine interaction with minimal training requirements.

Core Features & Business Value

→ PROFIBUS-DP & MPI Dual Protocol Support
Native communication with Siemens S7-300/400 controllers eliminates protocol conversion overhead, reducing commissioning time by 30-40% compared to third-party HMI solutions while ensuring deterministic data exchange.

✓ IP65 Front Panel Protection
Sealed membrane keypad and gasket-mounted display withstand washdown procedures, chemical splashes, and dusty environments—critical for food processing, pharmaceutical, and heavy industry applications where equipment longevity directly impacts ROI.

• 4-Line Monochrome Text Display
High-contrast STN LCD technology maintains readability in direct sunlight and low-light conditions without backlight degradation issues common in color displays, reducing maintenance calls and operator errors during shift transitions.

✓ 24V DC Industrial Power Supply
Direct connection to standard control cabinet power rails eliminates external adapters and simplifies electrical design, while wide input tolerance (19.2-28.8V) provides immunity against voltage fluctuations in unstable grid conditions.

→ Compact Panel-Mount Footprint
Space-efficient design (approximately 188mm × 144mm cutout) fits existing cabinet layouts without costly modifications, enabling cost-effective upgrades of obsolete operator interfaces in brownfield installations.

• ProTool Configuration Software
Intuitive engineering environment accelerates screen development with reusable templates, alarm libraries, and simulation modes—typical projects achieve 50% faster deployment versus custom-coded interfaces.

Typical Application Scenarios

Manufacturing Assembly Lines
Operators monitor production counts, adjust cycle times, and acknowledge fault conditions on packaging machinery, injection molding systems, and conveyor networks. The OP37's text-based interface eliminates touchscreen calibration issues in glove-wearing environments while providing instant access to critical process variables.

Water & Wastewater Treatment Facilities
Plant technicians control pump sequencing, view tank levels, and respond to high/low alarms across distributed SCADA networks. PROFIBUS connectivity enables centralized data logging while local OP37 panels provide fail-safe manual control during network outages—a regulatory requirement in many jurisdictions.

Chemical Batch Processing
Process engineers input recipe parameters, initiate batch sequences, and track phase completion in reactor control systems. The panel's sealed construction prevents contamination from airborne particulates, while alarm prioritization ensures critical safety interlocks receive immediate attention.

Building Automation & HVAC Systems
Facility managers adjust setpoints for chillers, boilers, and air handling units through standardized Siemens building management platforms. The OP37's low power consumption and fanless design suit mechanical room installations where heat dissipation and acoustic noise are concerns.

Material Handling & Warehouse Logistics
Warehouse supervisors control sortation systems, pallet conveyors, and automated storage/retrieval equipment. Rugged keypad construction withstands repetitive use in high-throughput operations, while multi-language support accommodates diverse workforces without hardware changes.

Technical Parameters & Selection Guide

Selection Criteria: Choose the OP37 6AV3637-1ML00-0FX0 when your application requires reliable text-based operator interaction with Siemens S7 PLCs in environments where graphical HMI capabilities are unnecessary. Ideal for retrofit projects replacing obsolete OP17 or OP27 panels, or new installations prioritizing proven technology over advanced visualization. For applications demanding color graphics, touchscreen input, or Ethernet connectivity, consider upgrading to SIMATIC Comfort Panels (KTP or TP series).

Extended Functions & Integration Capabilities

Multi-Language Support: ProTool enables configuration of up to 8 language variants within a single project, allowing runtime language switching via function keys—essential for multinational facilities or contract manufacturing operations serving diverse clients.

Alarm Management: Hierarchical alarm buffering stores up to 100 events with timestamps, enabling post-incident analysis and compliance documentation. Configurable alarm classes (warning/fault/maintenance) with distinct acoustic signals improve operator response times during abnormal conditions.

Recipe Management: Store and recall up to 100 parameter sets directly on the panel, facilitating rapid product changeovers in batch manufacturing without PLC reprogramming. Password-protected recipe editing prevents unauthorized modifications.

Trend Visualization: While primarily text-based, the OP37 supports simple bar-graph representations of analog values, providing at-a-glance process monitoring for variables like temperature, pressure, or flow rate within the 4-line display constraints.

Customization Options: Ninermas offers pre-configured OP37 panels with customer-specific screen layouts, alarm libraries, and communication settings—reducing on-site commissioning time by 60% for multi-unit deployments. Custom membrane overlays with application-specific legends available for orders of 10+ units.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 2-3 business days via DHL/FedEx Express. Typical transit time to North America: 5-7 days; Europe: 3-5 days; Asia-Pacific: 2-4 days. All shipments include full tracking and signature confirmation.

Custom Configuration: Pre-programmed panels with customer-specific ProTool projects require 7-10 business days for engineering validation and testing. Expedited 4-day turnaround available for urgent projects (additional fees apply).

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service—submit RMA request and receive replacement unit before returning defective hardware, minimizing production downtime.

Technical Support: Lifetime email and phone support from Siemens-certified engineers. Assistance includes ProTool configuration troubleshooting, PROFIBUS diagnostics, PLC communication setup, and hardware installation guidance. Average response time: <4 hours during business hours (GMT+8).

Documentation Package: Every OP37 ships with installation manual, ProTool quick-start guide, PROFIBUS wiring diagrams, and dimensional drawings in PDF format. CAD files (DXF/STEP) available upon request for cabinet design integration.

Frequently Asked Questions

How does the OP37 interface with non-Siemens PLCs or third-party controllers?
While optimized for Siemens S7 families, the OP37 can communicate with any PROFIBUS-DP slave device adhering to EN 50170 standards. However, ProTool configuration requires Siemens-specific data blocks; integration with Allen-Bradley, Mitsubishi, or Modbus systems necessitates protocol gateways and custom driver development—typically not cost-effective compared to native HMI solutions for those platforms.

What are the power consumption specifications for battery backup sizing?
Typical power draw is 10W at 24V DC (approximately 0.42A). For UPS or battery backup calculations, assume 15W peak during backlight activation and communication bursts. A 100Ah 24V battery bank can sustain one OP37 panel for approximately 160 hours under continuous operation, though practical runtime depends on PLC power requirements and other connected loads.

Can the OP37 display real-time process trends or historical data graphs?
The OP37's text-based architecture limits graphical capabilities to simple bar charts within the 4-line display. For comprehensive trending, data logging, and historical analysis, consider upgrading to SIMATIC Panels with TFT displays (e.g., KTP700 or TP900) or implement server-side data historians accessible via SCADA workstations.

Is the OP37 suitable for outdoor installations or extreme temperature environments?
The specified 0°C to +50°C operating range suits most indoor industrial settings. For outdoor deployment, install within NEMA 4X or IP66-rated enclosures with climate control (heaters/cooling fans). Extended temperature variants are not available for the OP37 series; applications below 0°C or above 50°C require alternative HMI families like SIMATIC Mobile Panels or ruggedized third-party solutions.

What is the expected display lifespan and are replacement LCDs available?
Monochrome STN LCDs typically provide 50,000+ hours of operation (approximately 5-6 years of continuous use) before noticeable contrast degradation. Siemens offers factory refurbishment services for OP37 units, including LCD replacement, at approximately 40-50% of new unit cost. Ninermas can facilitate RMA processing and provide loaner units during refurbishment (2-3 week turnaround).

How do I migrate existing OP17 or OP27 projects to the OP37 platform?
ProTool includes project conversion utilities supporting OP17/OP27 to OP37 migration. Typical conversion success rate exceeds 85% for standard screen layouts and alarm configurations. Custom scripts, advanced functions, or third-party add-ons may require manual reconfiguration. Ninermas offers migration services at $150/hour for complex projects requiring validation testing and documentation updates.

Ready to Enhance Your Process Control Interface?

The Siemens OP37 6AV3637-1ML00-0FX0 delivers proven reliability for industrial automation applications demanding robust text-based operator interaction. Whether upgrading legacy systems or deploying new control architectures, our team provides expert guidance from specification through commissioning.

Contact our automation specialists today: Submit technical inquiries via sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Request a detailed quotation including custom configuration options, volume pricing, and integration support tailored to your project requirements.
