TP1200 Comfort Panel – Industrial-Grade 12-Inch Touch Interface

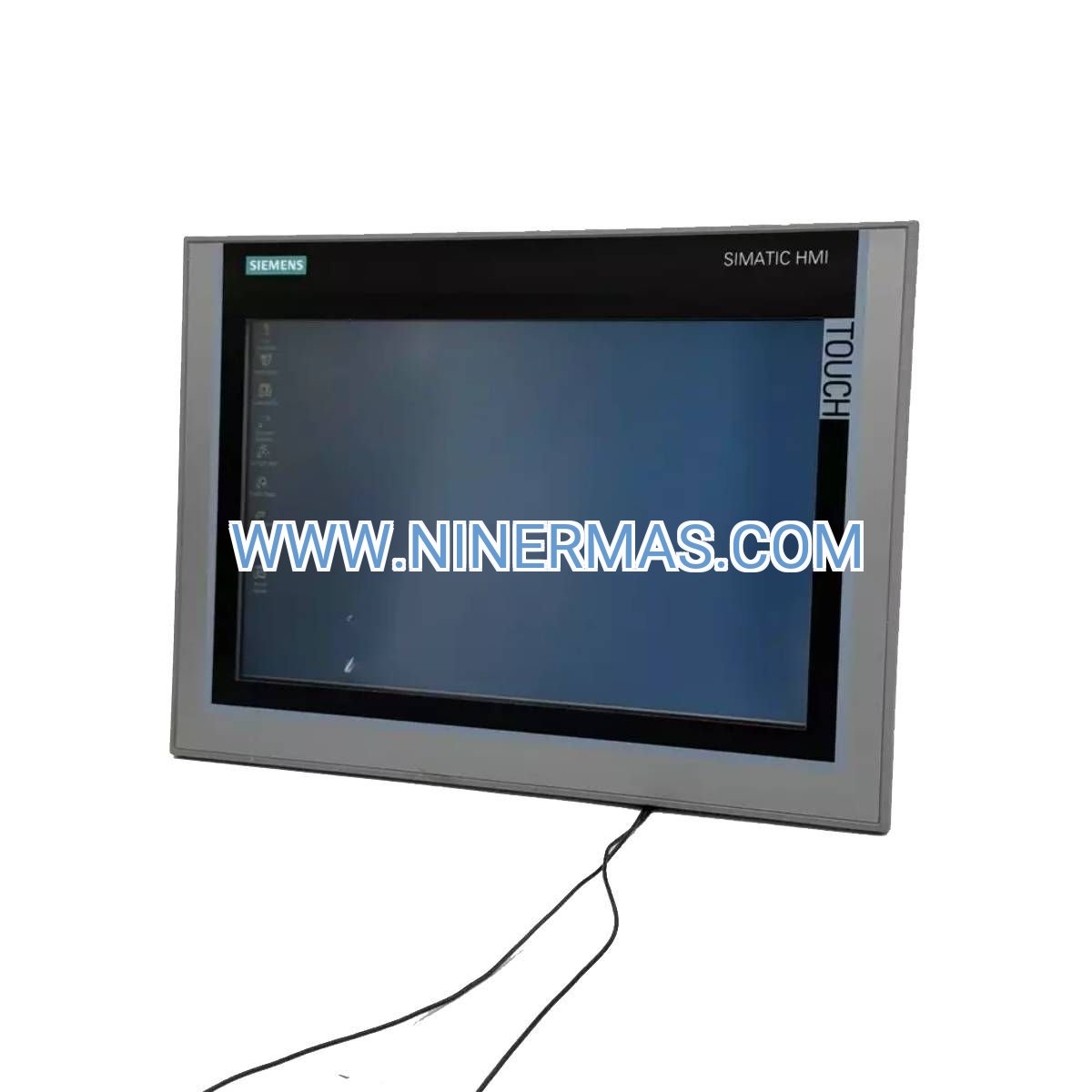

The Siemens TP1200 Comfort Panel (6AV2124-0MC01-0AX0) represents a premium solution for industrial visualization and operator control. Featuring a 12-inch widescreen TFT display with 1280×800 WXGA resolution, this human-machine interface delivers crystal-clear graphics and responsive touch operation across manufacturing, process control, and automation environments.

Designed for engineers and plant operators who demand reliability, the TP1200 integrates seamlessly with SIMATIC S7 controllers through PROFINET and PROFIBUS interfaces. Its robust construction, IP65-rated front panel, and extended temperature range ensure dependable performance in challenging industrial conditions.

Whether you're upgrading legacy systems or deploying new automation projects, the TP1200 Comfort Panel provides the visualization power, connectivity options, and programming flexibility needed for modern industrial operations.

Core Features & Technical Advantages

→ High-Resolution Widescreen Display
12-inch TFT LCD with 1280×800 pixels and 16 million colors delivers exceptional clarity for complex process graphics, trend charts, and alarm displays. The widescreen format maximizes information density while maintaining readability.

→ Industrial-Grade Touch Technology
Analog resistive touchscreen ensures reliable operation even when wearing gloves or in wet conditions. Designed for 24/7 operation with proven durability in harsh manufacturing environments.

→ Powerful Processing Architecture
ARM Cortex processor with 24 MB configuration memory and 12 MB user memory handles sophisticated visualization projects, recipe management, and real-time data logging without performance degradation.

→ Comprehensive Connectivity Suite
Built-in PROFINET interface for high-speed PLC communication, MPI/PROFIBUS DP port for legacy system integration, and USB 2.0 for project transfers and data backup. Supports multiple simultaneous connections.

→ TIA Portal Integration
Fully compatible with Siemens TIA Portal engineering environment and WinCC Comfort software. Streamlines project development, reduces commissioning time, and enables centralized asset management across your automation infrastructure.

→ Rugged Environmental Protection
IP65-rated front panel when properly mounted, operating temperature range 0°C to +50°C, and vibration-resistant design meet demanding industrial specifications for reliability and longevity.

Application Scenarios & Industry Solutions

Manufacturing & Assembly Lines
Monitor production metrics, control conveyor systems, and manage quality checkpoints. The TP1200's responsive interface enables operators to quickly adjust parameters, acknowledge alarms, and maintain optimal throughput in automotive, electronics, and consumer goods manufacturing.

Process Control & Chemical Plants
Visualize tank levels, flow rates, temperature profiles, and batch recipes with precision. Real-time trend displays and alarm management help process engineers maintain tight control over critical parameters while ensuring safety compliance.

Water & Wastewater Treatment
Oversee pump stations, filtration systems, and chemical dosing operations from a centralized interface. The panel's reliability and clear graphics support 24/7 monitoring requirements in municipal and industrial water treatment facilities.

Building Automation & HVAC
Control heating, ventilation, air conditioning, and lighting systems across commercial buildings and campuses. Energy consumption tracking and scheduling functions help facility managers optimize operational efficiency.

Material Handling & Logistics
Coordinate automated storage and retrieval systems, sortation equipment, and packaging lines. The TP1200's fast response time and multi-zone display capabilities enhance warehouse automation and distribution center operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the TP1200 Comfort when your application requires a balance between screen size and panel footprint. The 12-inch format suits control cabinets and machine-mounted installations where visibility is critical but space is constrained. For larger visualization needs, consider the TP1900 Comfort; for compact applications, evaluate the TP700 Comfort or KTP1200 Basic models.

Extended Functions & Integration Capabilities

✓ Recipe Management: Store and recall up to 500 recipes with parameter sets for different products or production modes. Operators can switch between configurations with a single touch, reducing changeover time and minimizing errors.

✓ Alarm & Event Logging: Comprehensive alarm system with priority levels, acknowledgment tracking, and historical archiving. Configurable alarm buffers help maintenance teams diagnose recurring issues and improve system reliability.

✓ Trend & Data Visualization: Real-time and historical trend curves display up to 8 process variables simultaneously. Export data via USB for analysis in Excel or specialized reporting tools.

✓ Multi-Language Support: Configure up to 32 languages in a single project. Operators can switch interface languages on-the-fly to accommodate diverse workforces in global manufacturing facilities.

✓ Security & Access Control: User management with password protection and permission levels restricts critical functions to authorized personnel. Audit trails track operator actions for compliance documentation.

✓ Remote Access & Diagnostics: Enable remote monitoring and troubleshooting via PROFINET connection. Service technicians can access the HMI interface from engineering workstations for faster problem resolution.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-5 business days via express courier. Typical transit time to major industrial centers is 5-7 business days. Expedited shipping available upon request.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes replacement or repair at our discretion, with return shipping covered for confirmed warranty claims.

Technical Support: Pre-sales engineering assistance for product selection and system design. Post-sales support includes TIA Portal configuration guidance, communication setup, and troubleshooting via email and phone.

Documentation Package: Each unit includes installation manual, quick start guide, and dimensional drawings. Complete technical documentation, CAD files, and sample WinCC Comfort projects available for download from Siemens support portal.

Frequently Asked Questions

What software is required to program the TP1200 Comfort Panel?
You need Siemens TIA Portal V13 or higher with a WinCC Comfort license. The Advanced license is recommended for full functionality including recipe management and extended alarm features. TIA Portal provides an integrated engineering environment for both PLC programming and HMI configuration.

Can the TP1200 communicate with non-Siemens PLCs or third-party devices?
Yes, the panel supports standard industrial protocols including Modbus TCP via PROFINET. Third-party device integration is possible through TIA Portal's communication drivers, though Siemens SIMATIC controllers offer the most seamless integration and full feature support.

How does the TP1200 Comfort differ from the KTP1200 Basic panel?
The Comfort series offers significantly more memory (24 MB vs 4 MB configuration), advanced features like recipe management and VB scripting, and support for more complex visualization projects. The Basic panel is cost-optimized for simpler applications with fewer screens and tags.

Is the display readable in high ambient light conditions or direct sunlight?
The TP1200 features a high-brightness TFT display optimized for industrial lighting conditions. While suitable for most indoor manufacturing environments, direct sunlight exposure should be avoided. For outdoor or extremely bright applications, consider models with enhanced brightness specifications.

What mounting options are available and how is IP65 protection achieved?

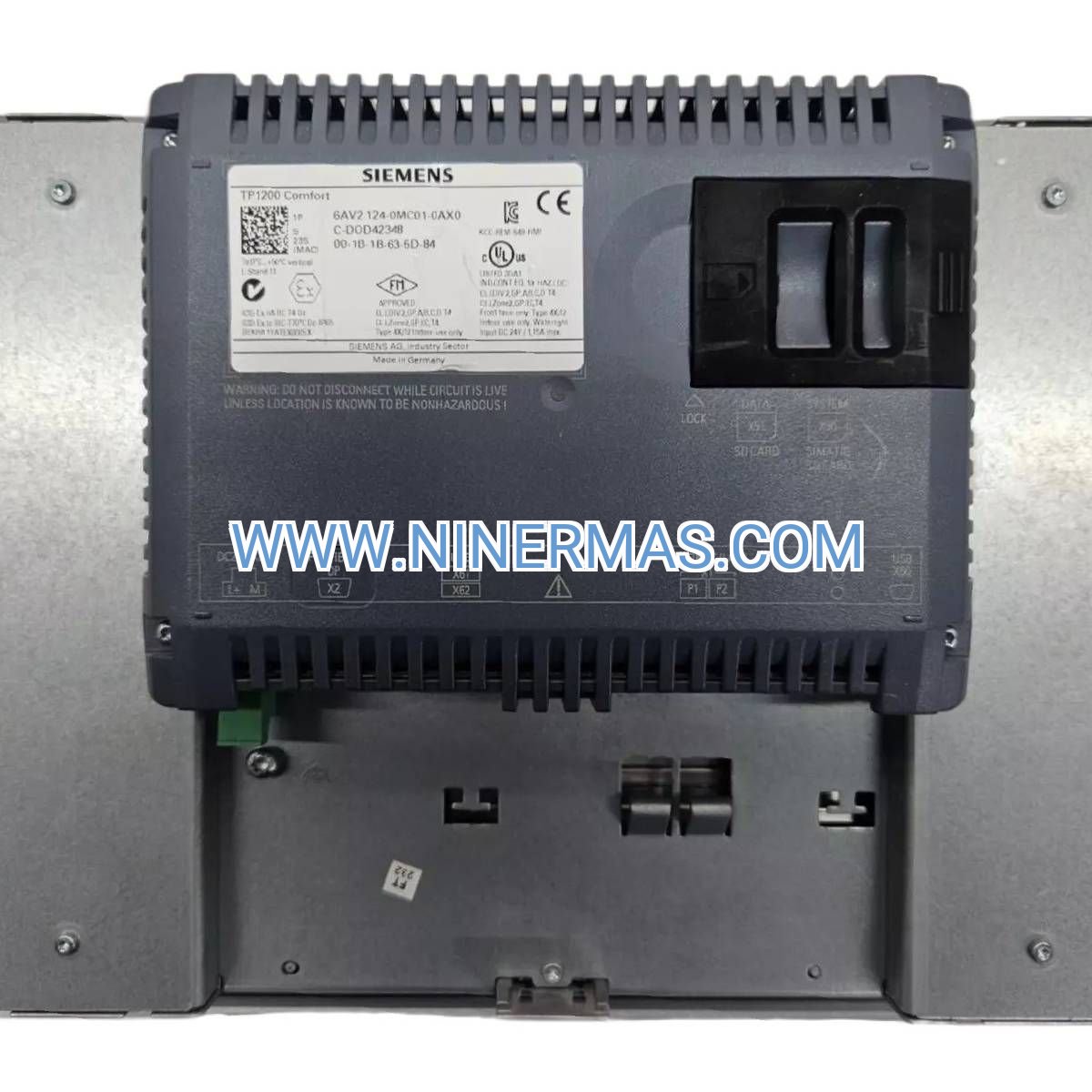

The panel is designed for panel cutout mounting with a gasket seal between the HMI front and the mounting surface. IP65 protection applies to the front panel only when installed according to Siemens mounting instructions. Rear enclosure protection is IP20, requiring installation in a suitable control cabinet.

Can I upgrade from an older HMI model to the TP1200 Comfort?
Yes, migration tools in TIA Portal facilitate project conversion from legacy Siemens HMI panels including OP/TP models and WinCC flexible projects. Some manual adjustments may be required depending on the complexity of your existing application and use of discontinued features.

Get Started with Your TP1200 Comfort Panel

Ready to enhance your industrial automation interface? Contact our technical sales team for application-specific recommendations, volume pricing, or integration support. We provide detailed quotations within 24 hours and can arrange sample units for evaluation in your facility.
