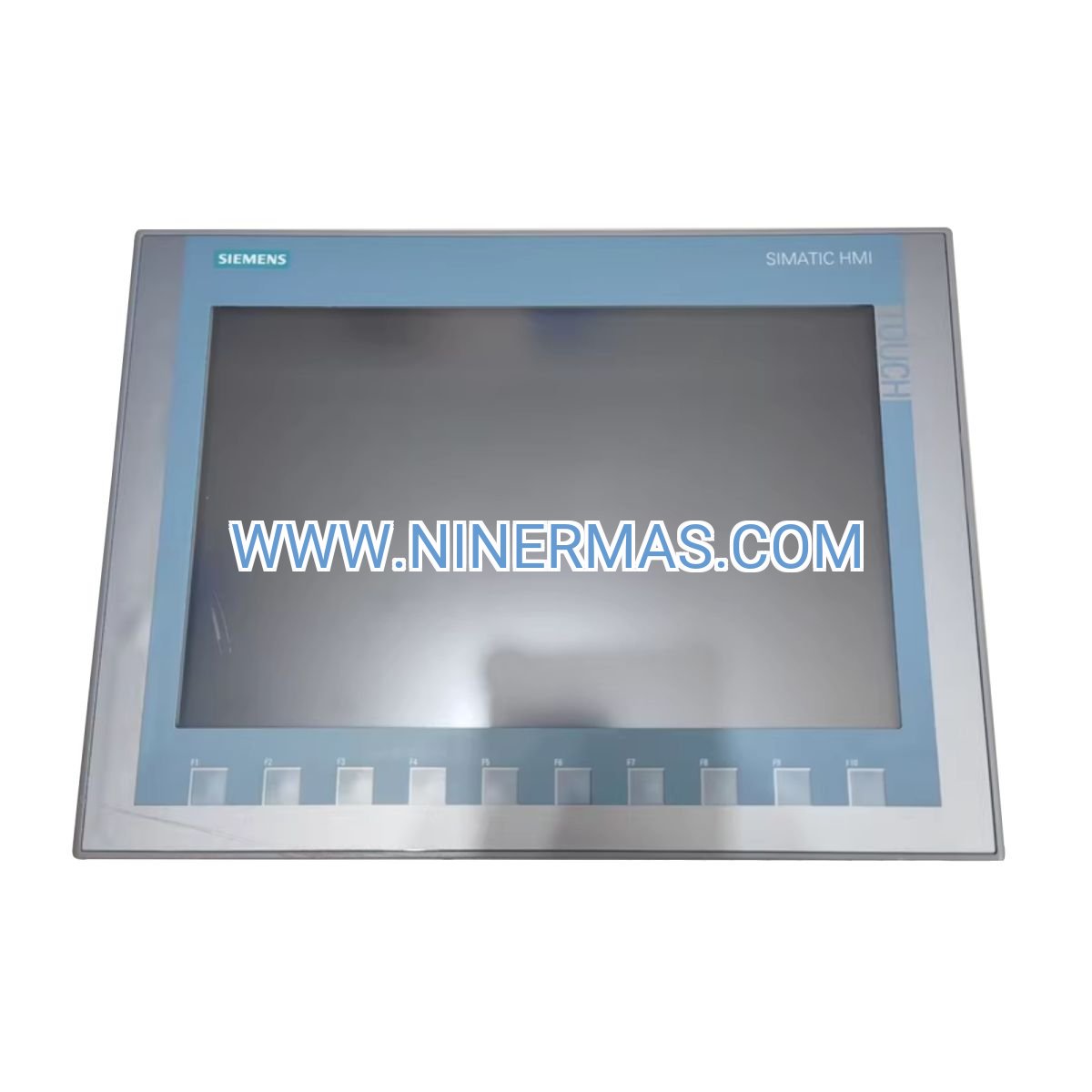

KTP1200 Basic HMI Panel – Industrial-Grade Operator Interface

The Siemens 6AV2123-2MB03-0AX0 delivers enterprise-class visualization and control capabilities for demanding industrial environments. Featuring a 12-inch high-resolution touchscreen with integrated function keys, this SIMATIC HMI panel bridges the gap between operators and automated systems through PROFINET-based real-time communication. Designed for manufacturing floors, process facilities, and OEM machinery, it transforms complex automation data into actionable insights while maintaining IP65-rated durability at the operator interface.

Built on Siemens' proven SIMATIC platform, this Basic panel variant offers the essential feature set required for effective machine-level control without unnecessary complexity. Engineers benefit from seamless TIA Portal integration, enabling unified project development across controllers and visualization devices. Operators gain responsive touch control, clear alarm presentation, and intuitive navigation through production processes—all backed by industrial-grade components rated for continuous operation in harsh conditions.

Whether you're modernizing legacy control systems, deploying new production lines, or standardizing operator interfaces across multiple facilities, the KTP1200 Basic provides the reliability, connectivity, and engineering efficiency that industrial automation demands. Its compact footprint, straightforward panel-mount installation, and native PROFINET support eliminate integration barriers while delivering professional-grade performance.

Core Features & Technical Advantages

→ 12-Inch TFT Display with 65,536 Colors
SVGA resolution (800×600 pixels) ensures crisp text rendering and detailed graphics visualization, enabling operators to monitor multiple process parameters simultaneously without eye strain during extended shifts.

✓ Integrated PROFINET Interface (1-Port Switch)
Native industrial Ethernet connectivity eliminates gateway hardware costs and configuration complexity, providing deterministic communication with SIMATIC S7 controllers and distributed I/O systems at cycle times suitable for real-time control.

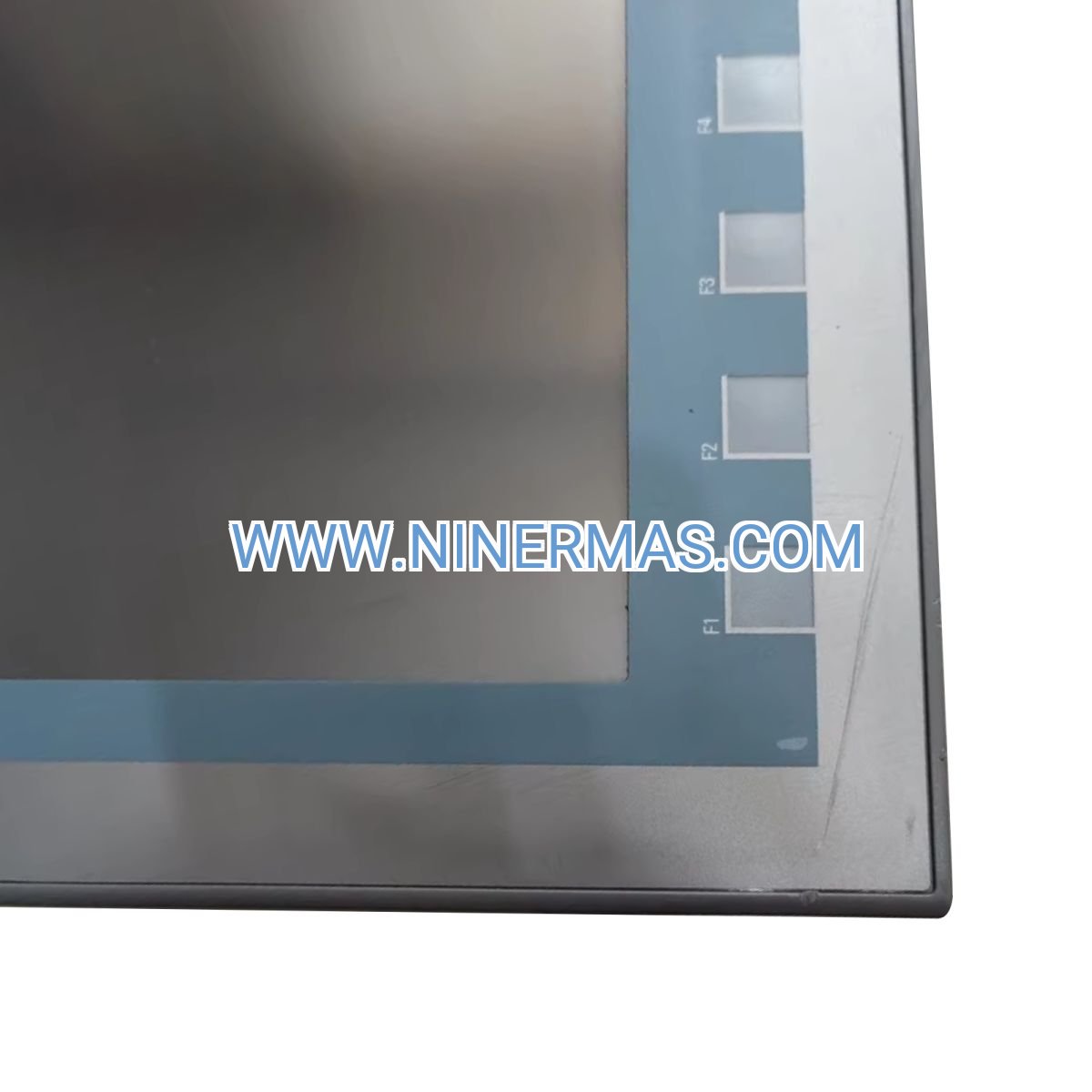

→ Hybrid Touch + Key Operation
Combines capacitive touchscreen responsiveness with dedicated function keys for critical operations, allowing gloved operation and providing tactile feedback for safety-critical acknowledgments in process control scenarios.

✓ TIA Portal Engineering Environment
Unified configuration within the same software framework used for PLC programming accelerates commissioning, simplifies version control, and reduces training requirements for engineering teams managing integrated automation projects.

→ 12 MB Configuration Memory
Sufficient storage capacity for comprehensive visualization projects including trend buffers, alarm logs, recipe databases, and multi-language text libraries without external memory expansion requirements.

✓ IP65 Front Panel Protection
Sealed front surface withstands washdown procedures, dust exposure, and incidental liquid contact when properly mounted, meeting hygiene standards for food processing and pharmaceutical manufacturing environments.

Application Scenarios & Industry Solutions

Discrete Manufacturing & Assembly Lines
Provide production operators with real-time equipment status, cycle counters, and quality metrics. The panel's alarm management capabilities highlight deviations immediately, while recipe functions enable rapid product changeovers without reprogramming—reducing downtime by up to 40% compared to parameter-based adjustments.

Process Control & Batch Operations
Visualize tank levels, temperature profiles, and flow rates across multi-stage chemical or pharmaceutical processes. Trend displays reveal process drift before quality issues emerge, while batch reporting functions automatically document production parameters for regulatory compliance and traceability requirements.

Packaging & Material Handling Systems
Monitor conveyor speeds, reject rates, and throughput metrics on high-speed packaging lines. Operators can adjust speeds, acknowledge jams, and coordinate upstream/downstream equipment through intuitive graphical interfaces that reduce training time for temporary staff during peak production periods.

Water Treatment & Infrastructure
Centralize control of pumps, valves, and filtration systems across distributed facilities. Remote monitoring capabilities combined with alarm notification ensure rapid response to abnormal conditions, while historical trending supports predictive maintenance scheduling based on equipment runtime and cycle counts.

OEM Machine Builders
Standardize operator interfaces across product lines with consistent look-and-feel, reducing customer training requirements. The panel's compact design fits space-constrained machine enclosures, while PROFINET connectivity simplifies integration with diverse controller platforms and third-party devices.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KTP1200 Basic when your application requires reliable operator visualization with PROFINET connectivity but doesn't demand advanced features like web server functionality, PDF reporting, or multi-client access. For applications requiring more than 12 MB project memory, extended temperature ranges (-20°C to +60°C), or additional communication protocols, consider the TP1200 Comfort series. The Basic variant excels in cost-sensitive projects where core HMI functionality and TIA Portal integration are priorities.

Extended Capabilities & Integration Options

Multi-Language Support: Configure up to 32 languages within a single project, enabling global machine deployment without hardware changes. Runtime language switching allows operators to select their preferred interface language, improving usability in multinational facilities.

Alarm Management System: Hierarchical alarm configuration with priority levels, acknowledgment requirements, and time-stamped logging. Alarm buffers retain up to 2,000 events, supporting root cause analysis and compliance documentation for quality management systems.

Recipe & Data Logging: Store production parameters as recipes for rapid product changeovers. Data logging functions capture process variables to internal memory or network drives, enabling trend analysis and continuous improvement initiatives based on historical performance data.

Security Features: User management with password-protected access levels restricts critical functions to authorized personnel. Audit trail capabilities track operator actions and parameter changes, meeting traceability requirements in regulated industries.

SIMATIC Integration: Native compatibility with S7-1200, S7-1500, S7-300, and S7-400 controllers eliminates protocol conversion overhead. Symbolic addressing and automatic tag import from TIA Portal projects reduce engineering errors and accelerate commissioning timelines.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier services. International shipments include full customs documentation and HS code classification to expedite clearance procedures.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers component defects and workmanship issues. Warranty service includes advance replacement options to minimize production downtime during failure events.

Technical Support: Access to application engineers with SIMATIC certification for configuration assistance, troubleshooting guidance, and integration planning. Support channels include email, phone, and remote desktop sessions for complex diagnostic scenarios.

Documentation Package: Each panel ships with installation manual, quick start guide, dimensional drawings, and certification documents (CE, UL). Downloadable resources include sample TIA Portal projects, faceplate libraries, and communication function blocks.

Frequently Asked Questions

What PROFINET controllers are compatible with the KTP1200 Basic panel?
The 6AV2123-2MB03-0AX0 communicates with all SIMATIC S7 controllers supporting PROFINET IO, including S7-1200 (firmware V4.0+), S7-1500, S7-300 with CP343-1 modules, and S7-400 with CP443-1 interfaces. Third-party PROFINET controllers conforming to IEC 61158 specifications are also supported.

Can I migrate existing projects from older OP277 or TP177 panels to this KTP1200 Basic?
Yes, TIA Portal includes migration tools that convert ProTool and WinCC flexible projects to WinCC Basic format. While manual adjustments may be required for deprecated functions, the migration wizard handles tag mapping, screen layouts, and alarm configurations automatically, typically reducing conversion effort by 60-70%.

Does the panel support remote access for diagnostics and monitoring?
The Basic variant does not include integrated web server or VNC server functionality. Remote access requires a separate SIMATIC HMI panel with Comfort or Advanced features, or implementation of controller-based web servers that publish process data independently of the HMI panel.

What is the expected touchscreen lifespan in high-usage applications?
The capacitive touchscreen is rated for 50 million touches minimum, equivalent to approximately 10 years of continuous operation at 200 touches per hour. Industrial-grade construction ensures consistent performance across the full operating temperature range without calibration drift.

How do I implement recipe management for product changeovers?
WinCC Basic provides recipe view objects that link to controller data blocks. Operators select recipes from dropdown menus, and the HMI automatically transfers parameter sets to the PLC. Recipe data can be stored on the panel's internal memory or network shares, with import/export functions supporting CSV format for external editing.

Is the panel suitable for outdoor installation or direct sunlight exposure?
No, the KTP1200 Basic is designed for indoor industrial environments with controlled lighting. Direct sunlight exposure reduces display readability and may cause overheating. For outdoor applications, specify panels with high-brightness displays (≥1000 cd/m²) and extended temperature ratings, or install within climate-controlled enclosures.

Start Your Automation Project Today

Ready to enhance your machine control capabilities with proven SIMATIC technology? Our automation specialists are available to discuss your specific application requirements, recommend optimal configurations, and provide detailed quotations including volume pricing for multi-unit deployments.

Contact our team: Share your project specifications, and we'll respond within 4 business hours with technical recommendations and delivery timelines tailored to your production schedule.
