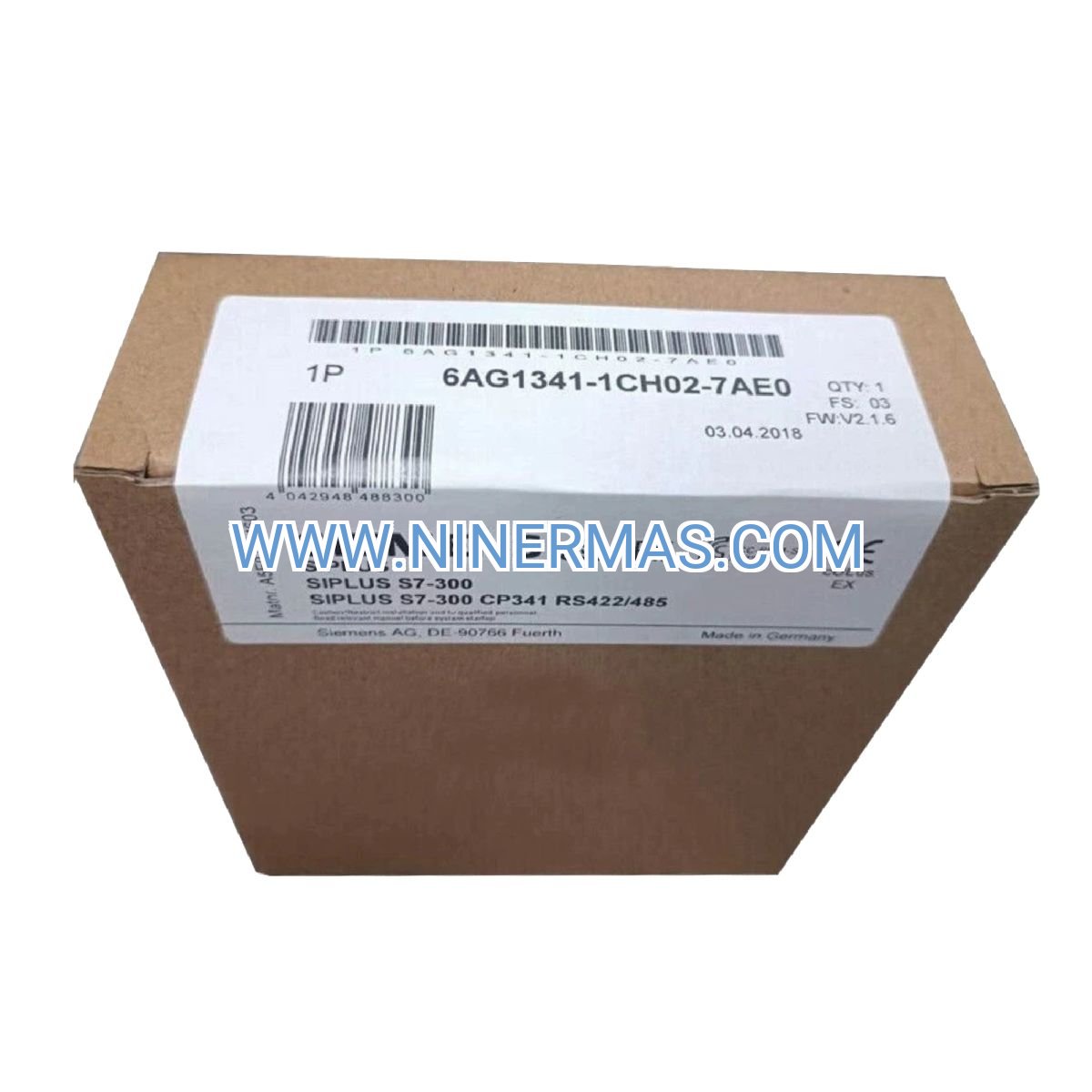

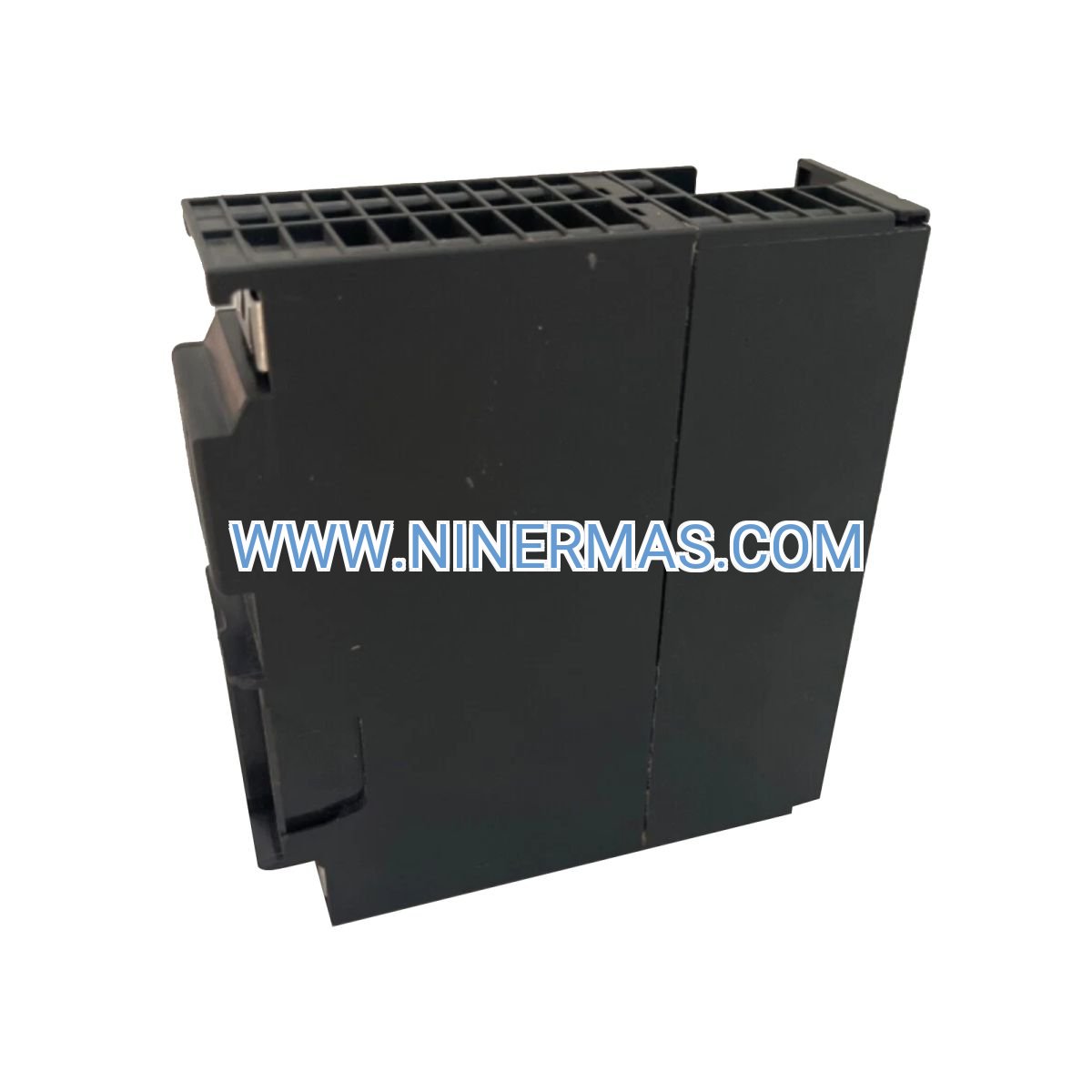

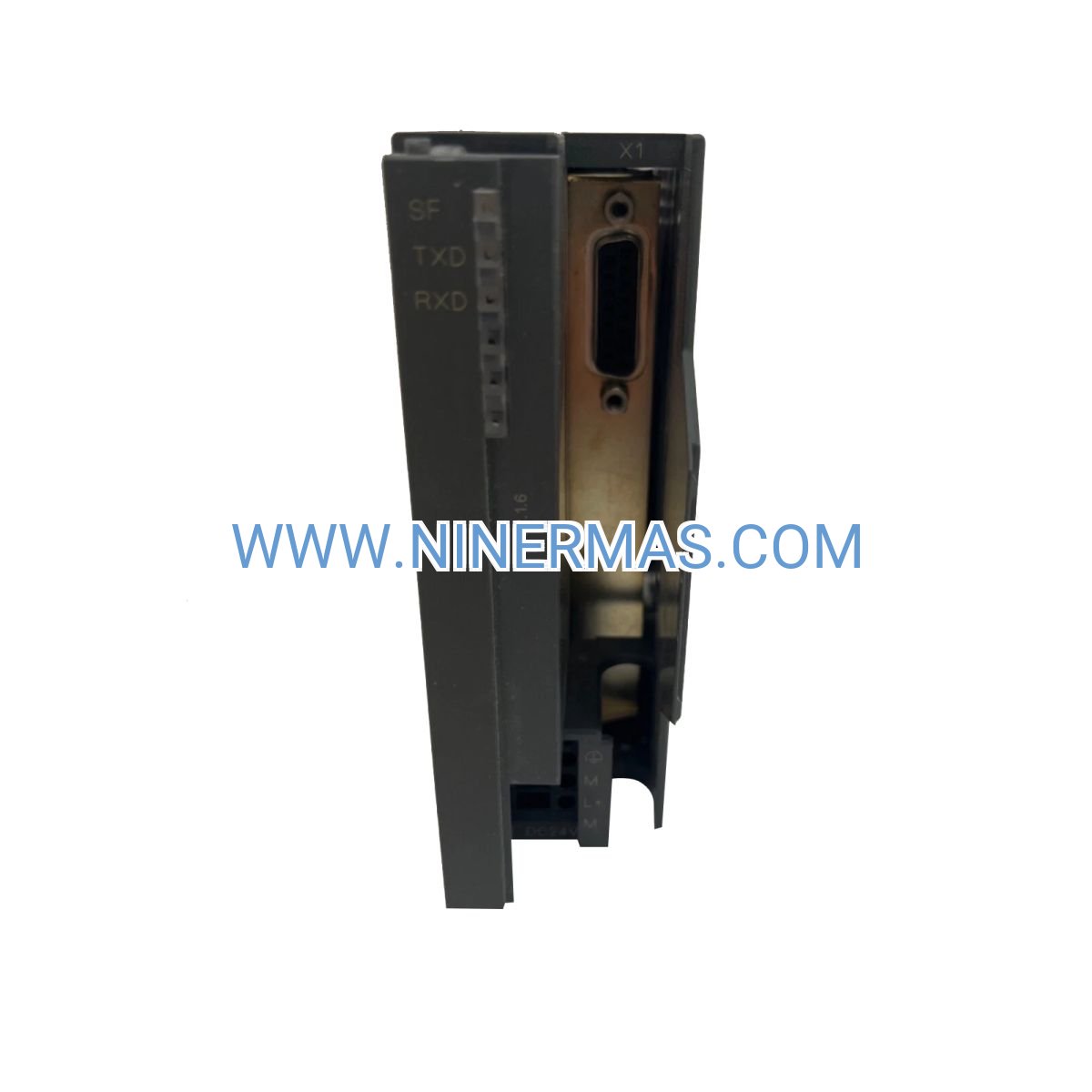

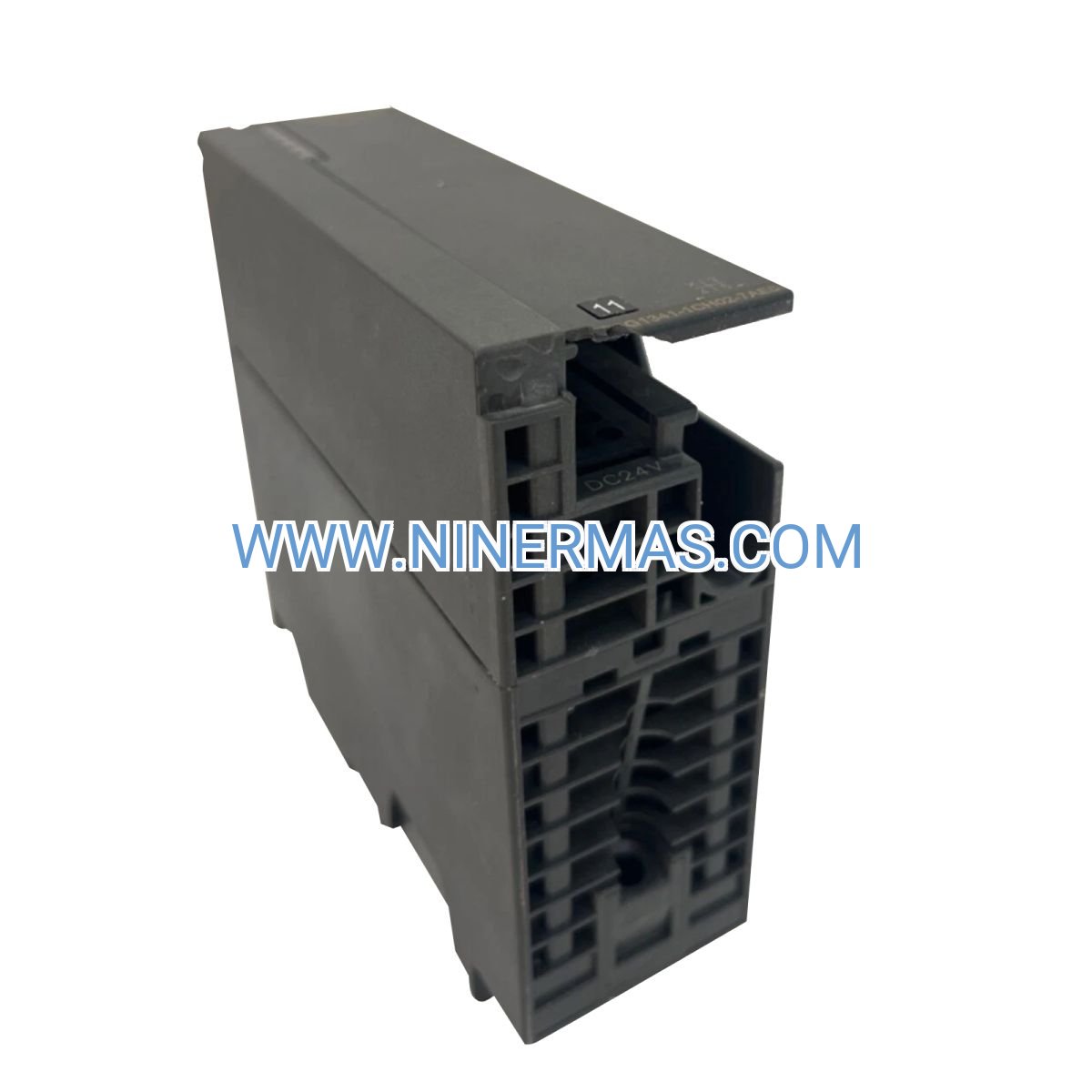

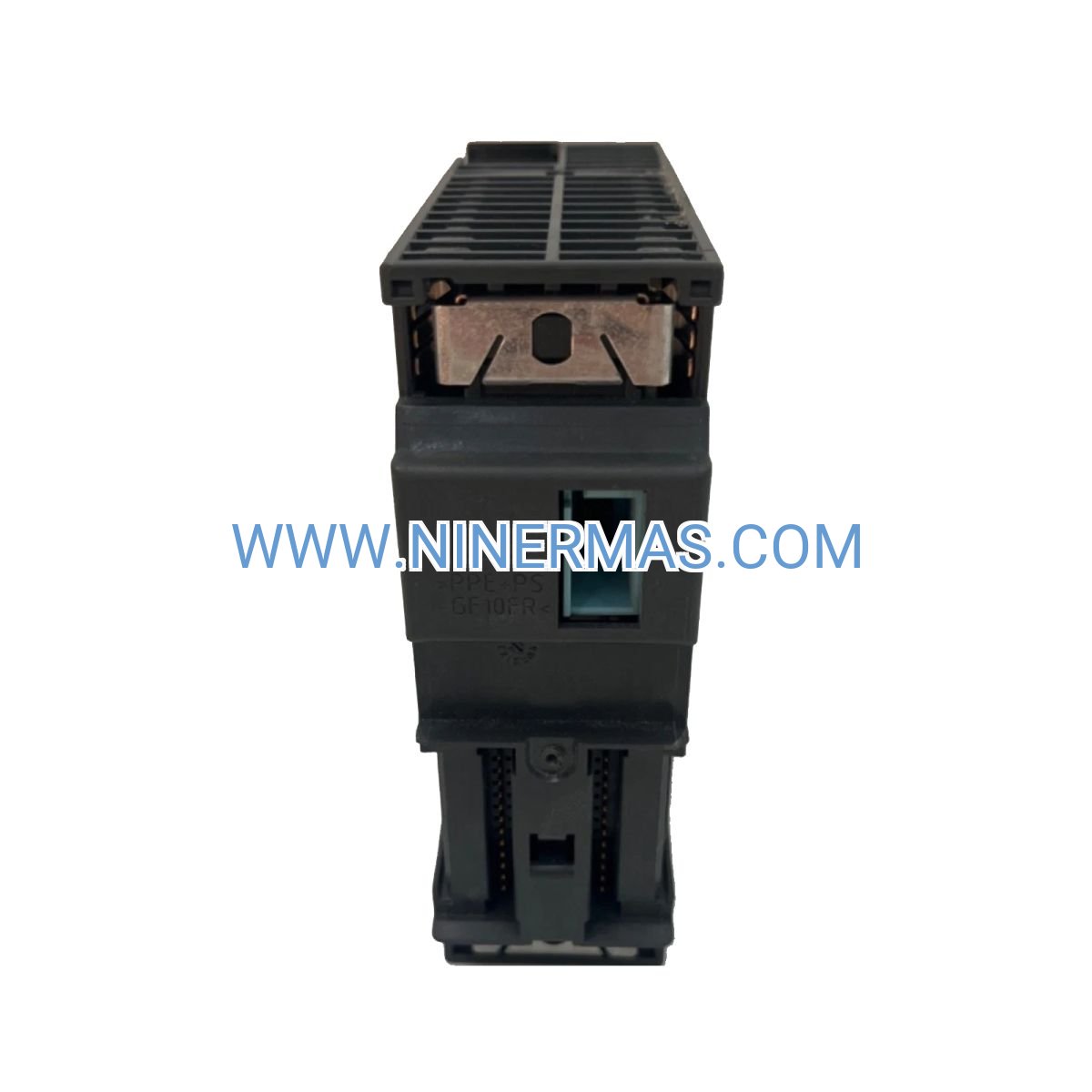

SIPLUS S7-300 CP 341 Communication Module (Industrial-Grade Serial Interface)

The Siemens 6AG1341-1CH02-7AE0 represents a ruggedized serial communication solution engineered specifically for S7-300 automation systems operating in extreme industrial conditions. This SIPLUS-rated processor delivers reliable RS-422/RS-485 connectivity across temperature ranges from -40°C to +70°C, enabling mission-critical data exchange in environments where conventional electronics cannot survive. Designed for process industries, outdoor installations, and chemically aggressive atmospheres, this module bridges your PLC infrastructure with legacy equipment, third-party instruments, and distributed I/O networks through industry-standard serial protocols.

Manufacturing facilities, water treatment plants, and energy infrastructure operators rely on this communication processor to maintain uninterrupted serial data flow in challenging conditions. Whether you're integrating barcode scanners on a production line, connecting Modbus-enabled drives in a wastewater facility, or linking SCADA systems in an outdoor substation, the CP 341 SIPLUS variant ensures deterministic communication performance regardless of ambient temperature extremes or atmospheric contamination.

Key differentiators include conformal coating for corrosion resistance, galvanic isolation up to 1500V DC for electrical noise immunity, and hardware-based protocol processing that preserves your CPU's scan time for control logic. This module transforms your S7-300 system into a versatile communication hub capable of multi-vendor device integration without compromising reliability or performance.

Core Features & Technical Advantages

✓ Extended Temperature Operation: Functions continuously from -40°C to +70°C, eliminating the need for climate-controlled enclosures in outdoor or extreme-environment installations. Reduces infrastructure costs while expanding deployment possibilities.

✓ Multi-Protocol Flexibility: Native support for 3964(R), ASCII, STX/ETX, USS, Modbus RTU, and Modbus ASCII protocols enables seamless integration with diverse industrial equipment ecosystems. Configure protocol parameters through STEP 7 without external converters.

✓ Conformal Coating Protection: Factory-applied protective layer shields circuitry from moisture ingress, corrosive gases, and airborne contaminants common in chemical processing, mining, and coastal installations. Extends operational lifespan by 3-5 years in harsh atmospheres.

→ Galvanic Isolation (1500V DC): Electrical separation between serial interface and PLC backplane prevents ground loop interference and protects automation networks from voltage transients. Critical for multi-building installations and electrically noisy environments.

→ Hardware Protocol Processing: Dedicated communication processor handles serial data transmission independently, offloading CPU resources for time-critical control tasks. Maintains consistent PLC scan times even during high-volume data exchange.

→ Transmission Performance: Supports baud rates up to 19.2 kbit/s with cable distances reaching 1200 meters at lower speeds (9.6 kbit/s) or 500 meters at maximum throughput. Ideal for distributed facility architectures.

Industrial Application Scenarios

Water & Wastewater Treatment: Connect S7-300 PLCs to Modbus-enabled flow meters, pH sensors, and variable frequency drives across treatment facilities. The extended temperature rating supports outdoor pump stations and remote lift stations without heated enclosures, while galvanic isolation protects against electrical noise from motor drives and power distribution equipment.

Manufacturing & Assembly Lines: Integrate barcode scanners, RFID readers, weighing systems, and label printers into production workflows. The CP 341's multi-protocol support eliminates the need for protocol converters, reducing points of failure while enabling real-time traceability and quality data collection from third-party devices.

Energy & Utilities Infrastructure: Deploy in outdoor substations, solar farms, and wind turbine installations where temperature extremes and corrosive atmospheres challenge standard electronics. Establish reliable SCADA communication links to remote terminal units (RTUs) and intelligent electronic devices (IEDs) using industry-standard Modbus protocols.

Chemical & Petrochemical Processing: Operate in Zone 2 classified areas with corrosive vapor exposure. The conformal coating withstands acidic and alkaline atmospheres while maintaining communication integrity with analytical instruments, batch controllers, and safety-instrumented systems through 3964R or ASCII protocols.

Food & Beverage Production: Interface with checkweighers, metal detectors, and packaging equipment in refrigerated or high-humidity environments. Temperature tolerance supports cold storage facilities and blast freezers, while sealed construction prevents contamination in washdown areas.

Technical Specifications & Selection Guide

Selection Criteria: Choose this SIPLUS variant when ambient temperatures exceed standard industrial ranges (0°C to 60°C) or when exposure to corrosive atmospheres, high humidity, or condensation is expected. For climate-controlled environments, the standard CP 341 (6ES7341-1CH01-0AE0) offers identical functionality at lower cost. Verify that your application requires RS-422/485 serial communication rather than Ethernet-based protocols, which would necessitate a CP 343 series module instead.

Advanced Integration Capabilities

SCADA System Connectivity: Function blocks enable seamless data exchange with supervisory control systems using Modbus RTU master/slave configurations. Poll up to 247 Modbus devices on a single RS-485 network segment, aggregating process data for centralized monitoring and control.

Legacy Equipment Modernization: Preserve investments in existing serial-based instrumentation while upgrading to modern S7-300 control platforms. The CP 341 translates between proprietary ASCII protocols and structured PLC data blocks, eliminating costly equipment replacement.

Distributed I/O Expansion: Establish point-to-point or multi-drop serial networks to remote I/O modules in hazardous or inaccessible locations. Reduce wiring costs compared to parallel I/O while maintaining deterministic response times for non-safety-critical applications.

Custom Protocol Implementation: Develop specialized communication routines using STEP 7 function blocks for proprietary device integration. Access raw serial data streams for applications requiring unique framing, checksums, or timing characteristics.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Typical delivery to major industrial centers: 5-7 business days (Asia-Pacific), 7-10 business days (Europe/Americas).

Warranty Coverage: Comprehensive 12-month manufacturer's warranty covers defects in materials and workmanship. Warranty includes replacement or repair at our discretion, with return shipping covered for confirmed warranty claims.

Technical Support: Pre-sales application engineering assistance available to verify compatibility and optimize system architecture. Post-purchase support includes configuration guidance, troubleshooting assistance, and STEP 7 programming examples.

Documentation Package: Each module ships with installation manual, wiring diagrams, and quick-start configuration guide. Downloadable resources include STEP 7 function block libraries, Modbus register mapping templates, and protocol timing specifications.

Frequently Asked Questions

Can this RS-485 module operate in unheated outdoor enclosures during winter?
Absolutely. The SIPLUS temperature rating of -40°C to +70°C specifically addresses outdoor installations in extreme climates. Unlike standard CP 341 modules rated for 0°C to 60°C, this variant maintains full functionality in Arctic conditions, desert heat, and everything between without supplemental heating or cooling.

What is the maximum number of Modbus devices I can connect to a single CP 341?
The RS-485 physical layer supports up to 32 devices per segment without repeaters. Using Modbus RTU protocol, you can address up to 247 slave devices (addresses 1-247), though practical network performance typically limits deployments to 20-30 devices depending on polling frequency and data volume requirements.

Does this communication processor require special programming software?
No additional software is needed beyond standard STEP 7 (TIA Portal or Classic). Siemens provides pre-built function blocks (FBs) for common protocols like Modbus RTU, which you integrate into your PLC program. Configuration involves setting baud rate, parity, and protocol parameters through the hardware configuration tool.

How does conformal coating affect field serviceability and repair?
Conformal coating is a factory-applied protective layer that does not impede normal installation, wiring, or replacement procedures. The coating protects internal circuitry while leaving connectors and mounting hardware accessible. Field repairs are not recommended for coated modules; warranty or replacement is the standard service approach.

Can I use this module for safety-related communication applications?
No. The CP 341 is designed for standard industrial communication and is not certified for safety-instrumented systems (SIS) or safety integrity level (SIL) applications. For safety-critical serial communication, consult Siemens' FailSafe product portfolio or implement redundant communication paths with safety PLCs.

What cable specifications are required for reliable RS-485 operation?
Use twisted-pair cable with characteristic impedance of 120 ohms, such as Belden 3105A or equivalent. For installations exceeding 100 meters, implement 120-ohm termination resistors at both network ends. Shielded cable is mandatory in electrically noisy environments; connect shield to ground at one end only to prevent ground loops.

Start Your Integration Project Today

Transform your S7-300 automation system into a versatile communication hub capable of bridging legacy equipment, third-party devices, and distributed networks. Contact our application engineering team to discuss your specific serial communication requirements, verify compatibility with your existing infrastructure, and receive customized configuration recommendations.
