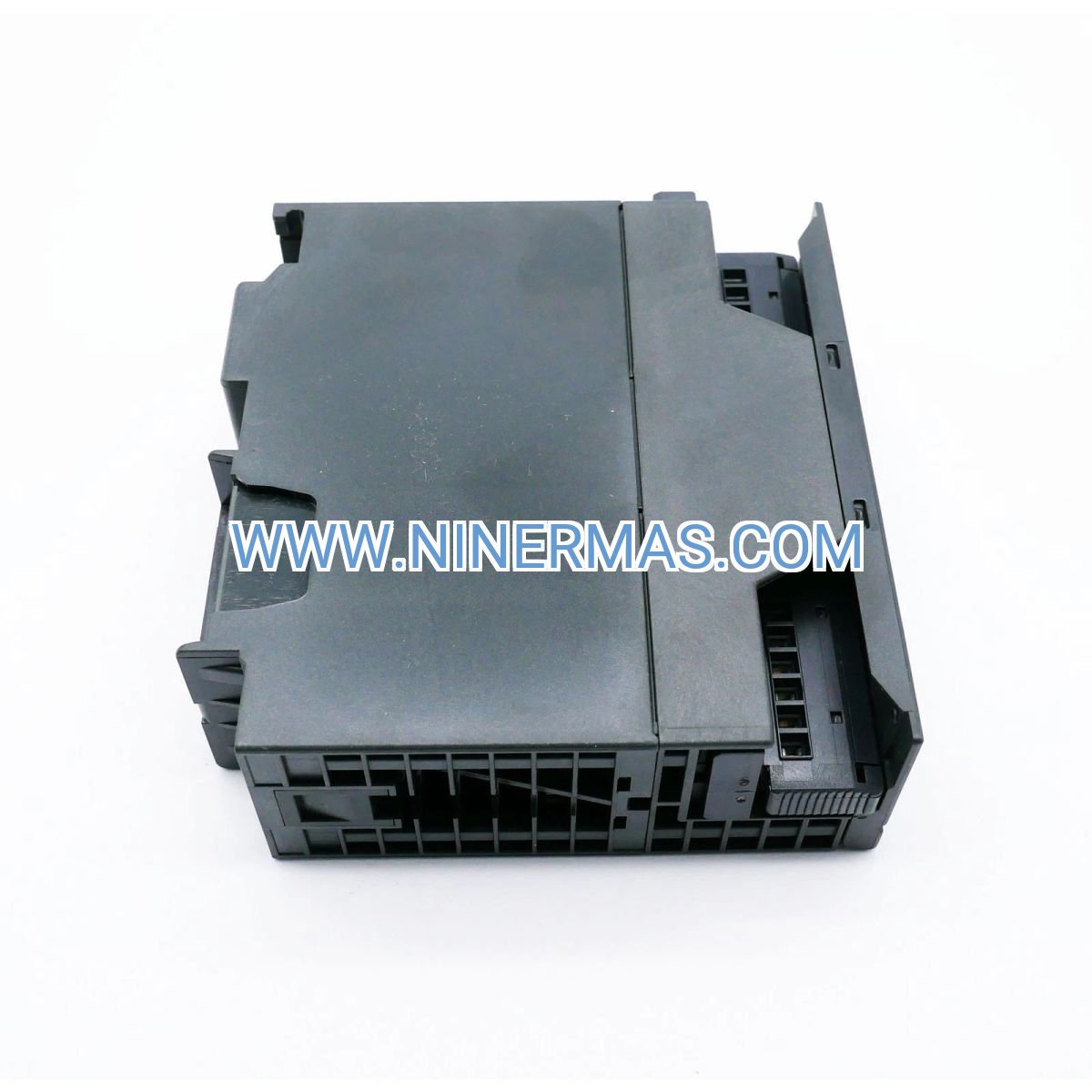

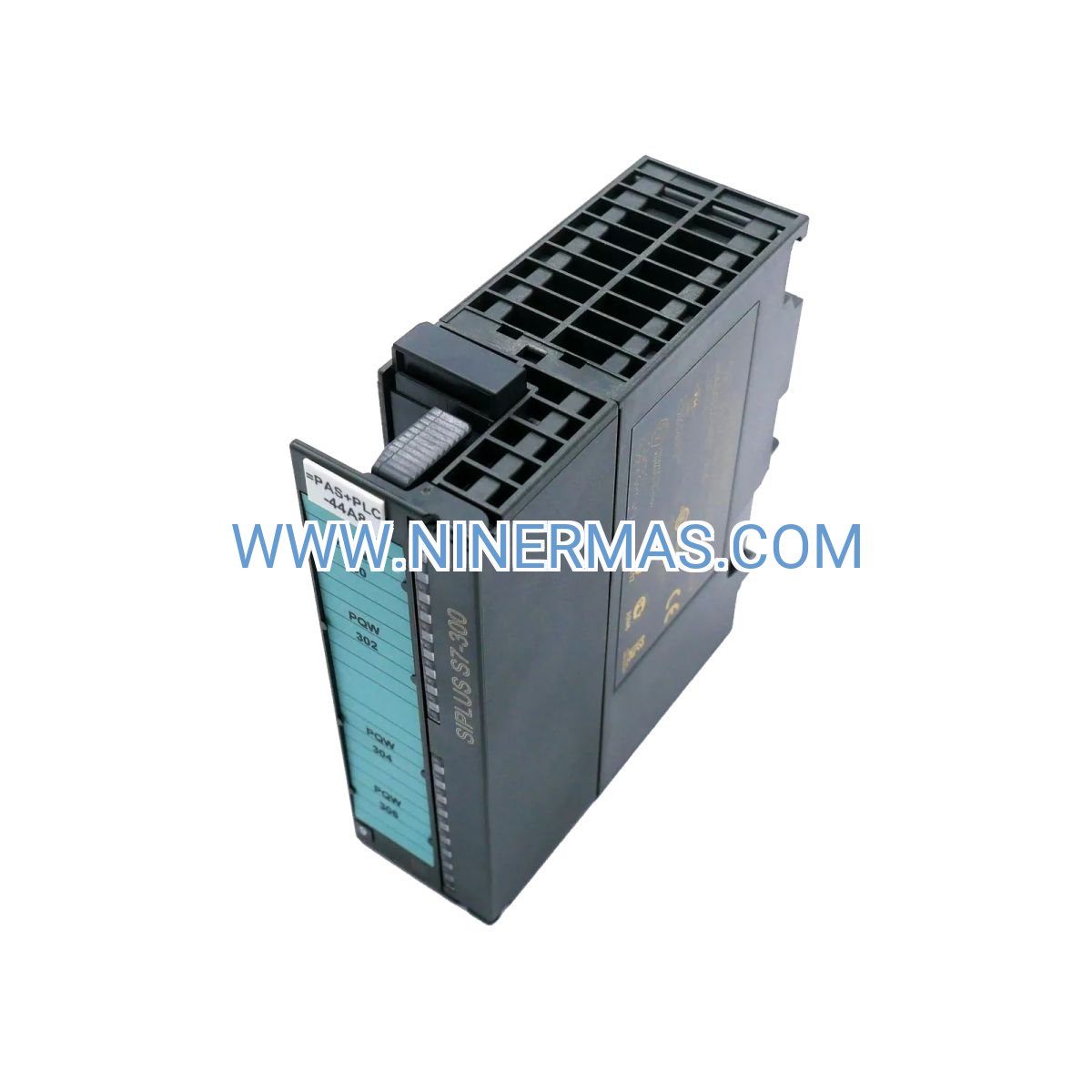

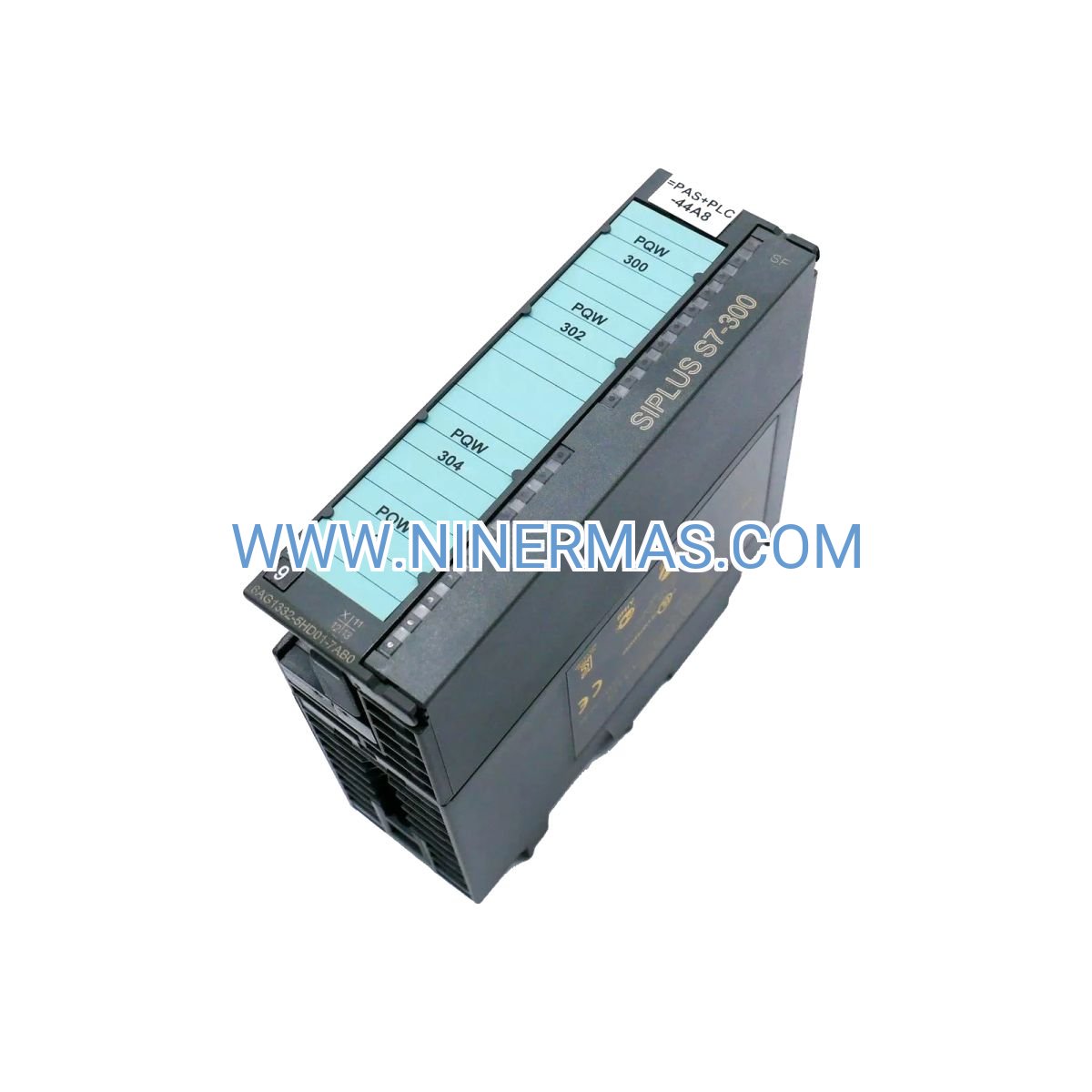

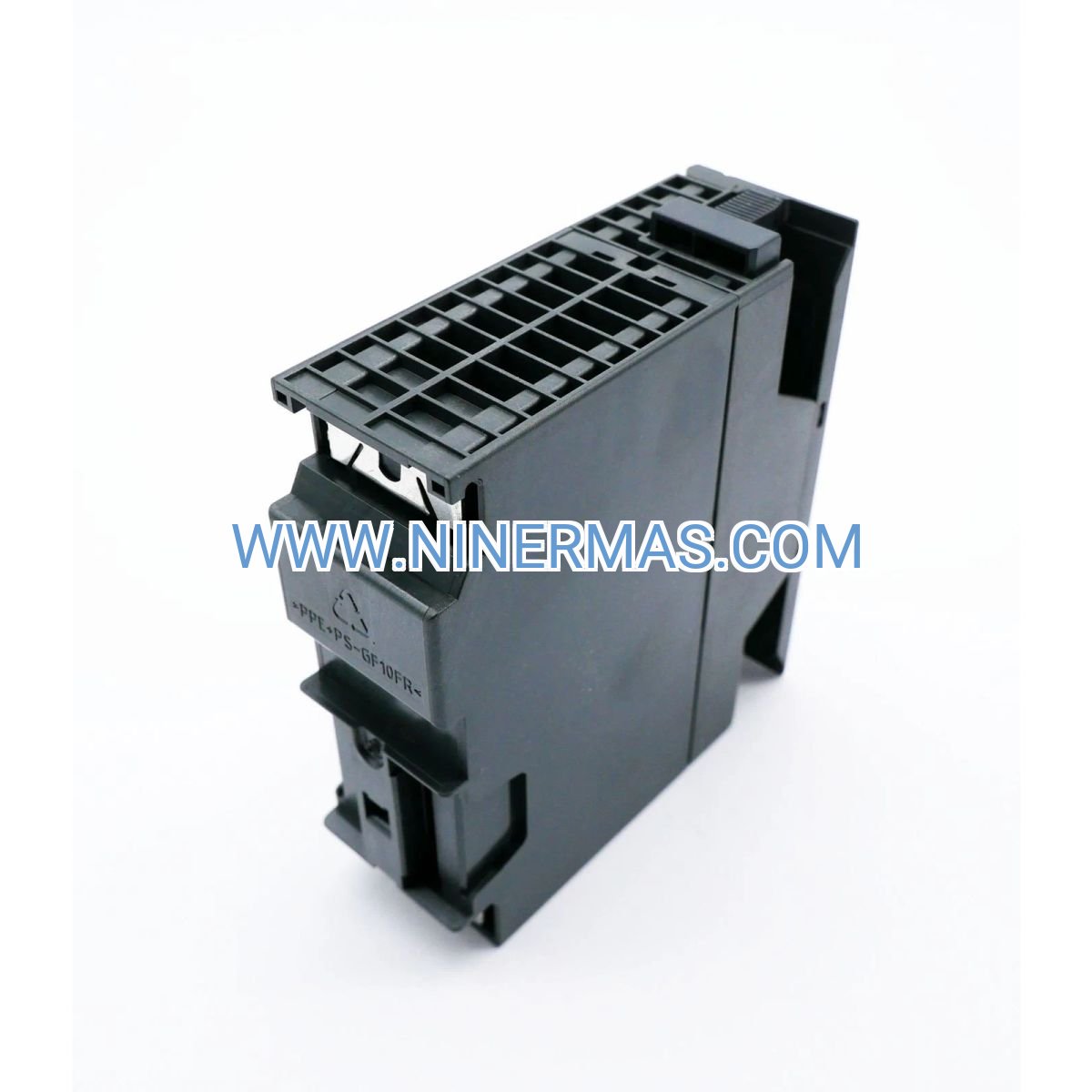

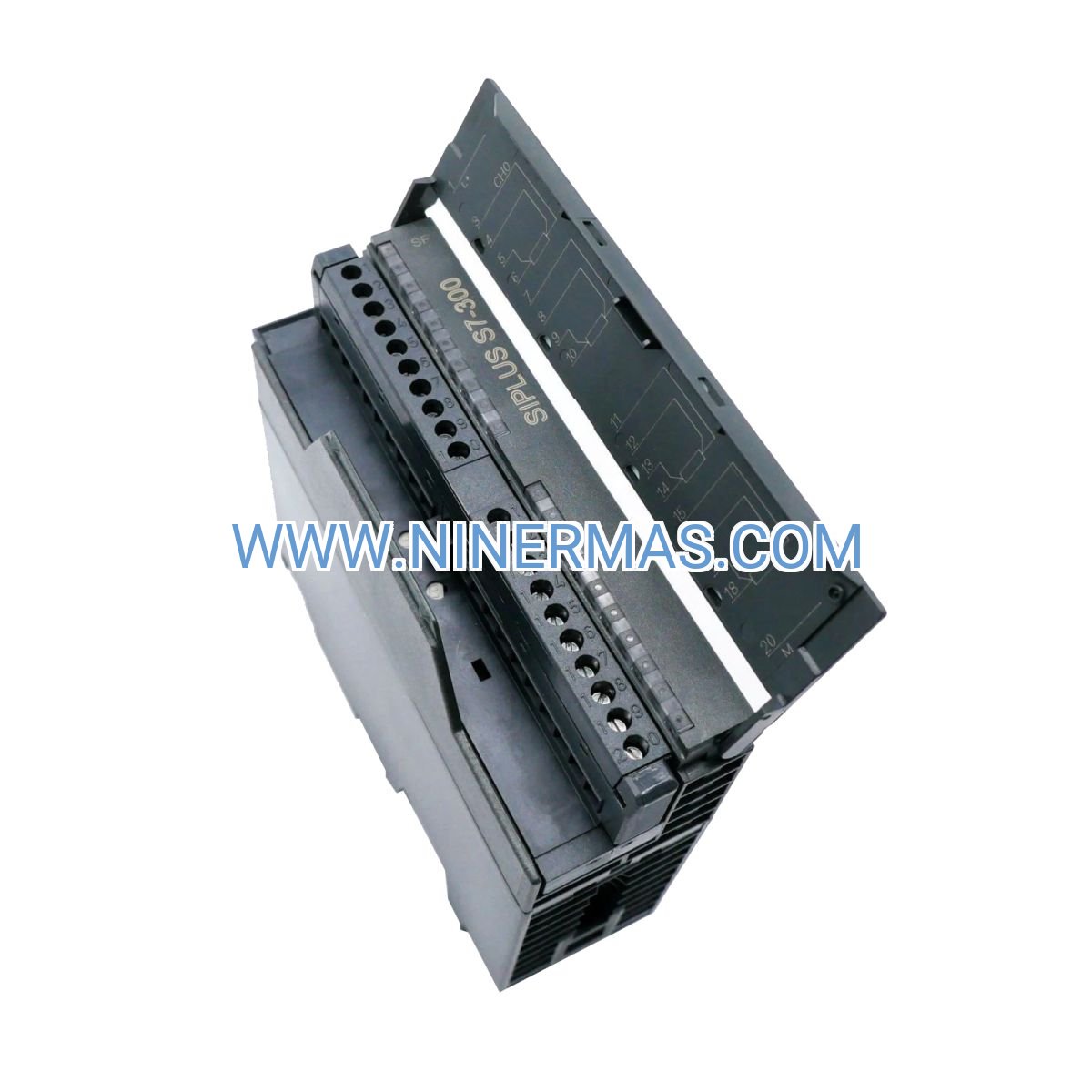

6AG1332-5HD01-7AB0 SIPLUS SM 332 Analog Output Module (Industrial-Grade 4-Channel Solution)

The 6AG1332-5HD01-7AB0 delivers industrial-strength analog output control for S7-300 automation systems operating in extreme conditions. Engineered with protective conformal coating, this SIPLUS SM 332 variant transforms standard automation capabilities into ruggedized performance suitable for offshore rigs, chemical processing facilities, and outdoor installations where environmental stress threatens conventional electronics.

Designed for system integrators and plant engineers managing critical process control applications, this module addresses the persistent challenge of maintaining signal integrity and hardware reliability in corrosive atmospheres, condensing environments, and temperature extremes. Where standard I/O modules fail within months, the 6AG1332-5HD01-7AB0 sustains years of continuous operation.

Four galvanically isolated output channels provide independent ±10V voltage or ±20mA current signals with 12-bit resolution, enabling precise control of proportional valves, VFDs, and process instrumentation. Hot-swap capability minimizes production interruptions during maintenance, while comprehensive diagnostics accelerate troubleshooting and reduce mean time to repair.

Core Features & Benefits

→ Conformal Coating Protection Technology
Specialized polymer coating creates a moisture-resistant, chemically-inert barrier protecting circuitry from salt spray, industrial solvents, sulfurous gases, and biological contamination. Extends operational lifespan 3-5x compared to uncoated modules in harsh installations.

→ Extended Temperature Performance
Operates reliably from -25°C to +60°C without derating, supporting applications in unheated enclosures, desert climates, and arctic installations where standard modules (-0°C to +60°C) cannot function.

→ Galvanic Channel Isolation
Each output channel features electrical isolation from the backplane bus and adjacent channels, eliminating ground loop interference and enabling connection to equipment with different ground potentials—critical for distributed control architectures.

→ Dual Output Mode Flexibility
Individually configure each channel for voltage (±10V) or current (±20mA) output via software, accommodating mixed actuator types within a single module and reducing spare parts inventory requirements.

→ Hot-Swap Maintenance Capability
Replace or install the module during live system operation without halting the entire control process, reducing scheduled downtime from hours to minutes and supporting continuous production requirements.

→ 12-Bit Resolution Precision
4096-step output resolution delivers smooth, stepless control signals for demanding applications requiring fine positioning accuracy and minimal process variability.

Typical Application Scenarios

Chemical Processing & Petrochemical Plants
Control reactor temperature via steam valve modulation, manage distillation column reflux ratios, and regulate chemical feed pump speeds in environments with corrosive vapor exposure and wide ambient temperature swings.

Offshore Oil & Gas Platforms
Operate subsea valve actuators, control drilling mud pump speeds, and manage separator level control in salt-laden atmospheres with constant condensation risk and limited maintenance access windows.

Water & Wastewater Treatment
Drive variable-speed blowers for aeration basins, control chemical dosing pumps for pH adjustment, and modulate filter backwash valve positions in high-humidity environments with chlorine and ammonia exposure.

Power Generation Facilities
Regulate turbine governor control signals, manage boiler feedwater pump speeds, and control flue gas damper positions in coal-fired, gas-fired, and biomass plants with dust and combustion byproduct contamination.

Food & Beverage Manufacturing
Control pasteurization temperature via steam valve modulation, regulate CIP (clean-in-place) chemical concentration, and manage conveyor speed synchronization in washdown environments with frequent sanitizer exposure.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6AG1332-5HD01-7AB0 when your application involves exposure to condensation, corrosive gases, extreme temperatures beyond 0-60°C, or outdoor/unheated installations. For standard climate-controlled environments, the non-SIPLUS variant 6ES7332-5HD01-0AB0 offers equivalent functionality at lower cost. If you require more than 4 outputs, consider deploying multiple modules or upgrading to distributed I/O architecture with ET 200SP stations.

Extended Functions

Advanced Diagnostics Integration: The module reports channel-specific faults including wire break detection, short circuit conditions, and overload states directly to the S7-300 CPU diagnostic buffer. Integrate these alarms into SCADA systems via PROFINET or Ethernet/IP gateways for centralized monitoring.

Calibration & Scaling: Perform software-based output scaling and offset adjustment through STEP 7 configuration, eliminating the need for external signal conditioners and simplifying commissioning for non-standard actuator input ranges.

Redundancy Support: Deploy in redundant S7-300H configurations for high-availability applications, with automatic switchover maintaining output states during controller failover events.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom configurations or bulk orders (10+ units) typically require 7-10 business days for preparation and quality verification.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty options available for critical infrastructure deployments.

Technical Support: Access to certified Siemens automation specialists for configuration assistance, troubleshooting guidance, and integration consulting. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module includes installation manual, wiring diagrams, STEP 7 configuration examples, and GSD files for third-party HMI integration. Additional resources available through Siemens Industry Online Support portal.

Frequently Asked Questions

What environmental advantages does SIPLUS conformal coating provide over standard SM 332 modules?
The conformal coating creates a protective barrier against moisture ingress, chemical vapor corrosion, and biological growth (mold/fungus). This extends the operational temperature range to -25°C (vs. 0°C for standard) and enables reliable operation in condensing environments and corrosive atmospheres where uncoated modules would experience premature failure.

Can I connect both 2-wire and 4-wire transmitters to the analog outputs?
This is an analog output module designed to send control signals to actuators, not receive signals from transmitters. For transmitter connections, you need an analog input module such as the SM 331 series. The 6AG1332-5HD01-7AB0 outputs drive devices like control valves, VFDs, and positioners.

How do I configure the output mode between voltage and current for each channel?
Output mode configuration is performed in STEP 7 hardware configuration. Select the module in the hardware catalog, then access the properties dialog to set each channel independently to either voltage (±10V) or current (±20mA) mode. No physical jumpers or DIP switches are required—all configuration is software-based.

What cable specifications are recommended for optimal noise immunity?
Use shielded twisted-pair cable with minimum 0.5mm² conductor cross-section. Connect shield to ground at the module end only (single-point grounding) to prevent ground loops. For current loop outputs, maximum cable resistance should not exceed 600Ω. For voltage outputs, ensure load impedance exceeds 1kΩ to prevent signal degradation.

Is the module compatible with S7-400 or S7-1200/1500 PLC systems?
No, the 6AG1332-5HD01-7AB0 is designed exclusively for S7-300 backplane architecture. For S7-400 systems, use the SM 432 analog output modules. For S7-1200/1500 systems, use the SM 1232 or SM 1234 signal modules. Consider ET 200SP distributed I/O for cross-platform compatibility.

What diagnostic capabilities help reduce troubleshooting time during commissioning?
The module provides real-time diagnostics including per-channel wire break detection, short circuit monitoring, overload protection, and parameter assignment errors. All diagnostic events are logged in the CPU diagnostic buffer with timestamps and can trigger interrupt routines for immediate fault response, significantly reducing mean time to identify and resolve wiring or configuration issues.

Take the Next Step

Protect your critical process control investment with proven SIPLUS technology engineered for the harshest industrial environments. Contact our automation specialists today for application-specific configuration guidance, volume pricing, or technical consultation on integrating the 6AG1332-5HD01-7AB0 into your S7-300 control architecture.
