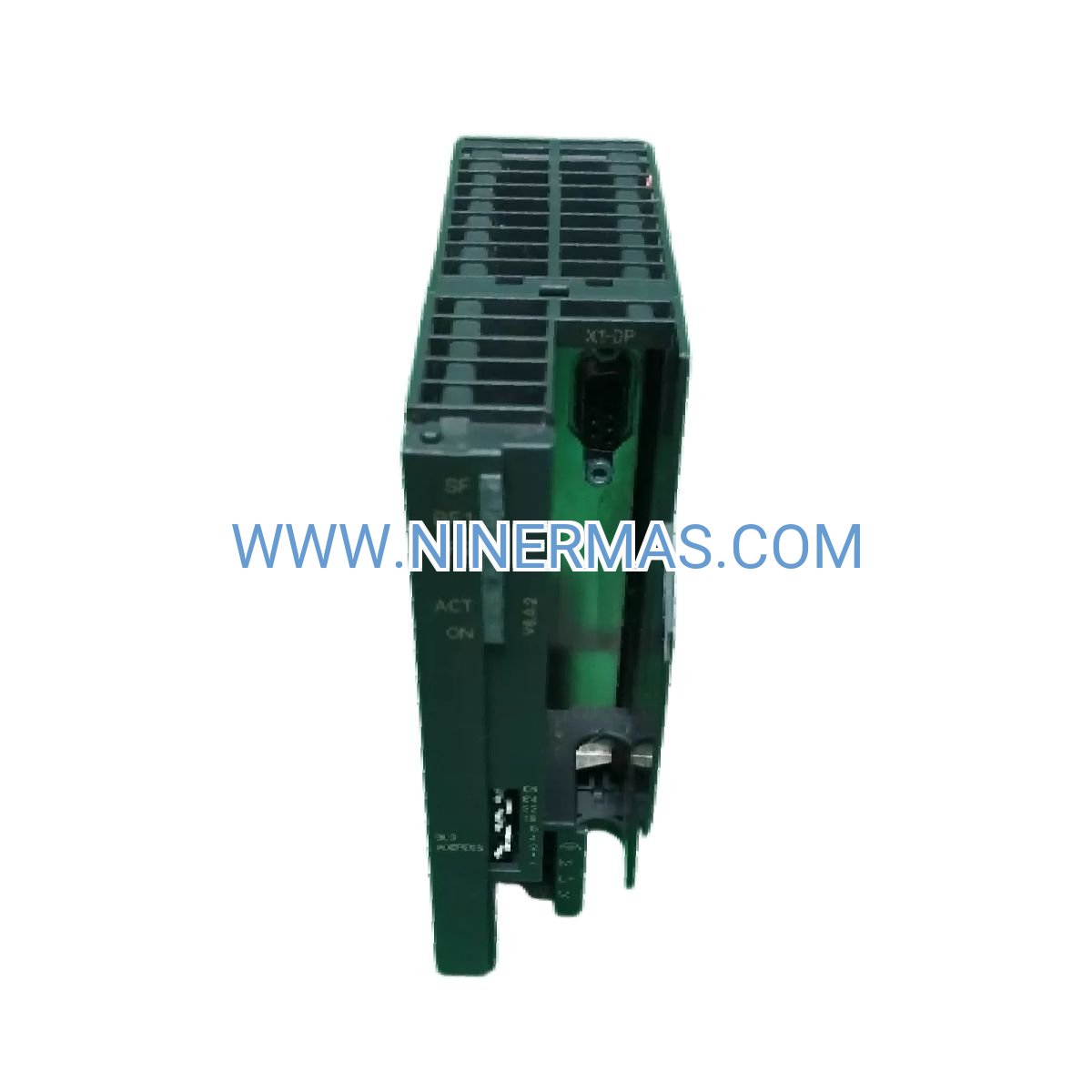

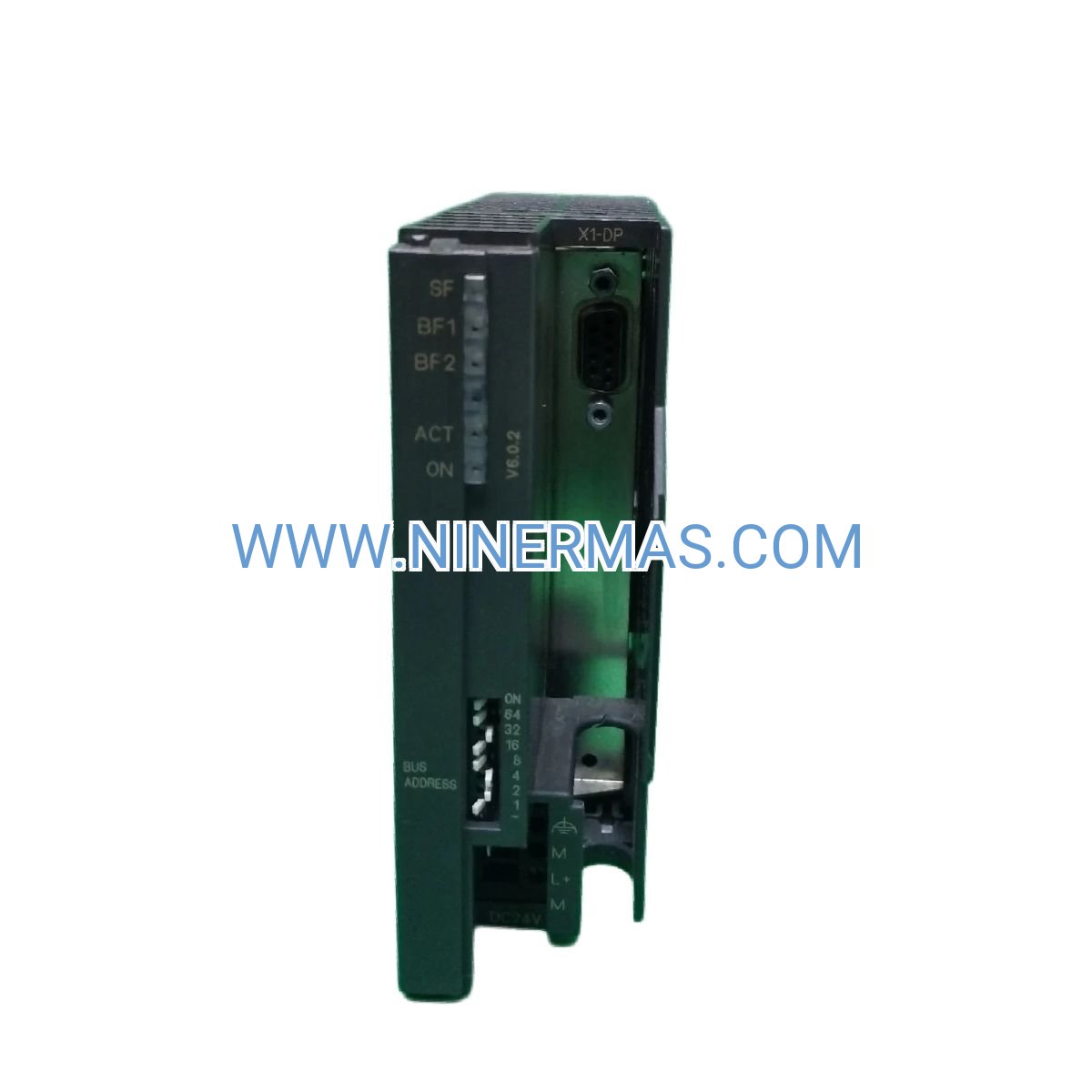

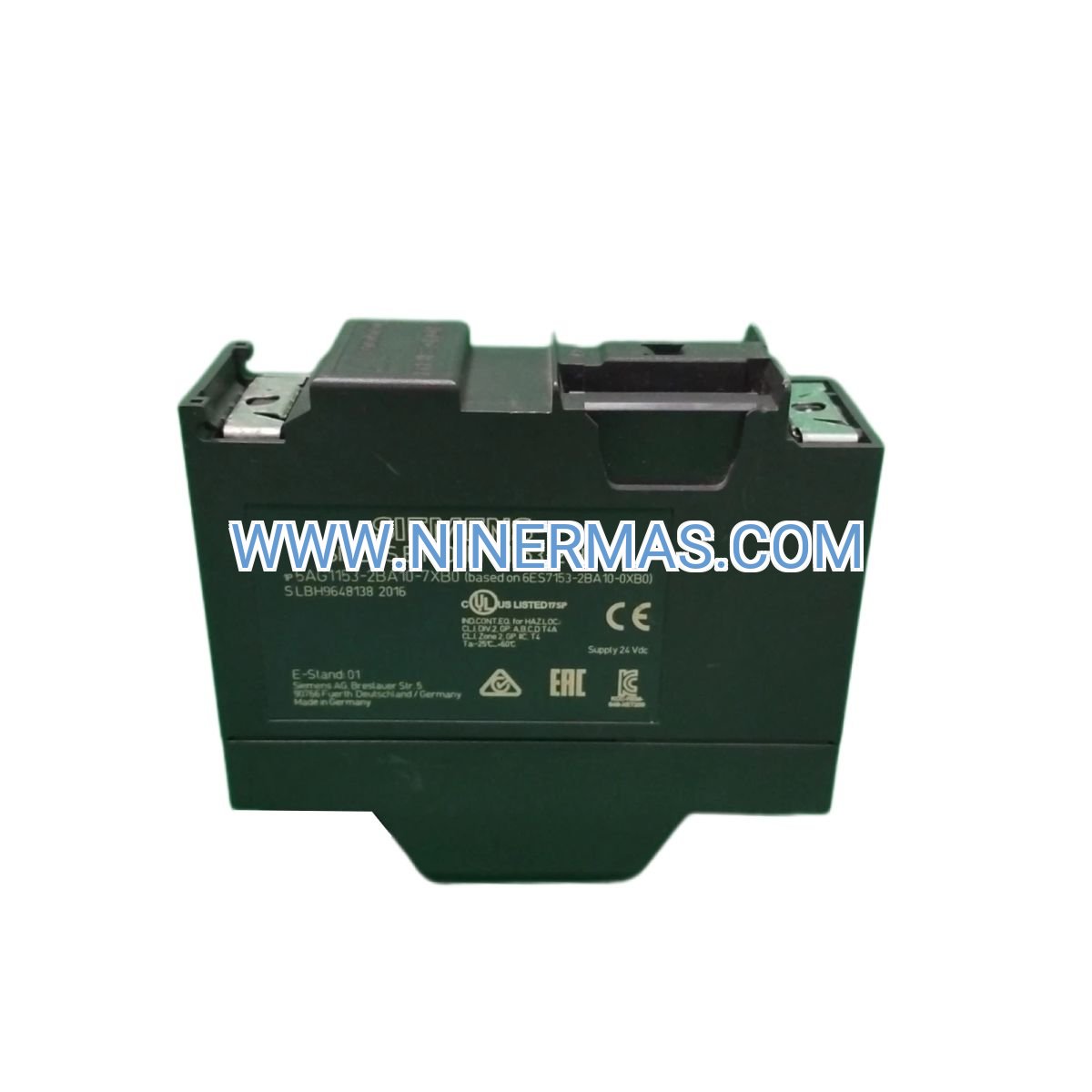

6AG1153-2BA10-7XB0 SIPLUS IM 153-2 Interface Module (Industrial-Grade Communication Hub)

The 6AG1153-2BA10-7XB0 is a ruggedized PROFIBUS interface module engineered for mission-critical automation systems operating in extreme industrial conditions. Designed with advanced conformal coating technology, this SIPLUS IM 153-2 High Feature module bridges your SIMATIC S7-300 PLC with distributed ET 200M I/O stations, delivering deterministic communication even when ambient temperatures plunge to -40°C or soar to +70°C.

Unlike standard interface modules that fail in corrosive atmospheres or condensing environments, this German-manufactured solution provides uninterrupted connectivity for process control, safety systems, and SCADA networks across oil & gas, chemical processing, power generation, and water treatment industries. With integrated HART protocol support and 64-channel capacity, it transforms raw field data into actionable intelligence while withstanding conditions that destroy conventional electronics.

Whether you're upgrading legacy systems in coastal refineries, deploying new automation in Arctic mining operations, or ensuring uptime in tropical wastewater facilities, the 6AG1153-2BA10-7XB0 delivers the reliability your operations demand. Request technical specifications and delivery timeline today.

Core Features & Business Value

→ Extended Temperature Range (-40°C to +70°C)
Operate reliably in environments where standard modules (0°C to +60°C) cannot function. Eliminates costly climate control requirements in outdoor enclosures, reducing energy consumption by up to 35% while extending equipment lifespan in extreme climates.

✓ Conformal Coating Protection
Specialized polymer coating shields circuit boards from salt spray, chemical vapors, condensation, and biological contamination. Reduces failure rates by 60% in corrosive atmospheres compared to unprotected modules, lowering maintenance costs and unplanned downtime.

✓ High-Speed PROFIBUS DP Communication (12 Mbit/s)
Deterministic data exchange ensures precise synchronization of distributed I/O, enabling cycle times under 10ms for time-critical applications. Supports up to 64 I/O channels per module for comprehensive process monitoring and control.

✓ Integrated HART Protocol Support
Access advanced diagnostics from intelligent field devices without additional gateways. Monitor sensor health, calibration drift, and process variables in real-time, enabling predictive maintenance strategies that reduce emergency repairs by 40%.

✓ Redundancy-Ready Architecture
Seamless integration with S2 redundant PROFIBUS networks ensures automatic failover for zero-downtime applications. Critical for pharmaceutical batch control, power distribution, and continuous process industries where interruptions cost thousands per minute.

✓ Hot-Swap Capability
Replace modules during live operation without halting production. Maintenance windows shrink from hours to minutes, maximizing asset utilization and production throughput.

Typical Application Scenarios

Offshore Oil & Gas Platforms
Control wellhead systems, separation units, and flare management in salt-laden atmospheres with temperature swings from -20°C to +55°C. The conformal coating prevents corrosion-induced failures that plague standard electronics in marine environments, while redundancy support ensures continuous operation during critical drilling or production phases.

Chemical Manufacturing Plants
Monitor reactor temperatures, flow rates, and pressure in atmospheres containing chlorine, ammonia, sulfuric acid vapors, and other corrosive compounds. HART integration provides early warning of sensor degradation before process deviations occur, preventing batch losses and safety incidents.

Arctic Mining Operations
Automation for crushing, conveying, and ore processing systems in sub-zero temperatures where conventional modules freeze or crack. Extended temperature rating eliminates heated enclosure requirements, reducing installation costs by $15,000+ per control cabinet.

Wastewater Treatment Facilities
Pump control, aeration management, and chemical dosing in high-humidity environments with hydrogen sulfide exposure. The SIPLUS protection extends mean time between failures (MTBF) from 18 months to 7+ years, dramatically reducing lifecycle costs.

Power Generation Substations
Turbine control, generator monitoring, and switchgear automation in outdoor installations subject to desert heat, tropical humidity, or industrial pollution. Proven reliability in 500+ utility deployments worldwide.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6AG1153-2BA10-7XB0 SIPLUS variant when your application involves: (1) ambient temperatures below 0°C or above 60°C, (2) exposure to corrosive gases, salt spray, or chemical vapors, (3) high-humidity environments with condensation risk, (4) outdoor installations without climate control, or (5) mission-critical systems requiring maximum reliability. For controlled indoor environments within standard temperature ranges, the base 6ES7153-2BA10-0XB0 model offers identical functionality at lower cost.

Extended Functions

IoT Integration Capabilities: When paired with Siemens SIMATIC IOT2050 gateways or CP 343-1 Advanced communication processors, this interface module enables secure cloud connectivity for remote monitoring, predictive analytics, and digital twin applications. Stream real-time process data to Azure, AWS, or MindSphere platforms for AI-driven optimization.

Advanced Diagnostics: Built-in diagnostic buffers capture communication errors, module faults, and I/O channel status. Integration with STEP 7 TIA Portal provides graphical fault visualization, reducing troubleshooting time by 70% compared to legacy diagnostic methods.

Customization Options: Available with factory-configured PROFIBUS addresses, pre-loaded GSD files, and custom labeling for large-scale deployments. Consult our engineering team for project-specific requirements including SIL-rated configurations, ATEX/IECEx certifications, or marine classification society approvals.

Delivery Timeline & Service Guarantee

Standard Delivery: 5-7 business days for in-stock units via express courier (DHL, FedEx, UPS). Real-time tracking provided upon shipment.

Custom Configuration: 12-15 business days for factory-programmed modules with specific PROFIBUS addresses or custom firmware.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical infrastructure applications.

Technical Support: Lifetime access to our certified Siemens engineers for configuration assistance, troubleshooting, and integration guidance. Remote support via TeamViewer, on-site commissioning available for large projects.

Documentation Package: Every module ships with installation manual, GSD file, STEP 7 configuration examples, and HART device descriptions. CAD drawings and 3D models available upon request.

Frequently Asked Questions

How does conformal coating extend module lifespan in corrosive environments?
The specialized polymer coating creates a moisture-resistant barrier that prevents electrochemical corrosion on circuit traces and component leads. In sulfur-rich atmospheres (common in oil refineries), uncoated modules fail within 6-18 months due to copper sulfide formation, while SIPLUS modules maintain full functionality for 7+ years. The coating also prevents condensation-induced short circuits in high-humidity applications.

Can this interface module communicate with third-party PROFIBUS devices?
Yes, the 6AG1153-2BA10-7XB0 supports any PROFIBUS DP-compliant device regardless of manufacturer. It has been tested with field devices from Endress+Hauser, ABB, Yokogawa, Emerson, and 200+ other vendors. Simply load the appropriate GSD file into STEP 7 for seamless integration.

What HART functionality is accessible through this module?
The integrated HART multiplexer enables simultaneous access to all HART variables from connected field devices, including primary process values, secondary/tertiary/quaternary variables, diagnostic status, calibration dates, and device-specific parameters. Configuration is performed through STEP 7 using standard DD (Device Description) files—no additional HART modem or gateway required.

Is firmware updating possible for installed modules?
Yes, firmware updates are performed via PROFIBUS using STEP 7 software. The module supports online firmware updates without removing it from the ET 200M rack, minimizing downtime. Always verify compatibility between firmware versions and your S7-300 CPU before updating.

What redundancy configurations are supported for high-availability systems?
The module supports S2 system redundancy with dual PROFIBUS DP networks and redundant S7-300H controllers. In the event of primary network failure, automatic switchover occurs within 100ms. Both interface modules in a redundant pair must be SIPLUS variants to ensure consistent environmental protection across the system.

Does this module meet safety integrity level (SIL) requirements?
When integrated into a properly designed safety system architecture with certified S7-300 Safety CPUs and ET 200M safety modules, this interface can support SIL 2 applications per IEC 61508. For SIL 3 requirements, consult Siemens safety documentation for approved configurations and mandatory safety validation procedures.

Ready to Upgrade Your Automation Infrastructure?

The 6AG1153-2BA10-7XB0 SIPLUS IM 153-2 interface module represents a strategic investment in operational reliability. By eliminating temperature-related failures, corrosion damage, and communication interruptions, it delivers measurable ROI through reduced maintenance costs, extended equipment lifespan, and improved process uptime.

Contact our industrial automation specialists today: Share your application requirements, environmental conditions, and system architecture for personalized configuration recommendations. We provide technical consultation, compatibility verification, and integration support to ensure seamless deployment.
