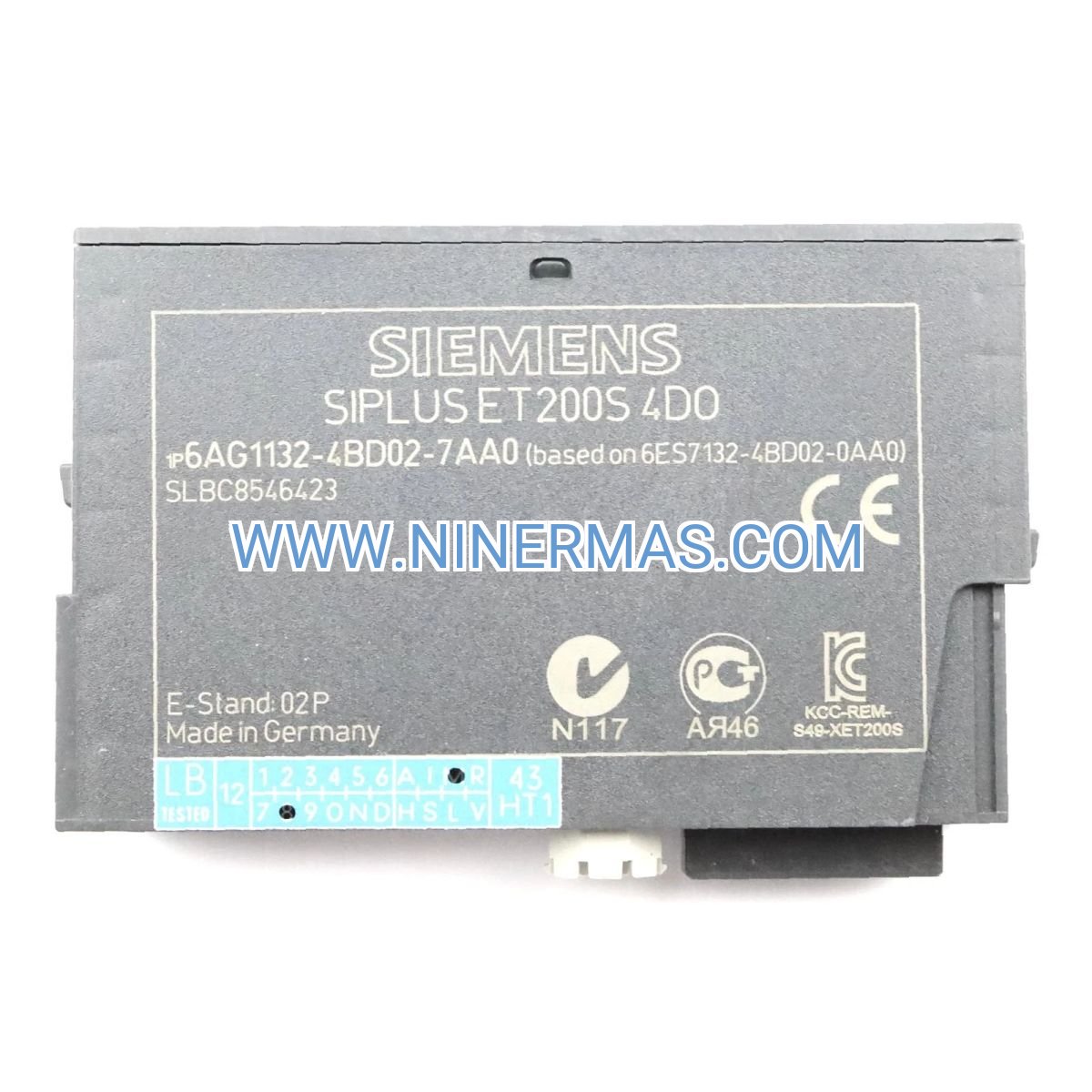

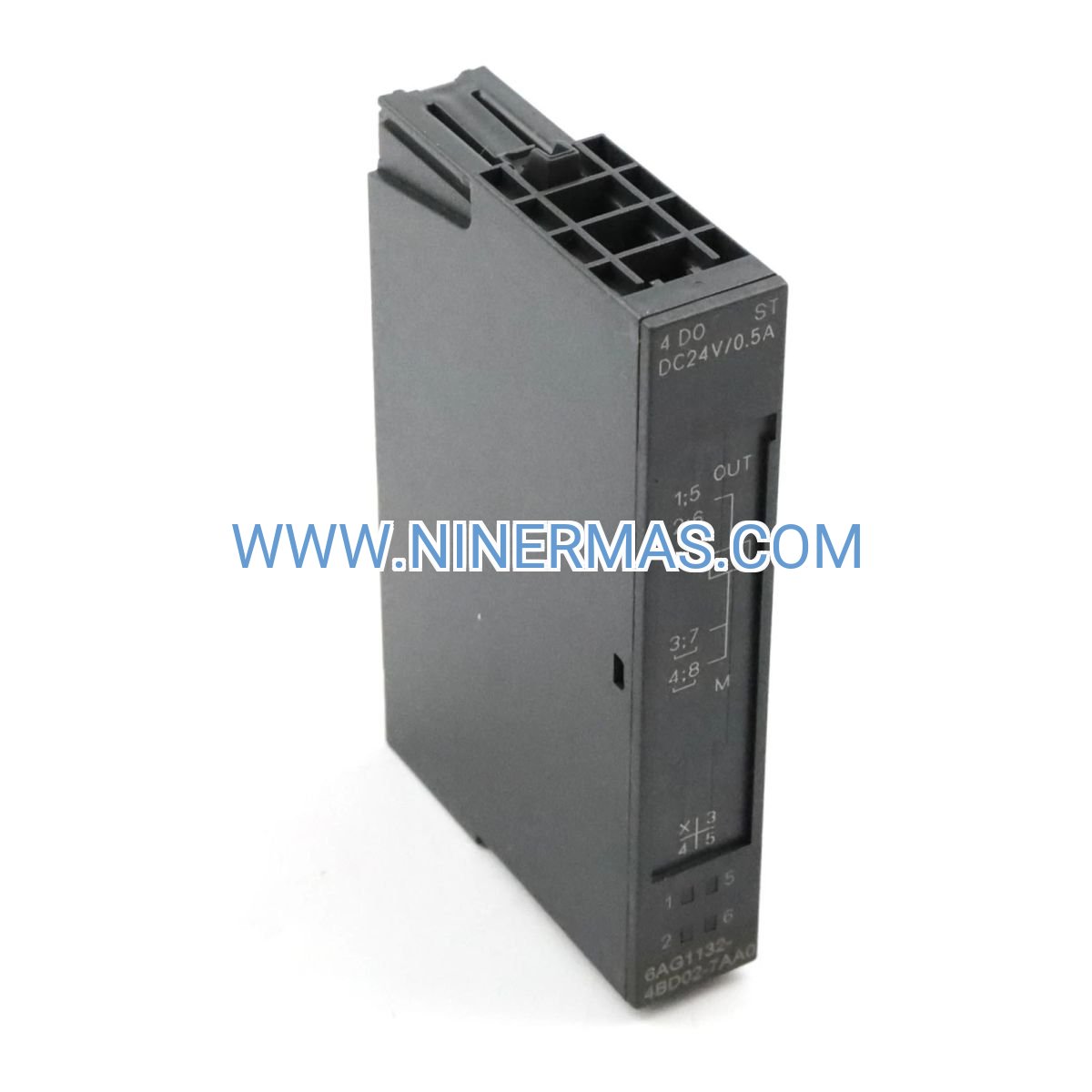

Siemens 6AG1132-4BD02-7AA0 (Industrial-Grade Relay Switching Solution)

The Siemens 6AG1132-4BD02-7AA0 represents a specialized relay output module engineered to maintain switching reliability in hostile industrial environments where conventional automation hardware cannot survive. Built on the proven ET 200S distributed I/O platform, this 4-channel relay module incorporates factory-applied conformal coating technology that shields critical circuitry from moisture condensation, corrosive chemical vapors, and biological contaminants commonly encountered in process industries.

Designed for system integrators and maintenance engineers managing automation infrastructure in extreme conditions, this SIPLUS-rated module extends operational temperature boundaries to -25°C through +70°C while delivering consistent 2A switching capacity across each of its four changeover contacts. Whether controlling valve actuators in offshore platforms, managing pump circuits in wastewater facilities, or switching heating elements in cold storage operations, the 6AG1132-4BD02-7AA0 provides the environmental resilience required for mission-critical control applications.

Integration into existing SIMATIC ecosystems occurs seamlessly through standard ET 200S mounting rails and PROFIBUS DP or PROFINET communication protocols, enabling rapid deployment without specialized training or proprietary tools. The module's hot-swap capability and per-channel diagnostic LEDs minimize unplanned downtime while simplifying troubleshooting procedures during maintenance windows.

Core Features & Benefits

→ Extended Temperature Performance: Operates continuously from -25°C to +70°C, eliminating the need for climate-controlled enclosures in arctic warehouses, desert installations, or thermally demanding process areas. This 95°C operational span reduces infrastructure costs while improving system reliability.

→ Conformal Coating Protection: Factory-applied protective layer meets Class 3C3/3S3 environmental standards, providing verified resistance against condensing humidity, salt spray, industrial solvents, and microbial growth. Extends service life in chemical plants, marine environments, and food processing facilities by 3-5x compared to uncoated alternatives.

→ Versatile Switching Architecture: Four independent SPDT (changeover) contacts support both normally-open and normally-closed wiring configurations, accommodating diverse safety logic requirements. Each contact handles 5-230V AC/DC loads up to 2A, eliminating external interface relays for most applications.

→ Galvanic Isolation Design: Complete electrical separation between control logic and field circuits protects sensitive PLC processors from voltage transients, ground loops, and electromagnetic interference. Enhances system stability in electrically noisy industrial environments.

→ Tool-Free Wiring System: Push-in spring terminals accept 0.5-2.5mm² conductors without screwdrivers or ferrules, reducing installation time by 40% while preventing loose connection failures. Color-coded terminal blocks minimize wiring errors during commissioning.

→ Hot-Swap Maintenance: Replace modules during system operation without shutting down entire control stations, maintaining production continuity during preventive maintenance or emergency repairs. Reduces annual downtime costs in continuous process industries.

Application Scenarios

Chemical Processing Plants: In facilities producing fertilizers, petrochemicals, or specialty chemicals, corrosive vapor emissions rapidly degrade standard electronics. The 6AG1132-4BD02-7AA0's conformal coating withstands exposure to ammonia, chlorine, sulfur compounds, and organic solvents, maintaining reliable valve and pump control in reactor areas, distillation columns, and storage tank farms where equipment replacement cycles typically occur every 18-24 months.

Wastewater Treatment Facilities: Municipal and industrial wastewater operations generate hydrogen sulfide, methane, and high-humidity conditions that corrode conventional relay modules. This SIPLUS module controls aeration blowers, chemical dosing pumps, and clarifier mechanisms in headworks, primary treatment, and sludge processing areas, delivering 5+ year service life in environments where standard modules fail within 12-18 months.

Cold Storage & Freezer Warehouses: Temperature cycling between -30°C storage zones and +25°C loading docks creates condensation that shorts unprotected electronics. The module's extended temperature rating and moisture protection enable direct installation in freezer control panels, managing conveyor systems, refrigeration valves, and door interlocks without heated enclosures that consume 200-500W per installation.

Offshore Oil & Gas Platforms: Marine environments combine salt spray, temperature extremes, and vibration that challenge automation reliability. The 6AG1132-4BD02-7AA0 controls wellhead valves, separator systems, and safety shutdown circuits in topside process modules, maintaining operational integrity through storm conditions and reducing helicopter-based maintenance visits.

Food & Beverage Production: Processing lines requiring frequent high-pressure washdowns expose electronics to water ingress and cleaning chemical residues. The conformal coating protects relay contacts during CIP (clean-in-place) cycles, controlling mixing valves, conveyor drives, and packaging equipment in dairy plants, breweries, and meat processing facilities where hygiene standards mandate aggressive cleaning protocols.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires switching loads between 5-230V at currents up to 2A per channel, operating temperatures fall outside the 0-60°C range of standard modules, or environmental conditions include condensing humidity, chemical exposure, or biological contamination. For higher switching frequencies (>0.5 Hz), consider solid-state output alternatives. For loads exceeding 2A, implement external contactors controlled by these relay outputs.

Extended Functions

Predictive Maintenance Integration: When connected to SIMATIC PCS 7 or TIA Portal systems, the module's diagnostic data feeds into condition monitoring algorithms that track contact wear, switching cycle counts, and thermal stress accumulation. This enables predictive replacement scheduling before failures occur, reducing emergency maintenance incidents by 60-75%.

Redundancy Configurations: Deploy in 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting architectures for safety-critical applications requiring SIL 2 or SIL 3 certification. The module's diagnostic capabilities support partial stroke testing and proof test procedures mandated by IEC 61508 functional safety standards.

Remote Monitoring Capabilities: Integrate with SIMATIC Cloud connectivity solutions to transmit relay status, switching statistics, and environmental data to centralized dashboards. Enables multi-site facility managers to monitor distributed assets, identify degradation trends, and optimize spare parts inventory across global operations.

Custom Configuration Options: While the standard module ships with factory settings suitable for 90% of applications, Siemens offers custom firmware configurations for specialized timing requirements, non-standard voltage ranges, or application-specific diagnostic thresholds through their engineering services program.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via express courier services. Typical delivery to major industrial centers occurs within 3-5 business days for domestic shipments, 7-10 business days for international destinations.

Custom Configuration Lead Time: Factory-programmed modules with specialized firmware or extended testing requirements ship within 15-20 business days following order confirmation and technical specification approval.

Warranty Coverage: Every module includes a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and conformal coating integrity. Warranty terms include free replacement, expedited shipping for critical applications, and technical root-cause analysis for field failures.

Technical Support Services: Our application engineering team provides pre-sales consultation for system design, wiring diagram review, configuration file validation, and commissioning assistance. Post-sales support includes troubleshooting guidance, firmware updates, and replacement part cross-referencing available via phone, email, and remote desktop sessions.

Documentation Package: Each shipment includes installation manual, wiring diagrams, GSD/GSDML files for network configuration, dimensional drawings in DXF/PDF formats, and material safety data sheets (MSDS) for conformal coating chemistry. Digital documentation library accessible via QR code on product label.

Frequently Asked Questions

How does the conformal coating affect long-term reliability in chemical environments?
The Class 3C3/3S3 coating provides verified protection against 95% relative humidity with condensation, SO₂ concentrations up to 10 ppm, and H₂S levels to 1 ppm. Independent testing demonstrates 5-7 year service life in petrochemical facilities versus 12-18 months for uncoated modules, representing a 300-400% improvement in mean time between failures (MTBF).

What communication protocols does the ET 200S system support for this module?
The module operates within ET 200S stations connected via PROFIBUS DP (up to 12 Mbps) or PROFINET IO (100 Mbps) networks. Configuration occurs through SIMATIC STEP 7 V5.x or TIA Portal V13+ software. The module auto-detects network parameters during startup, simplifying commissioning procedures.

Can I achieve energy savings by switching to solid-state outputs instead of relays?
Solid-state modules consume 2-3W per channel versus 1.5W total for this 4-channel relay module. However, relay outputs eliminate the 1-2V voltage drop inherent in semiconductor switches, reducing heat dissipation in the load circuit. For low-duty-cycle applications (<10% on-time), relay modules typically offer superior energy efficiency and lower total cost of ownership.

What installation precautions apply in explosive atmospheres?
While the module carries ATEX/IECEx certification for Zone 2/Division 2 hazardous locations, installation must occur within appropriately rated enclosures meeting local electrical codes. The relay contacts are not intrinsically safe; use approved barriers or isolators when switching circuits in Zone 0/1 or Division 1 classified areas.

How do I verify proper conformal coating coverage before installation?
SIPLUS modules undergo 100% optical inspection during manufacturing. The coating appears as a transparent or slightly amber film on PCB surfaces. Avoid mechanical abrasion, solvent exposure, or thermal stress above 85°C during handling, as these may compromise coating integrity. If damage is suspected, contact technical support for inspection procedures before deployment.

What diagnostic capabilities help reduce troubleshooting time during commissioning?
Each channel features a dedicated green LED indicating output state (ON/OFF). The module reports diagnostic data to the controller including short-circuit detection, wire-break monitoring (when enabled), and backplane communication status. STEP 7 software displays real-time I/O status, enabling technicians to verify wiring and logic without multimeters or external test equipment.

Ready to Enhance Your Control System Reliability?

Upgrade your automation infrastructure with proven environmental protection technology. Contact our technical sales team for application-specific recommendations, volume pricing, or integration support. Request a detailed quotation including shipping estimates, technical documentation, and compatibility verification for your existing SIMATIC systems.
