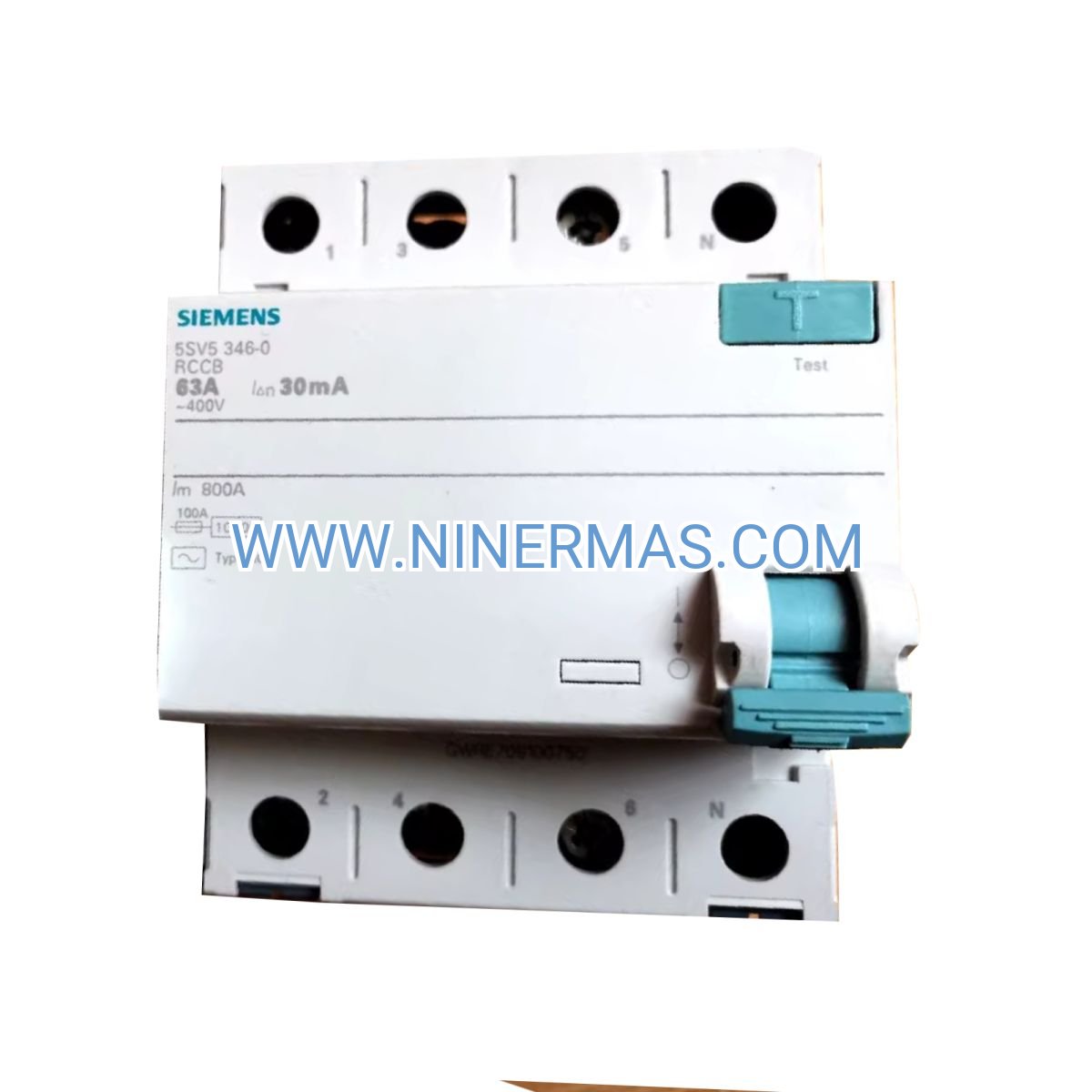

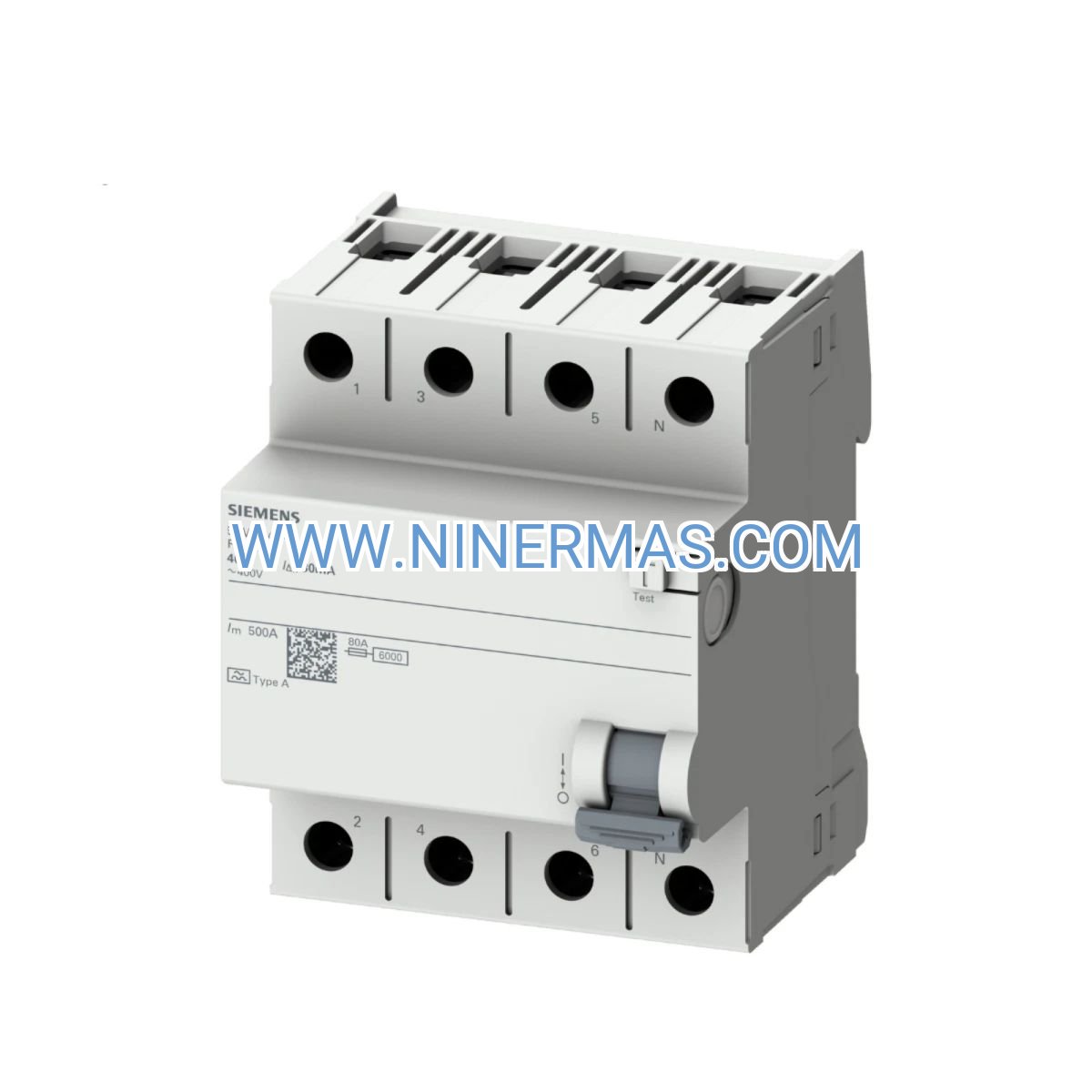

Siemens 5SV5346-0 — Industrial-Grade 4-Pole Residual Current Circuit Breaker

The Siemens 5SV5346-0 represents precision-engineered earth fault protection for demanding three-phase electrical environments. This 4-pole residual current circuit breaker combines 63A current handling capacity with ultra-sensitive 30mA leakage detection, delivering millisecond-response protection that prevents electric shock incidents and fire hazards across commercial, industrial, and critical infrastructure installations.

Designed for facilities where personnel safety and equipment integrity are non-negotiable, this AC-type RCCB monitors current imbalance continuously across all four poles. When residual current exceeds the 30mA threshold—indicating potential ground faults or insulation failures—the device disconnects all live conductors and neutral simultaneously within 30 milliseconds, meeting stringent IEC 61008-1 safety standards.

Manufactured in Germany with VDE and CE certification, the 5SV5346-0 integrates seamlessly into distribution boards serving motor control panels, HVAC systems, industrial machinery, and building services infrastructure. Its compact 4-module DIN rail footprint and 6kA short-circuit withstand rating make it the preferred choice for electrical contractors and facility managers prioritizing code compliance and operational reliability.

Key Features & Performance Benefits

→ Ultra-Fast Fault Response: Trips within 30ms at rated residual current, minimizing shock duration and reducing arc flash risk in fault conditions—critical for worker safety in conductive environments.

→ Four-Pole Simultaneous Disconnection: Ensures complete isolation of all live conductors plus neutral, essential for TN-S and TT earthing systems where neutral-to-earth faults can compromise safety.

→ 63A Continuous Current Rating: Handles high-power three-phase loads including 45kW motors, commercial refrigeration systems, and industrial process equipment without nuisance tripping.

→ AC Type Sensitivity Profile: Optimized for detecting sinusoidal alternating residual currents in traditional electrical installations with resistive and inductive loads.

✓ Mechanical Position Indicator: Visual contact status confirmation independent of power supply—enables safe maintenance verification during lockout/tagout procedures.

✓ Integrated Test Function: Monthly functional verification via test button simulates residual current condition, ensuring device readiness per NFPA 70B maintenance protocols.

Application Scenarios & Industry Solutions

Manufacturing & Process Industries: Protects CNC machining centers, conveyor systems, and automated production lines where ground faults could trigger costly downtime. The 30mA sensitivity detects insulation degradation before catastrophic failure, supporting predictive maintenance strategies.

Commercial Kitchen & Food Processing: Meets health and safety regulations for wet environments with high ground fault risk. Safeguards personnel operating commercial ovens, dishwashers, and refrigeration equipment in compliance with local electrical codes.

Data Center & IT Infrastructure: Provides earth leakage monitoring for UPS distribution panels, CRAC units, and power distribution units (PDUs). Coordinates with upstream protection to maintain uptime while ensuring personnel safety during maintenance.

Building Services & HVAC: Ideal for protecting three-phase air handling units, chiller systems, and elevator motor circuits in commercial buildings. The 400V rating suits standard European and Asian electrical systems.

Outdoor & Harsh Environments: -25°C to +40°C operating range enables deployment in unheated enclosures, outdoor substations, and industrial facilities with temperature extremes. 20,000 mechanical operations lifecycle supports high-cycling applications.

Technical Specifications & Selection Guide

Selection Criteria: Choose this 4-pole model for three-phase installations requiring personnel protection per IEC 60364-4-41. For circuits with electronic loads (VFDs, UPS systems, LED drivers), consider Type A or Type B RCCBs to prevent nuisance tripping from DC residual currents. Always coordinate with upstream overcurrent protection devices (MCBs or fuses) sized appropriately for load characteristics.

Advanced Integration Capabilities

Coordinated Protection Schemes: Install downstream of appropriately rated MCBs to achieve selective coordination—the RCCB handles earth faults while MCBs clear overloads and short circuits. This layered approach minimizes unnecessary shutdowns in multi-circuit installations.

Remote Monitoring Readiness: While this model features manual operation, it can be integrated with auxiliary contacts (available separately) for remote status indication in building management systems (BMS) or SCADA networks.

Modular Expansion: The compact 4-module width allows efficient panel layout in distribution boards. Combine multiple RCCBs to create zone-based protection for large facilities, isolating faults to specific areas without affecting entire systems.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; custom configurations or bulk orders may require 2-3 weeks—contact our team for expedited shipping options.

Warranty Coverage: 12-month manufacturer warranty against material and workmanship defects, with extended warranty programs available for critical infrastructure projects.

Technical Support: Access to application engineers for wiring diagrams, coordination studies, and compliance documentation. We provide IEC test certificates and installation guidance to support your electrical design and commissioning processes.

Documentation Package: Each unit ships with installation manual, dimensional drawings, and certification documents. Digital resources including CAD files and BIM objects available upon request.

Frequently Asked Questions

How does the 30mA sensitivity level protect against electric shock?
Human ventricular fibrillation threshold is approximately 30mA. This RCCB detects leakage currents at or above this level and disconnects power within 30ms—fast enough to prevent lethal shock in most scenarios. The combination of sensitivity and speed meets international safety standards for personnel protection.

What installation requirements must be met for proper operation?
Mount on 35mm DIN rail with adequate ventilation (minimum 10mm clearance above/below). Ensure all load neutral currents return through the RCCB's neutral pole—external neutral-to-earth connections downstream will cause nuisance tripping. Torque terminals to 2.5Nm per manufacturer specifications.

Can this device provide overload or short-circuit protection?
No—RCCBs exclusively detect residual (earth leakage) currents. You must install upstream miniature circuit breakers (MCBs) or fuses rated for the circuit's load characteristics to protect against overcurrent conditions. The RCCB's 6kA rating indicates its ability to withstand short-circuit currents until upstream devices clear the fault.

Why would I choose AC type over Type A or Type B RCCBs?
AC type suits installations with purely sinusoidal AC loads (motors, heaters, lighting). Type A adds protection against pulsating DC residual currents from single-phase electronic equipment. Type B is required for installations with frequency converters or three-phase rectifiers that produce smooth DC residual currents. AC type offers the most economical solution for traditional electrical systems.

How do I troubleshoot nuisance tripping issues?
Measure total earth leakage current under normal operating conditions—cumulative leakage from multiple connected loads should not exceed 50% of rated sensitivity (15mA for this unit). Check for cable insulation degradation, moisture ingress in junction boxes, or electromagnetic interference from nearby equipment. Consider installing Type A RCCBs if electronic loads are present.

Is periodic testing required for compliance?
Yes—IEC 60364-6 and NFPA 70B recommend monthly functional testing using the integrated test button. This simulates a residual current condition to verify mechanical operation. Document test results in your facility's electrical maintenance log to demonstrate due diligence during safety audits.

Take the Next Step in Electrical Safety

Ensure code-compliant earth fault protection for your three-phase installations. Contact our technical sales team for application-specific guidance, coordination studies, or volume pricing for multi-site projects. We're here to support your electrical safety objectives with expert product selection and engineering resources.
