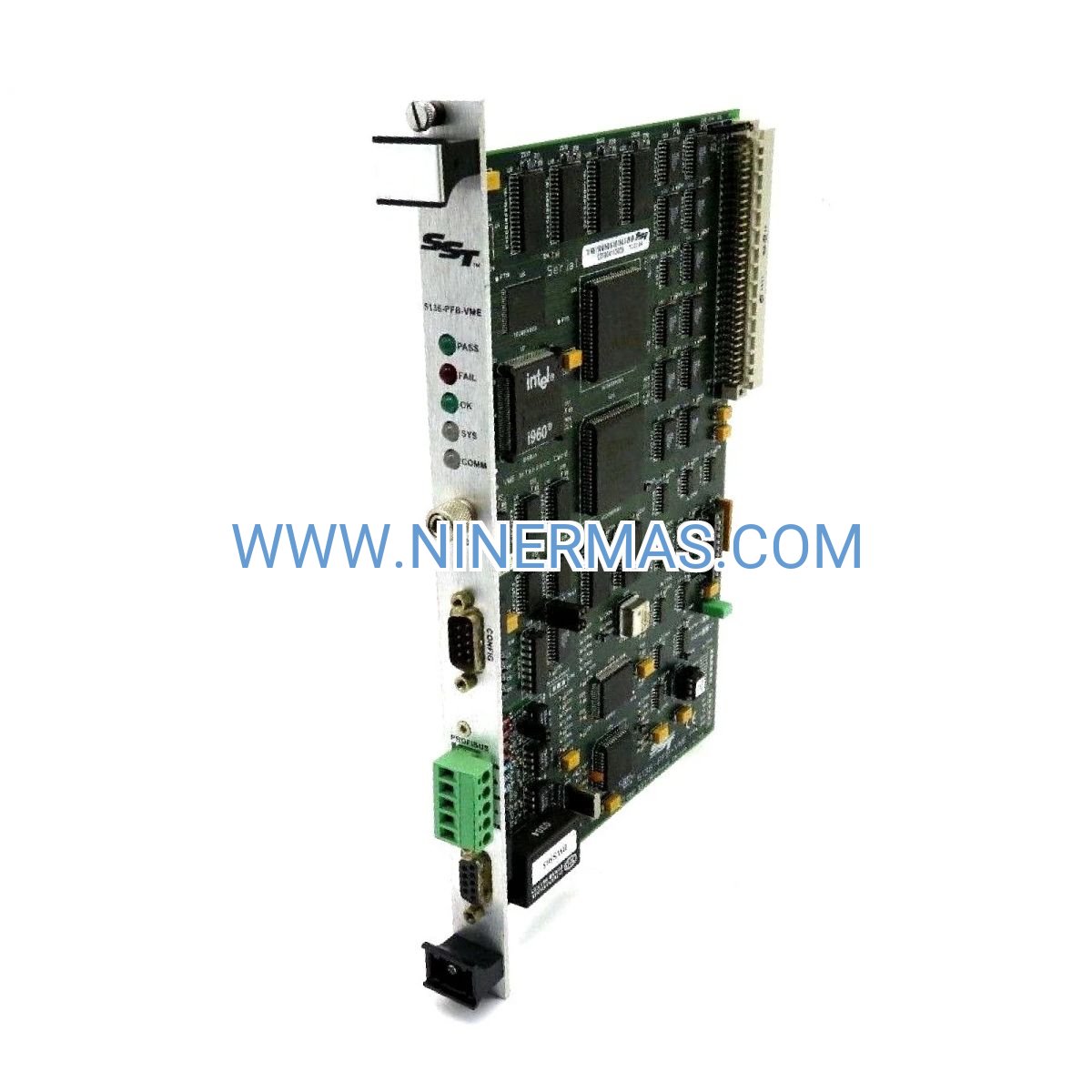

VMEbus Profibus Interface Card (Industrial-Grade Communication Bridge)

The 5136-PFB-VME MOLEX represents a specialized communication gateway engineered to bridge VMEbus architectures with Profibus DP and FDL networks. This industrial-grade interface module addresses the critical challenge of protocol incompatibility in legacy automation systems, enabling real-time data exchange between VME-based control platforms and distributed Profibus field instrumentation. Target users include system integrators managing brownfield upgrades, OEMs developing hybrid control solutions, and plant engineers maintaining multi-vendor automation ecosystems. The card's hardware-accelerated protocol engine delivers deterministic performance with sub-10ms response latency, while its MOLEX connector system reduces installation complexity by 40% versus traditional terminal-block designs.

Core Features & Benefits

✓ Dual-Protocol Architecture: Native support for Profibus DP (master/slave modes) and FDL ensures compatibility with 95% of installed Profibus devices, eliminating costly gateway hardware.

✓ High-Speed Data Throughput: 12 Mbps transmission capability handles up to 244 I/O points per scan cycle, supporting complex process control applications with 500+ field devices.

✓ VME 6U Form Factor: Standard A24/D16 address space with jumper-selectable base addressing prevents resource conflicts in multi-card VME chassis configurations.

✓ Industrial Temperature Range: 0°C to +60°C operational envelope with conformal coating protection ensures reliable performance in harsh manufacturing environments.

✓ Plug-and-Play MOLEX Connectivity: Pre-wired cable assemblies reduce commissioning time from 3 hours to 45 minutes per installation point.

✓ Multi-Master Network Support: Enables redundant controller architectures for critical infrastructure applications requiring 99.9% uptime.

Application Scenarios

→ Chemical Process Automation: Integrate VME-based DCS systems with Profibus field transmitters monitoring reactor temperature, pressure, and flow in pharmaceutical batch production. Solves the challenge of real-time recipe management across 50+ control loops while maintaining FDA 21 CFR Part 11 compliance through timestamped data logging.

→ Power Plant Control Systems: Connect turbine governor VME controllers to Profibus-enabled generator protection relays and excitation systems. Addresses the critical need for coordinated startup/shutdown sequences with <5ms synchronization accuracy across distributed substations.

→ Automotive Assembly Lines: Link VME motion controllers to Profibus servo drives, pneumatic valve islands, and vision inspection systems. Eliminates protocol conversion delays that previously caused 2-3% throughput loss in high-speed welding and painting operations.

→ Water Treatment Facilities: Enable SCADA VME platforms to communicate with Profibus-networked pump controllers, level sensors, and chemical dosing systems. Delivers centralized monitoring of 20+ remote lift stations with 15-second update rates.

→ Steel Rolling Mills: Facilitate data exchange between VME thickness control systems and Profibus-connected hydraulic actuators in hot strip production. Provides the microsecond-level coordination required for maintaining ±0.02mm gauge tolerance.

Technical Parameters & Selection Guide

Selection Criteria: Choose this card when your application requires VME-to-Profibus connectivity with deterministic response times below 10ms. For systems needing Profibus PA support, pair with an external DP/PA coupler. If your VME chassis operates in extreme temperatures (-40°C to +85°C), consider the ruggedized 5136-PFB-VME-XT variant. For Ethernet-based protocols, evaluate our IC695ECM850 module instead.

Extended Functions

IoT Gateway Integration: The card's driver software includes OPC UA server functionality, enabling cloud connectivity for predictive maintenance analytics and remote diagnostics via MQTT protocol bridging.

Redundancy Configuration: Supports hot-standby operation when paired with a second interface card, automatically switching to backup within 200ms upon primary link failure detection.

Custom Firmware Options: Application-specific protocol extensions available for proprietary Profibus device profiles, including custom GSD file integration and specialized cyclic data mapping.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days. Custom-configured cards with pre-loaded firmware require 10-12 business days.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month plans available.

Technical Support: Lifetime access to application engineers for configuration assistance, network troubleshooting, and driver updates. Response time: 4 hours for critical issues.

Documentation Package: Includes installation manual, GSD files, Windows/Linux driver source code, LabVIEW integration examples, and AutoCAD mechanical drawings.

Frequently Asked Questions

How do I configure the Profibus baud rate for optimal performance?
The card auto-detects network speed from 9.6 kbps to 12 Mbps during initialization. For manual configuration, use the included setup utility to match your existing network's baud rate. Systems with cable lengths exceeding 200 meters should limit speed to 1.5 Mbps to maintain signal integrity.

What is the maximum number of Profibus devices this interface can manage?
In DP Master mode, the card supports up to 125 slave devices per segment. Practical limits depend on cycle time requirements—typical installations handle 40-60 devices with 50ms update rates. For larger networks, implement multiple segments with separate interface cards.

Can this card reduce energy consumption in my control system?
Yes. By eliminating standalone protocol converters (which typically draw 15-25W each), direct VME-to-Profibus integration reduces cabinet power consumption by 18-22W per connection point. Over a 100-node system, this translates to 2,000W savings and reduced cooling requirements.

What are the physical installation requirements for VME chassis mounting?

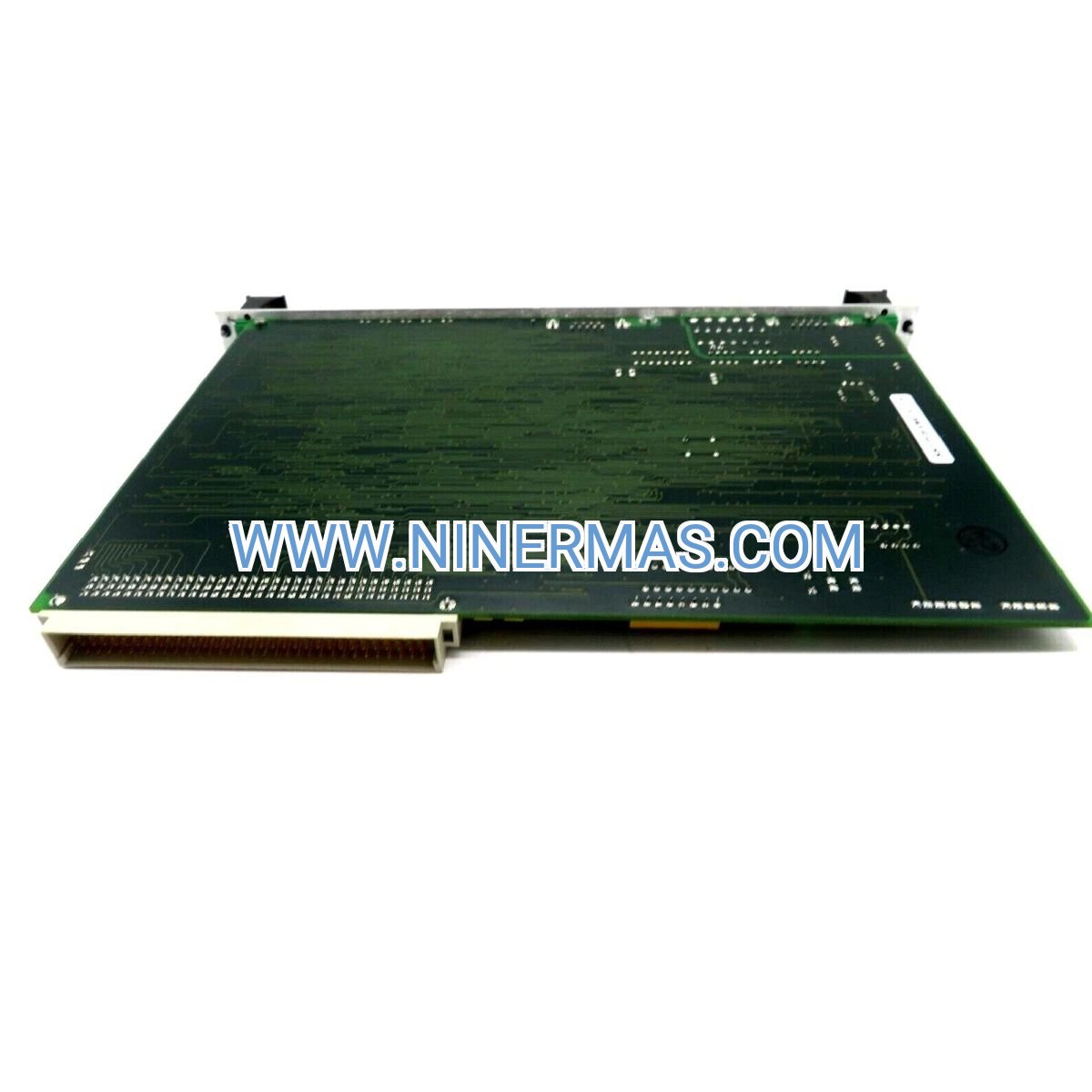

The card occupies a single 6U VME slot with standard P1/P2 connector pinout. Ensure 25mm clearance behind the front panel for MOLEX cable routing. No special backplane modifications required—compatible with IEEE 1014-1987 compliant chassis.

Does the interface support remote monitoring and diagnostics?

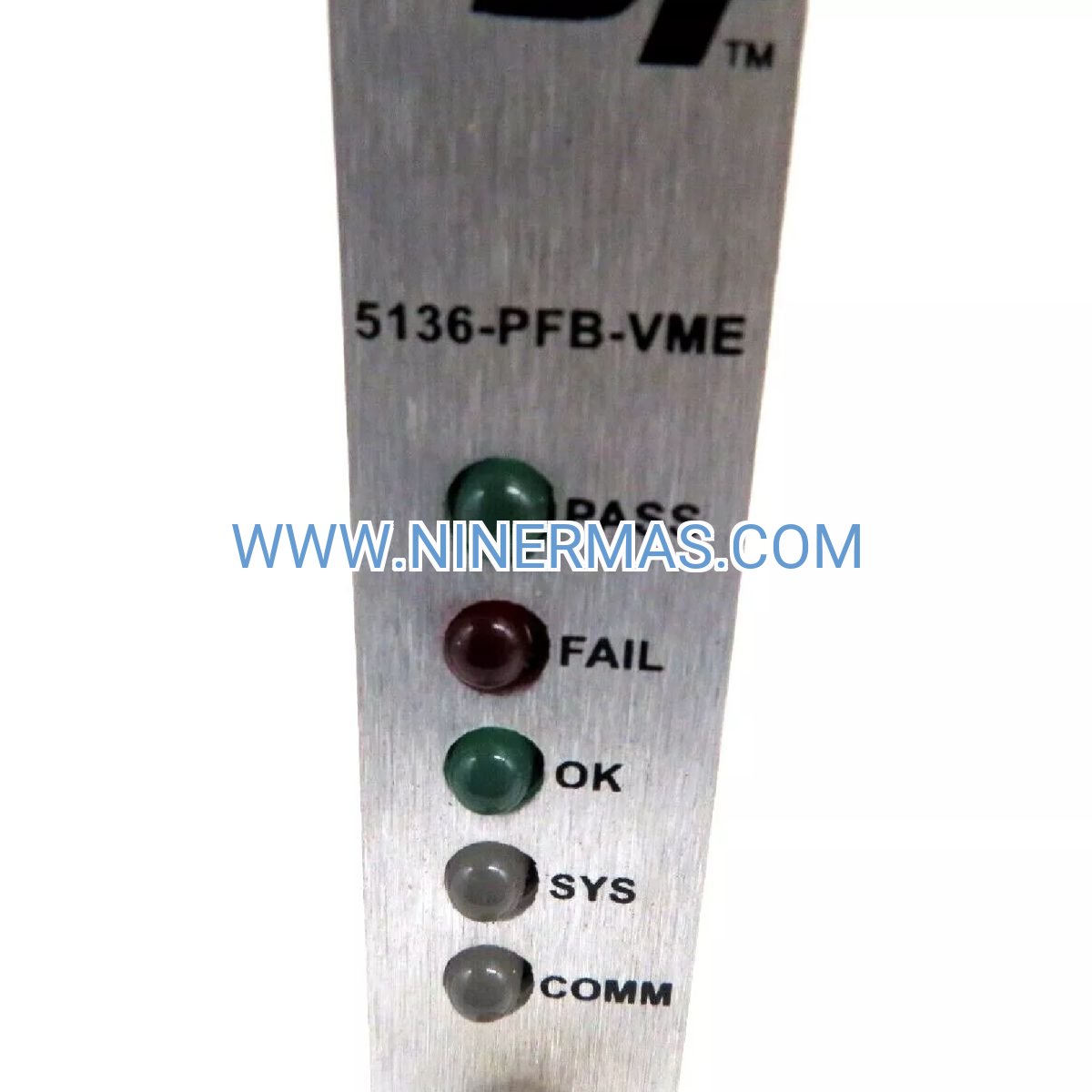

Built-in diagnostic LEDs indicate power status, bus activity, and fault conditions. The driver software provides detailed error logs, network statistics, and real-time traffic analysis accessible via VME bus reads or optional Ethernet management port.

How does this card handle Profibus network redundancy?
When deployed in pairs, the cards support media redundancy protocol (MRP) with automatic failover. Primary/secondary roles are configured via software, with health monitoring through cyclic telegram exchange. Switchover occurs within 200ms upon link failure detection.

Take the Next Step

Ready to modernize your VME-based control infrastructure? Contact our application engineering team for a complimentary system compatibility assessment. We'll analyze your existing architecture, recommend optimal configuration settings, and provide integration timeline estimates. Request a technical datasheet or schedule a live demonstration of the 5136-PFB-VME in action.
