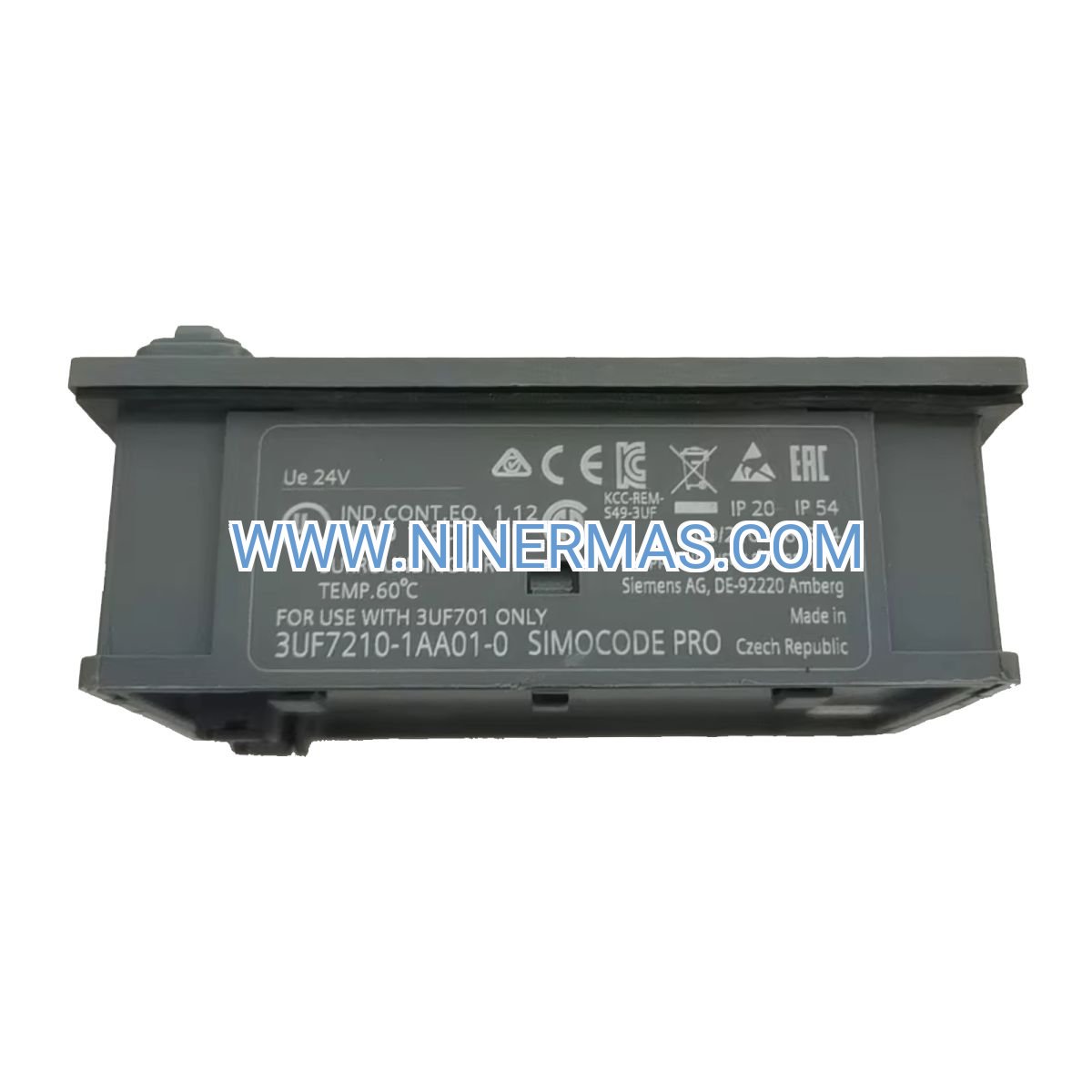

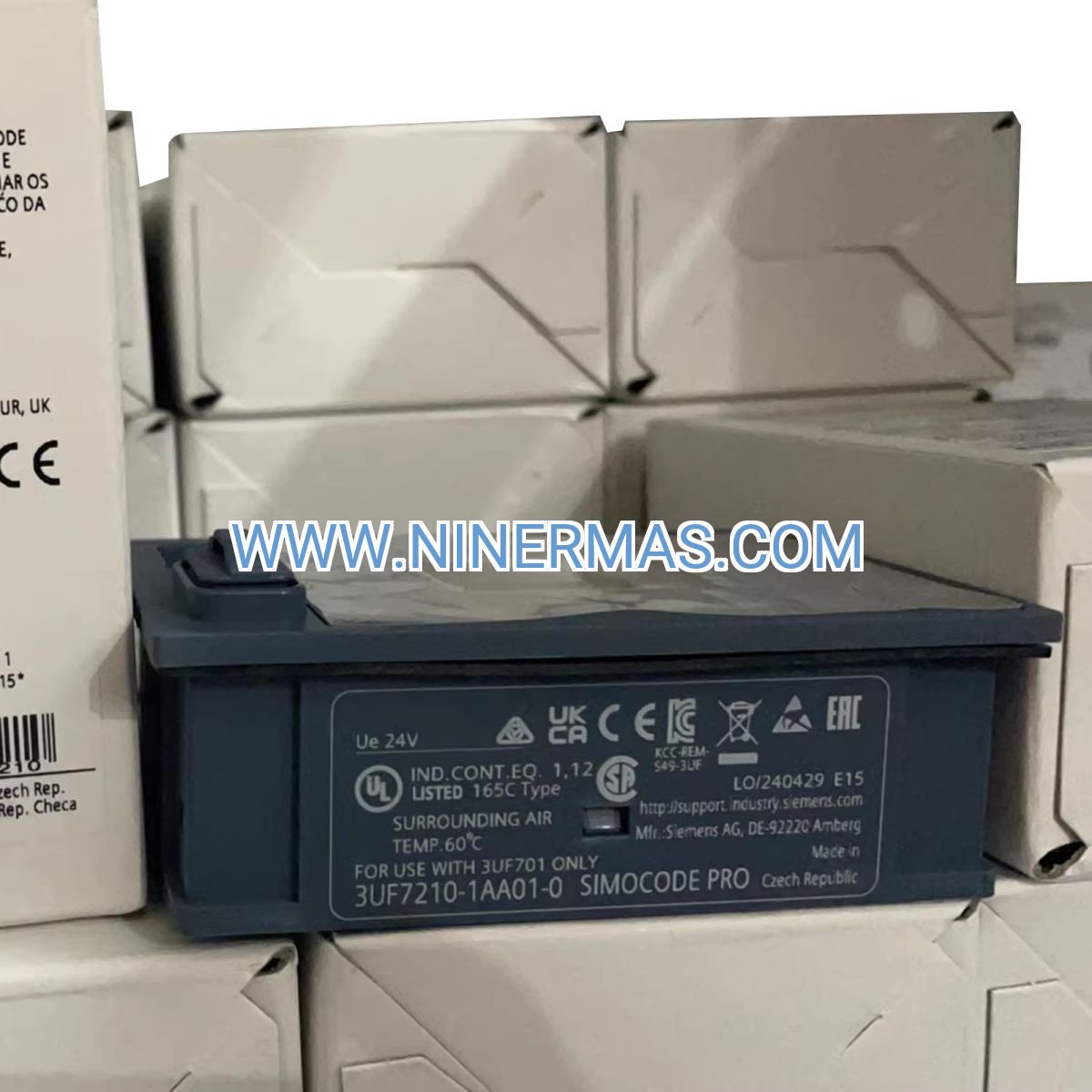

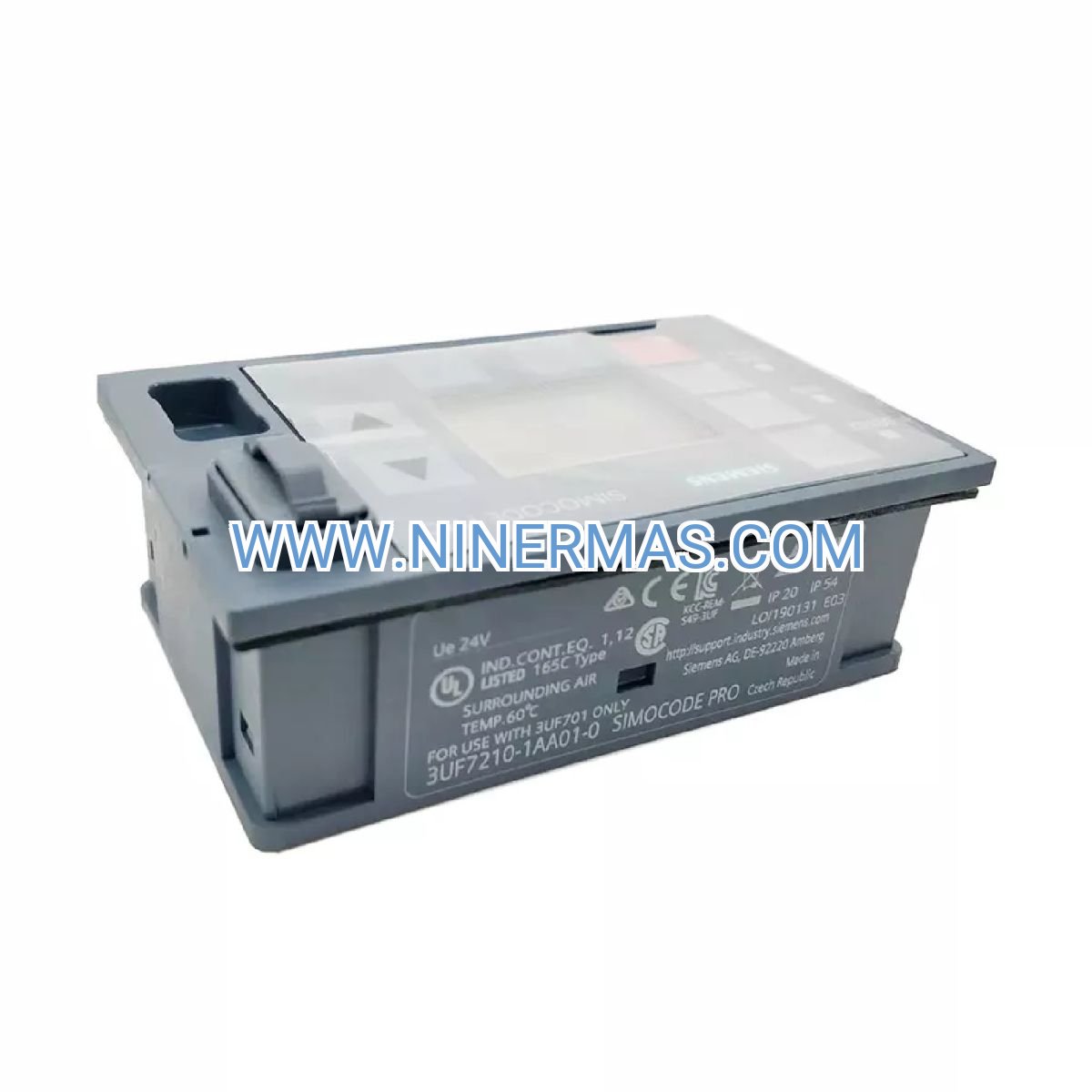

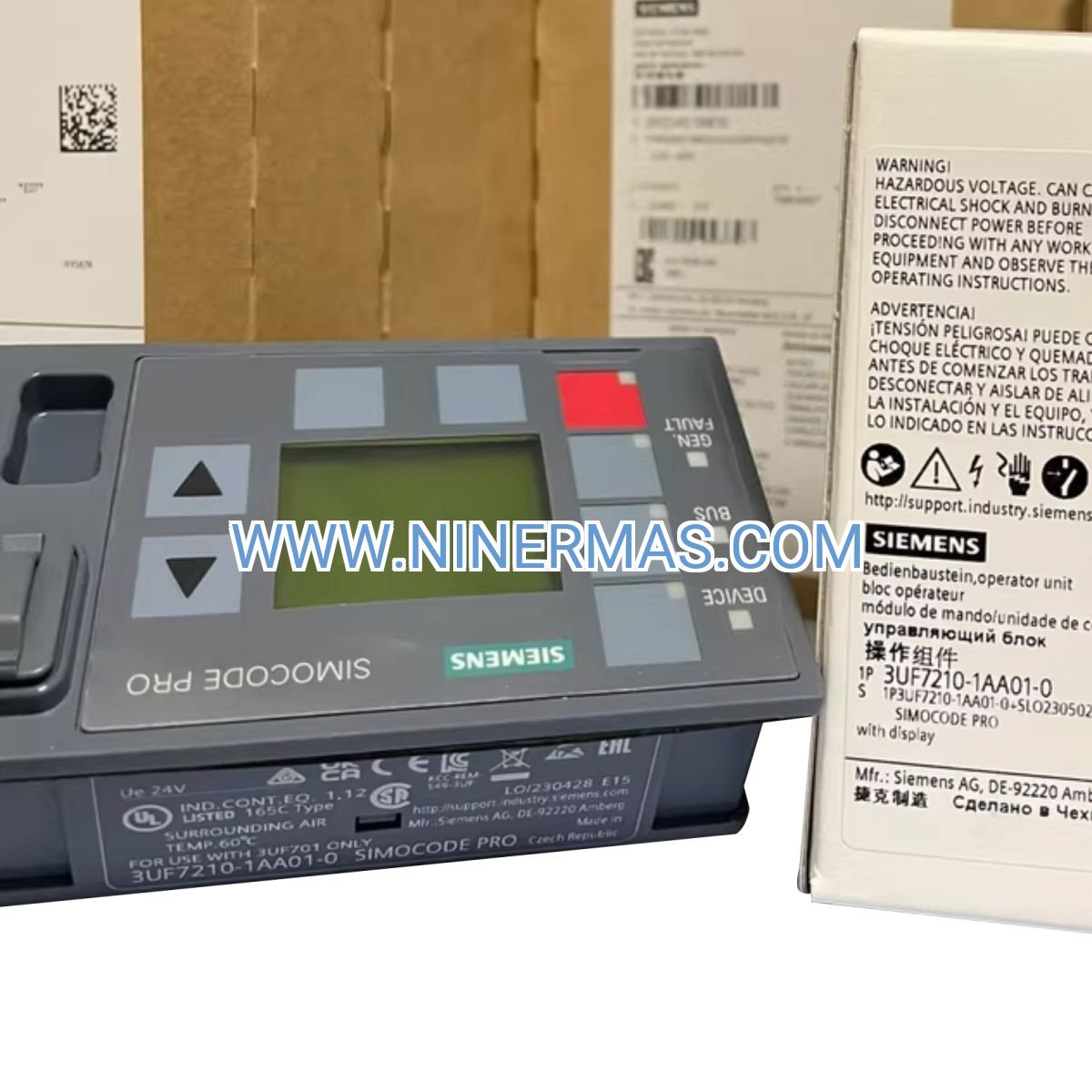

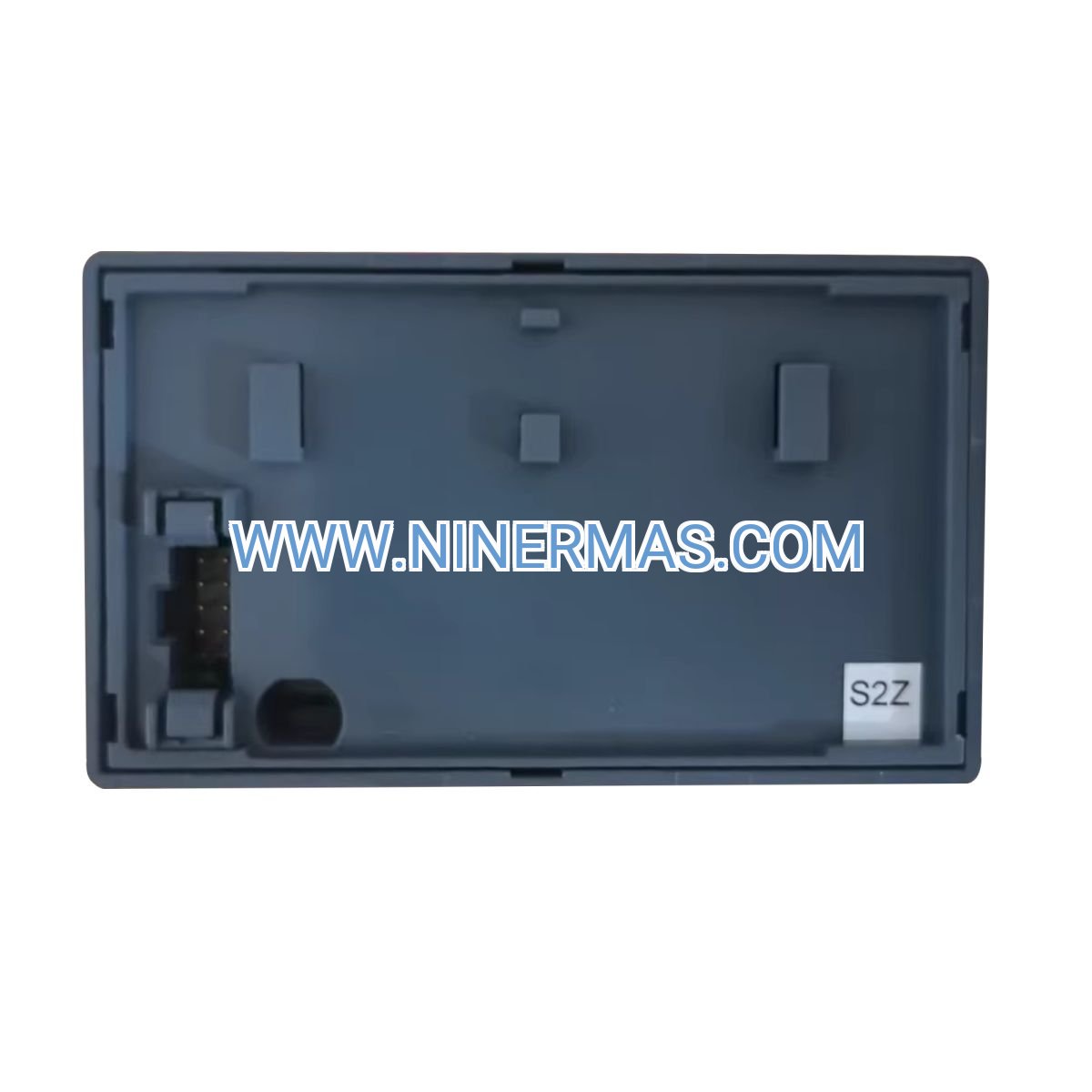

3UF7210-1AA01-0 SIMOCODE pro V Operator Panel (Industrial-Grade Motor Control Interface)

The 3UF7210-1AA01-0 represents a professional human-machine interface engineered for direct integration with SIMOCODE pro V motor management ecosystems. Designed for control cabinet door mounting, this operator panel delivers immediate access to motor protection parameters, diagnostic data, and operational controls—empowering plant operators to respond swiftly to changing process demands without navigating complex software environments.

Built to withstand harsh industrial conditions, this interface addresses a critical challenge in modern manufacturing: the need for localized motor control that doesn't compromise system security or require specialized IT knowledge. Whether managing conveyor systems in automotive plants or pump arrays in water treatment facilities, operators gain instant visibility into motor health through intuitive visual indicators and a high-contrast display optimized for readability in variable lighting conditions.

With IP54-rated front panel protection and an operating range from -20°C to +60°C, the 3UF7210-1AA01-0 ensures reliable performance across diverse industrial environments—from climate-controlled pharmaceutical cleanrooms to outdoor pump stations exposed to temperature extremes.

Core Features & Industrial Advantages

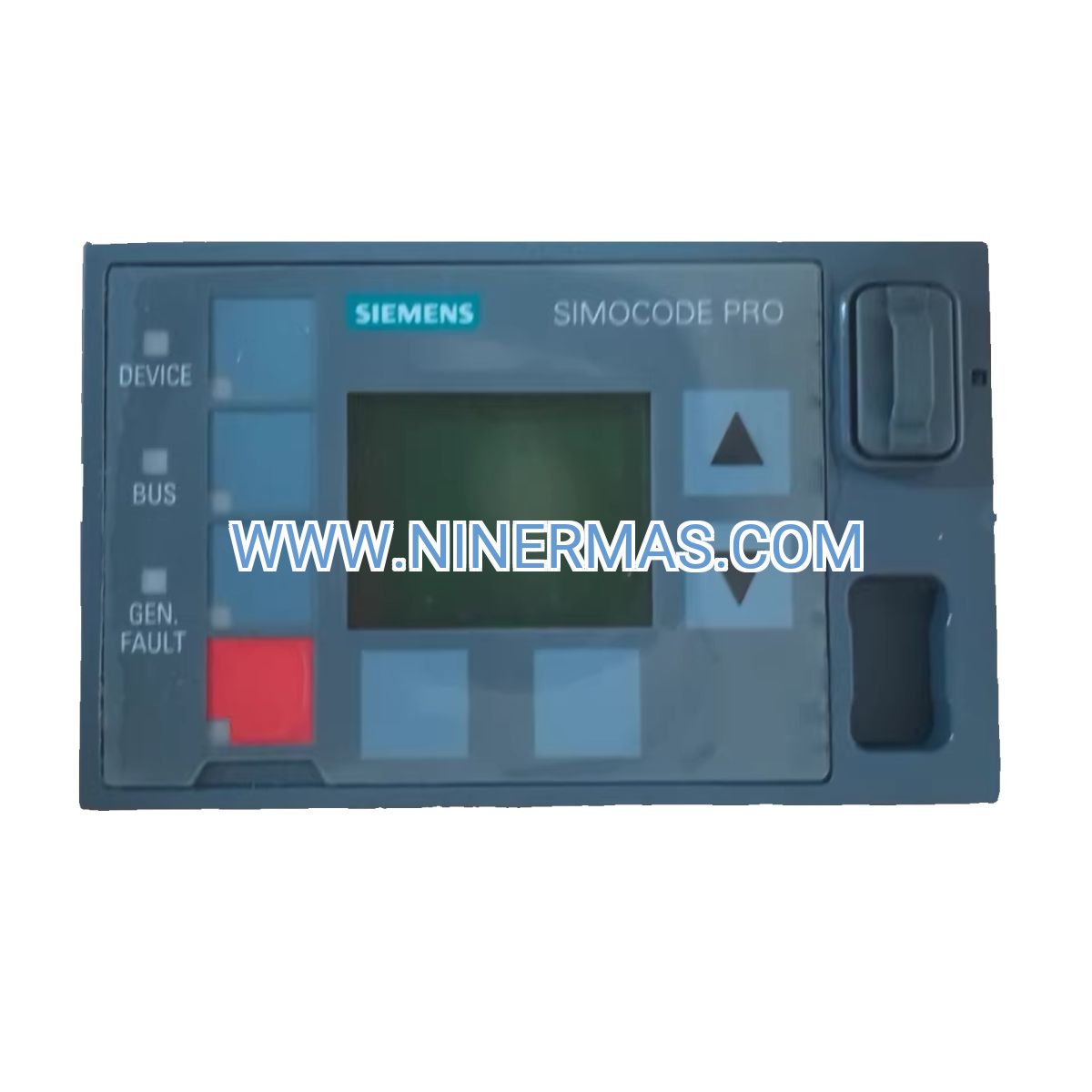

✓ High-Contrast LCD Display with Backlight
Provides clear visibility of motor parameters, fault codes, and operational data even in low-light conditions or direct sunlight exposure—reducing operator error and accelerating troubleshooting workflows.

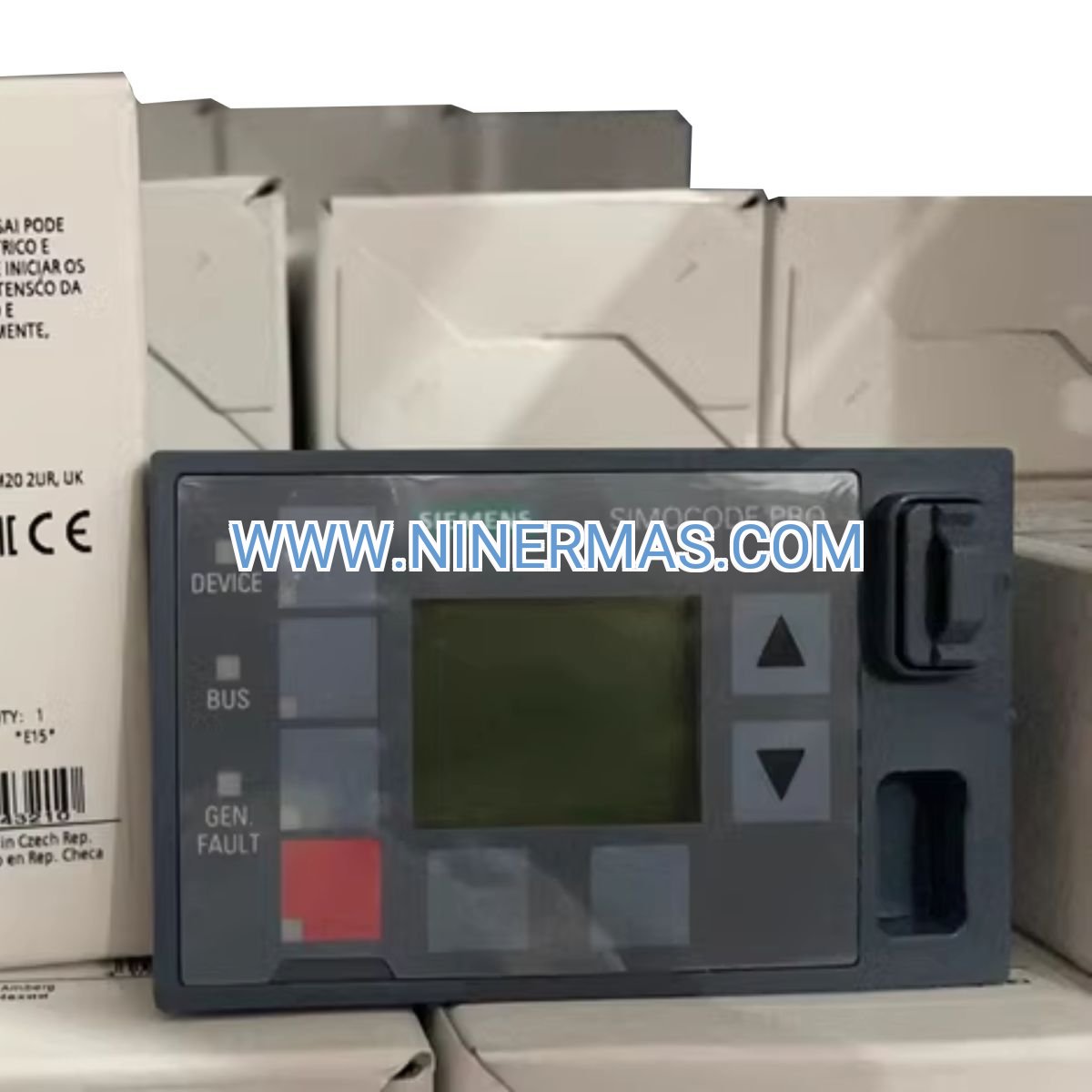

✓ 7-LED Diagnostic Indicator Array
Enables at-a-glance status verification from across the control room floor, allowing maintenance teams to identify fault conditions without approaching the panel—improving response time during critical events by up to 40%.

✓ 4 Programmable Function Keys
Customizable controls can be mapped to frequently accessed operations such as motor start/stop, parameter reset, or mode switching—streamlining routine tasks and reducing training requirements for new operators.

✓ IP54 Environmental Protection
Sealed front panel construction guards against dust ingress and water splashing, ensuring consistent operation in food processing plants, chemical facilities, and outdoor installations where contamination risks are elevated.

✓ Extended Temperature Range (-20°C to +60°C)
Reliable functionality across extreme thermal conditions makes this panel suitable for refrigerated warehouses, foundries, and outdoor infrastructure applications without requiring additional climate control measures.

✓ Direct SIMOCODE pro V Integration
Plug-and-play connectivity eliminates complex wiring configurations and reduces installation time by approximately 60% compared to third-party HMI solutions—lowering total cost of ownership.

Application Scenarios & Problem-Solving Capabilities

→ Manufacturing Production Lines
In automotive assembly plants or packaging facilities, operators require immediate motor parameter adjustments to accommodate product changeovers. The 3UF7210-1AA01-0 enables on-the-fly torque limit modifications and speed profile updates without halting production—minimizing downtime and maintaining throughput targets.

→ Water & Wastewater Treatment
Pump stations and aeration systems demand continuous monitoring of motor load conditions to prevent cavitation damage and optimize energy consumption. This operator panel provides real-time current draw visualization and historical trend data, allowing technicians to detect bearing wear or impeller fouling before catastrophic failure occurs—extending equipment lifespan by 25-35%.

→ HVAC & Building Automation
Chiller systems and air handling units in commercial buildings benefit from localized control access for facility management teams. The panel's intuitive interface allows non-specialized personnel to verify motor status, acknowledge alarms, and perform basic diagnostics—reducing dependency on external service contractors and cutting maintenance costs.

→ Chemical & Pharmaceutical Processing
Batch production environments require precise motor control with full audit trail capabilities. The 3UF7210-1AA01-0 logs all parameter changes and fault events, supporting GMP compliance requirements while enabling process engineers to correlate motor performance with product quality metrics.

→ Mining & Material Handling
Conveyor systems transporting abrasive materials experience variable load conditions that can trigger nuisance trips. This operator panel allows maintenance personnel to adjust overload thresholds and restart sequences directly at the motor control center—reducing mean time to recovery (MTTR) by up to 50%.

Technical Parameters & Selection Guide

Selection Criteria: This operator panel is specifically designed for SIMOCODE pro V motor protection systems. Verify compatibility with your existing SIMOCODE base unit model before ordering. For applications requiring remote monitoring or SCADA integration, consider pairing with SIMOCODE communication modules. If your facility operates multiple motor control centers, standardizing on this interface simplifies spare parts inventory and reduces operator training complexity.

Extended Functionality & Integration Options

Parameter Cloning & Backup: Transfer configuration settings between multiple SIMOCODE devices using the operator panel's built-in copy function—ideal for standardizing protection parameters across identical motor applications and accelerating commissioning of new installations.

Historical Data Logging: Access timestamped fault records and operational statistics directly from the panel interface, enabling root cause analysis without requiring connection to external diagnostic tools—critical for troubleshooting intermittent issues.

Multi-Language Support: Configurable display language options accommodate international facilities and multilingual maintenance teams, reducing miscommunication risks and improving safety compliance.

Customizable Alarm Thresholds: Define application-specific warning levels for current imbalance, ground fault detection, and thermal overload—allowing proactive maintenance interventions before protective trips occur.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 2-3 business days via express courier services. Typical delivery to major industrial centers: 5-7 business days.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to certified Siemens automation specialists for installation guidance, parameter optimization, and troubleshooting assistance. Remote diagnostic support available during commissioning phase.

Documentation Package: Each unit includes installation manual, quick-start guide, wiring diagrams, and dimensional drawings in PDF format. CAD files available upon request for panel design integration.

Frequently Asked Questions

Q: Can this operator panel interface with legacy SIMOCODE systems or only pro V models?
A: The 3UF7210-1AA01-0 is engineered exclusively for SIMOCODE pro V architecture. For earlier SIMOCODE generations, alternative operator panel models are available—contact our technical team for compatibility verification.

Q: What motor parameters can be monitored and adjusted through the panel display?
A: The interface provides access to phase currents, voltage levels, power factor, operating hours, trip counters, thermal capacity utilization, and configurable protection thresholds including overload curves, ground fault sensitivity, and phase loss detection settings.

Q: Does the panel require external power supply or does it draw power from the SIMOCODE unit?
A: The operator panel is powered directly through the communication connection to the SIMOCODE pro V base unit—no separate power supply required, simplifying installation and reducing component count.

Q: How does the IP54 rating affect installation requirements in washdown environments?
A: IP54 protection ensures resistance to dust accumulation and water splashing from any direction. For high-pressure washdown areas (food processing, pharmaceutical), mount the panel in a protected enclosure or specify IP65-rated alternatives for enhanced sealing.

Q: Can multiple operator panels control a single SIMOCODE device simultaneously?
A: SIMOCODE pro V systems support connection of one local operator panel per base unit. For distributed control requirements, integrate with SIMATIC HMI panels or SCADA systems via communication modules.

Q: What training is recommended for operators unfamiliar with SIMOCODE interfaces?
A: The intuitive menu structure typically requires 2-4 hours of hands-on training for basic operation. Comprehensive training programs covering advanced diagnostics and parameter optimization are available through authorized Siemens training centers.

Get Started with Professional Motor Control

Upgrade your motor protection infrastructure with the 3UF7210-1AA01-0 operator panel. Our application engineers are available to discuss your specific requirements, recommend complementary components, and provide technical specifications for seamless integration into your existing control architecture.

Contact our team today: Request a detailed quotation, schedule a technical consultation, or arrange for on-site commissioning support to ensure optimal system performance from day one.
