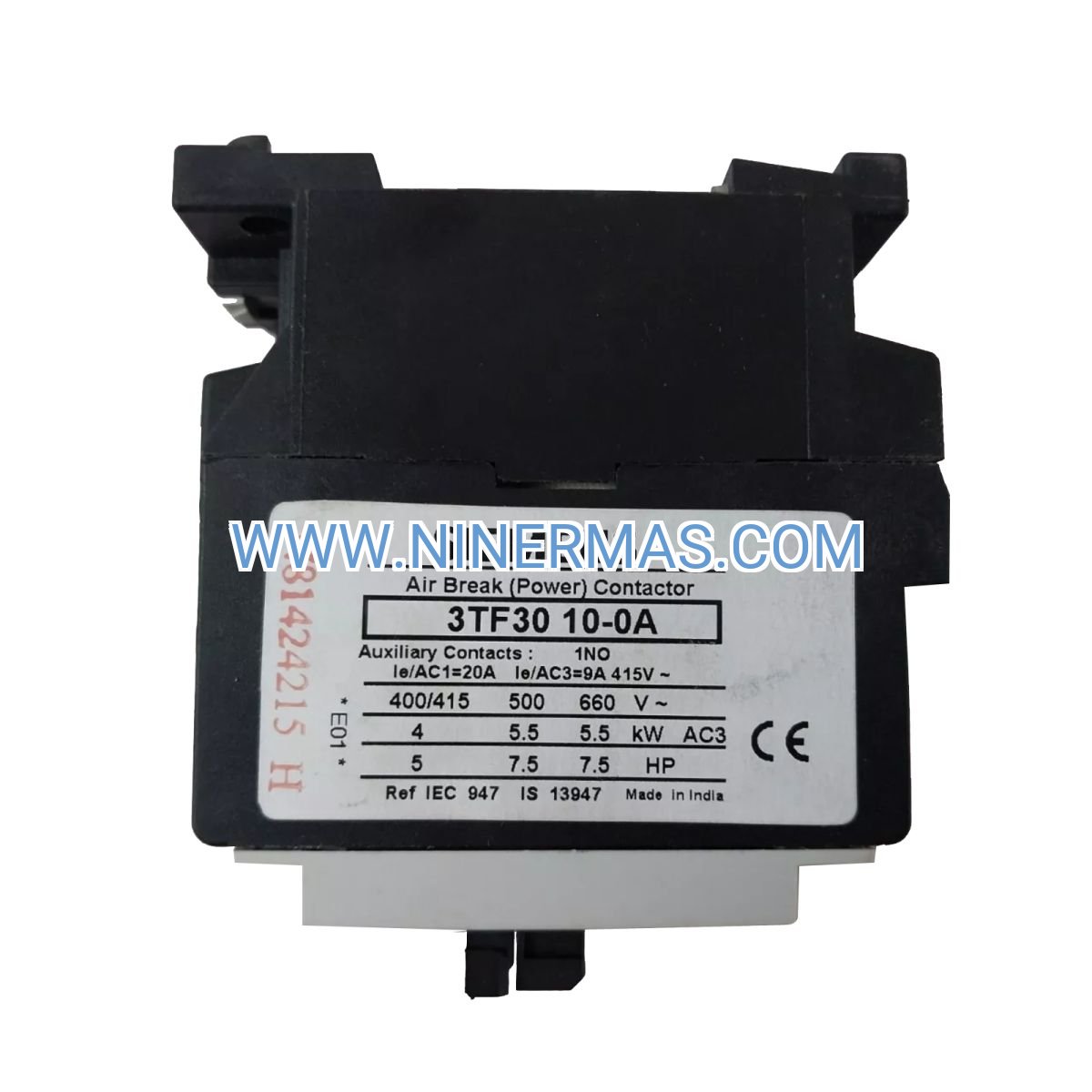

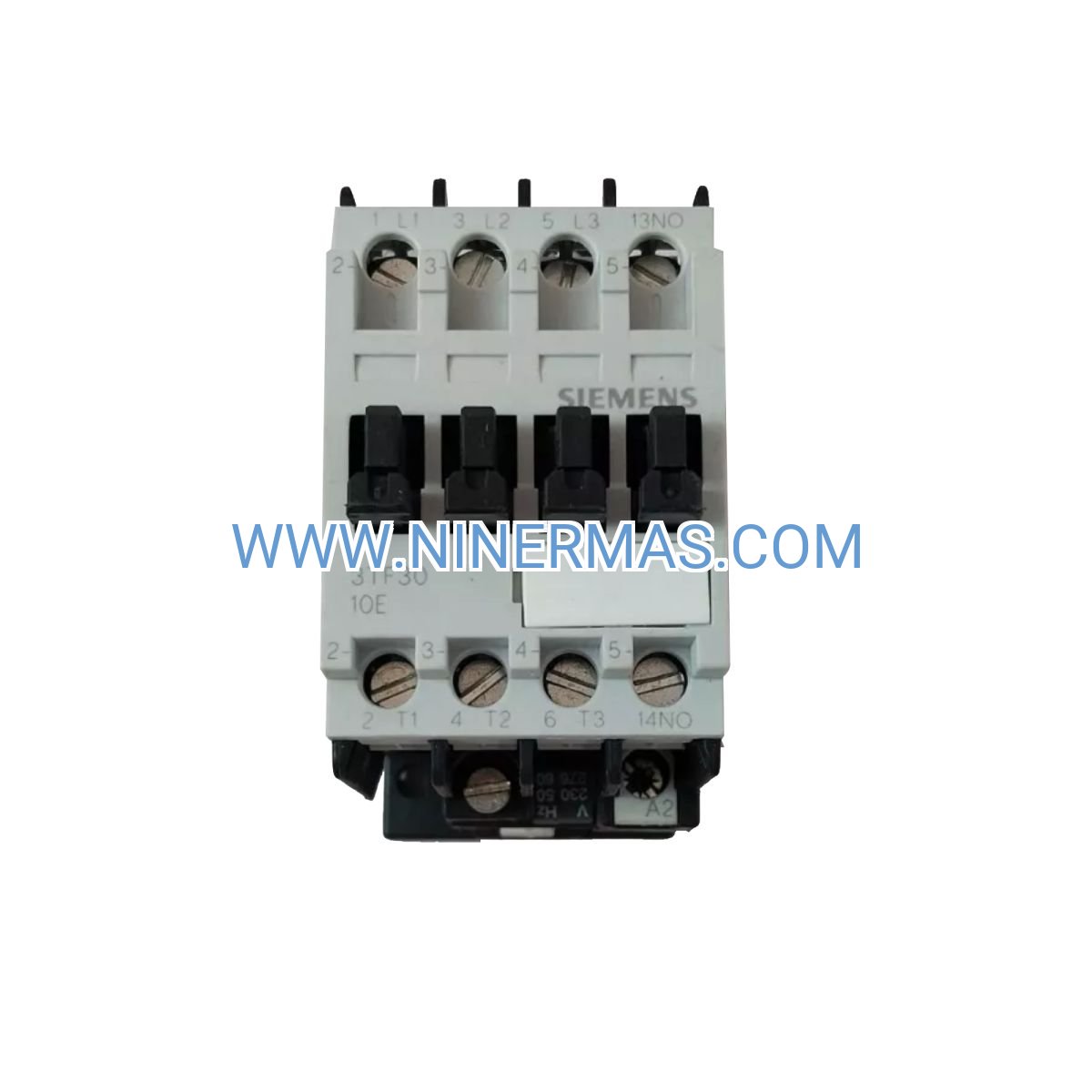

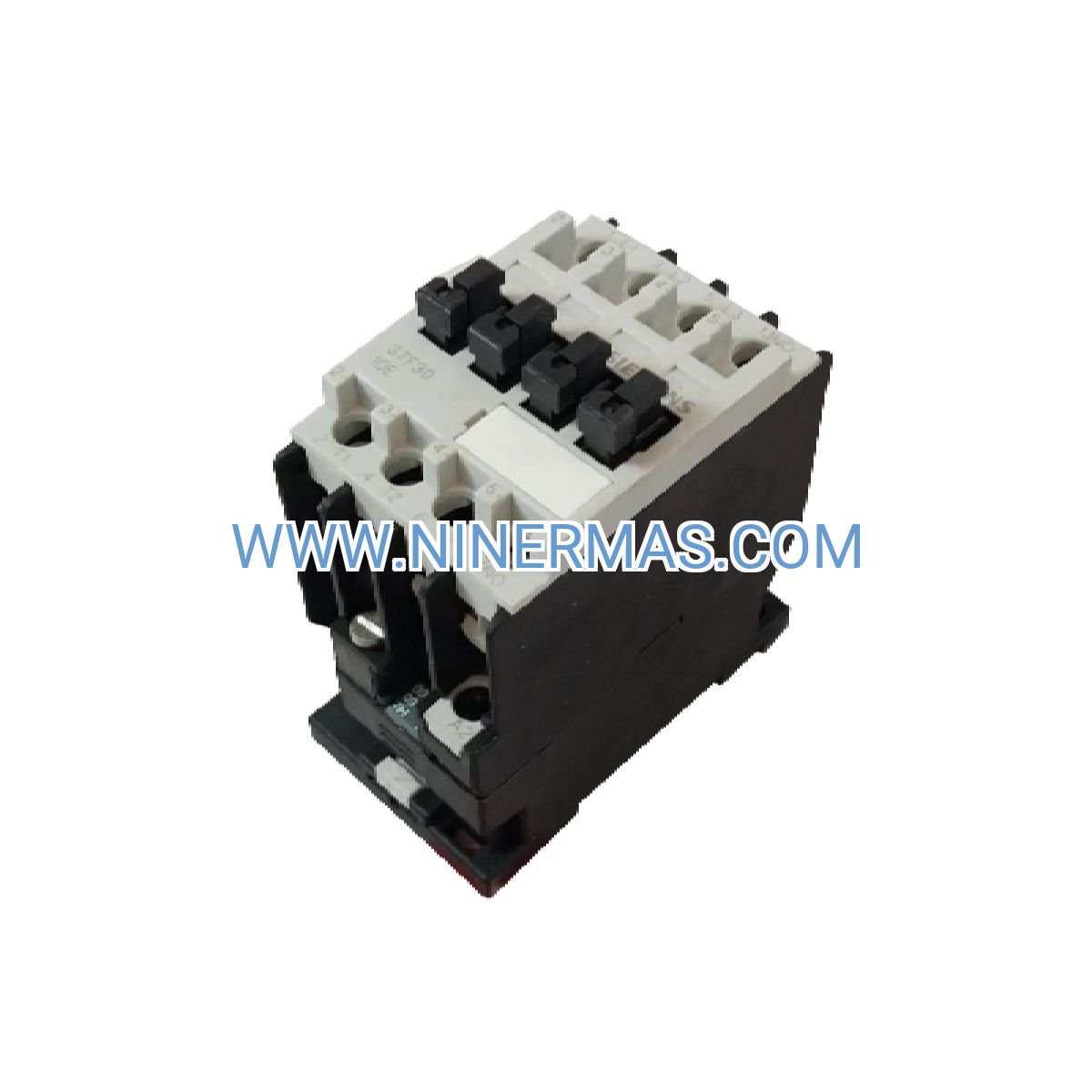

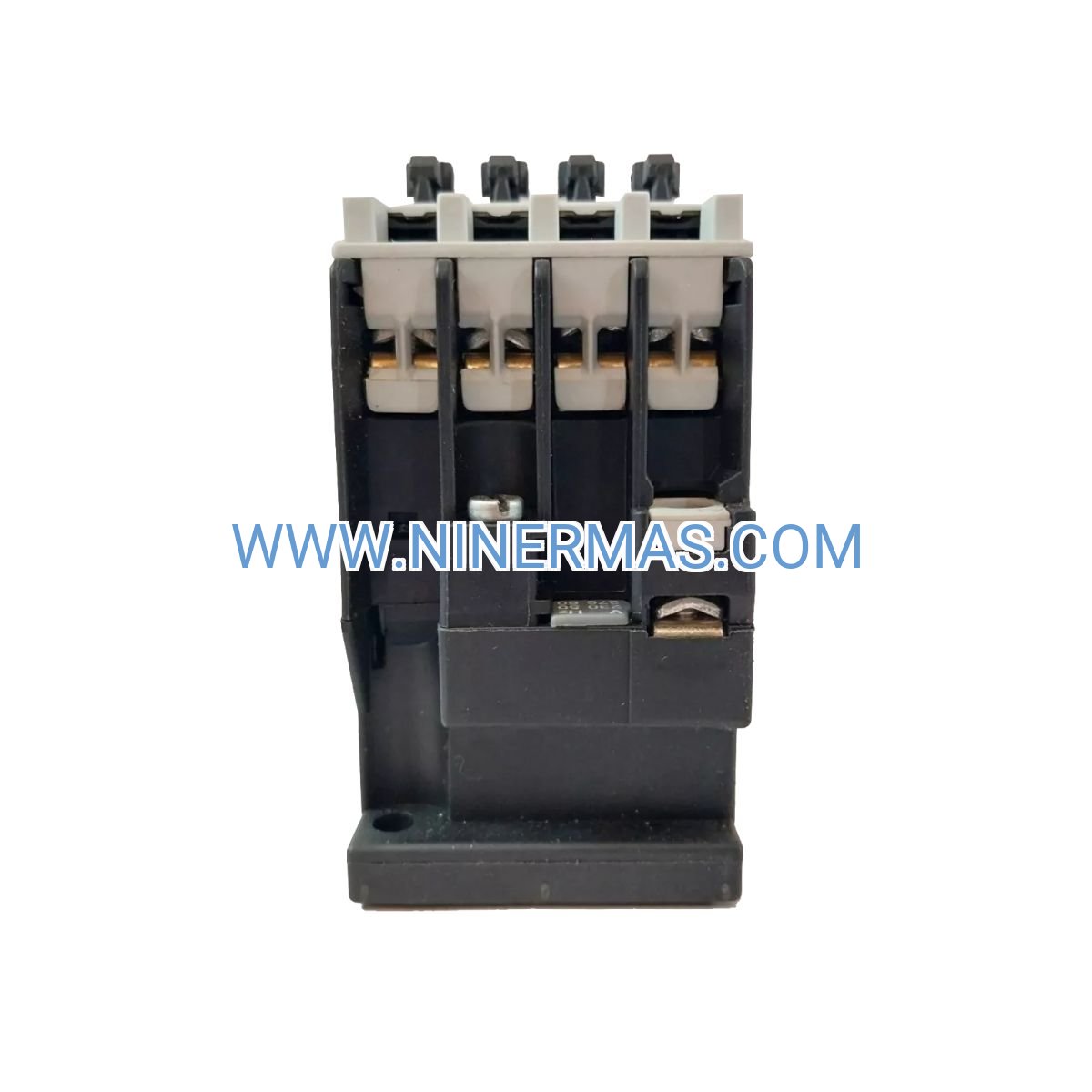

3TF30-10-0AP0 Industrial Motor Contactor (Siemens Size 00 Series)

The 3TF30-10-0AP0 represents Siemens' proven approach to compact motor switching technology. Designed for AC-3 duty cycles in industrial environments, this 3-pole electromagnetic contactor handles motors up to 4 kW at 400V with mechanical endurance exceeding 10 million operations. Whether you're retrofitting legacy control panels or engineering new automation systems, this Size 00 contactor delivers the reliability manufacturing floors demand.

Built for integration into PLC-controlled systems, conveyor networks, and process automation equipment, the 3TF30-10-0AP0 solves the challenge of frequent motor cycling without premature contact wear. Engineers specify this model when panel space is limited but performance cannot be compromised—its compact footprint fits standard DIN rail mounting while maintaining full electrical ratings.

From packaging lines requiring precise start-stop control to HVAC fan management in commercial facilities, this contactor bridges the gap between control signals and motor loads. The integrated auxiliary contact provides essential feedback for system monitoring, while the robust construction withstands industrial temperature ranges from -25°C to +55°C.

Core Capabilities & Performance Benefits

→ Extended Service Life Engineering
Mechanical durability rated to 10 million cycles with electrical life reaching 1 million operations under AC-3 conditions—reducing replacement frequency and maintenance downtime in continuous production environments.

✓ Versatile Mounting Configuration
Dual mounting options (DIN rail clip or direct screw fixing) enable flexible panel layout design, allowing engineers to optimize enclosure space utilization across diverse installation scenarios.

✓ Integrated Status Feedback
Factory-installed 1 NO auxiliary contact eliminates the need for external relay modules, providing direct PLC interface capability for real-time contactor state monitoring and fault diagnostics.

→ Thermal Performance Range
Operational stability across -25°C to +55°C ambient temperatures ensures consistent switching performance in both climate-controlled facilities and harsh industrial environments without derating.

✓ Standardized Control Integration
Compatible with industry-standard control voltages and terminal configurations, simplifying replacement procedures and reducing engineering time during system upgrades or expansions.

→ Compact Footprint Efficiency
Size 00 form factor delivers 4 kW switching capacity in minimal panel space—critical for retrofits where enclosure real estate is constrained but load requirements remain unchanged.

Industrial Application Scenarios

Packaging & Material Handling Systems
Controls conveyor belt motors in automated packaging lines where frequent start-stop cycles occur during product indexing. Addresses the challenge of contact erosion in high-frequency switching applications while maintaining precise timing control for product positioning accuracy.

HVAC & Building Automation
Manages exhaust fan motors and ventilation equipment in commercial facilities requiring scheduled operation or demand-based control. Solves the problem of manual switching in distributed systems by enabling centralized BMS integration through auxiliary contact feedback.

Pump Control Stations
Switches circulation pumps, transfer pumps, and dosing systems in water treatment or chemical processing applications. Eliminates the risk of pump motor damage from voltage fluctuations by providing clean make-break switching with arc suppression characteristics.

Assembly Line Automation
Operates small motors driving indexing tables, part feeders, and positioning actuators in manufacturing cells. Delivers value through reliable sequencing control when integrated with programmable controllers for multi-stage production processes.

Machine Tool Equipment
Controls coolant pumps, chip conveyors, and auxiliary drive motors in CNC machining centers. Addresses space constraints in compact machine control cabinets while providing the switching capacity needed for ancillary equipment operation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3TF30-10-0AP0 when your application requires switching motors rated 4 kW or below at 400V three-phase supply. Verify that your control circuit voltage matches the coil specification indicated by the suffix code. For loads exceeding 4 kW or requiring additional auxiliary contacts, consider larger contactor sizes or add-on contact blocks. In applications with resistive loads (AC-1 duty), this contactor can handle higher current ratings—consult technical documentation for AC-1 specifications.

Extended Integration Capabilities

Overload Protection Pairing: Combine with Siemens 3RU thermal overload relays for complete motor protection schemes. The Size 00 contactor accepts standard overload relay mounting, creating a compact starter assembly that protects against both short-circuit and thermal overload conditions.

Auxiliary Contact Expansion: While the base unit includes one NO contact, add-on auxiliary contact blocks can be field-installed to expand signaling capabilities. This enables simultaneous control of indicator lamps, alarm circuits, and multiple PLC input points without external interface relays.

Surge Suppression Options: For installations near sensitive electronics or in environments with electrical noise concerns, varistor or RC suppression modules can be integrated to minimize switching transients and extend contact life in challenging electrical conditions.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier services. Typical transit time to major industrial centers ranges from 5-7 days depending on destination and customs clearance procedures.

Warranty Coverage: Each 3TF30-10-0AP0 contactor is protected by a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty support includes replacement units and technical consultation for installation-related questions.

Technical Support: Our engineering team provides pre-sales application assistance, wiring diagram verification, and troubleshooting guidance throughout the product lifecycle. Support is available via email and phone during business hours.

Documentation Package: Every shipment includes installation instructions, dimensional drawings, and wiring diagrams. Complete technical datasheets with electrical characteristics, derating curves, and certification documents are available upon request.

Frequently Asked Questions

What motor horsepower rating does the 3TF30-10-0AP0 support in North American applications?
For 460V three-phase systems common in North America, this contactor handles motors up to approximately 5 HP under NEMA AC-3 duty. Always verify voltage and current ratings against your specific motor nameplate data to ensure proper sizing.

Can this contactor be used for reversing motor control applications?
Yes, two 3TF30-10-0AP0 contactors can be configured as a reversing starter when combined with appropriate mechanical and electrical interlocking. Ensure proper phase rotation wiring and install interlock mechanisms to prevent simultaneous energization of both contactors.

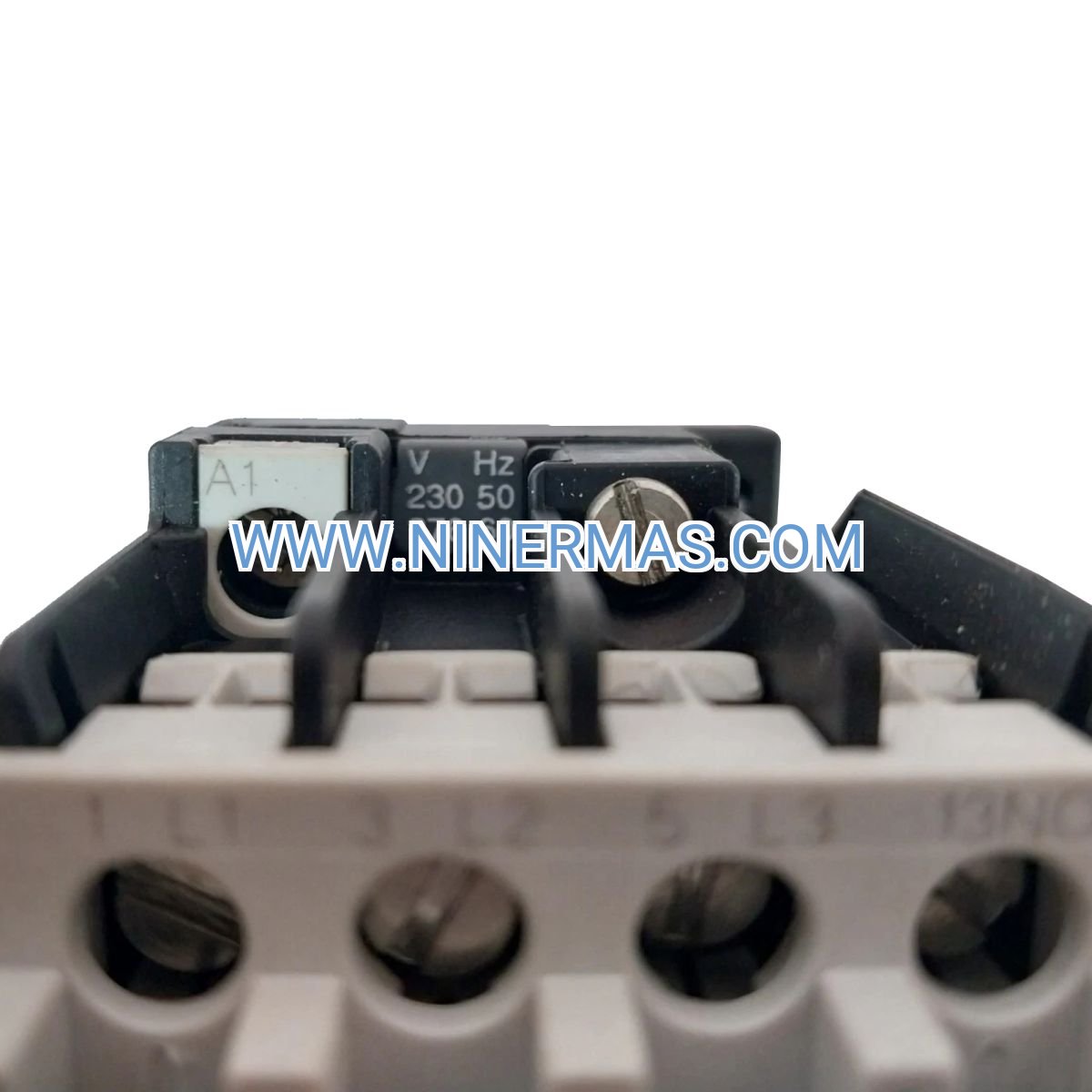

How do I determine the correct coil voltage for my control circuit?
The suffix code in the catalog number indicates coil voltage specification. The "0AP0" designation corresponds to a specific control voltage—verify this matches your available control power supply before ordering. Common options include 24V DC, 110V AC, and 230V AC variants.

What is the difference between AC-3 and AC-1 duty ratings?
AC-3 duty applies to squirrel-cage motor loads with starting currents 5-7 times rated current, representing the most demanding switching condition. AC-1 duty covers resistive loads like heaters where inrush current is minimal. This contactor can handle significantly higher current under AC-1 conditions compared to its 4 kW AC-3 rating.

Does the contactor require periodic maintenance or inspection?
While designed for maintenance-free operation under normal conditions, periodic visual inspection is recommended in high-cycle applications. Check for contact wear, loose terminal connections, and dust accumulation every 6-12 months depending on operating environment and cycle frequency.

Can I install additional auxiliary contacts after initial installation?
Yes, Siemens offers snap-on auxiliary contact blocks compatible with the 3TF30 series. These add-on modules install without tools and provide additional NO or NC contacts for expanded control and monitoring functions.

Order Your Siemens 3TF30-10-0AP0 Contactor Today

Ensure your motor control system operates with proven Siemens reliability. Contact our technical sales team at sale@ninermas.com or call +0086 187 5021 5667 to verify specifications, confirm lead times, and place your order. We provide genuine Siemens components with full traceability and technical support to keep your automation projects on schedule.
