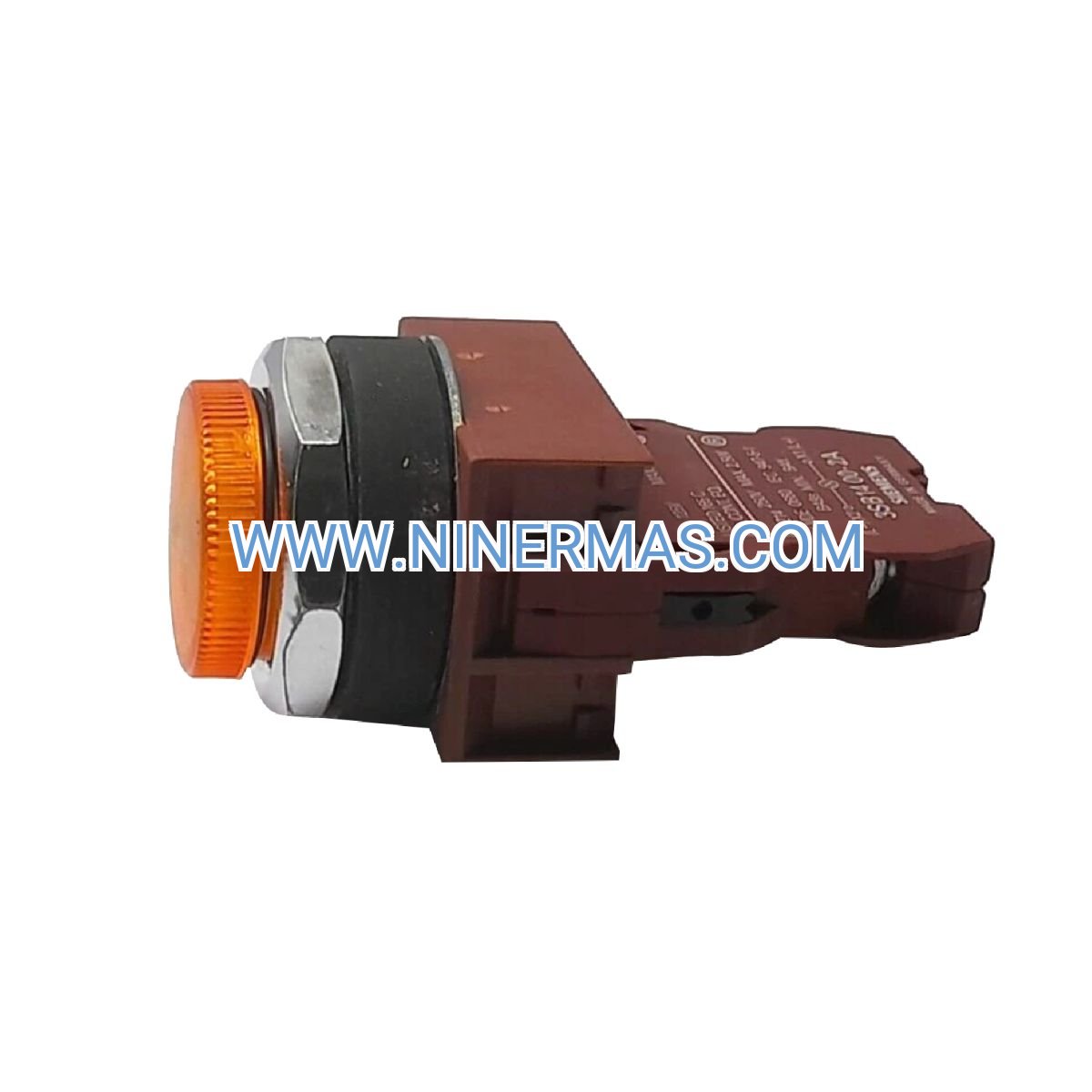

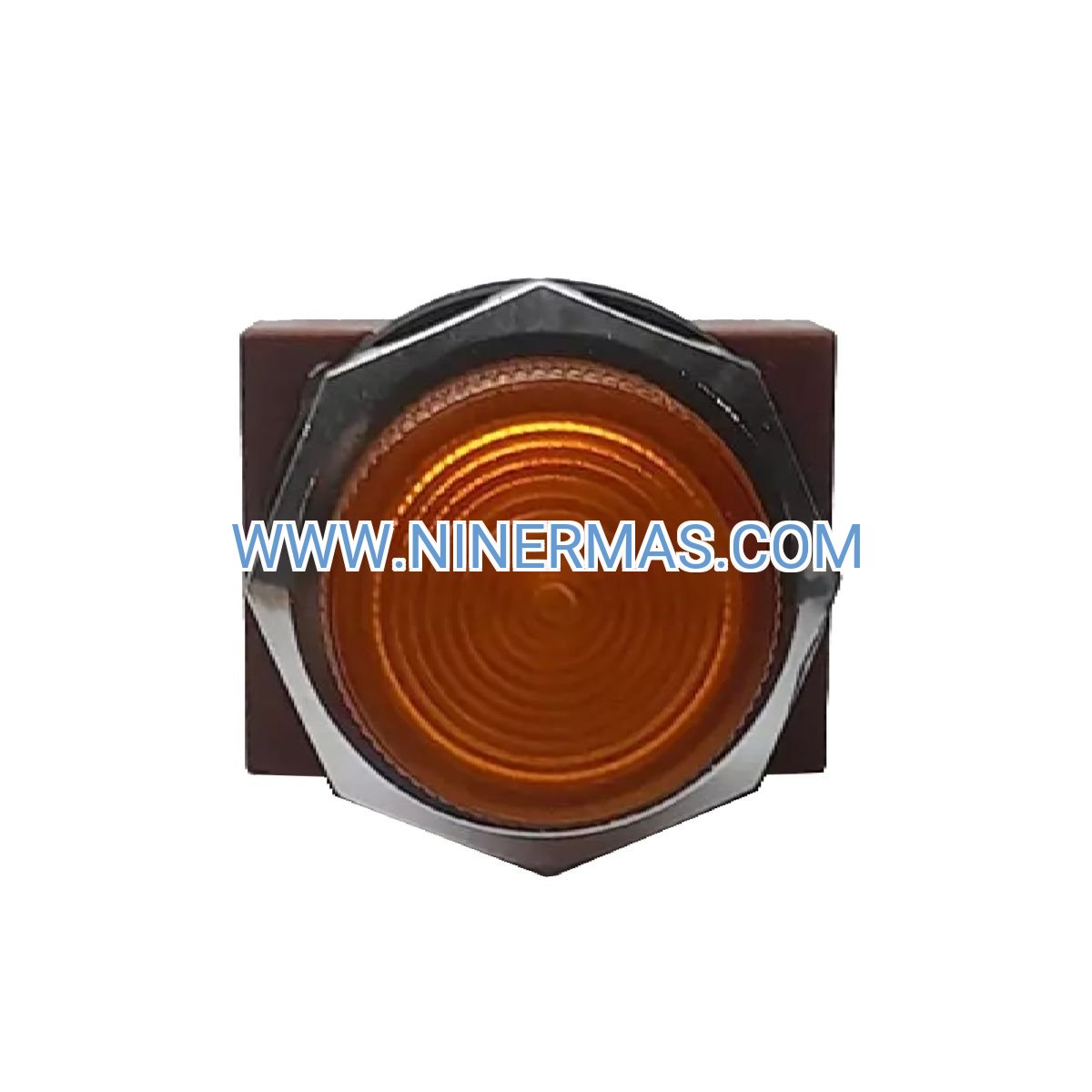

BA9S Lamp Socket for Industrial Control Panels (Dual 22mm/30mm Mounting)

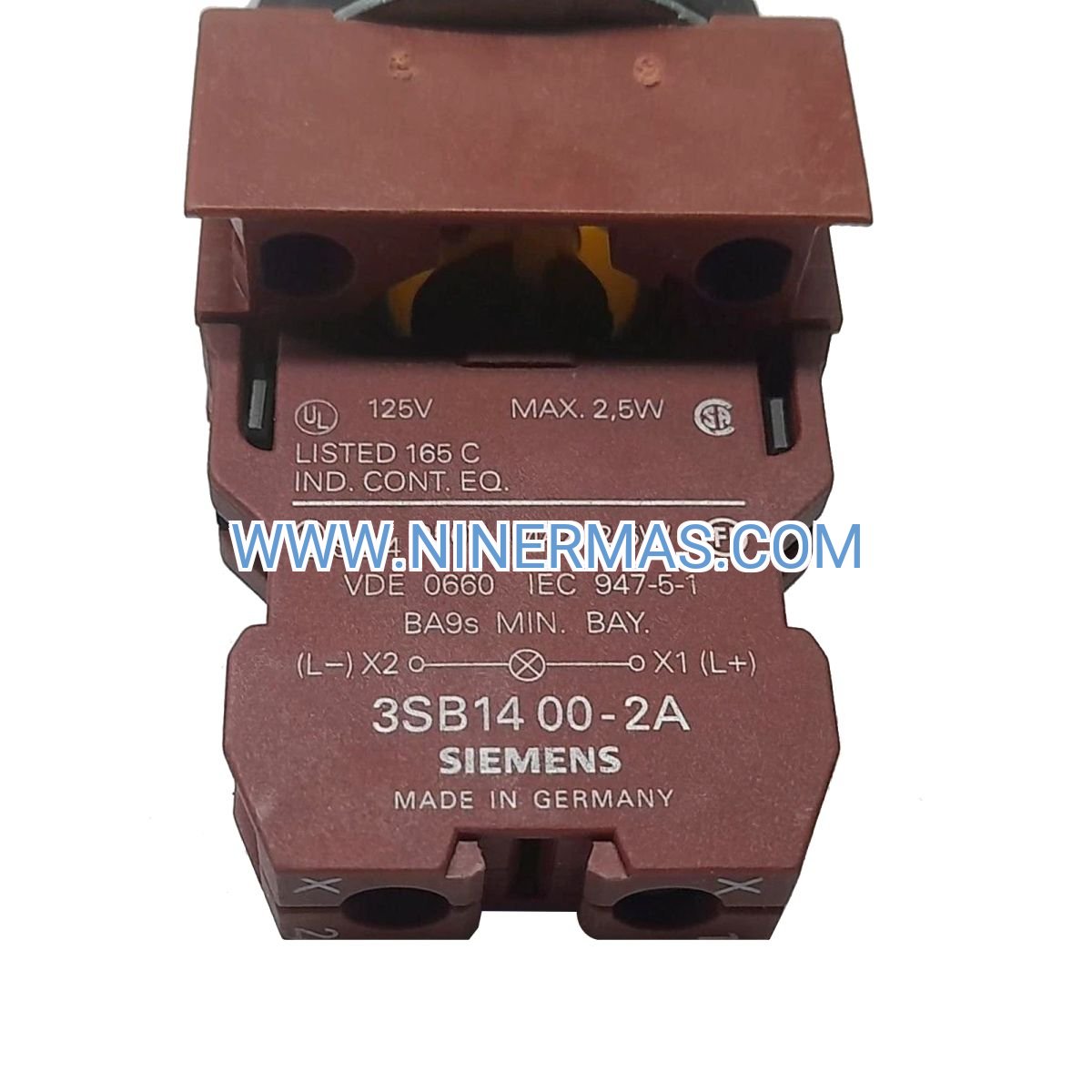

The Siemens 3SB1400-2A represents a versatile mounting solution for BA9S-base indicator lamps in industrial automation environments. This socket addresses the challenge of maintaining legacy control systems where standardized illumination components require reliable, long-term availability.

Designed for system integrators and maintenance teams managing aging infrastructure, this component bridges compatibility gaps in panel retrofits. Whether you're servicing decades-old manufacturing lines or upgrading operator stations with modern LED indicators, the dual-diameter design eliminates the need for panel re-drilling or custom fabrication.

Key advantages include universal fit across two standard cutout sizes, robust screw terminal connections that withstand industrial vibration, and thermal performance spanning sub-zero to elevated ambient conditions—critical for installations in unheated warehouses or process areas with heat-generating equipment.

Core Features & Benefits

→ Dual-Diameter Compatibility: Fits both 22mm pushbutton holes and 30mm pilot device cutouts without modification, reducing inventory complexity and installation time by up to 40%

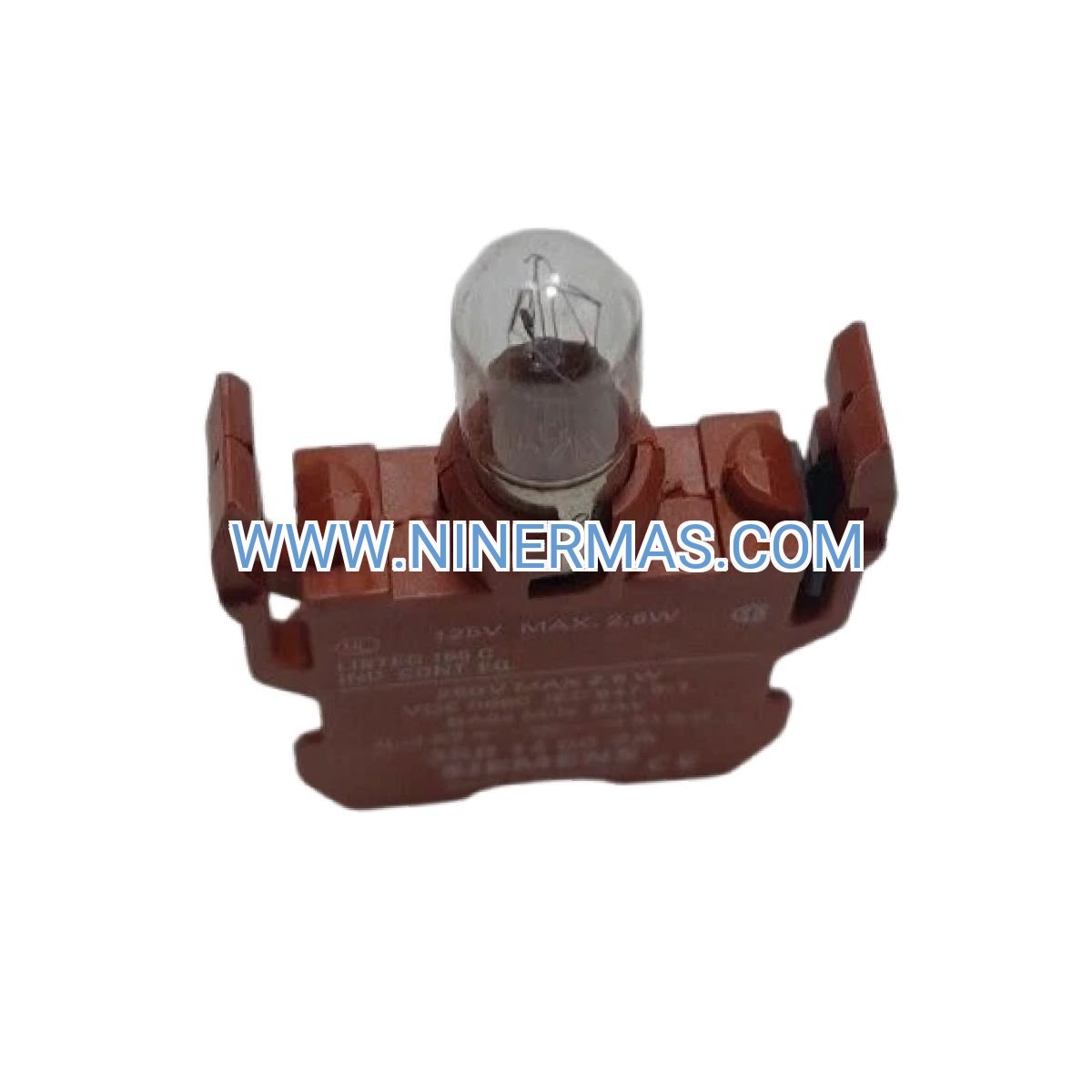

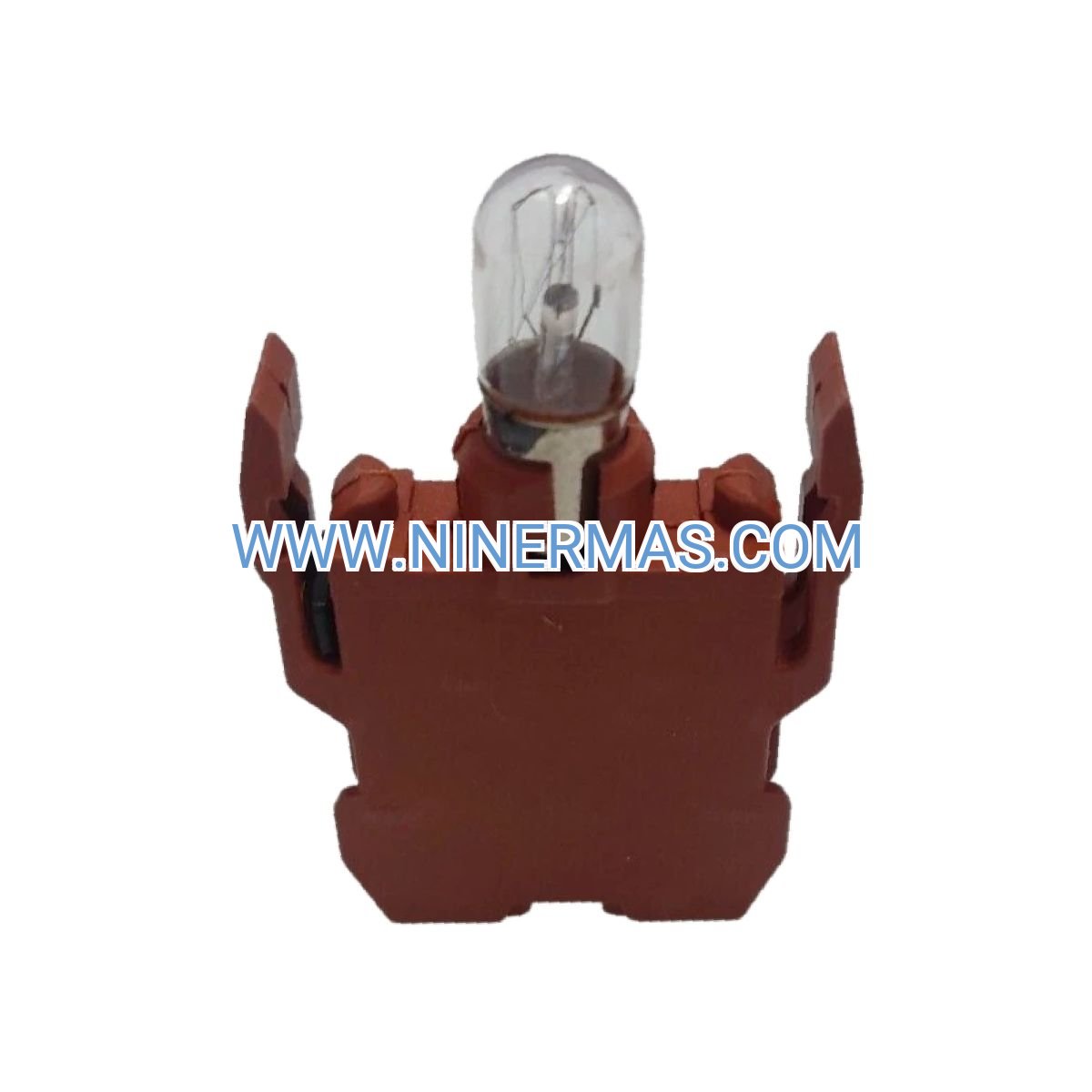

→ BA9S Bayonet Interface: Quarter-turn lamp retention system ensures secure contact during vibration and shock events common in motor control centers and conveyor systems

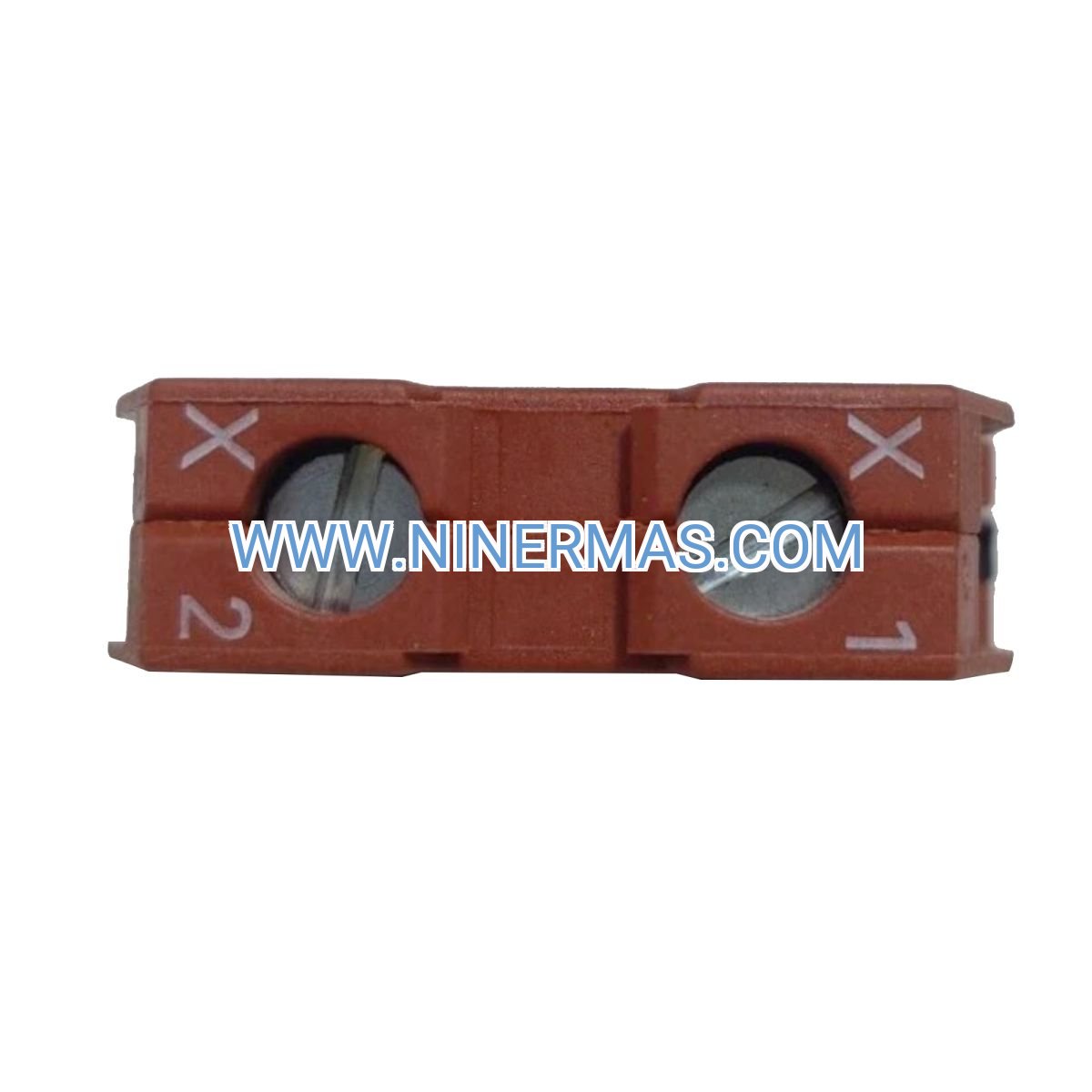

→ Screw Terminal Wiring: Accepts 14-22 AWG conductors with captive screw design, providing gas-tight connections that resist oxidation and maintain low contact resistance over years of service

→ Extended Temperature Range: -25°C to +70°C operational envelope supports installations from cold storage facilities to warm process control rooms without derating

→ Thermoplastic Housing: High-grade polymer construction resists chemical exposure, UV degradation, and mechanical stress while maintaining dimensional stability across temperature cycles

✓ LED Retrofit Ready: Compatible with modern BA9S LED replacement lamps, enabling energy-efficient upgrades to existing panels without socket replacement

Application Scenarios

Manufacturing Line Modernization: Food processing plants upgrading 1990s-era control panels can replace failed incandescent indicators with LED equivalents while reusing existing 3SB1400-2A sockets, avoiding costly panel rewiring. This approach reduces downtime from 8 hours to under 2 hours per station.

Motor Control Center Maintenance: Electrical contractors servicing industrial facilities stock this socket for emergency repairs when original Siemens SIRIUS components fail. The dual-mount capability means one SKU covers 80% of panel configurations encountered in the field.

Water Treatment Facilities: Municipal operators maintaining SCADA interface panels benefit from the IP20-rated front mounting, which protects internal connections from dust accumulation while allowing quick lamp replacement during routine inspections.

Packaging Equipment Retrofits: OEMs supporting legacy machinery use these sockets when customers request indicator lamp upgrades. The screw terminals accommodate both original wiring harnesses and modern pre-terminated connectors without adapters.

Energy Management Systems: Building automation technicians integrate BA9S LED indicators into existing breaker panels for visual load monitoring, leveraging the socket's thermal performance in electrical rooms with limited HVAC.

Technical Parameters & Selection Guide

Selection Criteria: Verify your panel cutout diameter before ordering—22mm is standard for pushbutton stations, while 30mm typically accommodates pilot lights and selector switches. For outdoor enclosures, ensure the complete panel assembly achieves minimum IP54 rating. When pairing with LED lamps, confirm voltage compatibility (common ratings: 24VDC, 120VAC, 230VAC) and verify polarity requirements for DC circuits.

Extended Functions

Multi-Color Status Indication: Deploy multiple sockets with different colored BA9S lamps to create visual alarm hierarchies—green for normal operation, amber for warnings, red for critical faults. The standardized mounting simplifies panel layout design.

Retrofit Integration: Combine with modern LED lamps featuring built-in current limiting to eliminate external resistors, reducing component count and improving reliability in 24VDC control circuits.

Custom Panel Solutions: Specify this socket in new panel builds where BA9S indicators provide cost advantages over integrated LED units, particularly in high-volume production runs or budget-constrained projects.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days via express courier. For quantities exceeding 50 pieces, allow 3-5 business days for order preparation and quality verification.

Warranty Coverage: 12-month manufacturer's warranty protects against material defects and workmanship failures. Coverage includes free replacement for sockets exhibiting contact degradation, housing cracks, or terminal loosening under normal operating conditions.

Technical Support: Our application engineers assist with compatibility verification, wiring diagrams, and panel layout recommendations. Support available via email, phone, and video consultation for complex retrofit projects.

Documentation Included: Each shipment includes dimensional drawings, terminal wiring diagrams, and lamp compatibility charts. Digital copies of original Siemens datasheets available upon request for regulatory compliance documentation.

Frequently Asked Questions

What lamp types work with the 3SB1400-2A socket for 24VDC control panels?
Any BA9S-base lamp rated for 24VDC operation fits this socket, including traditional incandescent (typical current: 40-80mA) and modern LED replacements (typical current: 10-20mA). LED options offer 50,000+ hour lifespan versus 5,000 hours for incandescent, reducing maintenance frequency by 90%.

How do I determine the correct mounting hole size in my existing panel?
Measure the cutout diameter with calipers—22mm holes are common in pushbutton stations and compact operator interfaces, while 30mm openings typically house pilot lights and illuminated selector switches. The 3SB1400-2A accommodates both without requiring panel modification.

Can this socket handle the vibration levels in mobile equipment installations?
Yes, the bayonet lamp retention and screw terminal design meet IEC 60068-2-6 vibration standards applicable to industrial machinery. For severe shock environments (construction equipment, mining vehicles), consider adding thread-locking compound to terminal screws during installation.

Is the 3SB1400-2A compatible with modern Siemens SIRIUS ACT pushbutton systems?
This socket was designed for legacy SIRIUS 3SB series panels. For current SIRIUS ACT (3SU1) systems, Siemens recommends integrated LED indicator units. However, the 3SB1400-2A remains ideal for maintaining older installations where panel replacement isn't economically justified.

What wire preparation is required for the screw terminal connections?
Strip 6-8mm of insulation from solid or stranded copper wire (14-22 AWG). For stranded wire, use ferrules to prevent strand breakage and ensure full contact area. Tighten terminal screws to 0.5-0.6 Nm torque—over-tightening can crack the housing.

Does this product meet North American electrical code requirements?
The socket itself carries no UL/CSA certification as it's a passive component. However, when installed in UL508A-compliant industrial control panels with appropriately rated lamps and wiring, it satisfies NEC Article 409 requirements for industrial control panel construction.

Get Your BA9S Socket Solution Today

Maintain your legacy control systems with confidence. Contact our technical sales team for compatibility verification, volume pricing, or custom panel integration support. Stock availability confirmed in real-time—order now for same-day dispatch on quantities up to 20 units.
