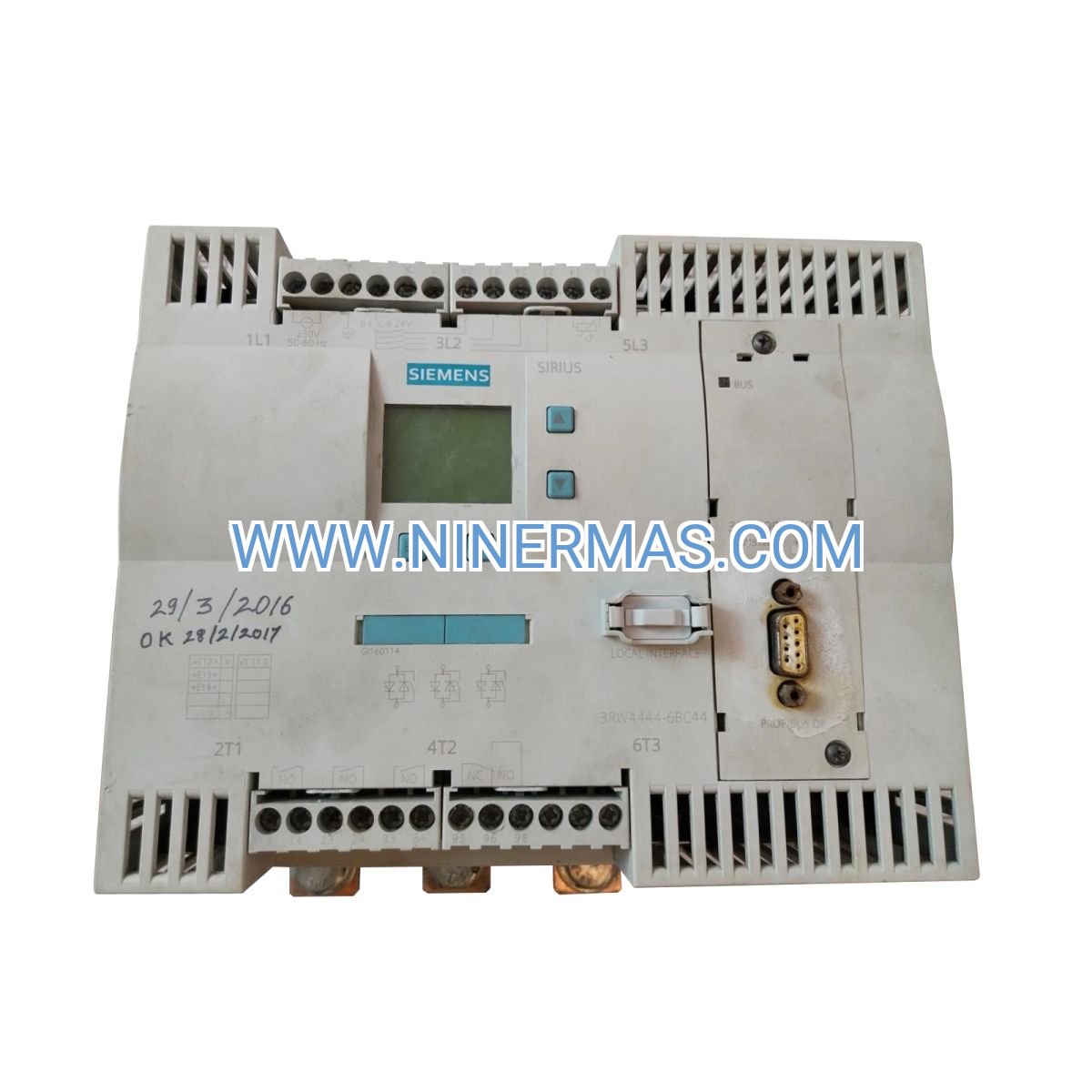

3RW4444-6BC44 SIRIUS Soft Starter (Industrial-Grade Motor Protection System)

The 3RW4444-6BC44 is a premium-class soft starting controller designed for industrial three-phase motors up to 132kW. Built on Siemens' proven SIRIUS platform, this 250A-rated device eliminates destructive inrush currents, mechanical shock, and voltage sags that compromise equipment reliability and production uptime.

Engineered for process industries, material handling facilities, and critical infrastructure applications, this soft starter addresses the core challenge of motor starting: balancing rapid acceleration with equipment protection. Traditional direct-on-line (DOL) starting subjects motors, gearboxes, and driven loads to 6-8× rated current spikes and instantaneous torque surges—leading to premature bearing failure, belt slippage, and electrical grid disturbances.

The 3RW4444-6BC44 solves this through precision voltage ramping, current limiting, and integrated thermal protection. Maintenance teams gain predictable equipment lifecycles, electrical engineers reduce infrastructure sizing requirements, and operations managers achieve smoother process control with fewer emergency shutdowns.

Core Capabilities & Business Impact

→ Controlled Acceleration Technology
Adjustable 1-60 second voltage ramp profiles allow customized soft starts tailored to load characteristics. High-inertia applications like centrifugal pumps benefit from gradual torque buildup, while conveyors require faster ramps to minimize product settling. This flexibility eliminates the one-size-fits-all limitations of fixed-parameter starters.

✓ Infrastructure Cost Reduction
By capping inrush current at 3-4× rated values, the 3RW4444-6BC44 enables 30-40% smaller circuit breakers, contactors, and cable cross-sections compared to DOL installations. A typical 132kW pump installation saves $1,200-$1,800 in upstream electrical components alone.

✓ Mechanical Stress Elimination
Gradual torque application prevents shock loads that crack gearbox housings, shear coupling pins, and damage pump impellers. Field data from mining conveyors shows 45% reduction in unplanned maintenance events after soft starter retrofits.

✓ Integrated Motor Protection
Built-in thermal overload monitoring with phase imbalance detection replaces separate overload relays. The microprocessor-based protection adapts to actual motor heating curves, providing superior safeguarding versus traditional bimetallic devices.

✓ Energy-Efficient Bypass Operation
Internal bypass contactor activates after successful start, routing current around semiconductor elements to eliminate steady-state losses. This maintains 99%+ system efficiency and reduces control cabinet heat generation by 85%.

✓ Diagnostic Connectivity

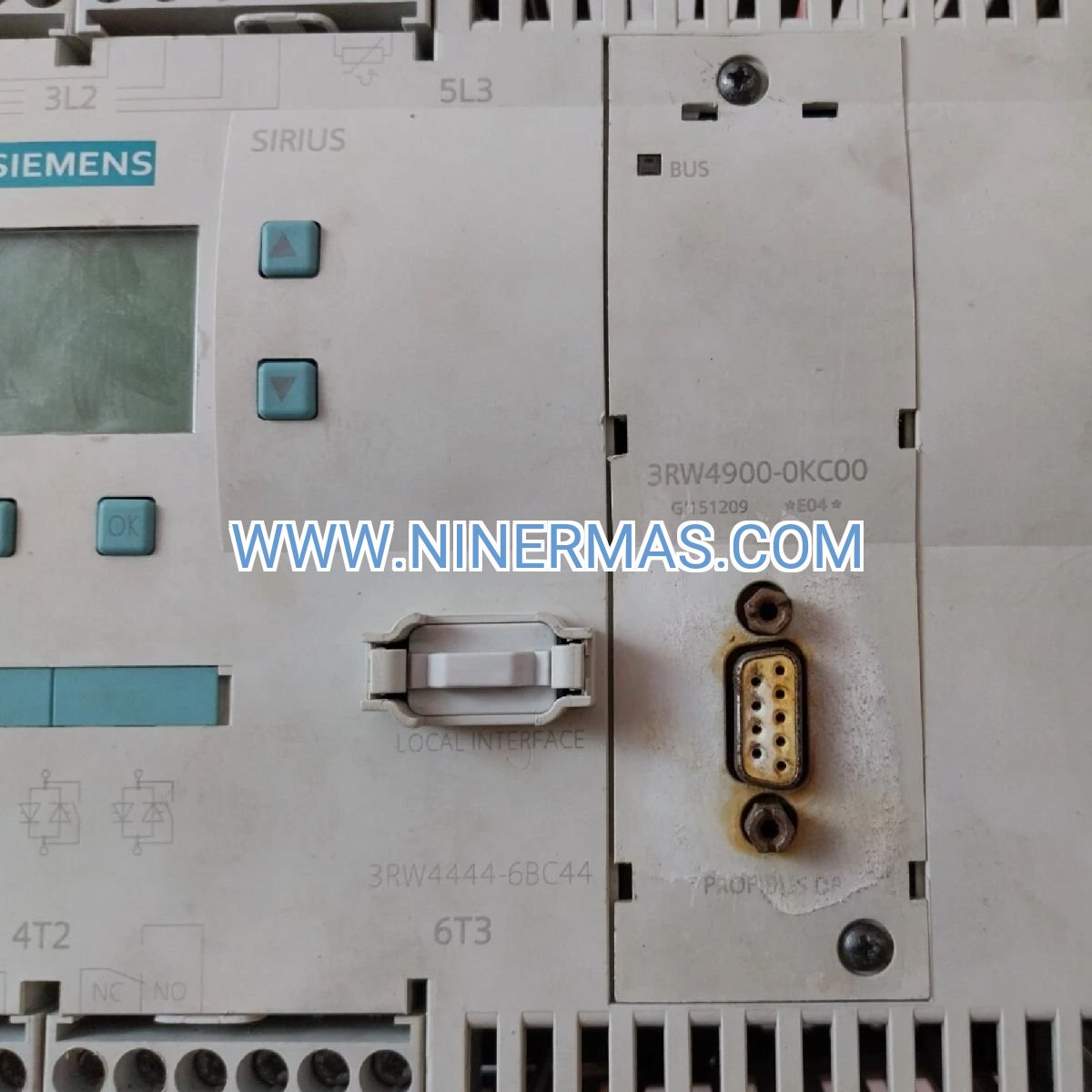

Optional PROFIBUS DP or Modbus RTU modules integrate with SCADA systems for remote monitoring, predictive maintenance alerts, and production data logging. Real-time current, voltage, and temperature telemetry enables condition-based servicing strategies.

Industrial Application Scenarios

Water & Wastewater Treatment
Large circulation pumps in treatment plants experience severe water hammer during DOL starts, causing pipe joint failures and valve damage. The 3RW4444-6BC44's gradual pressure buildup eliminates hydraulic shock, extending seal life by 60% and reducing emergency repair callouts. Municipal facilities report 18-month payback periods from avoided downtime alone.

Mining & Aggregate Processing
Conveyor systems transporting ore, coal, or crushed stone require controlled starts to prevent material spillage and belt tracking issues. The kick-start function overcomes static friction in loaded conveyors, while current limiting protects gearboxes from torque spikes. Operators achieve 99.2% uptime versus 94.7% with contactor-based systems.

HVAC & Building Systems
Chiller compressors and air handling unit fans benefit from reduced electrical demand charges. Utility providers often impose penalties for peak kW draw—soft starting a 132kW chiller reduces demand charges by $400-$600 monthly in commercial buildings. Additionally, gradual starts minimize acoustic noise complaints in occupied spaces.

Food & Beverage Manufacturing
Mixing equipment, conveyor lines, and refrigeration compressors operate in temperature-controlled environments where heat dissipation is critical. The bypass contactor's near-zero heat generation allows compact panel designs without forced ventilation, meeting stringent hygiene standards for food-grade enclosures.

Petrochemical & Refining
Pump trains handling corrosive fluids or high-temperature media require maximum seal integrity. Eliminating start-up pressure surges prevents mechanical seal face damage—the leading cause of pump failures in refinery service. Maintenance intervals extend from 8,000 to 14,000 operating hours.

Technical Parameters & Selection Criteria

Selection Guidelines: Match the soft starter's rated current (Ie) to your motor's full-load current (FLA), not nameplate power. For motors with service factors >1.15 or frequent heavy-duty cycles, select the next frame size. Altitude above 1,000m or ambient temperatures exceeding 40°C require derating per the technical manual's correction factors.

Advanced Integration Options

Industrial Network Connectivity
Optional communication modules (ordered separately) enable integration with Siemens SIMATIC S7 PLCs, third-party DCS systems, or cloud-based analytics platforms. PROFIBUS DP provides deterministic real-time data exchange for coordinated multi-motor sequences, while Modbus RTU offers cost-effective monitoring for legacy systems.

Customizable I/O Expansion
Standard digital inputs accommodate external start/stop commands, emergency stop circuits, and interlock signals. Configurable relay outputs trigger alarms, control auxiliary equipment, or interface with building management systems. Analog outputs (0-10V or 4-20mA) provide proportional current feedback for process control loops.

Torque Control Modes
Beyond basic voltage ramping, the 3RW4444-6BC44 offers torque-limiting modes for applications sensitive to mechanical stress. Crushers, mills, and high-inertia fans benefit from constant-torque starts that prevent gearbox overload regardless of load variations.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 10-15 business days for factory-direct orders requiring specific voltage configurations or communication modules.

Warranty Coverage: Comprehensive 12-month manufacturer's warranty covering material defects, component failures, and workmanship issues. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Pre-sales application engineering assistance, post-installation commissioning guidance, and lifetime technical support via email, phone, or remote diagnostics. Replacement parts guaranteed available for minimum 10 years post-purchase.

Documentation Package: Each unit ships with multilingual installation manual, quick-start commissioning guide, wiring diagrams, and parameter setting worksheets. CAD drawings (DXF/PDF) and 3D STEP models available for panel design integration.

Frequently Asked Questions

What motor types are compatible with this soft starter model?
The 3RW4444-6BC44 works with standard squirrel-cage induction motors in both star (wye) and delta configurations. It's not suitable for wound-rotor motors, synchronous motors, or single-phase applications. Verify your motor's starting characteristics match the soft starter's torque curve—consult factory for high-slip or special-duty motors.

How does soft starting compare to variable frequency drive control?
Soft starters excel in constant-speed applications where you only need controlled starting and stopping. They cost 40-60% less than VFDs, generate minimal electrical noise, and require simpler installation. Choose a VFD when you need continuous speed variation, energy savings through speed reduction, or precise process control. For fixed-speed pumps, fans, and conveyors, soft starters deliver better ROI.

Can I retrofit this unit into an existing DOL starter panel?
Yes, with proper planning. The S12 frame fits most standard enclosures, but verify adequate clearance for heat dissipation (minimum 100mm top/bottom spacing). You'll need to rewire the control circuit for the soft starter's logic inputs and may require a bypass contactor if not using the internal bypass. Budget 4-6 hours for a qualified electrician to complete the retrofit.

What's the maximum number of starts per hour this device supports?
Under standard conditions (40°C ambient, 30-second ramp), the 3RW4444-6BC44 handles 10 starts per hour at full load. For applications requiring more frequent cycling—such as batch processes or duty/standby pump configurations—consult the thermal capacity curves in Section 7 of the technical manual. Forced ventilation or oversizing to the next frame may be necessary.

Does installation require specialized programming or configuration tools?

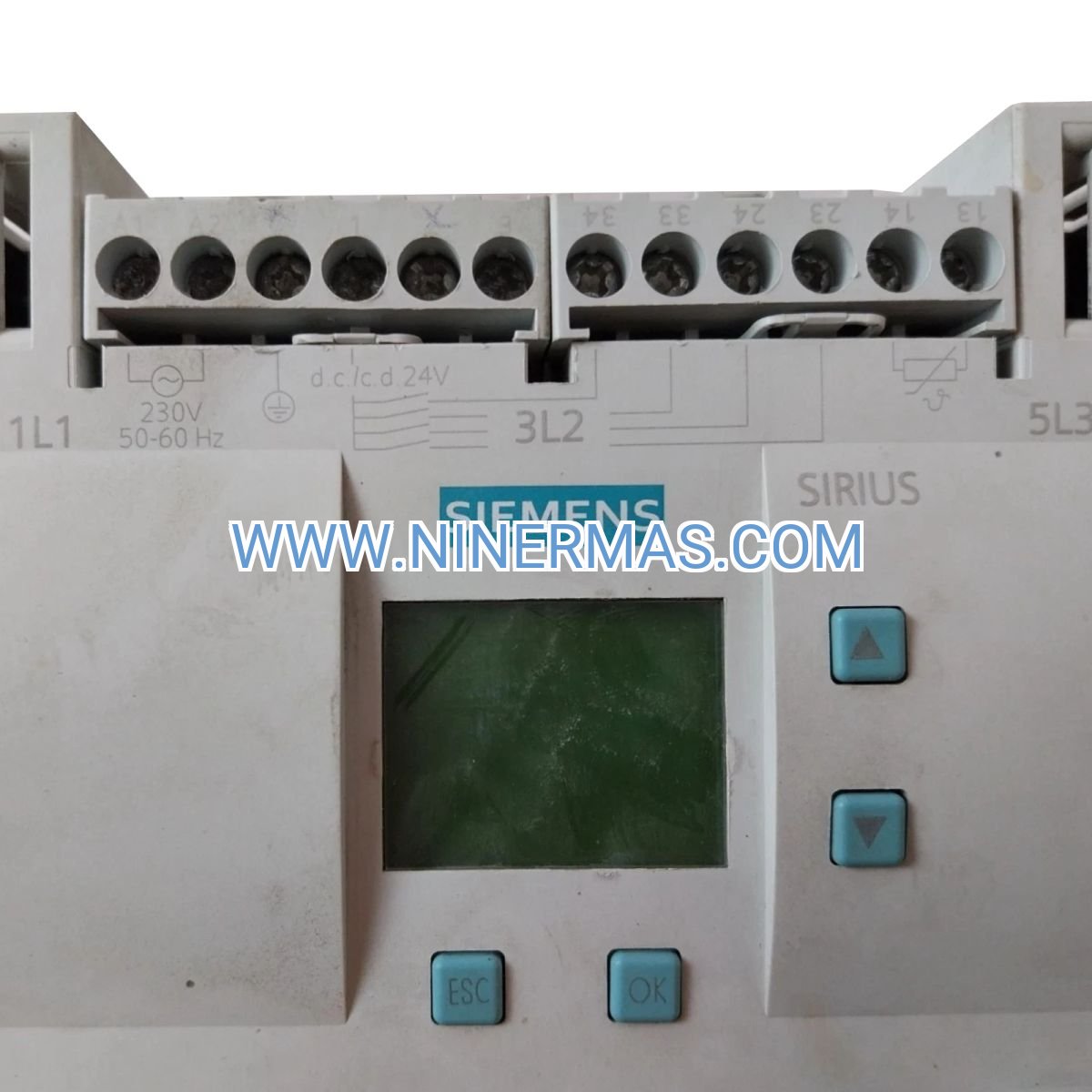

Basic commissioning uses onboard potentiometers and DIP switches—no software required. Adjust ramp time, current limit, and protection thresholds via front-panel controls in under 10 minutes. Advanced features like custom torque profiles or network integration require the SIRIUS Soft Starter ES software (free download from Siemens), connected via USB or Ethernet.

How do I size the upstream circuit protection for this soft starter?
Install a Type 2 coordinated motor circuit breaker rated for 1.5× the soft starter's rated current (375A for the 3RW4444-6BC44). Use gG-class fuses rated 315-400A for semiconductor protection. Refer to the coordination tables in Appendix C of the installation manual for specific breaker/fuse combinations tested to IEC 60947-4-2 standards.

Take the Next Step Toward Reliable Motor Control

Eliminate unplanned downtime, reduce maintenance costs, and protect your capital equipment investment with proven soft starting technology. Our application engineers are available to review your motor specifications, confirm compatibility, and recommend optimal parameter settings for your specific process requirements.

Request a detailed technical datasheet, CAD drawings, or application-specific sizing assistance: Contact our team at sale@ninermas.com or call +0086 187 5021 5667. Volume pricing and integration support available for OEMs and system integrators.
