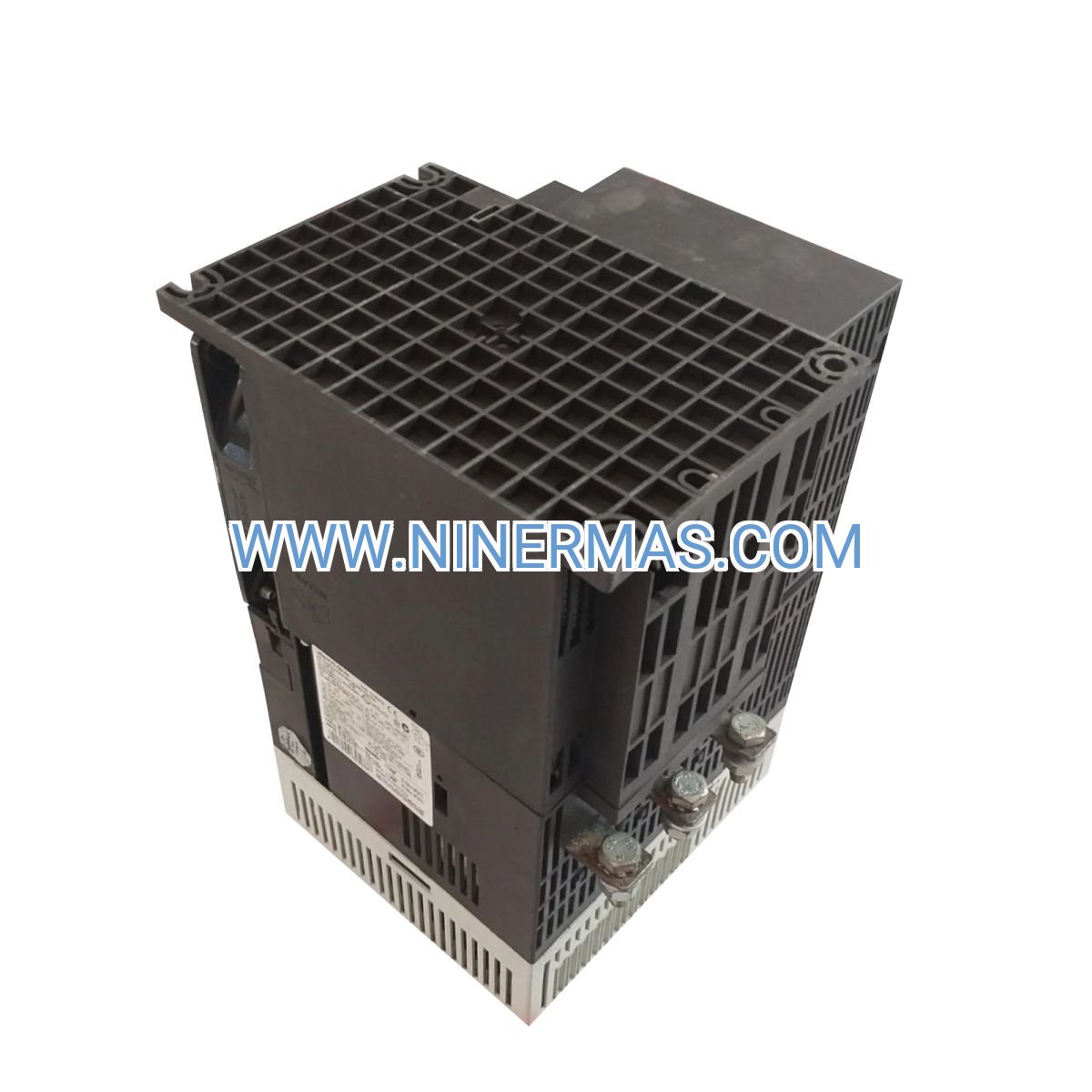

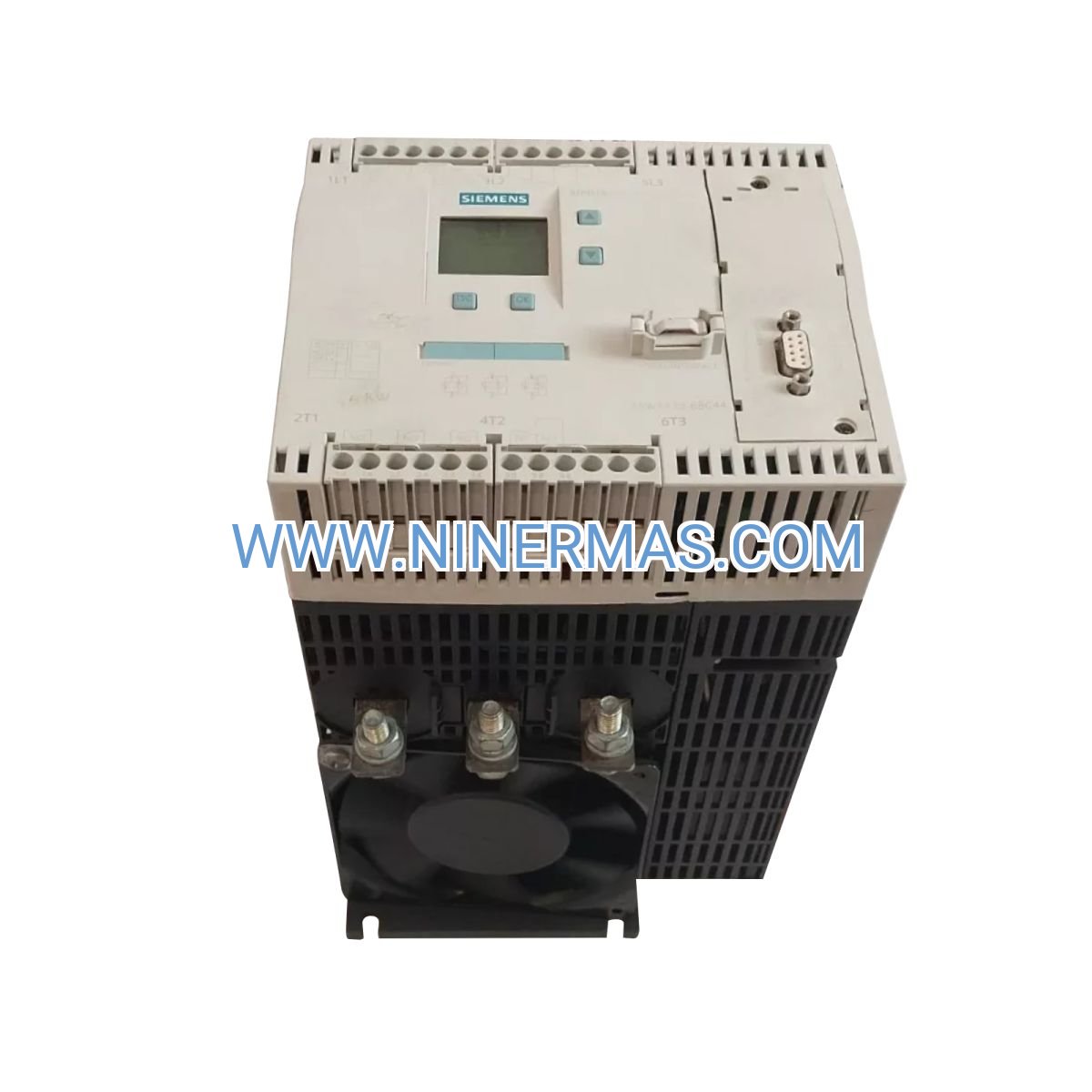

3RW4435-6BC44 SIRIUS Soft Starter (Industrial-Grade Motor Launch System)

The Siemens 3RW4435-6BC44 represents a precision-engineered solution for controlled three-phase motor acceleration in industrial environments. This intelligent soft starter eliminates the mechanical shock and electrical surges associated with direct-on-line starting, extending equipment lifespan while protecting upstream power infrastructure. Designed for 75kW applications at 400V with 134A rated operational current, it serves as the critical interface between your power supply and motor-driven machinery.

Manufacturing facilities, water treatment plants, and HVAC systems face a common challenge: traditional motor starters create voltage dips that disrupt sensitive equipment and impose mechanical stress that accelerates wear. The 3RW4435-6BC44 addresses this through voltage ramp technology with intelligent current limiting, ensuring smooth torque buildup from zero to full speed. Process engineers and maintenance teams gain precise control over acceleration profiles, reducing downtime and maintenance costs.

What sets this SIRIUS soft starter apart is its combination of robust protection algorithms, compact footprint, and seamless integration with Siemens automation ecosystems. Whether you're retrofitting legacy systems or designing new installations, the 3RW4435-6BC44 delivers reliable performance with thermal motor modeling, phase monitoring, and optional PROFIBUS connectivity—all in a package that mounts side-by-side without derating.

Core Features & Benefits

✓ Voltage Ramp Control with Adaptive Current Limiting
Programmable acceleration curves prevent mechanical shock to gearboxes, couplings, and driven equipment. Adjustable current limit (200-500% FLA) accommodates high-inertia loads while protecting motor windings. Business value: Reduce maintenance intervals by up to 40% and eliminate costly emergency repairs from hard-start damage.

✓ Integrated Motor Protection Suite
Real-time monitoring detects phase loss, phase imbalance, overload conditions, and ground faults before damage occurs. Thermal motor model tracks cumulative heat buildup across start cycles. Business value: Prevent unplanned downtime with predictive protection that responds 10x faster than traditional overload relays.

✓ Compact Design with Side-by-Side Mounting
Dimensions of 185mm × 280mm × 195mm and optimized thermal management allow zero-clearance installation. IP20 enclosure suits standard control cabinet environments. Business value: Save up to 30% panel space compared to legacy starters, reducing enclosure costs and simplifying layout.

→ Multi-Voltage Compatibility (110-230V AC/DC Control)
Universal control voltage input eliminates the need for separate power supplies or transformers. Operates reliably across global voltage standards. Business value: Simplify spare parts inventory and enable standardization across multi-site facilities.

→ PROFIBUS-Ready Communication Architecture
Standard digital I/O plus optional fieldbus modules enable remote parameter adjustment, diagnostics, and integration with SCADA/MES systems. Business value: Achieve Industry 4.0 readiness with real-time performance data for predictive maintenance strategies.

→ Bypass Contactor Compatibility
Designed for use with external bypass contactors (3RT1 series recommended) to minimize heat generation during continuous operation. Business value: Extend soft starter service life by 3-5 years through reduced thermal cycling.

Application Scenarios

Water & Wastewater Treatment
Pump stations require frequent motor starts for level control and process sequencing. The 3RW4435-6BC44 handles up to 10 starts per hour, preventing water hammer in piping systems while eliminating voltage sags that disrupt instrumentation. Typical deployment: 75kW centrifugal pumps in lift stations and filtration systems.

Material Handling & Conveyor Systems
Belt conveyors carrying bulk materials experience high starting torque due to static friction. Controlled acceleration reduces belt slippage and spillage while protecting gearbox components. Addresses the pain point of premature bearing failure in heavily loaded systems.

HVAC & Building Systems
Chiller compressors and large ventilation fans benefit from reduced inrush current (typically 3-4x vs. 6-8x for DOL starting). This prevents nuisance tripping of upstream circuit breakers and minimizes demand charges from utility providers. Value delivered: 15-25% reduction in peak demand penalties.

Industrial Compressor Stations
Rotary screw and reciprocating compressors require gradual pressure buildup to avoid mechanical shock. The soft starter's current limiting prevents motor overheating during loaded starts, a common failure mode in compressed air systems.

Process Manufacturing Lines
Mixers, agitators, and extruders with high-inertia loads demand precise torque control during startup. Phase monitoring detects supply imbalances that could damage motor windings, while thermal modeling prevents restart attempts on overheated motors.

Technical Parameters & Selection Guide

Selection Criteria: Match the soft starter's rated current (134A) to your motor's full-load amperage, allowing 10-15% margin for service factor. For motors operating at 500V, verify the 90kW power rating applies. If your application requires more than 10 starts per hour or starting times exceed 30 seconds, consult factory for thermal analysis. Altitude above 1000m or ambient temperatures exceeding 40°C require derating per IEC 60947-4-2 standards.

Extended Functions

Industry 4.0 Integration: Optional communication modules enable Modbus RTU, PROFIBUS-DP, or Ethernet/IP connectivity. Stream real-time data including motor current, thermal load percentage, start count, and fault history to your SCADA system or cloud-based analytics platform. Implement predictive maintenance by tracking cumulative thermal stress and setting alerts before protection thresholds are reached.

Advanced Control Modes: Beyond standard voltage ramp, the 3RW4435-6BC44 supports current-limit starting for high-inertia loads, soft-stop for controlled deceleration (prevents reverse flow in pump applications), and kick-start for breakaway torque in sticky loads. Configure via front-panel keypad or remotely through communication interface.

Customization Options: Factory configuration services available for pre-programmed parameter sets matching your specific motor and load characteristics. Custom labeling, extended temperature range variants (-40°C), and conformal coating for harsh environments can be specified at time of order.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 2-3 weeks for factory programming and testing. Expedited shipping available for critical applications.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs available for up to 36 months with optional on-site service agreements.

Technical Support: Access to Siemens-certified application engineers for sizing assistance, commissioning support, and troubleshooting. Remote diagnostics available for units equipped with communication modules. Average response time: 4 hours for critical issues.

Documentation Package: Each unit includes installation manual, quick-start guide, wiring diagrams, and parameter reference card. CAD drawings (DXF/STEP formats), compliance certificates (CE, UL, CCC), and integration guides available for download.

Frequently Asked Questions

What is the maximum starting frequency for this soft starter model?
The 3RW4435-6BC44 supports up to 10 starts per hour under full-load conditions with standard thermal management. For applications requiring higher cycling rates, implement a bypass contactor to reduce thermal stress, or consider the 3RW44 series with enhanced cooling options. Consult the duty cycle charts in the technical manual for specific load profiles.

How do I select the correct bypass contactor for continuous operation?
Siemens recommends the 3RT1 series contactors rated for 150A continuous current (one size above the soft starter rating). The bypass contactor should engage after the motor reaches 90% rated speed, transferring load away from the soft starter's thyristors. This extends service life and improves energy efficiency during run mode.

Can this device control motor deceleration and stopping?
Yes, the soft-stop function provides controlled deceleration by gradually reducing voltage over an adjustable time period (1-60 seconds). This is particularly valuable in pump applications to prevent water hammer or in conveyor systems to avoid product spillage. Note that soft-stop does not provide braking torque—it simply removes power gradually.

What communication protocols does the 3RW4435-6BC44 support natively?
Standard units include digital I/O for basic start/stop/fault signaling. Optional communication modules add PROFIBUS-DP (3RW4900-0KC00), Modbus RTU, or Ethernet/IP capability. These modules enable remote parameter adjustment, real-time monitoring, and integration with Siemens TIA Portal or third-party SCADA systems.

Is this soft starter suitable for high-altitude installations?
The device operates without derating up to 1000 meters above sea level. For installations between 1000-4000m, apply derating factors specified in the technical manual (typically 5% per 1000m). Altitudes above 4000m require special consideration and may need custom variants with enhanced insulation.

How does the thermal motor model protection differ from traditional overload relays?
Unlike bimetallic overload relays that respond only to current magnitude, the thermal motor model calculates cumulative heat based on current, duty cycle, ambient temperature, and cooling conditions. It tracks thermal memory between starts, preventing restart attempts on motors that haven't adequately cooled. This provides 10-15% better protection accuracy and eliminates nuisance trips from transient overloads.

Take the Next Step

Ready to eliminate hard-start damage and reduce your facility's maintenance costs? Our application engineers are standing by to verify compatibility with your specific motor and load requirements. Contact us today for a detailed sizing analysis, custom parameter configuration, or volume pricing for multi-unit installations. Every 3RW4435-6BC44 ships with comprehensive documentation and access to our technical support team—ensuring your project stays on schedule and on budget.
