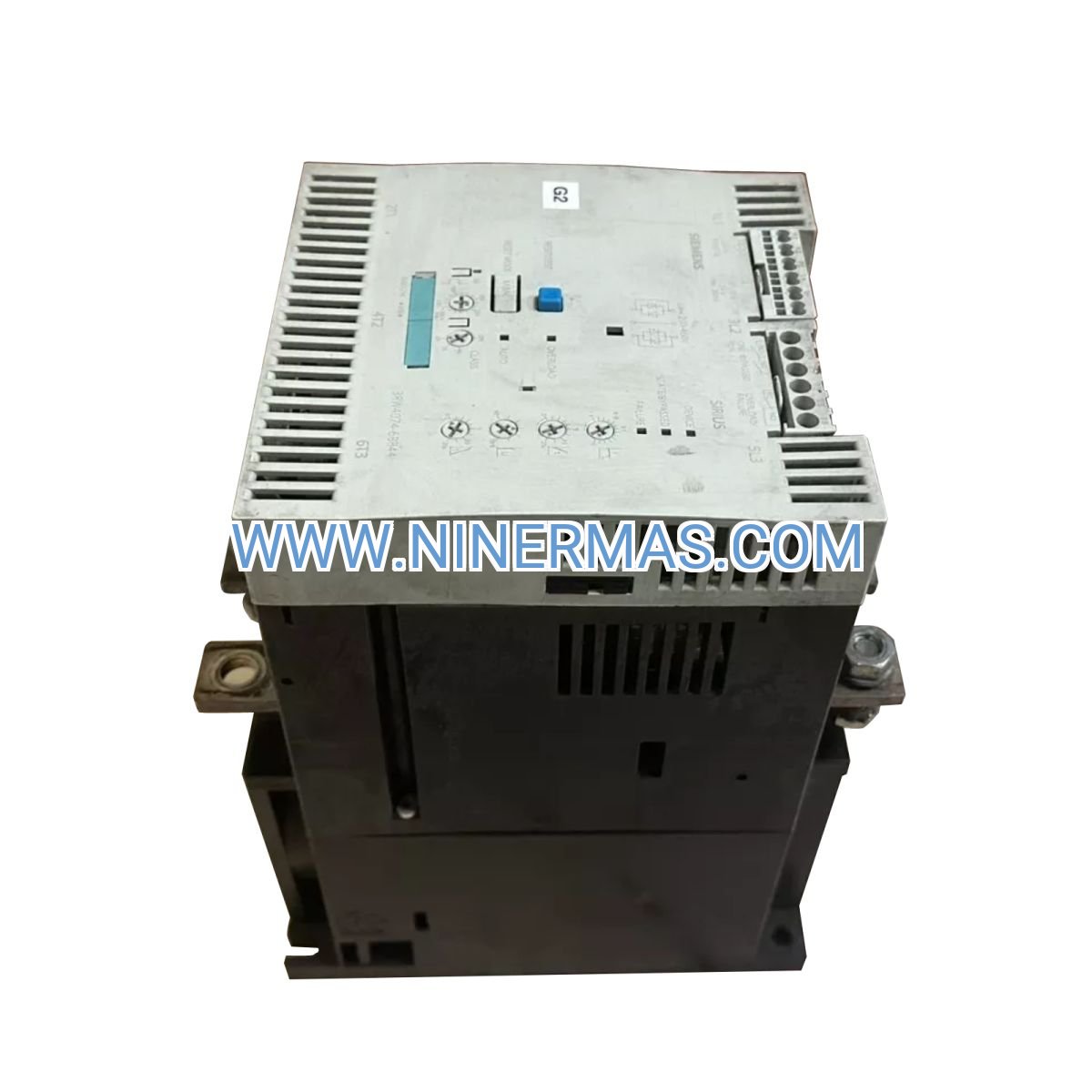

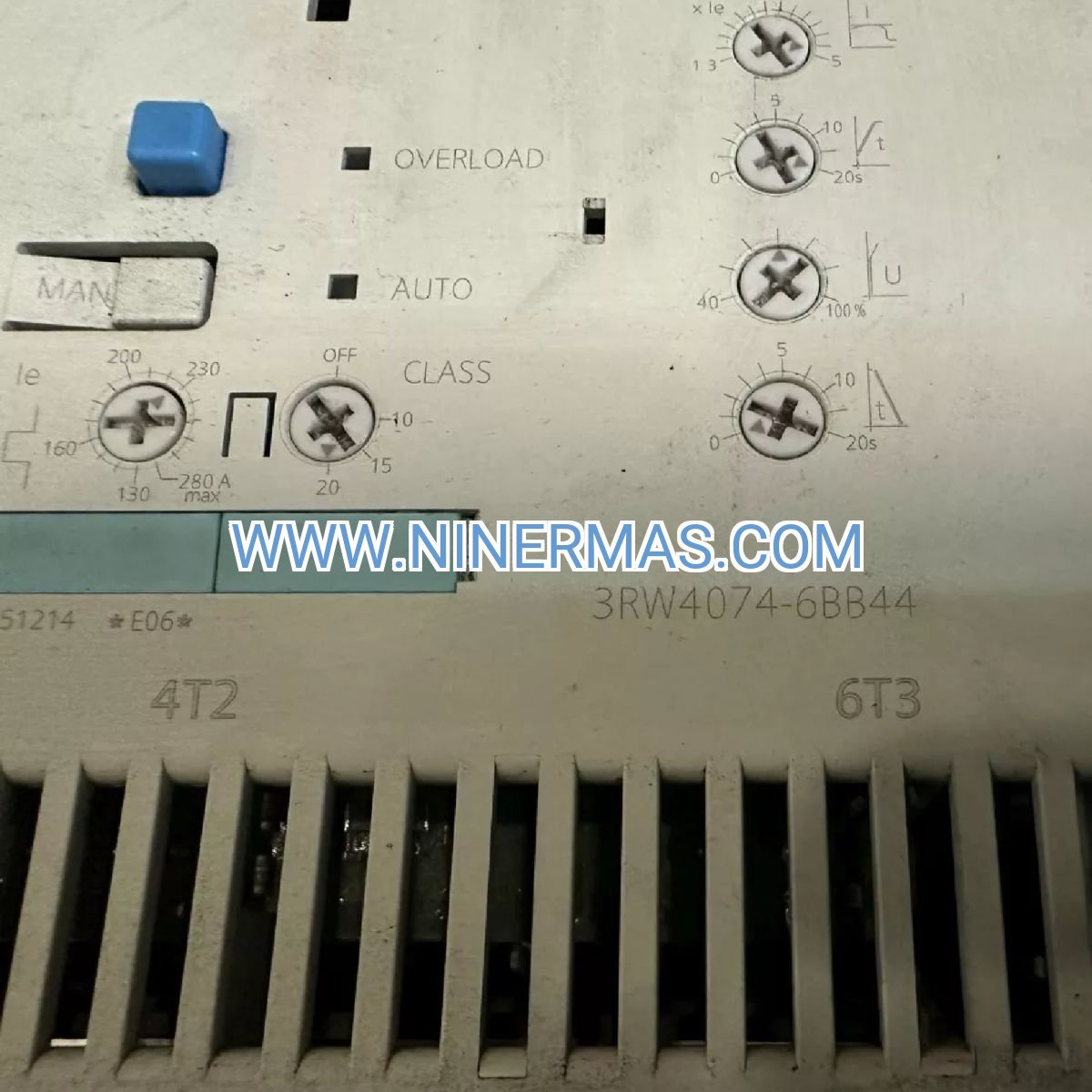

3RW4074-6BB44 SIRIUS S12 Soft Starter (Industrial-Grade Motor Launch Controller)

The 3RW4074-6BB44 is a microprocessor-controlled soft starting device designed for three-phase asynchronous motors in heavy-duty industrial environments. Engineered to eliminate mechanical shock during motor acceleration, this SIRIUS S12 unit protects downstream equipment from torque spikes while reducing electrical demand charges through controlled current ramping. Ideal for facility managers, maintenance engineers, and OEM integrators seeking reliable motor protection without the complexity of variable frequency drives.

Built for applications where direct-on-line starting causes unacceptable mechanical stress or voltage sag, the 3RW4074-6BB44 delivers programmable acceleration profiles that adapt to load characteristics. Whether you're managing pump stations, conveyor systems, or process machinery, this soft starter extends bearing life, reduces coupling wear, and minimizes downtime from premature component failure.

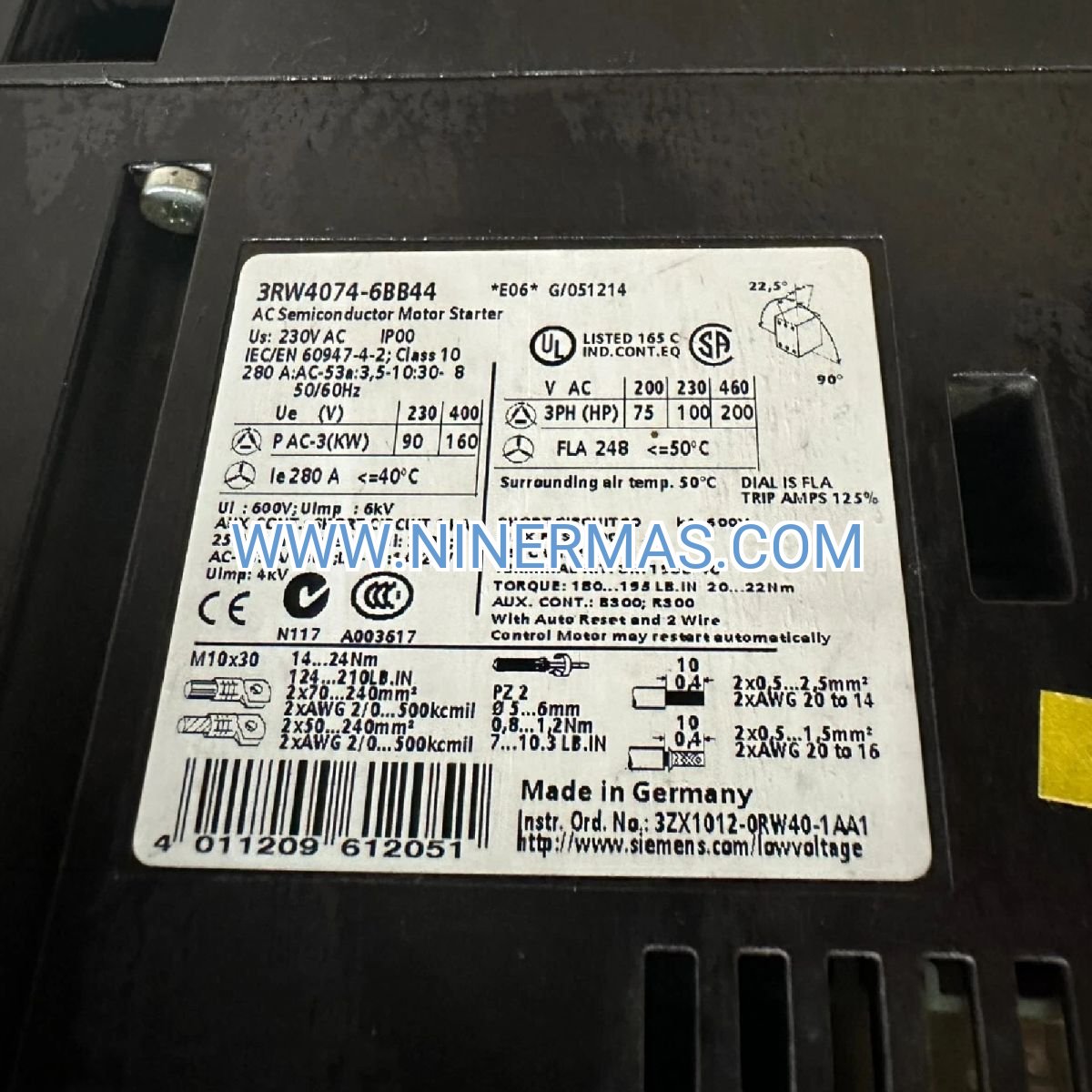

With 280A continuous current capacity and 160kW power handling at 400V, this unit serves as the critical interface between your motor control center and high-inertia loads. Factory-configured for immediate deployment yet fully customizable through intuitive parameter adjustment, the 3RW4074-6BB44 represents the intersection of German engineering precision and practical industrial functionality.

Core Features & Benefits

→ Controlled Voltage Ramping Technology
Progressive voltage increase from 30% to 100% over adjustable timeframes (1-60 seconds) eliminates current inrush peaks that stress electrical infrastructure. Business value: Reduces demand charges by up to 40% during motor starting cycles and prevents nuisance tripping of upstream protection devices.

→ Integrated Thermal Motor Protection
Built-in overload monitoring with Class 10/20/30 trip characteristics replaces standalone overload relays in many applications. Supports PTC thermistor and KTY temperature sensor inputs for direct winding temperature monitoring. Business value: Simplifies panel design, reduces component count, and provides superior motor protection compared to traditional bimetallic relays.

→ Bypass Contactor Control Logic
Automatic bypass engagement after startup completion routes current around semiconductor switching elements, eliminating heat generation during continuous operation. Business value: Extends soft starter service life, reduces cooling requirements, and cuts energy waste by 98% compared to non-bypass designs.

✓ Six Selectable Starting Curves
Pre-programmed torque profiles optimized for pumps, fans, conveyors, compressors, crushers, and general-purpose loads. Business value: Eliminates trial-and-error commissioning—select application type and achieve optimal performance immediately.

✓ Comprehensive Fault Diagnostics
Real-time monitoring of phase loss, phase imbalance, overcurrent, ground fault, and thermal overload conditions with fault code logging. Business value: Reduces troubleshooting time from hours to minutes through precise fault identification.

✓ Compact S12 Form Factor
Space-efficient design occupies 60% less panel space than equivalent electromechanical star-delta starters. Business value: Enables retrofits in existing enclosures without panel modifications or upsizing.

Application Scenarios

Water & Wastewater Treatment Facilities
High-capacity centrifugal pumps in lift stations and treatment plants experience destructive water hammer when started across-the-line. The 3RW4074-6BB44's gradual acceleration eliminates pressure transients that damage piping, valves, and pump seals. Result: 70% reduction in maintenance calls related to mechanical seal failure and pipe joint leaks.

Material Handling & Conveyor Systems
Belt conveyors carrying bulk materials suffer product spillage and belt tracking issues when subjected to abrupt starting torque. Controlled acceleration prevents load shifting and belt slippage during startup. Result: Eliminates cleanup downtime and reduces belt replacement frequency by 50%.

HVAC & Building Systems
Large air handling units and chiller compressors create voltage sag that dims lighting and disrupts sensitive electronic equipment during startup. Soft starting limits inrush current to 3× full-load amperage versus 7× for DOL starting. Result: Maintains power quality compliance and eliminates tenant complaints in commercial buildings.

Mining & Aggregate Processing
Jaw crushers, cone crushers, and ball mills impose severe shock loads on drive trains during startup. The 3RW4074-6BB44 protects gearboxes, couplings, and motor bearings from impact damage. Result: Doubles mean time between gearbox overhauls and reduces unplanned downtime by 35%.

Industrial Refrigeration
Screw compressors in cold storage facilities require controlled starting to prevent liquid slugging and valve damage. Programmable acceleration curves match compressor unloading sequences. Result: Extends compressor service life and maintains refrigerant system integrity.

Technical Parameters & Selection Guide

Selection Criteria: Match soft starter current rating to motor full-load amperage (FLA), not horsepower. For motors with service factor > 1.15 or frequent starting duty, select next larger frame size. High-inertia loads (fans, flywheels) may require current rating 125% of motor FLA. Consult factory for applications exceeding 10 starts per hour or starting times beyond 30 seconds.

Extended Functions

Communication Module Compatibility
Optional plug-in modules enable integration with PROFIBUS DP, Modbus RTU, DeviceNet, and EtherNet/IP networks. Remote parameter adjustment, real-time current monitoring, and predictive maintenance data collection available through SCADA or PLC interfaces. Supports Industry 4.0 initiatives for connected manufacturing environments.

Advanced Control Modes
Kick-start function delivers brief full-voltage pulse to overcome static friction in high-breakaway-torque applications. Current limiting mode protects undersized generators or weak utility connections. Dual-ramp profile accommodates loads with changing inertia during acceleration cycle.

Customization Options
Factory configuration services available for OEM integrators requiring pre-programmed parameters, custom labeling, or specialized protection settings. Consult engineering team for high-altitude derating (>1000m), harsh environment conformal coating, or seismic certification requirements.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days. Custom-configured units require 7-10 business days for factory programming and testing. Expedited processing available for critical path projects—contact sales for rush order options.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and semiconductor components. Extended warranty programs available for mission-critical applications requiring 3-year or 5-year coverage.

Technical Support: Application engineering assistance provided at no charge during selection and commissioning phases. Phone and email support available 8:00-18:00 CST, Monday-Friday. Emergency after-hours support for production-down situations.

Documentation Package: Each unit ships with quick-start guide, full technical manual (English), wiring diagrams, parameter reference card, and dimensional drawings. CAD files and BIM objects available for download from product support portal.

Frequently Asked Questions

What is the maximum number of starts per hour this soft starter can handle?
The 3RW4074-6BB44 is rated for 10 starts per hour under full-load conditions with standard acceleration times (10-20 seconds). For applications requiring more frequent cycling—such as jog control or process sequencing—consult the thermal capacity curves in the technical manual or contact our engineering team for duty cycle analysis. Reduced-load starting or shorter acceleration times may permit higher start frequencies.

Can this unit replace my existing star-delta starter without panel modifications?
In most cases, yes. The S12 form factor occupies significantly less space than traditional electromechanical star-delta configurations. However, you'll need to verify control voltage compatibility (230V AC standard) and ensure adequate ventilation clearances per installation guidelines. Our technical team can review your existing panel layout and provide retrofit feasibility assessment.

Does the soft starter provide energy savings during motor operation?
The 3RW4074-6BB44 reduces energy consumption during the starting cycle by limiting inrush current, which can lower demand charges on your utility bill. However, once the bypass contactor engages after startup, the motor operates at full efficiency with no ongoing energy savings. For applications requiring continuous speed control and energy optimization, consider variable frequency drives instead.

What communication protocols are supported for remote monitoring?
The base unit provides hardwired digital I/O for start/stop commands and fault signaling. Optional plug-in communication modules add PROFIBUS DP, Modbus RTU, DeviceNet, or EtherNet/IP connectivity. These modules enable remote parameter adjustment, real-time current monitoring, fault diagnostics, and predictive maintenance data collection through your existing automation infrastructure.

How does thermal motor protection work without direct connection to the motor windings?
The soft starter continuously monitors motor current and calculates thermal accumulation using a mathematical motor model (Class 10/20/30 trip curves). For enhanced protection, you can connect PTC thermistors or KTY temperature sensors directly to the motor windings—the soft starter's dedicated sensor inputs provide direct temperature monitoring that overrides the calculated thermal model when winding temperature exceeds safe limits.

Is this soft starter suitable for submersible pump applications?
Yes, the 3RW4074-6BB44 is widely used in submersible pump installations. The controlled starting reduces hydraulic shock (water hammer) that damages pump seals, check valves, and piping systems. For deep-well pumps with long cable runs, verify that cable capacitance doesn't exceed 1.5 μF per phase—excessive cable capacitance can interfere with soft starter operation and may require line reactors.
