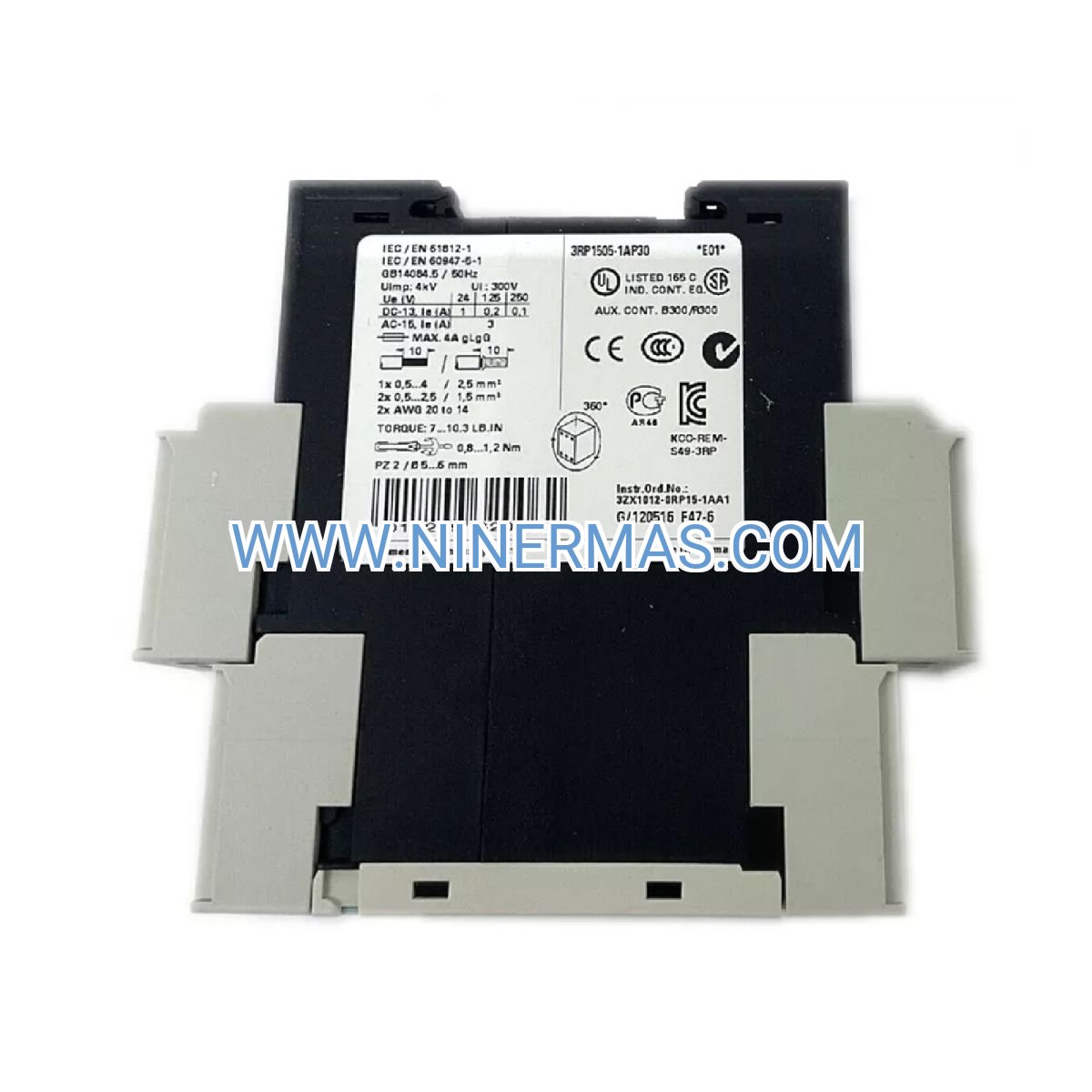

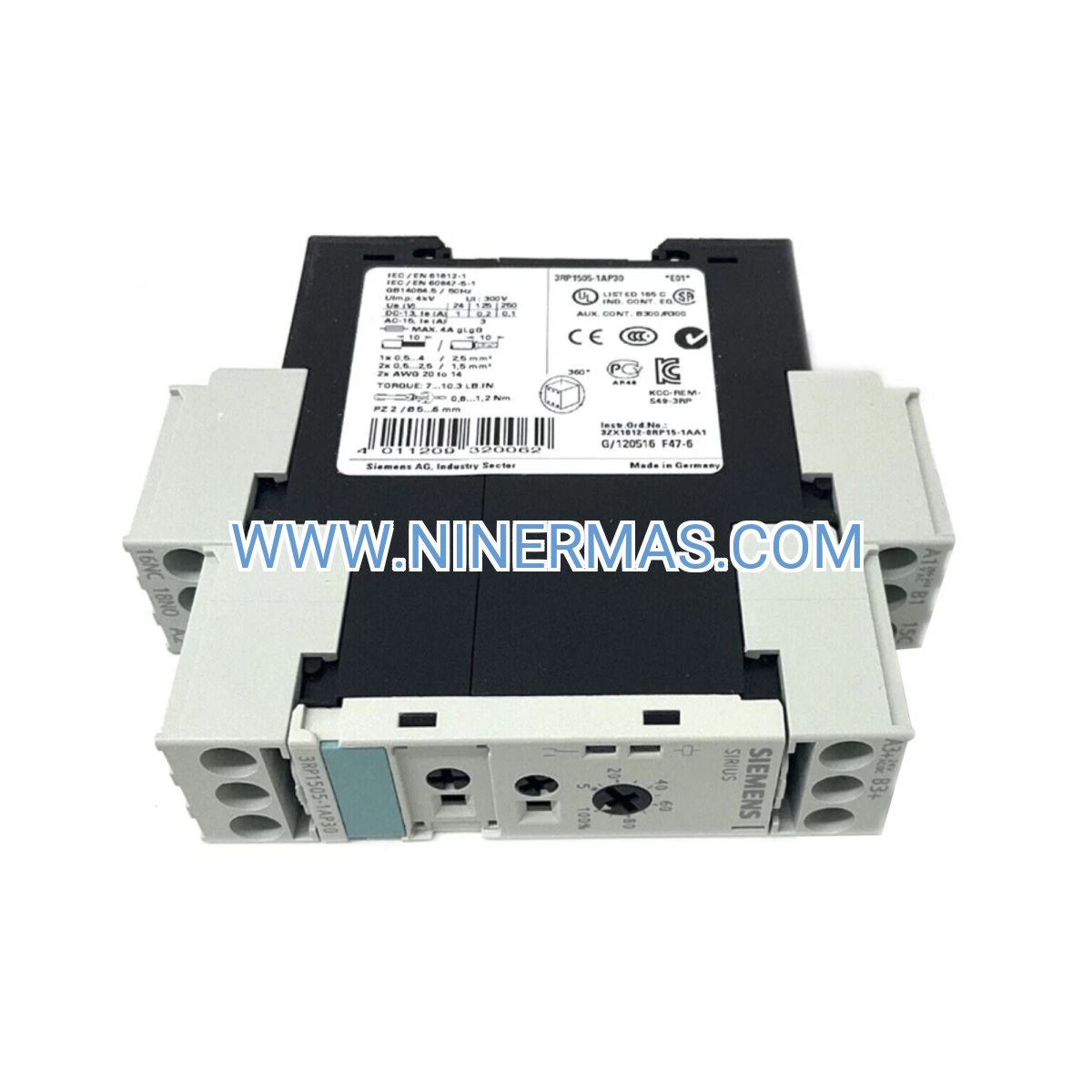

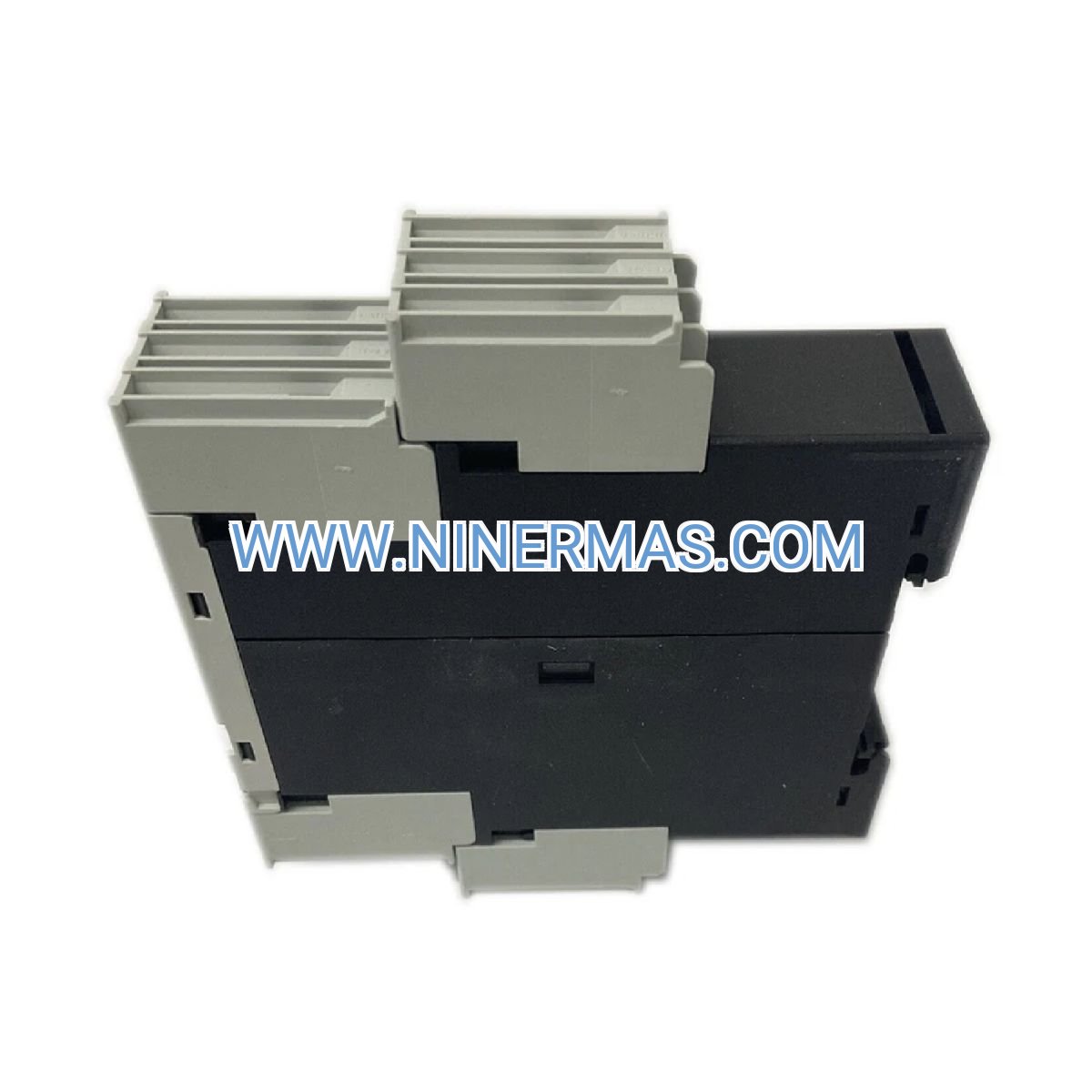

3RP1505-1AP30 Multifunction Timer Relay (Industrial-Grade Precision Control)

The 3RP1505-1AP30 from Siemens delivers eight programmable timing functions in a space-saving 22.5mm footprint, engineered for demanding industrial environments where timing accuracy directly impacts production efficiency, equipment protection, and process quality. This microprocessor-based relay replaces multiple single-function timers while offering superior accuracy, extended lifespan, and field-adjustable parameters that adapt to evolving automation requirements.

Designed for system integrators, maintenance engineers, and OEM manufacturers, this timing relay solves critical challenges in motor sequencing, HVAC control, pump alternation, and manufacturing automation where mechanical timers fail prematurely or lack the flexibility for multi-mode operation. Its universal voltage input and dual-contact output make it a versatile solution for retrofits and new installations across global voltage standards.

With quartz-stabilized timing accuracy (±0.5%), visual status indication, and tool-free DIN rail mounting, the 3RP1505-1AP30 reduces commissioning time, minimizes panel space consumption, and delivers consistent performance across temperature extremes from -25°C to +60°C—critical for unheated enclosures and outdoor installations.

Core Functions & Technical Advantages

→ Eight Selectable Timing Modes
Rotary function selector provides on-delay (A), off-delay (B), combined on/off delay (C), single-shot interval (D), delayed flasher (E), immediate flasher (F), retriggerable delay (G), and star-delta motor starting (H). Eliminates need for multiple relay types in inventory.

→ Wide-Range Time Adjustment
15-position range multiplier combined with potentiometer dial covers 0.05 seconds to 100 hours in a single device. Handles rapid pulse generation for sorting systems and extended delays for weekly maintenance cycles without external components.

→ Dual Changeover Contacts (2CO)
Two independent SPDT outputs rated 5A at 250V AC / 30V DC enable simultaneous control of multiple loads or fail-safe redundancy. Gold-plated contacts ensure low-resistance switching for sensitive PLC inputs and pilot lights.

→ Universal Voltage Input
Auto-sensing 24V AC/DC or 200-240V AC control voltage eliminates part number confusion and field wiring errors. Single SKU serves global installations from 24V DC PLC systems to 230V AC European panels.

✓ Microprocessor Precision
Quartz-controlled timing circuit maintains ±0.5% accuracy across full voltage range and temperature spectrum. Outperforms pneumatic and electromechanical timers prone to drift, wear, and calibration loss.

✓ Compact 22.5mm Width
Occupies half the space of traditional plug-in timer modules. Three units fit in 67.5mm—the width of two standard relays—maximizing panel density in space-constrained enclosures.

Application Scenarios & Problem-Solving Capabilities

Motor Starting & Protection
The dedicated star-delta function (Mode H) orchestrates contactor switching sequences for three-phase motors 5.5-75kW, reducing inrush current by 70% and preventing nuisance breaker trips. Adjustable transition timing accommodates varying motor loads and mechanical inertia. Extends contactor life by minimizing arc erosion during high-current switching.

Pump Alternation Systems
Interval mode (D) creates alternating run cycles for dual-pump installations in water treatment, irrigation, and sump applications. Prevents single-pump wear concentration while the off-delay function (B) ensures complete tank drainage before valve closure, eliminating water hammer and check valve damage.

HVAC Sequencing
On-delay (A) protects compressors from rapid cycling by enforcing minimum off-time between starts—critical for refrigeration longevity and energy efficiency. Off-delay (B) maintains fan operation after heating/cooling shutdown, ensuring complete air circulation and preventing stratification in large spaces.

Conveyor Interlocking
Retriggerable mode (G) coordinates sequential conveyor startup in material handling systems. Each upstream conveyor activation resets the delay timer, preventing downstream belt overload. Automatic shutdown sequence reverses the process when material flow ceases, reducing energy consumption.

Lighting Control & Energy Management
Flasher modes (E/F) drive warning beacons and attention signals without external oscillators. Off-delay function extends stairwell and parking area lighting after occupancy sensor deactivation, meeting safety code requirements while minimizing runtime through precise timeout control.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 3RP1505-1AP30 when you need multiple timing functions in a single device, require field-adjustable parameters without relay replacement, or face panel space constraints. For safety-critical applications (emergency stop, guard monitoring), specify the 3RP25 safety relay series. For timing memory retention during power loss, consider the 3RP2505 with EEPROM backup.

Extended Capabilities & System Integration

Cascading for Complex Sequences: The 2CO contact configuration enables series connection of multiple 3RP1505 units to create multi-step automation sequences. Example: Combine three relays in on-delay mode to control a three-stage heating system with staggered startup, preventing demand charges from simultaneous element activation.

PLC Interface: Low-power contact rating suits direct connection to PLC digital inputs without interposing relays. Use the normally-open contact for active-high logic or normally-closed for fail-safe monitoring where timing relay failure triggers an alarm condition.

Analog Integration: While the 3RP1505 uses potentiometer adjustment, the output contacts can trigger analog setpoint changes in variable frequency drives or process controllers, creating hybrid control strategies that combine time-based and analog regulation.

Retrofit Compatibility: The 22.5mm width and standard terminal layout allow direct replacement of obsolete Finder, ABB, and Phoenix Contact timer relays in existing panels. Verify contact rating and voltage compatibility before substitution.

Delivery, Warranty & Technical Support

Lead Time: In-stock items ship within 24 hours via express courier. Custom configurations or bulk orders (50+ units) require 7-10 business days for factory fulfillment. Expedited shipping available for emergency replacements.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials, workmanship, and timing accuracy drift beyond published specifications. Advance replacement program minimizes downtime—we ship the replacement before receiving the defective unit.

Technical Assistance: Our application engineers provide pre-sales consultation for function selection, wiring diagram review, and load compatibility verification. Post-installation support includes troubleshooting guidance, firmware updates (if applicable), and lifecycle replacement planning.

Documentation Package: Each relay ships with installation manual, wiring diagrams for all eight functions, dimensional drawings, and CE/UL compliance certificates. CAD models and EPLAN macros available for download to streamline panel design integration.

Frequently Asked Questions

What is the difference between retriggerable and standard on-delay modes?
Standard on-delay (Mode A) starts timing when the input activates and ignores subsequent input changes until the cycle completes. Retriggerable mode (Mode G) resets the timer to zero each time the input pulses, useful for occupancy sensors where movement extends the delay without requiring continuous signal.

Can I control inductive loads like solenoid valves and contactors directly?
Yes, but apply derating factors. For AC inductive loads (AC-15 duty), derate to 2A at 250V. For DC inductive loads (DC-13 duty), use suppression diodes across the coil and derate to 0.5A at 24V DC. Resistive loads use full 5A rating.

How do I set the timing range for a specific application?
First, select the time range multiplier (1-15 on the rotary switch) that brackets your desired delay. Then adjust the potentiometer dial (0-100%) to fine-tune within that range. Example: For 30 seconds, select range "10s" and set the dial to 30%. Refer to the timing chart in the manual for precise calibration.

Is the relay suitable for outdoor installations or high-vibration environments?
The IP20 rating requires installation inside a protected enclosure. For outdoor use, mount in a NEMA 4X or IP65-rated panel. The solid-state design withstands vibration better than electromechanical timers, but secure the DIN rail firmly and use vibration-dampening mounts in mobile equipment applications.

What happens during power interruptions—does the timer resume or reset?
The 3RP1505 resets to its initial state when power is lost. Timing does not resume from the interrupted point. For applications requiring non-volatile timing memory (e.g., maintenance interval tracking), upgrade to the 3RP2505 series with battery-backed or EEPROM storage.

Can I use this relay in safety circuits for machine guarding or emergency stops?
No. The 3RP1505 is a standard control relay without safety certification (SIL, PLr). For safety-critical timing functions, use the Siemens 3RP25 safety relay series, which provides redundant monitoring, fault detection, and compliance with ISO 13849-1 / IEC 61508 standards.

Order Your Precision Timing Solution Today

Eliminate timing inconsistencies, reduce panel complexity, and gain the flexibility to adapt control sequences without hardware changes. The Siemens 3RP1505-1AP30 combines German engineering precision with practical field serviceability, backed by our technical expertise and rapid fulfillment capabilities.

Contact our team for application-specific recommendations, volume pricing, or integration support. We maintain deep inventory of Siemens industrial control components to ensure your projects stay on schedule.
