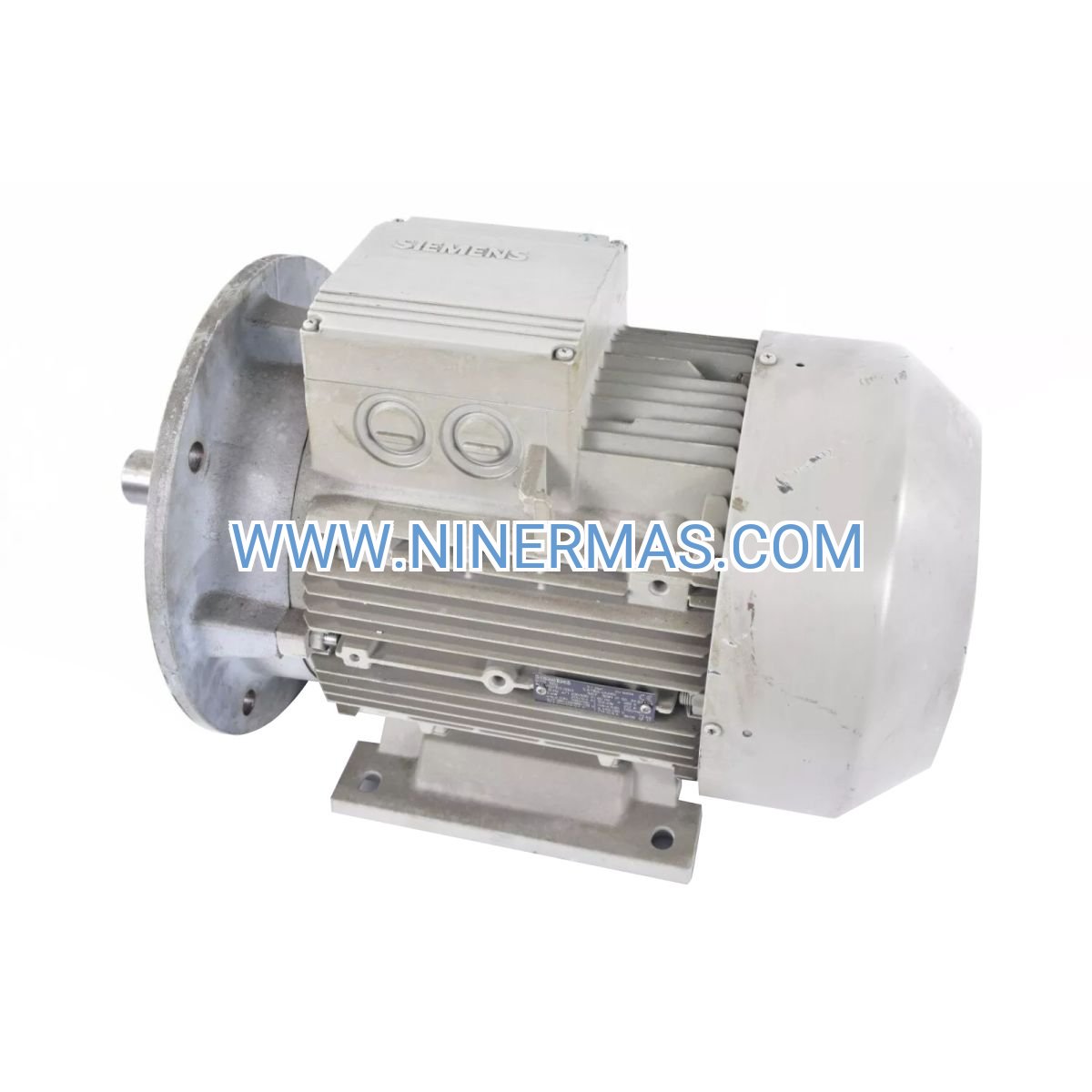

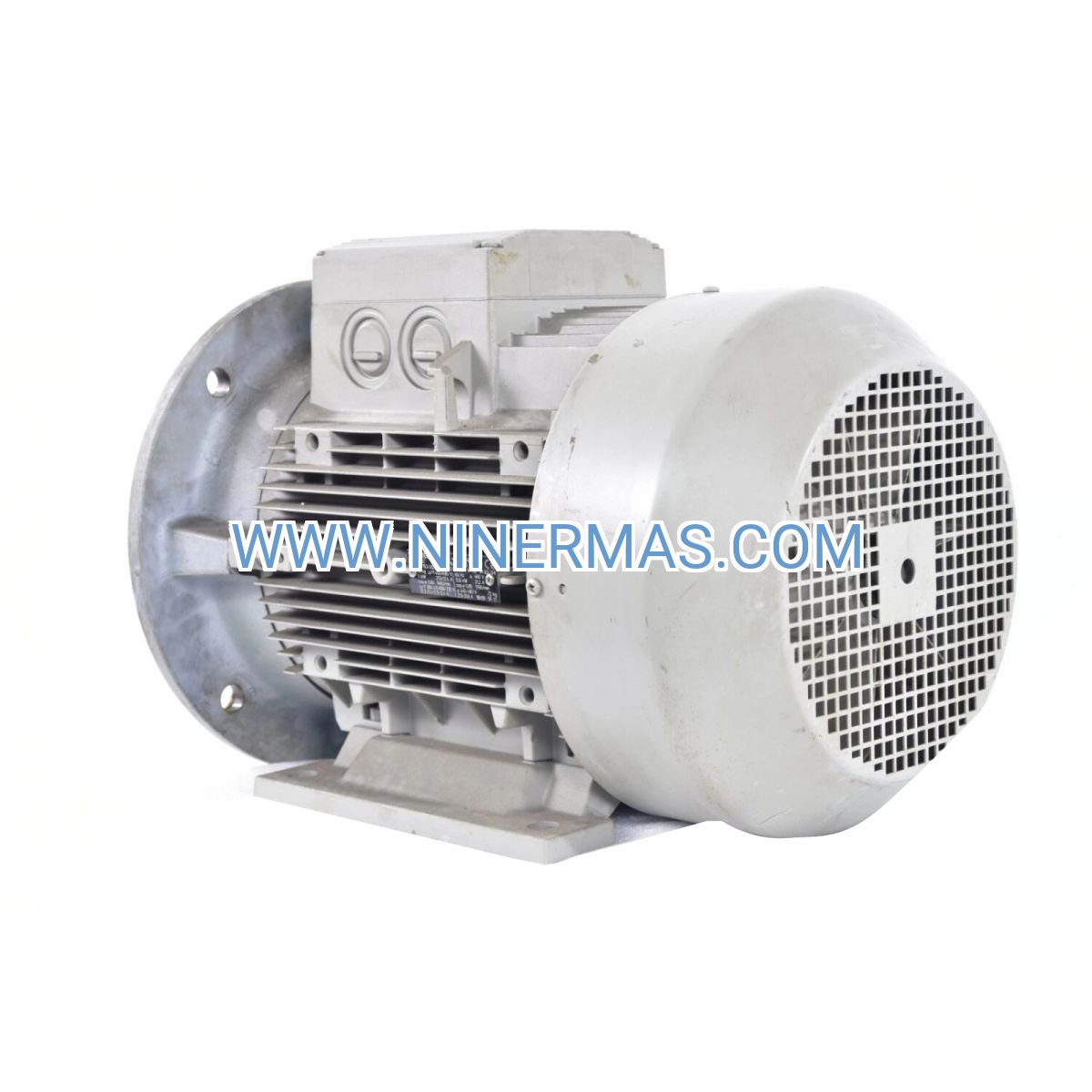

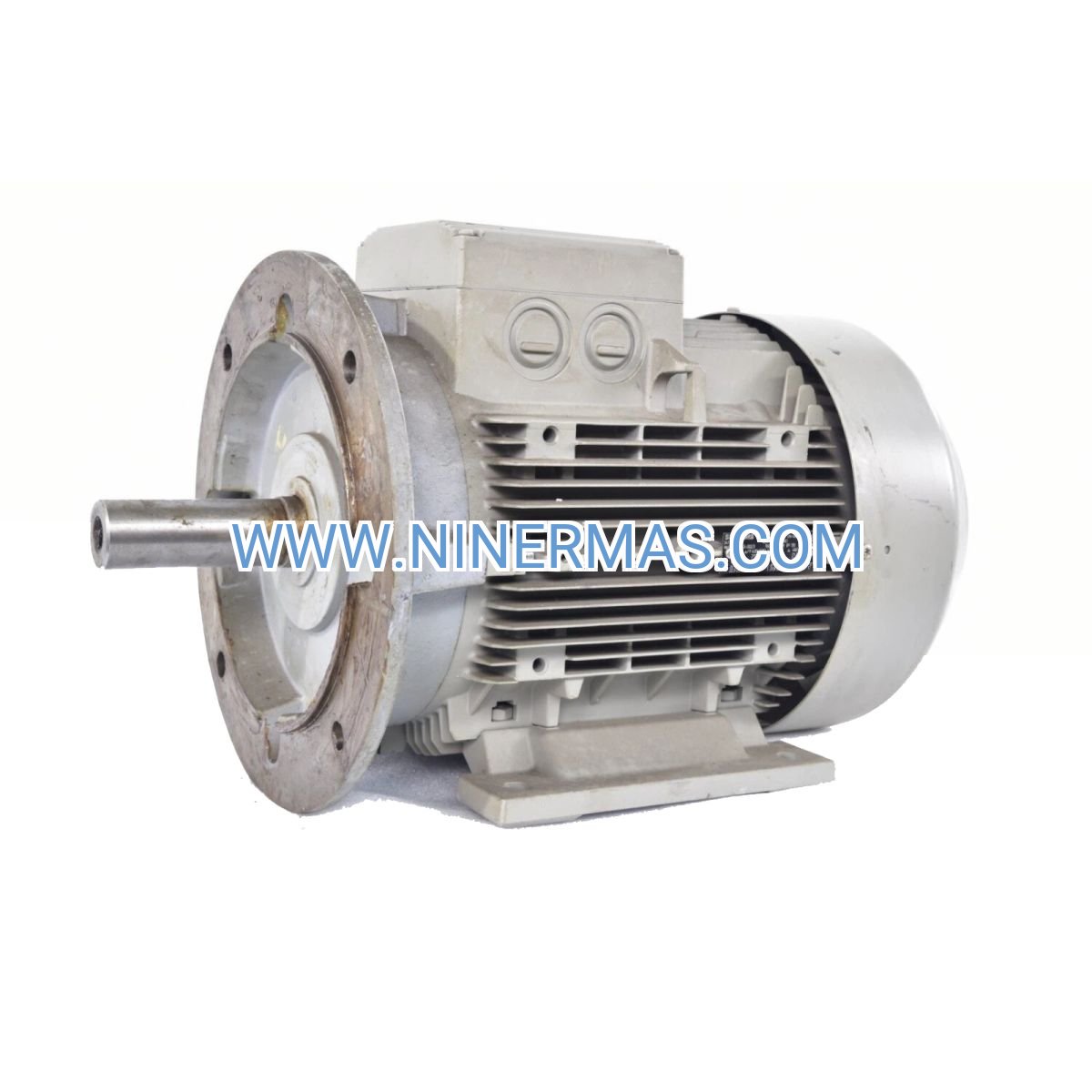

30kW Siemens 1LA7163-4AA60 Three-Phase Induction Motor (Industrial-Grade Asynchronous Drive)

Engineered for continuous industrial operation, the Siemens 1LA7163-4AA60 three-phase squirrel-cage motor delivers 30 kilowatts of reliable mechanical power with IE3 premium efficiency certification. Built on Siemens' proven 1LA7 platform, this 4-pole asynchronous motor combines German precision manufacturing with advanced thermal management to serve demanding applications in process automation, material handling, and building services infrastructure.

Designed for plant engineers and OEM integrators who require dependable torque delivery across 24/7 production cycles, this motor addresses critical challenges in energy cost reduction, equipment uptime, and regulatory compliance. Whether retrofitting legacy systems or specifying new installations, the 1LA7163-4AA60 provides a future-proof solution backed by Siemens' global service network and comprehensive technical documentation.

With IP55 ingress protection, Class F insulation, and VFD-ready construction, this motor adapts seamlessly to harsh industrial environments while maintaining thermal stability under variable load conditions. The result: lower total cost of ownership through reduced maintenance intervals, minimized downtime, and measurable energy savings that compound over decades of service life.

Core Features & Benefits

✓ IE3 Premium Efficiency Certification
Achieves up to 93.6% efficiency at rated load, reducing electrical consumption by 12-18% versus IE1 standard motors. Annual energy savings of $800-1,200 USD typical for continuous-duty applications (based on $0.12/kWh industrial rate).

✓ Robust Cast-Iron Frame Construction
IEC 160M frame size with reinforced ribbing dissipates heat effectively while providing mechanical rigidity that minimizes vibration transmission. Corrosion-resistant epoxy coating extends service life in chemical processing and coastal environments.

✓ Advanced Thermal Management System
IC411 cooling method with optimized external fan maintains winding temperatures within Class F limits (155°C) even during sustained overload conditions. Thermal margin supports ambient temperatures up to 40°C without derating.

→ Precision-Balanced Rotor Assembly
Dynamically balanced to ISO 1940 Grade R standards, delivering vibration levels below 2.8 mm/s RMS. Extended bearing life (L10 > 40,000 hours) reduces maintenance frequency and unplanned shutdowns.

→ Universal Voltage Compatibility
380-460V operating range accommodates global power standards (400V/50Hz European, 460V/60Hz North American) without field modifications. Dual-frequency rating simplifies international equipment deployment.

→ VFD-Ready Insulation System
Enhanced winding insulation withstands voltage spikes from PWM inverter drives. Compatible with Siemens SINAMICS G120, ABB ACS580, and equivalent variable frequency drives for precise speed regulation.

Typical Application Scenarios

1. Centrifugal Pump Drives – Water Treatment & Distribution
Municipal water utilities and industrial process plants deploy the 1LA7163-4AA60 to drive centrifugal pumps handling flow rates of 150-400 m³/h. The motor's constant torque characteristics ensure stable pressure control across varying demand cycles, while IE3 efficiency reduces pumping energy costs by $15,000-25,000 annually in medium-scale facilities. IP55 protection enables installation in humid pump rooms without additional enclosures.

2. HVAC Fan Systems – Commercial & Industrial Buildings
Building management systems integrate this motor with supply/exhaust fans in hospitals, data centers, and manufacturing facilities. When paired with VFD control, the motor enables demand-based ventilation that cuts HVAC energy consumption by 30-45% compared to fixed-speed operation. Low acoustic signature (< 68 dB(A) at 1m) supports installation in noise-sensitive environments.

3. Conveyor Belt Drives – Logistics & Manufacturing
Distribution centers and production lines utilize the 1LA7163-4AA60 for belt conveyors transporting loads up to 2,500 kg at speeds of 0.5-2.0 m/s. High starting torque (2.3x rated) accelerates loaded conveyors smoothly, while thermal reserves accommodate frequent start/stop cycles without motor derating. Foot-mounted B3 configuration simplifies integration with standard conveyor gearboxes.

4. Compressor Applications – Pneumatic Systems
Industrial air compressor manufacturers specify this motor for rotary screw and reciprocating compressor packages generating 5-8 bar pressure. The motor's overload capacity handles compressor load fluctuations during pressure buildup, while sealed bearing design minimizes contamination from compressor room dust and oil mist.

5. Mixer & Agitator Drives – Chemical Processing
Chemical plants and food processing facilities employ the 1LA7163-4AA60 to power mixing vessels from 500-2,000 liters. Constant torque delivery maintains consistent agitation speeds critical for reaction control and product homogeneity. Corrosion-resistant finish withstands exposure to cleaning chemicals and process vapors.

Technical Parameters & Selection Guide

Selection Criteria for Optimal Performance:

When specifying the 1LA7163-4AA60 for your application, verify that load torque requirements remain within 100% of rated torque during continuous operation. For applications requiring frequent starts (> 10 cycles/hour), consult thermal duty cycle curves in the technical datasheet to confirm motor suitability. If operating altitude exceeds 1,000 meters above sea level, apply derating factors per IEC 60034-1 standards.

For variable speed applications, ensure VFD output frequency range aligns with motor design limits (typically 10-87 Hz). When using soft-starters or star-delta configurations, confirm that starting time remains below 15 seconds to prevent thermal stress on rotor bars.

Extended Functions & Integration Capabilities

IoT Connectivity & Predictive Maintenance
When integrated with Siemens SIMOTICS CONNECT 400 condition monitoring adapter, the motor enables real-time tracking of vibration, temperature, and load current. Cloud-based analytics detect bearing degradation, insulation deterioration, and load imbalances weeks before failure, reducing unplanned downtime by up to 70%.

Advanced Drive Integration
Seamless compatibility with Siemens SINAMICS G120C and S120 drive platforms unlocks advanced control functions including torque limiting, flying restart, and multi-motor synchronization. PROFINET and EtherNet/IP communication protocols enable integration with Siemens TIA Portal, Rockwell FactoryTalk, and Schneider EcoStruxure automation ecosystems.

Custom Configuration Options
Factory customization services include alternative mounting arrangements (B5 flange, B14 face mount), shaft modifications (keyed, threaded, hollow), encoder mounting provisions (HTL, TTL, resolver), and special paint finishes for food-grade or marine applications. Consult NINERMAS engineering team for lead times and MOQ requirements.

Delivery & Service Assurance

Standard Lead Time: 3-5 weeks for stock configurations; 6-8 weeks for factory-customized units. Expedited shipping available for critical projects (additional charges apply).

Warranty Coverage: 18-month comprehensive warranty from shipment date, covering material defects, manufacturing workmanship, and premature bearing failure. Extended warranty programs available for mission-critical installations.

Technical Support: Direct access to NINERMAS application engineers for motor selection assistance, load calculation verification, and troubleshooting support. Remote commissioning guidance via video consultation included with purchase.

Documentation Package: Each motor ships with certified test reports, dimensional drawings (DXF/PDF), wiring diagrams, installation manual, and maintenance schedule. IEC 60034 compliance certificates provided upon request.

Frequently Asked Questions

What starting methods are compatible with the 1LA7163-4AA60 motor?
This motor supports direct-on-line (DOL), star-delta, soft-starter, and variable frequency drive starting methods. For DOL starting, ensure supply infrastructure can handle 6.5-7.5× rated current inrush. Star-delta reduces starting current to approximately 2.2× rated current.

Can this motor operate in hazardous area classifications?
The standard 1LA7163-4AA60 is designed for Zone 2/Division 2 non-hazardous areas. For Zone 1/Division 1 explosive atmospheres, specify the ATEX/IECEx certified variant (model suffix -Z) with increased safety "e" protection and temperature class certification.

How does IE3 efficiency translate to operational cost savings?
Compared to an IE1 motor of equivalent power, the IE3-rated 1LA7163-4AA60 saves approximately 3,200-4,500 kWh annually in continuous operation (8,000 hours/year). At industrial electricity rates of $0.12/kWh, this represents $384-540 USD annual savings, achieving payback on premium cost within 18-24 months.

What maintenance intervals does Siemens recommend?
For standard industrial environments, inspect motor every 6 months for unusual noise/vibration and verify terminal tightness. Bearing regreasing required every 10,000-15,000 operating hours (consult bearing manufacturer specifications). Complete bearing replacement typically needed after 40,000-60,000 hours depending on load conditions.

Is the motor suitable for outdoor installation without additional enclosure?
IP55 protection allows outdoor installation when motor is sheltered from direct rain exposure and standing water accumulation. For fully exposed outdoor locations, upgrade to IP56 variant or install weatherproof canopy. Ensure ambient temperature remains within -20°C to +40°C range.

Can I retrofit this motor to replace an existing 25kW unit?
While mechanically compatible with IEC frame sizes, verify that driven equipment can handle the increased power output. Check that supply circuit breakers, contactors, and cabling are rated for the higher current draw (approximately 55-60A at 400V). Consult load torque curves to confirm motor won't operate continuously above 80% rated load.

Request Technical Consultation

Unsure if the Siemens 1LA7163-4AA60 matches your application requirements? Our engineering team provides complimentary motor selection analysis including load calculation review, duty cycle assessment, and total cost of ownership comparison. Contact us with your project specifications to receive a detailed technical proposal within 24 business hours.

Get Started: Email sale@ninermas.com with your application details or call +0086 187 5021 5667 to speak with a motor specialist. Volume pricing and integration support available for OEM partners and system integrators.
