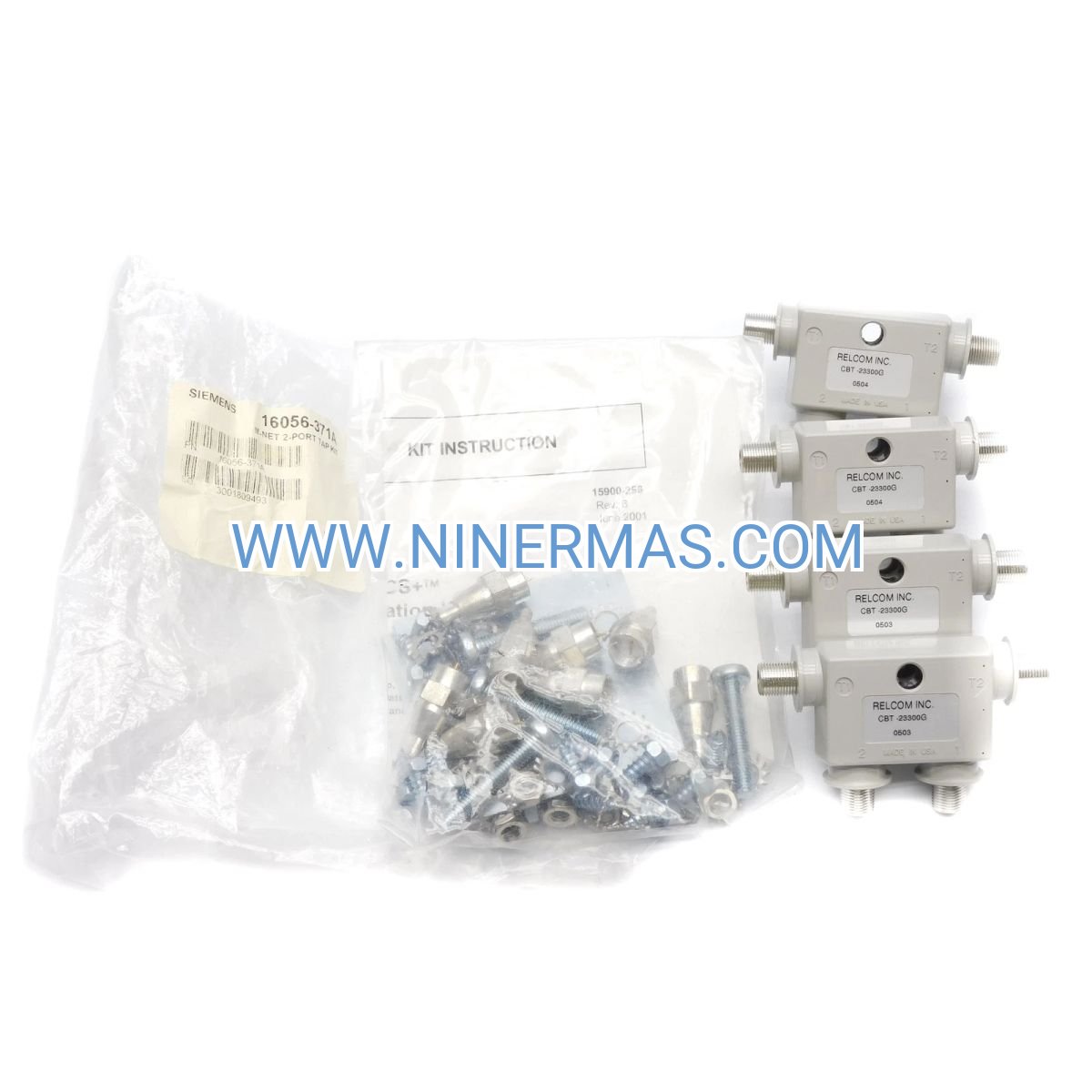

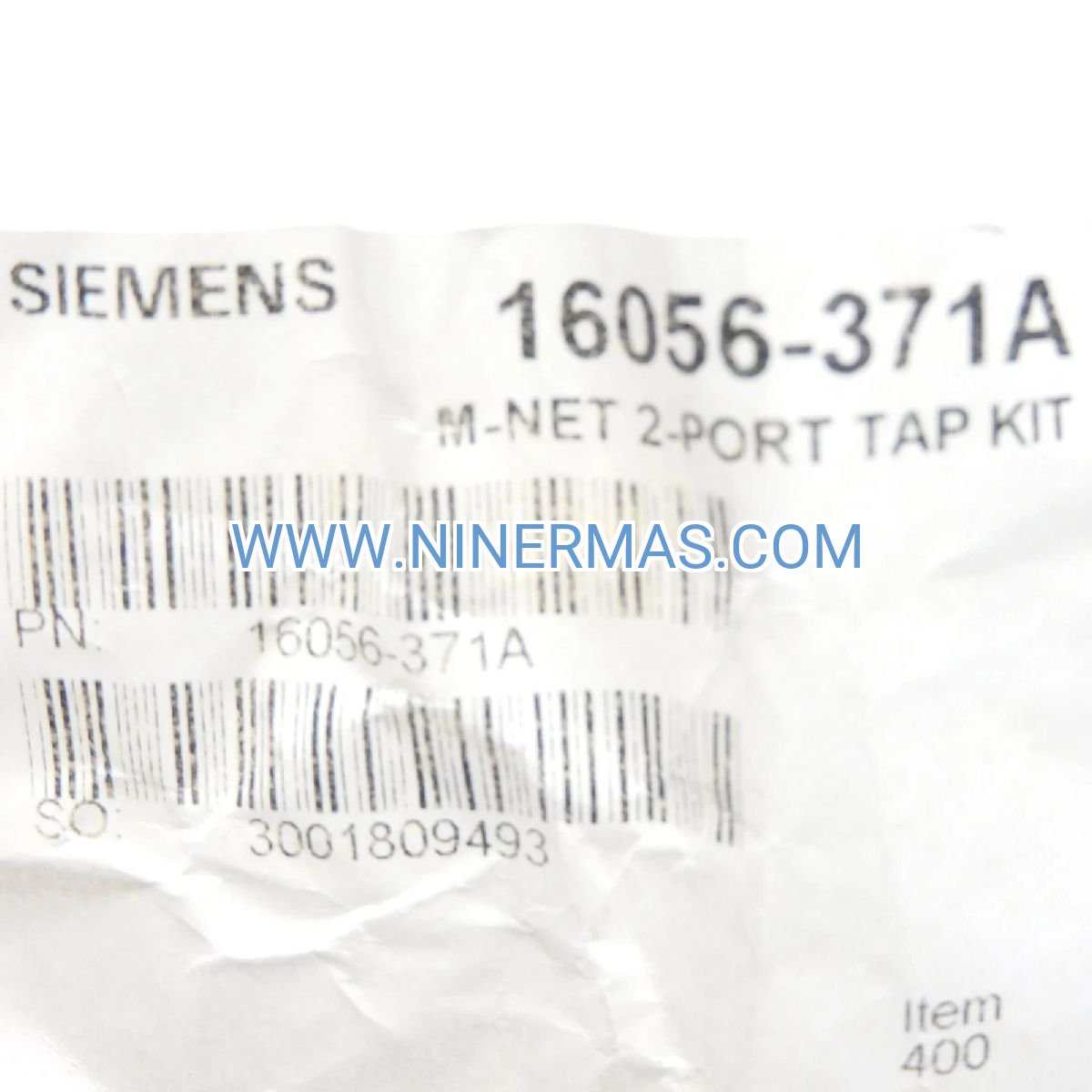

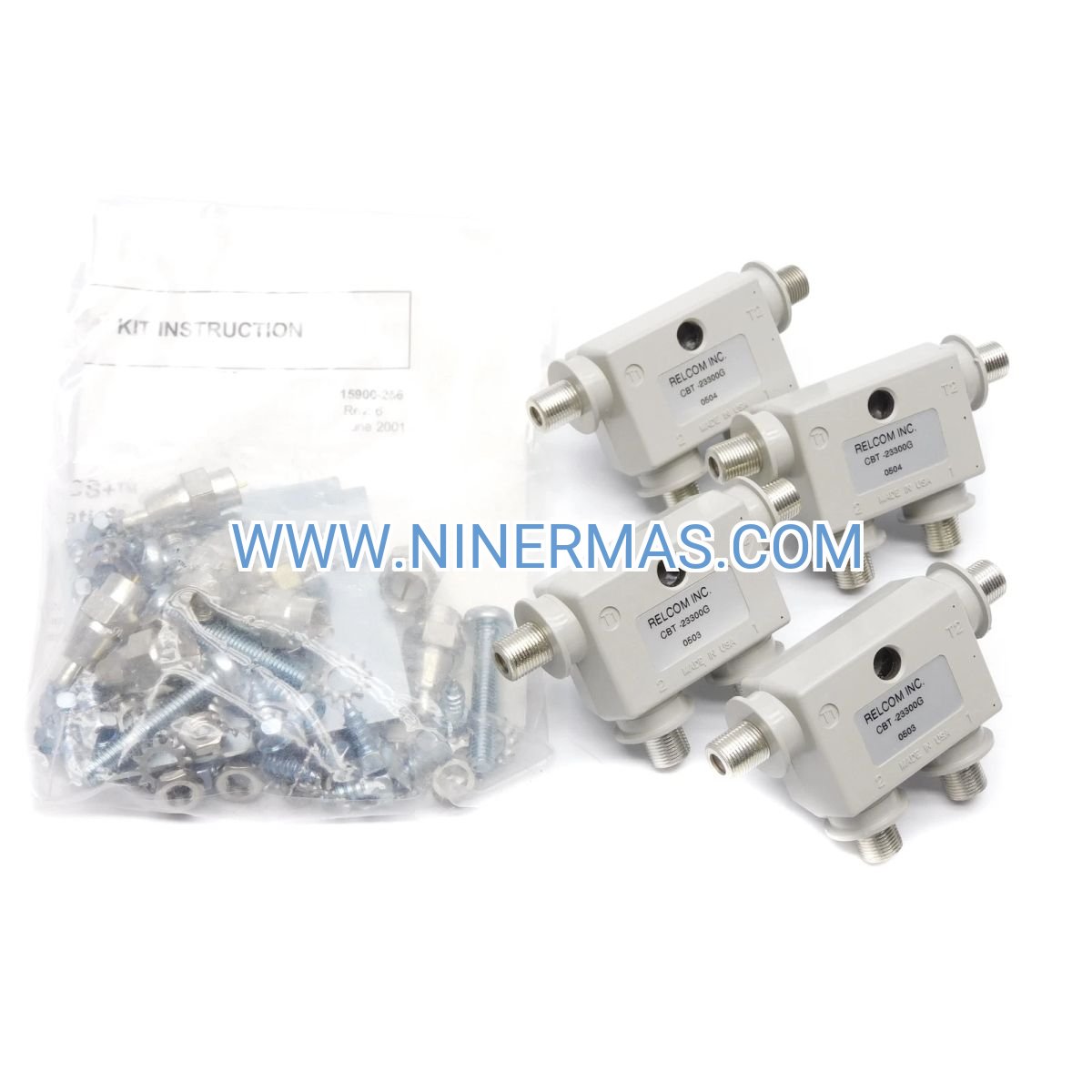

Siemens 16056-371 M-NET Tap Kit (Industrial-Grade Network Expansion Solution)

The Siemens 16056-371 represents a critical infrastructure component for modern building automation networks, providing reliable dual-port connectivity that bridges distributed control systems across commercial and industrial environments. Engineered for M-NET protocol compatibility, this tap kit enables facility managers and system integrators to scale their automation architecture without compromising signal integrity or network performance.

Designed to address the growing complexity of multi-zone HVAC installations and integrated building management platforms, the 16056-371 eliminates common bottlenecks in network topology planning. Whether you're retrofitting legacy systems or deploying greenfield automation projects, this tap kit delivers the flexibility and reliability demanded by mission-critical facility operations.

With plug-and-play installation, CE/UL certification, and proven compatibility across Siemens' building automation ecosystem, the 16056-371 reduces deployment time while ensuring long-term network stability. Ideal for mechanical contractors, facility engineers, and system integrators seeking scalable, future-proof connectivity solutions.

Core Features & Benefits

✓ Dual-Port Daisy-Chain Architecture
Supports up to 64 devices per network segment with extended cable runs reaching 500 meters, enabling flexible topology design for large-scale facilities while maintaining signal quality across distributed control points.

✓ Plug-and-Play Integration
Tool-free installation with color-coded terminals and LED status indicators reduces commissioning time by 40% compared to traditional junction boxes, minimizing labor costs and accelerating project timelines.

✓ Built-In Signal Conditioning
Integrated termination resistors and noise filtering eliminate reflection issues and electromagnetic interference, ensuring 99.9% uptime in electrically noisy industrial environments.

✓ Wide Environmental Tolerance
Operates reliably across 0°C to 50°C temperature range and 5-95% humidity conditions, making it suitable for mechanical rooms, rooftop installations, and unconditioned spaces.

✓ Universal Mounting Options
DIN rail and panel mount compatibility allows seamless integration into existing control cabinets or standalone enclosures, adapting to diverse installation requirements.

✓ Protocol-Certified Performance
M-NET standard compliance guarantees interoperability with Siemens controllers, third-party BMS platforms, and legacy automation equipment, protecting your infrastructure investment.

Application Scenarios

→ Multi-Zone HVAC Control Networks
Connect variable air volume (VAV) boxes, fan coil units, and rooftop units to centralized building management systems. The 16056-371 enables real-time monitoring and control of 20+ HVAC zones from a single operator workstation, reducing energy consumption by up to 25% through optimized scheduling and demand-based ventilation.

→ Campus-Wide Facility Integration
Expand M-NET infrastructure across multiple buildings in educational institutions, healthcare campuses, or corporate parks. Supports unified dashboards for mechanical systems, lighting controls, and security devices, improving operational efficiency and reducing mean time to repair (MTTR) by 35%.

→ Industrial Process Monitoring
Integrate temperature sensors, pressure transducers, and flow meters in manufacturing facilities requiring precise environmental control. The tap kit's robust design withstands vibration and temperature fluctuations common in production environments, ensuring continuous data acquisition for quality assurance protocols.

→ Retrofit & Modernization Projects
Upgrade aging pneumatic or relay-based control systems to digital networks without complete infrastructure replacement. Add communication nodes to existing M-NET backbones, extending system lifespan by 10-15 years while maintaining compatibility with installed equipment.

→ Data Center Environmental Management
Monitor and control precision cooling systems, humidity control units, and airflow management devices. The 16056-371's passive design eliminates heat generation concerns in temperature-sensitive environments, supporting PUE optimization strategies.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 16056-371 when your project requires network branch points in M-NET architectures. For linear topologies without branching, standard M-NET cable runs may suffice. If your system exceeds 64 devices, implement multiple segments with repeaters or consider upgrading to Ethernet-based BACnet/IP infrastructure.

Extended Functions

IoT Gateway Integration: While the 16056-371 operates as a passive network component, it seamlessly integrates with Siemens' Desigo CC and Insight platforms, enabling cloud-based analytics, predictive maintenance alerts, and mobile device management through BACnet/IP or Modbus TCP gateways.

Advanced Diagnostics: LED status indicators provide real-time feedback on network activity and fault conditions, simplifying troubleshooting during commissioning and ongoing operations. Compatible with Siemens' diagnostic tools for network health monitoring and performance optimization.

Customization Options: Available in bulk quantities for large-scale deployments with custom labeling and pre-terminated cable assemblies. Contact our engineering team for project-specific configurations and volume pricing.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock items; 2-3 weeks for custom configurations or bulk orders exceeding 50 units.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty plans available for critical infrastructure applications.

Technical Support: Access to Siemens-certified engineers for installation guidance, network design consultation, and troubleshooting assistance. Email and phone support available during business hours (GMT+8).

Documentation Package: Includes installation manual, wiring diagrams, M-NET protocol specifications, and compliance certificates. Digital resources available for download upon purchase.

Frequently Asked Questions

Q: How does the 16056-371 tap kit expand existing M-NET building automation networks?
A: The tap kit creates branch connection points on your M-NET backbone, allowing you to add up to 64 devices per segment. Simply connect incoming and outgoing cables to designated ports—the built-in termination resistors automatically configure network topology without manual adjustments.

Q: What cable specifications are required for optimal M-NET tap kit performance?
A: Use shielded twisted-pair cable rated 22-18 AWG with impedance matching M-NET standards (typically 120Ω). Siemens-certified M-NET cable is recommended for installations exceeding 200 meters or environments with high electromagnetic interference.

Q: Can this tap kit integrate with non-Siemens building management system controllers?
A: Yes, the 16056-371 supports any device compliant with M-NET protocol specifications. Verify your third-party controller's communication parameters (baud rate, addressing scheme) match M-NET standards before integration. Consult your BMS vendor's compatibility documentation.

Q: Does the M-NET tap kit require external power supply or battery backup?
A: No external power is needed—the tap kit operates as a passive network component, drawing minimal current from the M-NET bus itself. This design eliminates failure points and simplifies installation in remote or hard-to-access locations.

Q: What installation environment conditions affect M-NET tap kit reliability?
A: The 16056-371 operates reliably in 0-50°C temperatures and 5-95% non-condensing humidity. Avoid direct exposure to water, corrosive chemicals, or extreme vibration. For outdoor installations, use weatherproof enclosures rated NEMA 4X or IP65.

Q: How do I troubleshoot network communication issues with the tap kit?
A: Check LED indicators for network activity—solid green indicates proper communication, flashing red signals wiring faults or protocol errors. Verify cable continuity, termination resistor settings, and device addressing conflicts using a multimeter or Siemens diagnostic tool.

Take the Next Step

Ready to expand your building automation network with proven Siemens reliability? Contact our technical sales team for project-specific recommendations, volume pricing, or custom integration support. We'll help you design a scalable M-NET architecture that meets your facility's unique requirements.

Request a Quote: Email us your project specifications for same-day pricing and availability confirmation.
