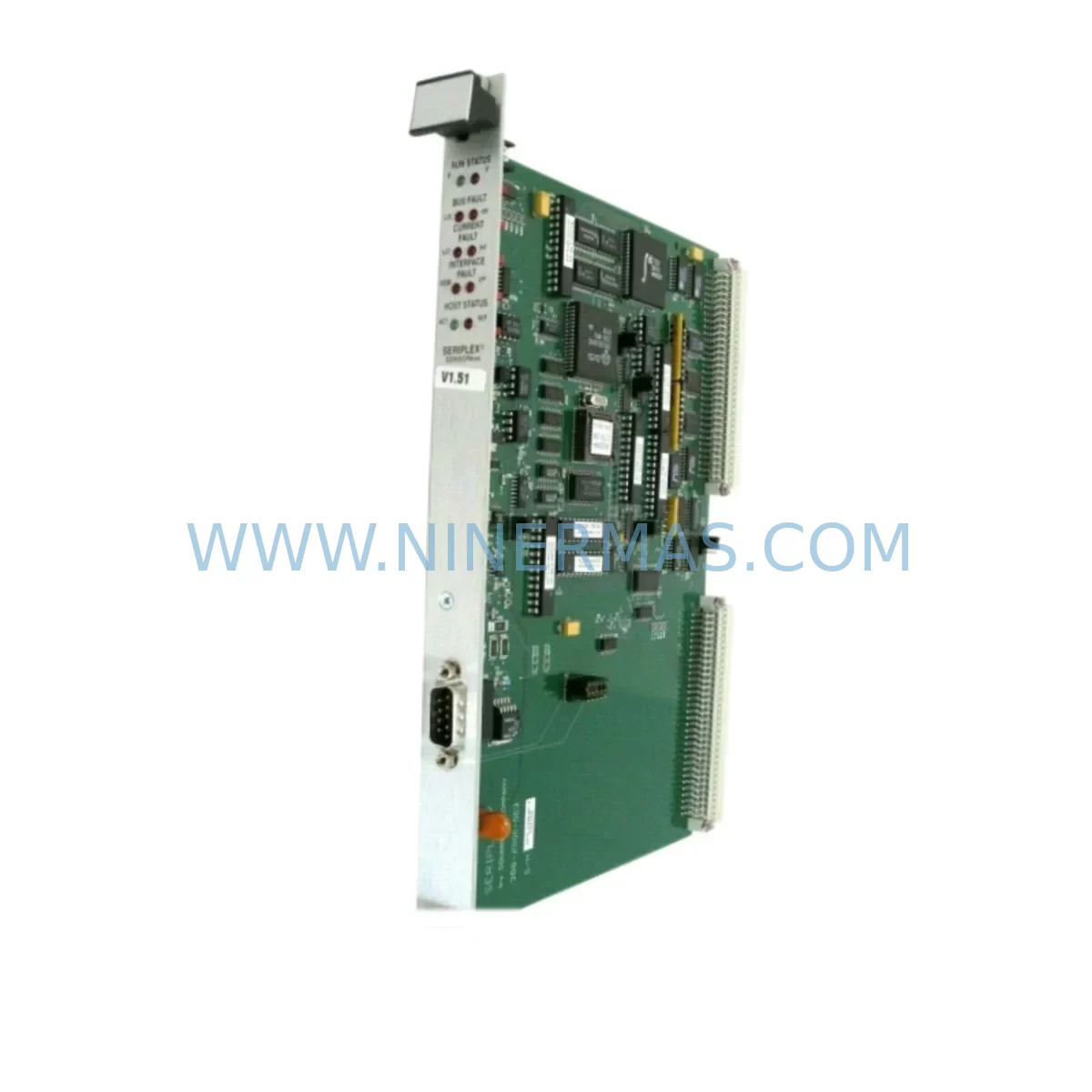

Seriplex 388-2000-003 VME Interface Card Spare Part

Seriplex 388-2000-003 VME Interface Card Spare Part — Fast Replacement for Continuous Industrial Operation

The Seriplex 388-2000-003 is an original VME bus interface card designed for industrial control systems where communication integrity, signal stability, and uninterrupted operation are non-negotiable. As a critical spare part in distributed control architectures, this card serves as the backbone of I/O communication between field devices and the central processing unit. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a proactive spare parts inventory, the Seriplex 388-2000-003 delivers the compatibility and reliability that maintenance engineers and procurement teams depend on.

In continuous production environments — including petrochemical plants, power generation facilities, water treatment stations, and metallurgical operations — an unplanned VME interface failure can cascade into full line shutdowns. The 388-2000-003 is engineered to slot directly into existing VME backplane assemblies, restoring communication between the host CPU module and field I/O racks without requiring firmware reconfiguration or hardware modification. Its direct-replacement design minimizes mean time to repair (MTTR) and reduces the risk of configuration errors during high-pressure fault recovery scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Seriplex 388-2000-003 is rarely an isolated task. Experienced maintenance engineers understand that a VME interface card failure is often symptomatic of broader stress in the control cabinet — and a thorough inspection during replacement can prevent secondary failures that would otherwise surface weeks later.

Before or during the replacement of the 388-2000-003, maintenance teams should inspect the VME backplane assembly for bent pins, oxidized contacts, or mechanical damage caused by vibration. The VME power supply module supplying +5 VDC and ±12 VDC rails should be load-tested, as voltage sag under full I/O load is a common root cause of interface card degradation. If the system uses a Seriplex network cable assembly connecting the VME card to field junction boxes, inspect the cable shielding and connector terminations for corrosion or mechanical fatigue — particularly in high-vibration or high-humidity environments.

On the field side, the Seriplex I/O modules at remote junction boxes should be checked for address conflicts or communication timeouts that may have contributed to the original fault. In systems where the 388-2000-003 interfaces with a VME CPU board running the main control program, verify that the host firmware version remains compatible with the replacement card before powering up. Many legacy VME systems also rely on EPROM or flash memory modules on the CPU card to store configuration data — these should be backed up before any card swap.

For cabinet-level protection, review the DIN rail terminal blocks and signal isolators on the I/O wiring side. Loose terminations or degraded isolation barriers can introduce ground loops that stress the VME interface card over time. If the control cabinet includes 24 VDC power distribution modules feeding field sensors and actuators, verify that the supply voltage is within tolerance — undervoltage conditions are a frequent but overlooked cause of Seriplex communication errors. Additionally, inspect any surge protection devices (SPDs) installed on the field wiring inputs; a failed SPD offers no protection and may actually introduce noise into the signal path.

For facilities running older DCS or PLC platforms alongside VME-based subsystems, it is also advisable to check the communication gateway or protocol converter that bridges the Seriplex network to the plant-wide control network. A degraded gateway can mask interface card faults or generate false diagnostics that complicate troubleshooting.

Site Replacement Workflow

Replacing the Seriplex 388-2000-003 in a live industrial environment requires a structured approach to minimize downtime and avoid configuration loss. Begin by placing the affected control zone in a safe state — isolate the relevant I/O segment and confirm with the control room that the process is in a hold or bypass condition. Document the current card slot position, address settings, and any DIP switch or jumper configurations on the existing card before removal.

Power down the VME chassis following the manufacturer’s recommended sequence. Remove the faulty 388-2000-003 by releasing the card ejector levers and sliding it clear of the backplane. Inspect the backplane connector for damage before inserting the replacement card. Match all address and configuration settings to the documented values from the original card, then reseat the card firmly and restore power to the chassis.

After power-up, verify that the Seriplex network communication is re-established by checking the card’s status LEDs and confirming I/O response at the control system HMI. Run a point-by-point I/O check on the affected segment before returning the process zone to automatic control. Log the replacement in the site maintenance management system (CMMS) and update the spare parts inventory to trigger a replenishment order — maintaining at least one additional 388-2000-003 in stock is strongly recommended for systems where this card is a single point of failure.

NINERMAS supplies the Seriplex 388-2000-003 with full pre-shipment functional testing, ensuring that every card shipped is verified operational before it reaches your site. This eliminates the risk of receiving a defective spare during a critical maintenance window — a risk that is unacceptably high when production continuity is at stake.

Spare Parts Support FAQ

Q1: Is the Seriplex 388-2000-003 an original part or a third-party replacement?
The 388-2000-003 supplied by NINERMAS is an original Seriplex spare part, not a third-party clone or remanufactured substitute. Each unit is sourced through established industrial supply channels and undergoes pre-shipment functional verification to confirm electrical integrity and communication performance before dispatch.

Q2: What warranty coverage is provided, and what does it include?
All Seriplex 388-2000-003 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. NINERMAS provides replacement or repair support within the warranty period, with priority handling for customers in critical production environments.

Q3: How do I confirm compatibility with my existing VME system before ordering?
The 388-2000-003 is designed for VME 6U backplane systems using the Seriplex sensor/actuator bus architecture. To confirm compatibility, provide your existing system’s CPU board model, backplane configuration, and Seriplex network topology to our technical team at sale@ninermas.com. We will verify fit before order confirmation to eliminate compatibility risk.

Q4: Can NINERMAS support long-term or repeat supply of this part?
Yes. NINERMAS maintains ongoing inventory of legacy industrial spare parts including the Seriplex 388-2000-003, specifically to support facilities operating older VME-based control systems that are no longer covered by OEM supply programs. We can support blanket purchase orders, scheduled delivery agreements, and emergency expedite requests. Contact us to discuss a long-term supply arrangement tailored to your maintenance cycle.
