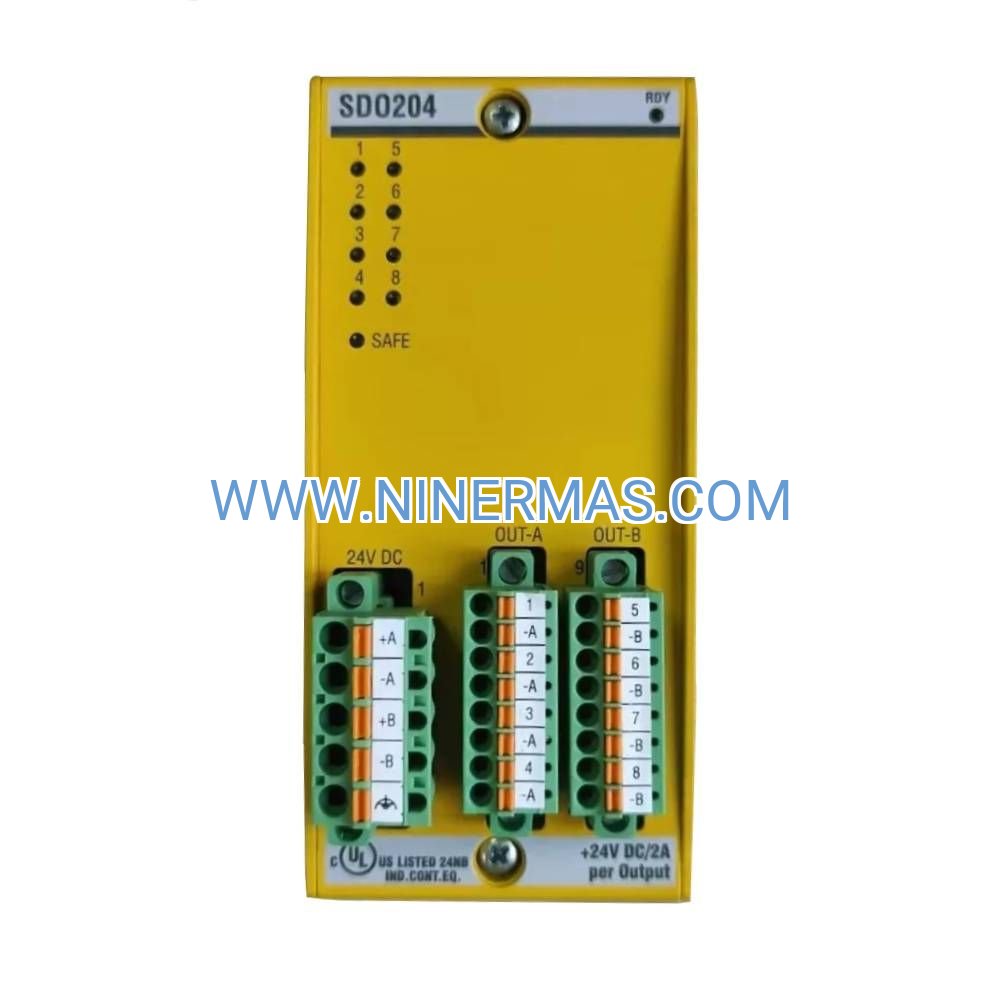

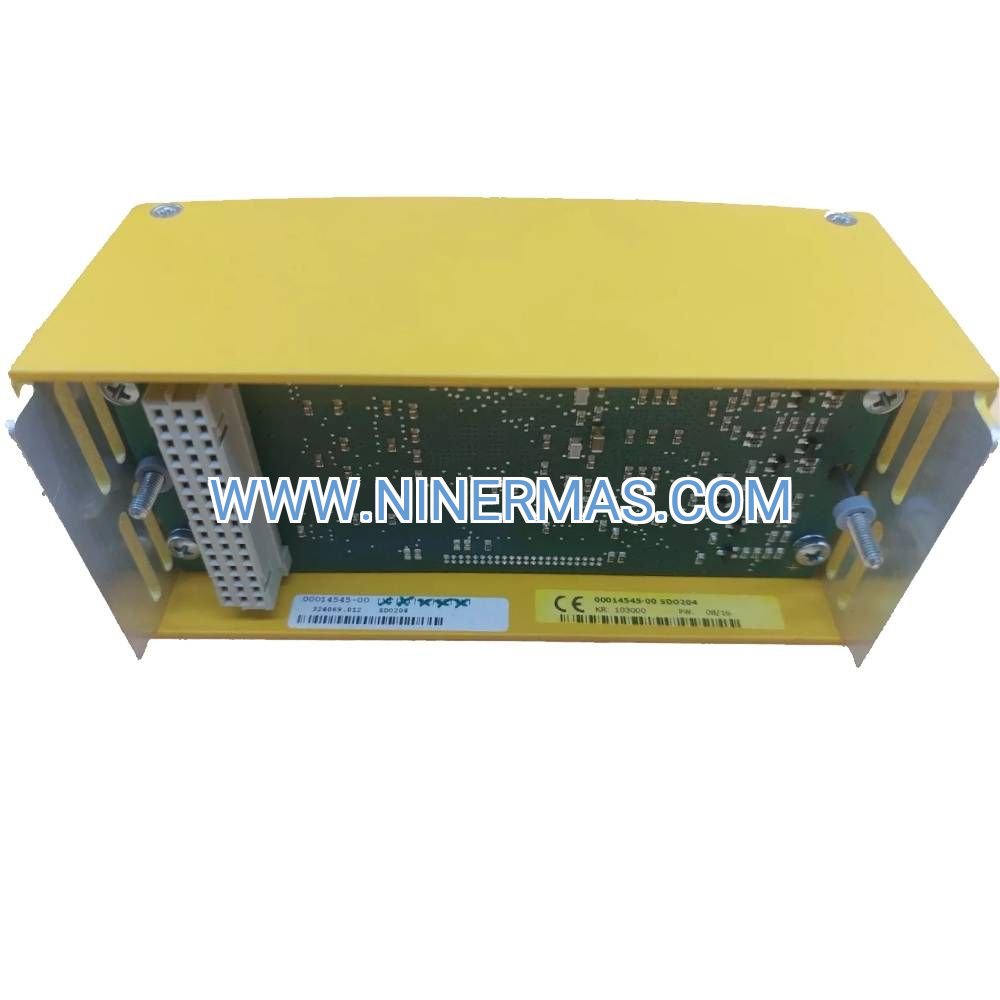

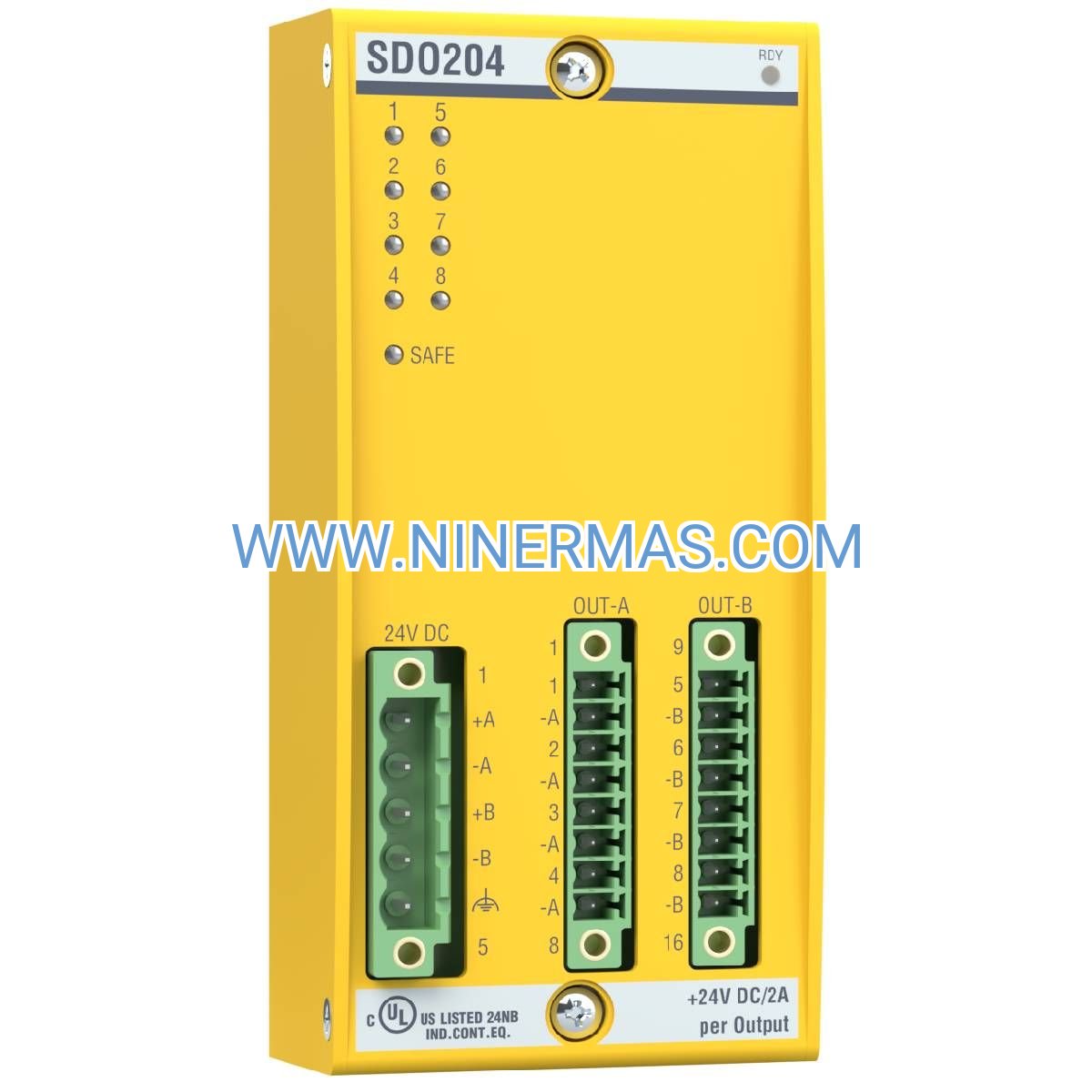

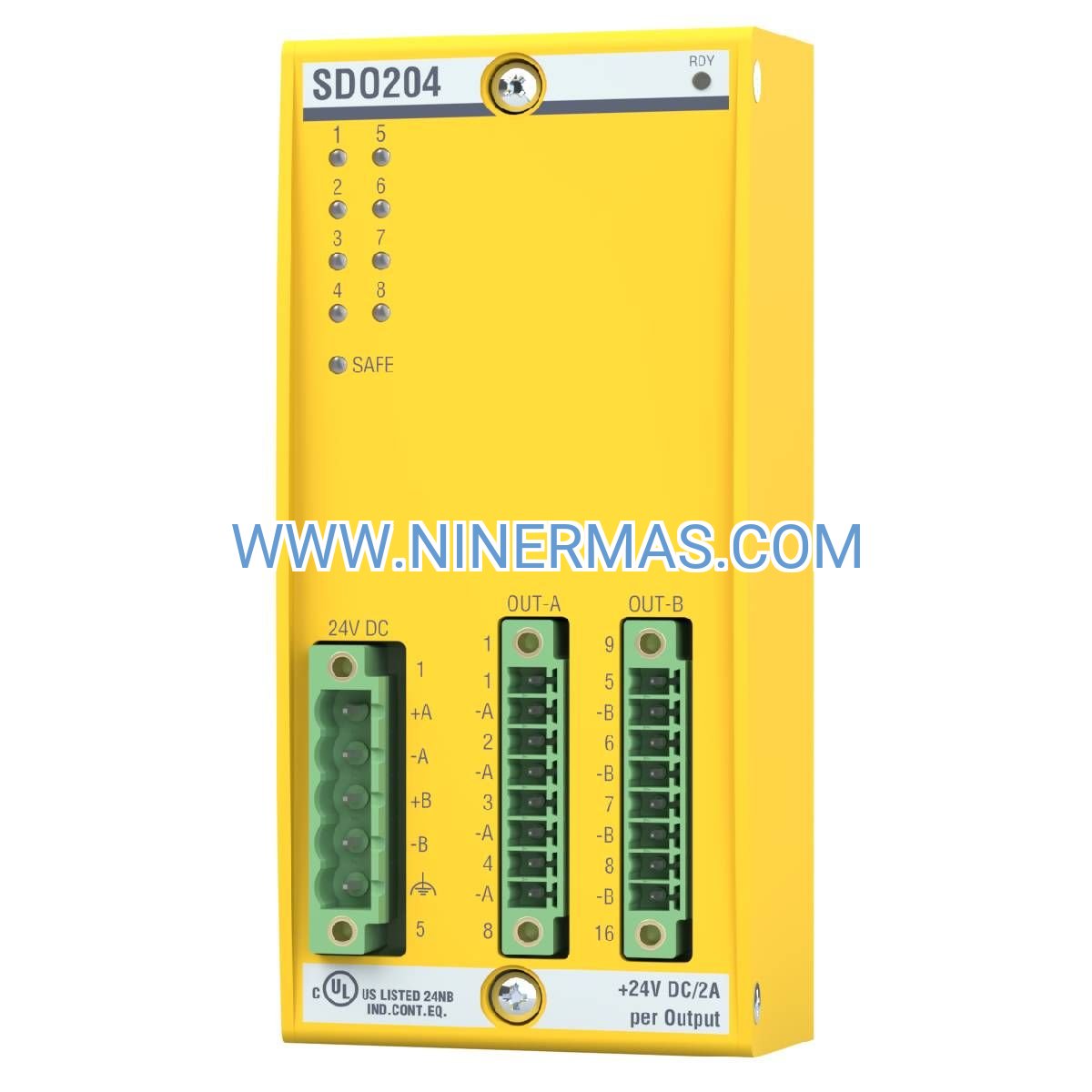

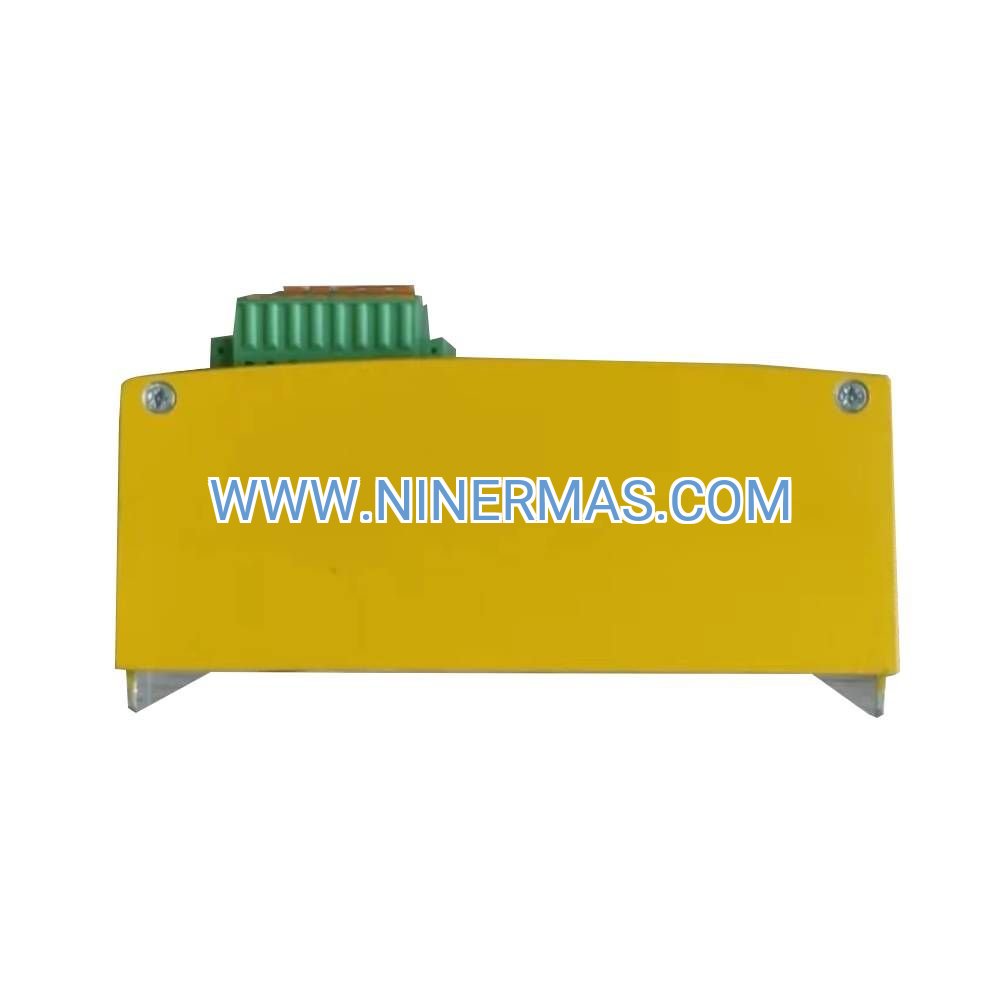

BACHMANN SDO204 Safety Digital Output Module (Industrial-Grade Fail-Safe Control)

The BACHMANN SDO204 is an industrial safety digital output module engineered for fail-safe control in hazardous environments where equipment malfunction could result in catastrophic injury or loss of life. This module delivers 8 safety-rated digital outputs configured as 4 redundant pairs, each certified to Safety Integrity Level 3 (SIL3) per IEC 61508 and Performance Level e Category 4 (PL e Cat 4) per ISO 13849-1 standards.

Designed for integration within BACHMANN M1 safety controller architectures, the SDO204 provides the critical output layer for emergency shutdown systems, safety interlock circuits, and protective device control across manufacturing, process control, and material handling installations. With dual-channel redundancy, electronic overcurrent protection, and comprehensive diagnostic coverage exceeding 99%, this module ensures that safety functions remain operational even under single-fault conditions.

Whether you're upgrading legacy safety systems to meet current regulatory standards or designing new machinery protection schemes, the SDO204 delivers certified performance with the reliability demanded by safety engineers and compliance officers worldwide.

Core Features & Business Value

→ SIL3 / PL e Dual Certification
Achieves the highest safety ratings recognized by international standards bodies, ensuring compliance with machinery directives (2006/42/EC) and process safety regulations. Reduces liability exposure and accelerates certification processes for OEMs and system integrators.

→ Redundant Dual-Channel Architecture
Each of the 4 output pairs operates with independent monitoring circuits that cross-check output states in real-time. Single-point failures automatically trigger safe shutdown sequences without compromising adjacent channels, maximizing uptime for non-affected production zones.

→ Electronic Fuse Protection (2A Per Channel)
Eliminates the maintenance burden and downtime associated with replaceable fuses. Electronic current limiting responds within microseconds to overcurrent conditions while providing detailed diagnostic data for predictive maintenance programs.

✓ High Diagnostic Coverage (>99% DC)
Continuous self-testing routines detect internal faults, wiring errors, and output circuit degradation before they compromise safety functions. Diagnostic transparency supports condition-based maintenance strategies and reduces unplanned shutdowns.

✓ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme industrial environments including outdoor installations, foundries, cold storage facilities, and desert climates without derating or auxiliary cooling requirements.

✓ Fast Safety Response (<10ms Reaction Time)
Meets the demanding timing requirements of high-speed machinery protection, robotic safety zones, and press brake control systems where milliseconds determine the difference between safe stops and accidents.

Typical Application Scenarios

Automated Manufacturing Lines
Controls safety relay outputs for robotic cell perimeter guards, light curtain muting functions, and emergency stop circuits across multi-station assembly systems. The redundant architecture ensures that production can continue in unaffected zones even when one safety circuit requires maintenance.

Material Handling & Conveyor Systems
Manages emergency stop pull-cord circuits, safety gate interlocks, and zone isolation controls for warehouse automation and distribution centers. Electronic fuse protection prevents nuisance trips from transient inrush currents during relay coil energization.

Process Industry Safety Instrumented Systems (SIS)
Executes final element control for emergency shutdown valves, burner management systems, and hazardous gas detection response in chemical plants, refineries, and pharmaceutical manufacturing. SIL3 certification satisfies IEC 61511 requirements for process safety management.

Press Brake & Metal Forming Equipment
Provides certified control outputs for two-hand control stations, light curtain reset circuits, and hydraulic valve de-energization. Fast response times protect operators from pinch points and crush hazards during high-force forming operations.

Packaging & Food Processing Machinery
Drives safety contactors for blade guards, nip point protection, and sanitation lockout systems. The module's IP20 housing and conformal coating options support washdown environments and hygiene-critical applications.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SDO204 when your application requires SIL3/PL e certified outputs for controlling safety relays, contactors, or solenoid valves rated ≤2A per channel. For higher current loads, use external safety relays with appropriate contact ratings. Verify that your safety controller supports the required number of safety output pairs in your safety function logic.

Extended Functions

Integrated Diagnostics & Predictive Maintenance
The SDO204 continuously monitors output circuit health including load current, short-circuit conditions, and open-wire detection. Diagnostic data integrates with SCADA systems via the M1 controller's OPC UA or Modbus TCP interfaces, enabling condition-based maintenance scheduling and reducing unplanned downtime.

Safety Network Integration
When paired with BACHMANN safety controllers, the SDO204 participates in distributed safety architectures using PROFIsafe over PROFINET or CIP Safety over EtherNet/IP protocols. This enables safety I/O distribution across large facilities without dedicated safety wiring between zones.

Customization & Application-Specific Variants
BACHMANN offers factory customization including conformal coating for harsh chemical environments, extended temperature screening for extreme climates, and application-specific firmware for specialized safety functions. Contact our engineering team for custom safety module configurations.

Delivery & Service Assurance

Lead Time: Standard SDO204 modules ship within 3-5 business days from our certified distribution center. Custom-configured units require 4-6 weeks for factory programming and testing. Expedited delivery available for emergency replacement scenarios.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage.

Technical Support: Access to TÜV-certified functional safety engineers for application consulting, safety validation support, and compliance documentation review. We provide safety manual templates, FMEDA integration guidance, and CE marking assistance.

Documentation Package: Each module includes installation manual, safety manual per IEC 62061, TÜV certification documents, FMEDA report, and CAD drawings for panel layout. Software libraries for common safety PLCs provided upon request.

Frequently Asked Questions

How does the SDO204 achieve SIL3 certification with dual-channel redundancy?
The module implements 1oo2D (one-out-of-two with diagnostics) architecture where both channels must agree to energize the output. Internal cross-monitoring detects discrepancies within 10ms, triggering safe shutdown. Diagnostic coverage exceeding 99% ensures that dangerous undetected failures remain below SIL3 thresholds.

Can I mix safety and standard I/O modules on the same backplane?
Yes, BACHMANN M1 backplanes support mixed configurations of safety-certified and standard I/O modules. However, safety modules must connect to a certified safety controller (e.g., SLC284), while standard modules can interface with either safety or standard CPUs.

What happens if one channel in a redundant pair fails?
The safety controller detects the discrepancy through continuous cross-monitoring and immediately de-energizes the affected output pair, placing it in the safe state. The fault is logged with timestamp and channel identification, allowing maintenance teams to replace the module during the next scheduled shutdown.

Does the electronic fuse require manual reset after overcurrent events?
No manual reset is required. Once the overcurrent condition clears and the safety logic permits, the output automatically re-energizes. However, the safety controller logs all overcurrent events for maintenance analysis and trending.

What is the maximum cable length between the SDO204 and safety relay coils?
BACHMANN specifies 100 meters maximum for 24VDC output circuits using shielded cable with minimum 0.5mm² conductor cross-section. Longer distances require voltage drop calculations to ensure adequate coil energization voltage (typically ≥20.4V for 24V nominal relays).

Are replacement modules pre-programmed or do they require configuration?
The SDO204 is a hardware-only module with no user programming. Safety logic resides in the safety controller (SLC284). Replacement modules are plug-compatible, though safety validation procedures require functional testing after installation per IEC 61508 requirements.
