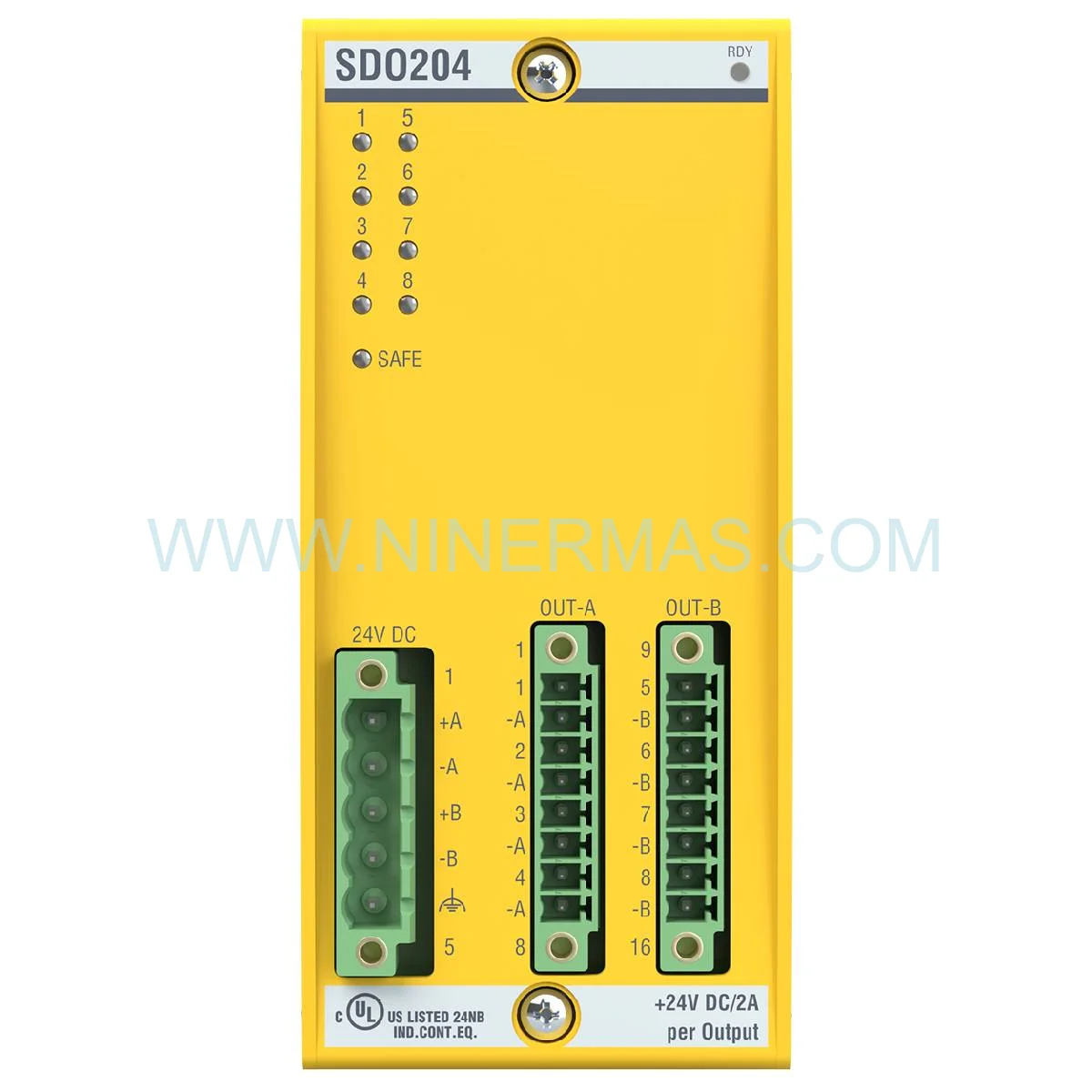

Bachmann SD0204 Safety Digital Output Module (Industrial-Grade SIL3/PL e Certified)

The Bachmann SD0204 represents a mission-critical component for industrial safety systems requiring certified fail-safe output control. This 8-channel safety digital output module delivers SIL3 and PL e compliance, engineered specifically for applications where equipment malfunction could result in personnel injury or process hazards. Designed for seamless integration into Bachmann M1 automation platforms, the SD0204 provides dual-channel redundancy with continuous self-diagnostics, ensuring your safety circuits maintain integrity across 20+ year operational lifecycles.

Manufacturing facilities, process plants, and automated production lines depend on the SD0204 to execute emergency shutdown sequences, control safety contactors, and interface with protective devices. Whether you're implementing ISO 13849-1 compliant machine safety or designing SIL-rated process interlocks, this module delivers the certified reliability your risk assessment demands.

With hot-swappable installation, comprehensive diagnostic feedback, and proven compatibility across harsh industrial environments (-25°C to +60°C), the SD0204 minimizes commissioning complexity while maximizing system availability. TÜV-certified documentation and 12-month warranty included with every unit.

Core Features & Technical Advantages

✓ Dual-Certification Safety Compliance
SIL3 per IEC 61508 and PL e per ISO 13849-1 certification ensures your safety functions meet international regulatory standards. Ideal for machinery directive compliance and functional safety validation.

✓ 8 Independent Safety-Rated Outputs
24V DC outputs with 2A switching capacity per channel. Dual-channel architecture with cross-monitoring provides single-fault tolerance, critical for emergency stop circuits and safety relay control.

✓ Advanced Diagnostic Coverage (>99%)
Integrated self-test routines detect output failures, short circuits, and wiring faults in real-time. LED status indicators and bus-level diagnostics reduce troubleshooting time by 60% compared to legacy safety modules.

✓ Rapid Response Time (<10ms)
Fast switching ensures safety functions activate within critical time windows required by risk assessments. Meets demanding response requirements for high-speed production equipment.

✓ Hot-Swappable Design
Replace modules without system shutdown or backplane power-down. Reduces maintenance windows and supports predictive replacement strategies in 24/7 operations.

✓ Extended Environmental Rating
Operates reliably from -25°C to +60°C with IP20 protection. ATEX Zone 2 compliant and marine-certified (DNV-GL, ABS) for offshore and hazardous area installations.

Application Scenarios & Industry Use Cases

→ Emergency Stop System Control
Drive safety contactors and brake circuits in automated machinery. The SD0204's certified outputs ensure emergency stop buttons trigger immediate power disconnection, meeting ISO 13850 requirements for Category 0 and Category 1 stops.

→ Safety Light Curtain & Guard Interlock Integration
Interface with Type 4 safety light curtains and guard door switches to create protective safety zones. Dual-channel outputs prevent dangerous machine motion when personnel enter hazardous areas, critical for robotic work cells and press brake applications.

→ Process Industry Shutdown Logic
Execute safe state transitions in chemical reactors, oil & gas separation units, and pharmaceutical batch processes. SIL3 rating supports safety instrumented functions (SIF) in layers of protection analysis (LOPA) frameworks.

→ Collaborative Robot Safety Systems
Manage safety-rated outputs for collaborative robot applications per ISO/TS 15066. Control power and force limiting (PFL) circuits, safe standstill monitoring, and speed/separation monitoring functions.

→ Conveyor & Material Handling Safety Networks
Coordinate emergency stops across distributed conveyor systems. The SD0204's bus communication enables zone-based shutdown strategies, preventing product damage while ensuring personnel safety.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SD0204 when your application requires certified SIL3/PL e safety outputs with diagnostic feedback. For non-safety applications or higher channel counts, consider the DO232 (32-channel standard output) or DIO216 (combined I/O). Pair with Bachmann SLC284 safety controller for complete safety system integration.

Extended Functionality & System Integration

M-Base Engineering Software Integration: Configure output behavior, diagnostic thresholds, and safety parameters through Bachmann's M-Base platform. Supports IEC 61131-3 programming languages (ST, FBD, LD) for custom safety logic implementation.

Fieldbus Connectivity: Communicates via Bachmann's high-speed M-Bus backplane. Optional gateways support PROFINET, EtherCAT, and Modbus TCP integration for multi-vendor automation architectures.

Customization Options: Factory configuration available for specific output characteristics, pre-loaded safety programs, and custom diagnostic reporting. Contact our application engineering team for project-specific requirements.

Delivery Timeline & Service Commitments

Standard Delivery: Factory-calibrated and tested units ship within 3-5 business days from order confirmation. All modules include TÜV certification documentation and installation guides.

Express Service: 24-hour expedited shipping available for critical project timelines and emergency replacement scenarios.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for high-availability applications.

Technical Support: Access to Bachmann-certified application engineers for configuration assistance, safety validation support, and troubleshooting. Remote diagnostic services available for commissioned systems.

Documentation Package: Includes installation manual, safety certification documents, wiring diagrams, M-Base configuration files, and compliance declarations.

Frequently Asked Questions

How does the SD0204 integrate with existing Bachmann M1 automation systems?
The SD0204 features plug-and-play compatibility with all Bachmann M1 controllers and backplanes. Simply insert the module into any available slot, configure via M-Base engineering software, and the system automatically recognizes the safety I/O. No special adapters or firmware updates required for systems manufactured after 2015.

What safety certifications does this module carry for machinery compliance?
The SD0204 holds TÜV-certified SIL3 rating per IEC 61508 and PL e rating per ISO 13849-1. Additional certifications include CE (Machinery Directive 2006/42/EC), UL508 (industrial control equipment), cULus, and ATEX Zone 2 for potentially explosive atmospheres. Complete certification documentation ships with each unit.

Can the SD0204 control standard non-safety loads in mixed applications?
While the SD0204 is engineered for safety-critical outputs, it can control standard 24V DC loads. However, for cost-effective non-safety applications, we recommend the DO232 module which offers 32 channels at lower per-channel cost. The SD0204's value proposition centers on certified safety performance and diagnostic capabilities.

What is the typical response time for emergency stop circuit activation?
The SD0204 achieves <10ms response time from input signal to output state change, meeting Category 3 and Category 4 emergency stop requirements per ISO 13850. This includes internal diagnostic verification and dual-channel cross-checking, ensuring both speed and safety integrity.

Does the module support remote monitoring and predictive maintenance?
Yes, the SD0204 provides comprehensive diagnostic data via the M-Bus backplane, including output current monitoring, fault counters, and switching cycle tracking. This data integrates with SCADA systems and condition monitoring platforms for predictive maintenance strategies, reducing unplanned downtime by up to 40%.

What installation requirements apply for SIL3 certification validity?
To maintain SIL3 certification, install the SD0204 in IP20-rated control cabinets with proper grounding per IEC 61131-2. Use shielded cables for output wiring in high-EMI environments, and follow Bachmann's installation guidelines for safety circuit separation. Our technical support team can review installation drawings for compliance verification.
