Schneider VDM01D10AA00 Retrofit-Compatible Ruggedized Servo Drive

Schneider VDM01D10AA00 Retrofit-Compatible Ruggedized Servo Drive for Legacy Systems

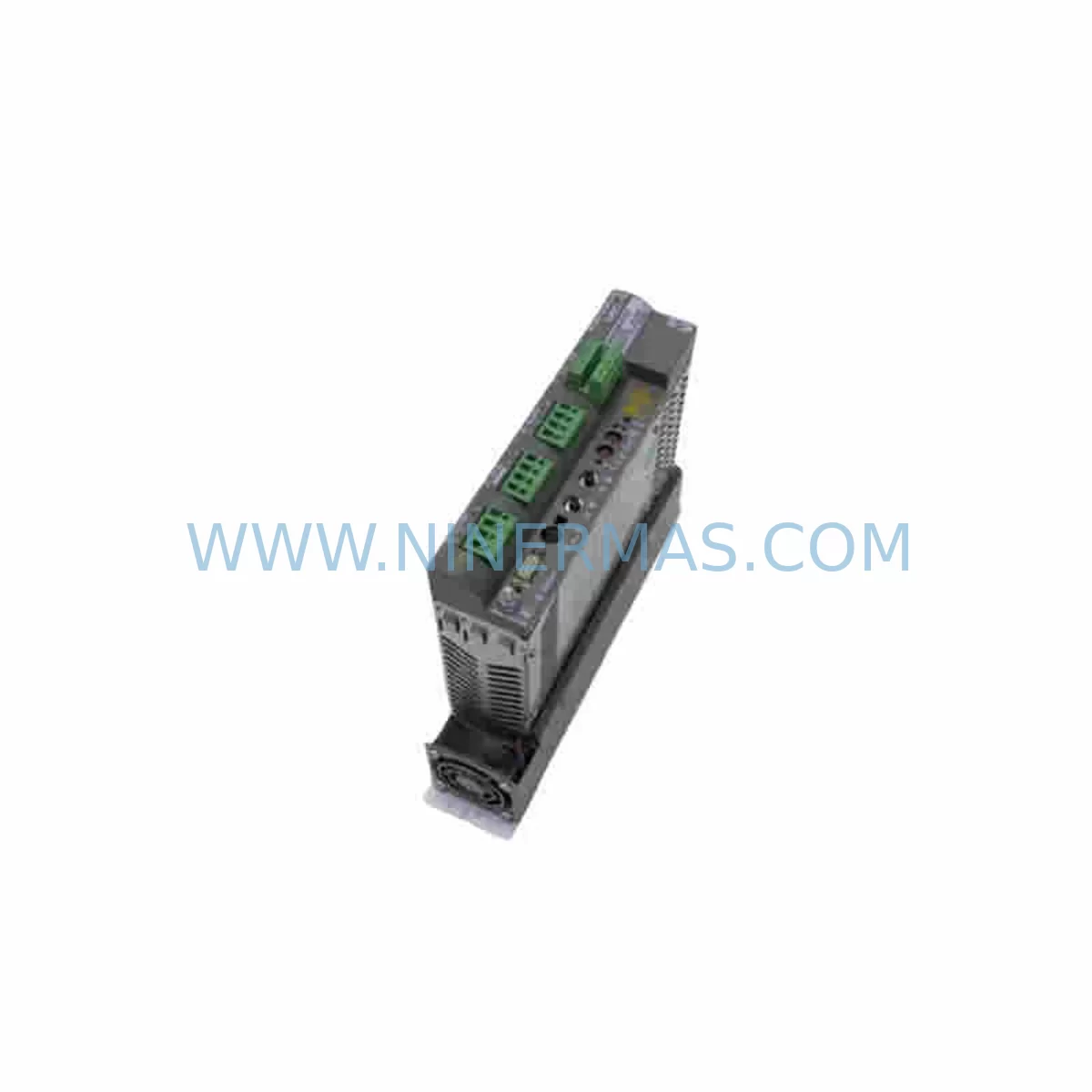

The Schneider Electric VDM01D10AA00, rated under the MC-4/11/10/400 specification (11A continuous / 10A peak / 400V AC), is a ruggedized AC servo drive engineered for demanding industrial environments. Originally deployed across precision motion control applications in discrete manufacturing, packaging lines, and process automation, this drive remains a critical spare and retrofit component for facilities operating legacy Lexium servo platforms. NINERMAS maintains verified stock of the VDM01D10AA00 with pre-shipment functional testing and a 12-month warranty, supporting customers through planned upgrades, emergency replacements, and long-term lifecycle extension programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the VDM01D10AA00 into an existing control architecture, the retrofit scope typically extends well beyond the drive itself. Engineers must audit the full motion axis — from the servo motor through the drive, back to the motion controller and HMI. In most legacy Lexium installations, the drive pairs with BSH or BSL series servo motors, and the encoder cable pinout must be verified against the new drive’s feedback connector before powering up. If the original motor uses a SinCos encoder, confirm that the VDM01D10AA00 variant on hand supports that feedback type; incremental encoder variants are not interchangeable without parameter adjustment.

On the power side, the MC-4/11/10/400 drive requires a stable 3-phase 400V supply. In older control cabinets, the upstream ABL8 series power supply modules or dedicated servo transformer taps should be load-checked to confirm they can sustain the drive’s inrush and continuous demand without tripping protective devices. If the cabinet also houses Lexium 32 or Lexium 62 drives on adjacent axes, ensure the DC bus sharing configuration — if applicable — is re-validated after the swap.

For PLC integration, the VDM01D10AA00 communicates via CANopen or Modbus RTU depending on the firmware and hardware variant. If the host controller is a Modicon M340 or M580 PLC, the motion function blocks in the application program must reference the correct axis address and drive profile. Before disconnecting the old drive, export the full parameter set using PowerSuite or SoMachine Motion software. This parameter backup is essential — it captures tuning gains, speed limits, torque limits, homing offsets, and fault response configurations that took significant commissioning time to establish on the original installation.

Terminal wiring is another critical checkpoint. The VDM01D10AA00 uses a specific connector layout for the motor power output (U/V/W phases and PE), the brake control output, the I/O logic connector (enable, fault reset, digital inputs), and the encoder feedback connector. When replacing a failed drive in an emergency, technicians often find that the original wiring labels have faded or that the previous installer used non-standard color coding. A full terminal-by-terminal continuity check against the original wiring diagram — or against the drive’s I/O connector pinout in the Schneider technical manual — prevents miswiring faults that can damage the replacement unit on first power-up.

If the retrofit involves a communication protocol migration — for example, moving from a legacy CANopen motion network to a newer EtherCAT or Sercos III backbone — the VDM01D10AA00 serves as a stable interim solution while the broader network upgrade is planned in phases. This approach allows production to resume on the repaired axis while the engineering team prepares the full migration to a next-generation platform such as the Lexium 62 ILM integrated servo or a PacDrive 3 LMC motion controller architecture.

For multi-axis systems, the retrofit plan should also account for TM5 or TM7 I/O expansion modules connected to the same controller. If the drive replacement triggers a firmware update on the motion controller, verify that the I/O module firmware versions remain compatible. Similarly, any XBTGT or XBTGK HMI panels displaying axis status, speed feedback, or fault codes should be tested after the drive swap to confirm that the communication link to the controller is intact and that the screen variables are reading correctly.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a servo drive on a live production line. The recommended approach is to pre-stage the VDM01D10AA00 replacement unit in the workshop before the maintenance window begins. This means verifying the drive’s firmware version, loading the backed-up parameter file, and performing a bench-level power-on test with a known-good motor if one is available. Arriving at the machine with a pre-configured drive reduces the on-machine commissioning time from several hours to under 30 minutes in most cases.

During the swap, the original PLC program logic should not be modified. The motion axis parameters — including position loop gains, velocity feedforward, and fault thresholds — should be restored from the backup file rather than re-tuned from scratch. If the backup is unavailable, NINERMAS technical support can assist with default parameter recommendations based on the motor model and application type.

After the drive is installed and wired, the first power-up sequence should be performed with the motor mechanically uncoupled from the load if possible. Run the drive through its auto-tuning or identification routine to confirm encoder feedback integrity and motor phase sequence before reconnecting the mechanical load. This step catches wiring errors before they cause a load crash or mechanical damage.

For facilities with strict change management requirements, the retrofit should be documented with before-and-after photos of the wiring, a completed parameter comparison sheet, and a signed commissioning checklist. NINERMAS provides a standard retrofit documentation template upon request. All units shipped by NINERMAS undergo pre-shipment functional testing under load conditions, and each drive is accompanied by a test report confirming output current, encoder feedback signal quality, and communication link integrity.

Retrofit Support FAQ

Q1: Is the VDM01D10AA00 a direct drop-in replacement for all MC-4 series drives?
The VDM01D10AA00 is compatible with MC-4/11/10/400 rated applications. Other MC-4 variants with different current or voltage ratings (e.g., MC-4/22/10/400 or MC-4/11/10/200) are not direct substitutes. Always verify the full MC-4 rating code on the original drive nameplate before ordering. NINERMAS can cross-reference your nameplate data to confirm compatibility.

Q2: What commissioning steps are required after installation?
After physical installation and wiring, restore the parameter backup via PowerSuite or SoMachine Motion. Perform an encoder identification run with the motor uncoupled, then verify the enable signal, fault reset logic, and communication link to the PLC. Run the axis through a slow-speed jog cycle before returning to full production speed. Total commissioning time is typically 20–45 minutes with a pre-loaded parameter file.

Q3: Does NINERMAS test the drive before shipment?
Yes. Every VDM01D10AA00 unit is functionally tested under power before shipment. The test covers DC bus charging, output phase balance, encoder feedback signal integrity, and communication port response. A test report is included with each shipment. Units are shipped in anti-static packaging with foam protection to prevent transit damage.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect wiring, overvoltage events, environmental contamination beyond the drive’s IP rating, or unauthorized modification. Warranty claims are processed through NINERMAS directly — contact sale@ninermas.com with the order number and fault description to initiate a return authorization.
