Schneider TSXDSY64T2K Retrofit-Compatible I/O Module for Legacy Systems

Schneider TSXDSY64T2K Retrofit-Compatible I/O Module for Legacy Systems

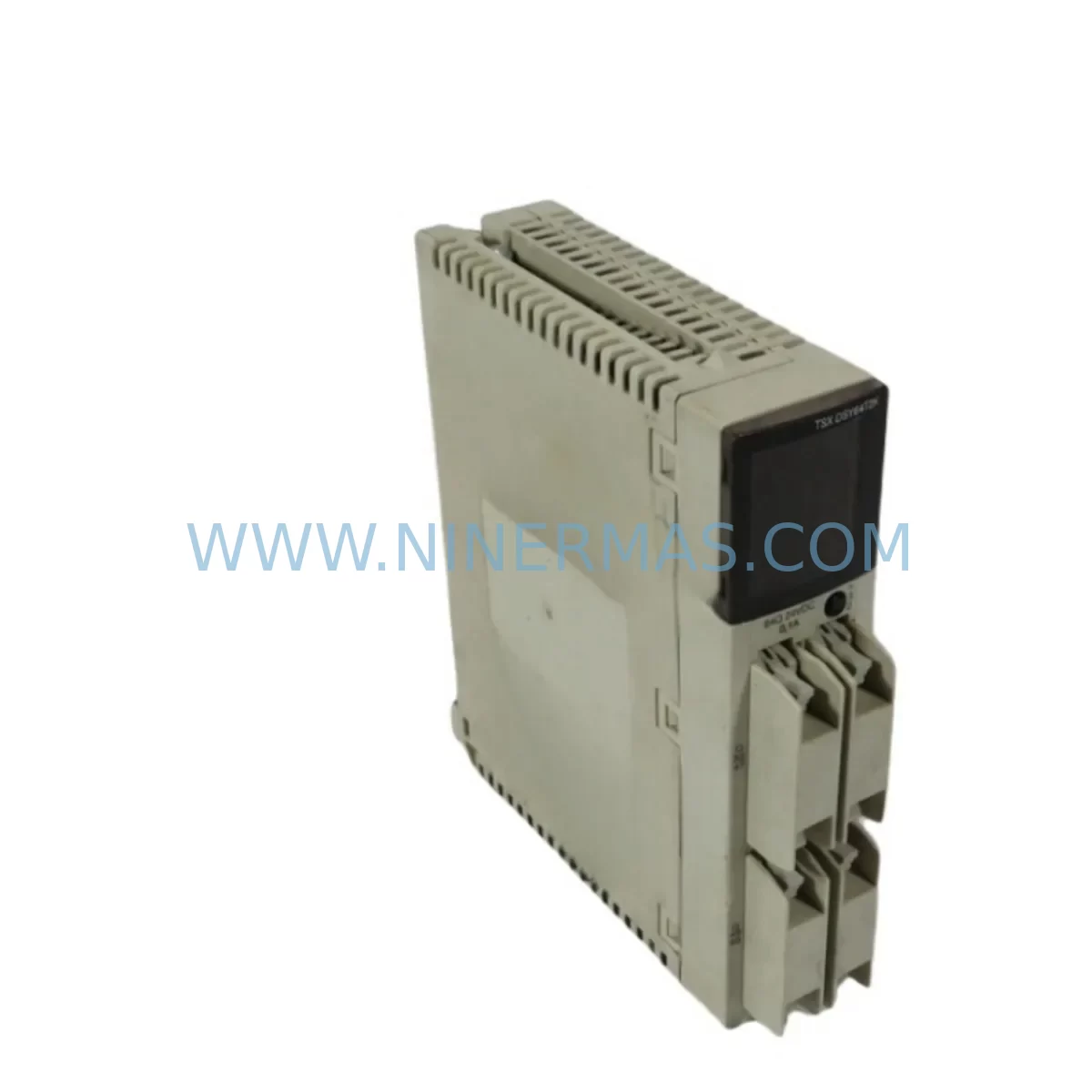

The Schneider Electric TSXDSY64T2K is a 64-channel discrete output module designed for the TSX Series programmable logic controller platform. As production lines age and original equipment manufacturers discontinue support for legacy automation hardware, the TSXDSY64T2K remains one of the most sought-after retrofit-compatible components for engineers tasked with modernizing existing control architectures without a full system overhaul. NINERMAS maintains verified stock of this module to support planned maintenance windows, emergency replacements, and phased upgrade projects across manufacturing, utilities, and process industries.

Whether you are replacing a failed output module in a running production cell, expanding I/O capacity in an aging control cabinet, or migrating from an end-of-life TSX Micro or TSX Premium rack to a current-generation platform, the TSXDSY64T2K provides a reliable, tested, and immediately deployable solution. Each unit shipped by NINERMAS undergoes functional verification prior to dispatch and is covered by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TSXDSY64T2K into an existing control system begins well before the module arrives on site. Engineers should start by auditing the current rack configuration — typically a TSX RKY12EX or TSX RKY8EX backplane — to confirm available slot positions and verify that the installed TSX PSY2600M or TSX PSY5500M power supply module can sustain the additional 24 VDC field load introduced by the new output channels.

Terminal wiring is one of the most time-sensitive steps in any retrofit. The TSXDSY64T2K uses dual HE10 40-pin connectors, and in most legacy installations these connectors are pre-wired to field junction boxes via ribbon cable harnesses. Before removing the failed or obsolete module, photograph and label every harness, confirm pin assignments against the original electrical drawings, and inspect connector housings for oxidation or mechanical damage. If the original harnesses are degraded, replacement HE10 cables should be sourced alongside the module to avoid extending the maintenance window.

Module addressing must be restored precisely. In PL7 Pro projects, the TSXDSY64T2K is addressed by rack number and slot position. If the replacement module occupies the same physical slot as the original, the address mapping in the application program requires no modification. However, if the slot position changes — for example, because the original slot is mechanically damaged — the program must be updated in Unity Pro or PL7 Pro, and all affected output symbols re-mapped before downloading to the TSX P57 CPU or TSX Premium processor module.

For projects that involve expanding I/O capacity rather than simple replacement, the TSXDSY64T2K can be added to an existing rack alongside analog input modules such as the TSX AEY414 or communication modules like the TSX ETY110 Ethernet module. When adding the TSXDSY64T2K to a rack that already hosts a TSX SCY21601 serial communication module, verify that the total backplane current draw remains within the rack’s rated capacity. If the existing rack is fully populated, a rack extension using a TSX RKY4EX sub-rack and the appropriate extension cable may be required.

HMI screens linked to the output channels controlled by the TSXDSY64T2K — whether running on a Magelis XBTGT panel or a SCADA workstation — should be reviewed to confirm that symbol names and I/O addresses remain consistent after the module swap. Any mismatch between the HMI variable table and the updated PLC program will result in display errors or loss of operator visibility during the first post-retrofit production run.

For sites migrating from TSX Micro to TSX Premium or from TSX Premium to a Modicon M340 platform, the TSXDSY64T2K can serve as an interim output module during a phased migration, allowing the new CPU to control legacy field devices while the full I/O migration is completed in stages. In this scenario, a TSXCBY100 inter-rack cable or a BMX XBP 0800 Modicon M340 rack may be part of the broader upgrade bill of materials, depending on the target architecture.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team replacing a discrete output module in a live production environment. The TSXDSY64T2K supports a structured hot-swap procedure when the TSX CPU is placed in STOP mode: the field power to the HE10 connectors is isolated, the module is extracted, the replacement is seated and locked, field power is restored, and the CPU is returned to RUN mode. Total elapsed time for a trained technician performing a like-for-like replacement in a well-documented system is typically under 30 minutes.

To protect the original program logic, always create a verified backup of the PL7 Pro or Unity Pro project before beginning any hardware work. Store the backup on a local engineering workstation and on a removable medium kept in the control room. If the CPU memory has been corrupted as part of the failure event that necessitated the module replacement, having a current backup eliminates the risk of extended downtime caused by program reconstruction.

Field control continuity during the swap can be maintained by placing downstream actuators — conveyors, solenoid valves, motor starters — in a safe hold state using the process interlock logic already present in the application program. Coordinate with the production supervisor to confirm that all field devices controlled by the affected output group are in a known safe position before isolating field power. This approach eliminates the risk of uncontrolled actuator movement during the module exchange and reduces the likelihood of a safety incident that could extend the maintenance window far beyond the planned duration.

For sites where even a brief STOP-mode intervention is unacceptable, NINERMAS can provide advance stock of the TSXDSY64T2K as a pre-positioned spare, allowing the maintenance team to execute the swap during the next scheduled micro-stop or shift changeover rather than responding reactively to a module failure. Inventory availability and lead times are confirmed at the time of order, and express dispatch is available for urgent requirements.

Retrofit Support FAQ

Q1: Is the TSXDSY64T2K a direct drop-in replacement for other TSX Series 64-channel output modules?
The TSXDSY64T2K is the standard 64-channel transistor source output module for the TSX Series platform and is the designated replacement for earlier TSX DSY64T2 variants. Confirm the output type (source vs. sink) and connector type (HE10 vs. screw terminal) of the module being replaced before ordering. NINERMAS technical support can assist with cross-reference verification based on your existing module part number.

Q2: What programming cable and software are required to commission the TSXDSY64T2K after installation?
The module is configured through the PLC CPU using PL7 Pro (for TSX Micro and TSX Premium platforms) or Unity Pro (for TSX Premium and Modicon M340 migration projects). Connection to the CPU is made via a TSXPCX3030 USB-to-serial programming cable or a TSXPCX1031 serial cable, depending on the CPU’s programming port type. NINERMAS can advise on cable compatibility for your specific CPU reference.

Q3: Does NINERMAS test the TSXDSY64T2K before shipment, and what warranty is provided?
Yes. Every TSXDSY64T2K unit dispatched by NINERMAS undergoes a functional output channel verification test prior to shipment. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. A test certificate is available on request for quality-controlled procurement processes.

Q4: What is the typical lead time, and can NINERMAS supply multiple units for a fleet-wide retrofit?
In-stock units are dispatched within 1–3 business days. For fleet-wide retrofit projects requiring multiple TSXDSY64T2K modules — or a combination of output modules, power supplies, and communication modules — NINERMAS can provide a consolidated quotation with confirmed availability. Contact the sales team to discuss project quantities, staged delivery schedules, and volume pricing.
