Schneider SM100-40-080-P0-45-S1-B1 Service-Ready Spare Part

Schneider SM100-40-080-P0-45-S1-B1 Service-Ready Spare Part for Industrial Maintenance

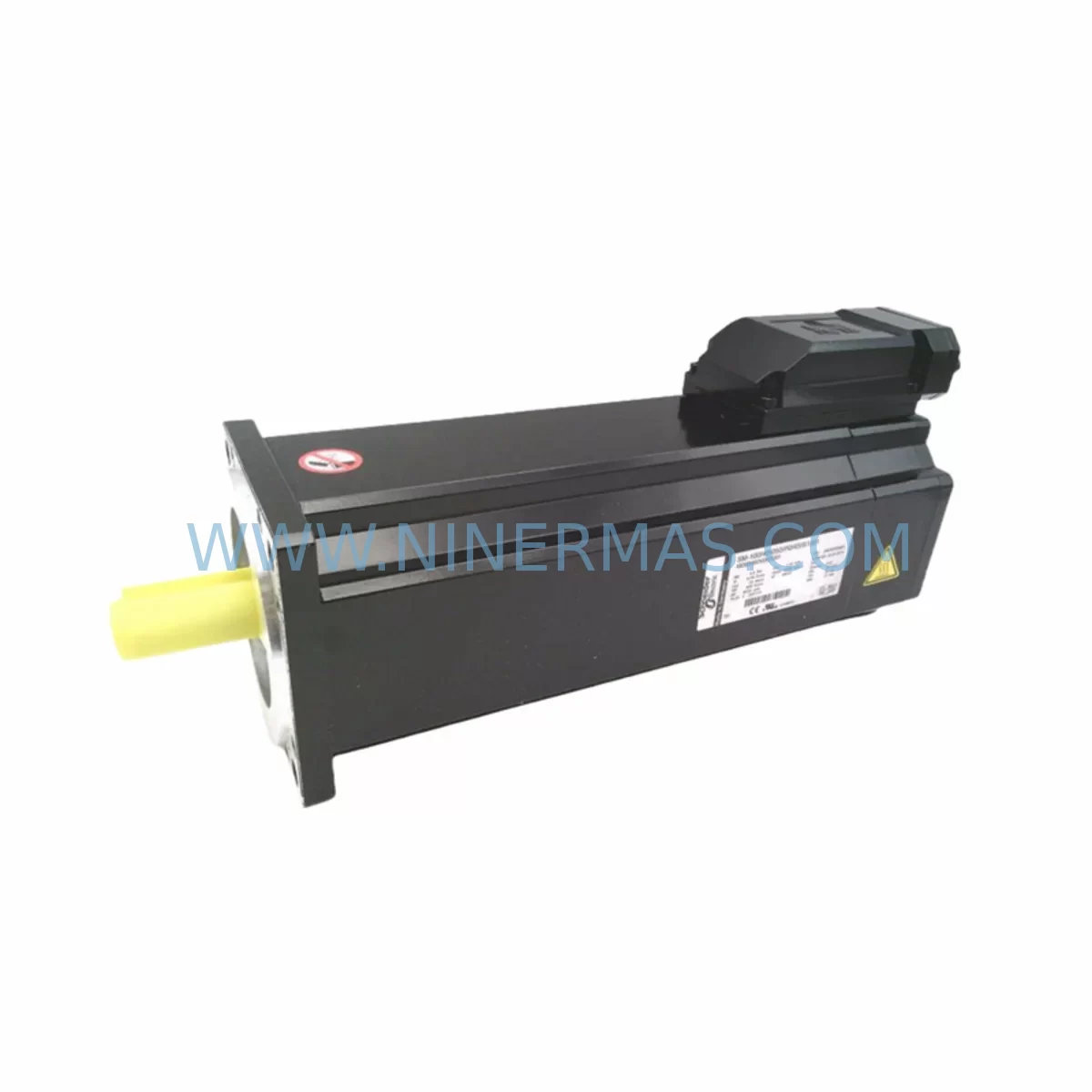

The Schneider Electric SM100-40-080-P0-45-S1-B1 is a precision servo motor from the Lexium series, engineered for demanding industrial automation environments. As a service-ready spare part, this unit is sourced to support maintenance engineers and procurement teams managing production continuity, minimizing unplanned downtime, and sustaining aging automation systems well beyond their original lifecycle. Whether you are executing a scheduled annual overhaul, responding to an emergency motor failure, or building a strategic spare parts inventory for a multi-axis motion control cabinet, the SM100-40-080-P0-45-S1-B1 delivers the original performance specifications required for seamless drop-in replacement.

The Lexium SM100 series is widely deployed across packaging lines, material handling systems, CNC machining centers, and assembly automation platforms. Its compact frame, high torque density, and compatibility with Schneider’s Lexium drive ecosystem make it a critical component in both legacy and current-generation motion control architectures. When this motor fails or shows signs of degradation — such as encoder feedback errors, thermal shutdowns, or abnormal vibration — rapid replacement with an original spare is the most reliable path to restoring full production capacity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SM100-40-080-P0-45-S1-B1 in a live production environment requires a structured approach that goes beyond swapping the motor itself. Maintenance engineers should treat this replacement as an opportunity to audit the entire motion control loop and associated electrical infrastructure within the control cabinet.

Begin with the servo drive. The Lexium LXM32M or LXM62 drive paired with this motor should be inspected for firmware version compatibility, DC bus voltage stability, and any stored fault codes that may indicate a pre-existing drive issue rather than a pure motor failure. A degraded drive can damage a new motor within hours of commissioning if the root cause is not addressed first.

Next, inspect the motor power cable and encoder feedback cable. Connector wear, insulation breakdown, or shield continuity loss in the encoder cable are common causes of recurring SM100 faults. Replacing the motor without replacing a damaged cable assembly will result in repeat failures. Ensure the cable routing avoids sharp bends and that cable carriers (energy chains) are in serviceable condition.

The 24 VDC control power supply feeding the brake circuit of the B1 variant must be verified for output stability. A fluctuating brake supply voltage can cause the holding brake to engage intermittently during operation, leading to mechanical stress and premature motor bearing wear. Check the Phaseo ABL7 or equivalent 24V SMPS output under load before commissioning the replacement motor.

For multi-axis systems, also verify the Lexium motion controller — such as the LMC058 or Modicon M262 — for axis configuration integrity. After a motor swap, axis parameters including encoder resolution, current limits, and homing sequences must be re-validated. A corrupted axis configuration in the controller can prevent the new motor from reaching its rated performance.

Inspect the I/O module handling the motor’s enable signal, fault output, and limit switch inputs. Faulty I/O channels on a TM3 or TM5 expansion module can simulate motor faults or prevent proper drive enable, masking the true system status. Similarly, check the safety relay or STO (Safe Torque Off) circuit — if the STO input is not correctly wired and energized, the drive will not release the motor regardless of command signals.

Terminal blocks and Linergy or Schneider Linergy DS terminal strips within the cabinet should be inspected for loose connections, oxidation, and correct torque on all power terminals. A high-resistance connection in the motor phase wiring will cause thermal stress and uneven torque output. Use a torque screwdriver and thermal camera during the inspection cycle.

Finally, if the system includes a Magelis HMIGTO or HMISCU HMI panel, verify that the axis status display and alarm history are functioning correctly after the motor replacement. Clearing historical alarms and confirming that the new motor’s operational data is being logged correctly ensures that the maintenance record remains accurate for future reference and audit compliance.

For facilities managing multiple SM100-series motors across production lines, maintaining a minimum stock of one spare SM100-40-080-P0-45-S1-B1 per critical axis — alongside spare encoder cables, a backup 24V power supply module, and a set of terminal block connectors — is a proven strategy for reducing mean time to repair (MTTR) and protecting production throughput.

Site Replacement Workflow

Step 1 — Fault Isolation: Before removing the motor, record all active and historical fault codes from the Lexium drive HMI or SoMachine/EcoStruxure Machine Expert software. Confirm whether the fault is motor-side (encoder error, overcurrent, thermal) or drive-side (DC bus fault, IGBT overtemperature). This determines whether the motor alone requires replacement or whether the drive must also be serviced.

Step 2 — Safe Isolation: De-energize the drive via the main circuit breaker and wait for the DC bus to discharge below 50V (typically 5–10 minutes). Engage the mechanical brake manually if the axis is vertical or gravity-loaded. Lock out / tag out (LOTO) the cabinet before opening.

Step 3 — Motor Removal: Disconnect the power connector (typically MS or circular connector) and the encoder feedback connector. Label all cables before disconnection. Remove the motor mounting bolts (typically M6 or M8, IEC flange pattern) and carefully extract the motor from the mechanical coupling or gearbox. Inspect the coupling for wear and replace if necessary.

Step 4 — Replacement Installation: Mount the SM100-40-080-P0-45-S1-B1 replacement unit to the flange, torque mounting bolts to specification, and reconnect power and encoder cables. Verify that the brake connector polarity is correct for the B1 variant. Do not power up until all connections are verified.

Step 5 — Commissioning and Validation: Power up the drive and perform an auto-tuning sequence if required by the drive firmware. Validate encoder feedback signal quality, confirm brake release and engagement at correct voltage levels, and run the axis through its full travel range at reduced speed before returning to production speed. Log the commissioning date and motor serial number in the maintenance management system (CMMS).

This workflow reduces replacement time to under two hours for experienced technicians and ensures system compatibility is maintained without requiring PLC or controller reprogramming in standard swap scenarios.

Spare Parts Support FAQ

Q1: Is the SM100-40-080-P0-45-S1-B1 compatible with my existing Lexium 32 drive without parameter changes?
In most cases, yes. The SM100 series is natively supported by Lexium 32 (LXM32M) and Lexium 62 drives. The drive’s motor database includes the SM100 frame parameters. However, if the drive firmware is older than version 1.10, a firmware update may be required to correctly identify the motor’s encoder type. Always verify the motor-drive pairing in EcoStruxure Machine Expert before commissioning.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
All SM100-40-080-P0-45-S1-B1 units supplied by NINERMAS carry a 12-month warranty from the shipment date, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes encoder signal verification, winding resistance check, insulation resistance test (Megger), and brake engagement/release confirmation. A test report is available upon request.

Q3: Can you support long-term supply commitments for this part number?
Yes. NINERMAS specializes in long-term spare parts programs for industrial automation components, including discontinued and hard-to-source Schneider Electric Lexium series parts. We can support blanket purchase orders, consignment stock arrangements, and annual supply agreements to ensure your maintenance team always has access to critical spare parts without lead-time risk.

Q4: What should I do if the replacement motor shows an encoder fault immediately after installation?
First, verify that the encoder cable is fully seated and the connector locking ring is engaged. Check the cable shield continuity and ensure the shield is grounded at the drive end only (single-point grounding). If the fault persists, use the drive’s diagnostic menu to read the raw encoder signal — a value of 0 or a fixed non-changing value indicates a wiring fault rather than a motor fault. Contact our technical support team at sale@ninermas.com with the drive fault code and encoder diagnostic data for rapid remote assistance.
